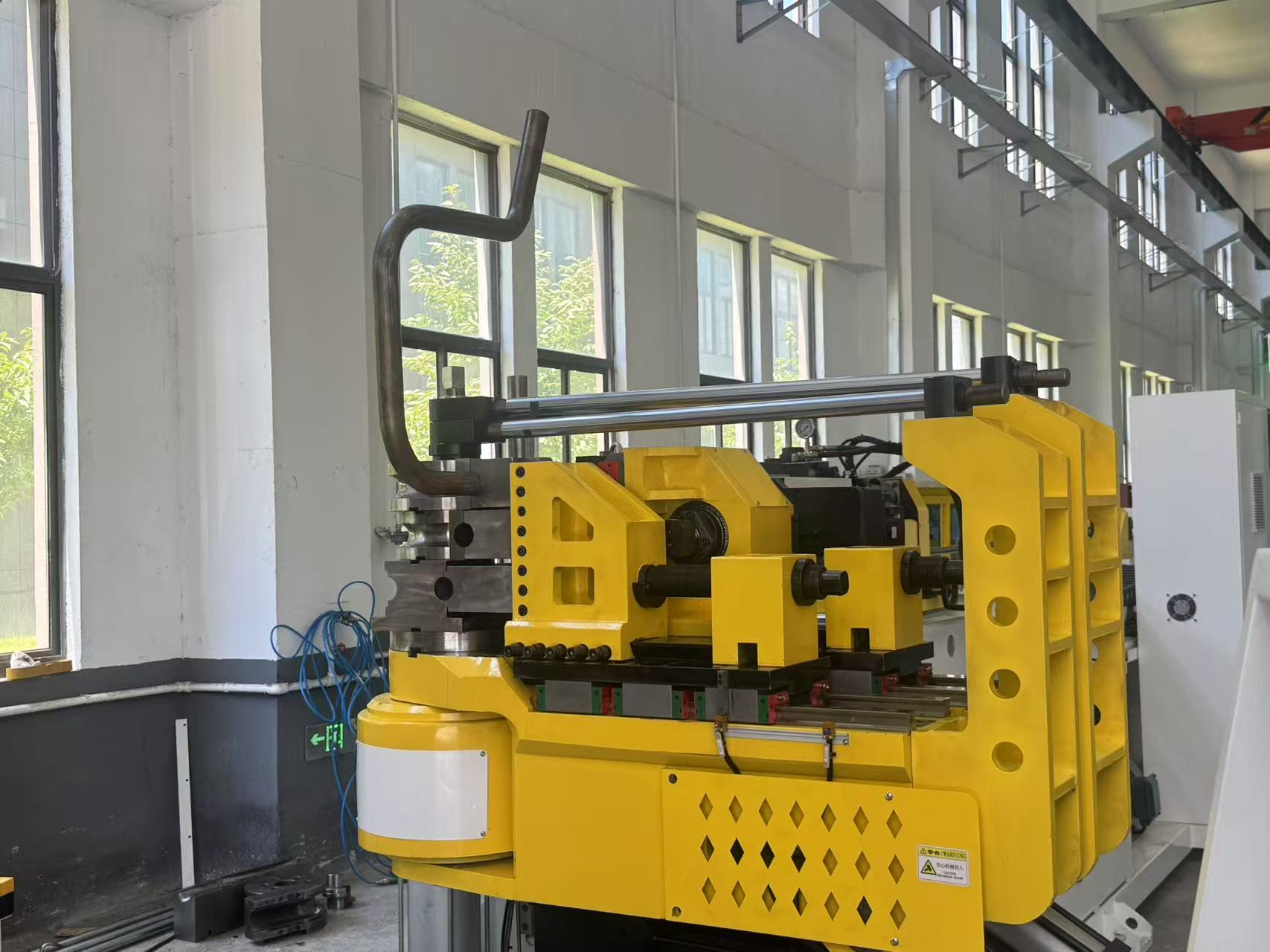

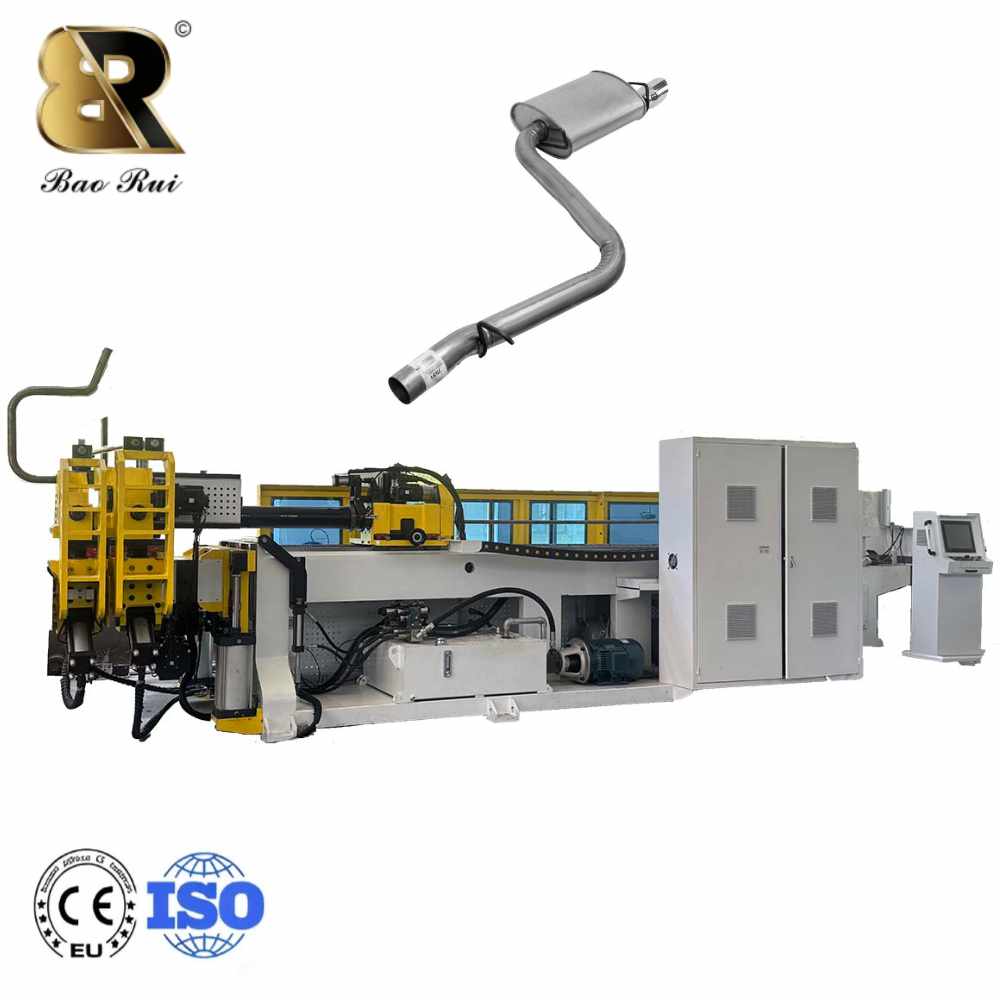

90CNC Tube Bending Machine Pipe Bending Machine 90mm CNC Fully Automatic 6 Axis for Bus Body Frame

Products Description

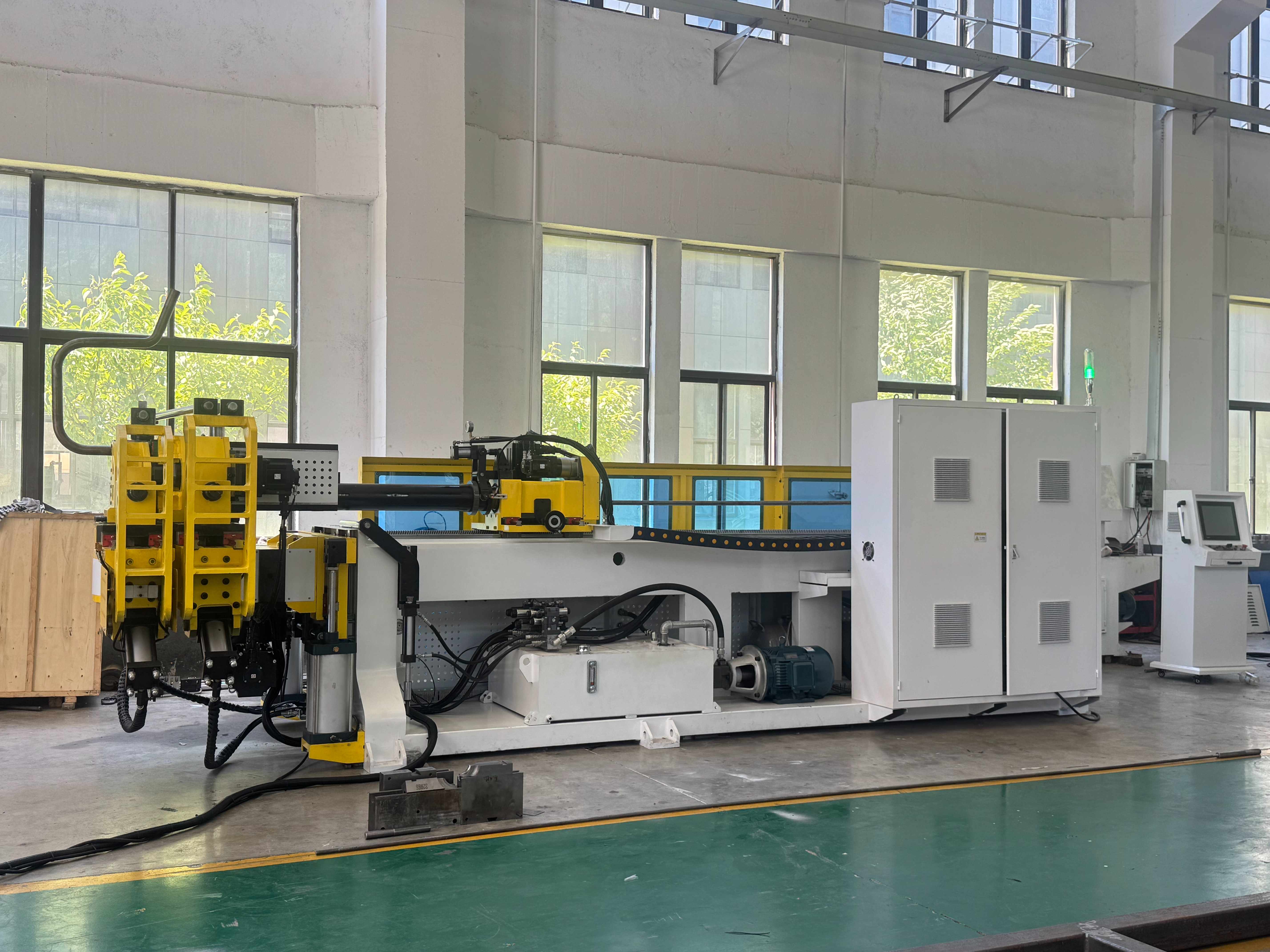

High Precision and Minimal Interference

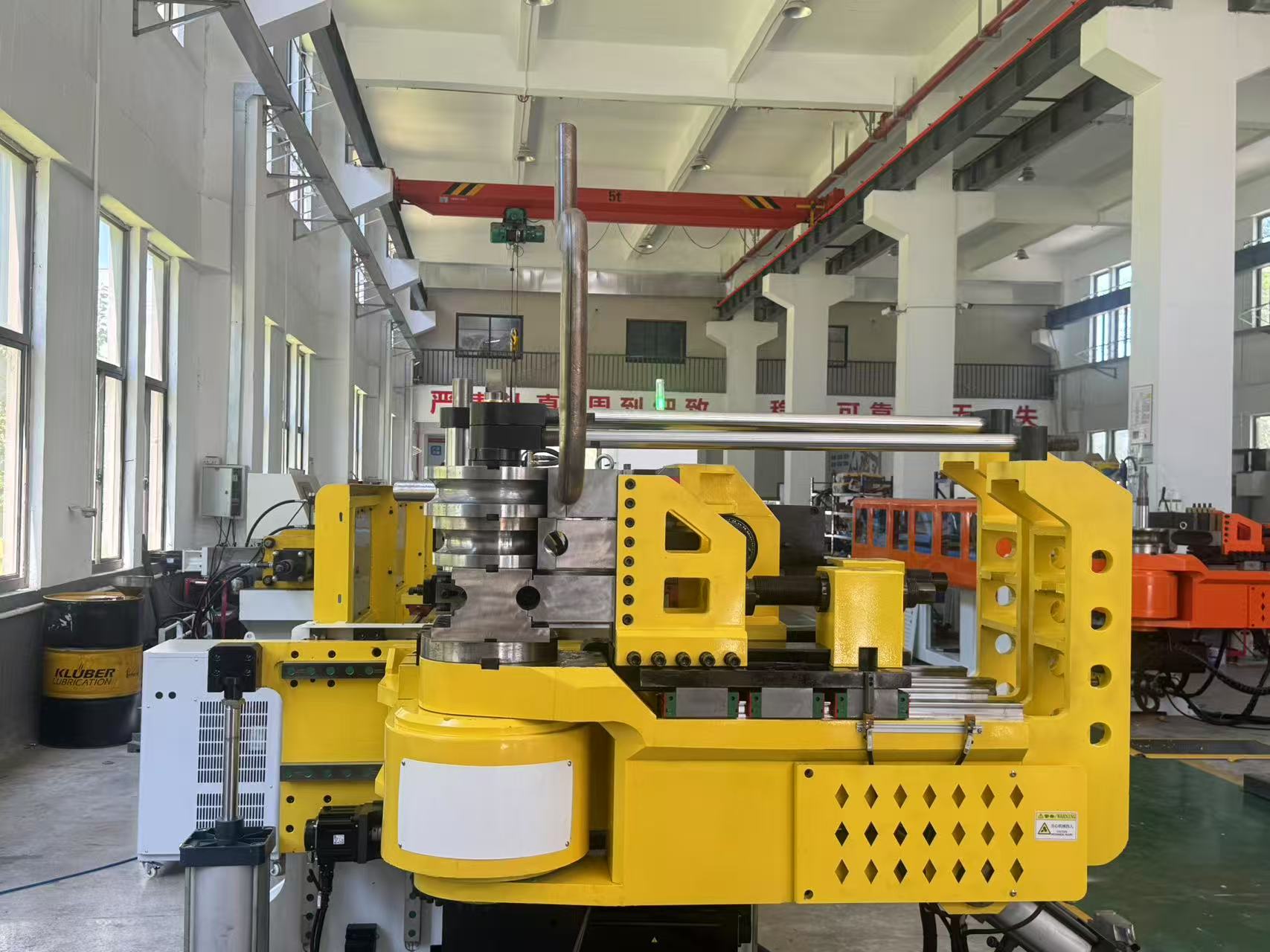

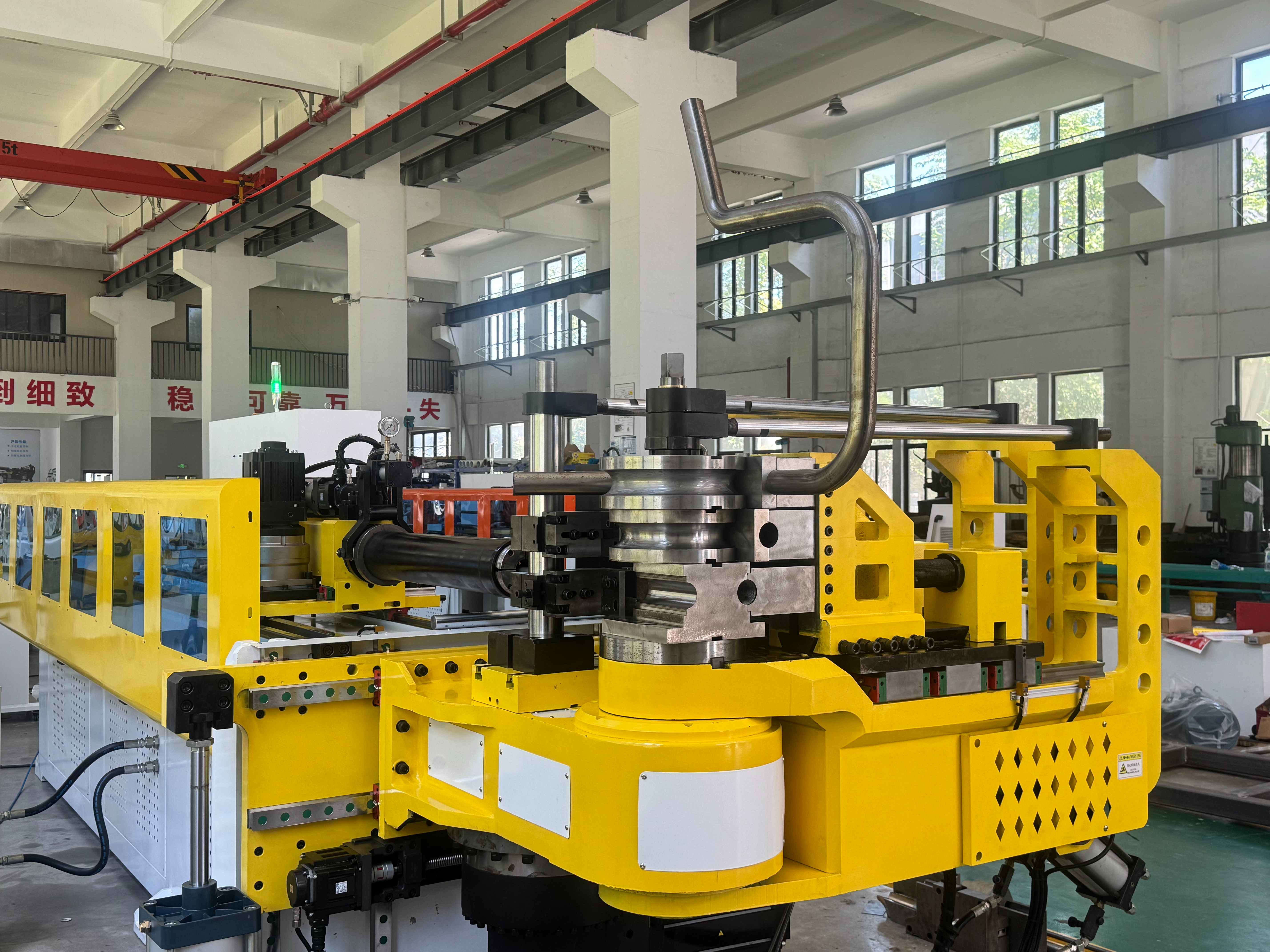

90CNC-5A-3ST 3D CNC Automatic Pipe Bending Machine features a high-rigidity mechanical structure design that conforms to the principles of dynamic mechanics, along with precision craftsmanship. While maintaining structural strength, its streamlined bending arm and bending head design provide maximum pipe bending space, minimizing the machine's interference range.

Automated and Intelligent

Equipped with an automated program control system, it ensures that even highly difficult bending tasks for various types of steel pipes can easily meet the dual requirements of mass production and high precision.

Detailed Features

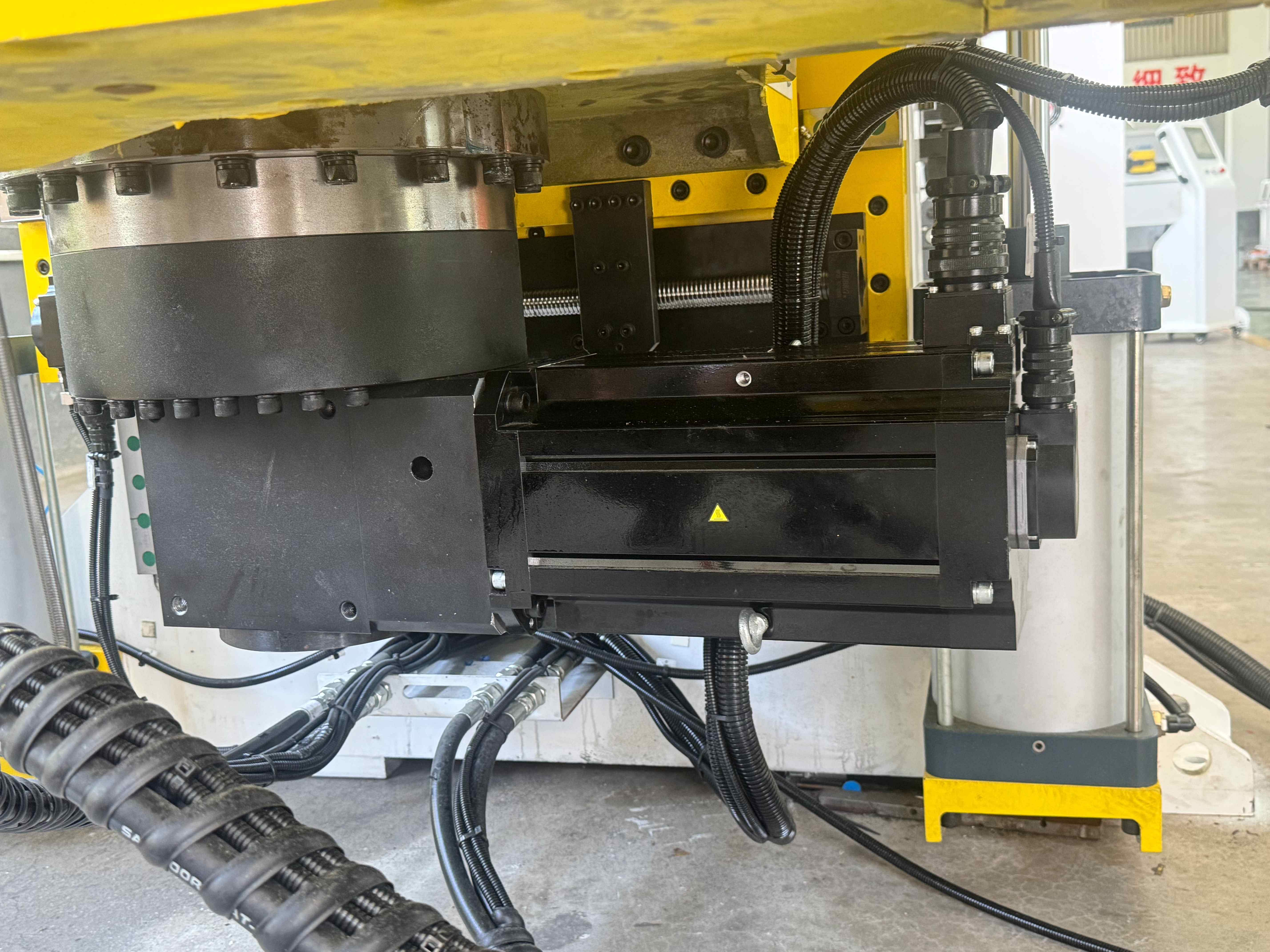

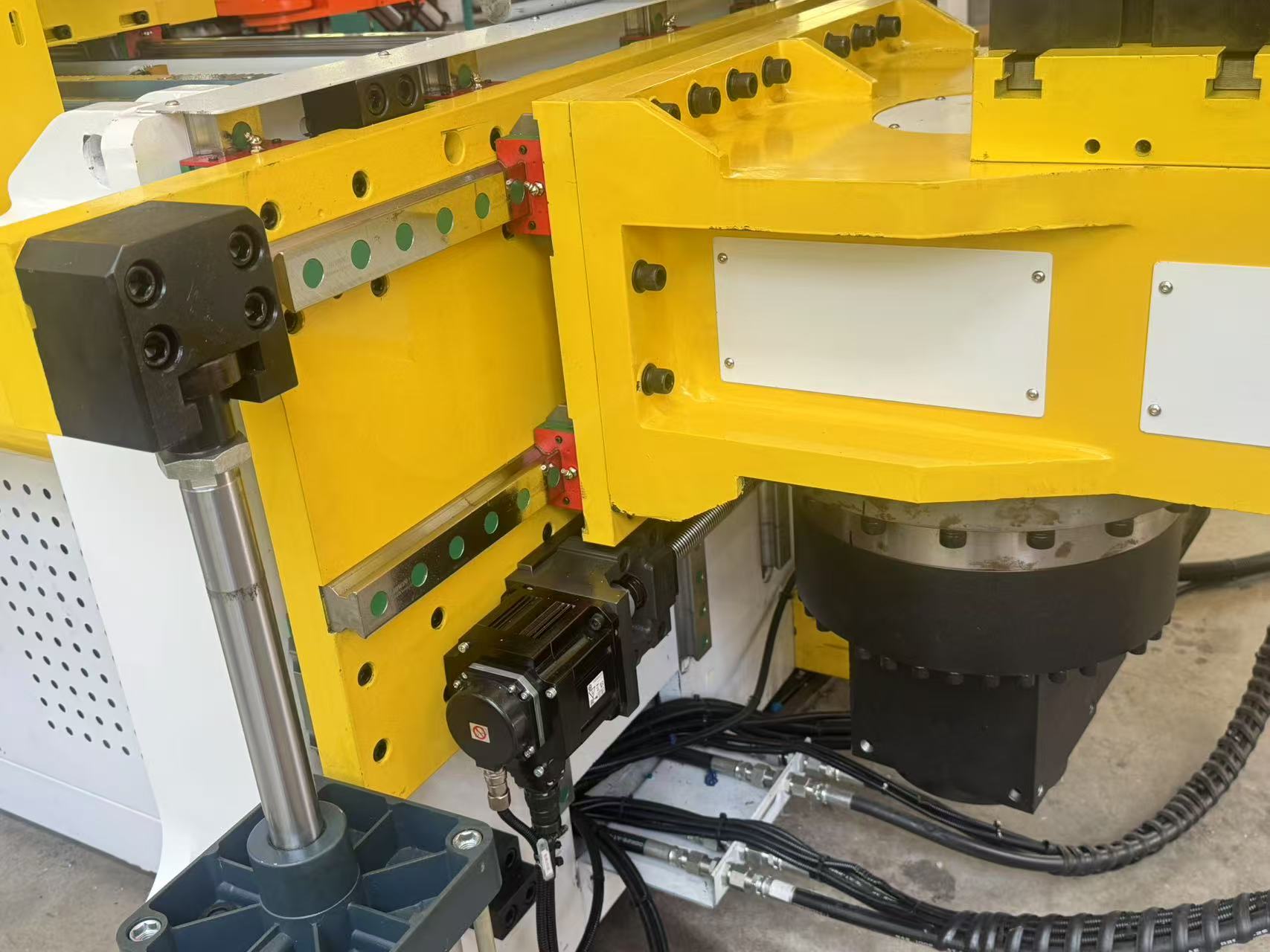

Every Motion Servo-Controlled: Y, B, C & Beyond

Y (feeding), B (tube rotation), C (tube bending), upper and lower die changing, and translational movement are all controlled by servo motors and drivers.

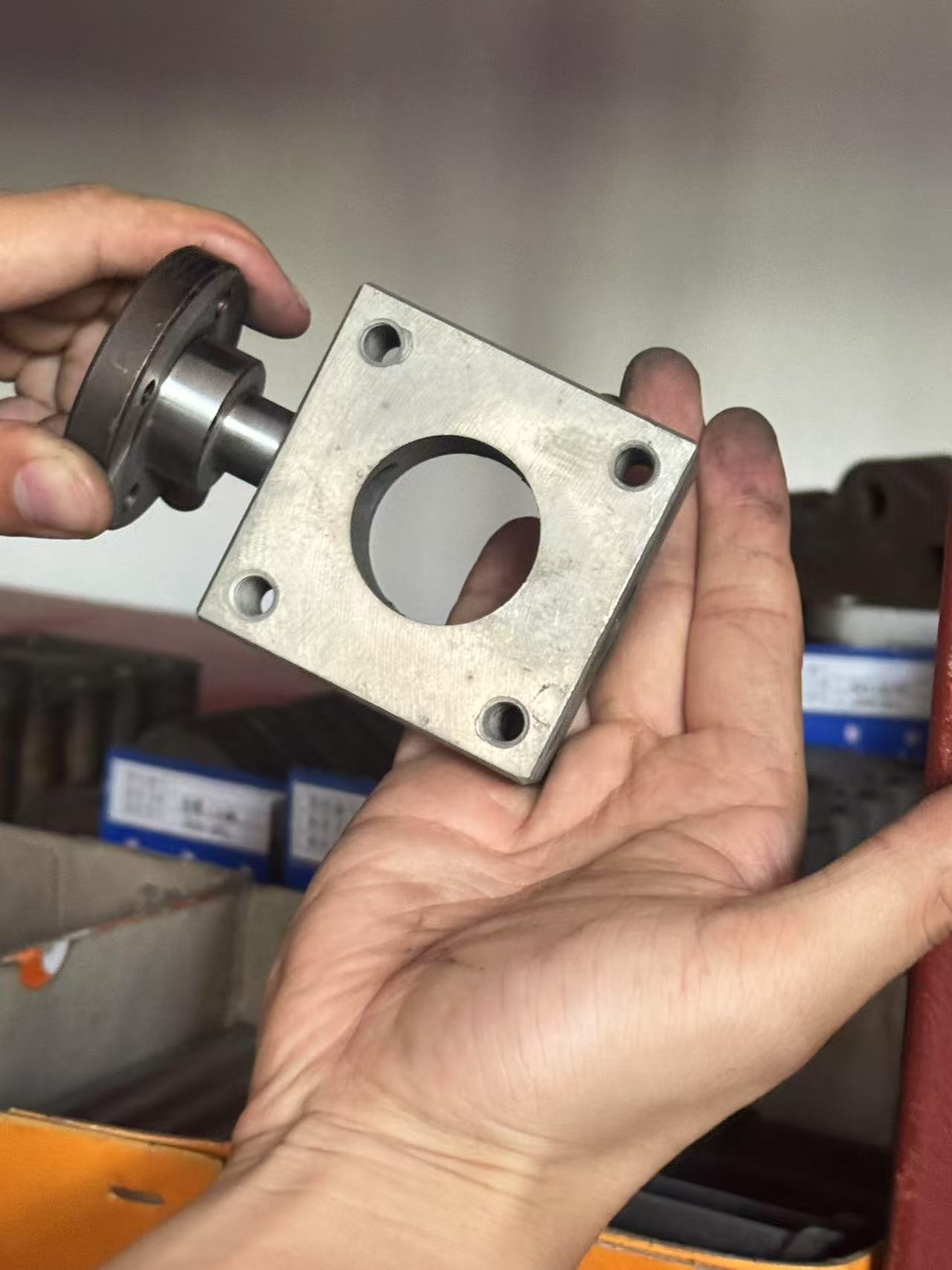

High-Precision Parts: Backbone of Stable, Accurate Production

Uses high-precision components—including precision rigid linear guides, and micro-level clamps—all finely machined and calibrated. These parts deliver ±0.01mm positioning accuracy (minimizing bending errors), reduce friction wear for longer service life, and ensure consistent quality with lower scrap rates in mass production.

Usage Scenarios

Product Parameters

Item	Unit	Parameter	Remarks
Maximum Bending Pipe Diameter	mm	Φ89×5t	Carbon Steel Pipe
Maximum Bending Radius	mm	R300
Minimum Bending Radius	mm	1.5D
Maximum Radius Difference	mm	120
Maximum Feeding Length	mm	3000
Feeding Method		1. Straight Feeding 2. Pinch Feeding	Optional
Maximum Bending Angle	Degree	190
Controller Used		Industrial Computer	Optional
Max. Bends per Pipe	pcs	45
Bending Speed	Deg/sec	90	Adjustable
Tube Rotation Speed	Deg/sec	180	Adjustable
Feeding Speed	Mm/sec	700	Adjustable
Feeding Precision	mm	±0.1
Tube Rotation Precision	Degree	±0.1
Tube Rotation Servo Motor Power	Kw	2
Feeding (Strong Push) Servo Motor Power	Kw	7
Bending Servo Motor Power	Kw	15
Horizontal Die-Shifting Servo Motor Power	Kw	1.5
Vertical Die-Changing Servo Motor Power	Kw	5
Data Input Method		1. Coordinate Values (X, Y, Z) 2. Working Values (Y, B, C)
Hydraulic Motor Power	Kw	11
Maximum Pressure	MPa	14	Adjustable
Hydraulic System Control		Solenoid Directional Valve
Oil Tank Capacity	L	250
Machine Weight	Kg	Approx. 9000
Machine Dimensions	mm	5800×1700×1400

Product Configuration

For Different Customers

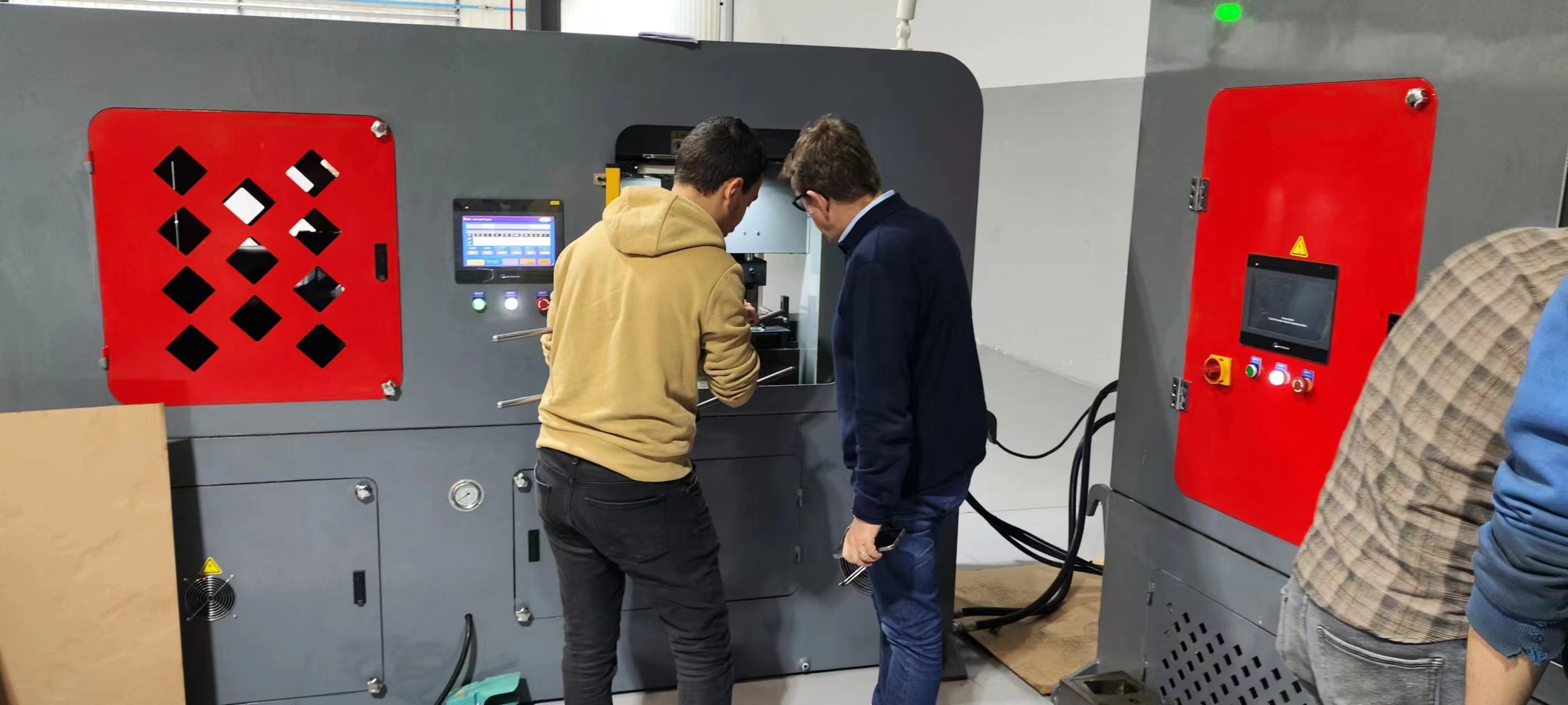

For End-Users (Direct Purchasers)

Your key concerns:

Uncertain if the equipment aligns with your production needs (materials, precision, throughput)?
Fret over poor durability or frequent breakdowns disrupting operations?
Frustrated by slow after-sales support that delays production?

Our solutions:

Custom-fit options: 1-on-1 consultations to match your material specs, plus non-standard customization if needed.
Rigorous quality: Imported core components and 72-hour runtime testing for reliable performance.
Round-the-clock support: 1-hour response, 48-hour on-site repairs (domestic), and expedited parts shipping (international).

For Distributors

Your top challenges:

High wholesale costs eating into profit margins?
Large minimum orders tying up capital in excess inventory?
Lack of marketing resources to drive sales effectively?

Our solutions:

Tiered pricing: Plus annual rebates to protect your bottom line.
Flexible ordering: Trial orders from 1 unit, plus 3-month exchanges for unsold standard models.
Full marketing support: Manuals, videos, case studies, and regular sales training.

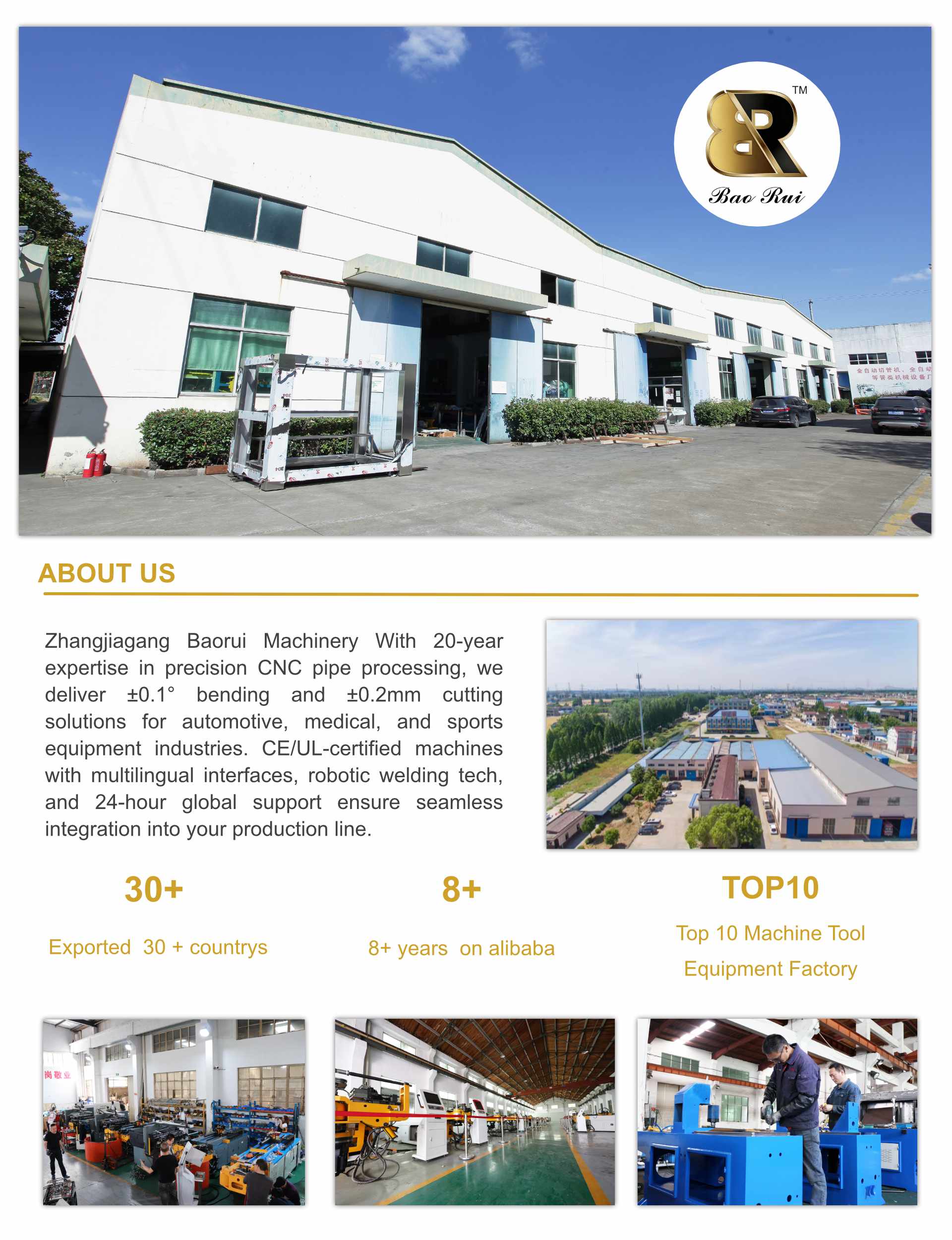

Why Choose Us

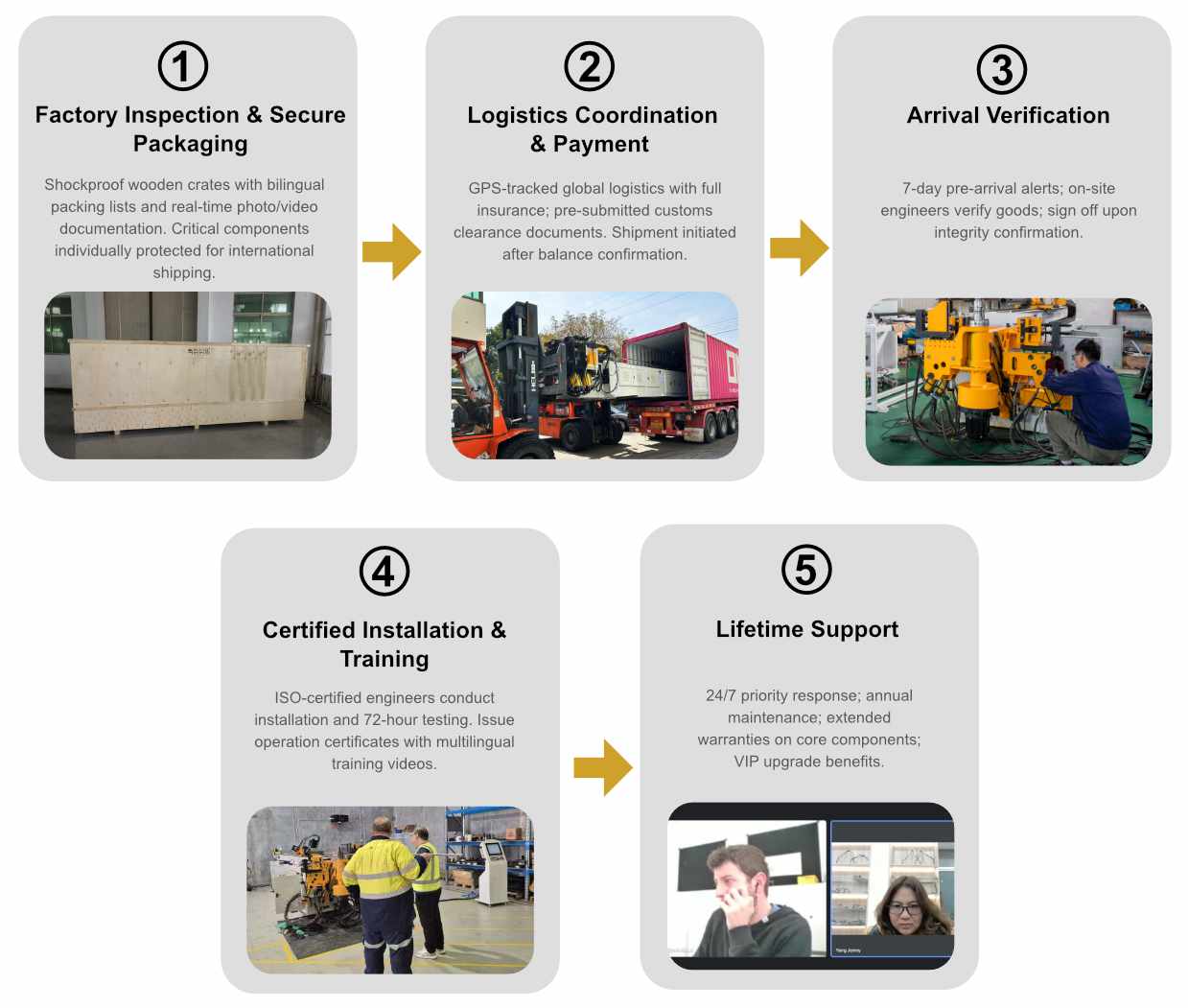

After Sales Support

Customer Feedback

Certifications

Frequently Asked Questions

1. Are you a manufacturer or a trading company?

We are a manufacturer with more than ten years of experience.

2. Do you provide any training to ensure that our users can operate the machine well?

We will provide detailed video and instructions for the machine. We can also send our workers to your company for a free training. The customer needs to take charge of the hotel, the flight and the food during the training.

3. How long can you provide the warranty?

Our machine has a one-year warranty, and we use all stable components with a long service life.

4. Do you guarantee the safe and reliable delivery of the product?

Yes, we always use high-quality standard export packaging.

5. Do your machines meet international standards (e.g., CE, ISO)? Can you provide relevant certificates?

All products are certified with CE and ISO 9001:2015. We can provide test reports, quality certificates, and compliance documents for customs clearance in your country.

6. Do you handle export customs clearance? What documents are needed for import?

We can assist with export procedures and provide commercial invoices, packing lists, bills of lading, and certificates of origin. For import customs clearance, we'll advise on specific documents required by your country (e.g., product safety certificates).
