Product Description

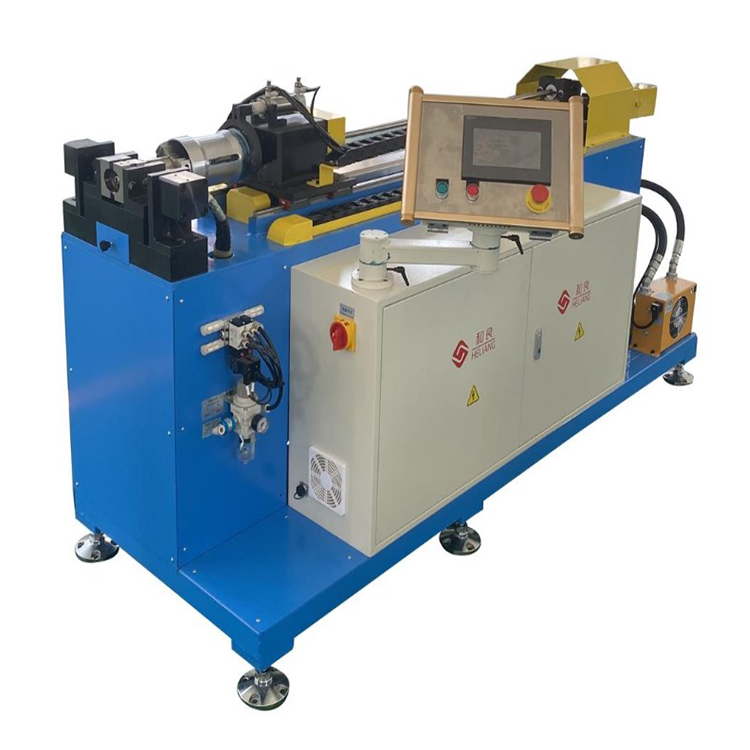

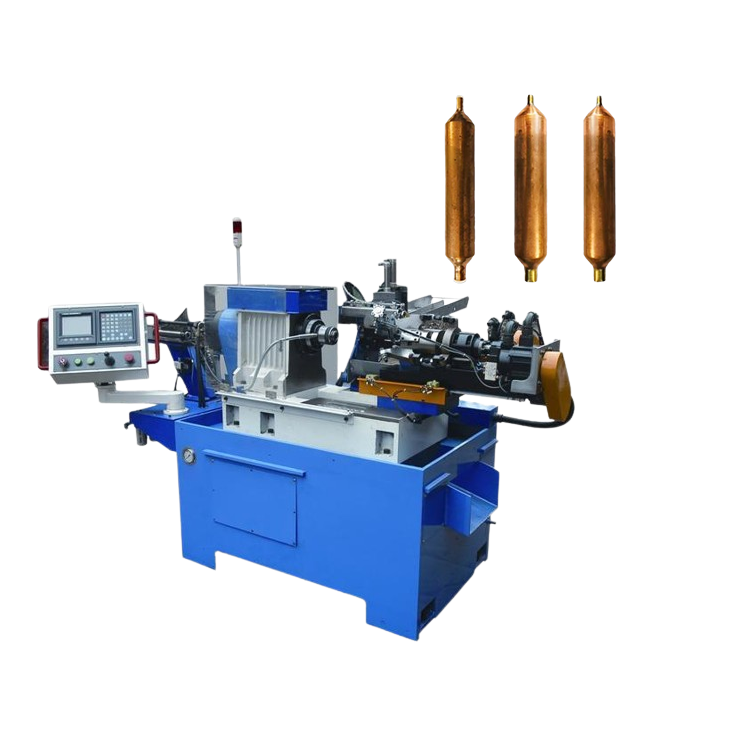

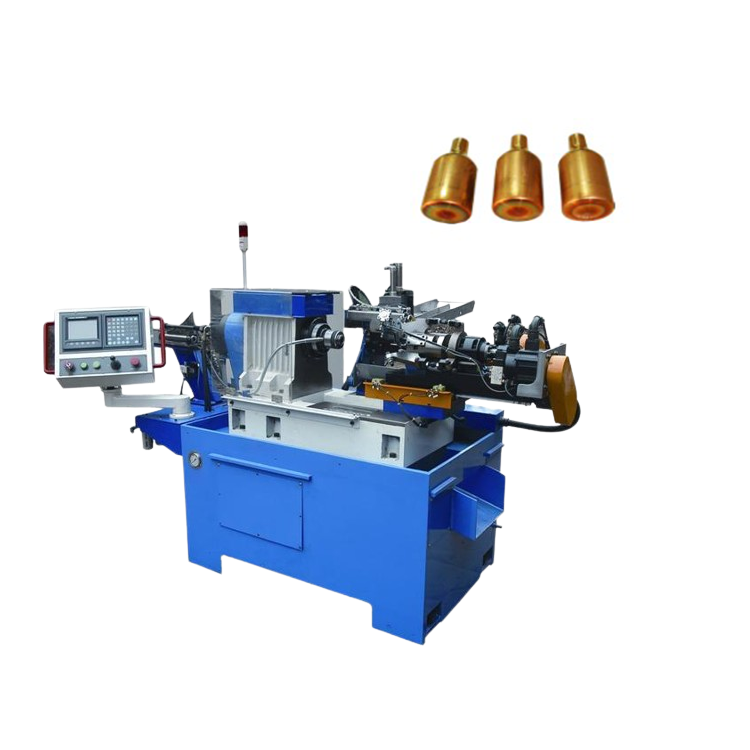

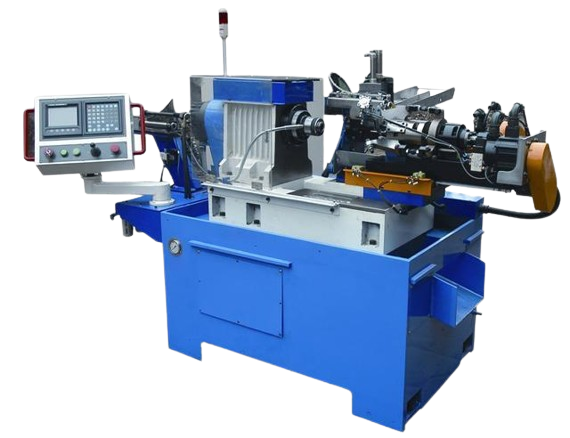

Capillary CNC Copper Tube End Forming Spinning And Necking in Machine
The product is typically equipped with a CNC (Computer Numerical Control) system, which allows for precise and repeatable operations. The operator can program the machine to spin the tube ends to the desired shape and dimensions, ensuring consistent results across multiple batches.
Packing and Shipping
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
Frequently Asked Questions
Q
What tube materials can this CNC spinning and necking machine process?

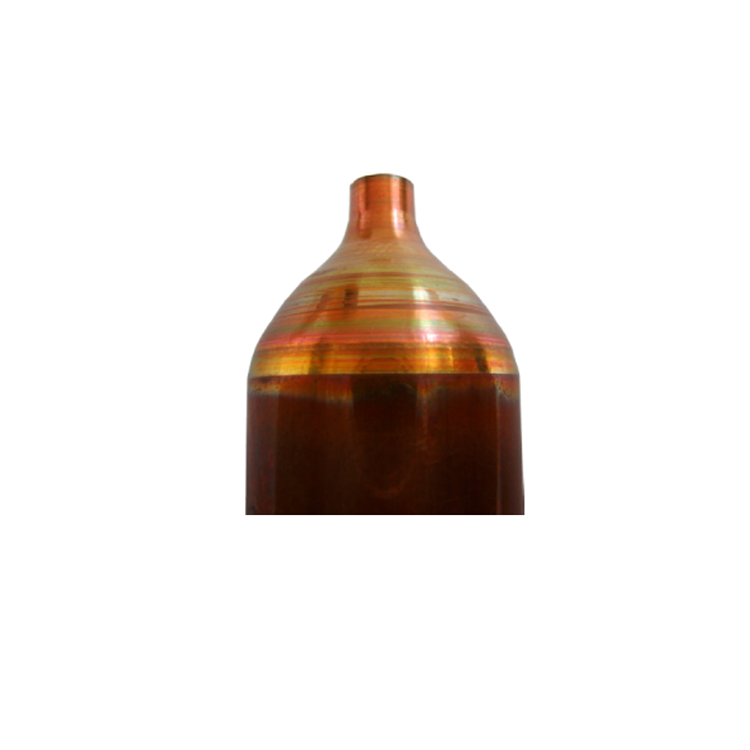

This machine is primarily designed for capillary copper tubes. It can also be configured to handle other soft metal tubes such as aluminum and brass, provided they fall within the specified diameter and wall thickness ranges.
Q
What are the specific working limits for tube dimensions?
The machine supports tube diameters ranging from Φ16mm to Φ32mm, tube working thicknesses from 0.6mm to 2mm, and tube lengths between 60mm and 200mm.
Q
Does the machine use a hot or cold spinning method?
The machine utilizes a cold spinning process. This allows for clean and precise mechanical deformation of the metal without requiring pre-heating, ensuring higher energy efficiency and material structural integrity.
Q
What CNC control and electric system does this machine implement?

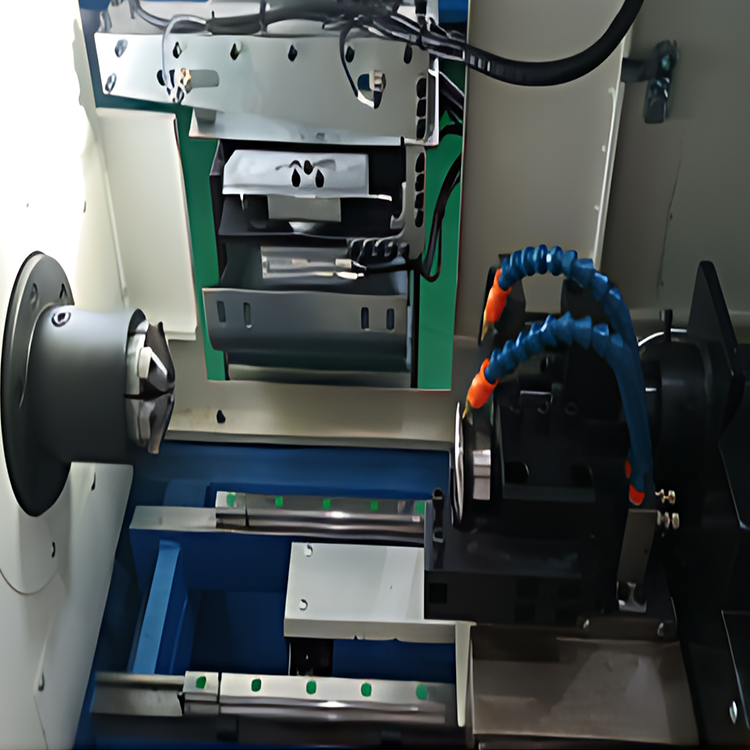

The electrical control setup is equipped with a high-performance Zhongda Dentsu PUTNC-H4-2 numerical control system coupled with two sets of responsive Delta servo systems for precise tool movement.
Q
How is the processing speed and automation level of the machine?
The machine has a cycle capacity of approximately 30 seconds per piece. It features high automation options, including automatic nozzle cutting and trimming, with both automatic and manual material moving configurations.
