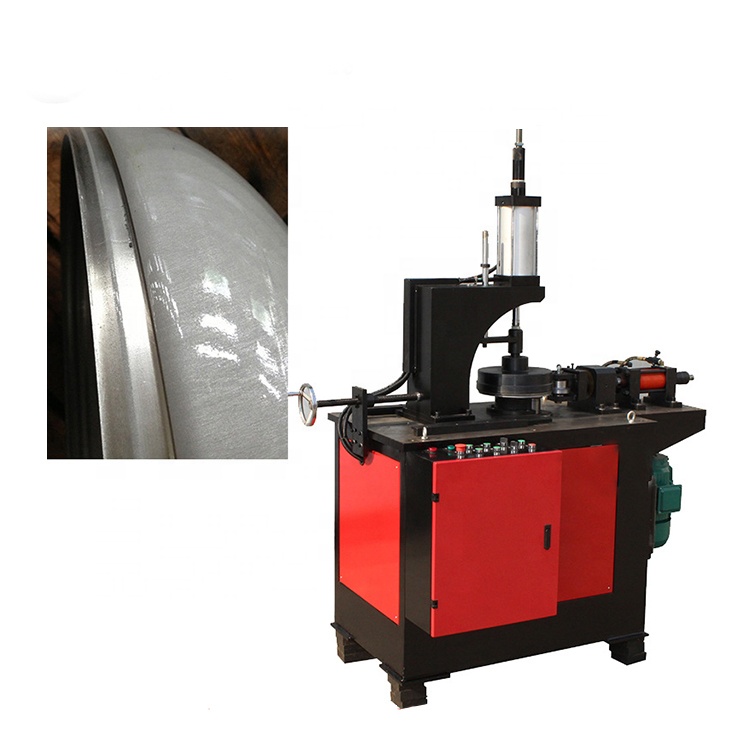

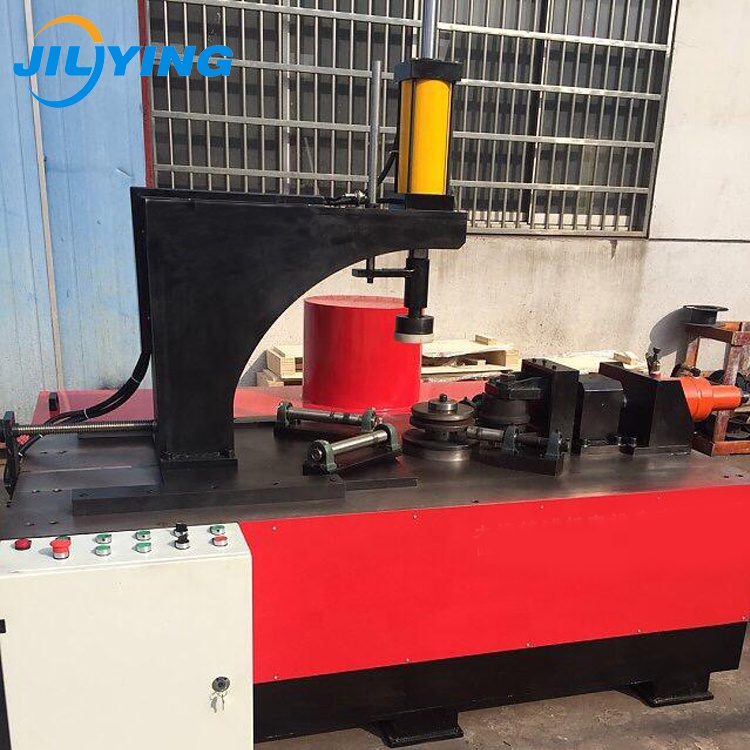

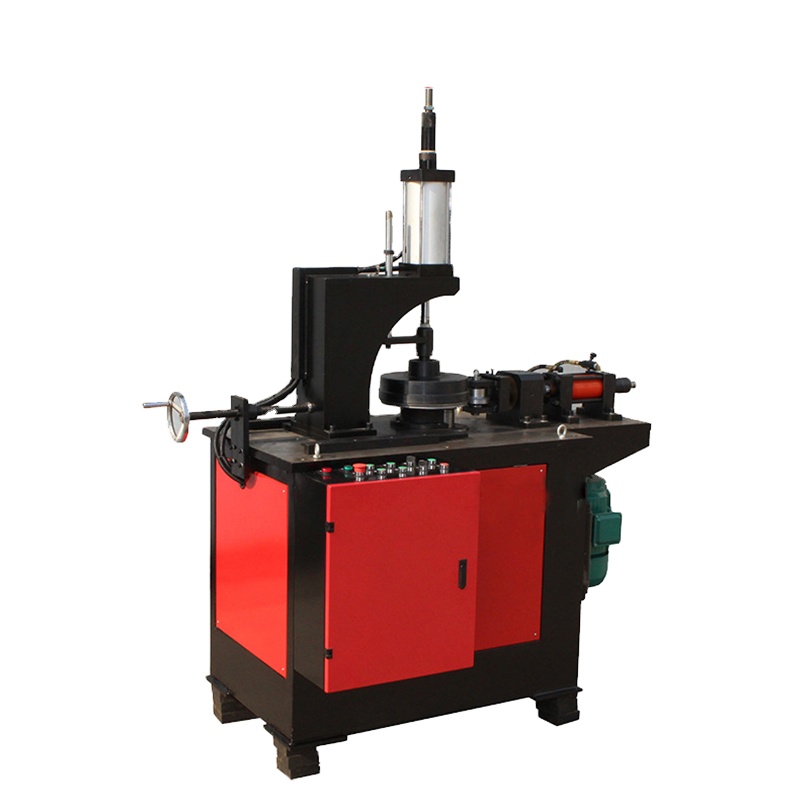

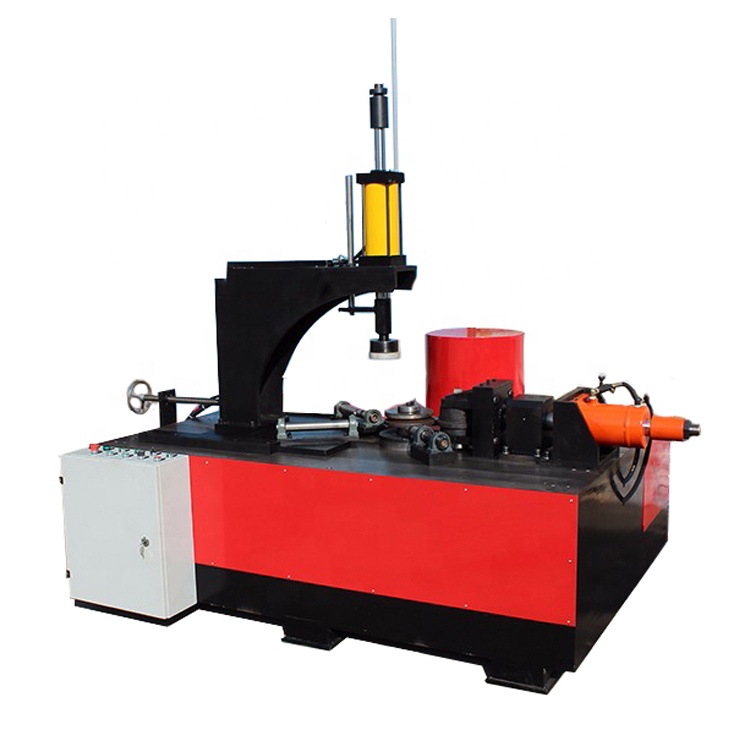

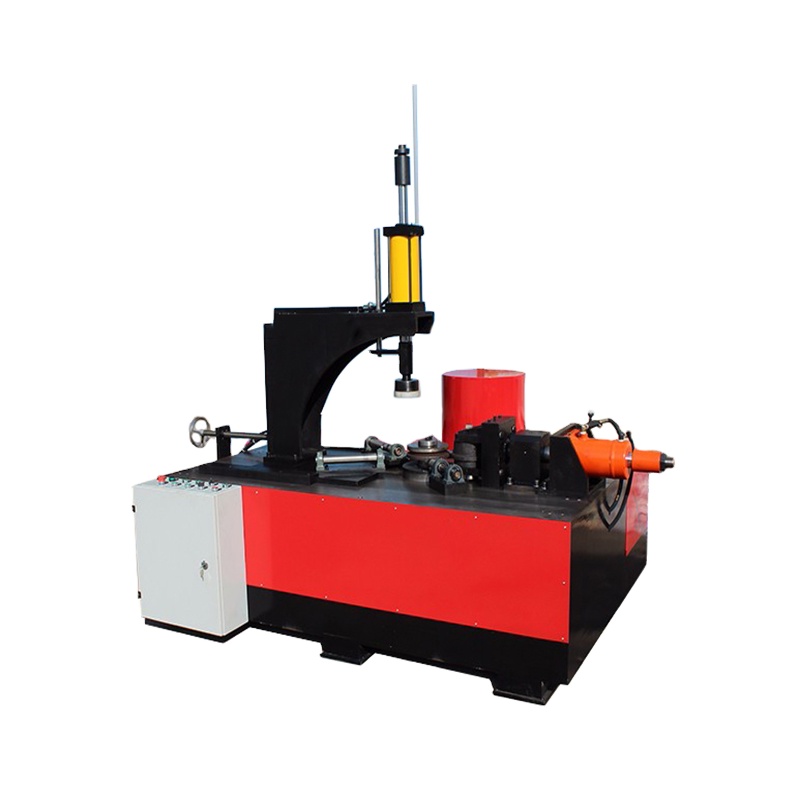

Cnc Automatic Pipe End Forming Machine/tube Expanding and Necking Machine

Product Description

Product Description

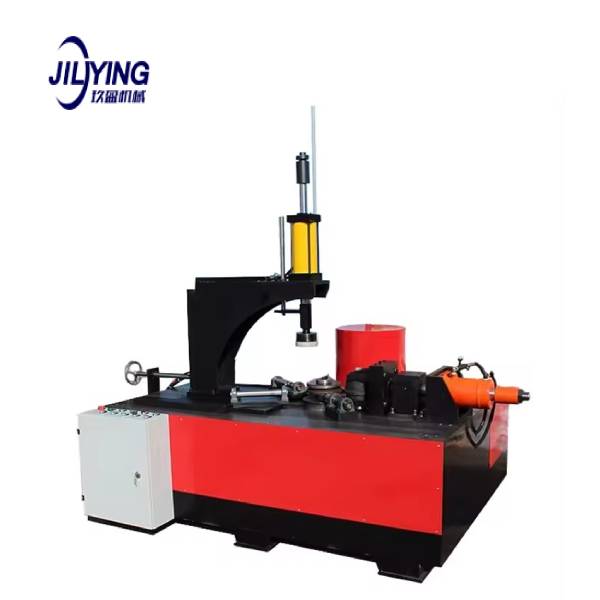

Product Description Banner
Other dished end forming machine recommendations

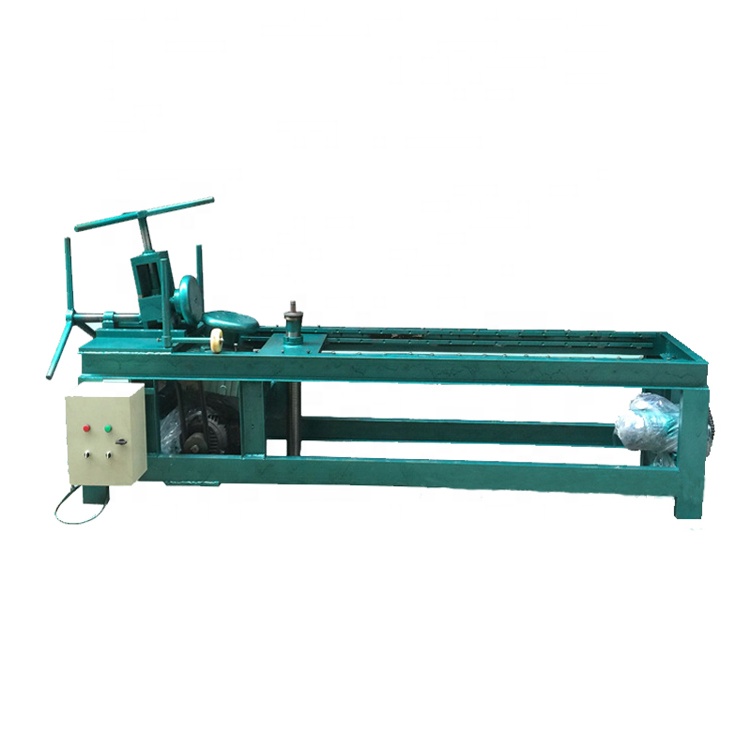

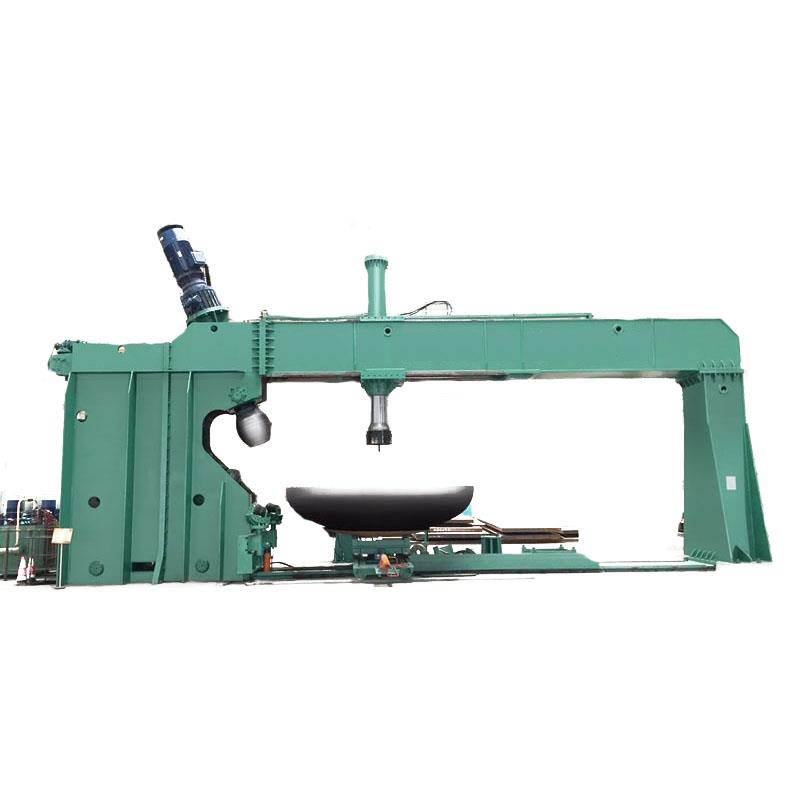

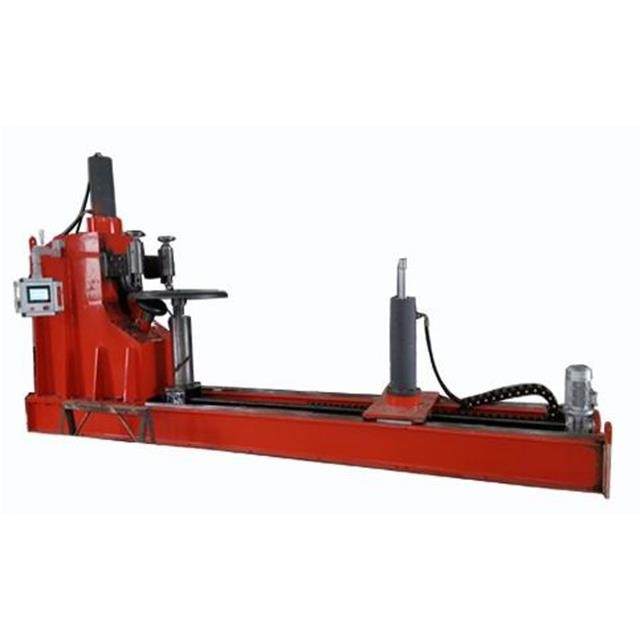

Recommended Machine 1 Recommended Machine 2 Recommended Machine 3

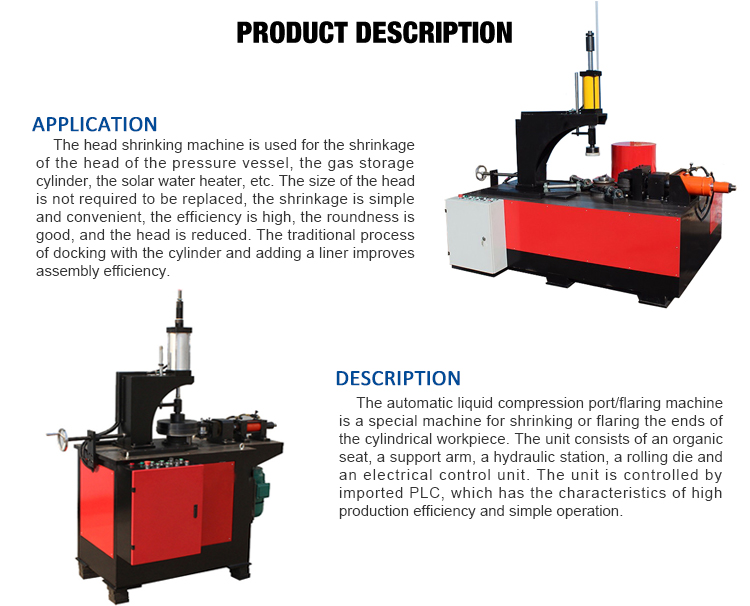

Dished End Forming Machine Details
The shrinking machine has the characteristics of simple operation, manufacturer of head shrinking machine and high production efficiency. A close and flat appearance of the end cap and the outer skin. The operation adopts touch screen control, manual and automatic switching, and the plc control makes the equipment run more stable.Body by welding; mechanical parts through assembly; imported hydraulic system and electronic control system.

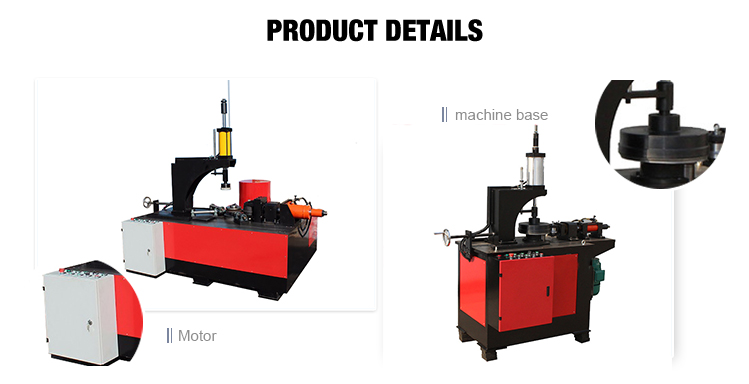

Machine Features Diagram
  • Using PLC control; both manual and automatic operations are available
  • Adopting linear slide rail, stable propulsion
  • Easy to operate, High efficiency, good roundness.
  • Safety: Equipped with emergency stop device
  • Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature

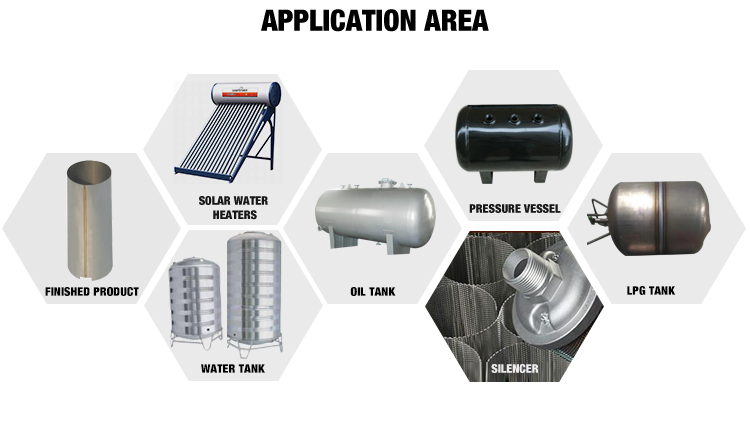

  • Can equip with all kinds of forming moulds, for pipe end forming ,solar water heaters,water tank,oil tank,LPG tank,pressure vessel,silencer etc.

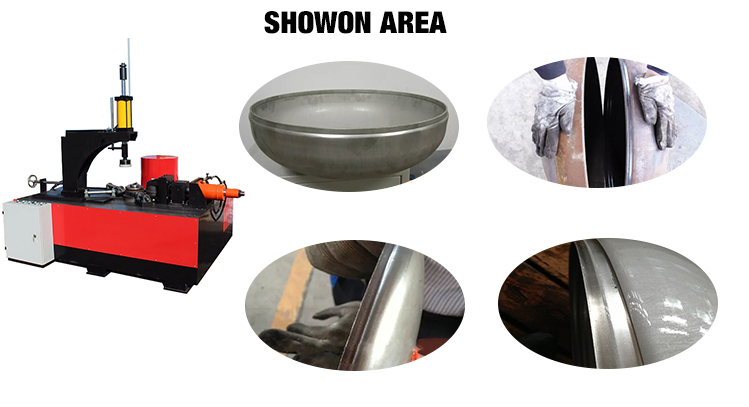

Inquiry Information
Want to know this machine more information! Contact us
Material Processing
Applicable materials
Suitable for iron plate, aluminum plate, titanium plate, stainless steel plate, galvanized plate, white steel plate, metal material
Specification
Model POWER SUPPLY RATED POWER (kw) THICKNESS (mm) DIAMETER (mm) SHRINK HEIGHT (mm)
JY-400 380V 50HZ / 220V 60HZ 7.7 1.5-3 Φ159-Φ400 15-90
JY-700 8.5 2-8 Φ300-Φ800 13-40
JY-800 13.2 3-8 Φ400-Φ800 10-30
JY-1000 15.6 3.5-9 Φ500-Φ1000 10-20
JY-1200 16.7 4-10 Φ600-Φ1000 8-10
JY-1500 18.5 5-13 Φ800-Φ1500 6-8
Packaging & Shipping
Packaging & Shipping Details
Company Information
Company overview
We were established in 2012. We are an enterprise specializing in the development and sales of CNC machine tools and automatic welding equipment. Our main products are shearing and folding machines, bending machines, bending machines, punching and shearing machines, presses, hydraulic presses, cutting machines, sealing machines, welding equipment, polishing equipment and so on. Our international markets currently include the United States, Italy, Russia, Vietnam, Mongolia, Georgia, Turkey, India, the UAE, Dubai, Algeria, the Philippines, Indonesia, Malaysia, Bangladesh, South Africa, Germany, Slovakia, Sri Lanka, etc.
Our Certificate
Product Certificates
Frequently Asked Questions
Q What is our main product range?
Our manufacturing facility concentrates on four column press machines, embossing door press machines, bending machines, shearing machines, CNC plasma cutting machines, rolling machines, punching machines, hydraulic ironworkers, and welding equipment. All these machines provide solutions for tanks, pans, trolleys, etc.
Q When can I get the price?
We usually offer the quotation within 8 hours. For urgent offers, please contact us for special priority.
Q What is the Trade Term you accept?
We accept Ex-work factory, FOB, CNF, or CIF, as per your requirement.
Q How long is the production lead time?
It depends on the type of equipment. We often deliver the standard goods within 35 days.
Q What are your terms of packing?
Packing: export worthy package suitable for container transportation, such as wooden case, iron pallet, and plastic film.
Q What is the warranty period for your machines?
Warranty: 24 months after commercial running or 18 months from the date of shipment, subject to the earlier expiry.
