Product Display
Technical Specifications

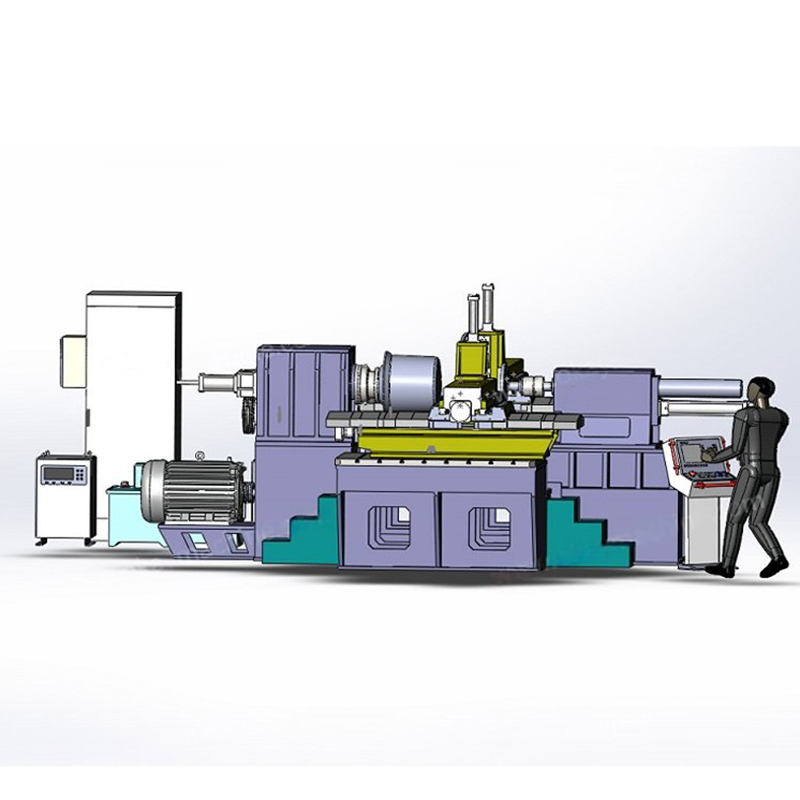

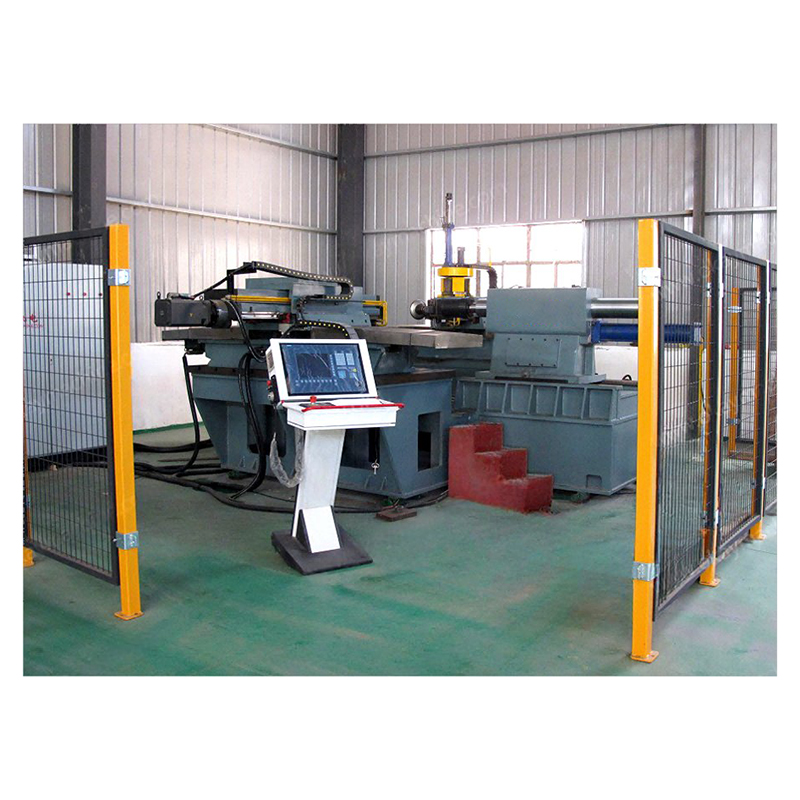

Heavy duty CNC double wheel spinning machine
Raw Material Diameter
Φ1800mm
Material Thickness
10mm (carbon steel)
Equipment Area
7m * 7m * 2.5m (L * W * H)
Control System
Siemens 828D / 840D
Frequently Asked Questions
QWhat is the maximum material diameter this CNC double wheel spinning machine can process?
This heavy-duty spinning machine supports a maximum raw material diameter of Φ1800mm.
QWhat thickness of carbon steel can the machine handle?
The machine is designed to process carbon steel materials with a thickness of up to 10mm.
QWhich CNC control systems are compatible with this equipment?
This spinning machine utilizes high-performance Siemens 828D or Siemens 840D control systems for precise operation.
QWhat are the physical dimensions and weight of the machine?
The equipment area covers a length of 7 meters, a width of 7 meters, and a height of 2.5 meters. The overall weight is approximately 25 tons.
QWhat are the travel range and thrust specifications for the X and Z axes?
The machine delivers a powerful thrust of 150KN on both the X and Z axes, featuring a travel distance of 600mm on the X-axis and 1250mm on the Z-axis.
QWhat are the power requirements for operating this spinning machine?
The main shaft power is rated at 55KW, with the total equipment power requirement being 115KW.
