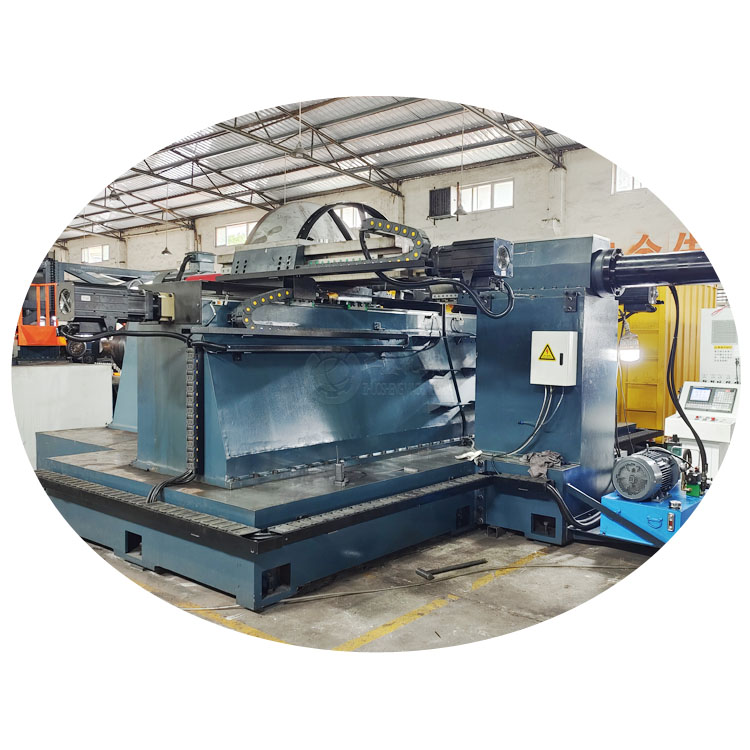

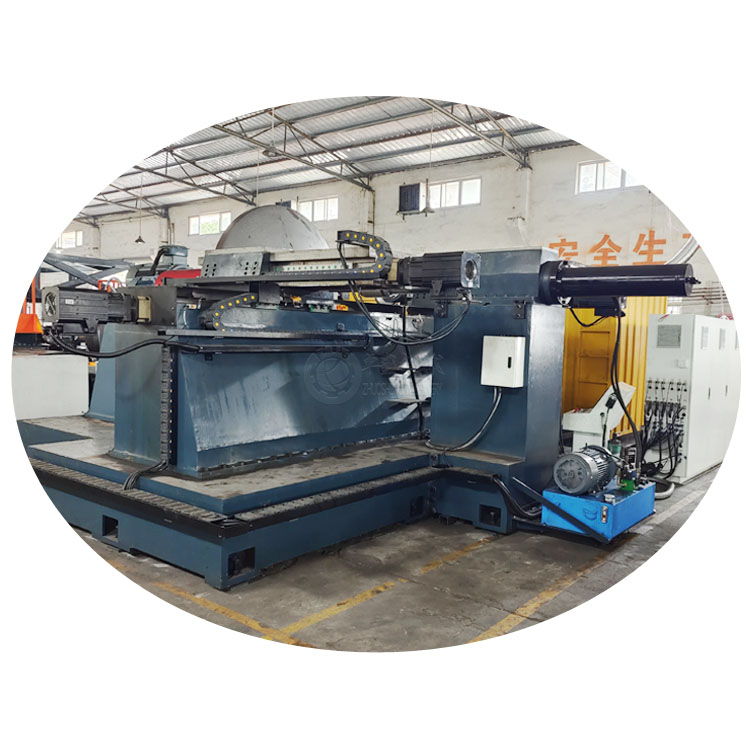

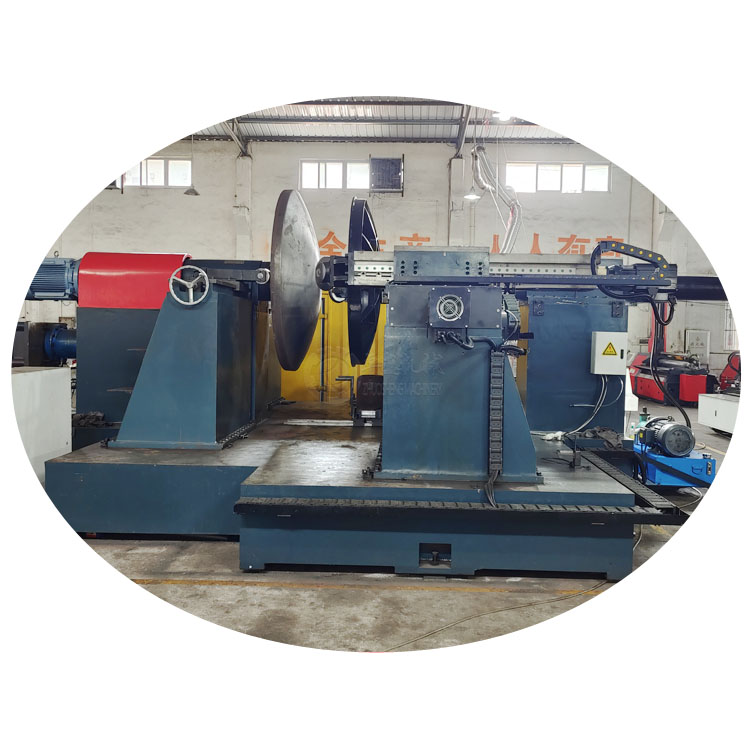

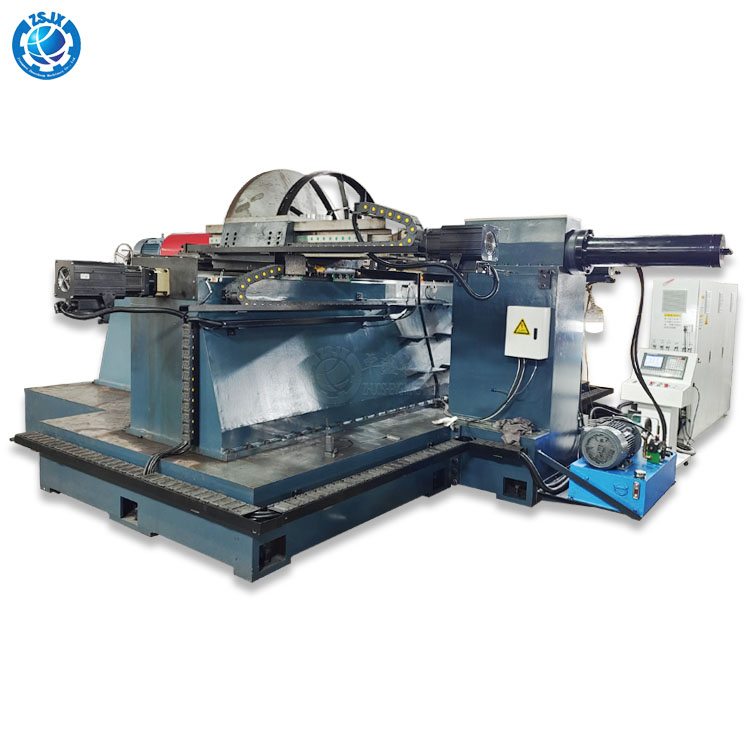

2500-2 Heavy-Duty Double-Rotating Wheel Head Automatic Hydraulic CNC Spinning Machine
Focusing on Non-Standard Customization | Professional Solutions to Head Manufacturing Challenges
As one of China's leading factories for customized non-standard machinery and equipment, the 2500-2 type double-rotor CNC spinning machine provides professional solutions for head manufacturing challenges in pressure vessels, chemical equipment, energy equipment, and other fields.
Industry Pain Points: Three Major Challenges in Head Manufacturing
In pressure vessels, chemical equipment, energy equipment, and other fields, heads are key components, and their manufacturing quality directly affects the performance of the entire machine. With many years of experience in the industry, we understand the challenges you face:
Difficulty in Precision Control: Traditional processes struggle to guarantee the dimensional accuracy and surface quality of large heads.
Efficiency Bottleneck: Long processing cycles for complex curved surfaces restrict overall production efficiency.
Customization Difficulty: Standard equipment cannot meet the processing needs of special materials and irregular structures.
Solution: Three Core Technological Breakthroughs
Intelligent CNC System - Dual Guarantee of Precision and Efficiency: Adopting a new generation of CNC system, the entire processing process is digitally controlled. Intelligent programming enables precise machining of complex curved surfaces such as ellipses, butterflies, and hemispheres, achieving one-time forming and significantly improving product consistency and production efficiency.
Heavy-duty dual-rotor structure - the cornerstone of stable and reliable performance: Designed for large workpiece machining, the equipment features a reinforced body design and a dual-rotor configuration. The two rotors can be controlled independently, enabling synchronous or asynchronous machining and ensuring excellent stability under heavy cutting conditions.
Fully hydraulic drive system - a perfect balance of power and precision: The high-performance hydraulic system provides smooth and powerful spinning force, combined with precision servo control, enabling precise adjustment of machining parameters and easily handling machining requirements of different materials and thicknesses.
Professional Guarantee for Non-Standard Customization
As one of China's leading manufacturers of non-standard machinery and equipment customization, we possess the following core advantages:
Professional Team: A technical team with over 20 years of experience in spinning equipment R&D
Customization Capabilities: Deep customization of equipment parameters and functional configurations based on customer process requirements
Full-Process Service: Comprehensive support from solution design and equipment commissioning to technical training.
We have provided professional spinning solutions for end caps to numerous large equipment manufacturing enterprises. Our equipment is widely used in high-end manufacturing fields such as chemical containers, nuclear power equipment, and aerospace.
Choose professionalism! Let's join hands to create a new chapter in manufacturing!
Technical Specification
Item
Value
Max. length of workpiece (mm)
600
Max. weight of workpiece (kg)
500
No. of spindles
Twin
Travel (X axis) (mm)
1100
Travel (Z axis) (mm)
1500
Positioning accuracy (mm)
±0.05
Repeatability (X/Y/Z) (mm)
±0.001
Place of origin
Guangdong, China
Warranty
1 Year
Type
Horizontal Flat Bed Lathe
Machining capacity
Heavy Duty
Width of bed (mm)
65
Number of axes
3
Dimension (L*W*H)
6000x4200x2600 (mm)
Model number
ZS-FTXY-2500-2
Voltage
380 V
CNC control system
KND
Tool post stations
4
Weight (kg)
24000
Key selling points
Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly, High Productivity, Long Service Life, Easy To Operate, High Rigidity, Low Maintenance Cost
Machinery test report
Provided
Video outgoing-inspection
Provided
Spindle center height
1500 mm
Input Method
Handwheel Teaching / CAD Drawing
Spinning Thickness (Iron Plate)
1-10mm
Spinning Thickness (Aluminum Plate)
1-12mm
Spinning Thickness (Stainless Steel)
1-5mm
Pressure Power
Hydraulic
Die Mounting
Connecting Flange
Product Gallery
Pre-Sales Service
Inquiry and technology support: Professional technical consultations tailored to your production demands.
Technical documents: All manuals, diagrams (electrical/layout), and labels are provided in standard English. Full documentation packages shipped alongside the hardware.
Quantity & quality guarantee: Comprehensive coverage for shipping discrepancies within 30 days of arrival.
Warranty Period: 12-month standard warranty from the date of the Bill of Lading with free replacement of manufacturer defect spare parts.
After-Sales Service
Installation & testing guidance: Technical support at customer factory site. Buyer is responsible for utilities, basic tools, and travel arrangements.
Personnel training: Free operational training lessons for site engineers and workers during installation phases.
Long-term technical support: Lifetime access to cost-price spare parts and ongoing engineering consulting services.
Production & Factory Operations
Frequently Asked Questions (FAQ)
What materials can the ZS-FTXY-2500-2 CNC spinning machine process?
The machine is designed to work with various metals. Specifically, it can process iron plates with a thickness of 1-10mm, aluminum plates of 1-12mm, and stainless steel plates ranging from 1-5mm.
What are the maximum workpiece dimensions and weights supported?
This heavy-duty machine supports workpieces with a maximum length of 600mm and a maximum weight of up to 500kg.
What CNC system and inputs does this machine utilize?
The machine features a KND CNC control system. It supports both direct CAD drawing imports and handwheel teaching modes for high precision and operational flexibility.
How does the dual-rotor setup enhance productivity?
The two independent spinning wheels (rotors) can work simultaneously (synchronous machining) or asynchronously. This dual-action provides superior stability under heavy cutting conditions and dramatically shortens cycle times.
What kind of after-sales technical support is provided?
Every purchase comes with a 1-year quality warranty. Additionally, we provide setup guides, engineer site visits for debugging, free local operator training sessions, and lifetime supply of spare parts at cost value.
