ZRF Spinning
1 / 5

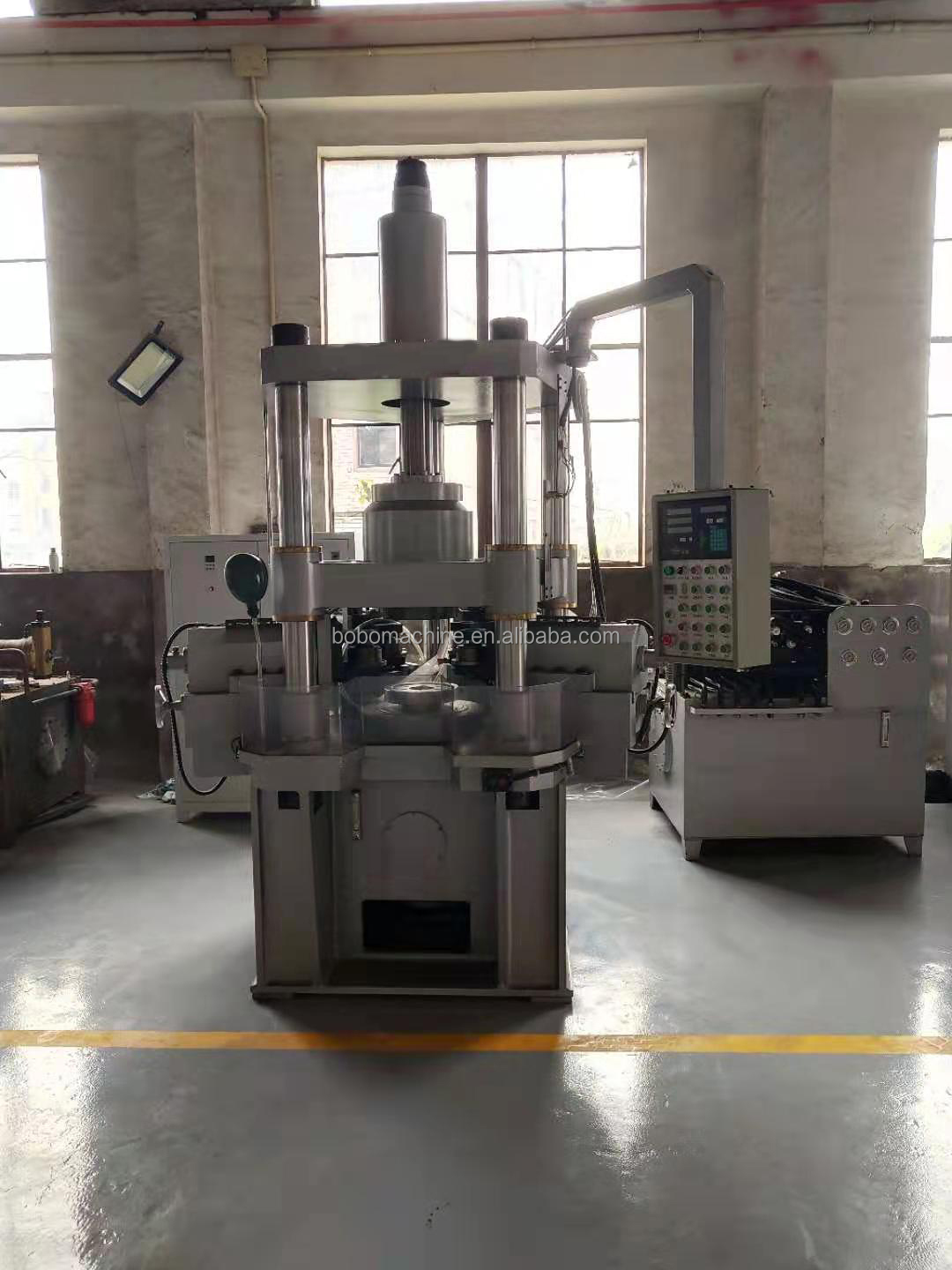

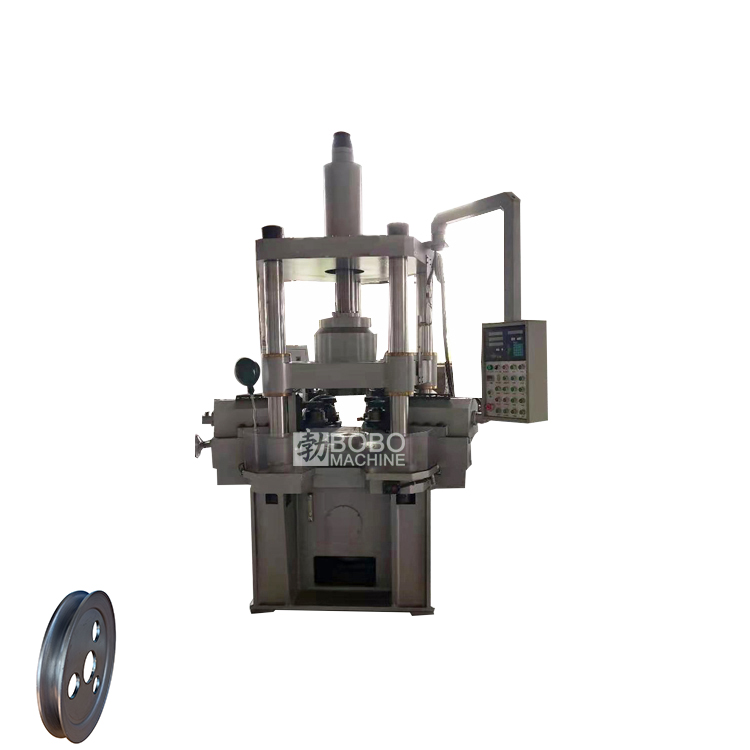

The forming technology of spinning equipment is a kind of blank that is driven by the main shaft to rotate and fixed by the core mold and the top block, and then is fed axially and radially by the rotating wheel. The CNC spinning machine relies on the extrusion of the core mold and the rotating wheel to make the blank occur. The plastic forming process of local continuous deformation. Spinning forming technology is a combination of rotary forming and plastic forming. The advantages of both make it have the advantages of high material utilization, fast forming, good surface quality, high precision, and diverse products.
| Vertical axial pressure | 586kn |
| Horizontal radial pressure | 276.9kn |
| Ejection pressure | 63.46kn |
| Main cylinder stroke | 315mm |
| Radial stroke | 65mm (radial drag stroke 259mm) |
| Ejection stroke | 40mm |

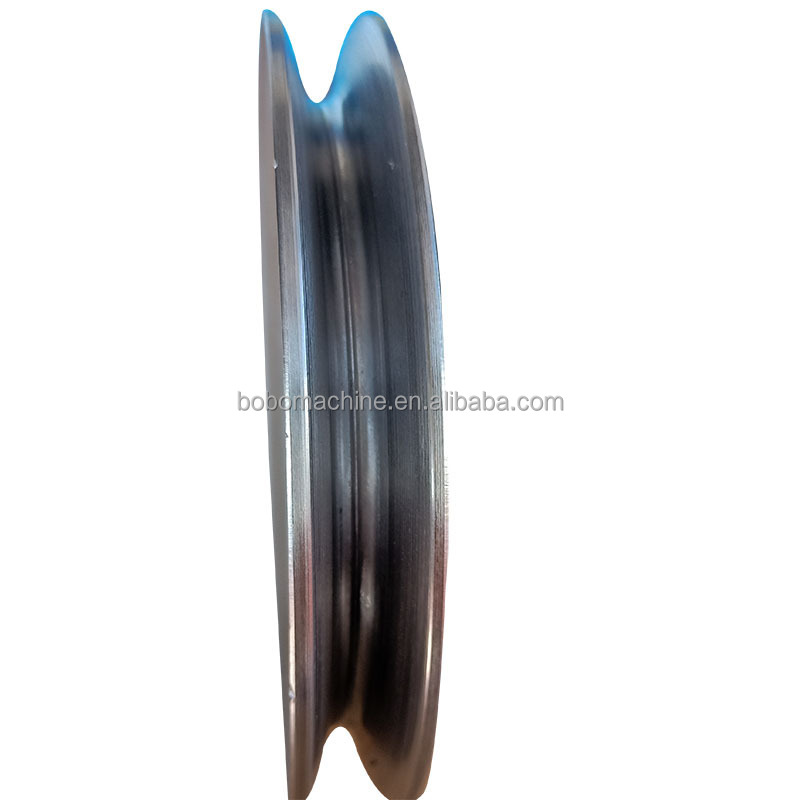

| Folding wheel | 70-420mm 3-5 pieces/min |
| Gear wheel | 75-380mm 2-3 pieces/min |
| Splitting wheel | 75-420mm 3-5 pieces/min |
| Closed height | 270-575mm |
| Spindle speed | 0-465 rpm |
| Weight | 8T |
| Dimension | 2200*1700*3000mm |
| Power | 380v 50hz |

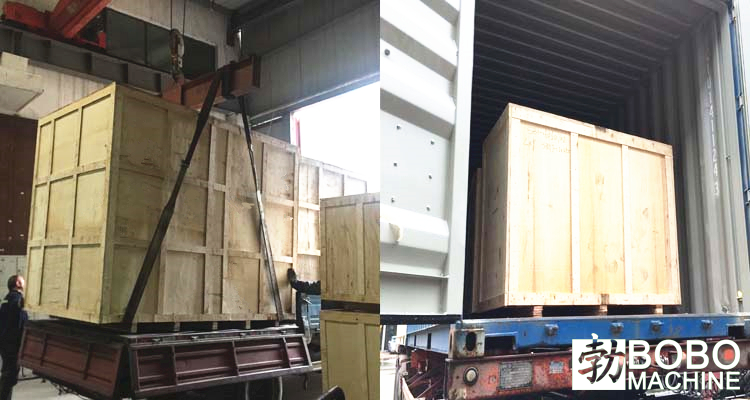

Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
