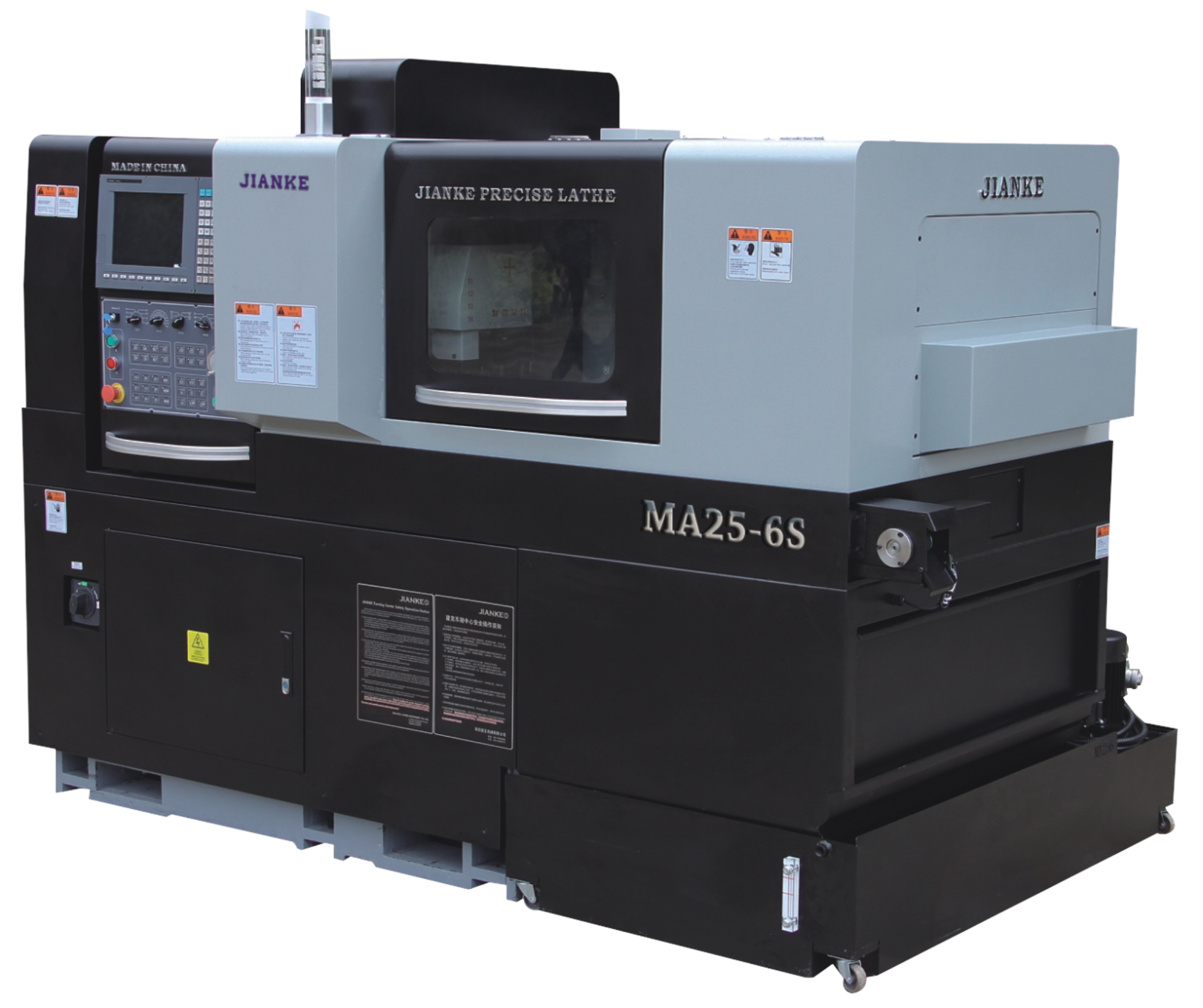

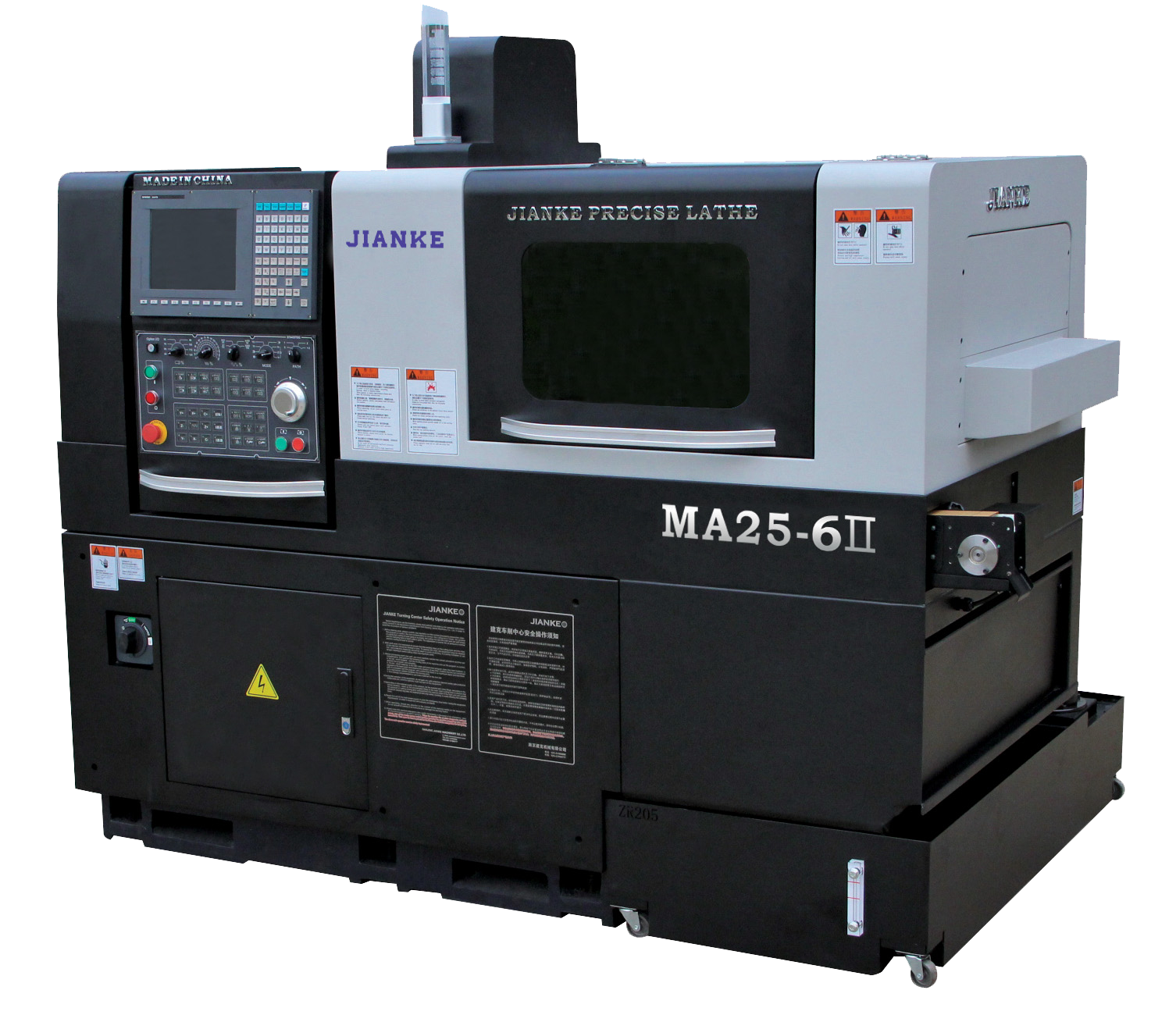

Swiss type CNC lathe double spindle 6 axis model MA25-6S

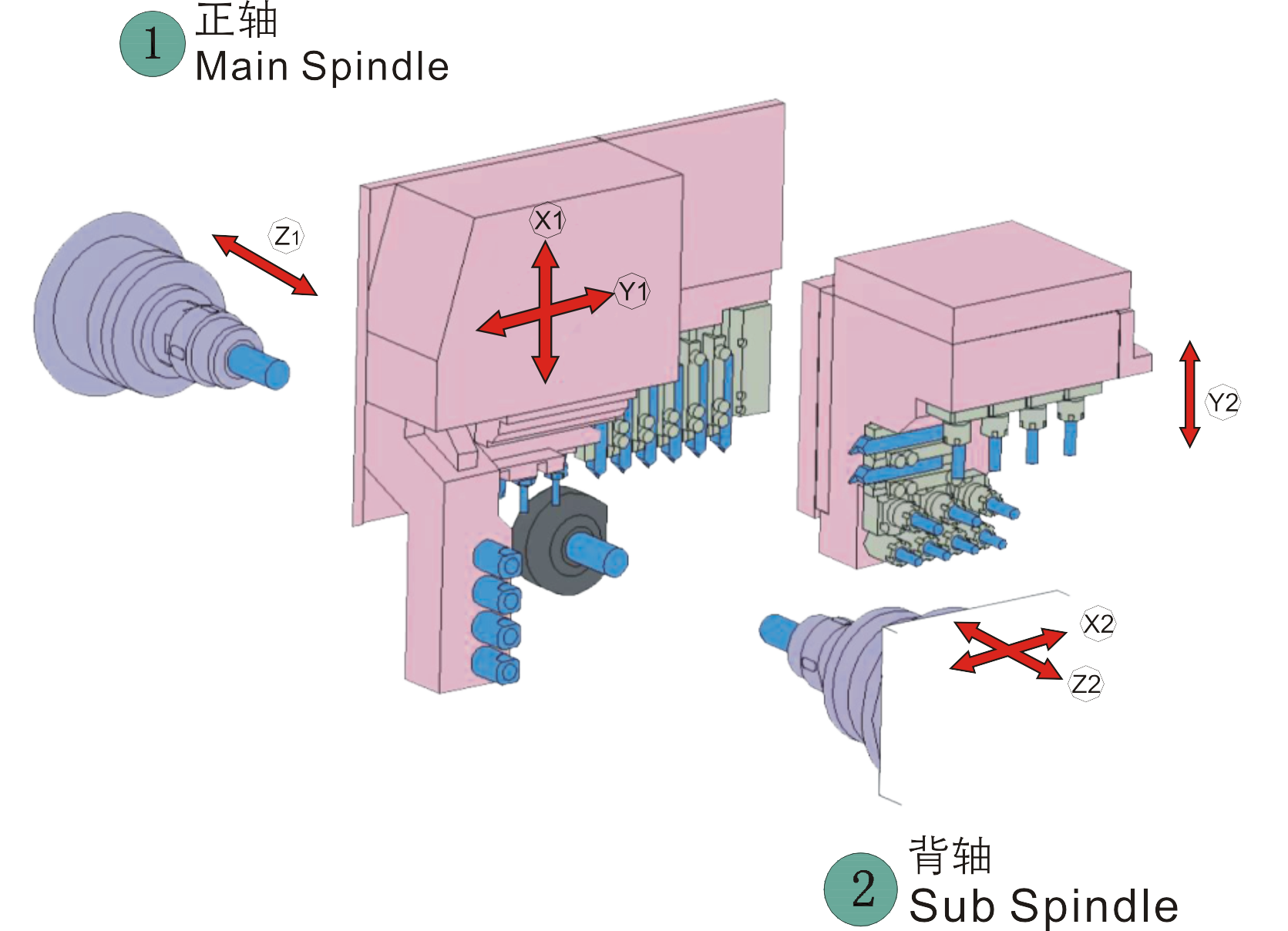

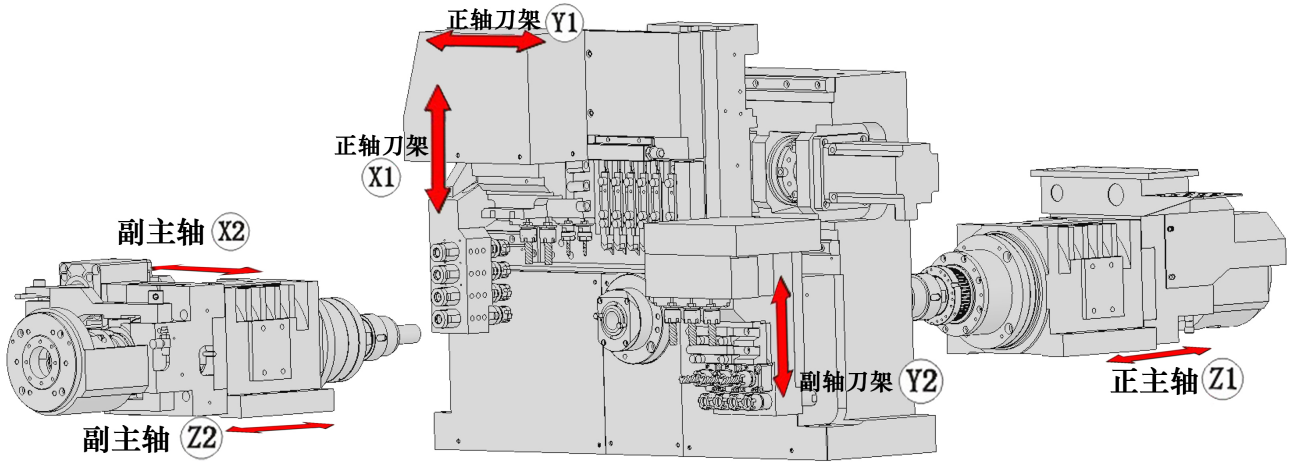

Main spindle & Sub spindle
1. Rotary Guide bush / Without guide bush changeable modes: Suitable for processing shaft workpieces (195~200mm length) and short workpieces (tail material length minimized to 50mm).
2. Internal oil cooled electric spindle: Adopting high-end oil cooled electric spindle technology. Offers stronger rigidity, torque force, and stable processing accuracy compared to traditional spindles. Uses NSK bearings for longevity.
3. Large capacity cutting oil tank: 250L volume with multi-channel filter screens and oil return baffles to ensure effective cooling and debris separation.
4. Workpiece eject method: Short parts ejected to front conveyor belt (< 90mm); long parts ejected from rear of sub spindle.

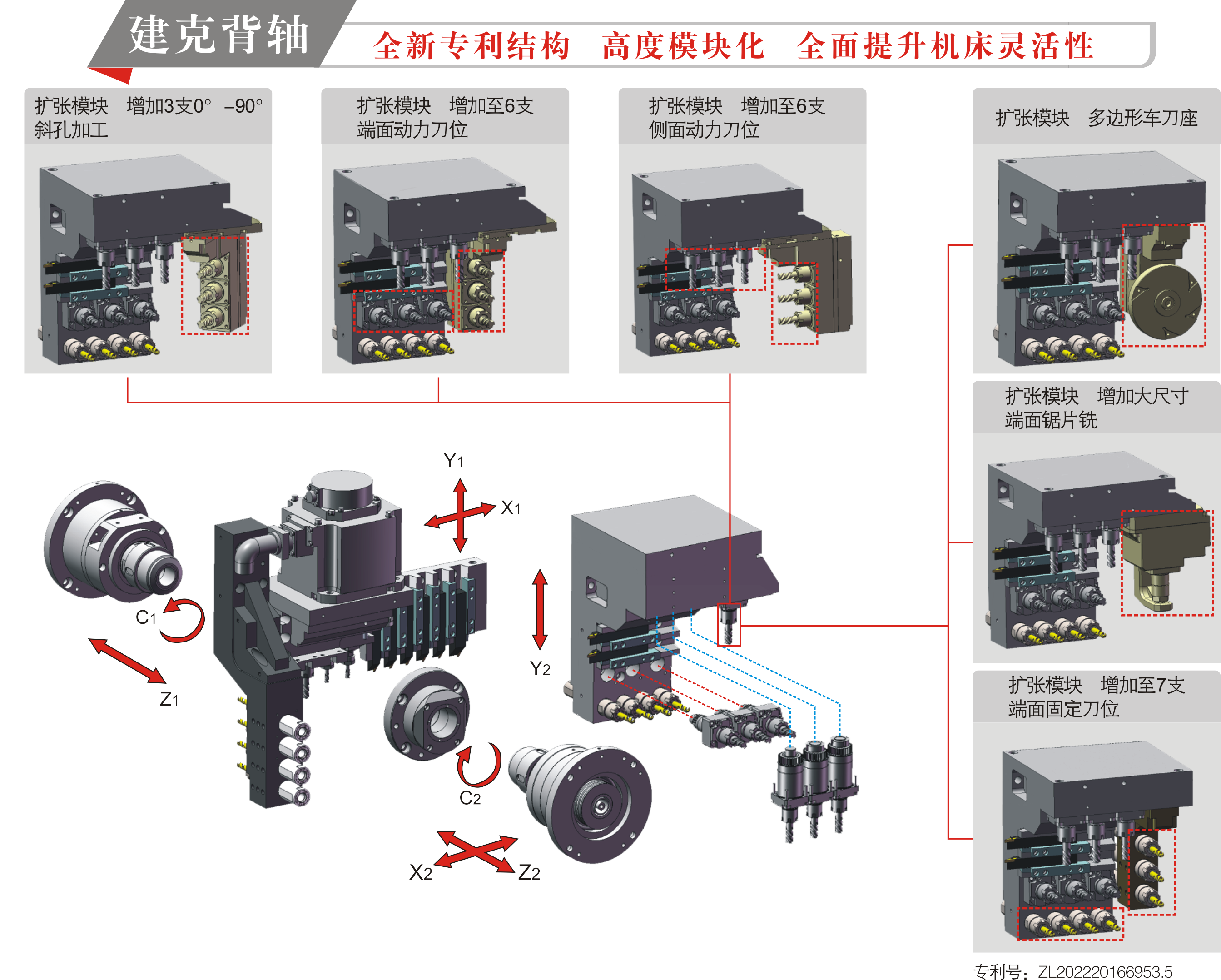

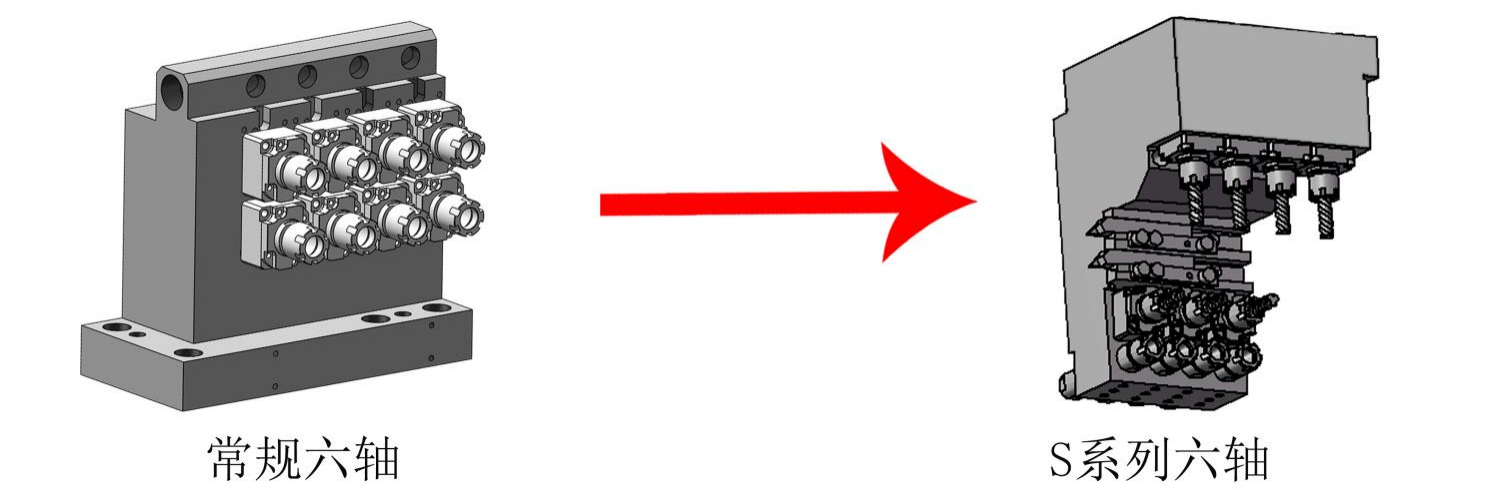

5. Powerful sixth axis tool holder: A patented structure independently innovated for enhanced processing versatility.
| Tool holder | Regular 6 axis | S series 6 axis |
|---|---|---|
| End face rotary tools | 4 pieces | 3 pieces |
| End face fixed tools base | 4 pieces | 4 pieces |
| Side rotary tools | None | 4 pieces |
| O.D. turning tools | None | 2 pieces |
| NO | Name | Qty | Note |
|---|---|---|---|
| 1 | Protective cover | 1 set | |
| 3 | Spindle | 2 units | Main and Sub spindle |
| 4 | Knife holder for turning tools | 1 set | 1*16X16mm + 5*12X12 |
| 6 | Main spindle end face drilling base | 1 set | 4 pieces ER11/ER16 0-90° linkage |
| 11 | Live rotary guide bush | 1 set | |
| 16 | Parts receiver/collector | 1 set | Standard with front ejector/belt conveyor |
| 20 | Transformer | 1 unit |
| NO | Name | Functions | Note |
|---|---|---|---|
| 1 | Bar feeder | Automatic feeding for long bar materials | Recommended essential |
| 2 | High pressure pump | Assists in chip removal and extends tool life | Select according to demand |
| 3 | Oil mist collector | Maintains workshop environment | Recommended with high pressure pump |
| 4 | Chip conveyor | Reduces workload of manual chip removal | Select according to demand |
| Component Name | Origin and Brand |
|---|---|
| Operation System | SYNTEC (Taiwan) |
| Bearing | Japan NSK |
| Guide rail / Screw | Japan THK / Taiwan Hiwin / Taiwan PMI |
| Electrical components | France Schneider |
| Relay / Stroke switch | Japan Omron |
| System | Taiwan SYNTEC 210TB-A (Dual channel) | ||
|---|---|---|---|
| Machining Ability | Max Processing Diameter | 25 mm | |
| Max Single Feeding Length | 195mm (Rotary guide bush) | ||
| Spindles | Main/Sub Spindle Type | Internal oil cooling electric spindle | |
| Spindle Speed | 10000 rpm/min | ||
| Spindle Indexing | 0.001° | ||
| Others | Lathe Size | 2.4m × 1.4m × 1.7m | |
| Lathe Weight | 3050 KG | ||
