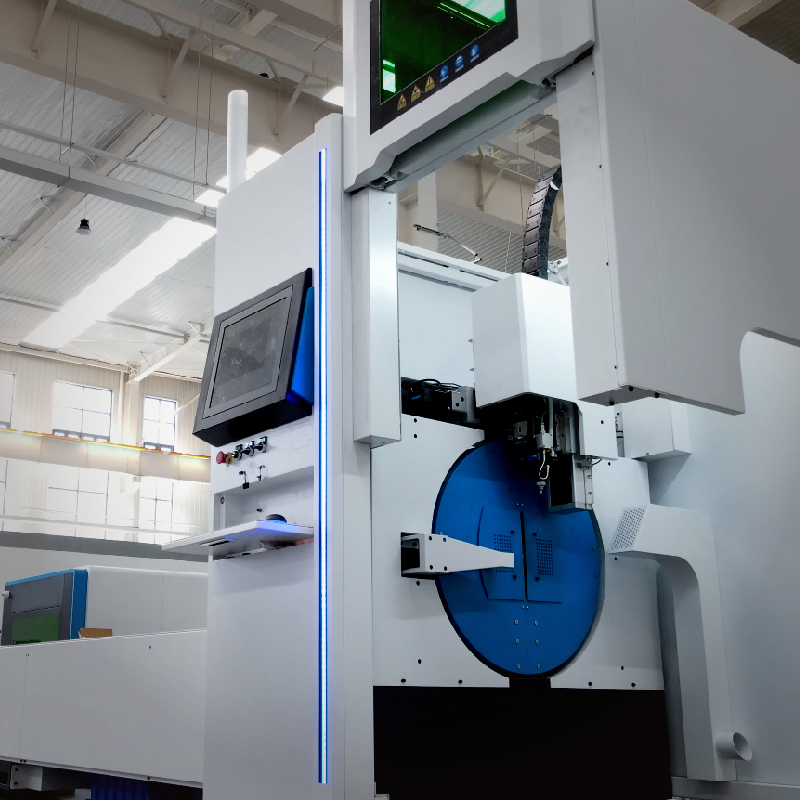

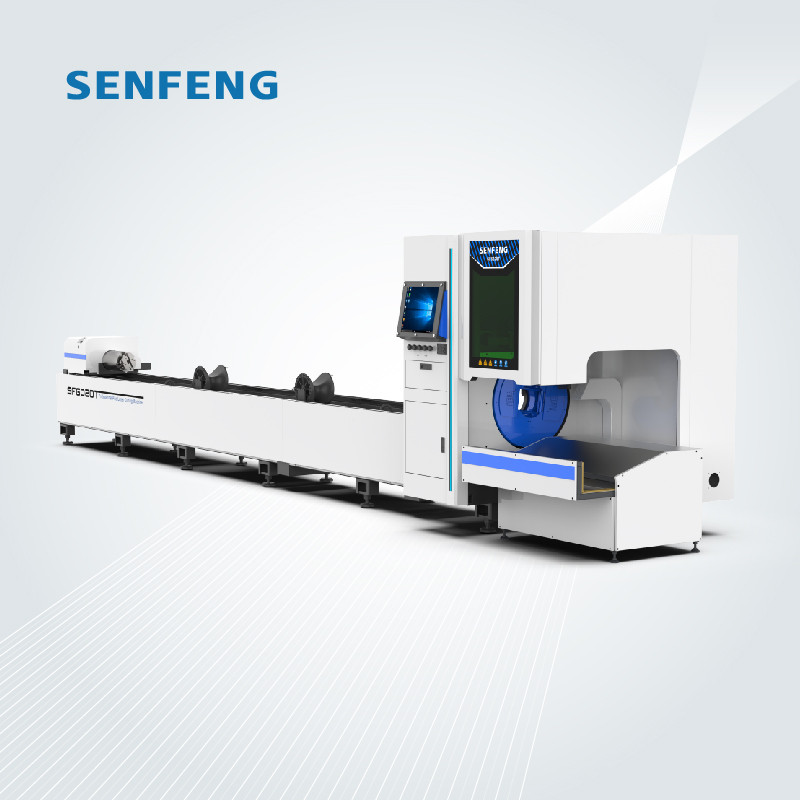

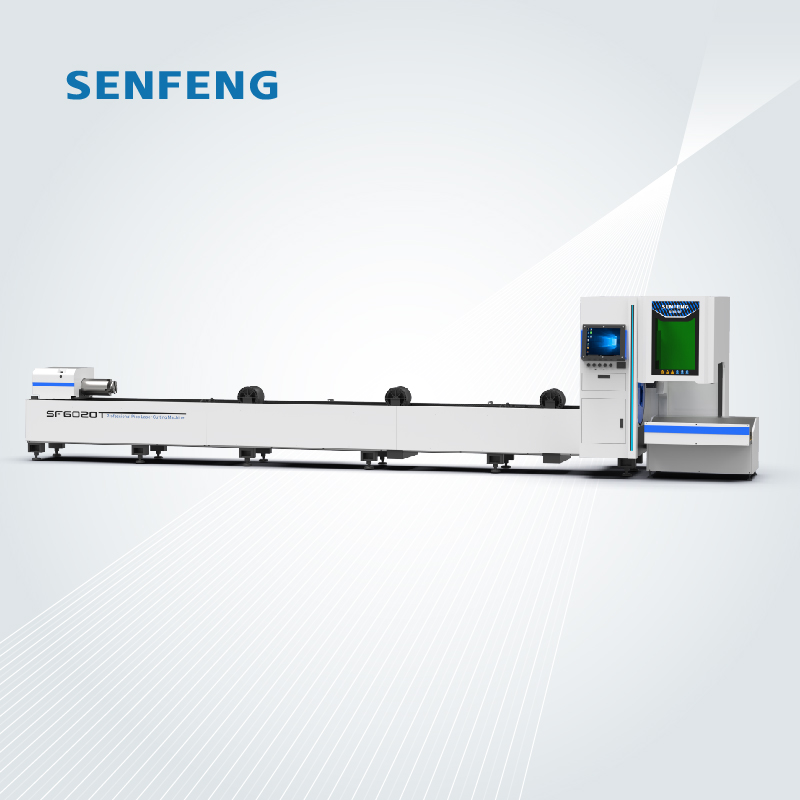

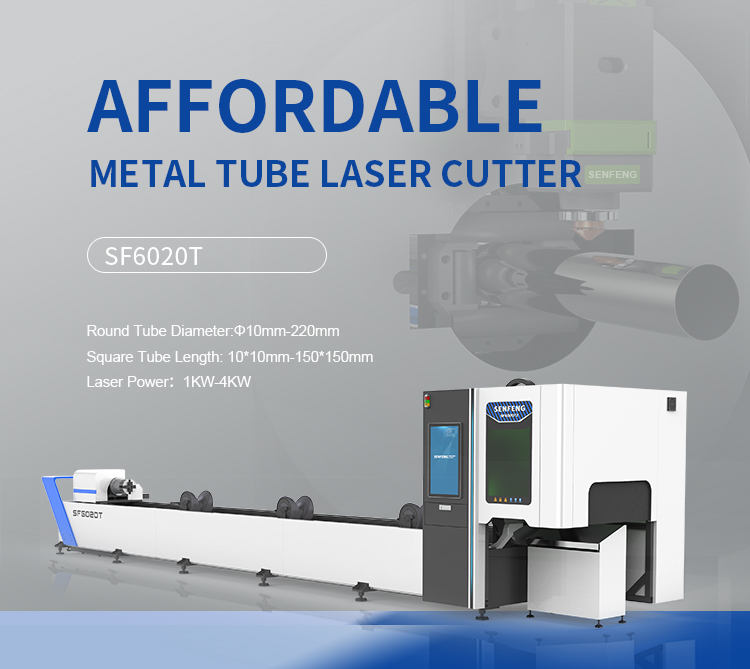

The SF6020T affordable tube laser cutting machine is designed for cutting round tubes, square tubes, and other metal profiles. It features a pipe processing range of 6000mm * φ20~220mm / φ20~240mm (Square tube capacity: 20*20-150*150mm / 20*20-240*240mm). This affordable metal tube laser cutter is equipped with a high-performance fiber laser device, with configurable laser power options ranging from 1.5kW to 6kW.
| Model Specifications | |
|---|---|
| Model | SF6020T |
| Pipe Processing Range (mm) | 6000 * φ20~220 / φ20~240 (Square tube: 20*20~150*150 / 20*20~240*240) |
| Laser Power (kW) | 1.5 / 2 / 3 / 4 / 6 |
| Maximum Speed (m/min) | 100 |
| Positioning Accuracy (mm) | ±0.05 |
| Repeated Positioning Accuracy (mm) | ±0.02 |
| Maximum Rotational Speed (r/min) | 100 |
| Maximum Acceleration (G) | 0.8 |
| Table Maximum Load (KG) | 150 / 300 |
Processes round, square, and rectangular pipes. Handles round pipe diameters of φ20mm-220mm/φ20mm-240mm, and square pipe dimensions of 20*20mm-150*150mm/20*20mm-240*240mm. Supports a single tube load bearing capacity up to 300kg.

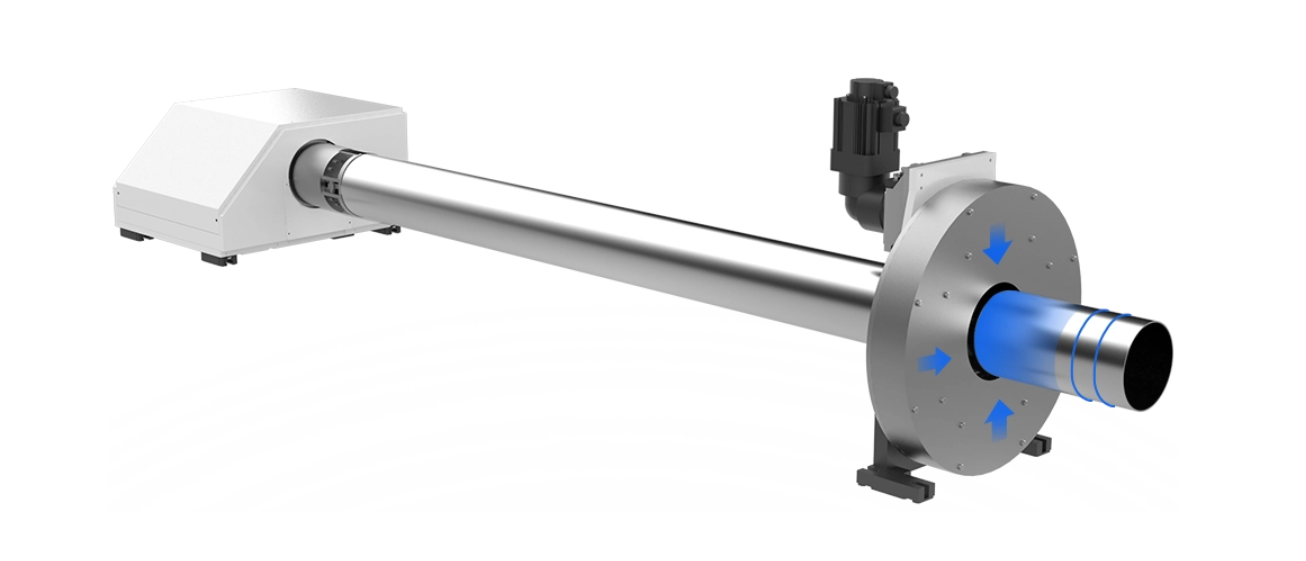

Delivers high clamping accuracy and swift operational speeds. Utilizes self-centering gear transmission for enhanced efficiency, intelligent pneumatic jaws for superior clamping force, stable feeding, and highly precise cutting.

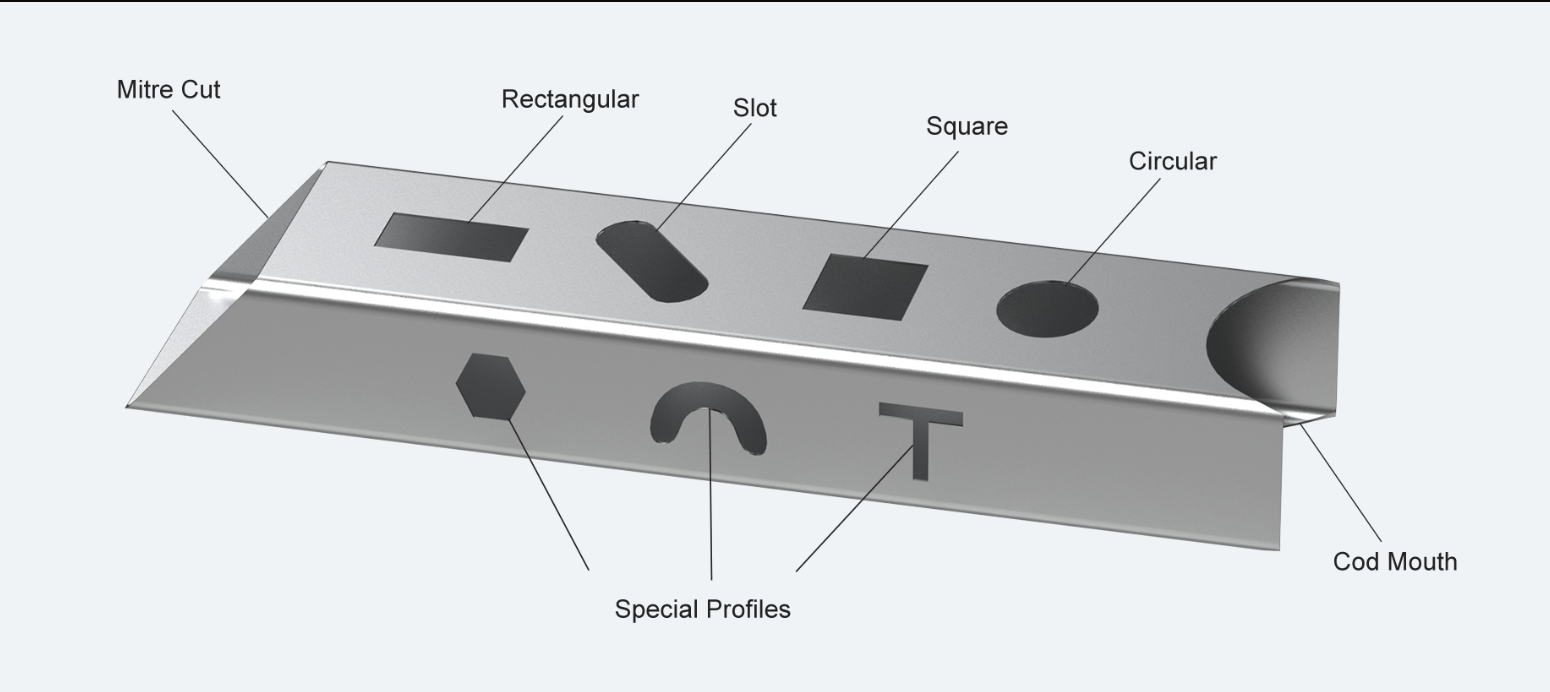

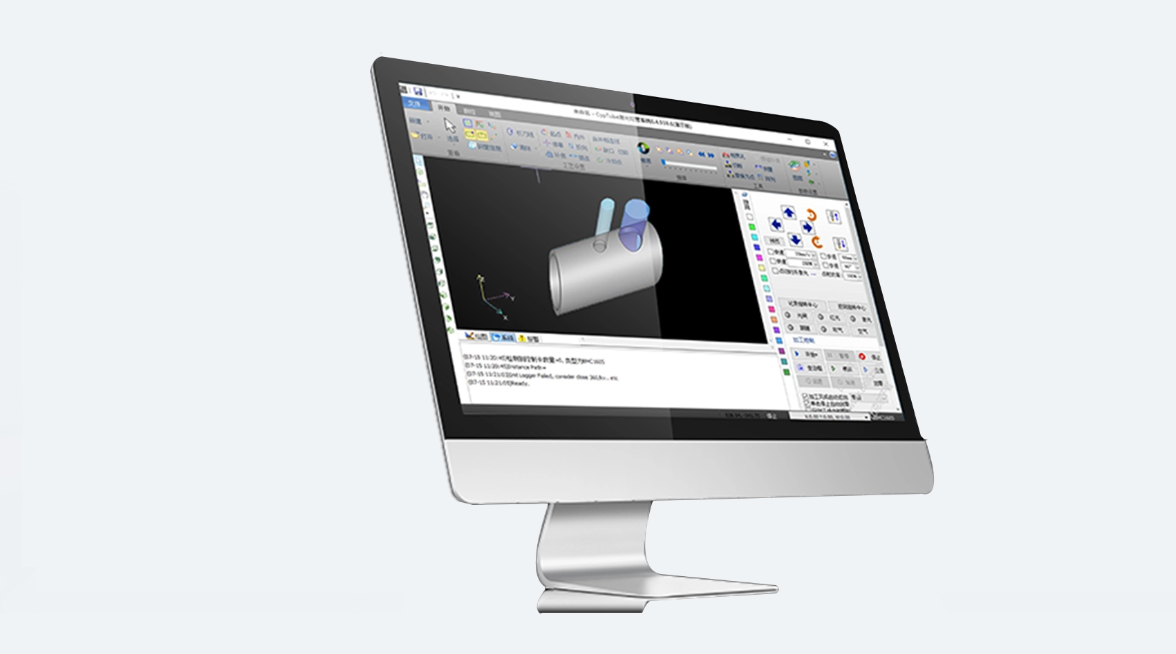

Equipped with a professional FSCUT3000S pipe cutting system. Supports high-precision, high-efficiency cutting of square pipes, round pipes, racetrack-shaped, oval-shaped stretched pipes, as well as angle steel and channel steel.

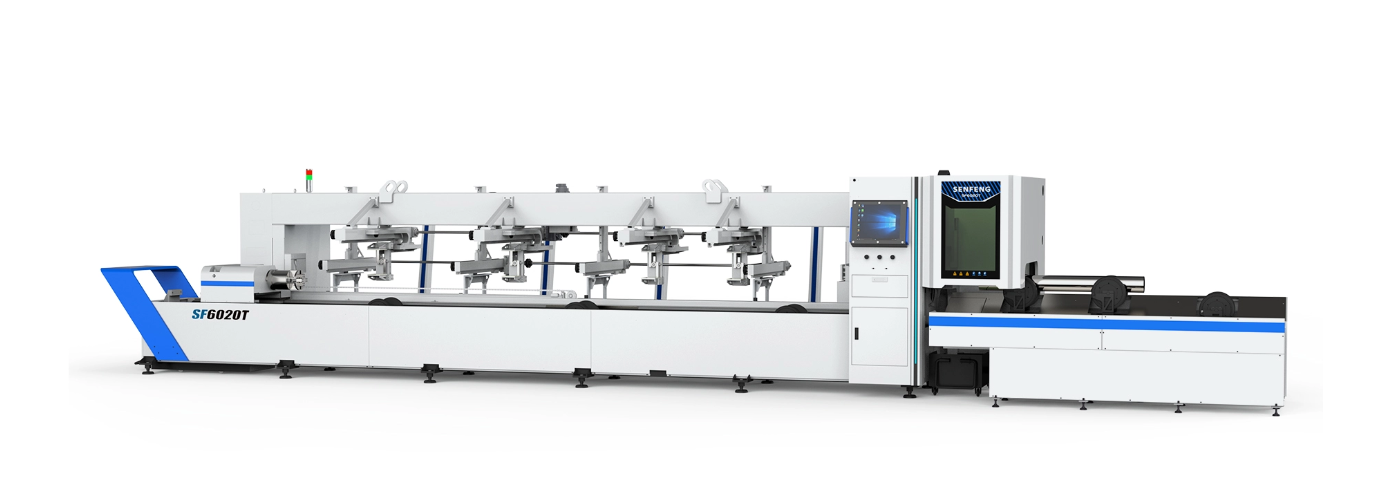

Can be fully integrated with an automatic loading and unloading system. Handles 6 meters of pipe bundles with intelligent sorting, efficient feeding, and high automation, minimizing labor costs while maximizing productivity.

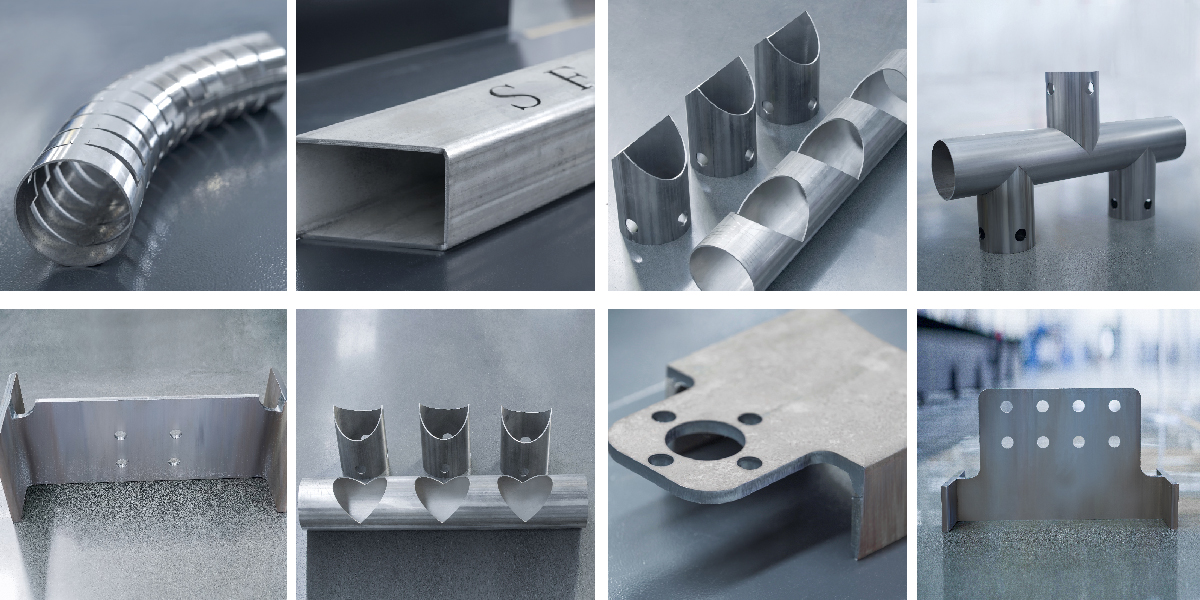

This laser pipe cutting machine effectively cuts carbon steel, stainless steel, aluminum alloy, galvanized sheet, titanium alloy, manganese alloy, and more. It is widely used in metal tube processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, decorative advertising, and other related sectors.
We participate in numerous machinery exhibitions annually. With a client base extending to over 180 countries, we are deeply grateful for the trust placed in our solutions.
A fiber laser cutting machine is highly efficient at cutting various metal sheets and tubes, including carbon steel, stainless steel, copper, brass, aluminum, and titanium.
It is simple. Please share details regarding the materials you intend to process, their thicknesses, and production requirements, and we will advise you on the optimal model config.
The machinery complies fully with European and American standards, carrying certifications such as CE (issued by TÜV), ROHS, and ETL.
We provide a comprehensive 2-year warranty covering the complete machine setup.
Typically, fabrication, testing, and delivery scheduling for this equipment take approximately 30 days or longer, depending on customization options.
We support multiple payment channels including Trade Assurance, TT, Western Union, PayPal, LC, and cash payments.
