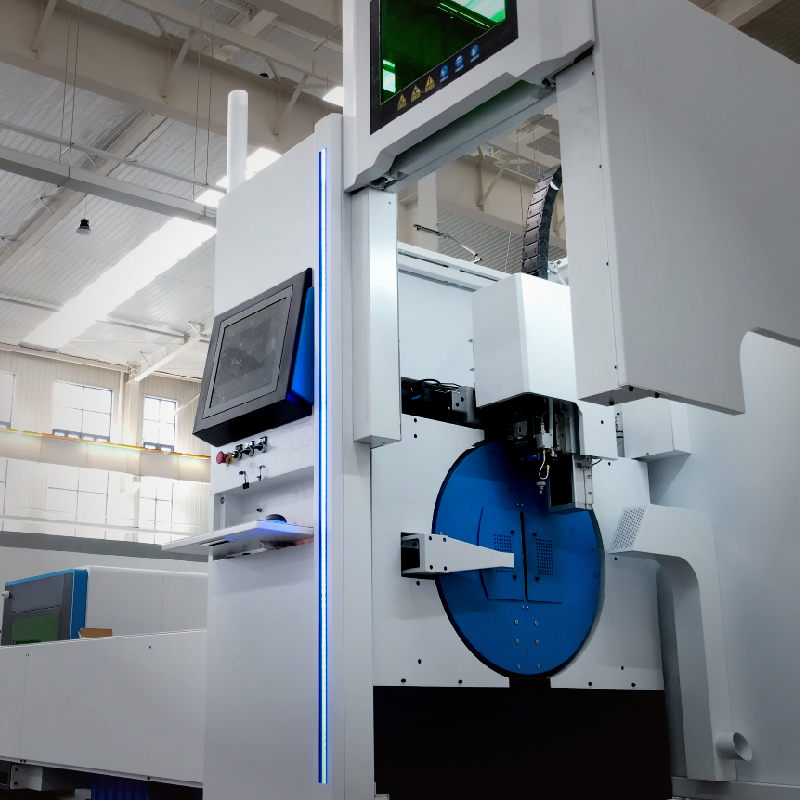

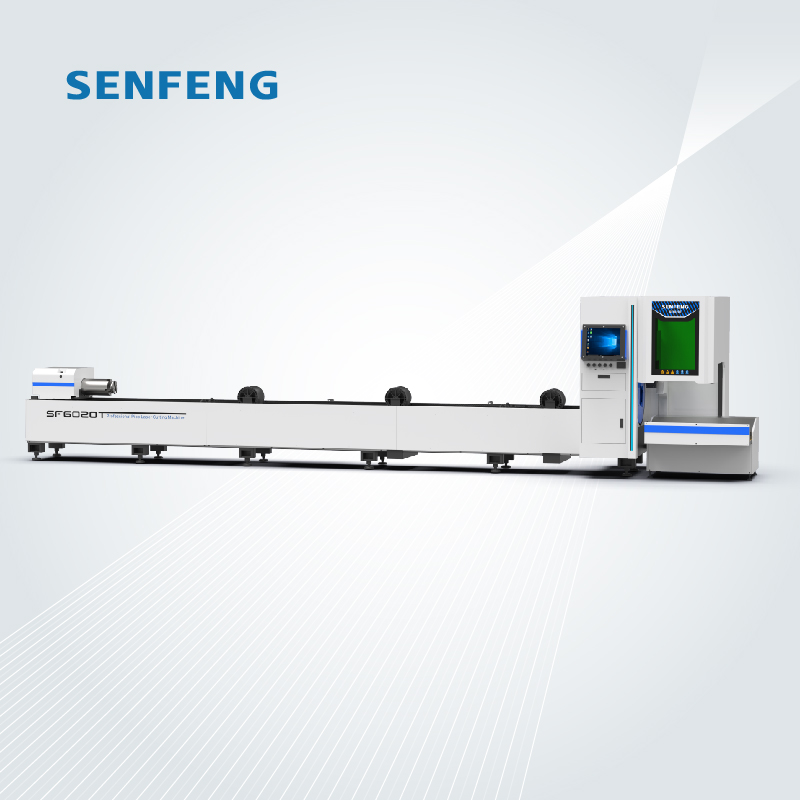

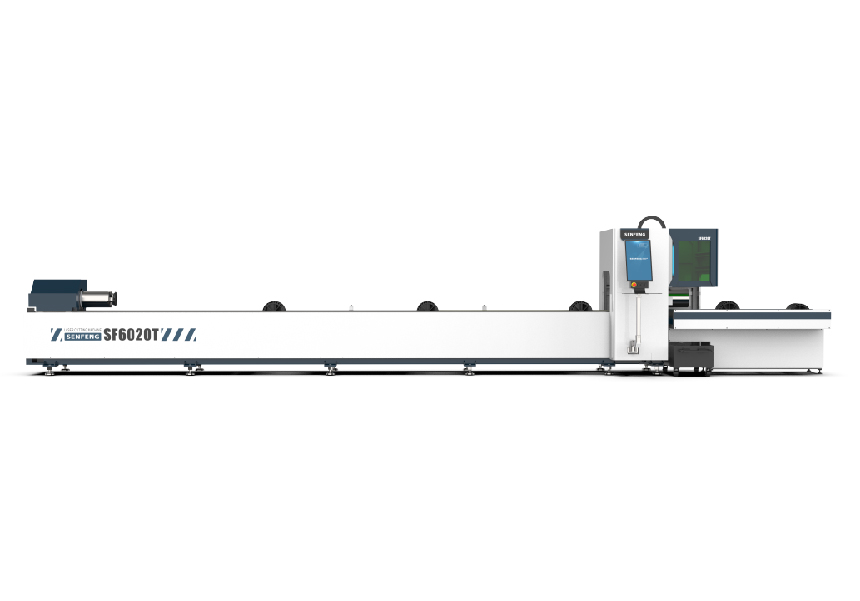

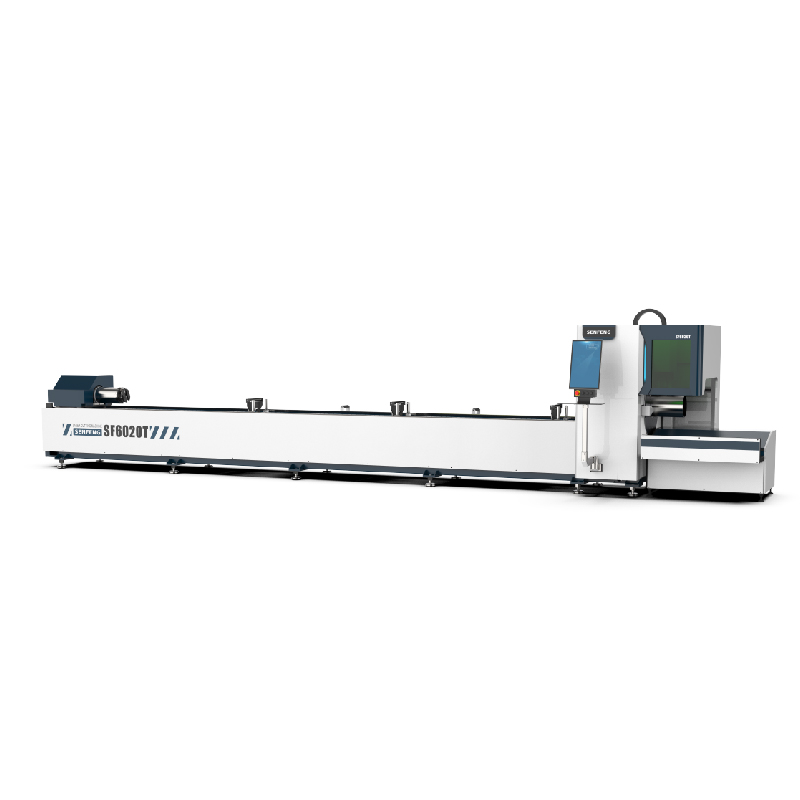

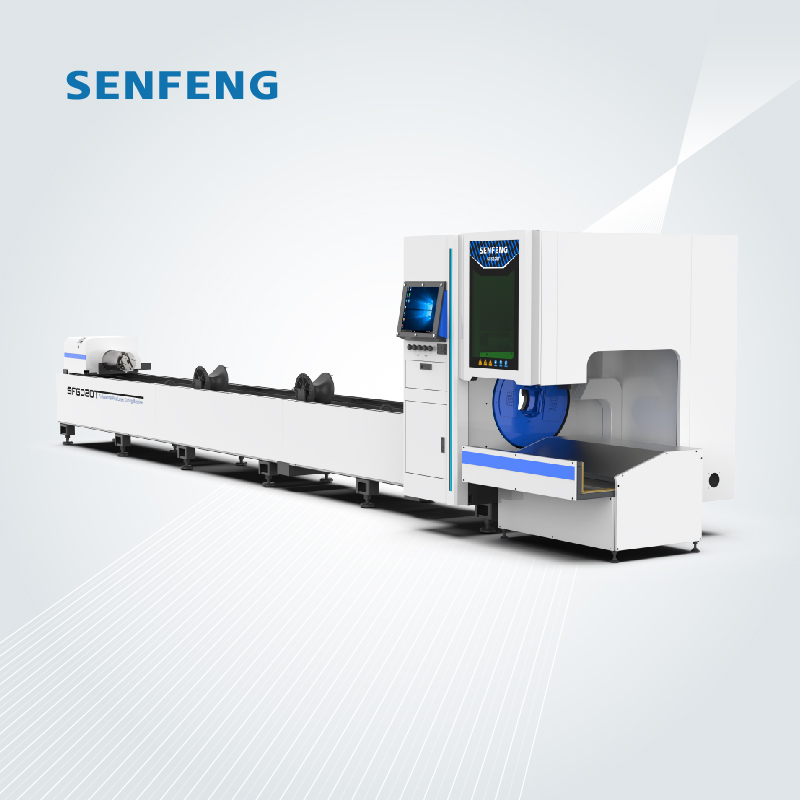

SF6020T advanced configuration, can cut small tube without overburning or adhering slag and large tube fleetly. It enjoys fast shipment and delivery, and is widely used in rail transit, automobile production, construction machinery, agricultural and forestry machinery, etc.
| Model | SF6020T |
|---|---|
| Laser Power (kW) | 1.5-6 |
| Max Length of Tube (mm) | 6000 |
| Scope of Tube Size (mm)-1 | Φ10~220 |
| Scope of Tube Size (mm)-2 | 10*10~150*150 |
| Max Weight of Tube (kg) | 150 |
| X/Y-axis Positioning Accuracy (mm) | ±0.05 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.02 |
| Max No-load Speed (m/min) | 100 |
| Max Rotating Speed of Chucks (r/min) | 100 |
| Overall Dimensions (L*W*H, mm) | 9260*1900*2280 |
| Power Supply | Three-phase 380V, 50Hz/60Hz |

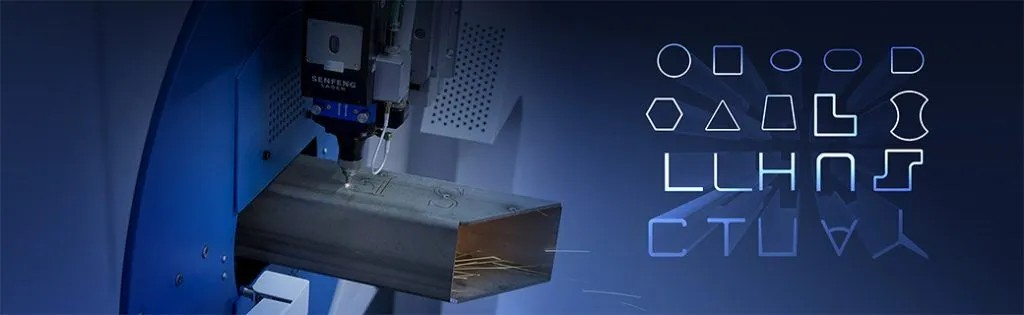

It is used to cut round, square, rectangular, oval tube, I-beam, as well as channel, angle tube, C-profile and H-shaped steel at high precision.
Intelligent bus-based CNC system, based on EtherCAT protocol, is easy to operate and get started by clicking a button. Users may import files of different formats in batch.

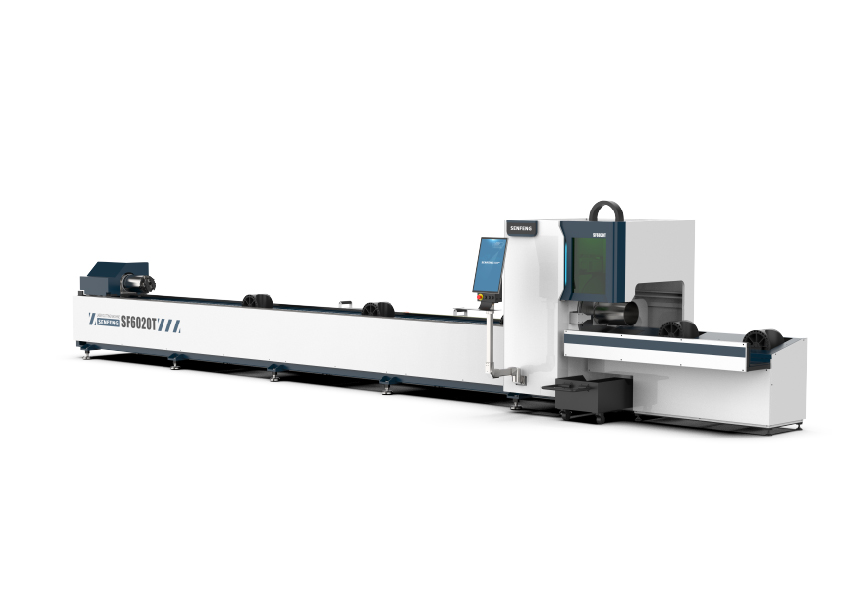

SF6020T laser pipe cutting machine can cut carbon steel, stainless steel, aluminum alloy, galvanized sheet, titanium alloy, manganese alloy, etc. It is widely used in metal tube processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, decorative advertisements, etc.
We are a leading manufacturer engaged in the research, development, production, sale and service of fiber laser cutters, fiber laser cleaning machine, laser cladding machine, laser welding machine, 3D robot, press brake bending machine, metal sander, etc.

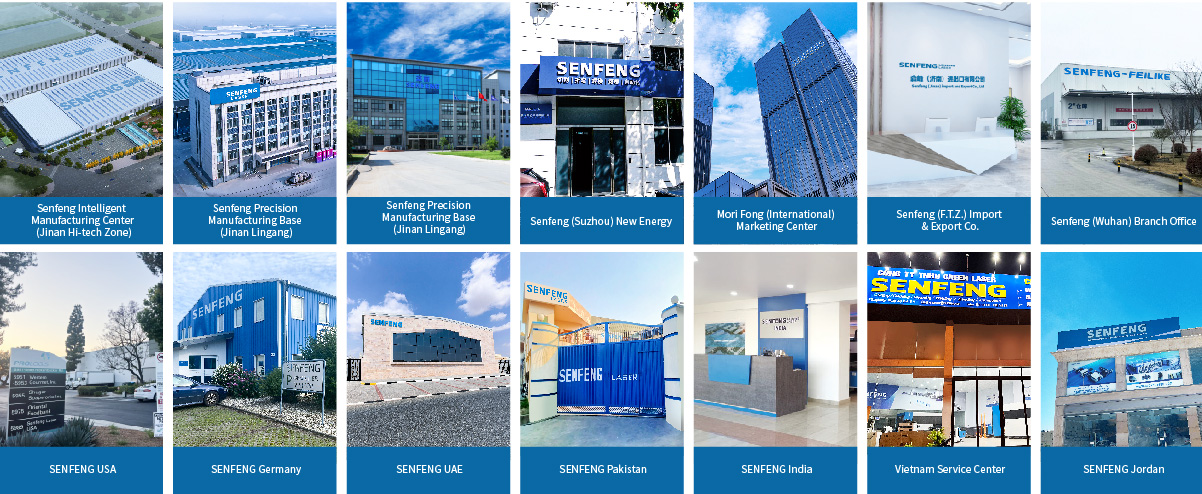

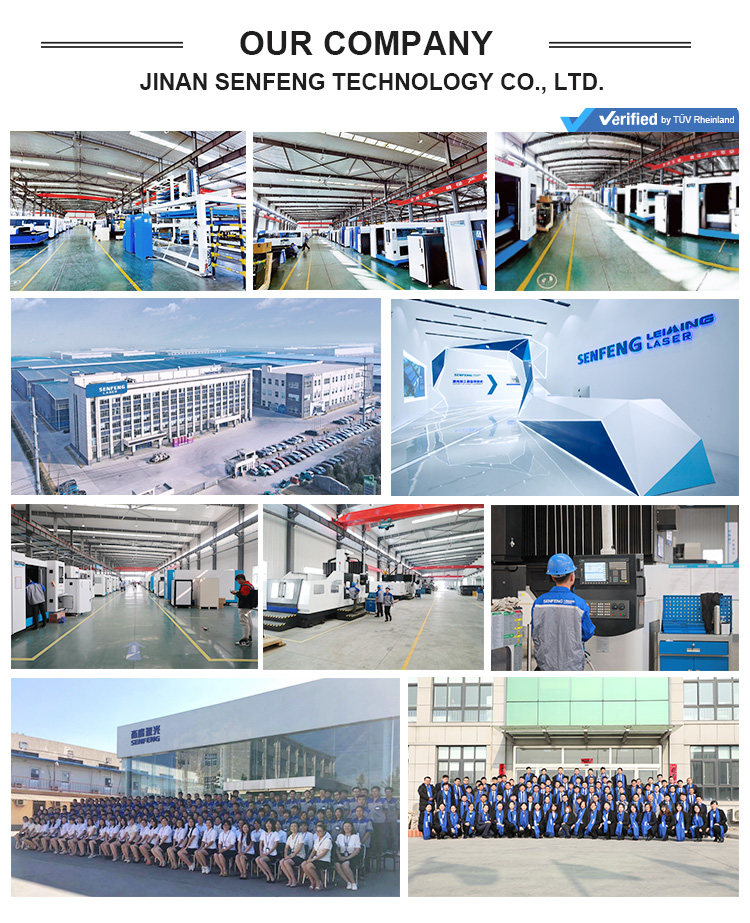

We have 4 standardized laser equipment manufacturing bases with a total area of over 120,000 square meters. We have established many branches in Germany, the United States, India, and we are going to establish Serbia branch, Vietnam branch, Jordan branch and Pakistan branch in the future, providing local service for customers.

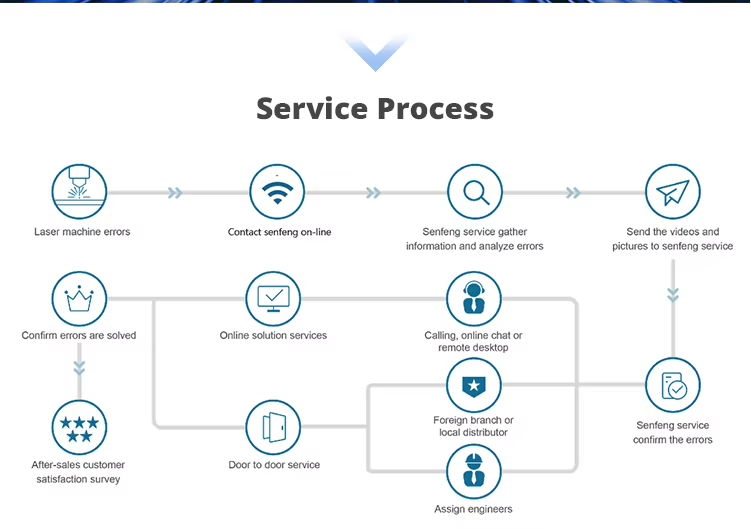

We attend many exhibitions every year. Our customers come from more than 180 countries. Thank you very much for all customers trusting us. If you have any questions, please feel free to contact us!
