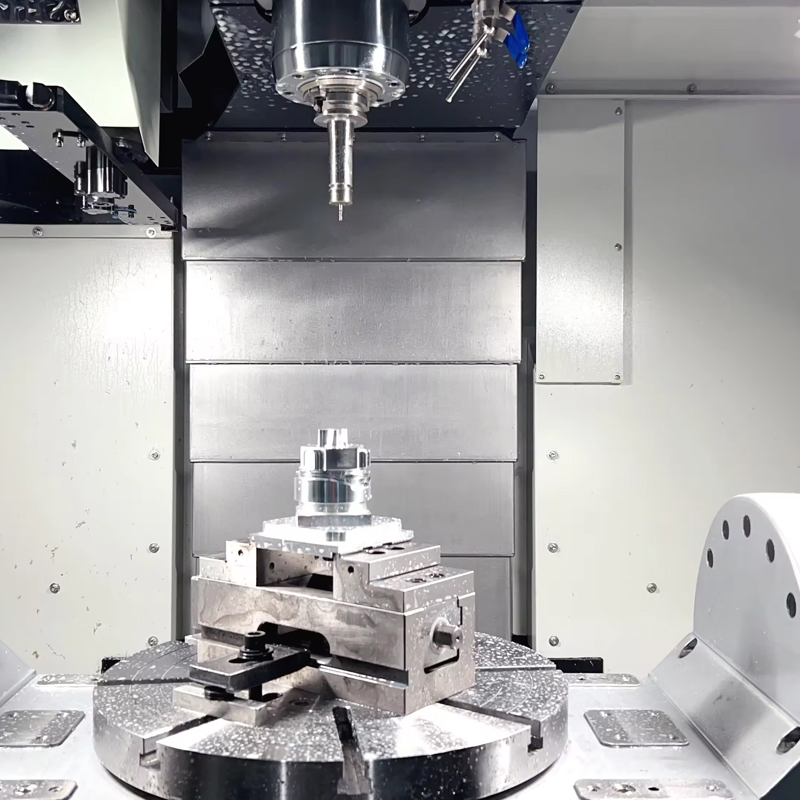

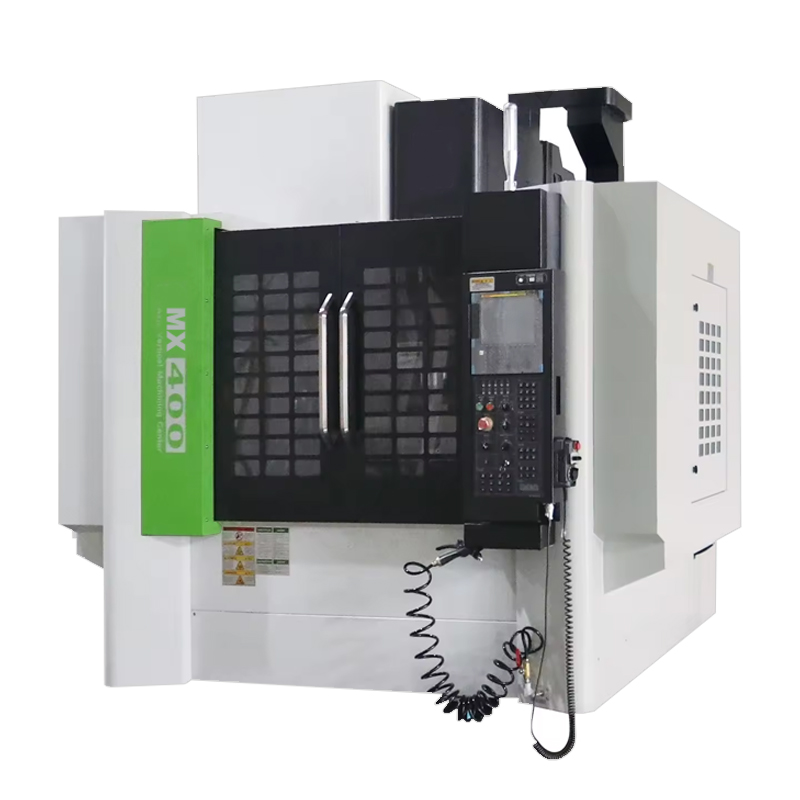

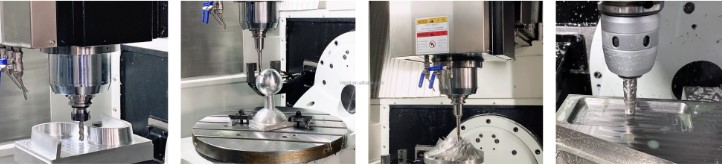

The overall layout of the machine tool is a whole structure, the base is fixed, and the bed saddle moves in the Y direction on the base; The table moves in X direction on the bed saddle; The column is installed on the base, and the headstock moves in the Z direction on the column.
The highly rigid BT40 spindle, lubricated with grease, can make the spindle bearing get constant and reliable lubrication.

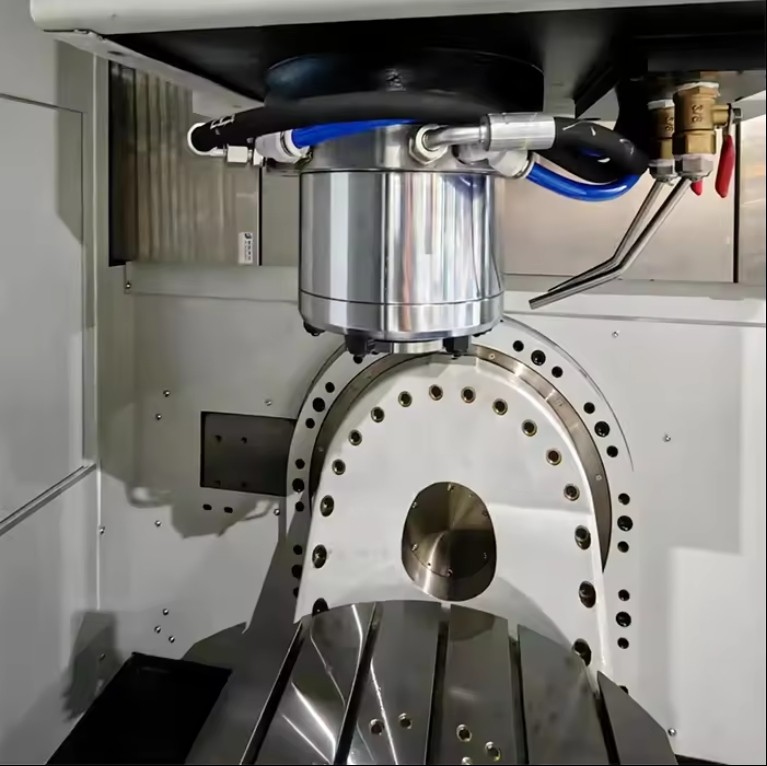

A/C shaft is driven by precision worm gear with strong rigidity.

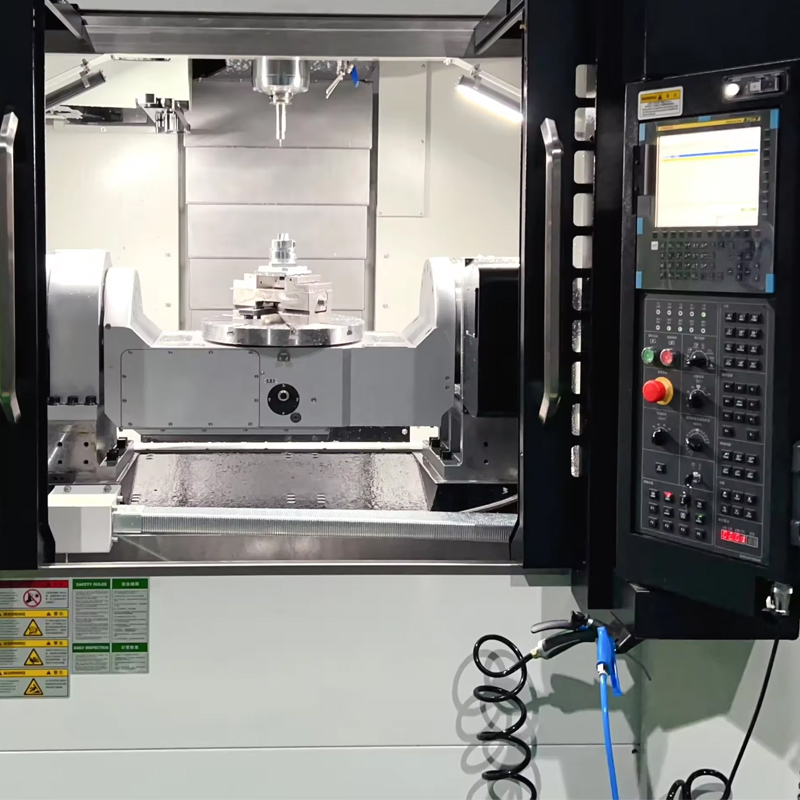

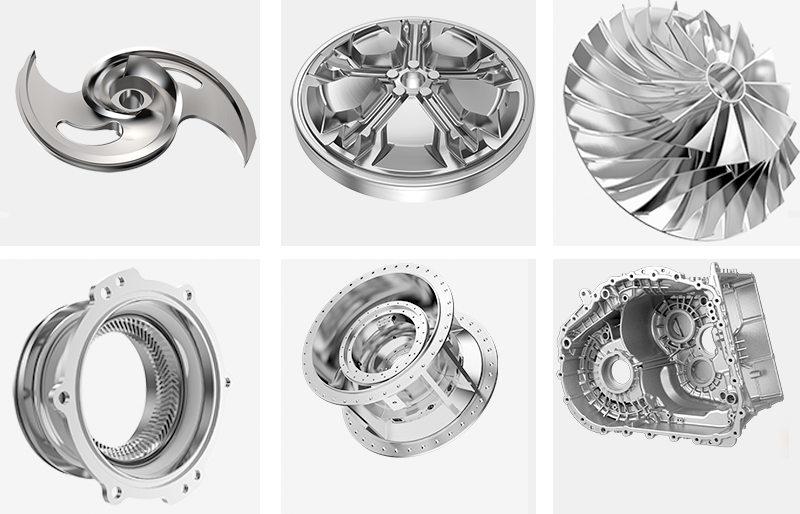

The main structure is based on the mold machine, superimposed cradle turntable, strong rigidity, good accuracy retention.

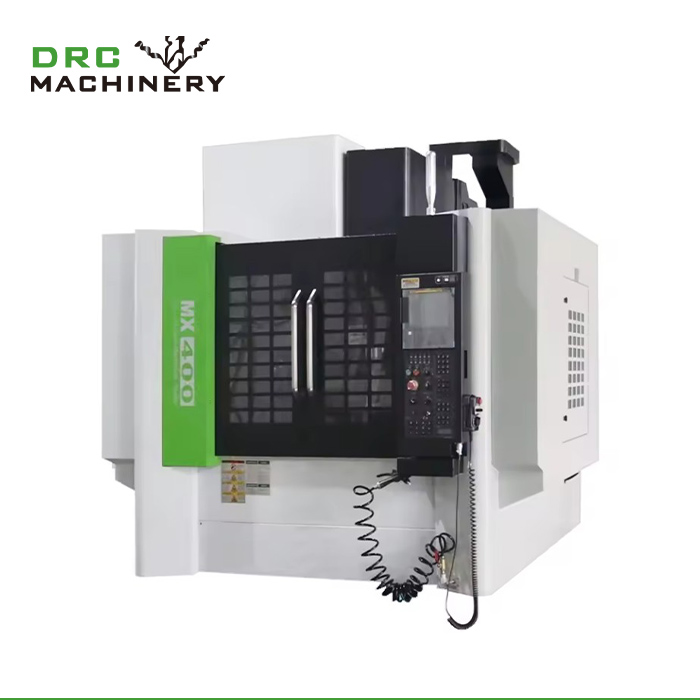

| Machine Type | Unit | MX400 |
| Worktable | ||
| Rotating table size | mm | 410 |
| Load on worktable | kg | 150/200 (90 degrees/horizontal) |
| Division angle | 0.001° | |
| Indexing accuracy | A-axis 60 / C-axis 15 | |
| Repeated accuracy | A-axis 8/ C-axis 6 | |
| Distance from spindle nose to work surface | mm | 50-600 |
| Travel | ||
| X-axis | mm | 720 |
| Y-axis | mm | 600 |
| Z-axis | mm | 550 |
| A-axis | 30°~-120° | |
| C-axis | 360° | |
| Spindle | ||
| Spindle taper | BT40 | |
| Rotating spindle speed | rpm | 10-12000 |
| Spindle motor | kw | 11 |
| Feed speed | ||
| Cutting feed speed | m/min | 7 |
| Fast feed speed | m/min | 30/30/30 |
| Maximum rotation speed of A-axis | rpm | 11.1 |
| Maximum rotation speed of C-axis | rpm | 16.6 |
| Tool magazine | ||
| Capacity of tool magazine | 24 | |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Max. tool diameter | mm | 80 |
| Tool change time | sec | 2.5 |
| Precision | ||
| Positioning accuracy(X/Y/Z) | mm | 0.008 |
| Repeated Positioning accuracy(X/Y/Z) | mm | 0.005 |
| Positioning accuracy(B/C) | sec | 5 |
| Repeated Positioning accuracy(B/C) | sec | 2 |
| Control system | ||
| Control system | FANUC 0i MF | |
| X_axis motor | αiF22 | |
| Y_axis motor | αiF22 | |
| Z_axis motor | αiF22B | |
| A_axis motor | αiF12 | |
| C_axis motor | αiF8 | |
| Spindle motor | αiIT12/12000 | |
| Others | ||
| Air supply pressure | bar | 6-8 |
| Air pressure flux | L/min | 280 |
| Weight | T | 7.2 |
| Floor area (length*width*height) | mm | 2660*3000*3150 |
