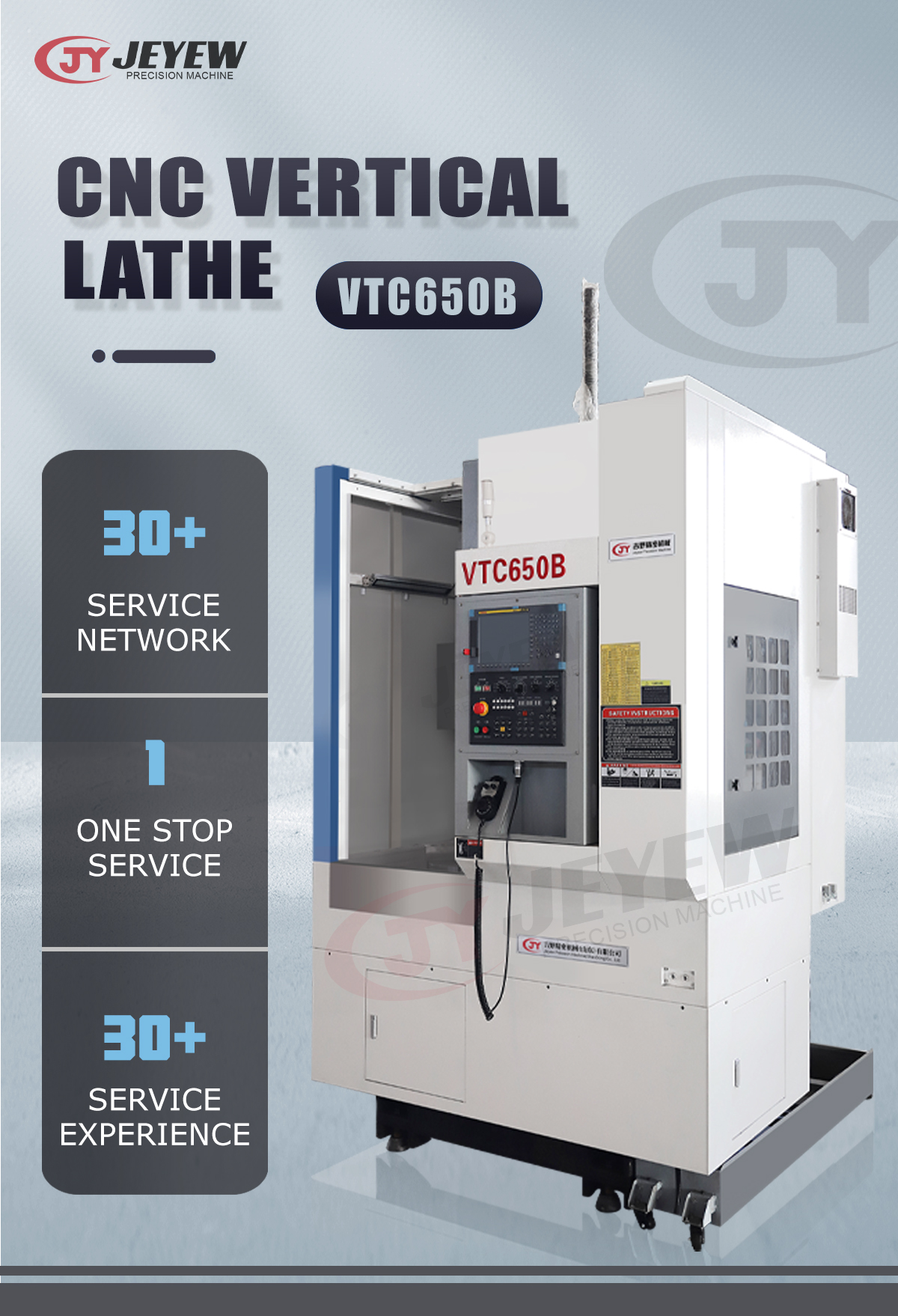

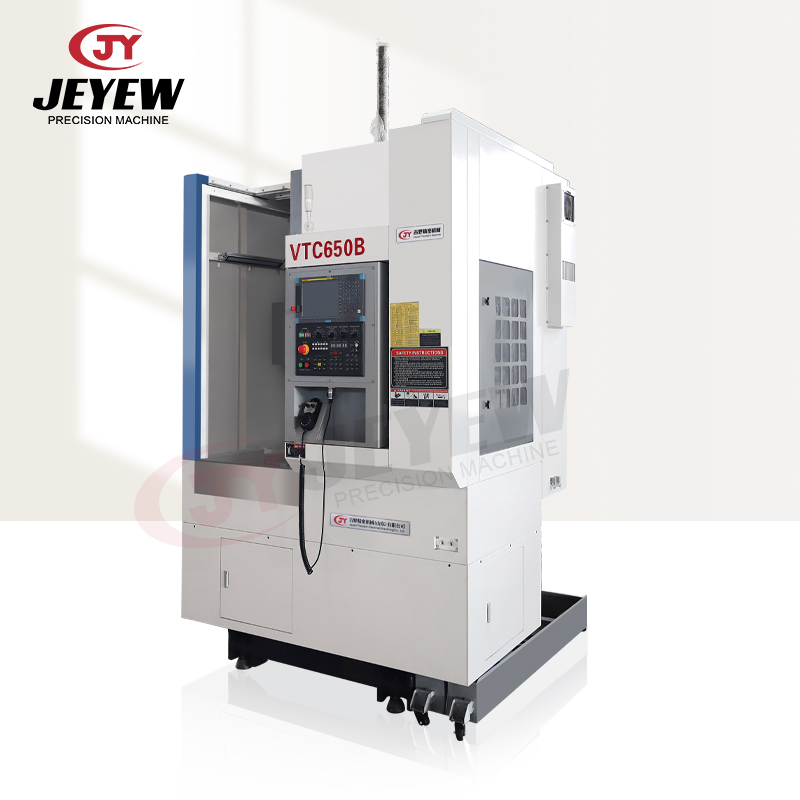

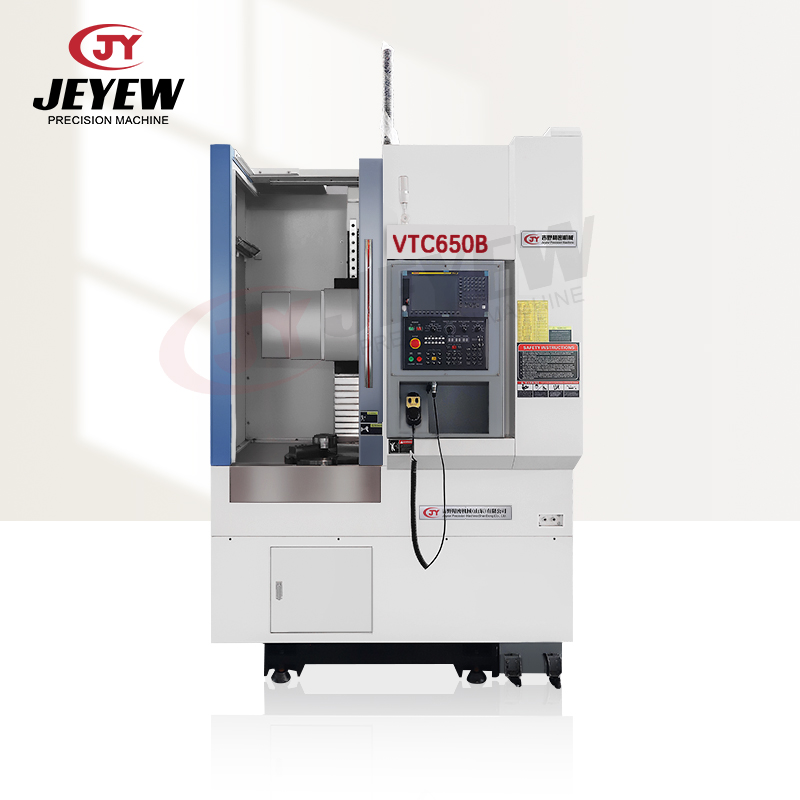

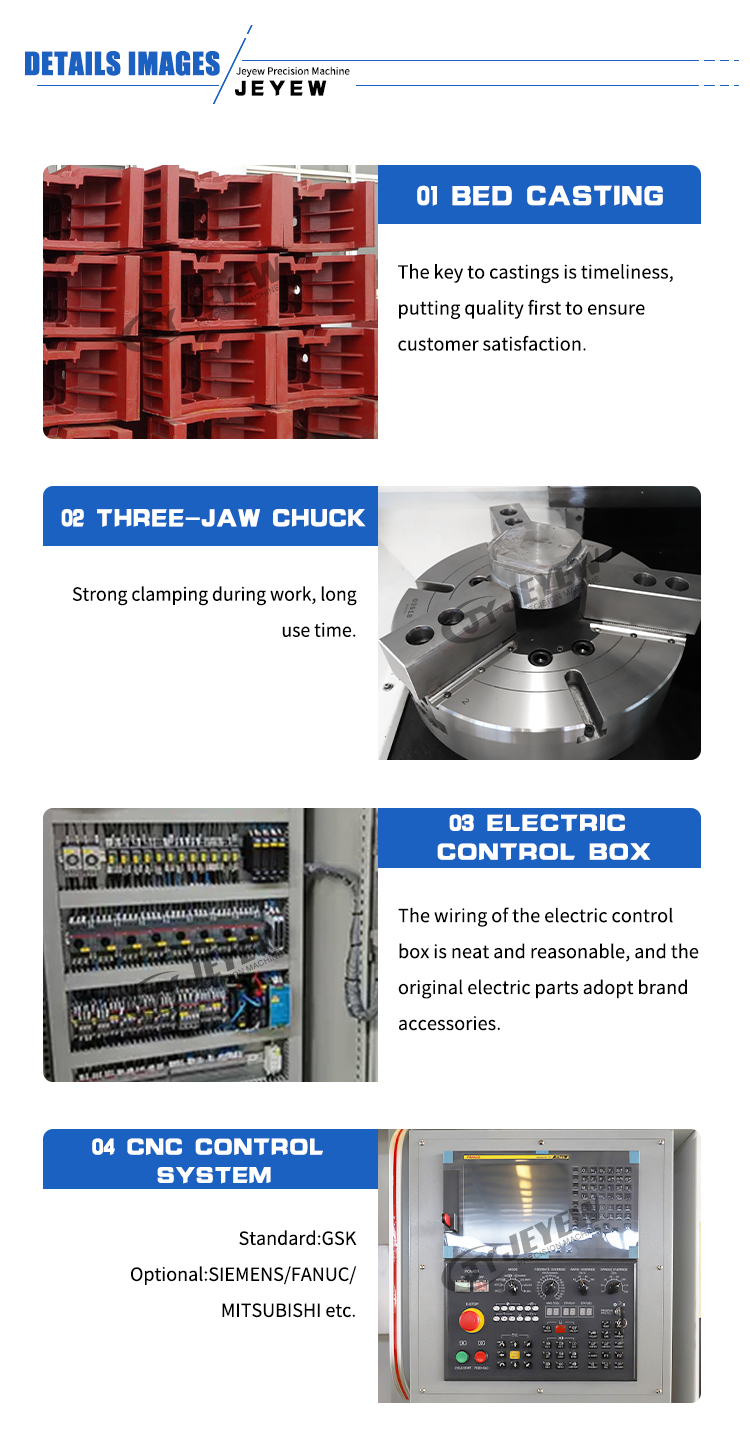

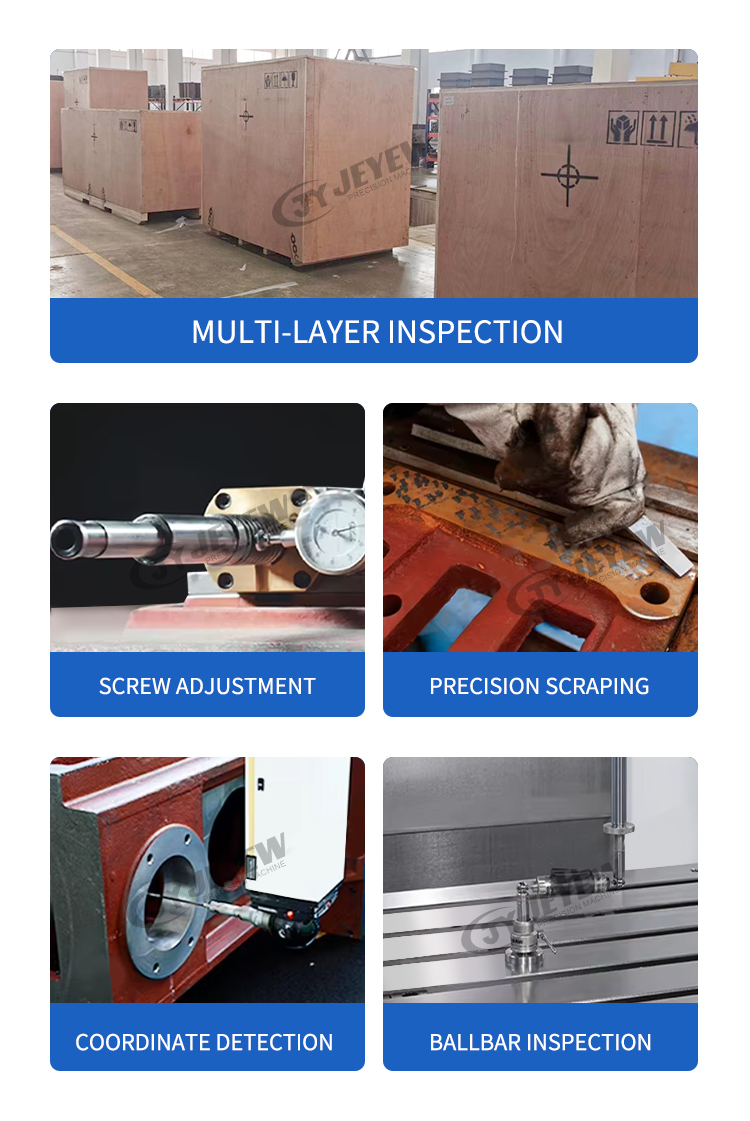

VTC650 (L) Vertical CNC Lathe
Built on the basis of absorbing advanced technologies from similar machine tools globally, this series integrates extensive production experience in CNC vertical turning to adapt to modern market demands. It stands as an economical, highly efficient choice for processing complex plate parts across various mechanical and automotive industrial applications.
| Project | VTC650 (L) Specification | |
|---|---|---|
| Max swing diameter mm | 650 | |
| Max cutting length mm | 700 (OD ≤ Φ500) | |
| Max cutting diameter mm | Φ600 (Height ≤ 300) | |
| Spindle type | A2-8/11 | |
| Spindle speed r/min | 80-1500 | |
| Spindle speed step | stepless | |
| Spindle transmission ratio | 1:3 | |
| Output power of the main motor kw | 15/18.5 | |
| Main motor has a rated torque Nm | 191/236 | |
| Chuck diameter / form | 500/K3L | |
| X-axis servo motor | 2.7Kw-18Nm | |
| Z-axis servo motor | 2.7Kw-18Nm | |
| Tools holder form | Gang type | Gang type holders |
| Electrical | 4/6 station | |
| hydraulic | 8/12 station | |
| Power holder | 8/12 station | |
| Guideway type mm | Harden guide | Z-axis hard rail surface is 100 wide |
| X-axis hard rail surface is 80 wide | ||
| Roller line rail | Z axis 45 | |
| X axis 45 | ||
| Column guide rail span mm | Harden guide | 480 |
| line rail | 465 | |
| Cross rail span mm | Harden guide | 350 |
| line rail | 335 | |
| X-axis Fast moving speed m/min | Harden guide | 10 |
| line rail | 18 | |
| Z-axis Fast moving speed m/min | Harden guide | 10 |
| line rail | 18 | |
| X-axis travel mm | -150~+500 | |
| Z-axis travel mm | 750 | |
| Electrical capacity KVA | 18 | |
| Machine tool weight about T | 7.5 | |
| Machine size | 2400×2100×3200 | |
