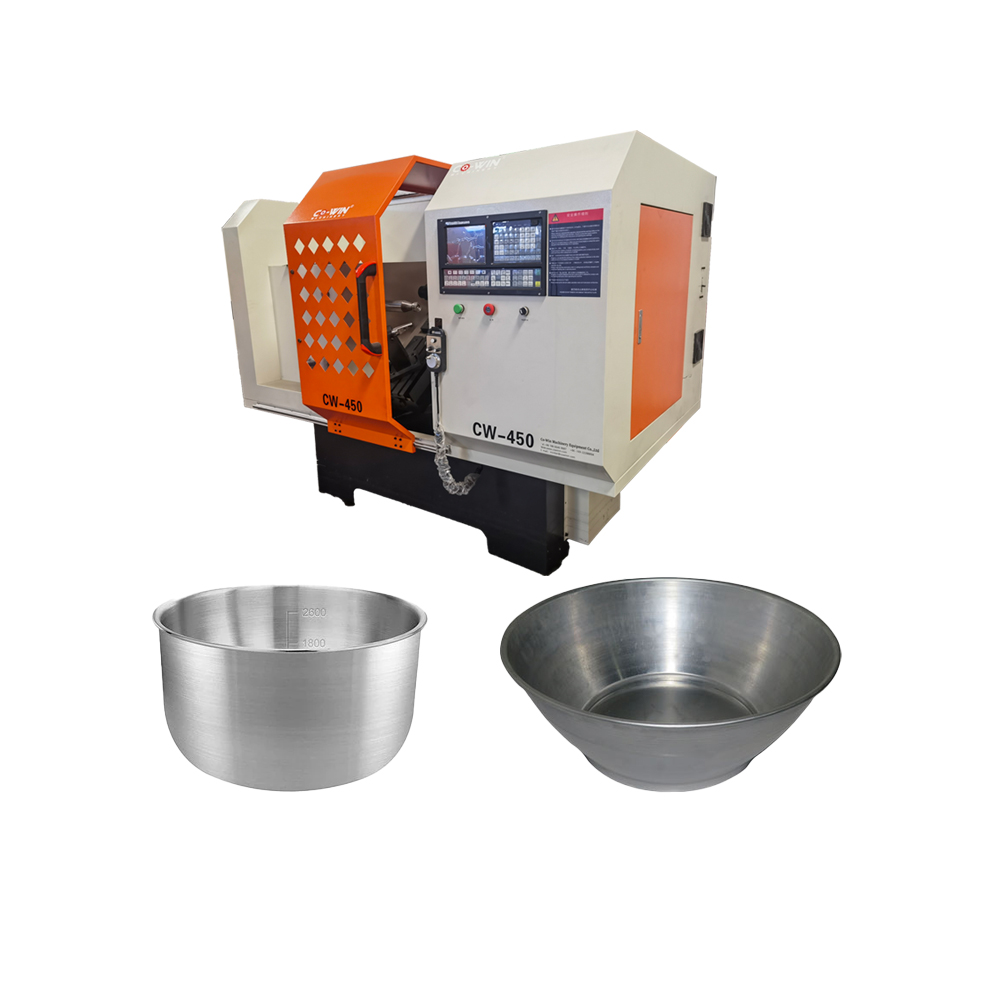

CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
1 / 5
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins
CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins

CNC Spinning Machine For Production And Processing Of Stainless Steel Iron Cups And Basins

Send Inquiry

Product Description

Product Description
CNC Spinning Machine Overview
CNC Spinning Machine Component 1 CNC Spinning Machine Component 2 CNC Spinning Machine Component 3
Specification
CW-450 CNC Spinning Machine
Number of Spinning Roller Main Roller + Spining Roller 2 X/Z Axis Servo Motor Power 1.5/1.5 KW
Thickness of Workpiece 0.5 MM- 2.0 MM Aluminum/Copper
0.5 MM-1.2MM(Iron)
0.5-0.8 MM (Stainless Steel)		 X/Z Axis Pulse Equivalent 0.001 MM
The Max Material Diameter 600mm Positioning Accuracy 0.01 MM
The Max Rotary Diameter Over the Plate 230 MM Repositioning Accuracy 0.005 MM
Max Length of Workpiece 250 MM Spindle Bore Thrust Tooth Connection
X/Z Axis Travel 500 MM/370 MM Spindle Bore Diameter(Blowing) 10 MM
Z Axis Thrust 20 KN Spindle Speed 3000 RPM
The Tailstock Thrust 20 KN Diameter of Tailstock Sleeve 40 MM
Guide Rail Liner Guide Rail Tailstock Stroke 300 MM
Width of Lathe Bed 800 MM Tailstock Sleeve Movement 200 MM
X/Z Axis Fast Feed Speed 10/15 M/MIN Weight 1620 KG
Overall Dimensions L 2230* W1400* H1700 MM
Production Process Image 1 Production Process Image 2 Production Process Image 3 Production Process Image 4 Production Process Image 5 Production Process Image 6 Production Process Image 7

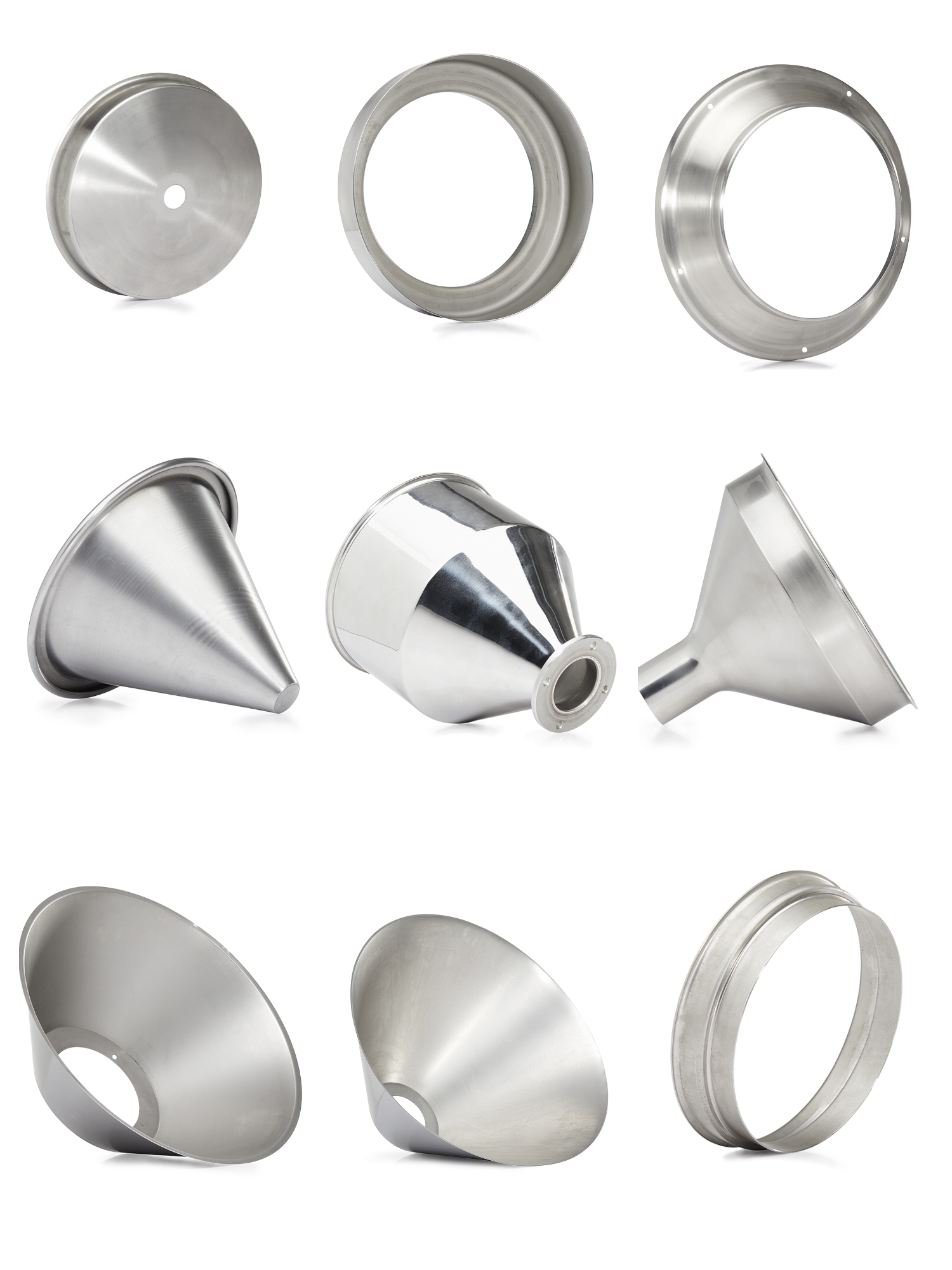

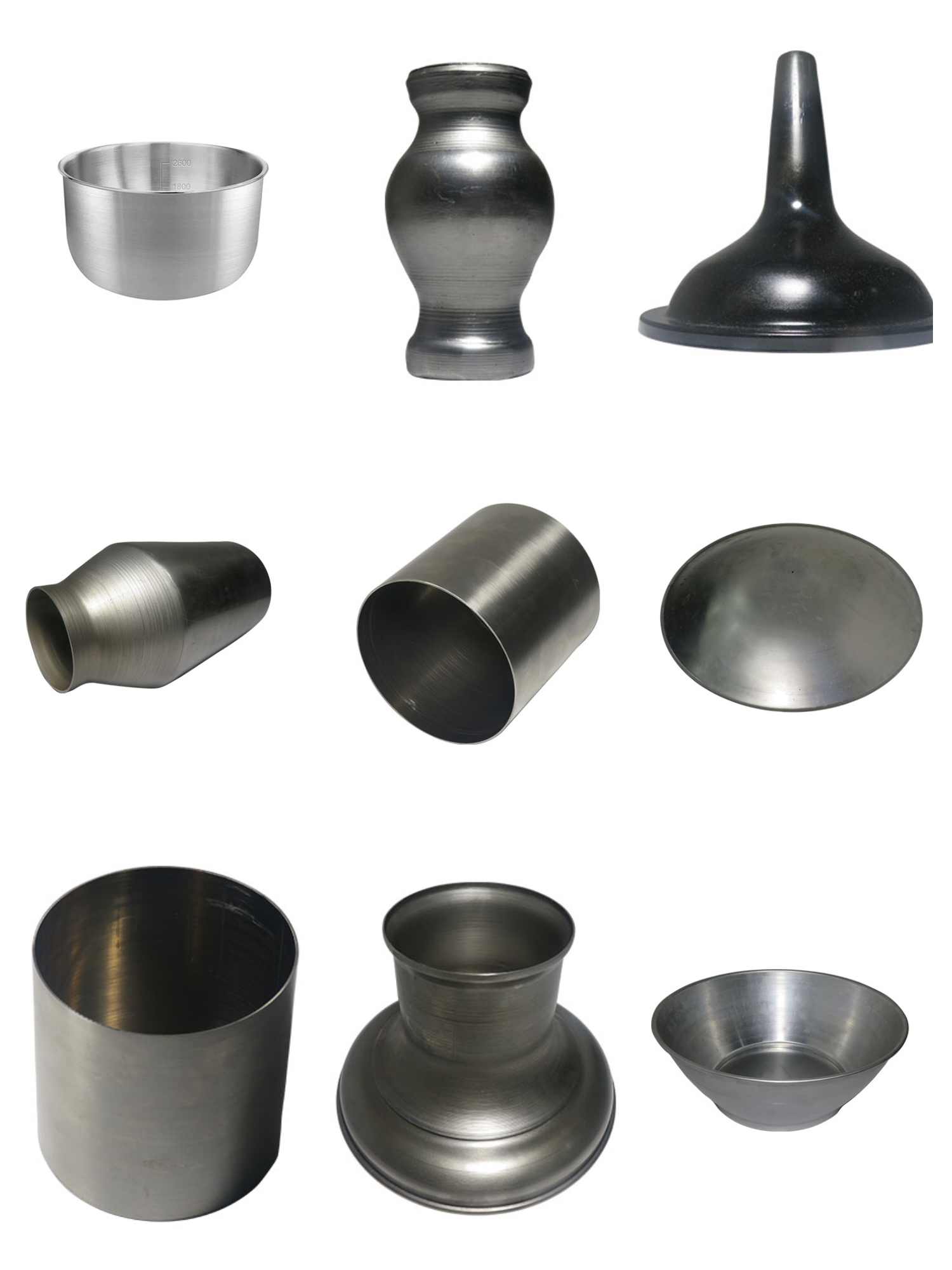

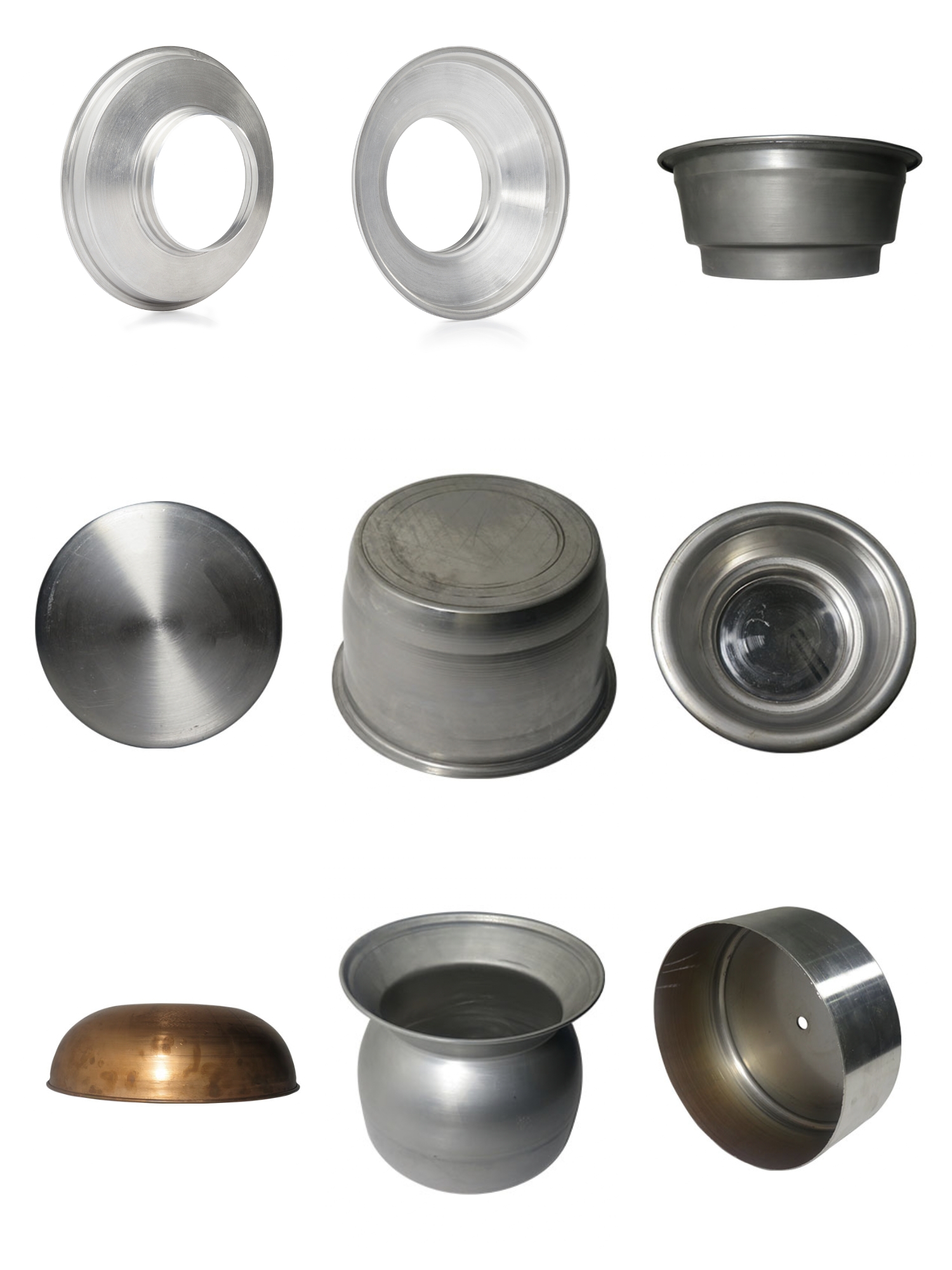

Products Description
Products Description Detailed View 1 Products Description Detailed View 2
Application
Application Scenario 1 Application Scenario 2
Packing & Delivery
Packaging Box View 1 Packaging Box View 2
Standard wooden case packing

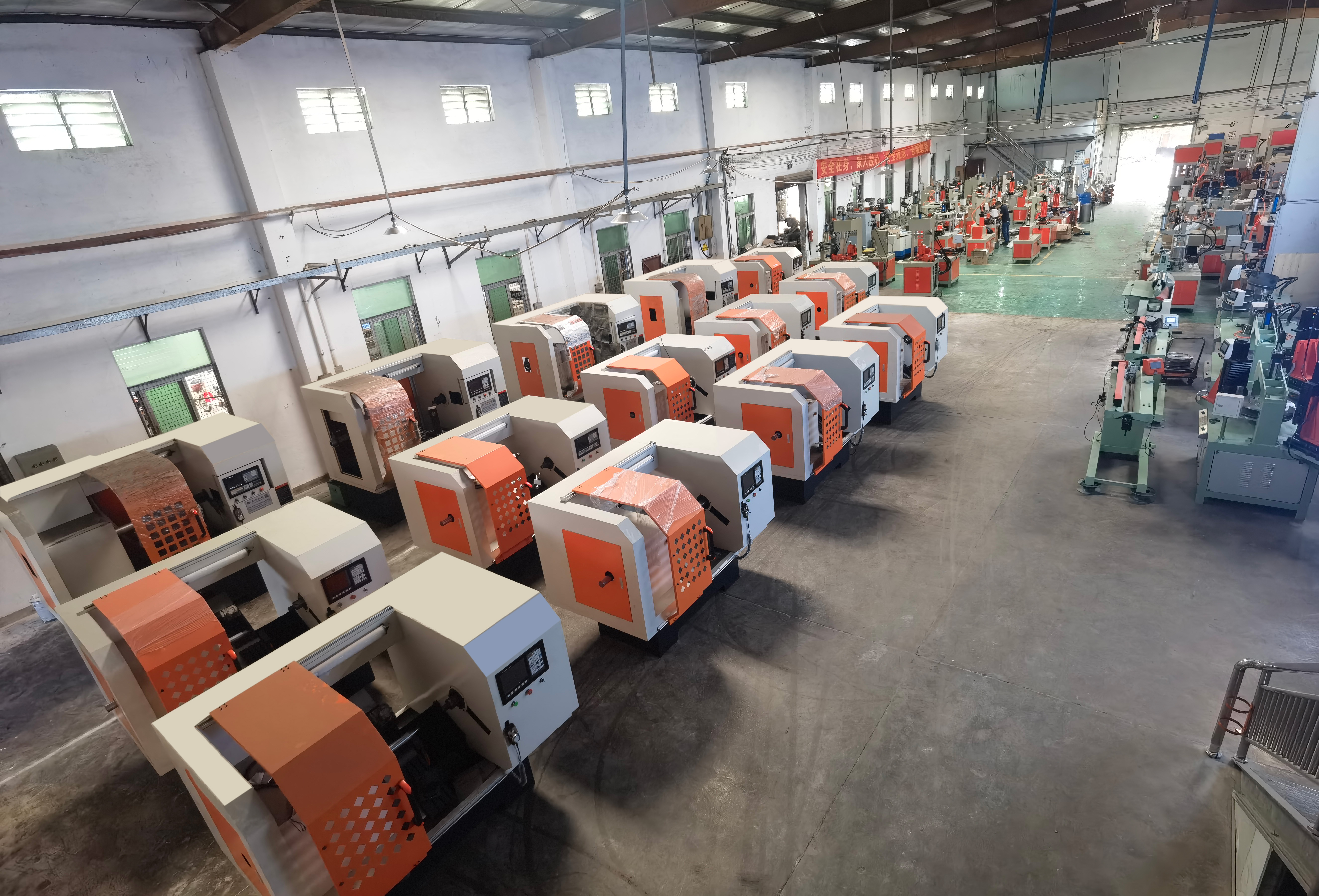

Profile
Corporate Environment 1 Corporate Environment 2

We are a professional company dedicated to the production and solutions of metal products. We have rich experience and advanced equipment to provide customers with customized production equipment for various metal products, such as metal pots, bowls, pans, frying pans, baking sheets, dinner plates, auto parts, air ducts and a series of metal products.

Comprehensive Solution
Provide a complete production line solution, covering a series of production processes from hydraulic press die-casting, metal CNC spinning machine spinning, rotary cutting, trimming, deburring, curling, etc. We not only provide equipment, but also provide customers with customized production solutions to meet the needs of different customers.
Advanced Equipment
We have introduced and owned the most advanced production equipment such as hydraulic presses and CNC spinning machines to ensure production efficiency and product quality while reducing production costs and improving customer satisfaction.
Technical Team
We have a highly skilled team with rich experience and expertise, unique insights and problem-solving abilities in the field of metal processing. No matter what needs and challenges our customers face, we can provide the best solutions.
Quality Assurance
We strictly control every aspect of the production process to ensure product quality reaches the highest standards. From raw material procurement to production and processing to final product delivery, we always put quality first.
Service Philosophy
We always adhere to the service concept of "quality first, customer first", and win the trust and support of customers with professional technology and high-quality services. We are willing to work together with our customers to develop together and create a better future.
Recommend Products
Recommended complete production line equipment
FAQ
Q1. What types of machinery and equipment do you provide?
We provide various types of mechanical equipment, including hydraulic presses, CNC spinning machines, rotary cutting machines, trimming equipment, deburring machines, crimping machines, etc. We can also provide customized mechanical equipment solutions according to customer needs.
Q2. What is your machinery and equipment production process?
Our mechanical equipment production process includes design, manufacturing, assembly, debugging and other links. During the manufacturing process, we strictly follow professional standards and quality control processes to ensure that each piece of equipment has stable performance and reliable quality.
Q3. Does your equipment use advanced technology?
Yes, we introduce and adopt the most advanced technology to ensure that our machinery and equipment have efficient, precise and stable performance. Whether it is in hydraulic control, CNC machining or automation control, we always maintain the leading level.
Q4. How to ensure the quality of your products?
We strictly control every aspect of the production process of mechanical equipment, from material selection to production, processing, assembly and testing, and strictly follow the quality management system. Each piece of equipment undergoes strict inspection and testing before leaving the factory to ensure that its quality and performance meet customer requirements.
Q5. Do you accept customized orders?
Yes, we can provide customized mechanical equipment solutions according to customer needs. Whether it is special specifications, specific functions or special requirements, we can tailor it to meet the individual needs of our customers.
Q6. What support do you offer for overseas equipment deployment?
We provide detailed documentation, technical guidance, and operational support to ensure smooth machinery installation and optimal performance on-site.
