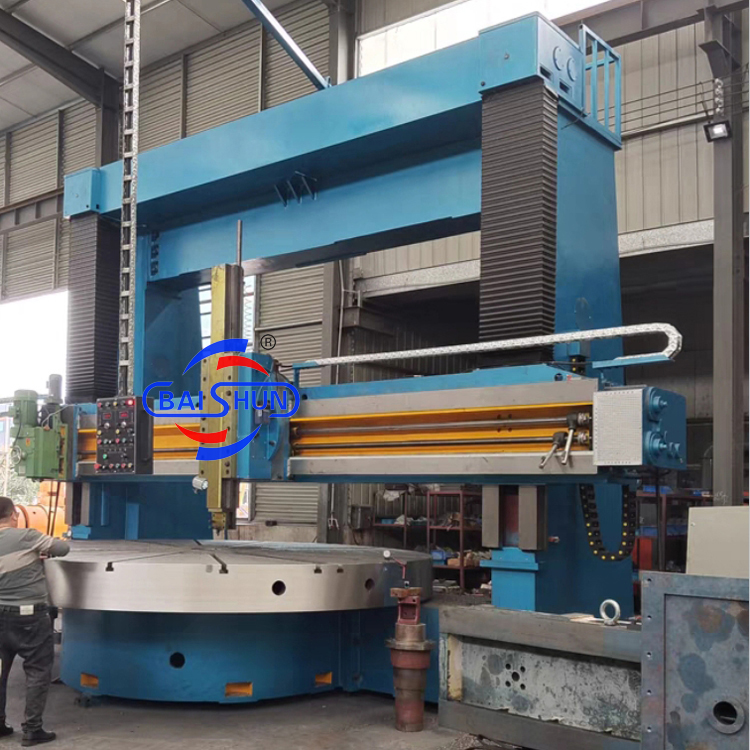

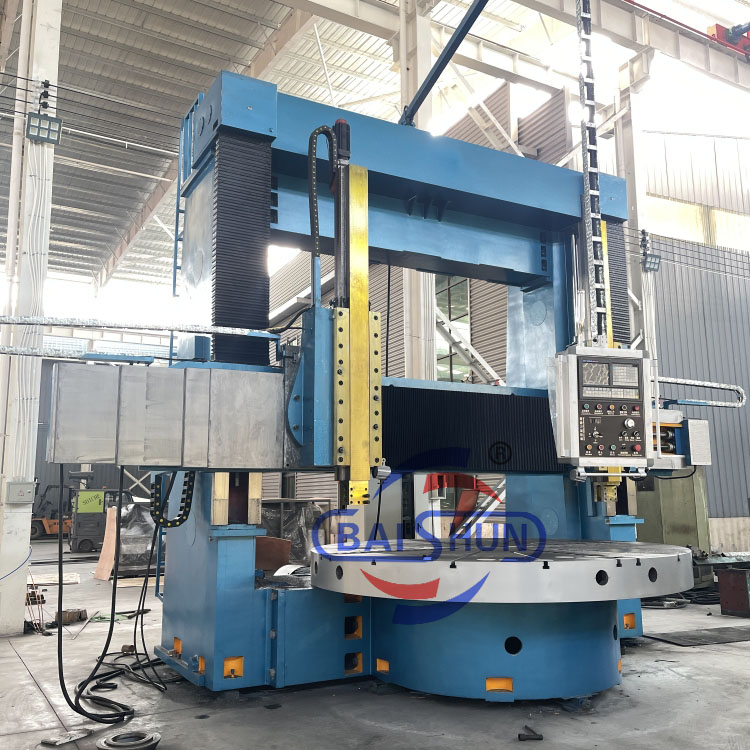

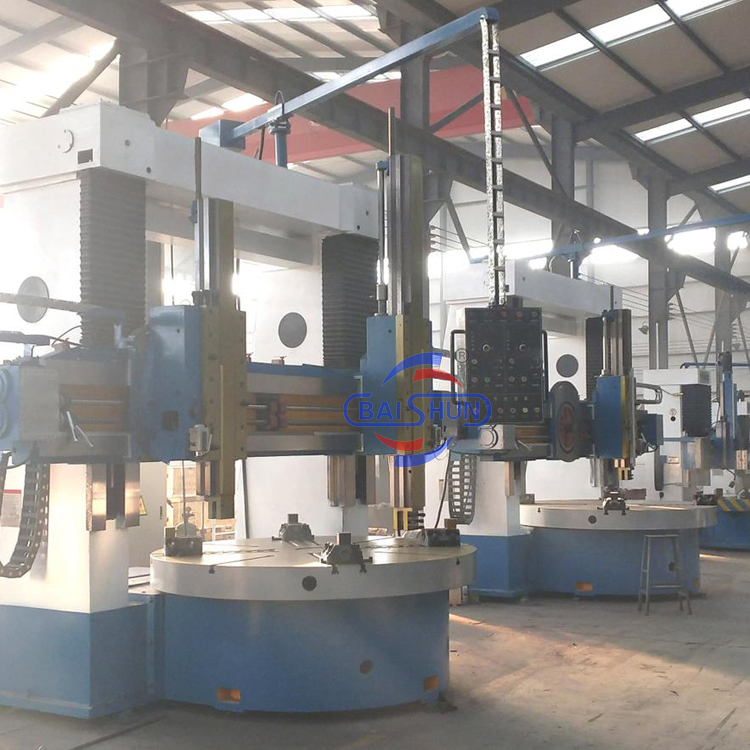

Large 4000mm Diameter Metal Turning Lathe Double Column Vertical Lathe CNC Vertical Lathe CK5240

1 / 5

Large 4000mm Diameter Metal Turning Lathe Double Column Vertical Lathe CNC Vertical Lathe CK5240

Send Inquiry

Product Description

Product Overview

Smart CNC Vertical Turning Lathe Machine
The High Precision CNC Vertical lathe is specialized mechanical equipment designed for processing large and heavy workpieces with significant radial dimensions, relatively small axial sizes, and complex shapes. It is ideal for machining cylindrical surfaces, end surfaces, conical surfaces, and holes for various discs, wheels, and sleeve workpieces.

Additional capabilities include running threads, spherical surface turning, and grinding with optional attachments. Unlike horizontal lathes, the vertical spindle layout ensures easier clamping and alignment, reducing the load on spindles and bearings to maintain long-term working accuracy.

⚙

Product Specifications

Specifications	Unit	CK5225	CK5231	CK5240Q	CK5240
Max. turning diameter	mm	2500	3150	4000	4000
Max. height of work piece	mm	1600/2000/2500	1600/2000/2500	1600/2000/2500	1600/2000/2500
Max. weight of work piece	T	10/20	10/20	10/20	32
Worktable diameter	mm	2250	2830	2830/3150	3200/3600
Range of table speeds	r/min	2-63	2-63	2-63	2-63
Steps		16	16	16	16
Max torque of work table	KN.m	63	63	63	100
Rapid traverse of rail head	mm/min	4000	4000	4000	4000
Ram vertical travel of right railhead	Kn	35	35	35	40
Ram vertical travel of left railhead	kn	30	30	30	30
Range cutting force of right railhead	mm/min	1-50	1-50	1-50	1-50
Travel of arm	mm	1000	1000	1000	1250
Section of arm	mm	255×200	255×200	255×200	240×240
Swivel of left and right railhead	°	±30°	±30°	±30°	±30°
Section of tool	mm	40×50	40×50	40×50	50×50
Power of main motor	Kw	55	55	55	75

Note: Our factory supports customization. Equipment can be customized according to specific customer needs.

✔

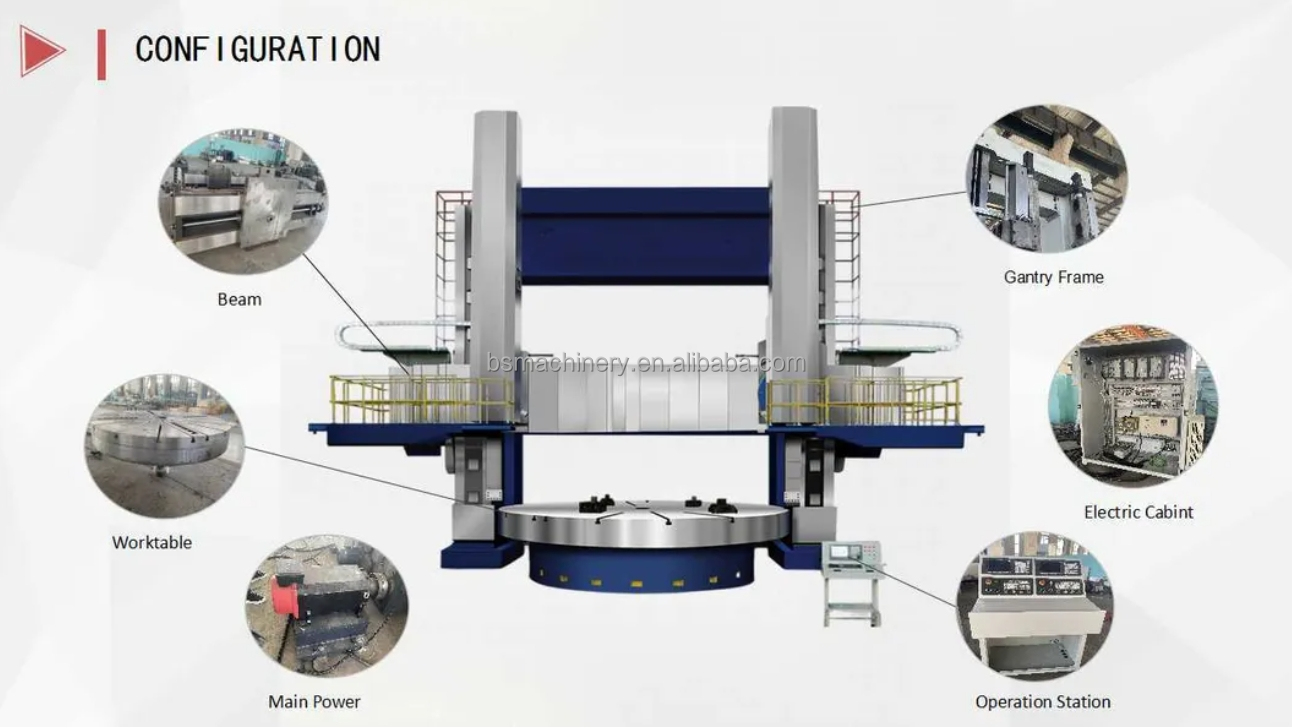

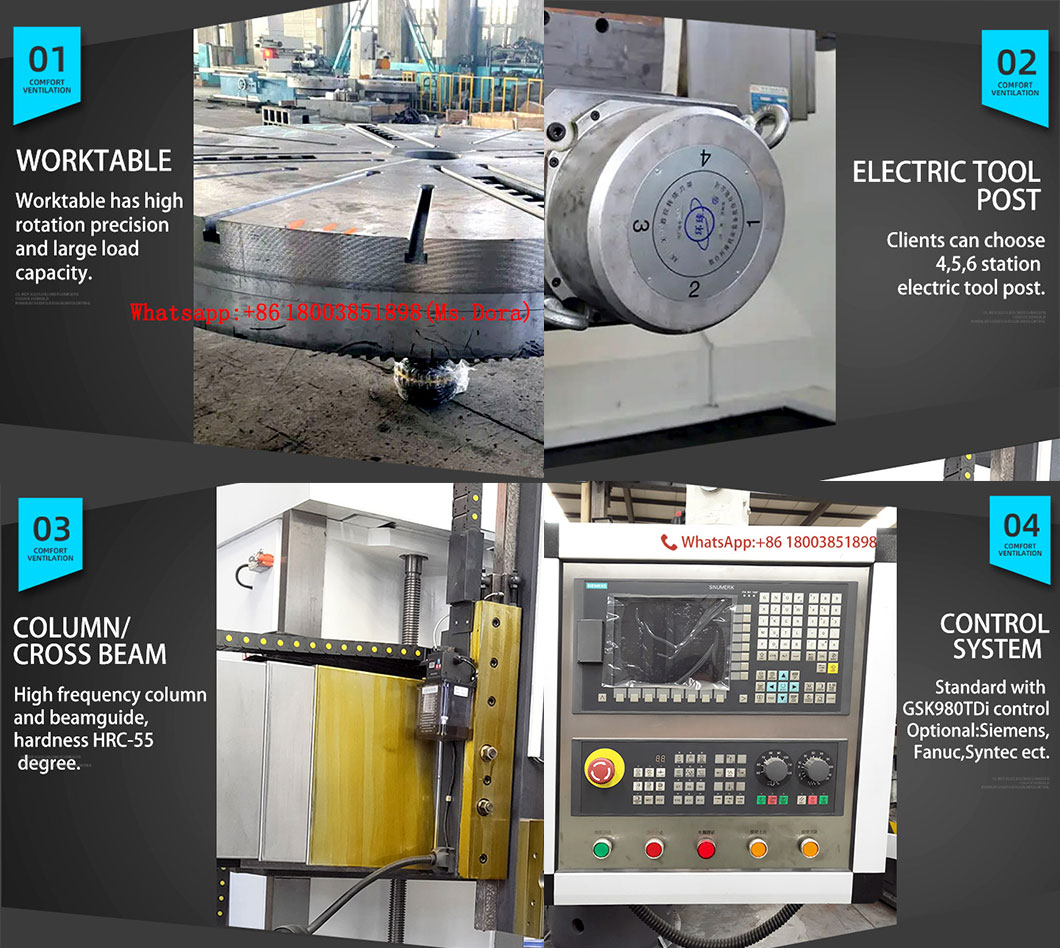

Features at a Glance

★

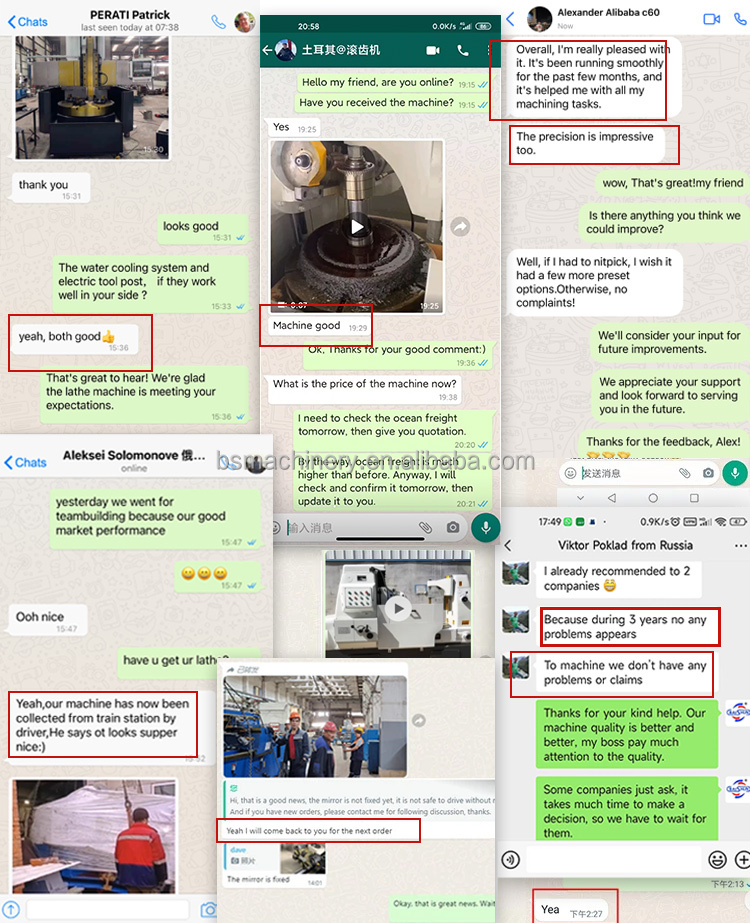

Customer Feedback

📷

Project Gallery

Frequently Asked Questions

What types of parts can a CNC vertical lathe process?

It is designed for large, heavy workpieces with large radial and small axial dimensions, such as discs, wheels, and sleeve components.

Why choose a vertical lathe over a horizontal lathe?

The vertical spindle layout makes clamping and alignment easier for heavy parts and reduces load on bearings, ensuring high precision over a longer period.

Is customization available for these machines?

Yes, our factory supports full customization to meet specific technical requirements or workpiece dimensions.

What is the maximum turning diameter available?

Depending on the model, the maximum turning diameter ranges from 2500mm up to 4000mm.

What operations can be performed besides turning?

With additional devices, the machine can perform thread cutting, spherical turning, grinding, and imitating machining.

What is the maximum weight capacity for workpieces?

Standard models can handle between 10 to 20 tons, with high-capacity models supporting up to 32 tons.
