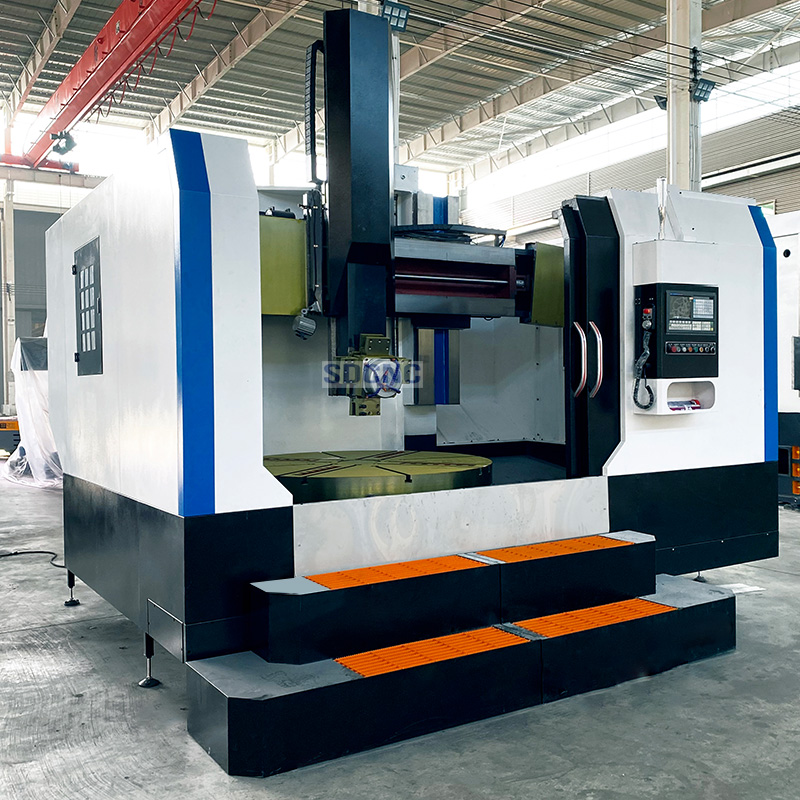

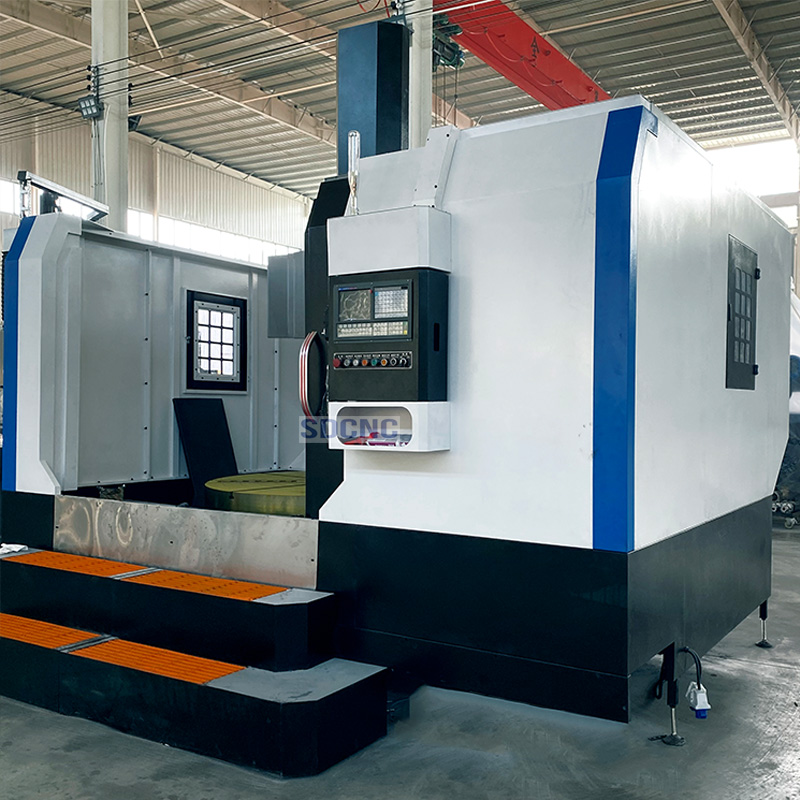

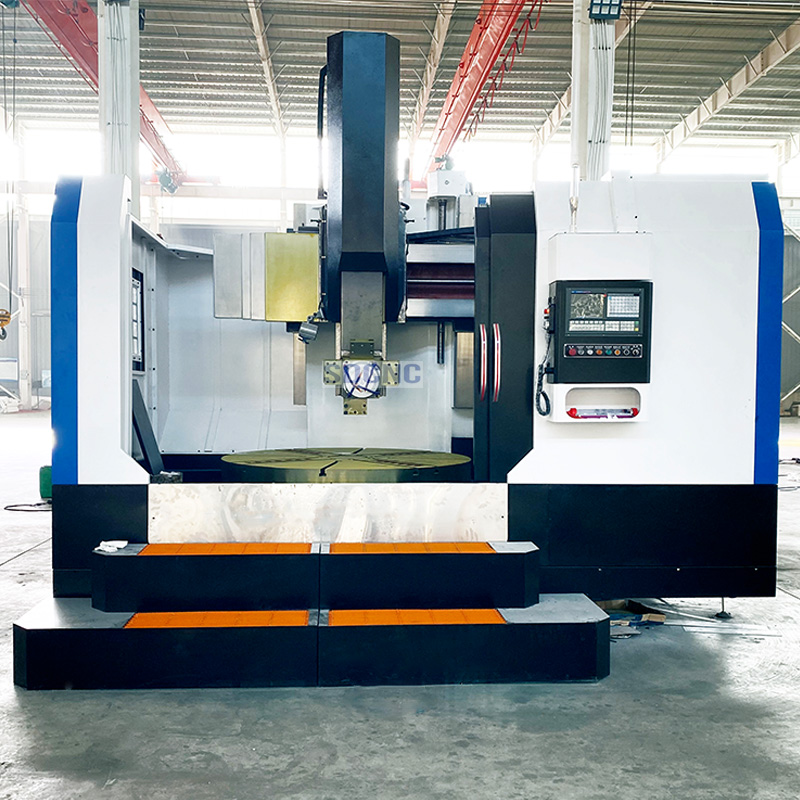

| SPECIFICATIONS | Units | CK5112×H/3 | CK5116×H/5 | CK5120×H/8 |
|---|---|---|---|---|
| Max.turning diameter | mm | 1250 | 1600 | 2000 |
| Table diameter | mm | 1000 | 1400 | 1800 |
| Max.height of workpiece | mm | 1000/1200 | 1000/1400 | 1250/1400 |
| Max.weight of workpiece | t | 3 | 5 | 8 |
| Max.torque of table | kn.m | 17 | 25 | 32 |
| Spindle speed range (16 steps) | r/min | 6.3-200 | 5-160 | 3.2-100 |
| Max.cutting force of rail head | kn | 18 | 22 | 22 |
| Range of tool feed | mm/min | 0.1-500 | 0.1-500 | 0.1-500 |
| Horizontal tool travel | mm | 700 | 915 | 1050 |
| Vertical tool travel | mm | 650 | 800 | 800 |
| Tool head rapid traverse | mm/min | 2500 | 3750 | 3750 |
| Elevating speed of cross beam | mm/min | 440 | 440 | 440 |
| Tool size | mm | 30×40 | 30×40 | 30×40 |
| Main motor power | kw | 22 | 30 | 30 |
| Overall dimension (L*W*H) | mm | 2360*2300*3580 3860*2450*3580 |
2800*270*3870 5000*3200*3870 |
3200*2800*4000 5400*3400*4000 |
| Machine weight (about) | t | 9/10.5 | 12/13.5 | 17/18.5 |
We are a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. With strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
A: We are a professional machine tool manufacturer. We not only sell our machines, but also provide technical support.
A: Every new machine has to go through strict testing and confirmation first. This includes inspection of each part, and inspection and adjustment of empty lines after assembly.
A: You can purchase lathes, CNC lathes, CNC pipe thread lathes, CNC vertical lathes, CNC machine tools, ordinary pipe thread lathes, machining centers, hobbing machines, drilling machines, milling machines, grinding machines, sawing machines, etc.
A: We possess many years of machine tool production, research, and development experience. We provide good performance and good quality products to let users buy without worry and use them at ease.
A: Yes, we provide comprehensive technical support for all our machinery to ensure seamless operation and maintenance.
A: Our main product line includes CNC lathes, horizontal and vertical machining centers, CNC vertical lathes, CNC pipe thread lathes, CNC milling machines, CNC drilling machines, CNC slotting machines, and CNC sawing machines.
