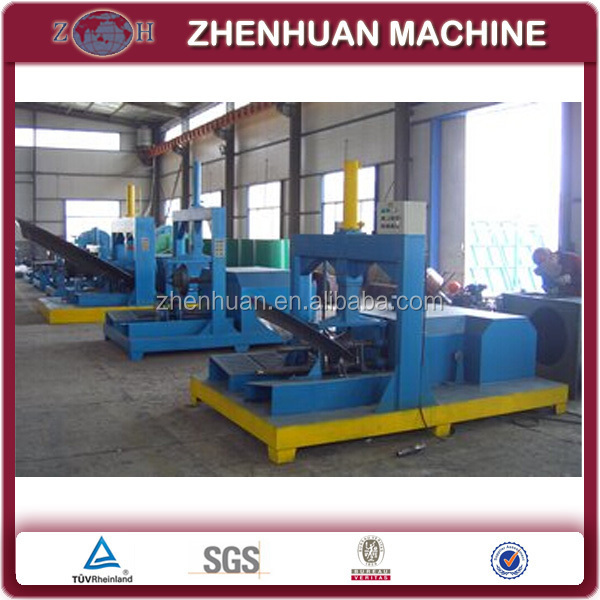

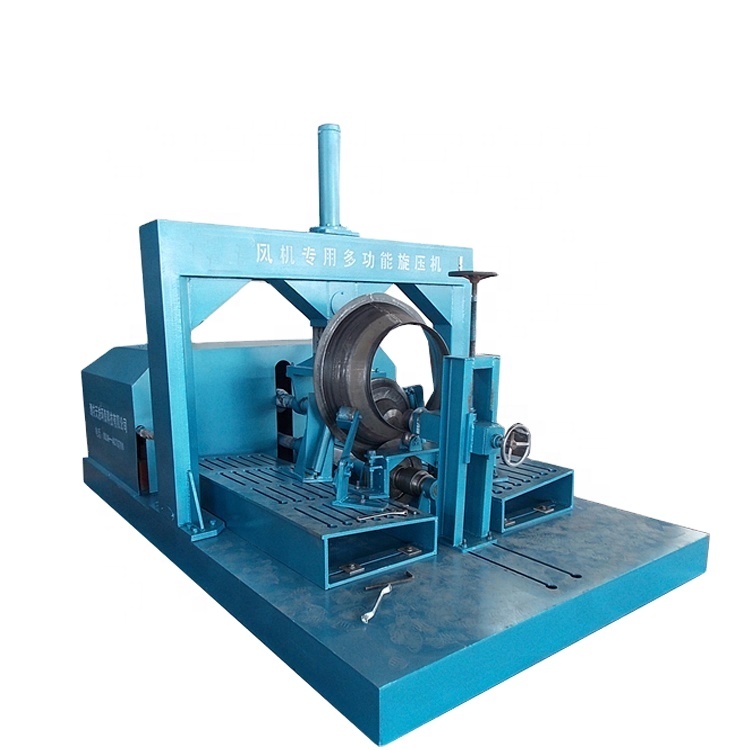

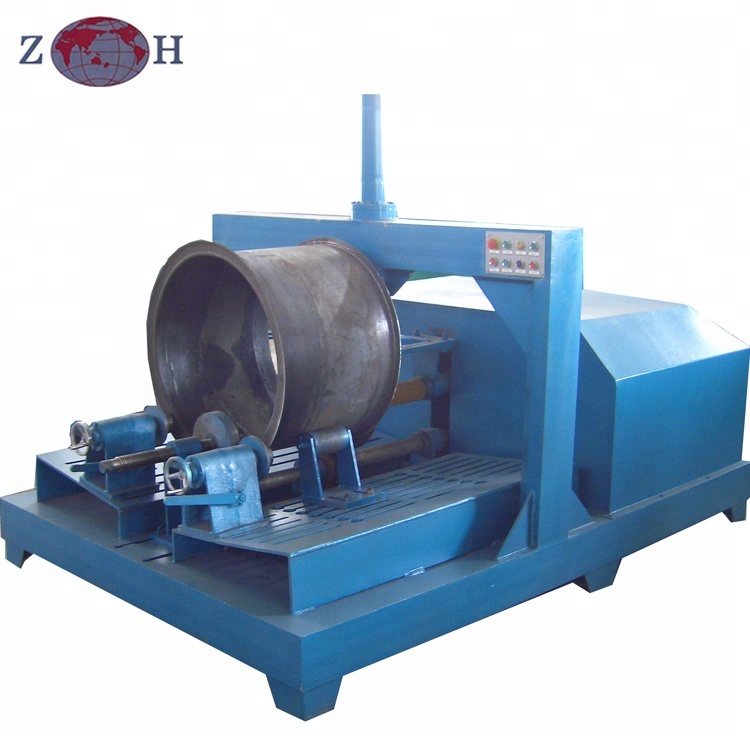

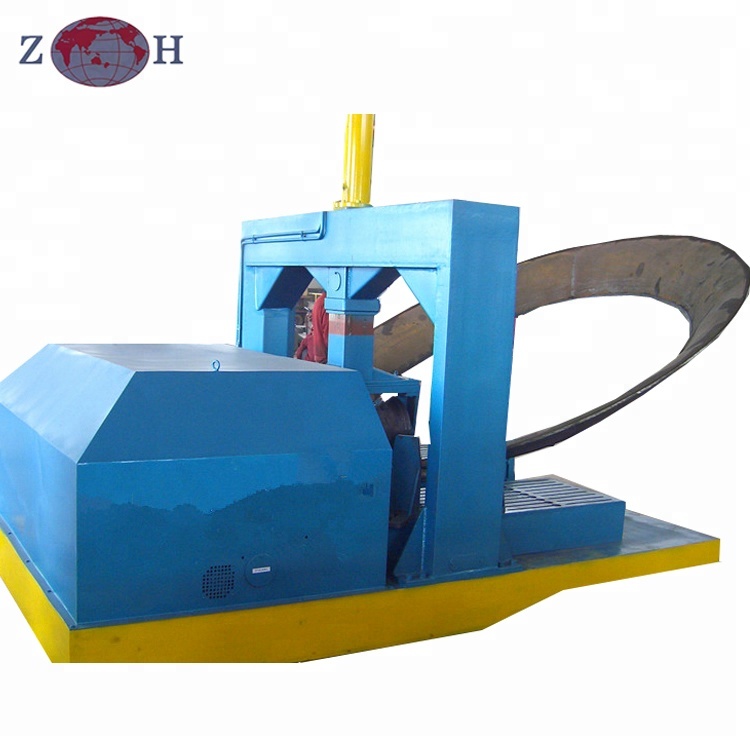

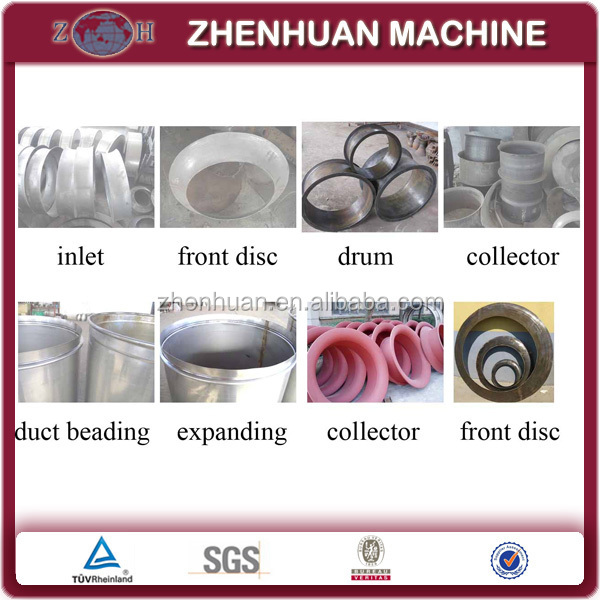

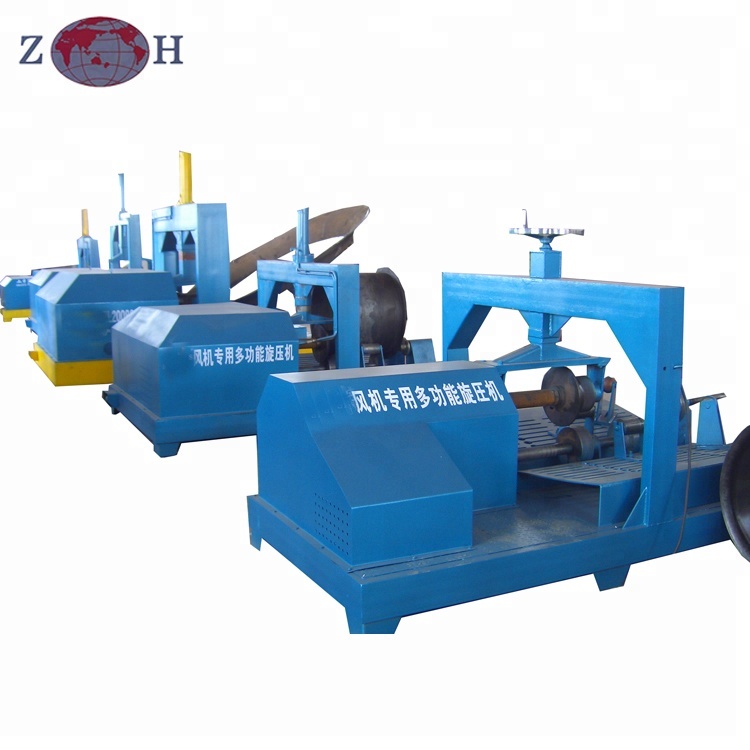

This machine is specially designed to produce industrial fan parts, including flanging drums and wind collectors of axial fans, as well as one-time spinning air inlets and front discs of centrifugal blowers. It can also perform mouth expanding and beading for air ducts.

For fan codes 4-72 and 4-73, the maximum fan parts diameter capacity is 1800mm. For fan codes 9-19 and 9-26, it supports up to 600mm.

The maximum carbon steel thickness is less than 6mm for fan codes 4-72 and 4-73, and less than 3mm for fan codes 9-19 and 9-26.

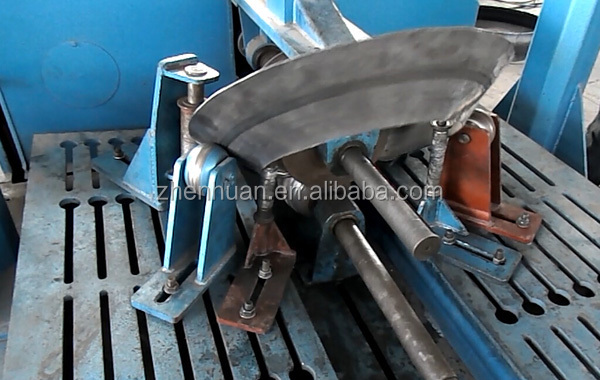

The machine handles drum flanging diameters of more than 350mm, with a flanging width under 30mm and a flanging thickness under 3mm.

Yes. The standard drum length is 600mm, but it can optionally be extended up to 3000mm based on your specific requirements.

Absolutely. We configure and manufacture the fan inlet cone spinning machines to meet your exact technical specifications and production demands.
