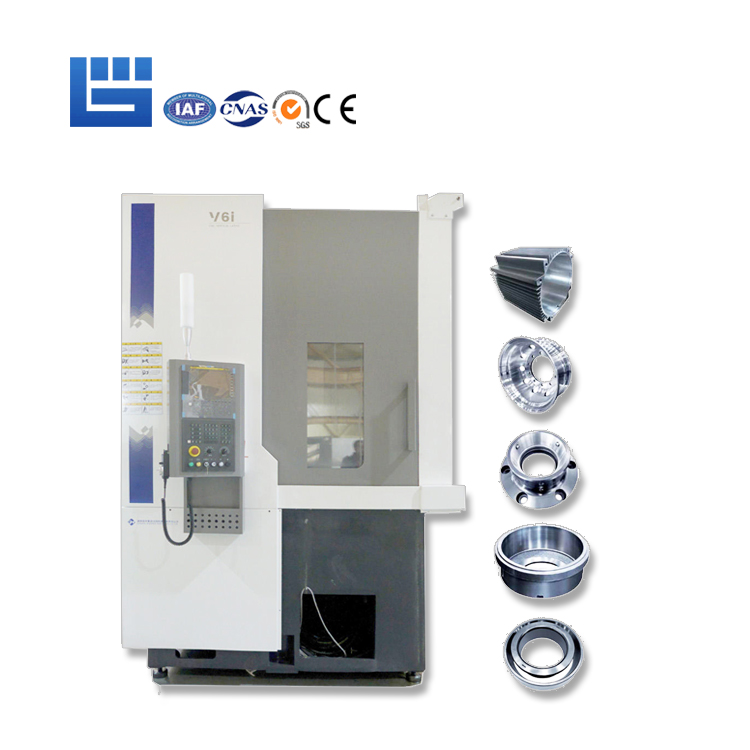

High-speed Metal Lathe Vertical Metal Lathe Big Gap Column CNC Vertical Lathe
High Quality CNC Vertical Lathe Machine Metal Automatic Vertical Turning Milling Lathe Factory Manufacturer. Vertical Turning Milling Lathe adopts HT300 high-strength cast iron bed, which has undergone two heat treatments and artificial aging (vibration) to eliminate the residual stress of the casting to the greatest extent. All assembly surfaces between motor bases and castings are precisely adjusted by manual scraping to ensure the overall accuracy of the machine tool.

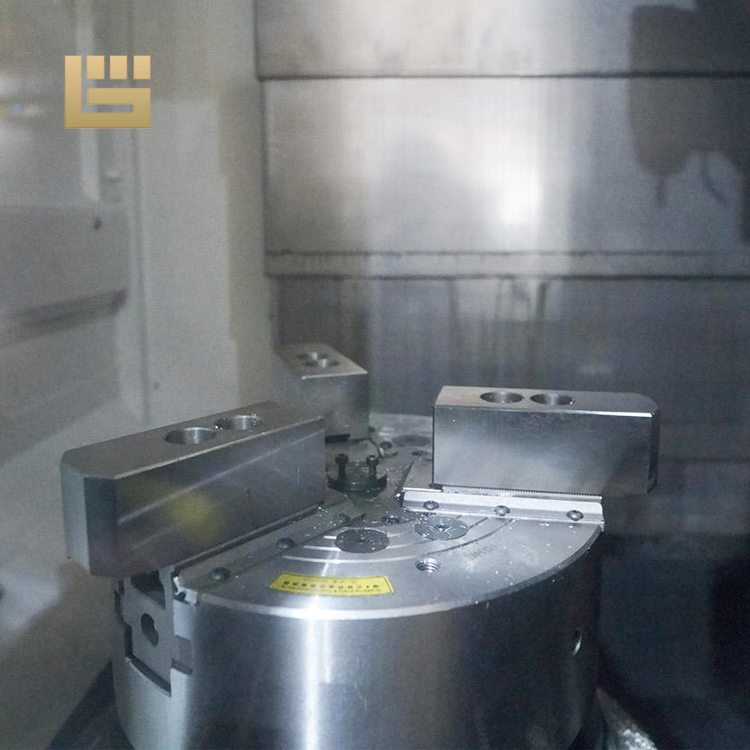

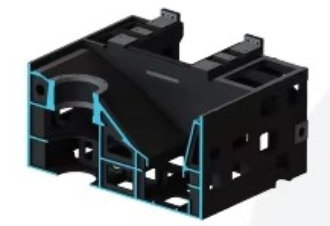

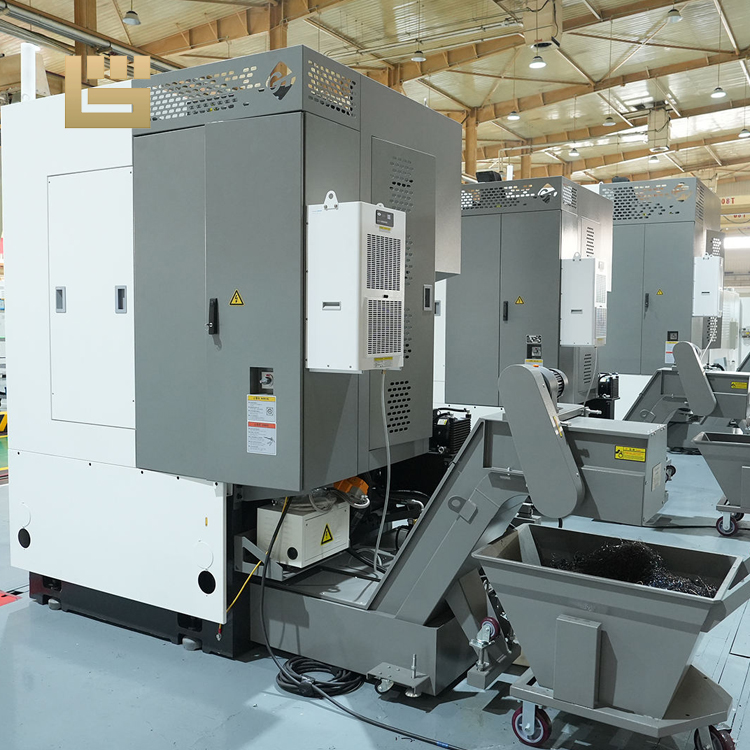

Large-angle chip flush removal cutter

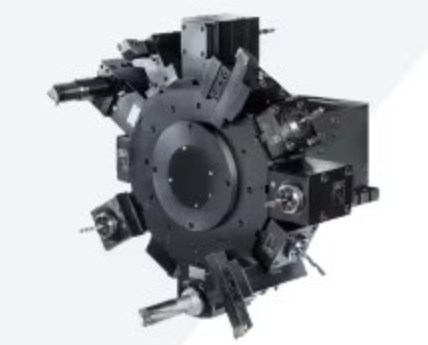

High efficiency turret: Only 0.25s.

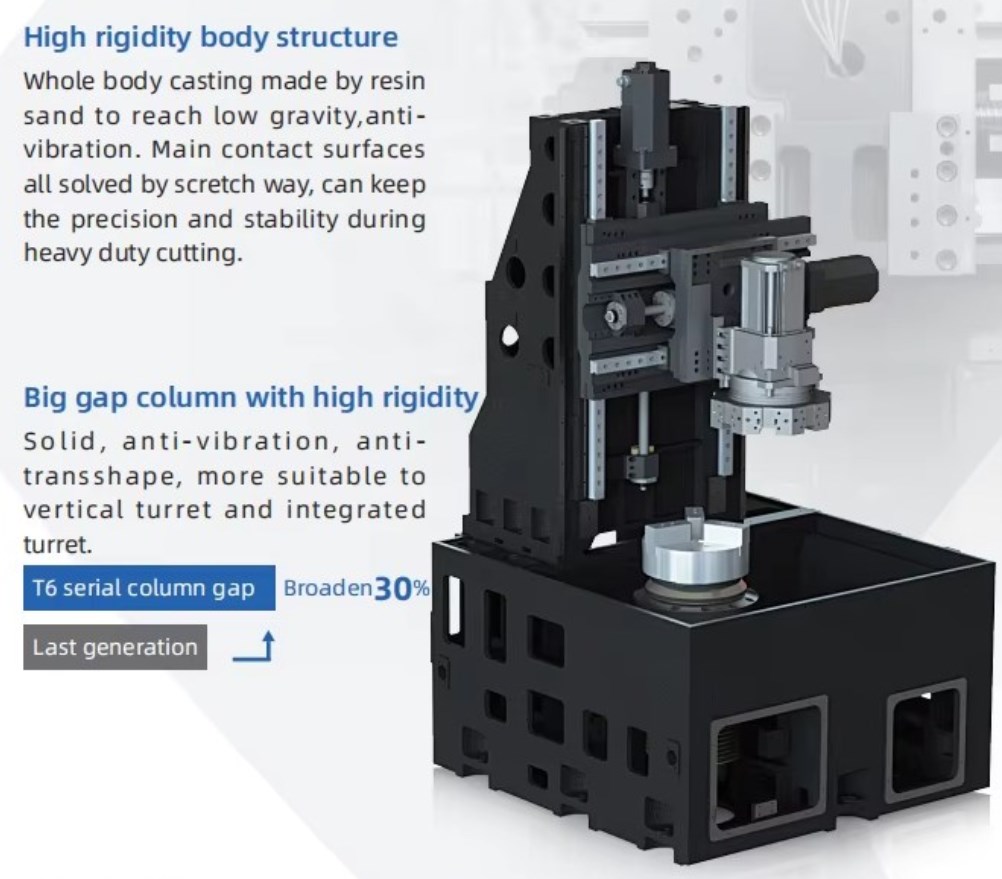

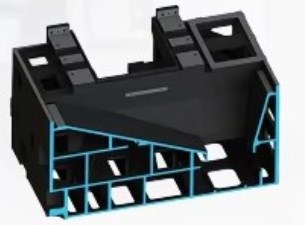

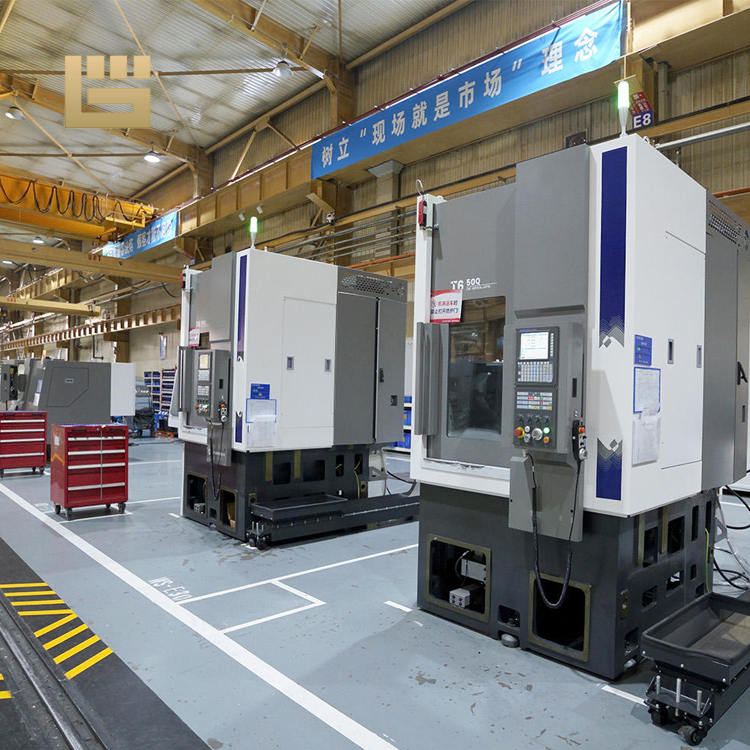

High rigidity body structure
Big gap column with high rigidity
High rigidity guideway structure

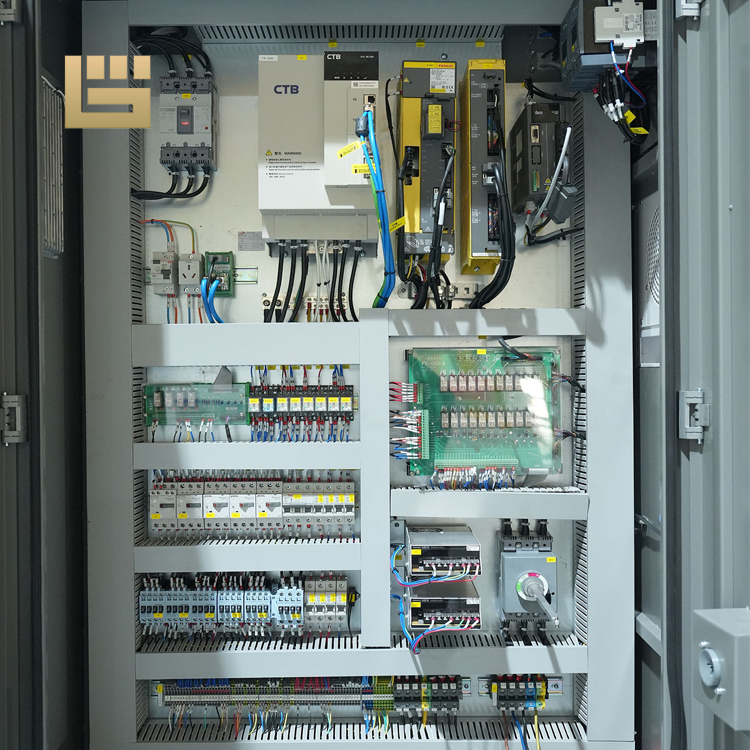

Double speed servo motor

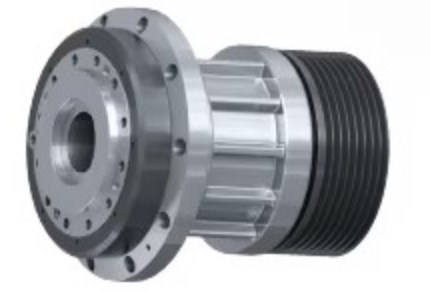

Performance spindle feeding system

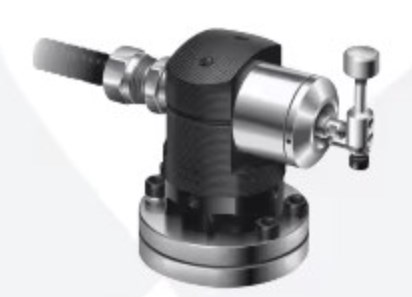

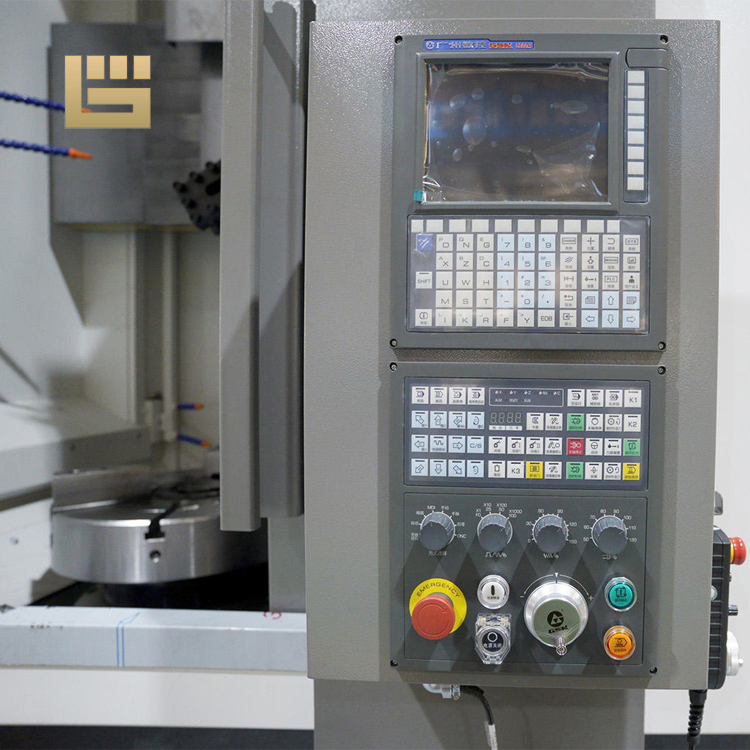

Tooling detect device, ATC magazine, linearscale, turning & milling spindle
Servo power turret, vertical turret, integrate turret
| Item |
Unit |
2 Axis Vertical CNC Lathe V-4H |
| Accuracy grade |
- |
IT6 |
| Max. cutting diameter |
mm |
Ø 500 |
| Max. swing diameter |
mm |
Ø 650 |
| Max. cutting height |
mm |
500 |
| Spindle nose and taper |
- |
A2-8 |
| Standard chuck size |
Inch |
12" (Optional: 15" / 18") |
| Max. spindle speed |
r/min |
2500 |
| Rated spindle torque |
N.m |
549 |
| Main motor output power (continuous/30min) |
kW |
18.5/26 |
| X axis rapid traverse |
m/min |
20 |
| Z axis rapid traverse |
m/min |
20 |
| X axis travel |
mm |
290 |
| Z axis travel |
mm |
530 |
| Turret Type |
- |
Horizontal 8 positions servo turret |
| Turret Center height |
mm |
100 |
| Turret rotary repeat positioning |
arcsec |
±1.6" |
| X axis Positioning |
mm |
0.008 |
| Z axis Positioning |
mm |
0.008 |
| X axis Repeat positioning |
mm |
0.005 |
| Z axis Repeat positioning |
mm |
0.005 |
| Machine weight |
kg |
6000 |
| Machine dimensions (Without conveyor) |
mm |
2235 × 1570 × 3030 |
