ZRF Spinning
1 / 5

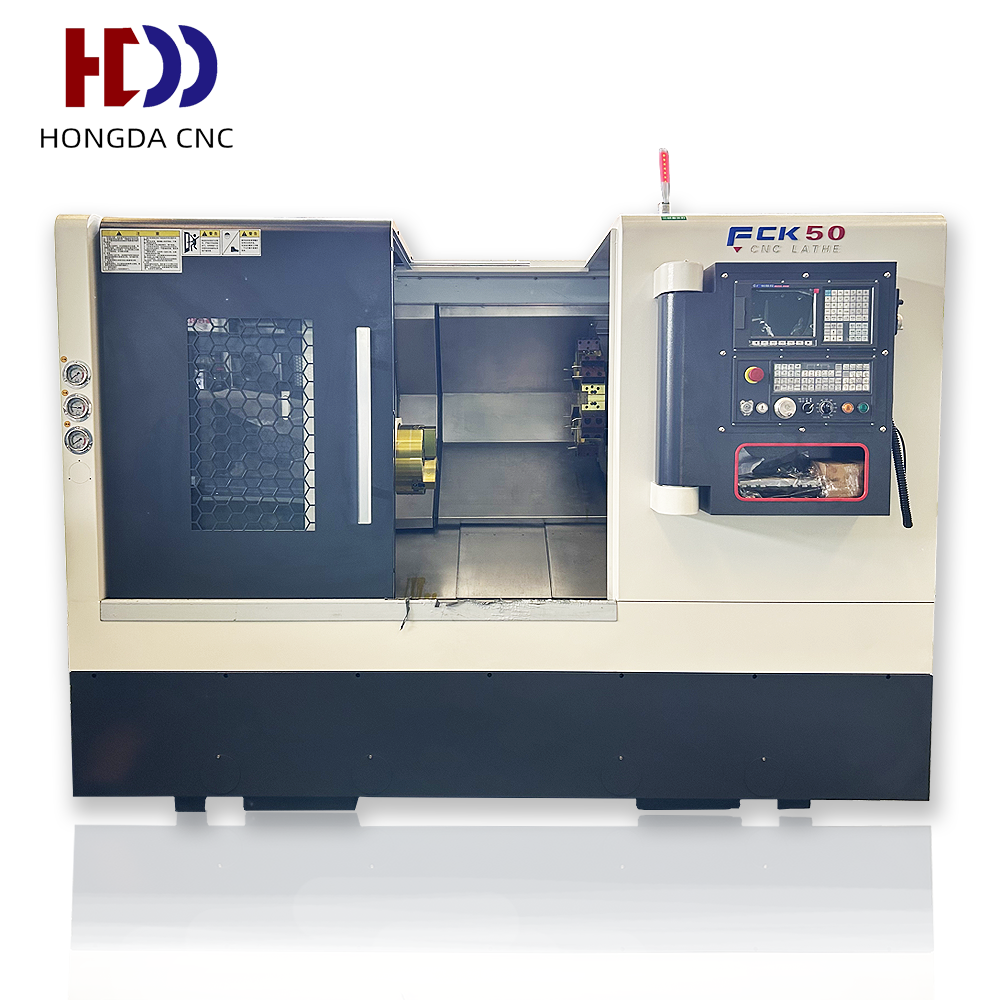

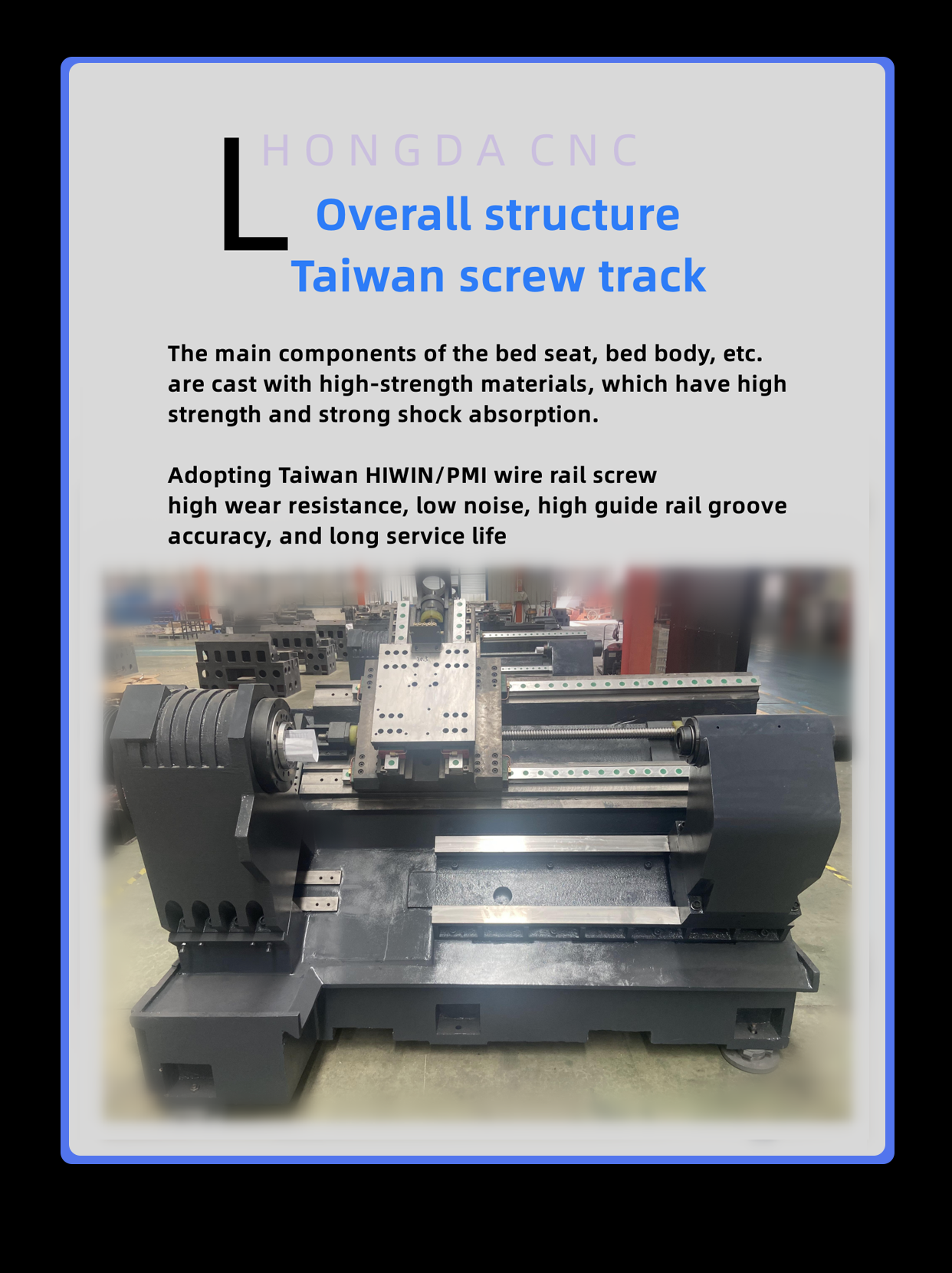

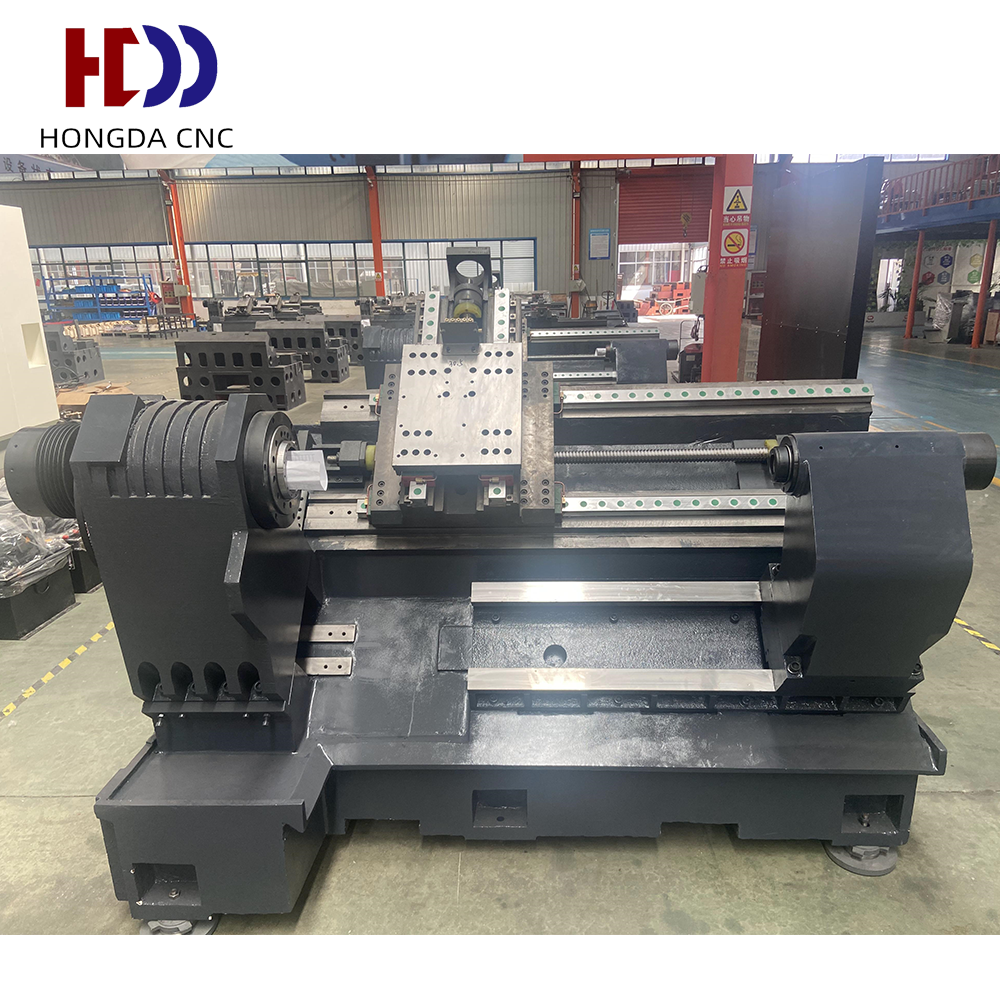

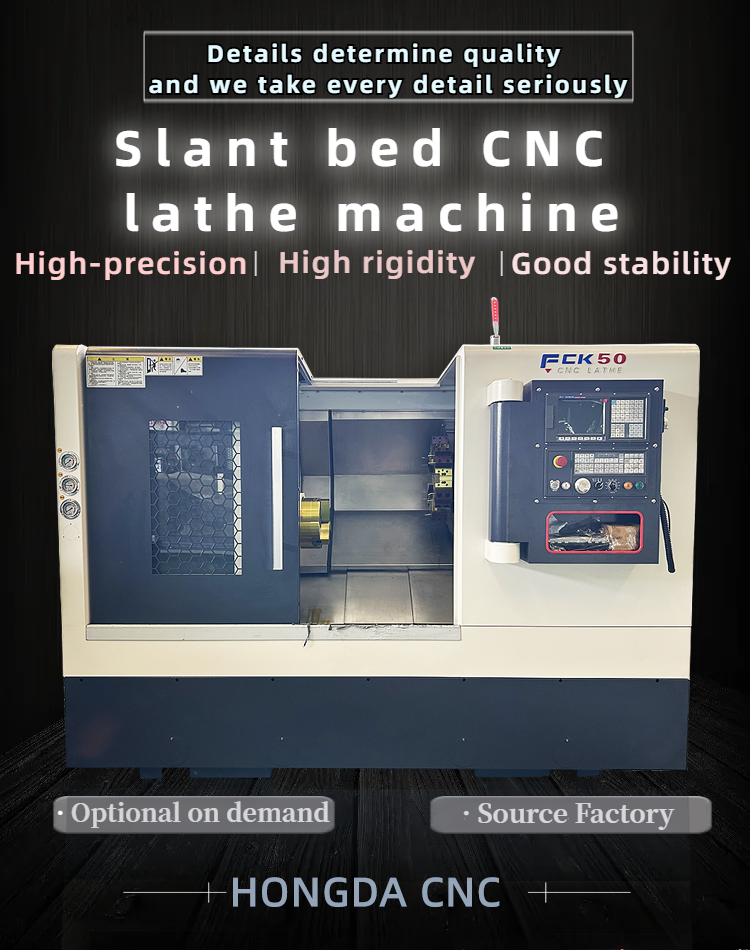

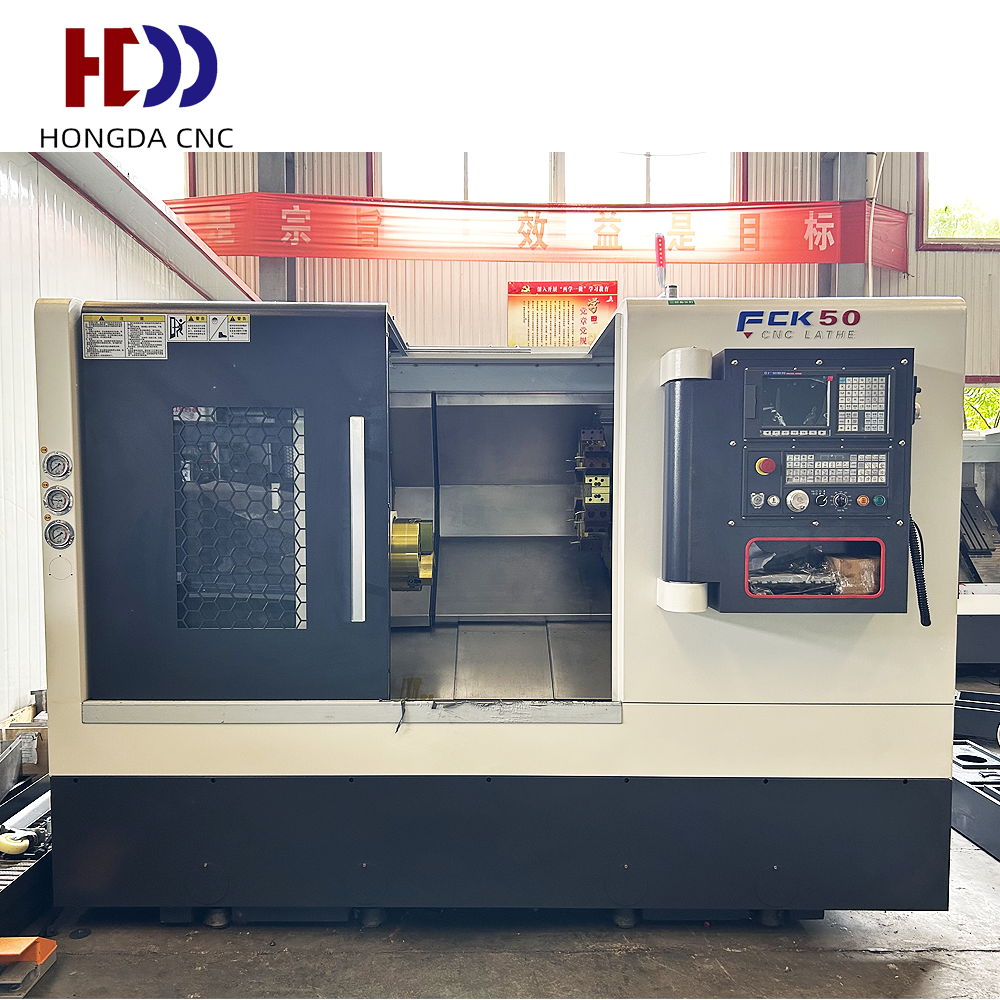

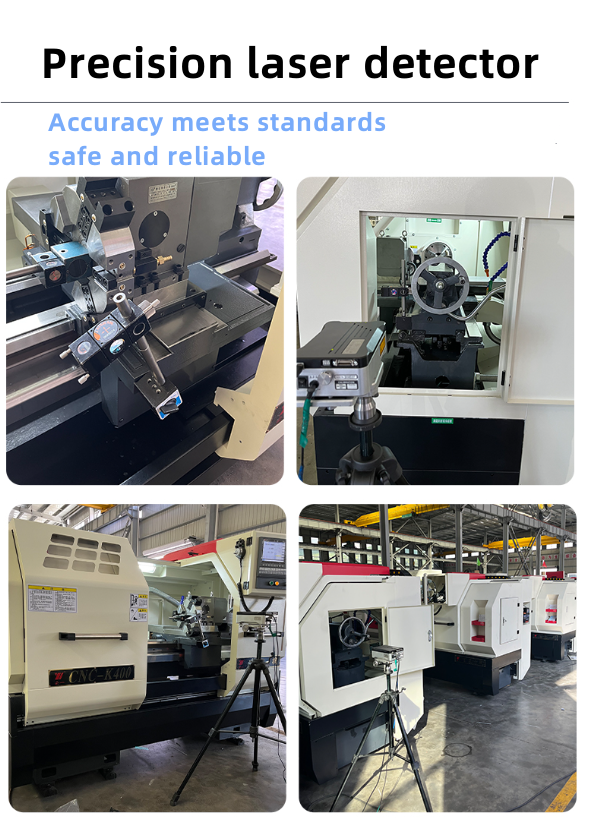

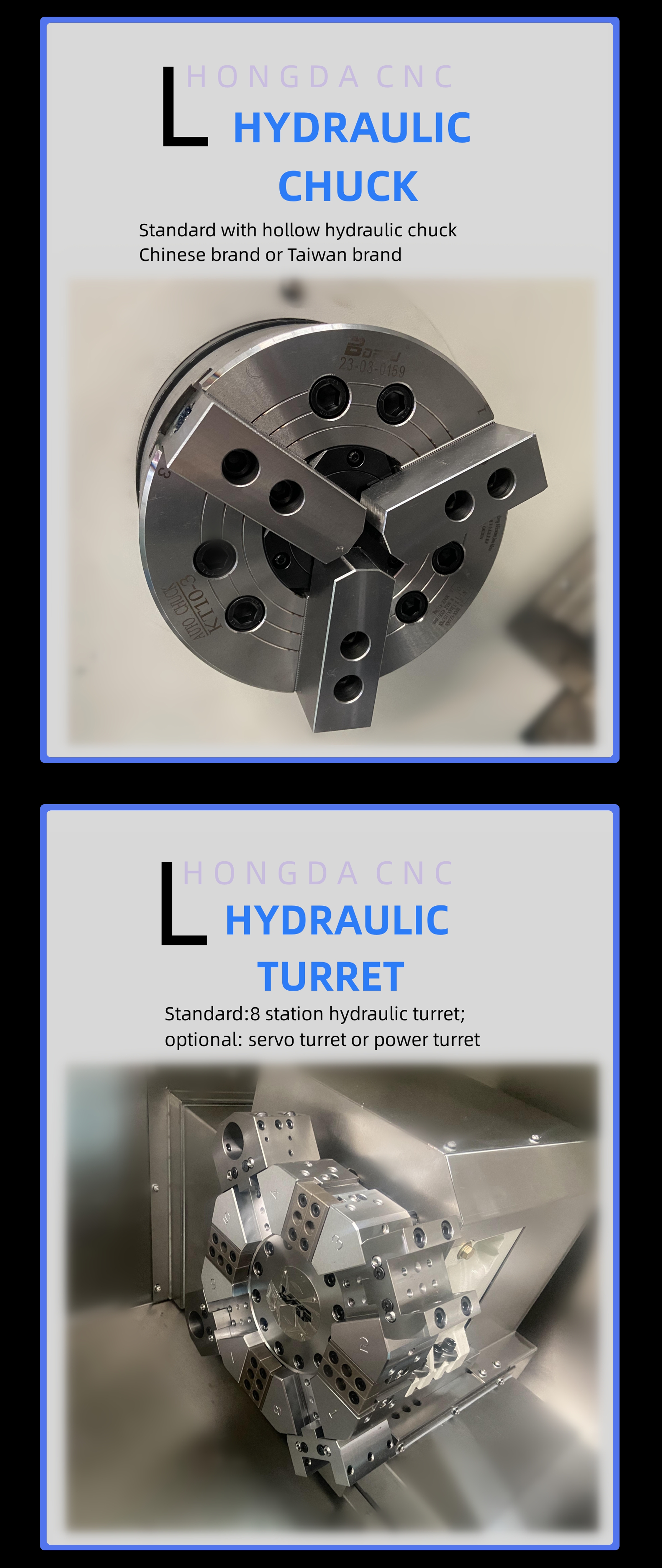

| Position | Project | TCK50 |
|---|---|---|
| Machine Range | Maximum rotation diameter on the bed (mm) | Φ550 |
| Maximum cutting diameter (mm) | Φ440 | |
| Maximum cutting length (mm) | 450 | |
| Journey and Feed | X-axis travel (mm) | 280 |
| Z-axis travel (mm) | 525 | |
| X-axis movement speed (mm/min) | 24000 | |
| Z-axis movement speed (mm/min) | 24000 | |
| Handwheel (mm) | 0.001/0.01/0.1 | |
| X. Z feed rate (mm/min) | 0~5000 | |
| X. Z manual feed rate (mm/min) | 0~1260 | |
| Position Accuracy | X-axis repeated positioning accuracy (mm) | 0.006 |
| X-axis positioning accuracy (mm) | 0.008 | |
| Z-axis repeated positioning accuracy (mm) | 0.006 | |
| Z-axis positioning accuracy (mm) | 0.015 | |
| Main Shaft | Spindle speed (rpm) | 35-3000 |
| Maximum spindle torque (N.m) | 48 | |
| Spindle nose end | A2-6 | |
| Main spindle through-hole diameter (mm) | Φ66 | |
| Hollow oil pressure chuck through-hole diameter (mm) | Φ50 | |
| Chuck | 250mm | |

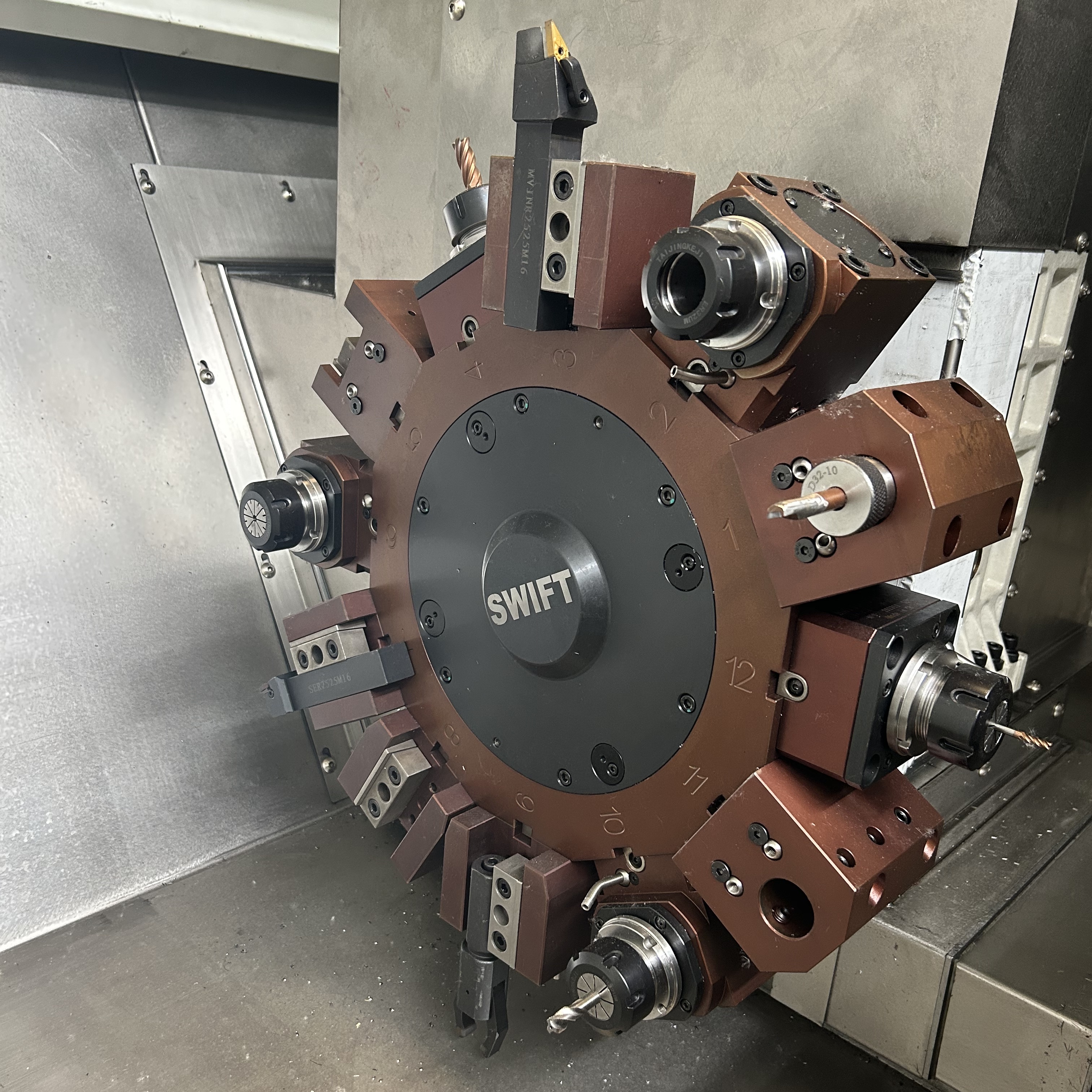

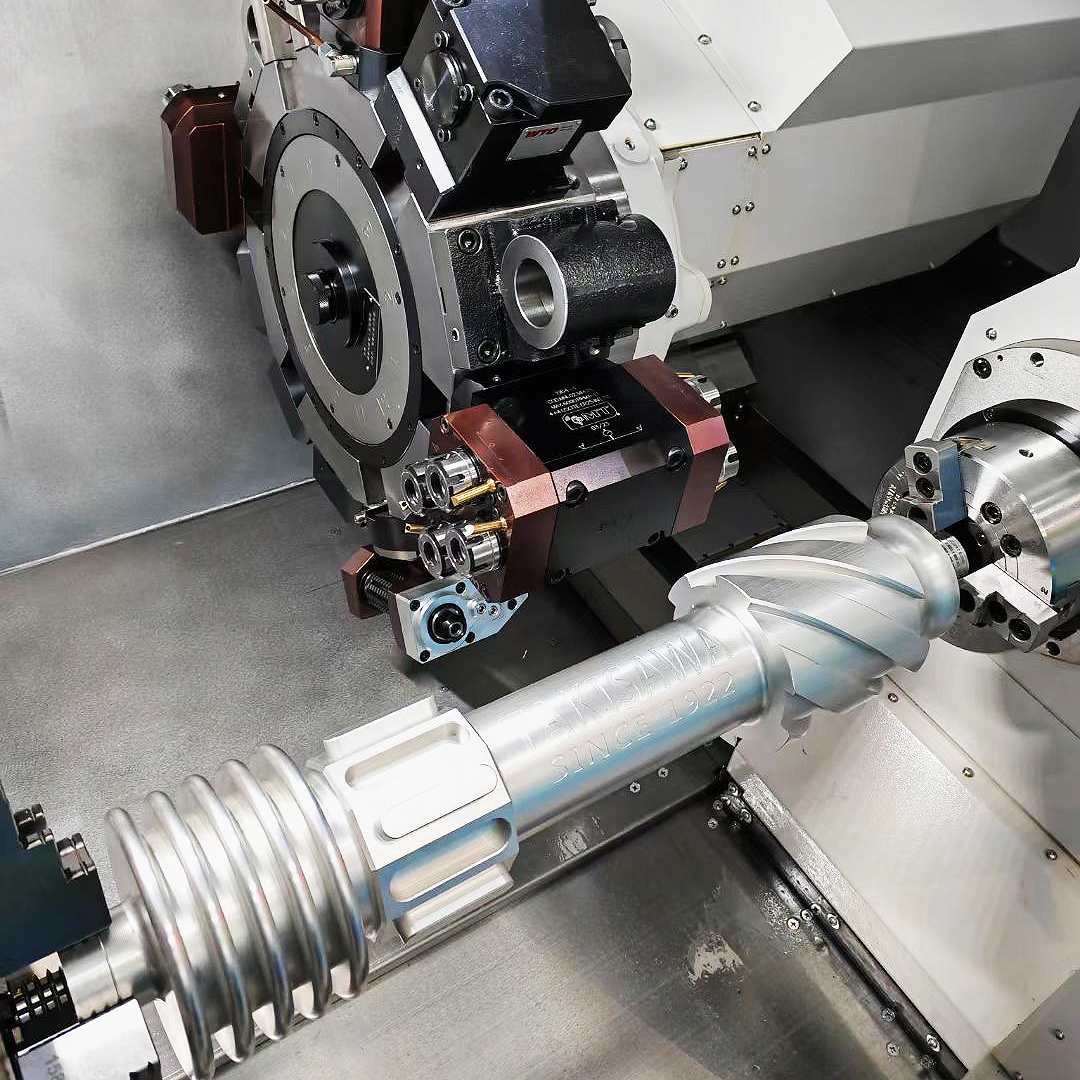

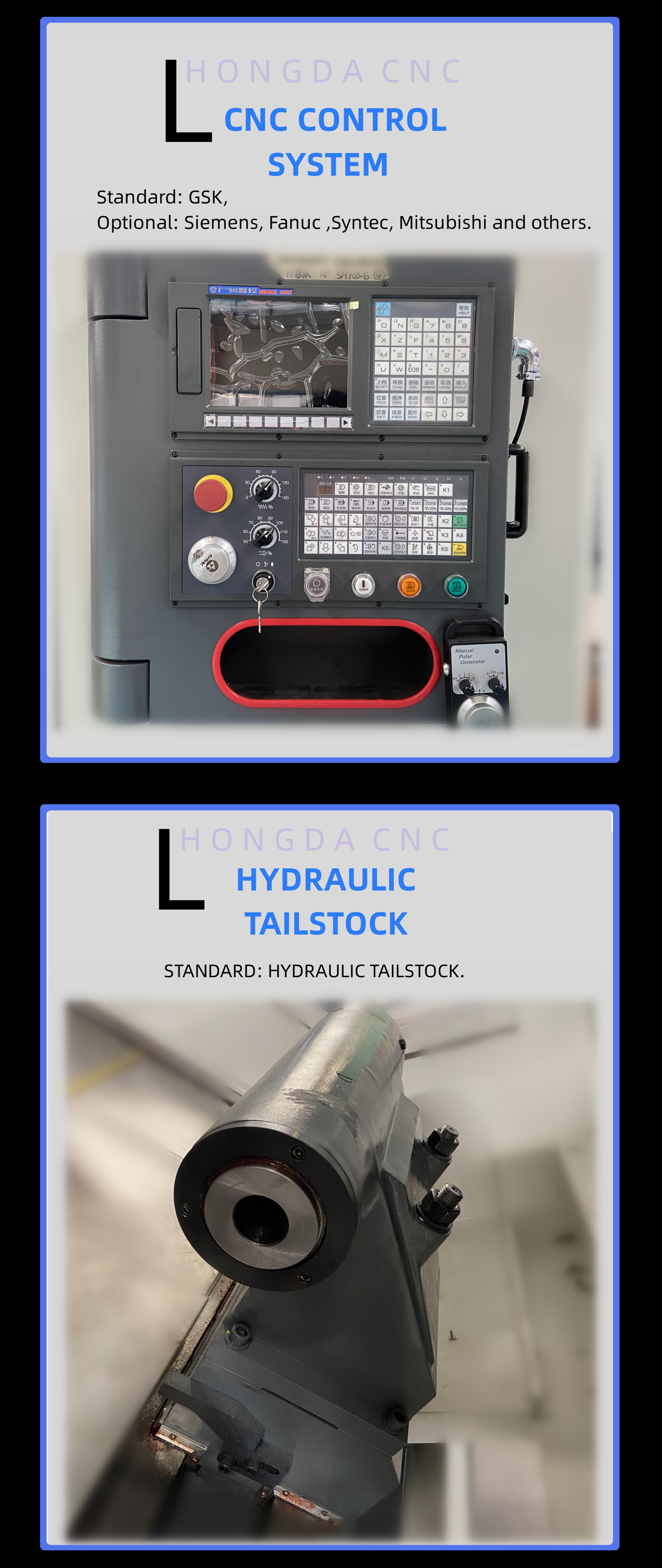

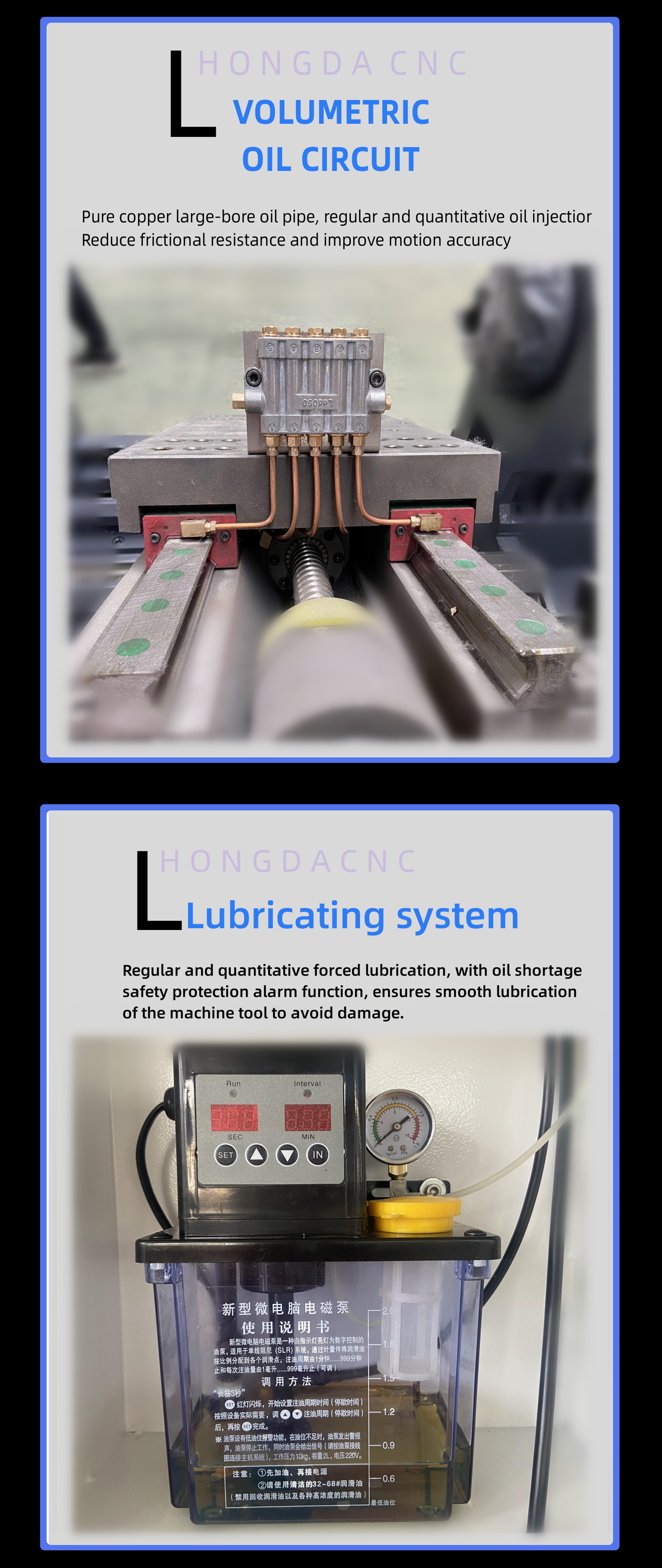

| Turret | Number of tool holders | 12 workstations |
| Tool change time (s) | 0.25 | |
| Tool installation size (mm) | 25×25 | |
| Installation diameter of boring tool holder (mm) | Φ32 | |
| Tailstock | Tail seat stroke (mm) | 480 |
| Top taper | MT-5# | |
| Main Motor | Main motor power (kW) | 7.5 (4500rpm) |
| Main motor torque (N.m) | 48 | |
| X. Z-axis Feed Motor | X-axis feed motor power (kw) | 2.3 |
| Torque of X-axis feed motor (N.m) | 15 | |
| Z-axis feed motor power (kW) | 2.3 | |
| Z-axis feed motor torque (N.m) | 15 | |
| Cooling System | Cooling liquid capacity (L) | 200 |
| Motor type (1HP) (kW) | 0.18 | |
| Size | Installation (length * width * height) (mm) | 2697/1795/1860 |
| Weight | Mechanical weight (kg) | 3600 |
