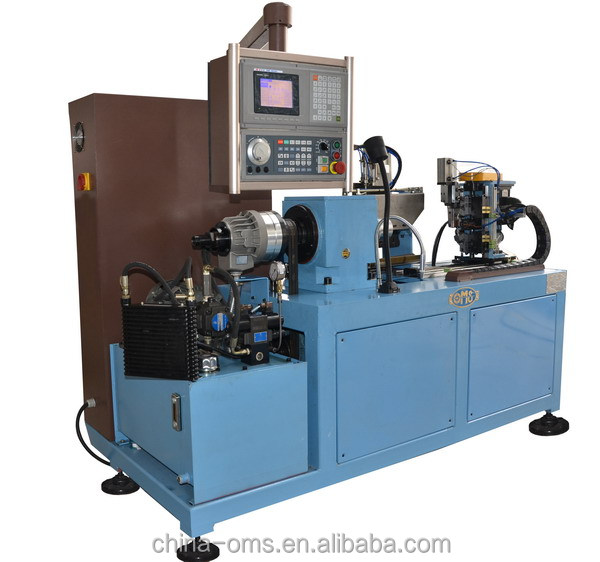

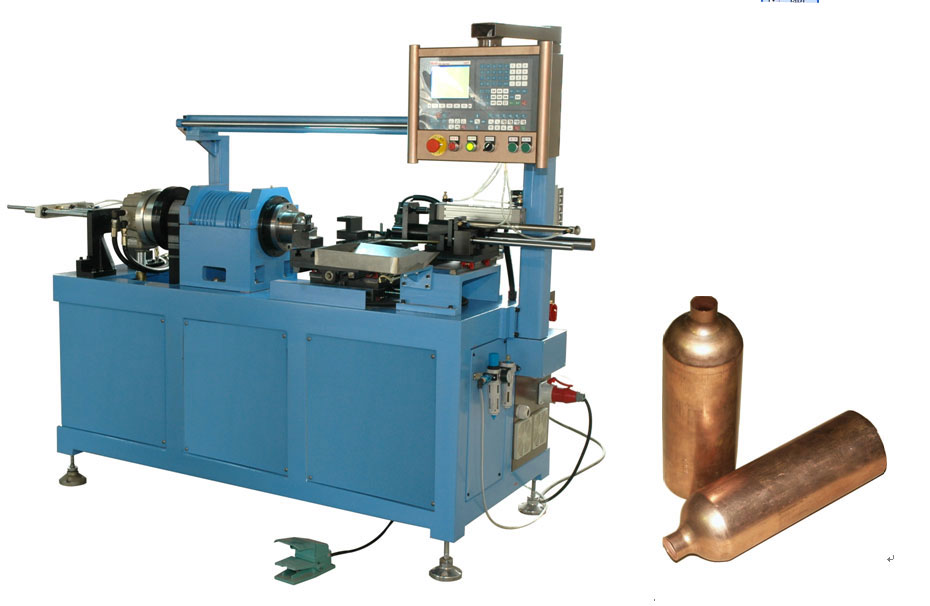

ZRF Spinning
1 / 2

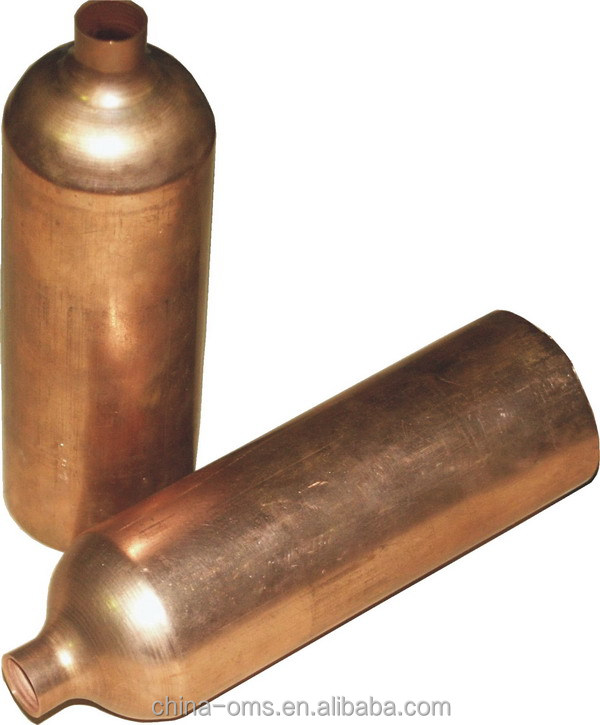

This specialized equipment is designed for metal pipe-end shrinking. It is primarily applied in the production of filter driers and mufflers within the air-conditioner, water heater, refrigerator, and automobile industries.
Equipped with a dual-axes CNC system for highly centralized and precise operational control.
The hydraulic pressure oil box utilizes a natural cooling design to maintain optimal operating temperatures.
Engineered with a high-speed main spindle axis to ensure efficiency and process stability.
Supports auto loading, auto unloading, auto end-changeover, and simultaneous processing for pipe ends.
| No. | Item | Content |
|---|---|---|
| 1 | Name of equipment | CNC spinning machine |
| 2 | Spec & model | TE1M40-A2 |
| 3 | Processing material | Copper tube (straight) |
| 4 | Max processing pipe O.D | 40mm |
| 5 | Processing length | 60-300mm |
| 6 | Number of processing units | 1 unit |
| 7 | Processing mode | Rotating cool rolling |
| 9 | Operating mode | Auto/ manual/ jog |
| 10 | Loading and unloading mode | automatic |
| 11 | auto end-changeover | Available |
| 12 | Two ends spinning size | Available |
| 13 | Processing efficiency | 35 seconds/each head, if pipe OD=40mm |
| 14 | Main axis motor | 3Kw |
| 15 | Pressure of hydraulic system | 3-7Mpa |
| 16 | Power supply | Three-phase AC 415 V±10% (Three-phase, Four-wire) 50Hz |
This equipment is mainly used for metal pipe-end shrinking in the manufacturing of filter driers and mufflers. It is widely applied in the air-conditioner, water heater, refrigerator, and automobile industries.
The machine supports a maximum processing pipe outer diameter (O.D.) of 40mm and can handle processing lengths ranging from 60mm to 300mm.
Yes, it features fully automatic loading and unloading modes, along with automatic end-changeover and dual-end processing capabilities.
The machine operates with high efficiency, completing processing in approximately 35 seconds per head when working on pipes with an outer diameter (O.D.) of 40mm.
The equipment is optimized for processing straight copper tubes using a rotating cool rolling mode.
It features a centralized two-axes CNC control system, uses a 3Kw main axis motor, and requires a three-phase AC 415 V±10% (Three-phase, Four-wire) 50Hz power supply.
