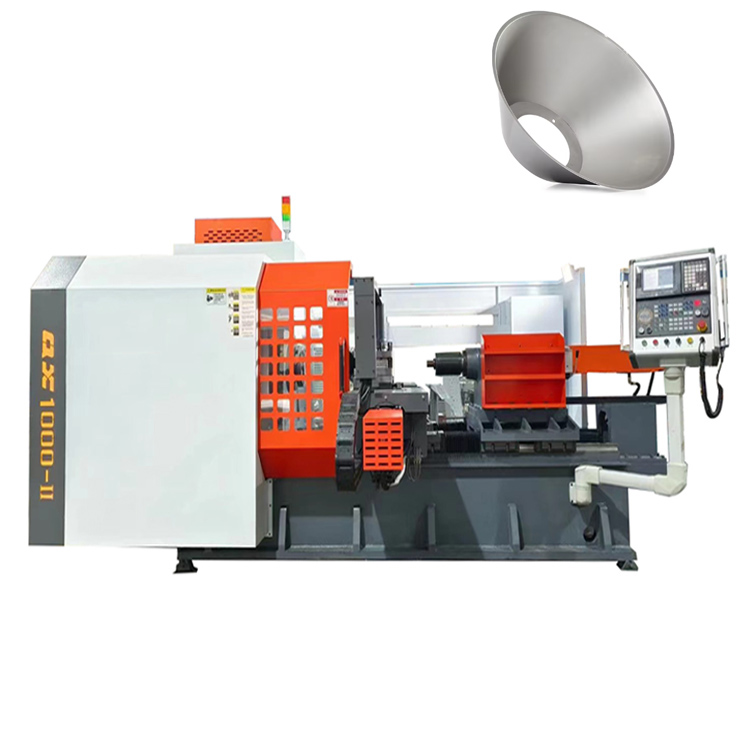

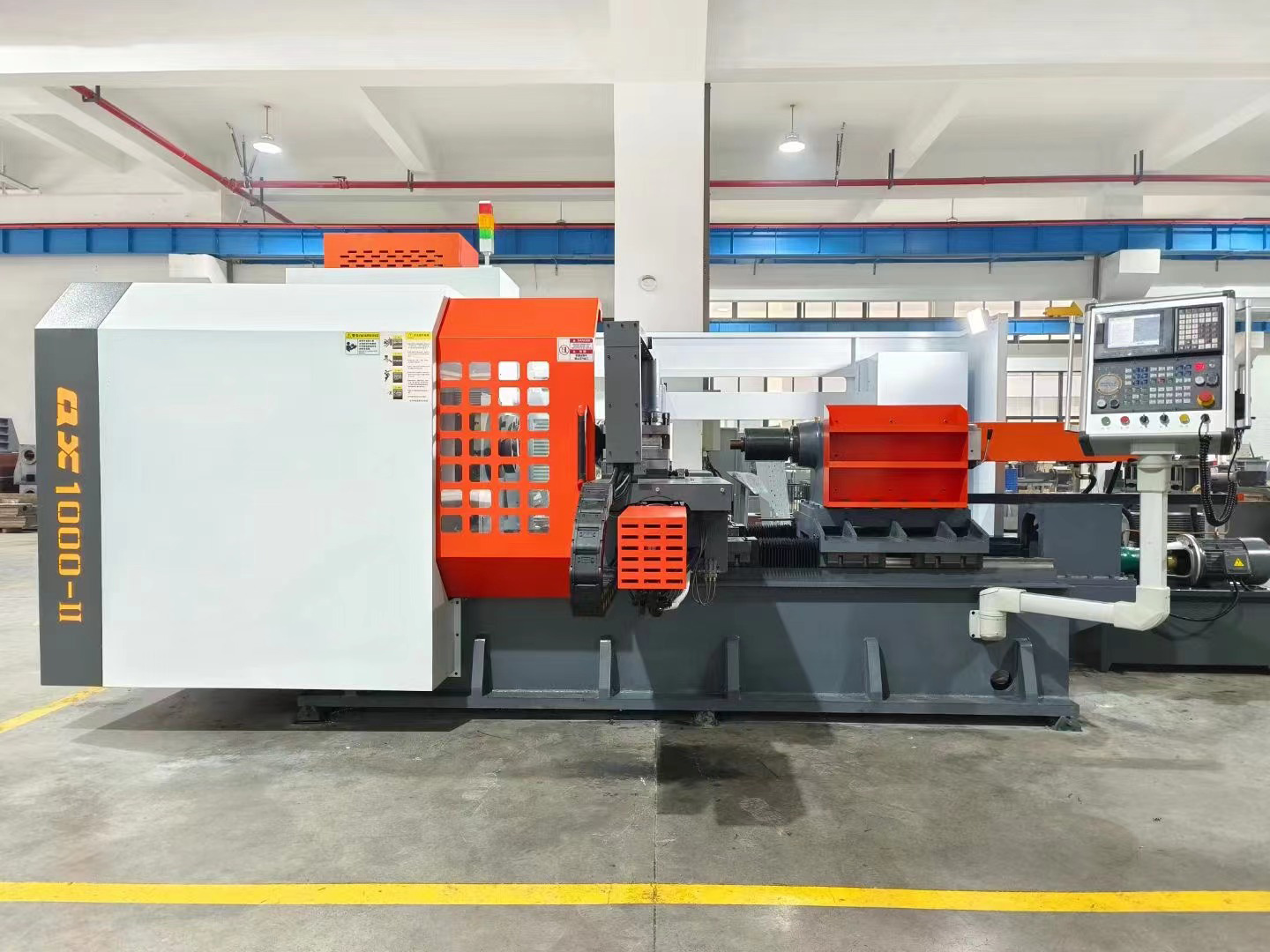

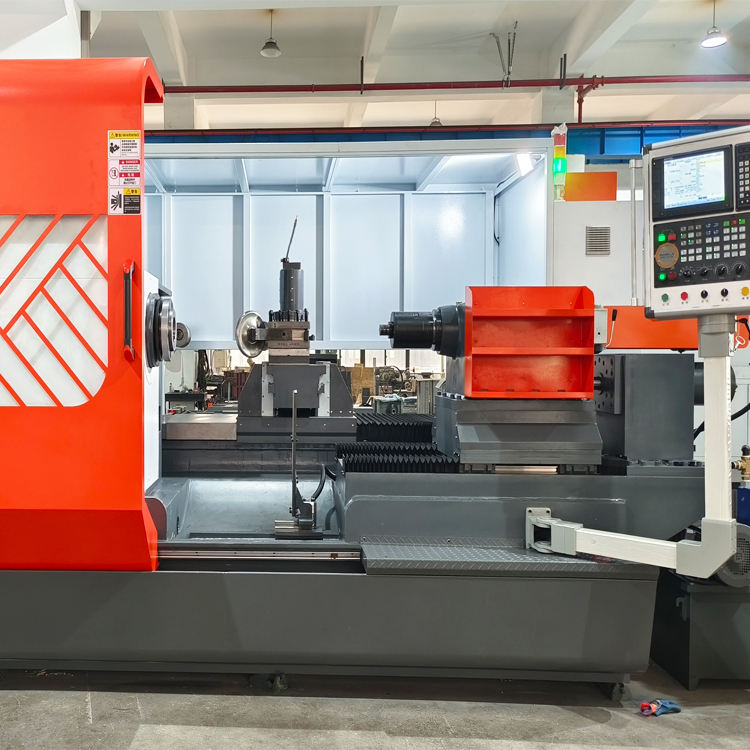

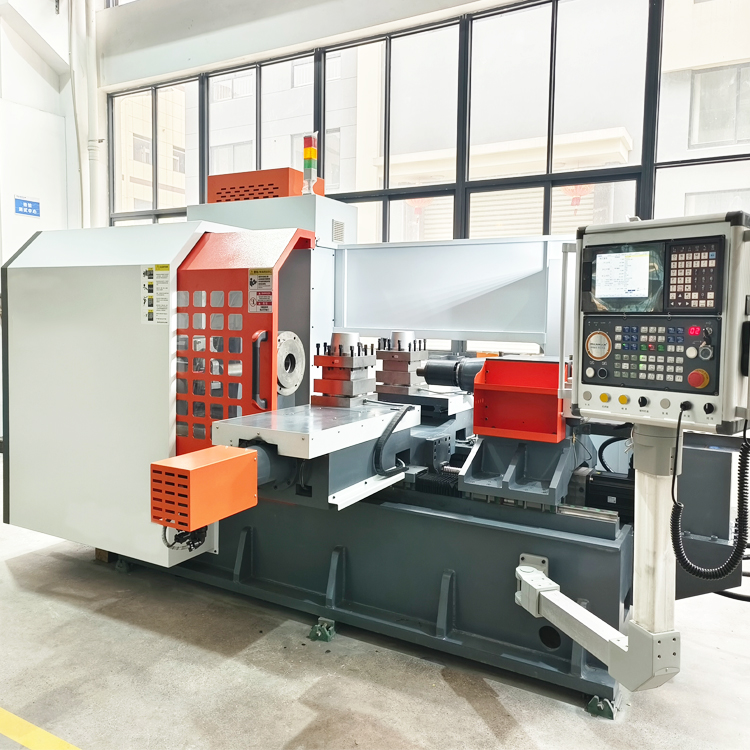

Horizontal Turning Lathe CNC Metal Fan Inlet Cone Spinning Machine
Description
The multifunctional CNC spinning machine has a relatively spacious processing space, provides superior processing capabilities and sufficient processing technology options. The overall rigidity is stable and superior in performance. The loading and unloading conforms to the requirements of ergonomics. The operation is convenient and easy, and can also be operated with the help of a robot. Automatic loading and unloading further automates the production process.
Features
Less input of raw materials;
High production efficiency;
High quality and consistent and stable;
The new product development cycle is short, the restructuring is convenient, and the cost is low;
The mold input cost is about 10% of the mold cost of the traditional process;
High degree of automation, trimming, trimming, curling, punching and other processes, one clamping can complete multiple processes;

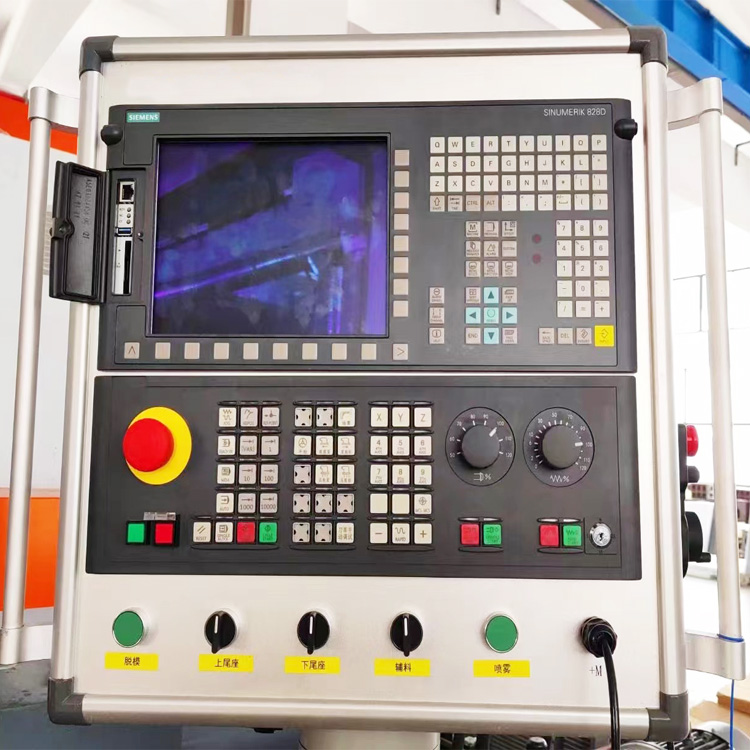

Advanced numerical control system, more user-friendly. Easy to operate, safe, easy to learn and use.

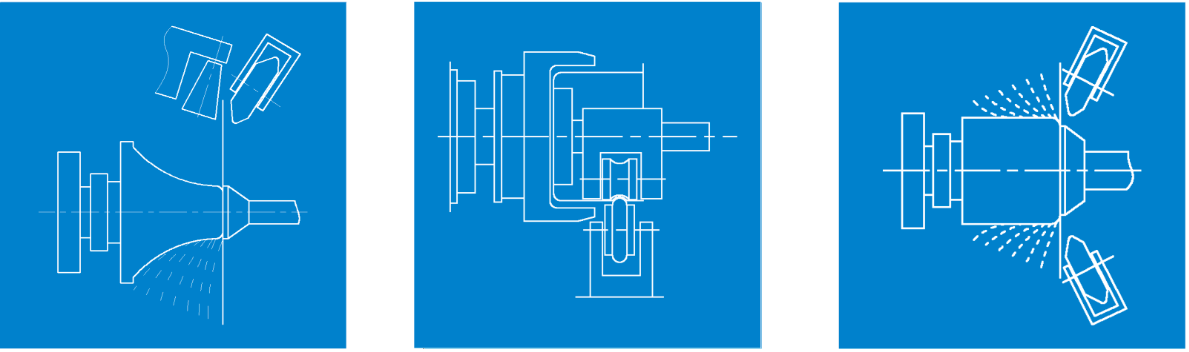

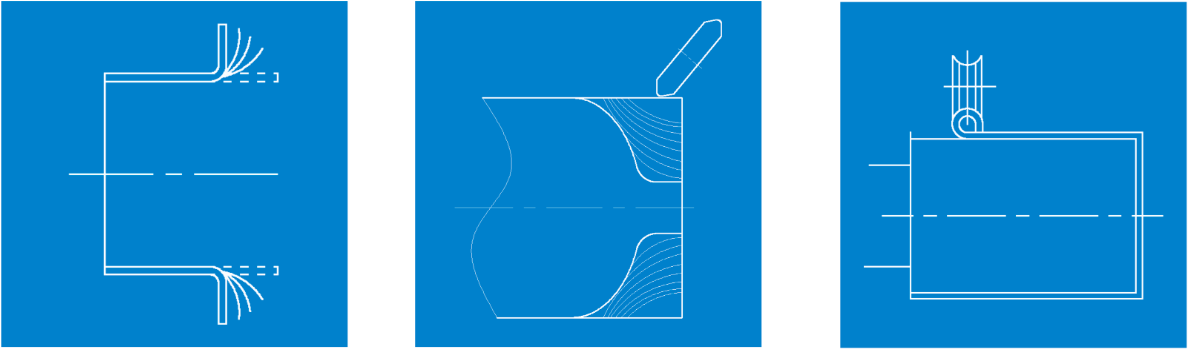

Spinning Principle

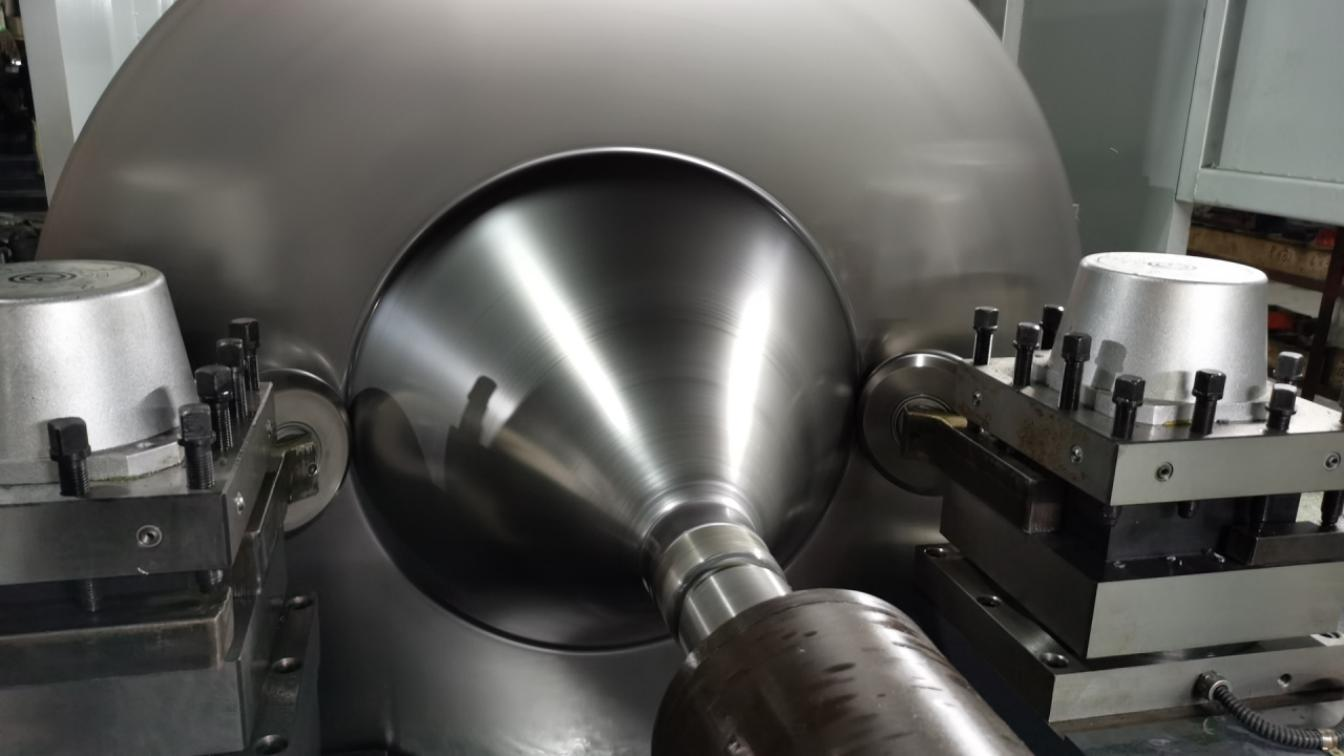

In the chipless forming process of spinning, a metal disc blank, a blank or a preform is first put into rotation. The metal part is squeezed by the spinning wheel and the metal starts to flow. In this way, complex generatrix shapes can be obtained with minimal tool costs. Various hollow bodies with extremely small tolerances and excellent surface quality.
The advantages of the spinning process are obvious: using this process, the wall thickness and contour of the workpiece can be determined with the greatest possible accuracy and can be accurately repeated.
Technical Parameter
NO.
Item
Parameter
1
Machine Specifications
PX1000-III
2
Maximum sheet diameter
1000mm
3
Drag bucket diameter
700mm
4
Main motor power
18.5KW
5
Spindle speed
X: 1000mm
6
Workpiece height
Z: 600mm
7
Tailing stroke
500mm
8
Spindle speed change
Servo stepless speed change
9
Tool holder station
4/6/8

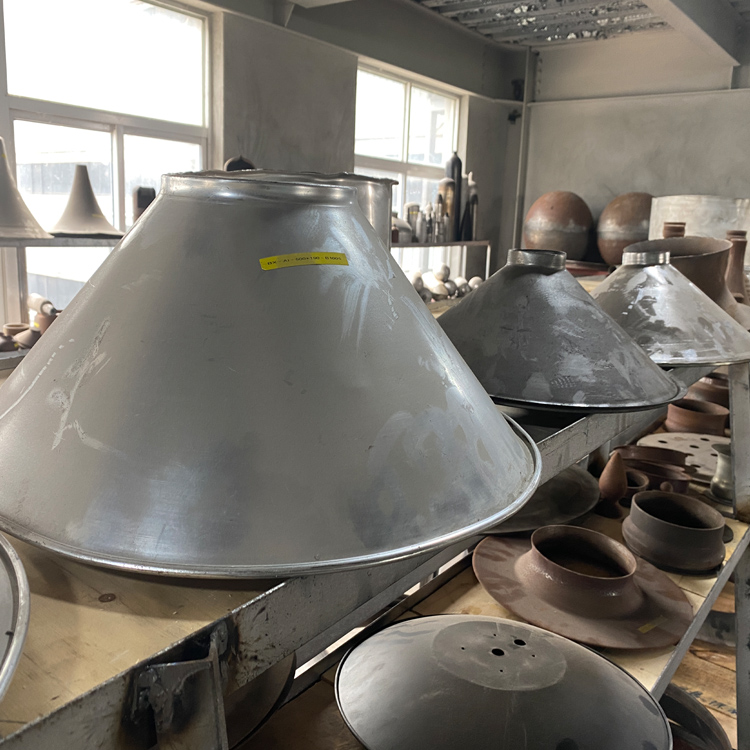

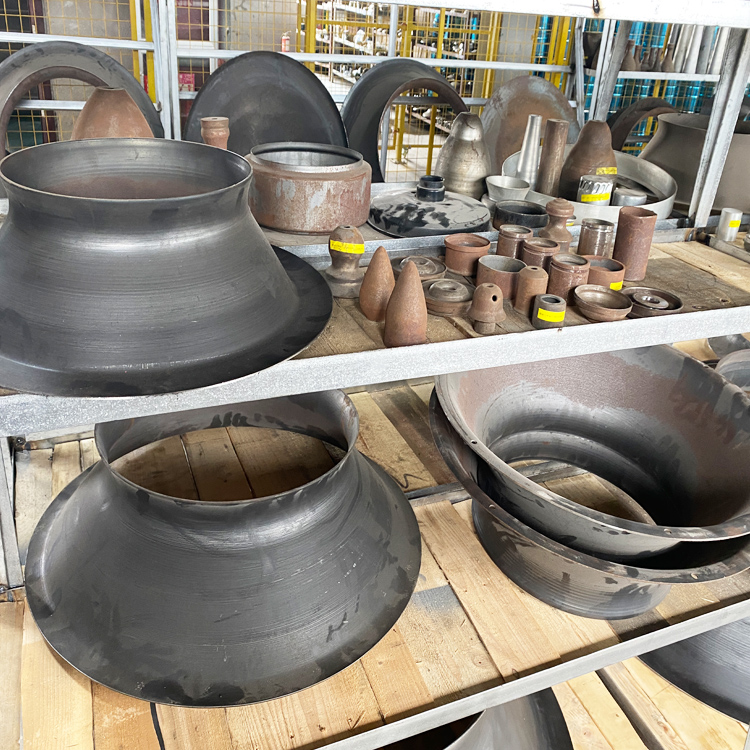

Finished Products Pictures
Product Packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
Company Profile
Frequently Asked Questions
1. Q: What is the power supply of the machine?
A: The standard power supply is 380V, 3P, 50Hz. We also can customize accordingly.
2. Q: What information should the customer provide to get an accurate quotation?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment (T/T mode). We also accept other payment terms, like L/C, DA, D/P, etc.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving the down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
6. Q: What are the advantages of the spinning process?
A: Using this process, the wall thickness and contour of the workpiece can be determined with the greatest possible accuracy and can be accurately repeated.
