The materials are of high quality, usually high-strength cast iron materials, such as HT250, etc. Cast iron materials have good vibration absorption properties, which can effectively absorb vibrations generated during processing, reduce the impact of vibration on processing accuracy, and ensure the stability of machine tools during high-speed cutting and heavy-load processing.

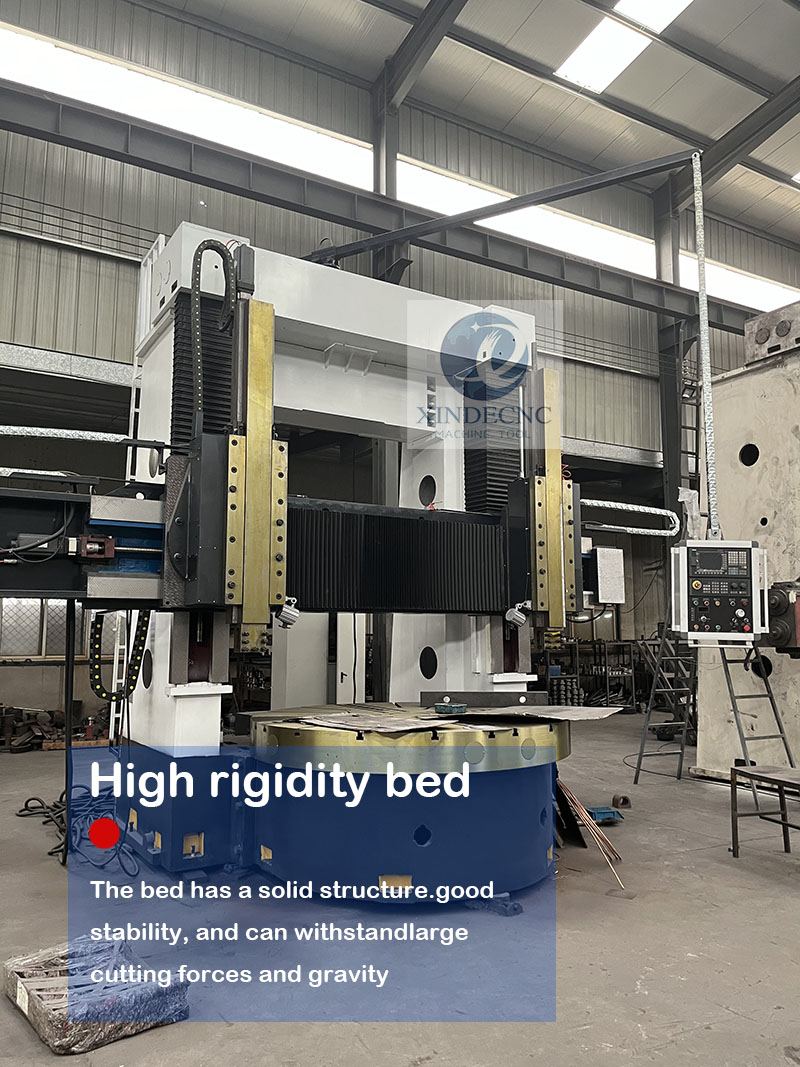

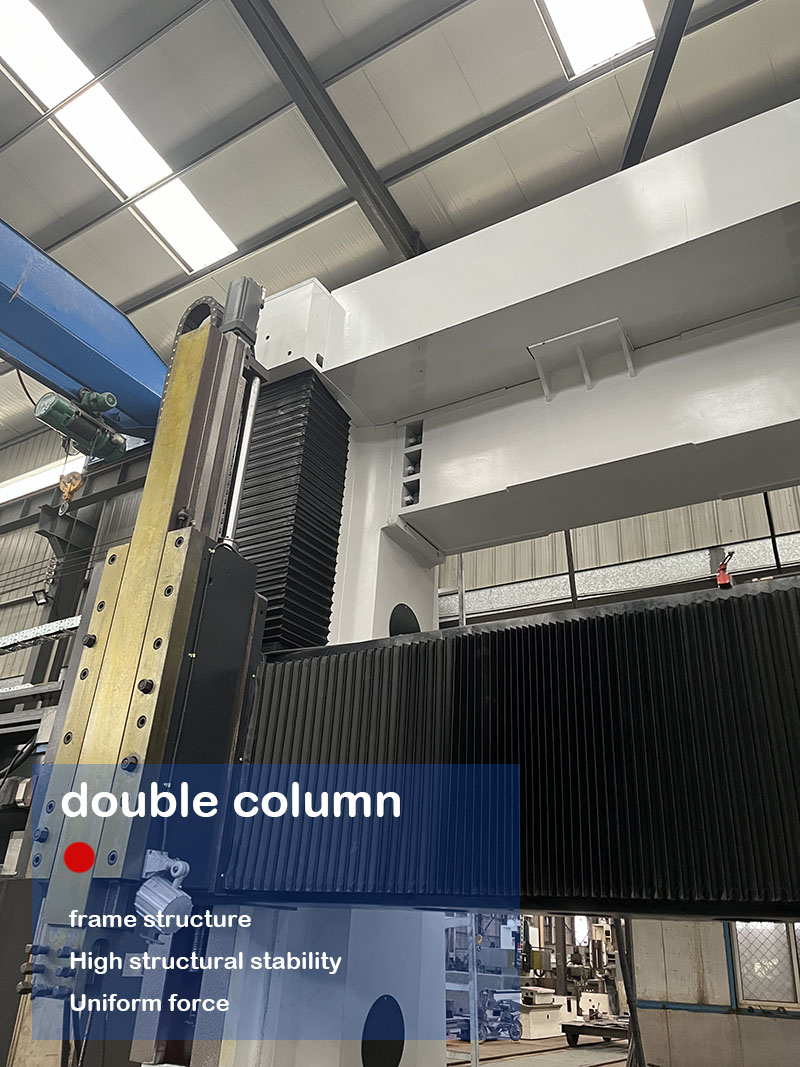

The structural design of the overall machine bed has been optimized and has sufficient rigidity and strength to withstand large cutting forces and gravity. For example, the shape of the bed and the arrangement of internal reinforcements can enhance the overall rigidity of the bed, making it less likely to deform during processing.

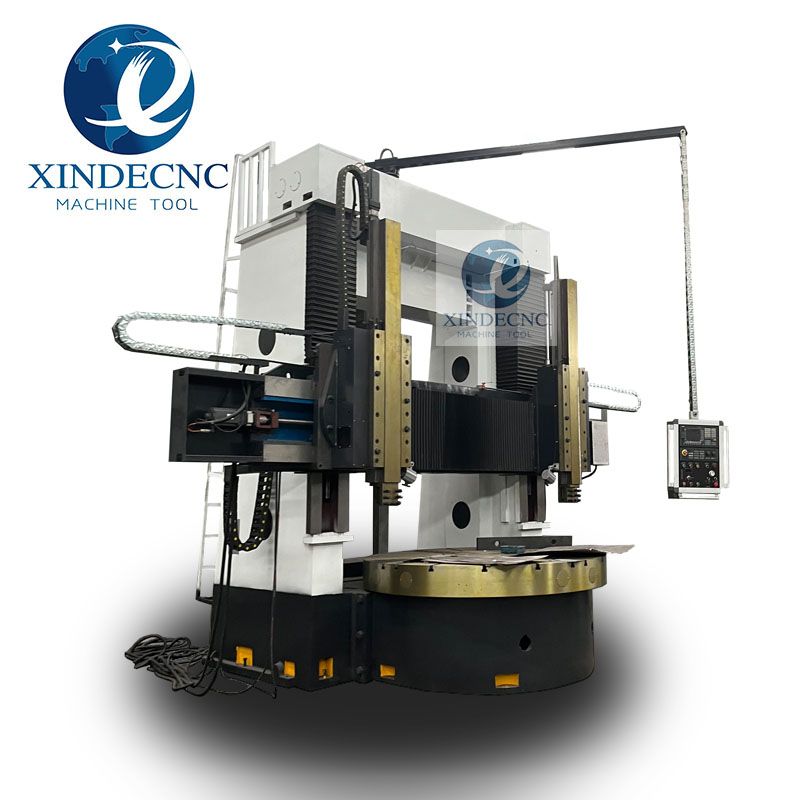

| Specifications | Unit | CK5240Q |
|---|---|---|
| Max.turning diameter | mm | 4000 |
| Max. height of work piece | mm | 1600/2000/2500 |
| Max. weight of work piece | T | 10/20 |
| Worktable diameter | mm | 2830/3150 |
| Range of table speeds | r/min | 2-63 |
| Steps | 16 | |
| Max torque of work table | KN.m | 63 |
| Rapid traverse of rail head | mm/min | 4000 |
| Right tool post cutting force | kn | 35 |
| Left tool post cuttingforce | kn | 30 |
| Travel of arm | mm | 1000 |
| Section of arm | mm | 255×200 |
| Swivel of left and right railhead | ° | ±30° |
| Section of tool | mm | 40×50 |
| Power of main motor | kw | 55 |
| weight | kg | 36000 |
| Overall dimensions | mm | 690×510×480/520 |
