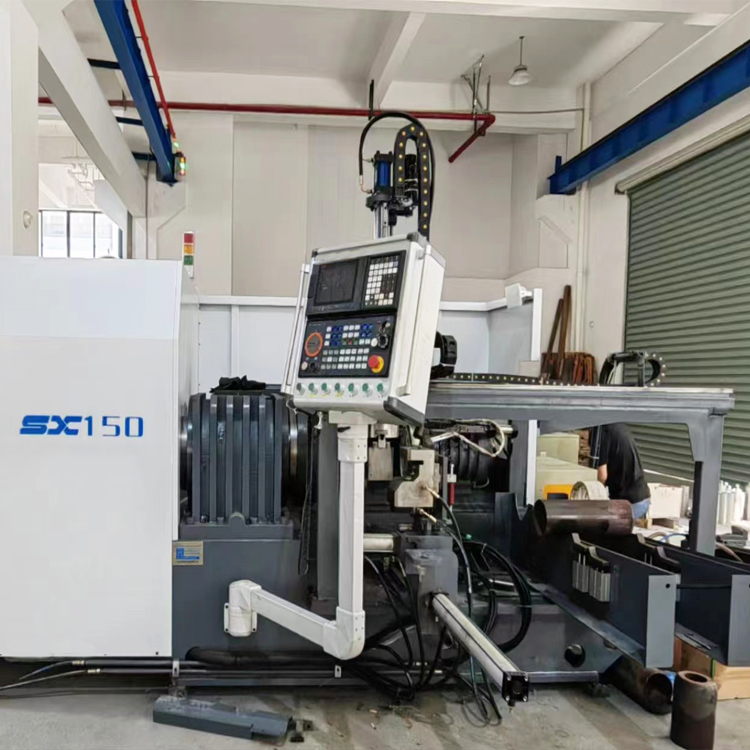

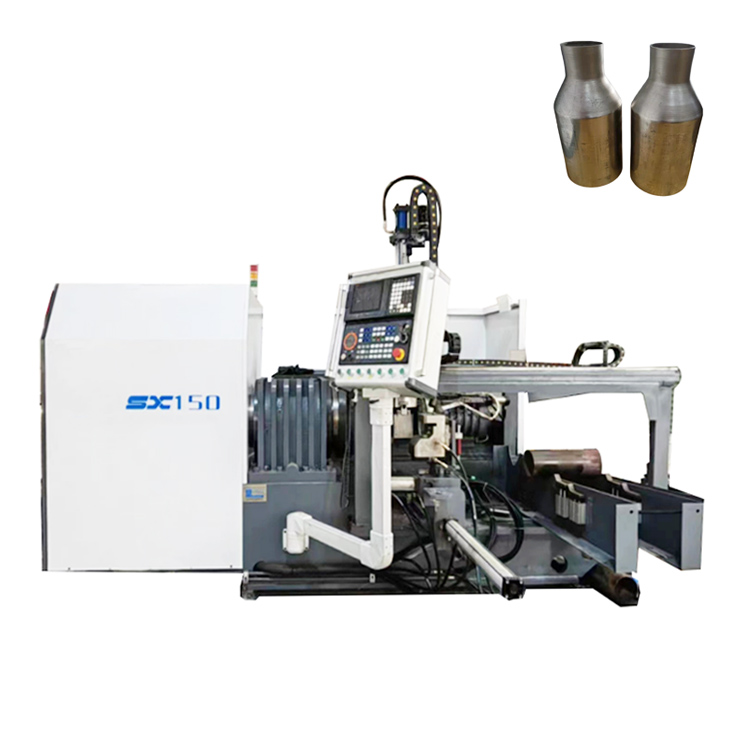

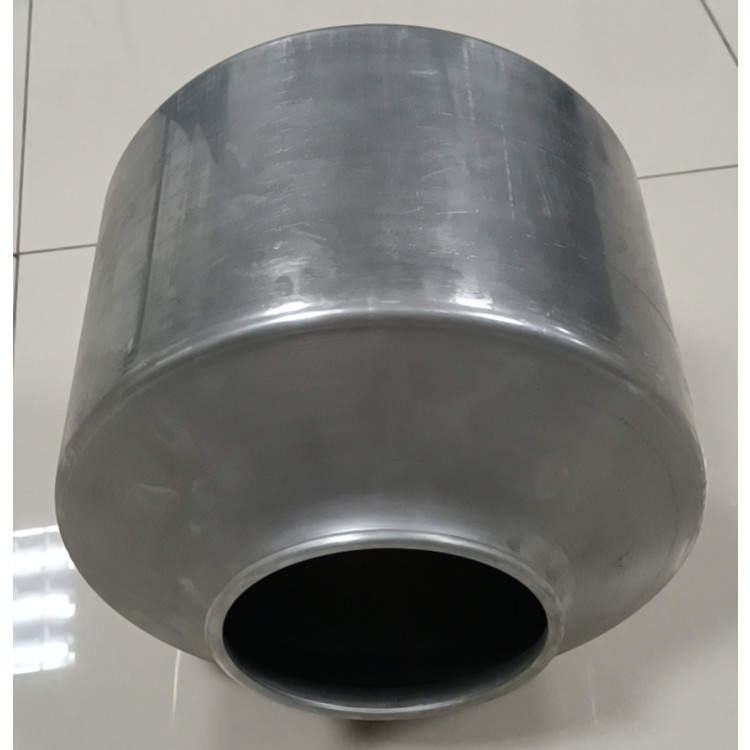

BXSX150-Ⅱ double-wheel shrinking spinning machine is a professional machine used in the pipe shrinking spinning process. This machine has a symmetrical double-wheel 180-degree layout and adopts a high-pressure coolant cold spinning process to extrude the pipe segment by segment. Through CNC program control, a variety of contour features can be flexibly realized. It solves the technical bottleneck of feature forming in traditional forging, cold extrusion, stretching and other processes. Low mold cost and efficient product development cycle have benefited many companies!
The tube blank with appropriate length is calculated and installed in the main spindle hydraulic chuck. The rear support can flexibly adjust the length of the product. The system controls the movement of each axis to realize multi-pass spinning of the spinning wheel. The movement trajectory is controlled by the CNC system, which can realize the movement and difference compensation of various contours such as arcs, oblique lines, and straight lines to meet the contour requirements of various products. The contour movement of the product is controlled by CNC system programming, which is easy to use and safe to operate.
| NO. | Item | Parameter |
|---|---|---|
| 1 | Control System | CNC |
| 2 | Motor | Digital AC Servo Motor |
| 3 | Maximum blank diameter | 150 mm |
| 4 | X/Z axis pulse equivalent | 0.001mm |
| 5 | Positioning accuracy | 0.01mm |
| 6 | Repeatability | 0.02 mm |
| 7 | Thickness | Stainless steel: 0.8-1.0- 3.0mm |
| 8 | Spinning lubrication | Automatic spray lubrication |
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
