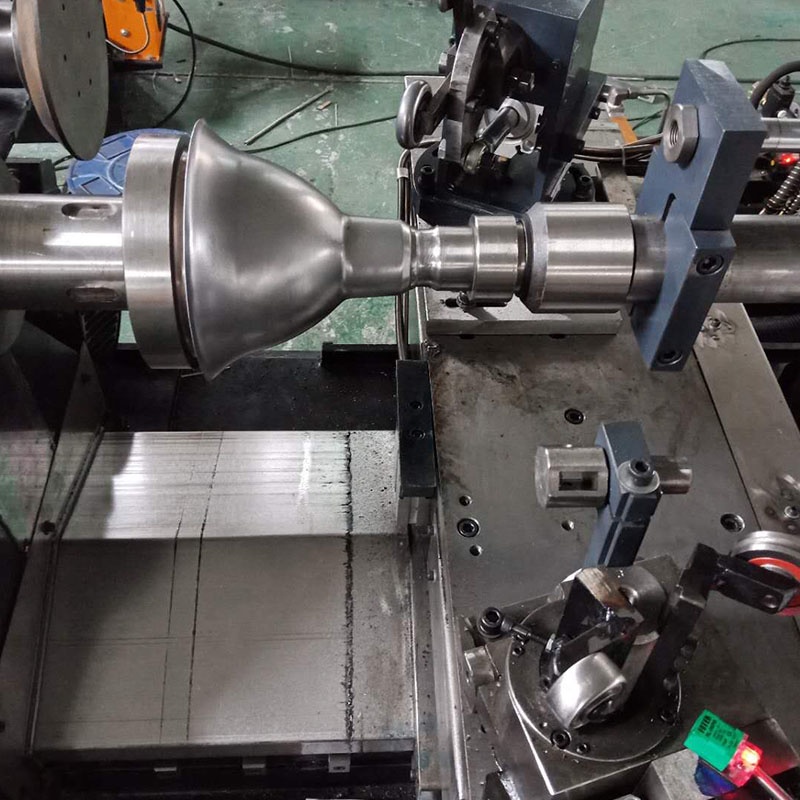

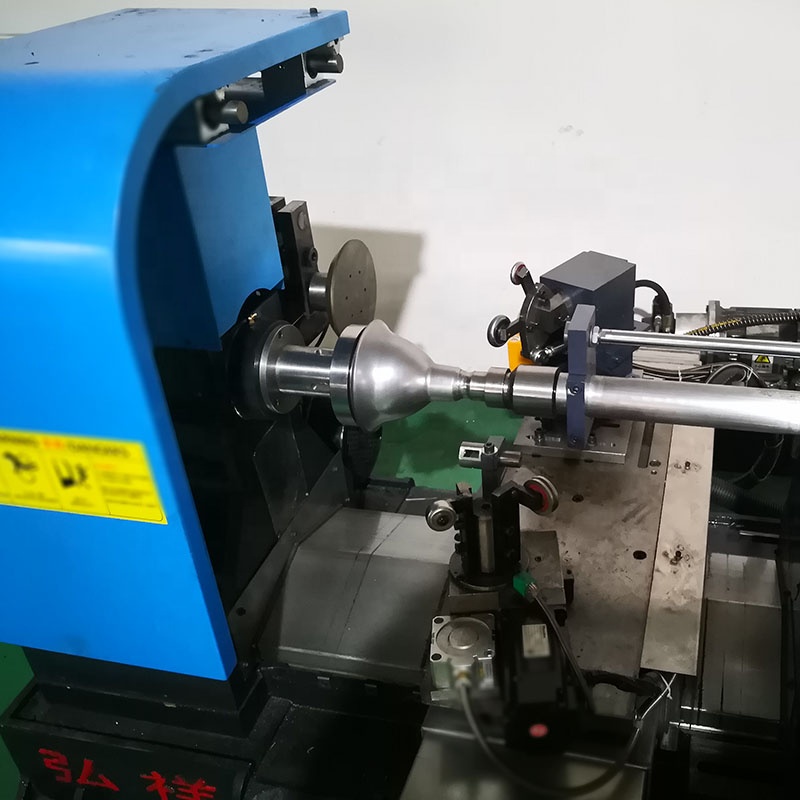

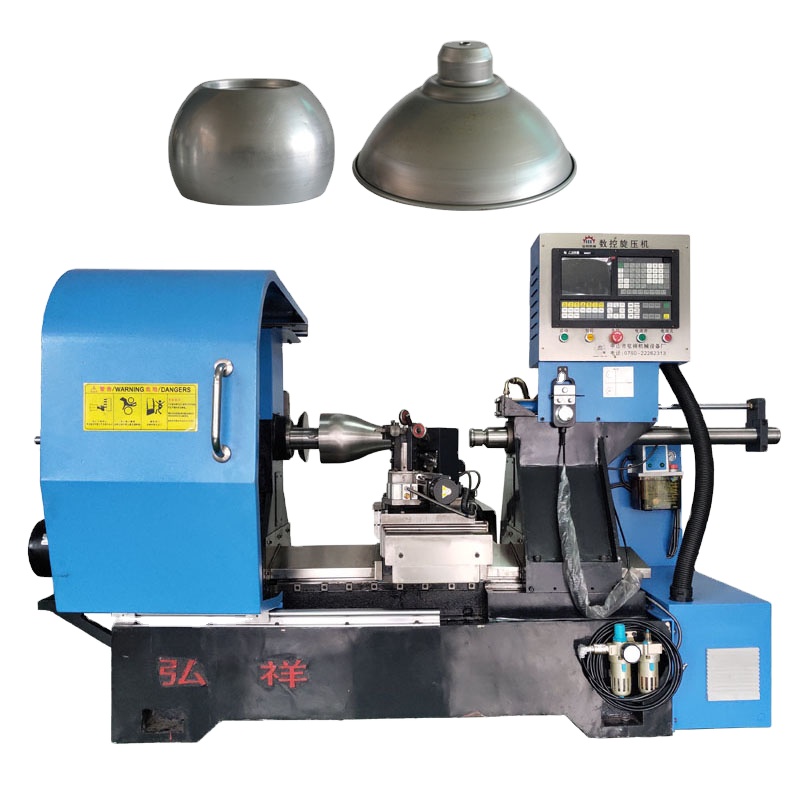

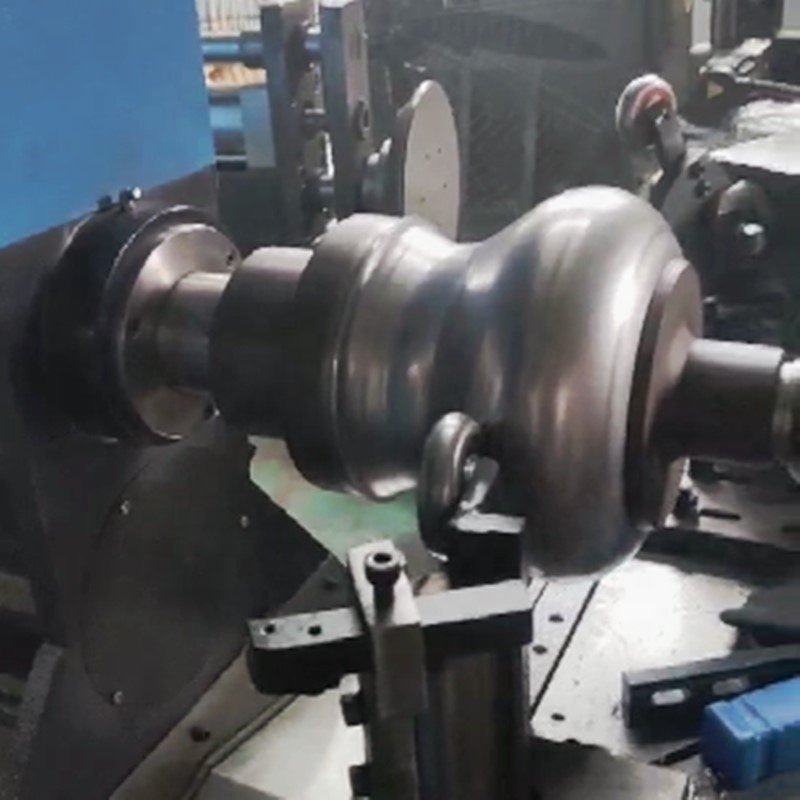

Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
1 / 5
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine
Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine

Automatic Bottle Necking Machine CNC Metal Spinning Machine Lathe Steel Pipe Shrinking Tube Spinning Forming Machine

Send Inquiry

Product Description

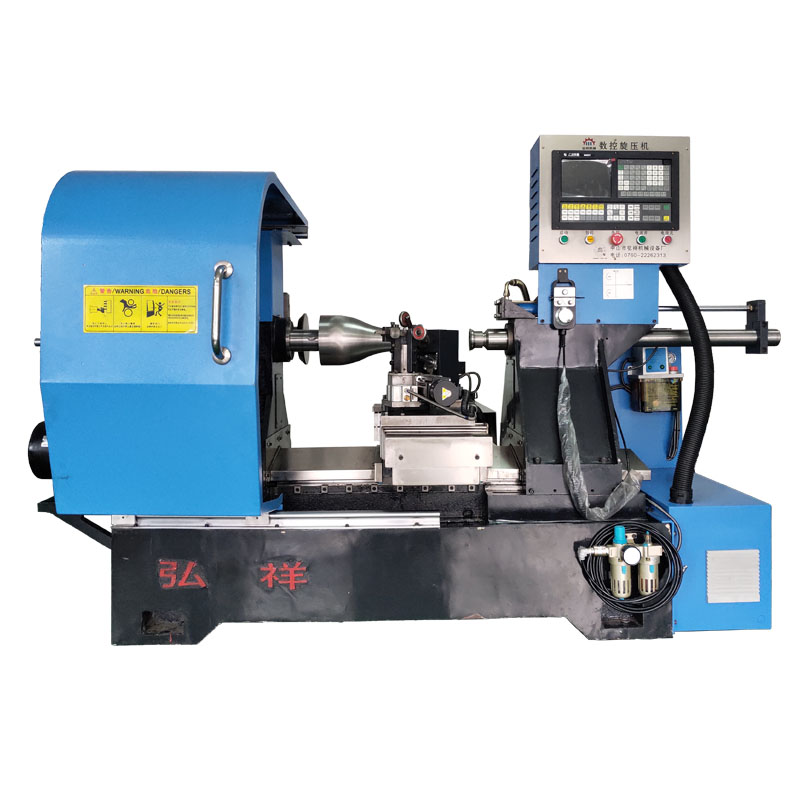

Products Description
Products Description
The Configuration is X-400 Simple (3 Axis / 4 Axis)
Max. Work-Sheet Diameter 420mm
Work-Sheet Pallets Diameter 420mm
Shaft Height to Axis 215±5mm
Main Spindle Speed 30-2700 r/min
Y Axis Stroke 400mm
X Axis Stroke 450mm
Distance from Spindle to Tail Shaft 510mm
Max. Tail-Stork Force (Air Pressure) 0.5Kn
Max. Tail-Stork Force (Hydraulic) 1.5Kn
Adjustable Range of Tail Stock 150mm
Tail-Stroke Travel 300mm
Iron & Copper Processing Thickness 0.4-0.8mm
Aluminum Processing Thickness 0.4-2.0mm
Stainless Steel Processing Thickness 0.5-0.8mm
Accessories Pallet Optional
Fixed Edge Cutter Optional
Rack Bracket Standard
Blowing Function Standard
Power Supply AC 380V Three-Phase Four-Wire
Main Motor Power 4Kw
Total Power of Servo Motor 3.75Kw
Positioning Accuracy 0.02mm
Quantity of Tools Position (3 Axis) 5 Tools
Quantity of Tools Position (4 Axis) 6 Tools
Machine Dimensions 2400*1460*1630mm
Net Weight 1500kg
Linear Guide Rail HIWIN / KATE
Ball Screw Rod Domestic Grinding C3 Precision Steel Ball
Servo Motor HUADA / MAXSINE / MIGE
CNC System KY-808xy
Pneumatic Parts AIRTAC
  • It has the function of mature CAD drawing programming software. Its rotating motion track can be straight line, arc, multi-arc connection line and combined curve, etc., and these lines can be input into the computer for step normalization programming.
  • Programmers can enter process parameters and spin steps through the keyboard and operator panel, as well as edit, store and recall.
  • It has a "copy" protection function for the outline of the core mold, that is, the rotation does not collide with the mandrel during the process adjustment and recording teaching.
  • The machine can pause the feed rate and spindle speed in an automatic program. At the same time, the machine is equipped with travel limit replacement, control system soft and hard limit protection, fault detection and alarm function.
  • When the machine is turned on, the machine has functions such as automatic detection of faults, automatic diagnosis and overload protection for each unit.
  • According to the user's requirements, it can realize the spinning forming of various special-shaped parts to ensure that the relevant dimensions such as the shape, diameter and thinning rate of the work piece meet the requirements.
  • The same machine tool can be used for trimming, flanging, crimping, shrinking, rolling and finishing shape.

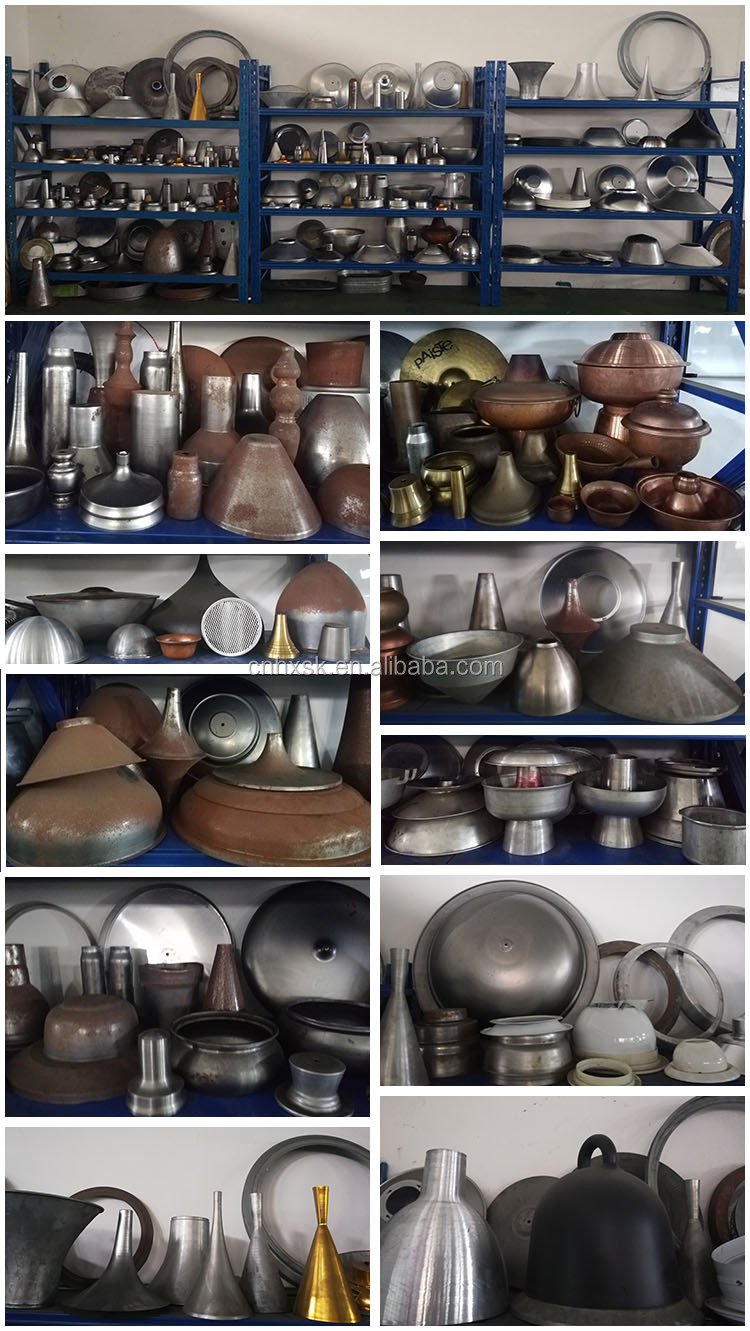

Our Spinning Sample
Spinning Sample

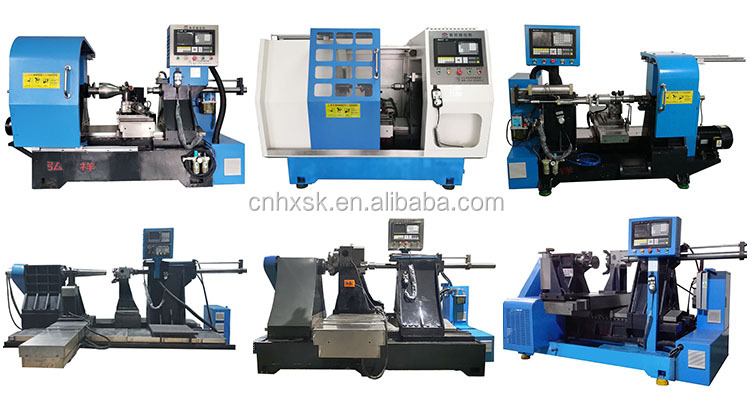

Our Often-Sales Machines Catalog
Machines Catalog
Our Often-Sales Machines Model Processing Range
Machine Model Max. Work-Sheet Diameter (mm) Iron (mm) Copper (mm) Aluminum (mm) Stainless Steel (mm)
X-300 Simple (3 Axis / 4 Axis) 300 0.8 0.8 2.0 -
X-400 Simple (3 Axis / 4 Axis) 420 1.0 1.0 2.5 0.8
X-550 Simple (3 Axis / 4 Axis) 560 1.5 1.5 3.5 1.0
X-550 Single (3 Axis) 600 1.0 1.0 2.0 0.7
X-800 Single (3 Axis) 810 2.0 2.0 4.0 1.5
X-800 Single (2 Axis) 810 1.2 1.2 2.5 1.0
X-1000 Single (3 Axis) 1030 2.0 2.0 4.0 1.5
X-1000 Single (2 Axis) 1030 1.2 1.2 2.5 1.0
X-400 Standard (3 Axis / 4 Axis) 420 1.0 1.0 2.5 0.8
X-450 Standard (3 Axis / 4 Axis) 470 1.5 1.5 3.0 1.0
X-500 Standard (3 Axis / 4 Axis) 515 1.5 1.5 3.0 1.2
X-600 Standard (3 Axis / 4 Axis) 620 1.5 1.5 3.0 1.3
X-600-T3.0 (3 Axis) 600 3.0 3.0 4.0 2.0
X-800-T2.0 (3 Axis) 830 2.0 2.0 4.0 1.5
X-800-T2.0 (4 Axis) 830 1.5 1.5 3.0 1.2
X-1100-T3.0 (3 Axis) 1150 3.0 3.0 4.5 2.0
X-700 Double 720 2.5 2.5 4.0 2.0
X-1100 Double 1100 3.0 3.0 4.5 2.5
X-1300 Double 1300 3.0 3.0 4.5 2.5
X-1300 Double (with cover) 1300 3.0 3.0 4.5 2.5
X-1000 Double-Rotating Dual Channel (5 Axis) 1030 3.5 3.5 4.5 3.0
X-1500 Double-Rotating Dual Channel (5 Axis) 1520 4.0 4.0 6.0 3.0

* Specification and Technical Parameter are subjected to change without notice for improvement.

Packaging & Delivery
Packaging & Delivery
Company Profile
We are a technical enterprise specializing in the development, production and sales of metal numerical control spinning equipment. The products have formed a series, high and low matching and excessive automation.
Our spinning equipment is suitable for the processing of metal, rotating parts and pipe fittings such as iron, aluminum and copper. It is widely used in lighting, handicrafts, furniture, automobile and other industries. The tools used are extensive, flexible, and have high production efficiency. They can complete a series of molds (such as barrel, cone, parabola, horn, warhead, etc.) and multiple molds (such as vases, gourds, balls, and mass production of type, etc.).
We attach great importance to our own construction, in line with the business philosophy of "quality refinement, management and sincerity", on the basis of absorbing the management experience of advanced enterprises at home and abroad, we have established a set of business management mode suitable for our own development, and pay great attention to the market. Pioneering and technological research and development, actively promoting the three major constructions of "management, technology and brand", vigorously developing products that are urgently needed in the market, high in technical content, energy-saving and environmental protection, and high added value, and gradually realize technological leadership, complete equipment, advanced management and reliable quality. We will continue to develop new types of CNC spinning equipment, so please pay attention to new and old customers! We will cooperate with you with the best quality and sincere service to create a better future.
Company Image 1 Company Image 2
Certifications
Certifications
Our Services
Service Showcase
Pre-Sale Service
  • Good Quality / Factory Price / Quick Response / Reliable Service, are our working faith.
  • Professional and High efficient foreign sale-team. Reply your inquiry and trade messages within 6 working hours, you can totally believe our service.
Middle-Sale Service
  • Checking the most suitable shipping ways for customers.
  • Testing quality again before sending goods.
  • Sending the tracking number bill of loading, and update the situations of the goods until customers receive the goods.
After-Sale Service
  • We are very glad that customers give us some suggestions for price and products.
  • If you have any questions, please contact with us freely for more details.
FAQ
Q1 How can I choose the right machine?
You can choose a machine on our website according to your requests. Alternatively, you can let our sales team know your specifications or the details of your parts so they can recommend the most suitable machine for you.
Q2 Can you provide training for operating CNC machines?
Yes, free training is available at our factory.
Q3 What is the warranty period for your machines?
All machines purchased directly from the factory enjoy a one-year machine warranty period and a two-year system warranty period.
Q4 How do you handle services during the warranty period?
During the warranty period, for any product quality problems, we are responsible for free maintenance and part replacements. If the problem is not related to our machine quality and you require on-site technician service, we will charge a reasonable cost.
Q5 Can I get spinning samples from your machines?
Yes, we can produce free spinning samples for you. However, you will need to pay for the spinning molds and the test materials.
Q6 What are your terms of payment?
For payments less than or equal to 1,000 USD, 100% in advance. For payments greater than 1,000 USD, 50% T/T in advance, and the balance is paid before shipment.
