ZRF Spinning
1 / 5
Compact structure, small space footprint, high stiffness, high precision, and high speed.

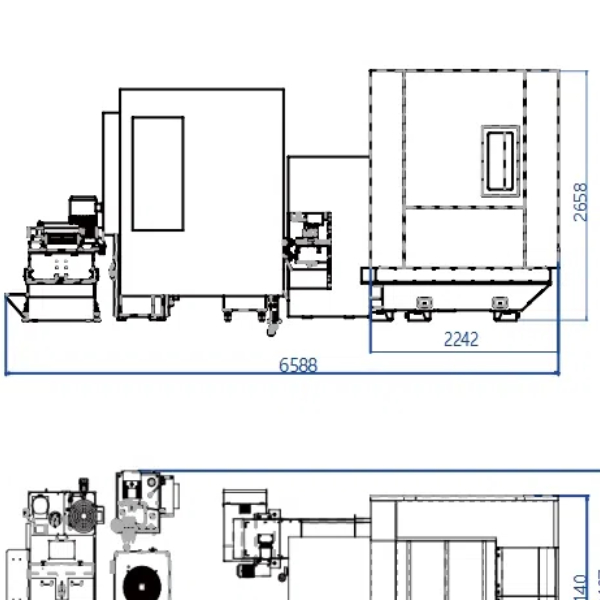

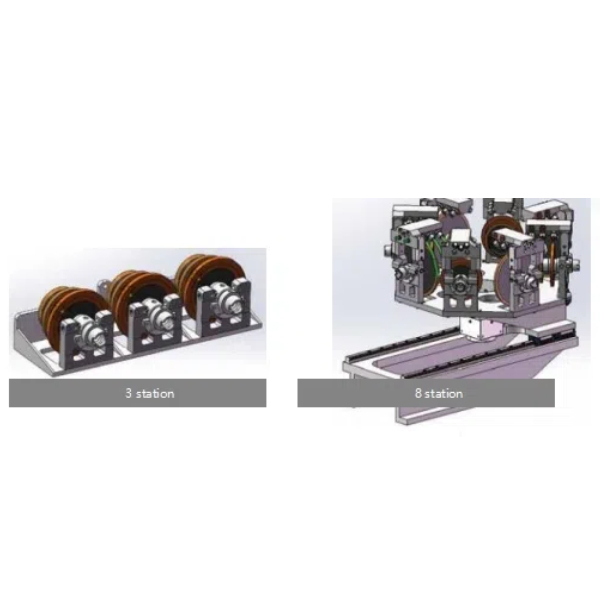

Equipped with different specifications of electric spindle, workpiece spindle, workpiece warehouse, knife warehouse, automatic feeding and material plate and other functional components, through modular combination, to achieve the conversion of milling machine and grinding machine, so as to achieve the needs of machining blades, impeller, tools and other workpieces.
Spindle using milling electric spindle, the integration of torque motor direct drive spindle reduce connection, no reverse clearance, no wear, good precision, improve the dynamic characteristics, can realize the highest speed 12000 r/min high speed cutting, and spindle all water cooling constant temperature control technology, ensure the machine tool has a stable geometric accuracy and machining accuracy.
The milling point is near the rotation center of axis B, reducing the travel distance of axis X and reducing the rotation error of axis B, so as to improve the machining efficiency.

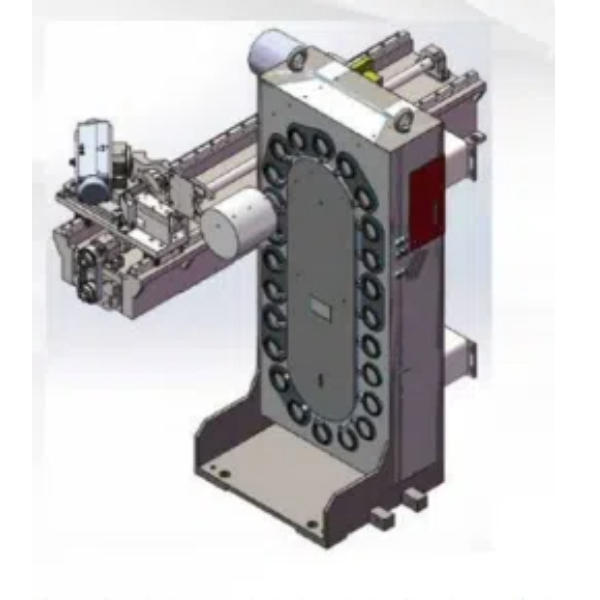

Equipped with disk type knife library (interface for HSK-A63), through the automatic manipulator knife change, safe and reliable.
The workpiece spindle is equipped with a special cutter mechanism and a workpiece quick change system, the interface is BT50, and the torque motor of different specifications is selected to realize the configuration of various workpiece spindle. According to customer processing needs, the spindle is designed in the form of the spindle, and the diameter of the spindle is 200mm.
The linear axis is standard with high-precision absolute value linear grating ruler (with air seal), and the rotary axis is standard with high-precision absolute value Angle encoder, forming a five-axis full closed-loop processing, reducing the adverse effects of environmental temperature fluctuation and wire thermal elongation on the positioning accuracy of the machine tool.
The screw and guide rail of the machine tool are made of quantitative intermittent centralized lubrication system to ensure timely and adequate lubrication of each part and improve the stability and durability of each part; the spindle bearing adopts grease lubrication.
The manufacturing process of the machine tool adopts the transparent quality management method of the whole process, the key parts are 100% checked, and the equipment should be closed for 72 hours before leaving the factory.
The machine tool adopts the form of fully enclosed protection, and is equipped with a high-quality fully enclosed protective cover.
| Item Description | Standard Terms |
|---|---|
| Delivery Time | 90-120 days |

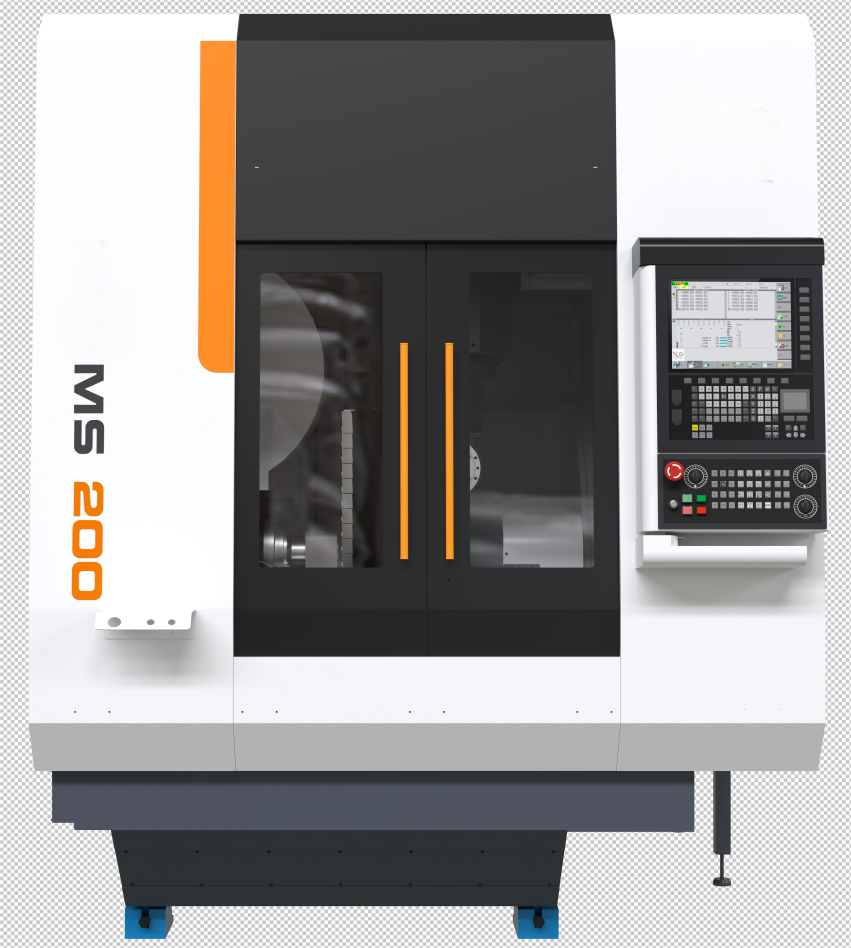

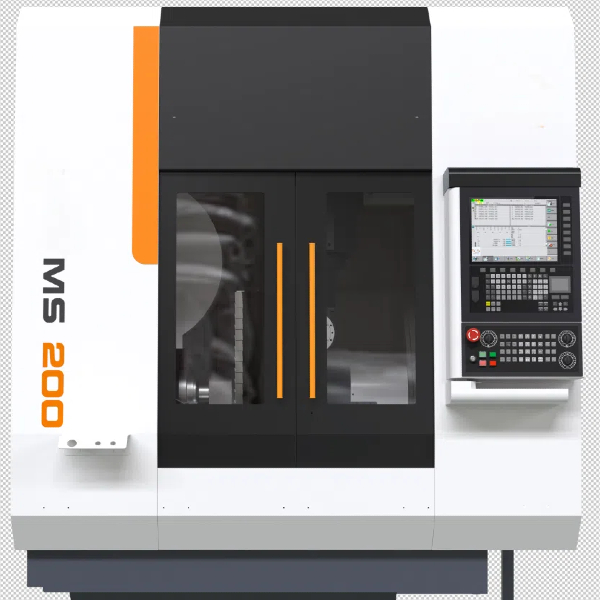

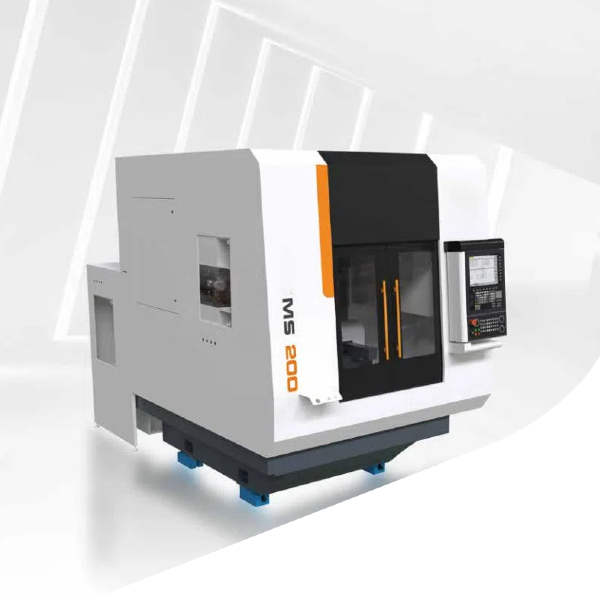

The MS200 is designed for high-precision machining of complex workpieces such as blades, impellers, and advanced tools by combining milling and grinding functions into a single center.
The machine features a direct-drive torque motor milling electric spindle that eliminates reverse clearance and wear. It operates at a maximum speed of 12,000 r/min and utilizes water-cooling constant temperature control for high machining accuracy.
It is equipped with standard high-precision absolute value linear grating rulers (with air seal) on linear axes, and high-precision absolute value angle encoders on rotary axes, ensuring full closed-loop feedback to minimize thermal elongation errors.
The MS200 features a standard 24T disc-type tool library with an HSK-A63 interface, allowing for quick, reliable, and automatic tool changes using a manipulator.
By integrating high-efficiency multi-axis controls and combining milling and grinding modes in modular setups, it saves users an average of 30% or more in processing time.
