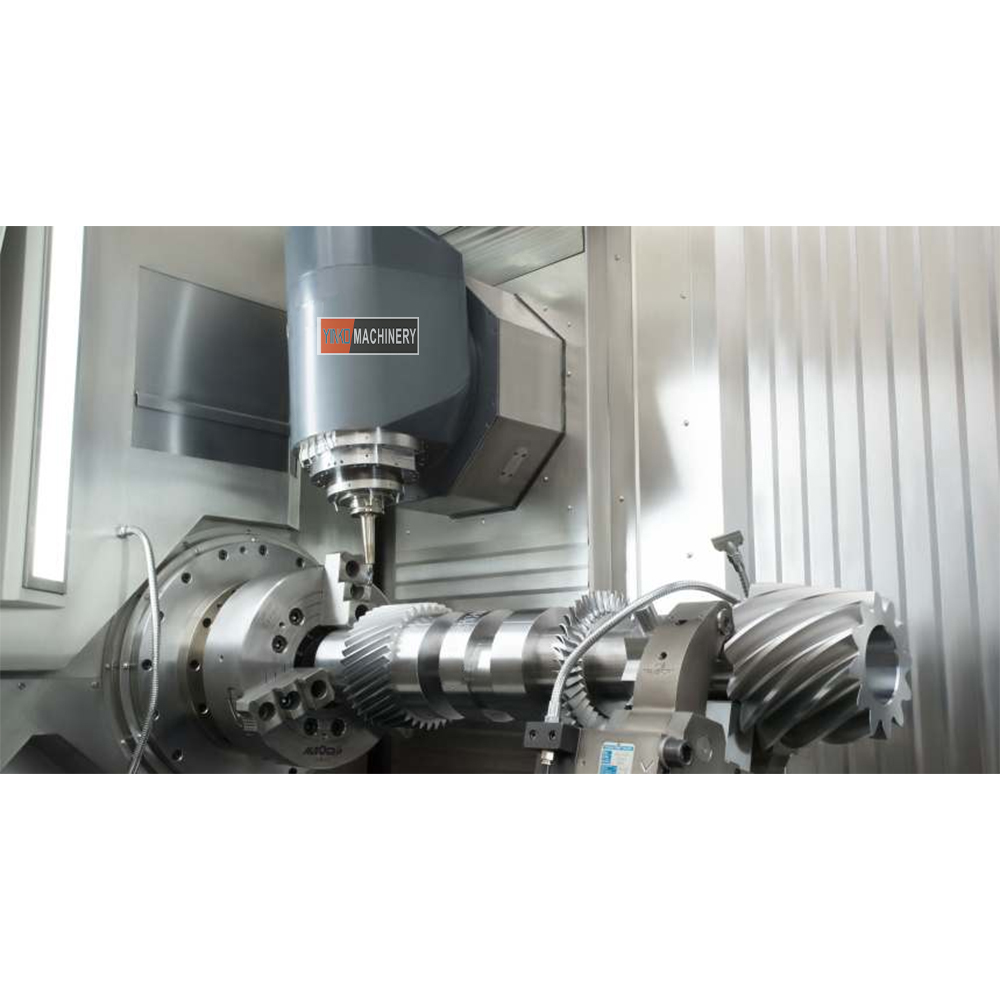

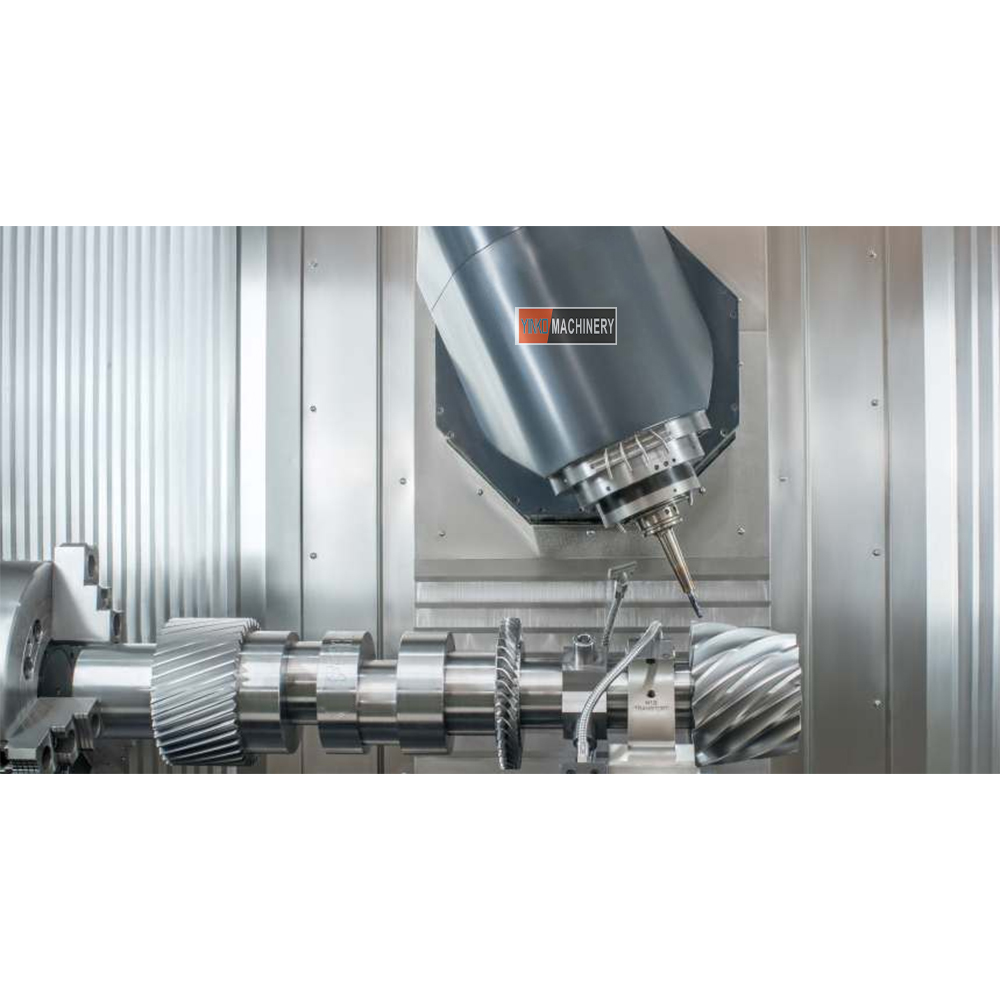

This series of CNC machining centers is considered to be the most important industrial mother machine for machining key components in the aerospace, shipbuilding, precision instruments, automobile and other industries. As the most difficult and widely used CNC machine tool technology, the five-axis linkage turning and milling compound machining center has its irreplaceable advantages in machining: it can complete multiple processes such as turning, milling, drilling, and complex surface machining in one clamping. For example, aircraft engine rotors, large generator rotors, large ship propellers, crankshafts, impellers, blades, etc.
1
12-station power turret (5000rpm) with extended tool capacity and large guide rails ensures efficient complex machining with superior surface finish.
2
Achieves 350mm turning diameter via column movement, with 398Nm spindle torque. Optional sub-spindle enables 6-sided machining, featuring 100mm Y-axis stroke and X-axis optical encoder for precision.
3

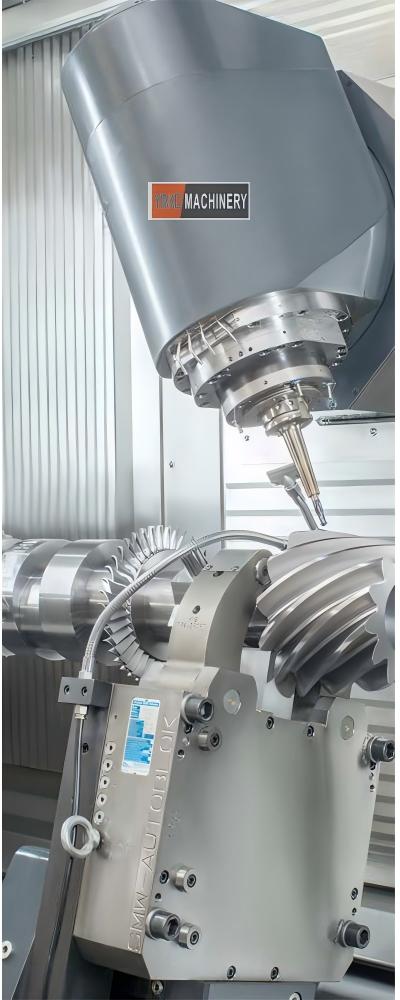

High-performance turn-mill spindle (12,000rpm, 54kW, 175/210Nm) with 40bar coolant system, equipped with reliable Kesler electric spindle.
4
Energy-saving design reduces consumption by 29%. Features 24/36-tool magazine, handles Ø630mm×6000mm workpieces, maintaining long-term stability and precision.
5
Premium construction with Meehanite cast iron base, Siemens S120 drives/1FT motors, and TCU30.3+ICP427E HMI. Direct-drive B-axis (±120°, <5μm accuracy) ensures micron-level positioning.

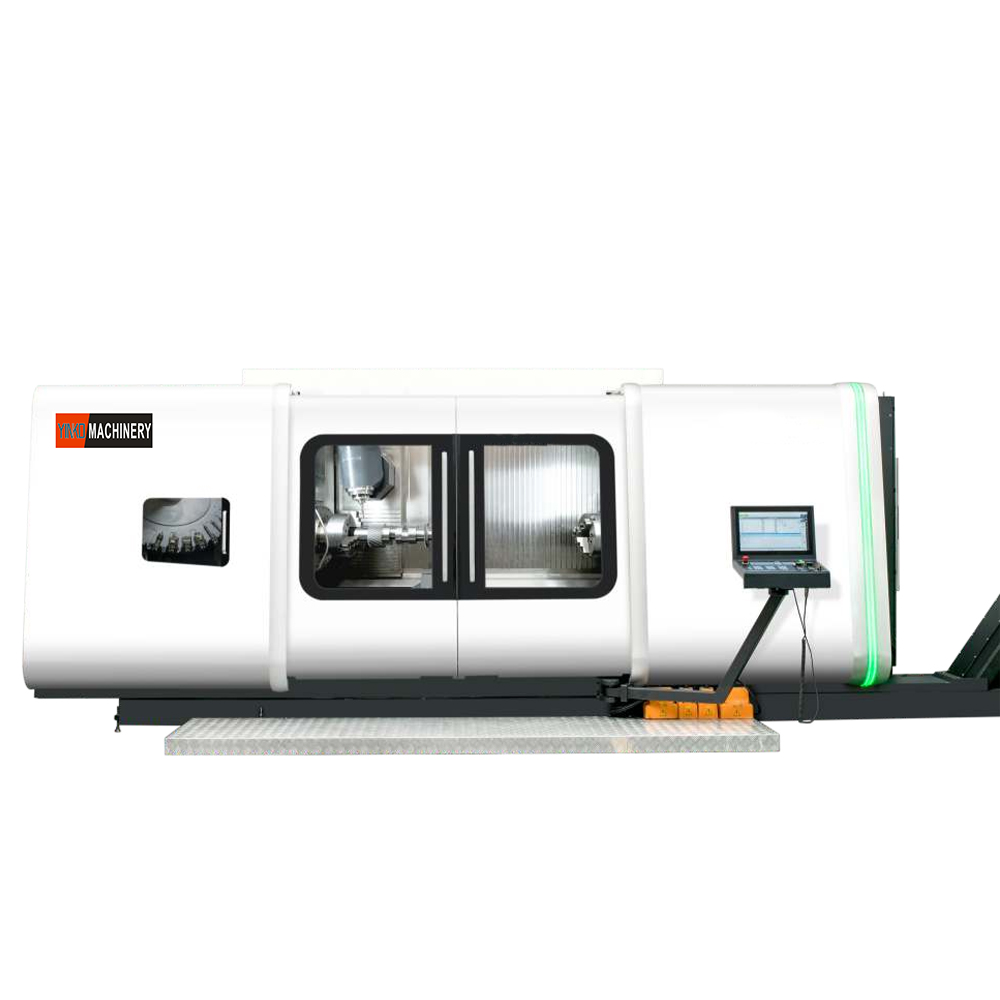

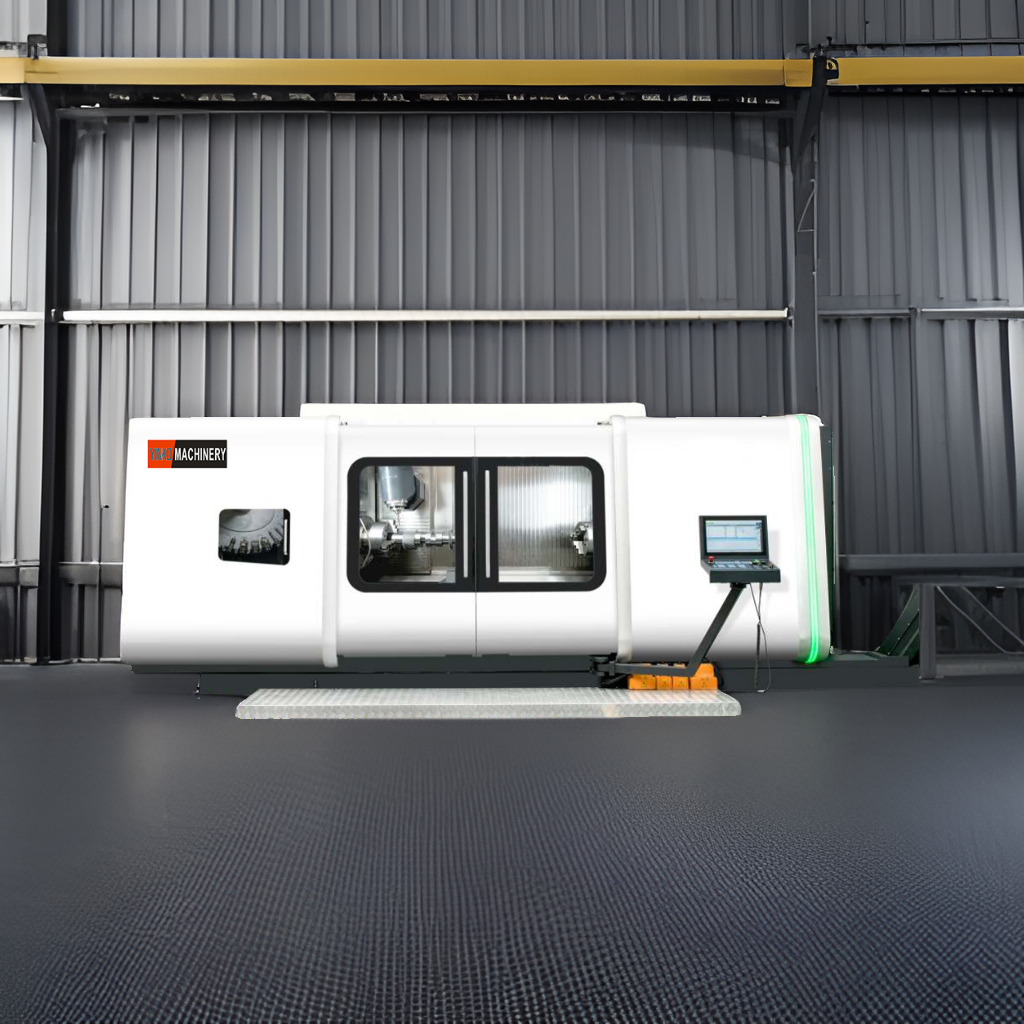

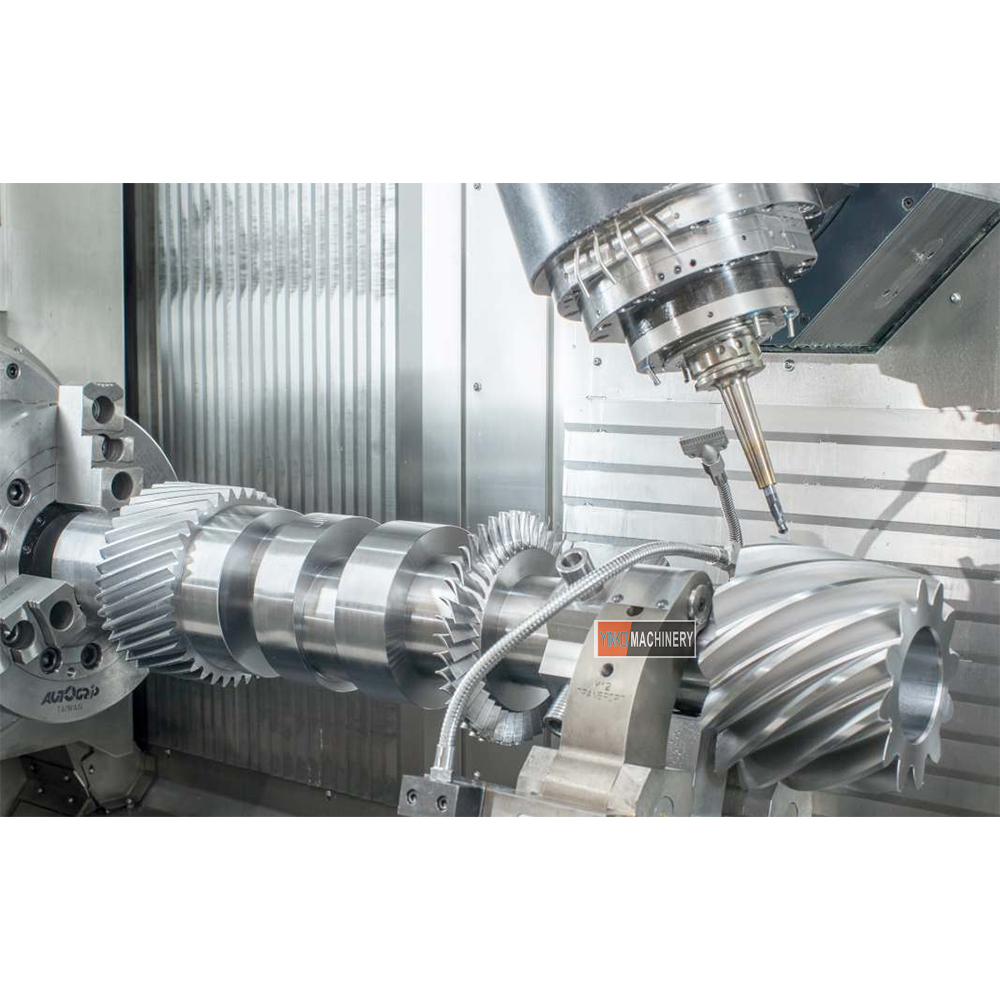

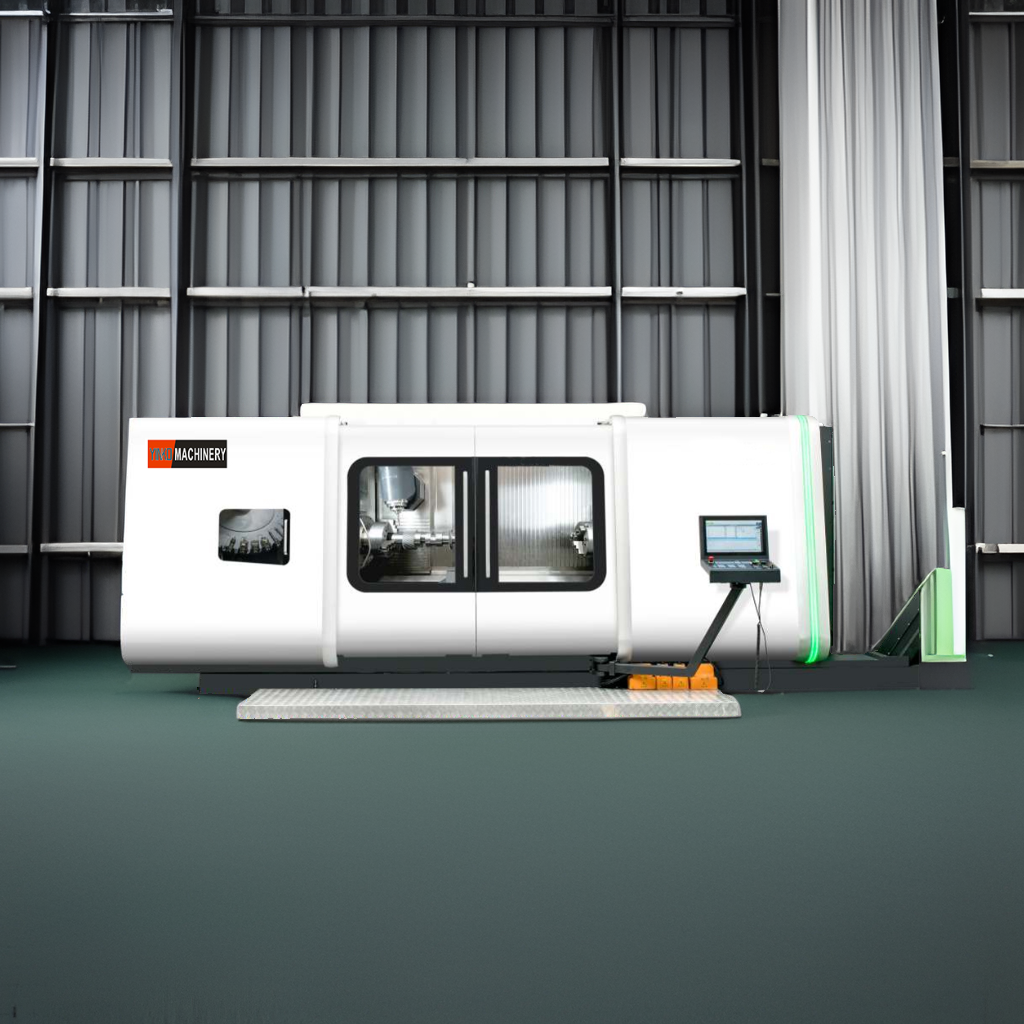

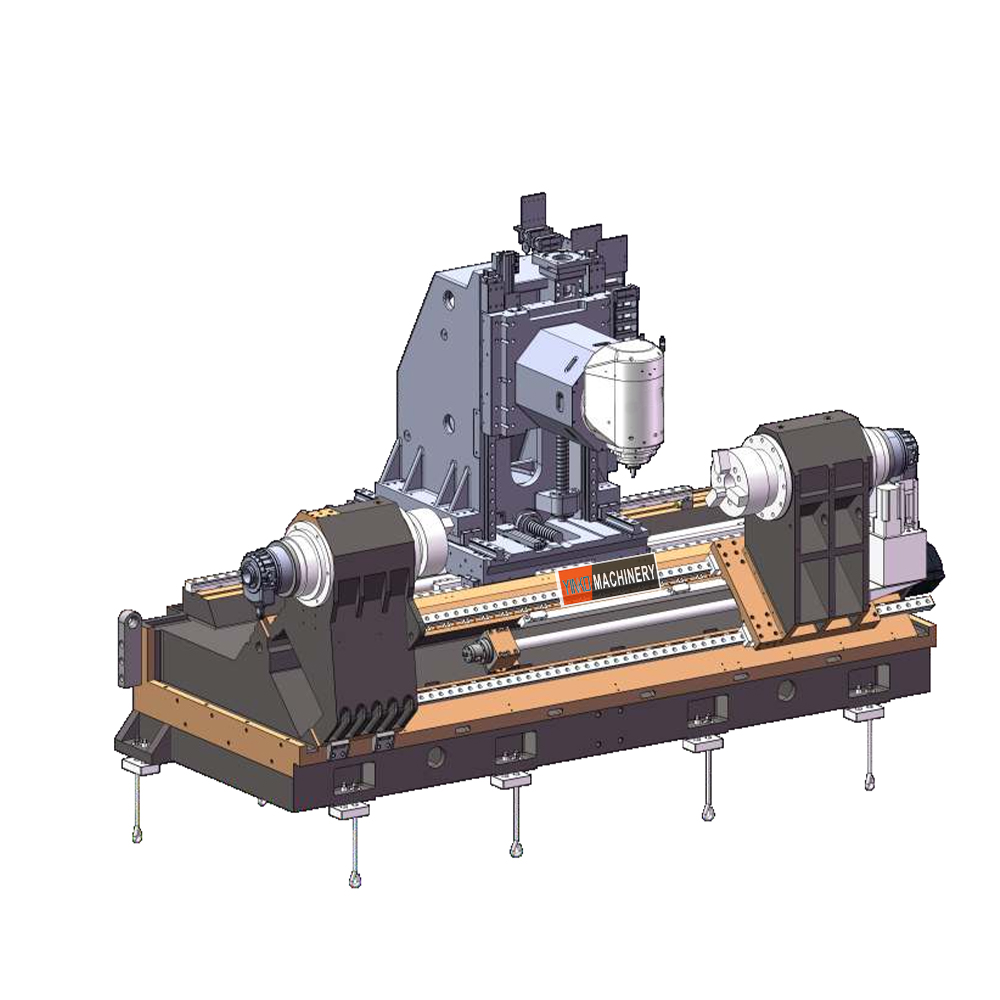

7-Axis CNC Machine 5-Simultaneous CNC Milling and Turning Machining Center for Aerospace Industry
| Specification Parameter |
Detail Standard (CX500-1000) |
| X/Y/Z axis travel |
560mm * 300mm * 1000mm |
| Max swing diameter |
Φ500mm |
| Max turning diameter |
Φ470mm |
| Max bar diameter |
Φ63mm |
| Max turning length |
100mm |
| Swing milling head (B-axis) |
Standard |
| Swing range (0=vertical/180=level) |
±120° |
| B-axis rated speed |
50rpm |
| Spindle Type |
Turning & Milling Spindle |
HSK-T63 | 12000rpm | 54/54kw | 175/211Nm |
| Main Spindle |
A2-8 | Φ304mm Chuck |
5000rpm | 35.5/50kw | 282/398Nm |
| Sub-spindle |
A2-8 | Φ304mm Chuck |
5000rpm | 35.5/50kw | 282/398Nm |
| Tool capacity |
24T |
| Max tool diameter/length/weight |
Φ120mm / 300mm / 7kg |
| Tool changing time (tool-tool) |
4s |
| Center clamp |
1 piece |
| Linear grating scale |
HEIDENHAIN / Fagor |
| Ring grating scale |
HEIDENHAIN |
| Infrared probe |
Renishaw OMP60 |
| Tool setting gauge |
Renishaw NC4F230 |
| Paper tape filter |
Standard |
| CTS |
40bar |
| Ring water spray |
16bar |
| Bed material |
Cast Iron |
| Rapid traverse |
40m/min |
| X/Y/Z positioning accuracy |
0.008mm |
| X/Y/Z repeat positioning accuracy |
0.006mm |
| B/C positioning accuracy |
8'' |
| B/C repeat positioning accuracy |
4'' |
| Control system |
Siemens / Heidenhain |
| Machine height |
2500mm |
| Water tank occupied area (L*W) |
1785 * 1355mm |
| Complete machine occupied area (L*W) |
5866 * 3600mm |
| Machine weight |
16000kg |
