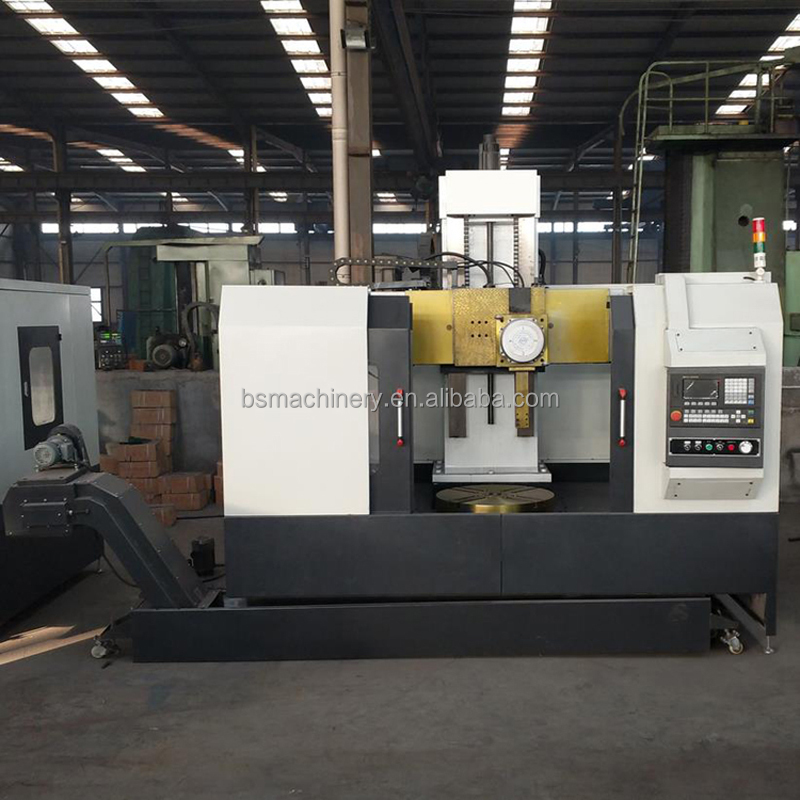

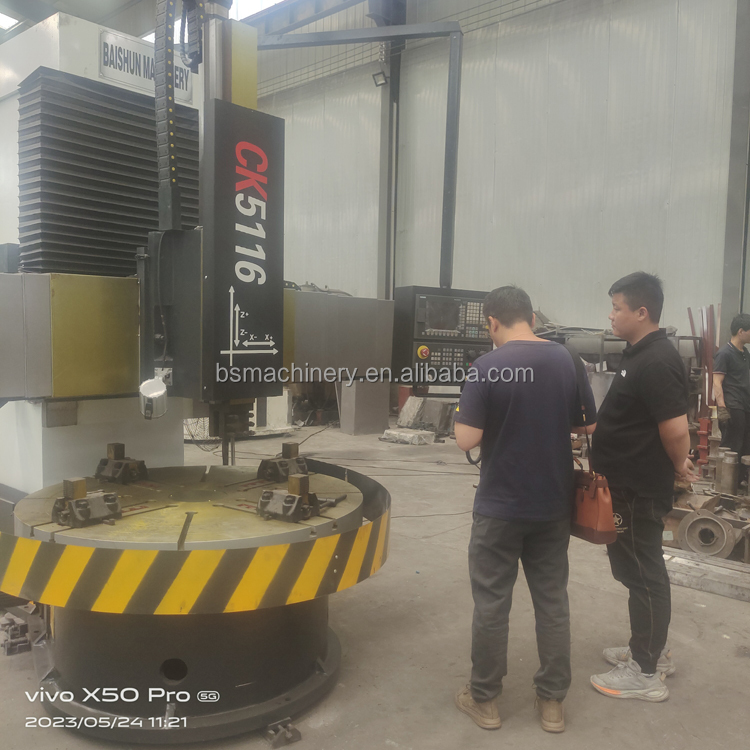

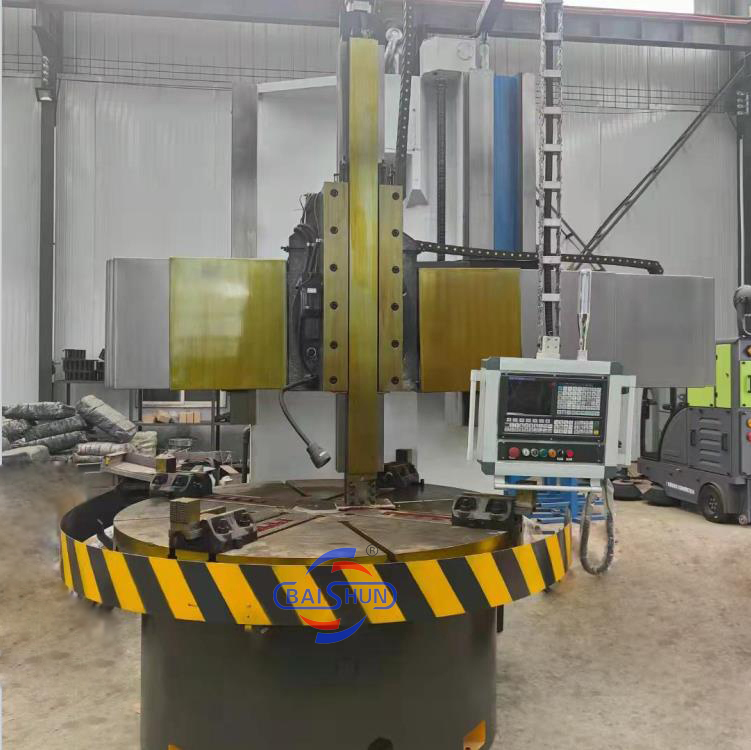

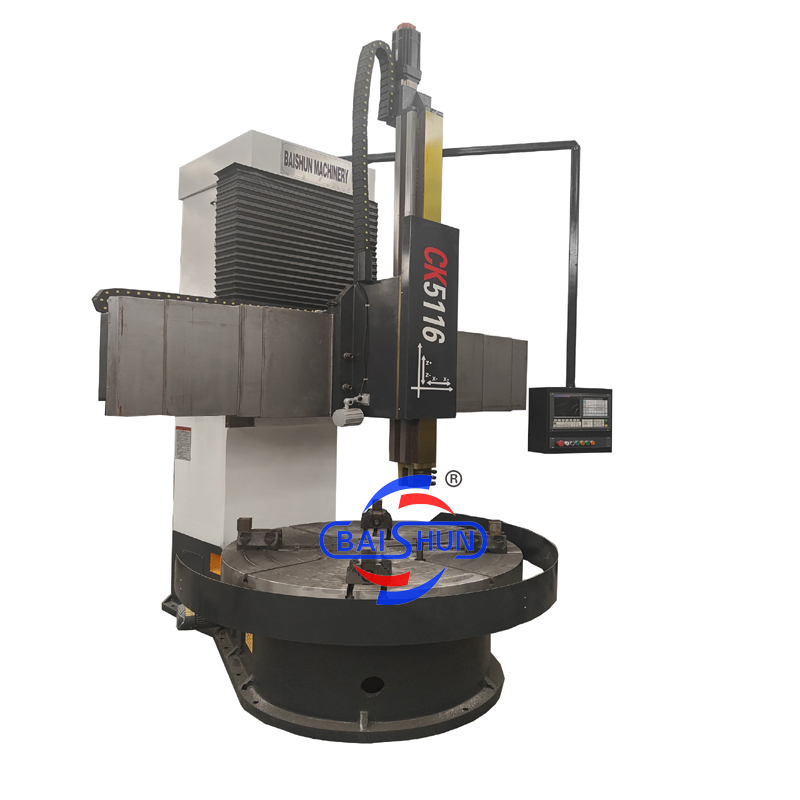

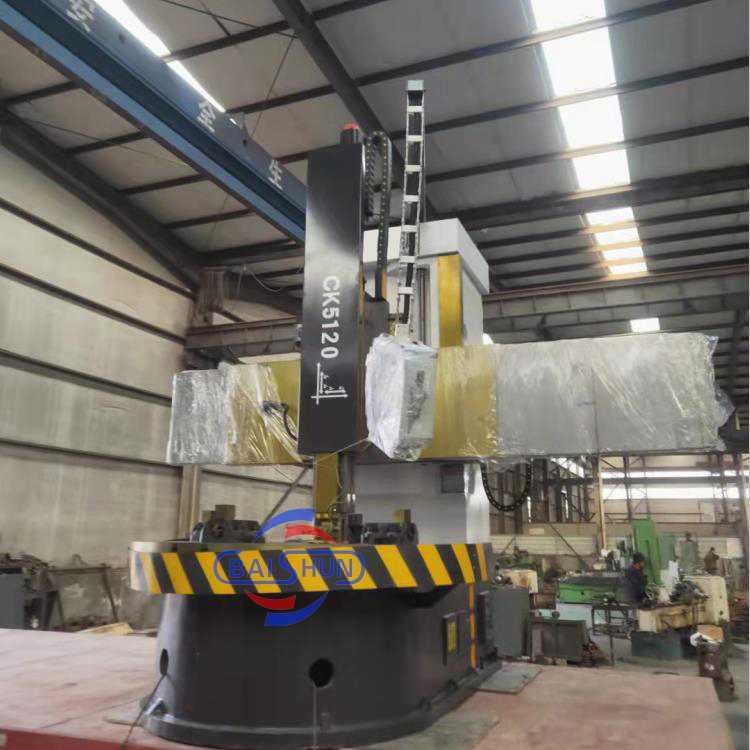

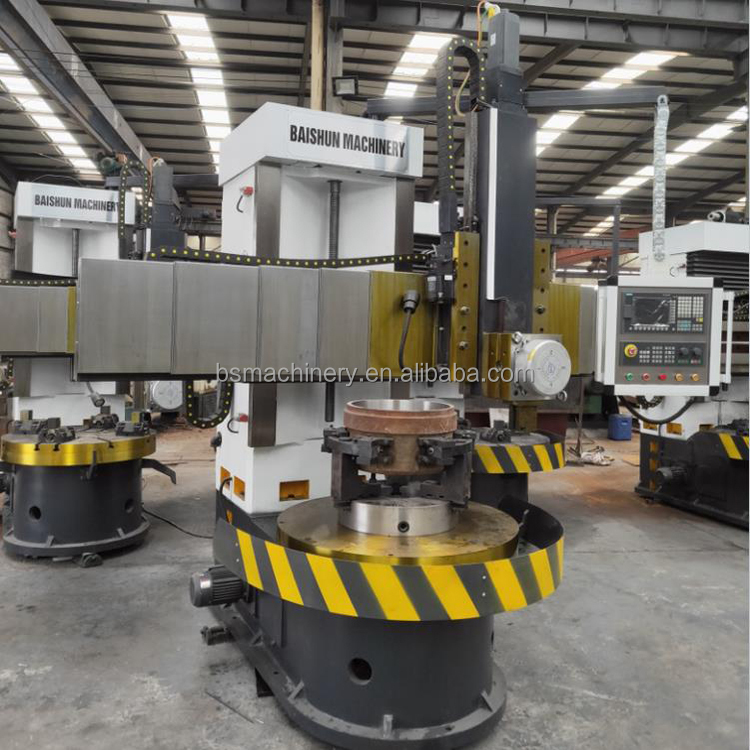

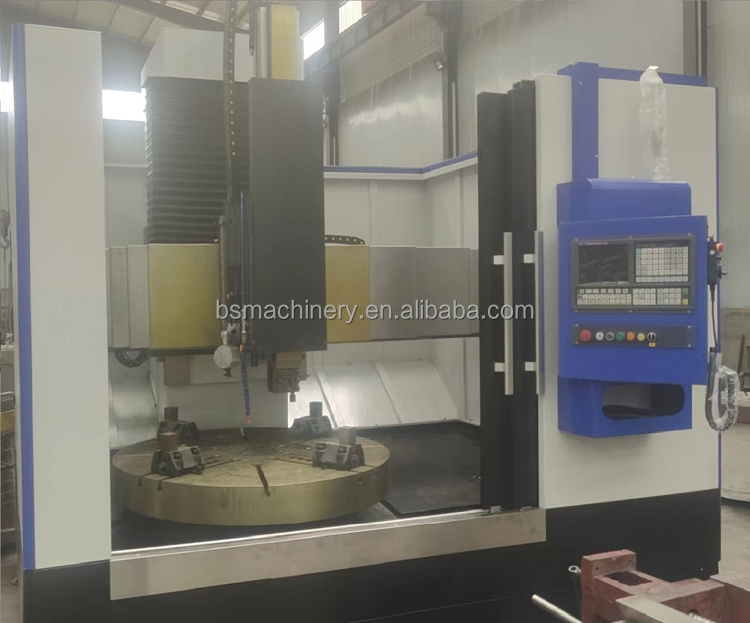

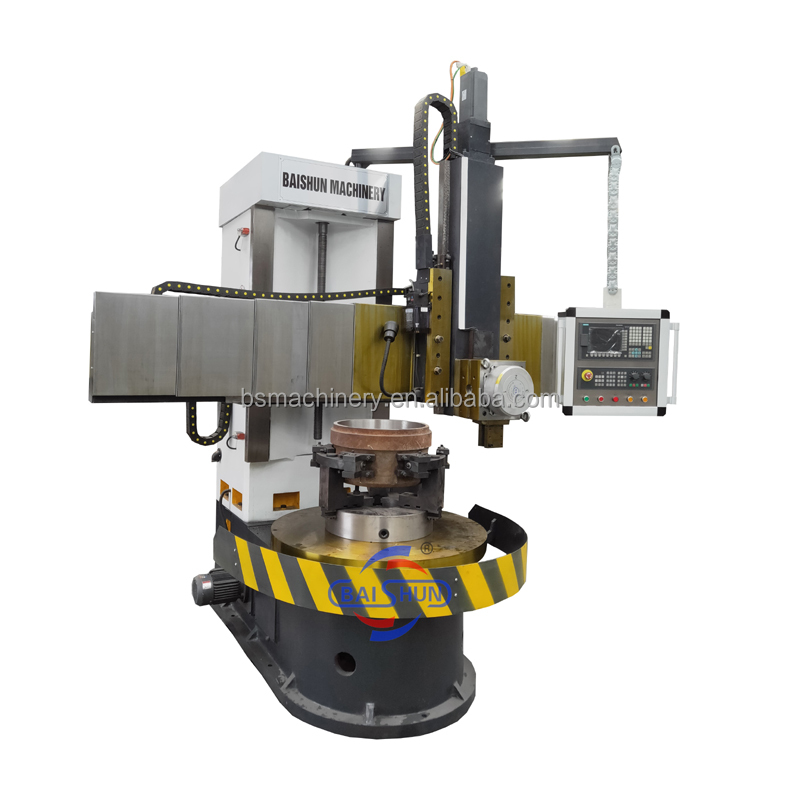

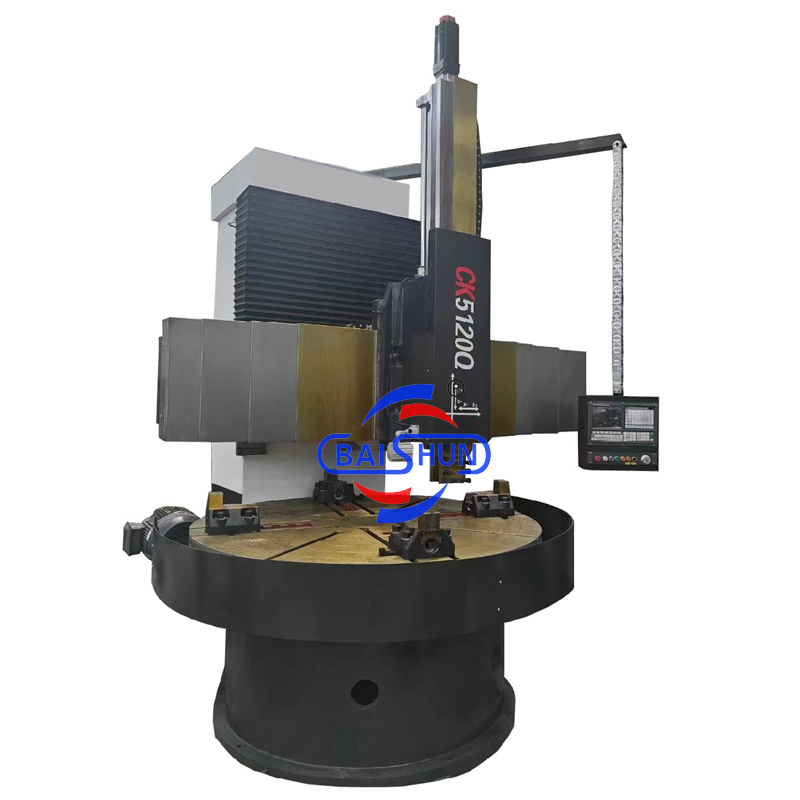

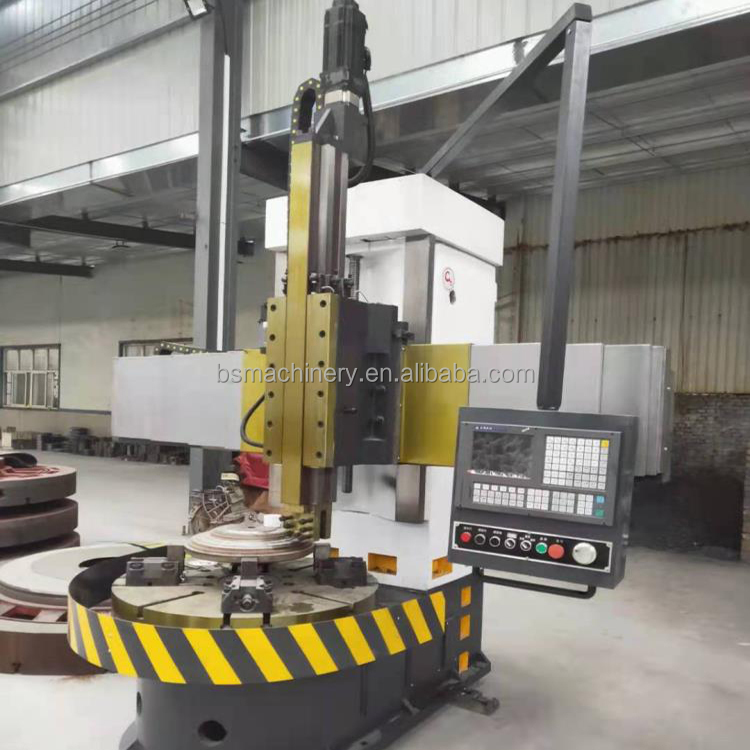

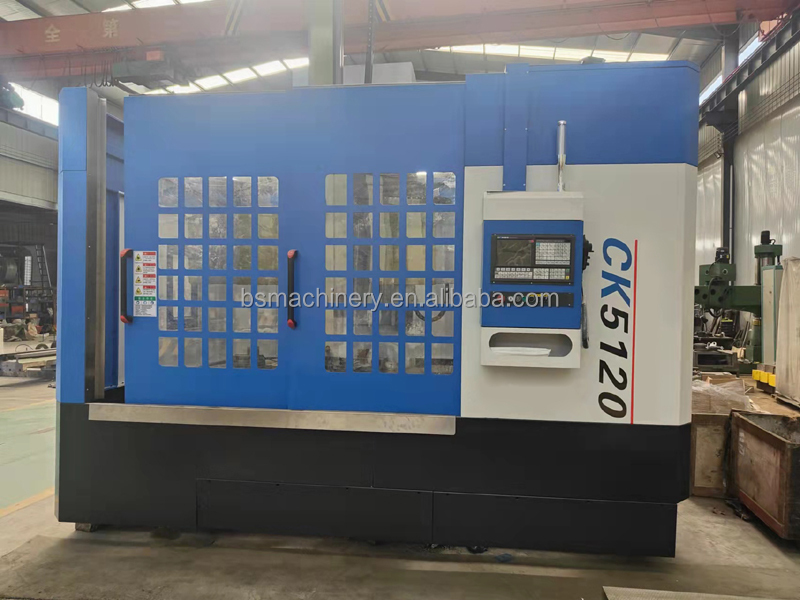

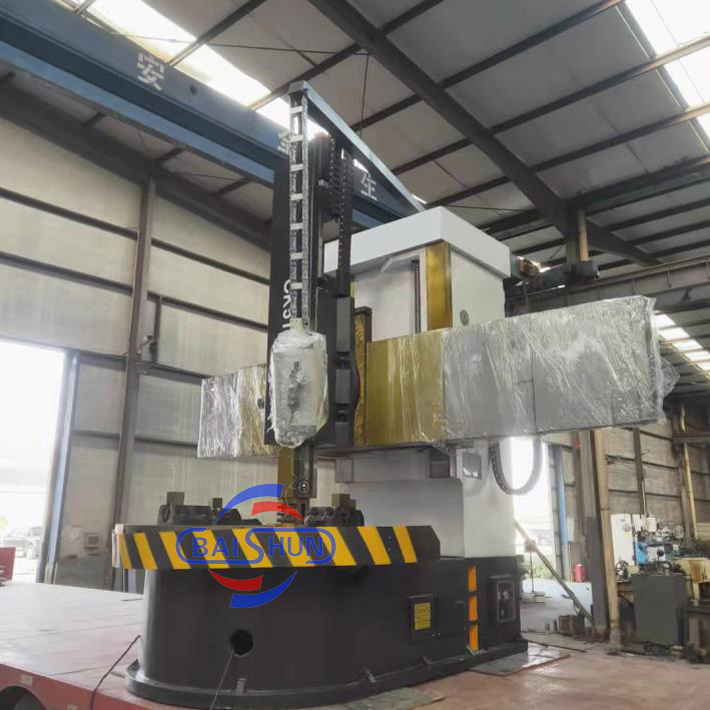

The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.
| Model | CK518 | CK5112Q | CK5112A | CK5116Q | CK5120A | CK5126A |
| Max. turning diameter of vertical tool rest (mm) | 800 | 1200 | 1200 | 1600 | 2000 | 2600 |
| Working table diameter (mm) | 700 | 1000 | 1000 | 1400 | 1800 | 2200 |
| Max. height of work-piece (mm) | 800 | 1000 | 1000 | 1200 | 1250 | 1400 |
| Max. weight of work-piece (kg) | 1500 | 1500 | 3200 | 3200 | 8000 | 8000 |
| Range of worktable rotation speed (rpm) | 30-260 | 20-180 | 6.3-200 | 15-160 | 3.2-100 | 2.2-70 |
| Feeding series | Stepless | Stepless | Stepless | Stepless | Stepless | Stepless |
| Range of tool rest feed (mm/min) | 0.25-90 | 0.25-90 | 0.8-86 | 0.25-90 | 0.8-86 | 0.8-86 |
| Cross beam travel (mm) | 500 | 1000 | 650 | 1200 | 890 | 1090 |
| Horizontal travel of tool rest (mm) | 500 | 700 | 700 | 900 | 1115 | 1400 |
| Vertical travel of tool rest (mm) | 450 | 500 | 650 | 750 | 800 | 800 |
| Size of section of cutter bar (mm) | 30*40 | 30*40 | 30*40 | 30*40 | 30*40 | 30*40 |
| Main motor power (kw) | 11 | 15 | 22 | 15 | 30 | 30 |
A professional manufacturer, especially working for Slotting machines, Vertical lathe machines, CNC Vertical lathe machines, CNC Horizontal lathe machines, Roll lathe machines, Gear hobbing machines, Pole erection machines, Shredder machines, etc. With more than 15 years of experience in lathe machines, products have been exported to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan, etc.

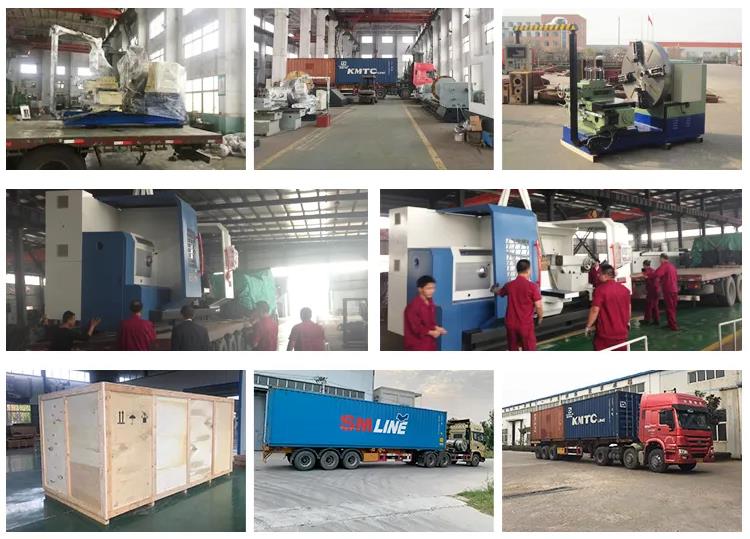

We provide 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service. Installation services are also available. With more than 10 years of experience in various markets, we assist customers in successfully completing all steps from purchasing to customs clearance, thereby saving time and reducing costs in all aspects.
