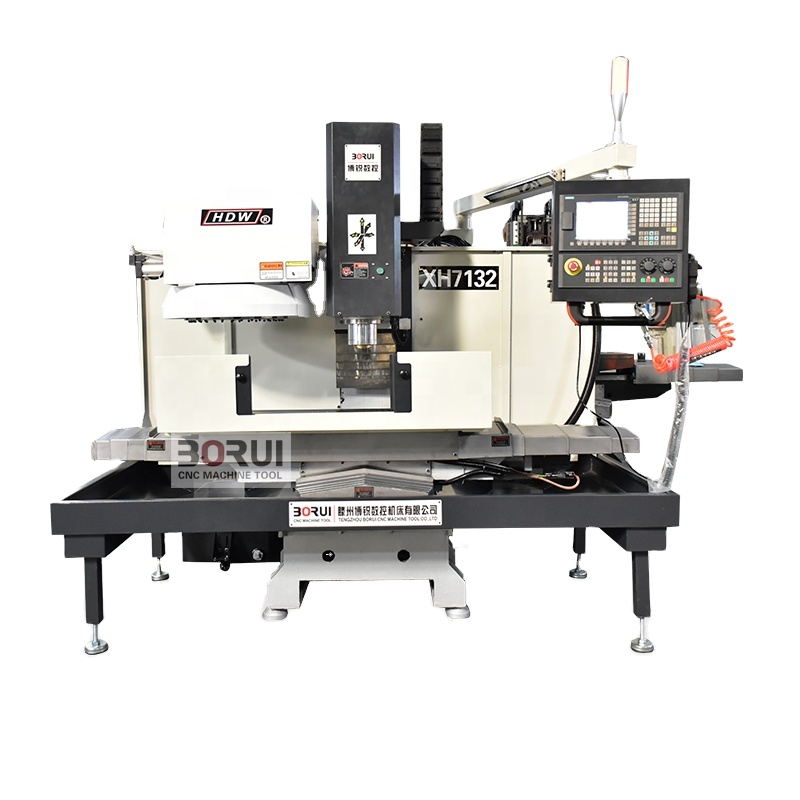

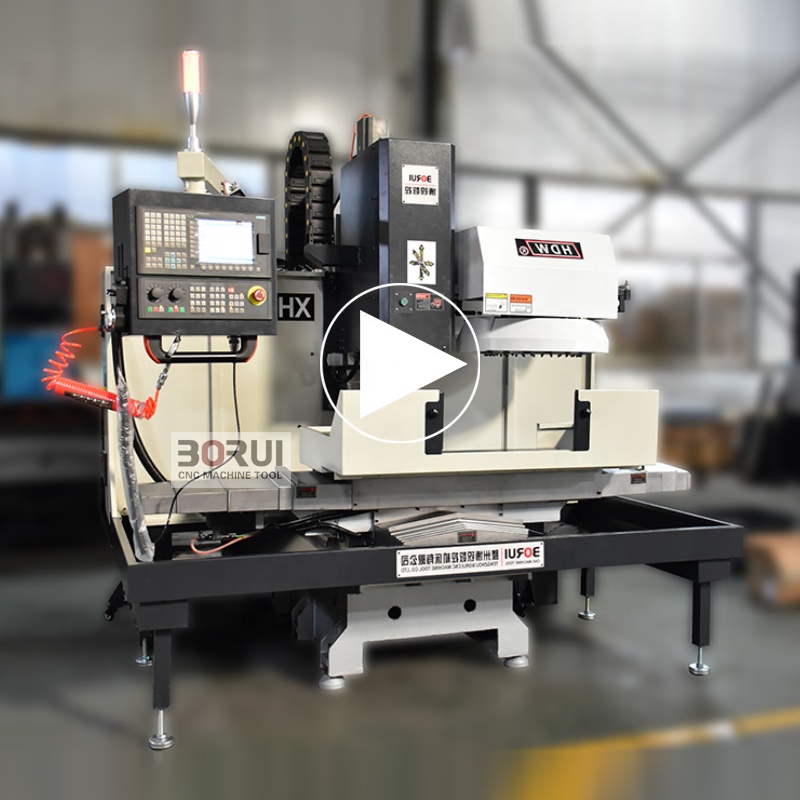

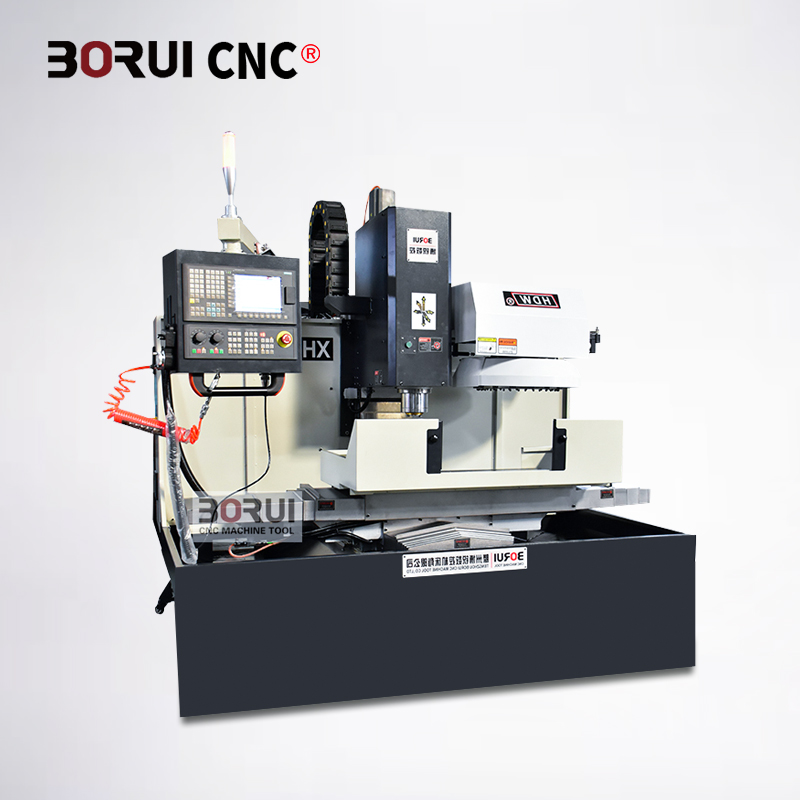

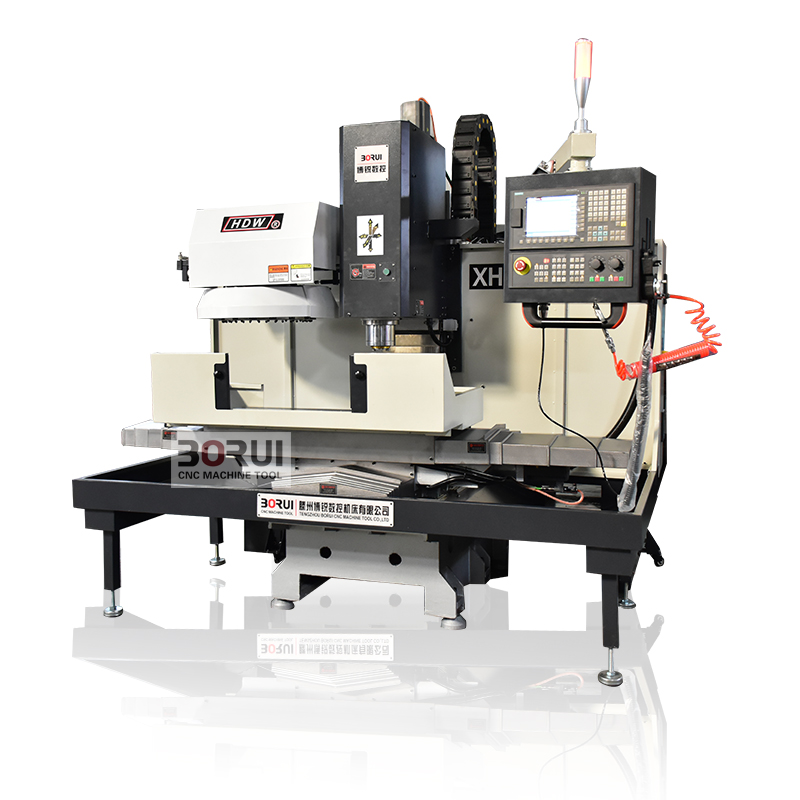

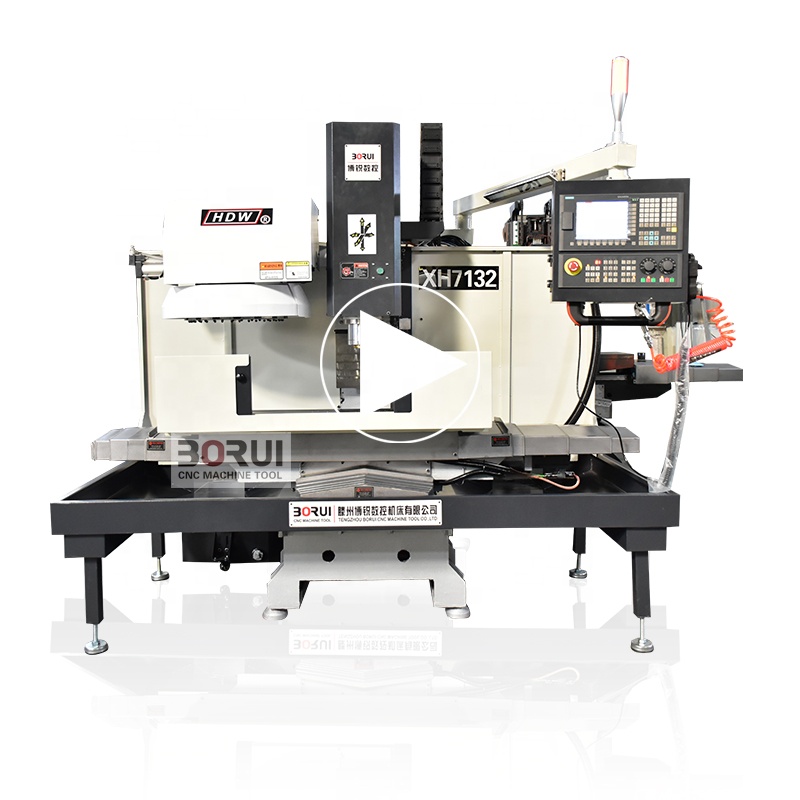

This VMC is expertly designed for high-precision mechanical processing and mold manufacturing. It seamlessly adapts to various requirements, from heavy-duty rough machining to delicate finish machining. The system efficiently handles multiple procedures including milling, drilling, tapping, and boring.
| Specification Item | XK(H)7134 Details |
|---|---|
| Table travel | 600×340×450mm |
| Table size | 940×340mm |
| Number/width/distance of T-slot | 3-14-85mm |
| Distance from spindle nose to table surface | 100-600mm |
| Distance from spindle axis to column guideway | 395mm |
| Spindle taper | BT40 |
| Spindle speed | 100-8000r/min |
| Spindle motor power | 3.7kw |
| X/Y/Z axis rapid traverse | 18/18/18m/min |
| X/Y/Z axis cutting feed rate | 10m/min |
| Tool magazine capability | 16 |
| Max. dimension of tool | 150×350mm |
| Max. weight of tool | 8kg |
| Positioning accuracy | ±0.007mm |
| Repeat positioning accuracy | ±0.003mm |
| Overall dimension | 2220×1970×2160mm |
| Machine weight | 3300kg |
