ZRF Spinning
1 / 5

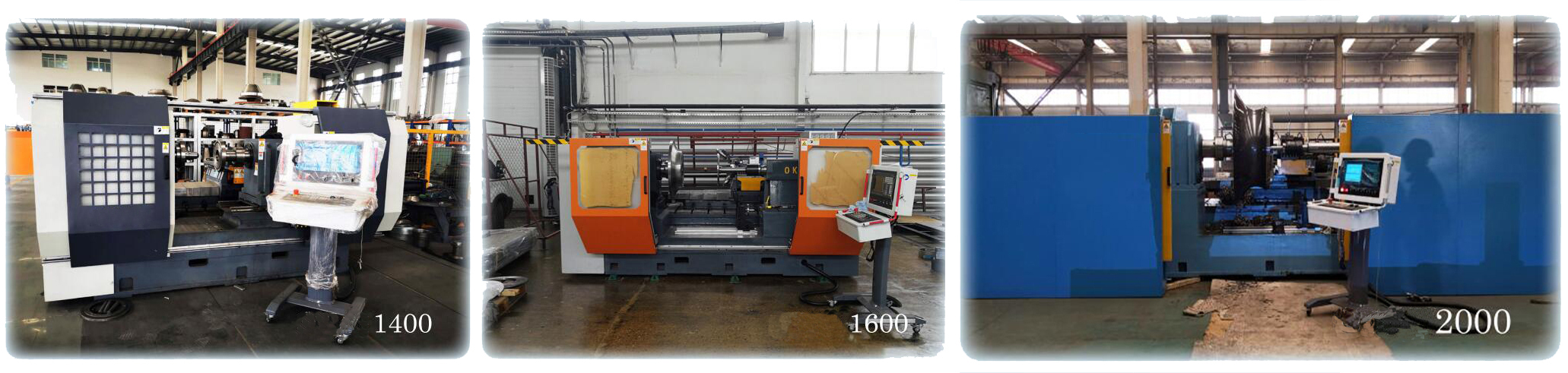

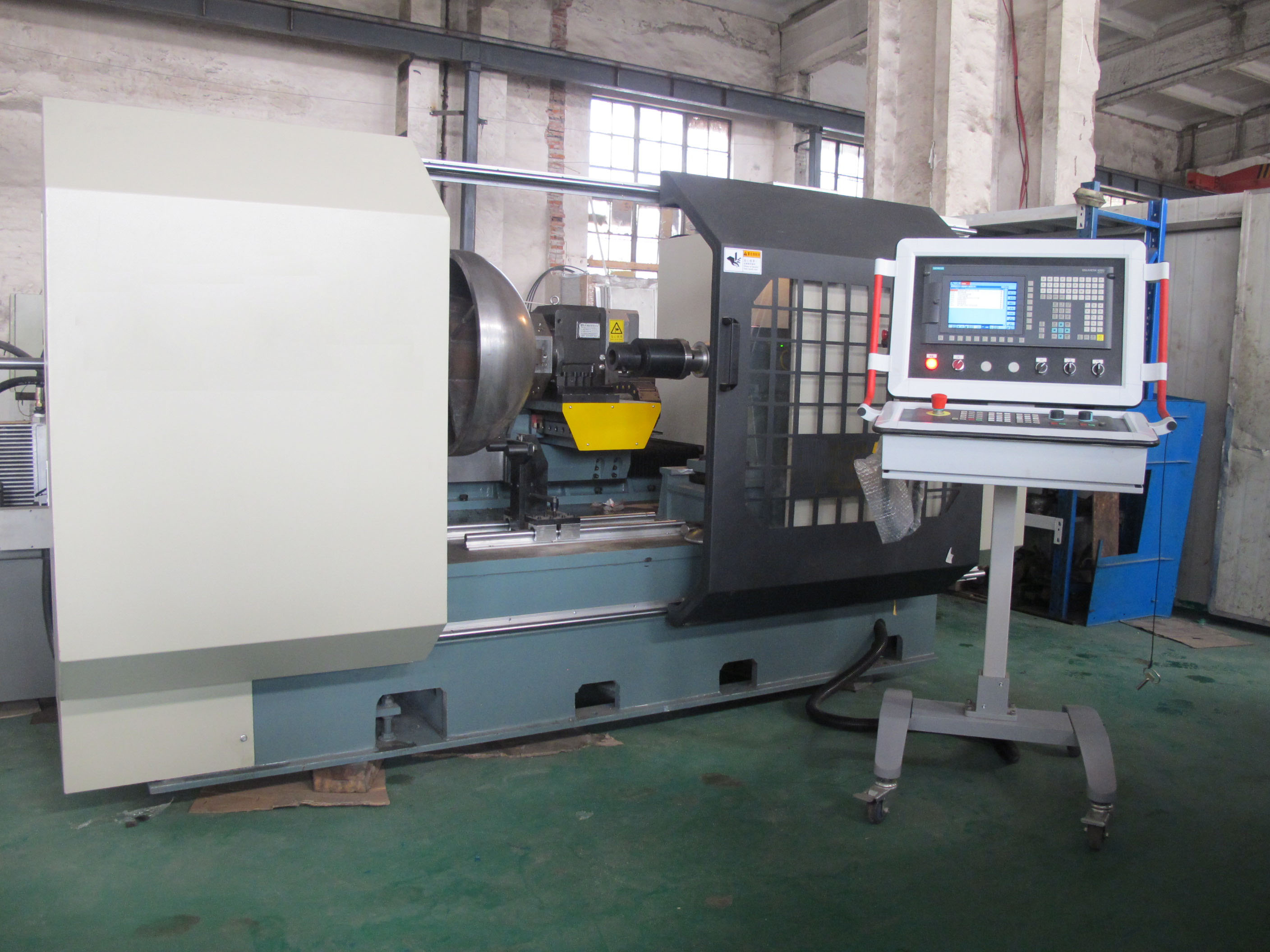

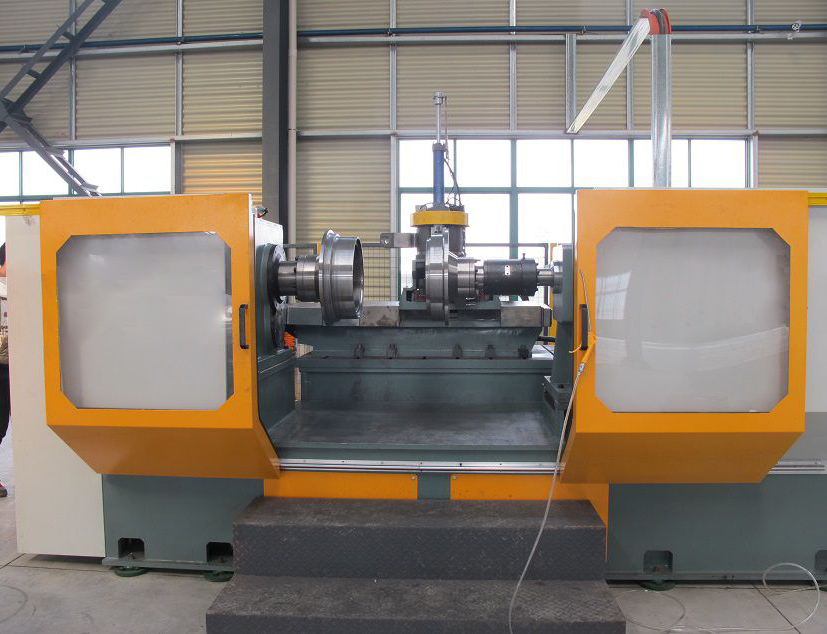

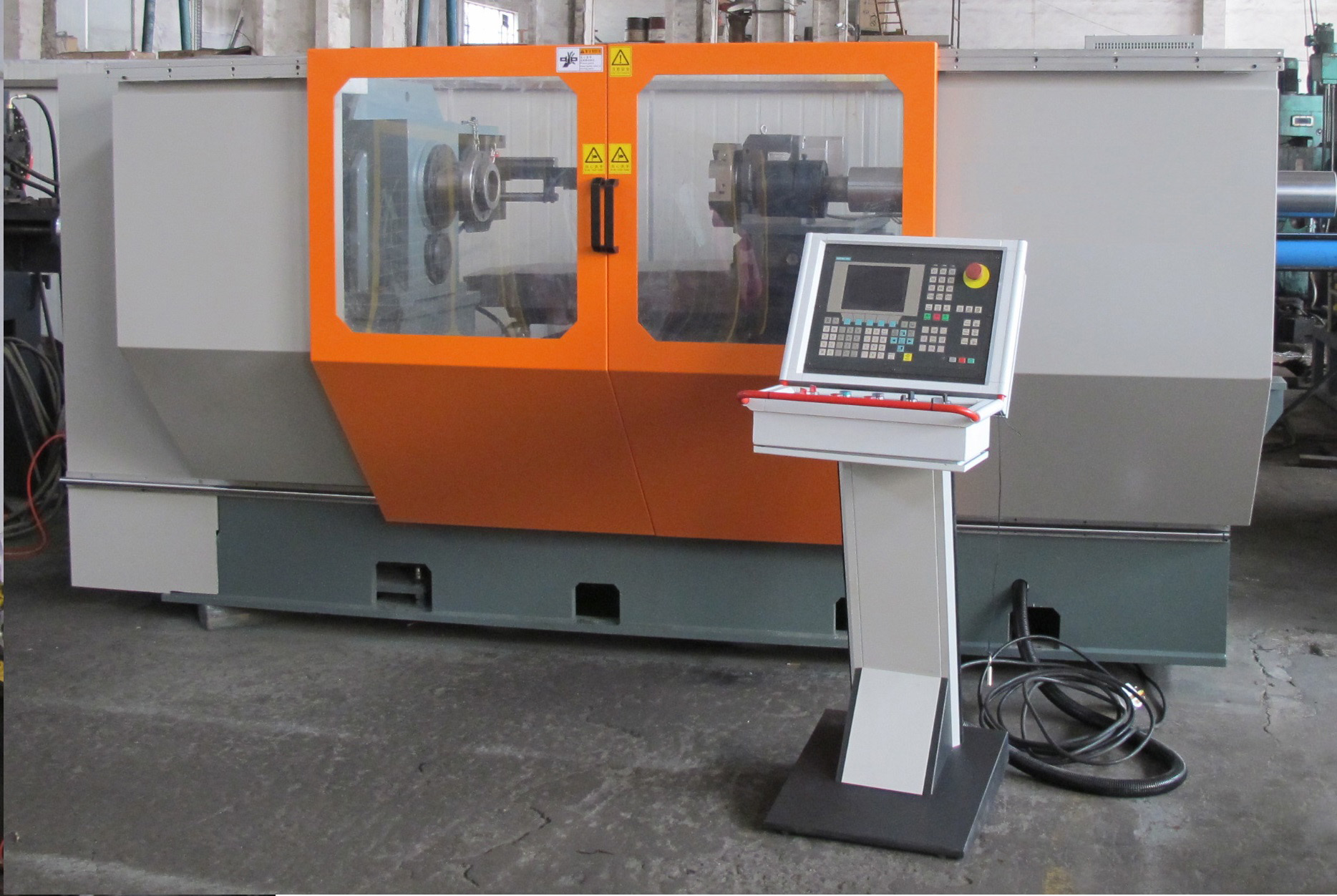

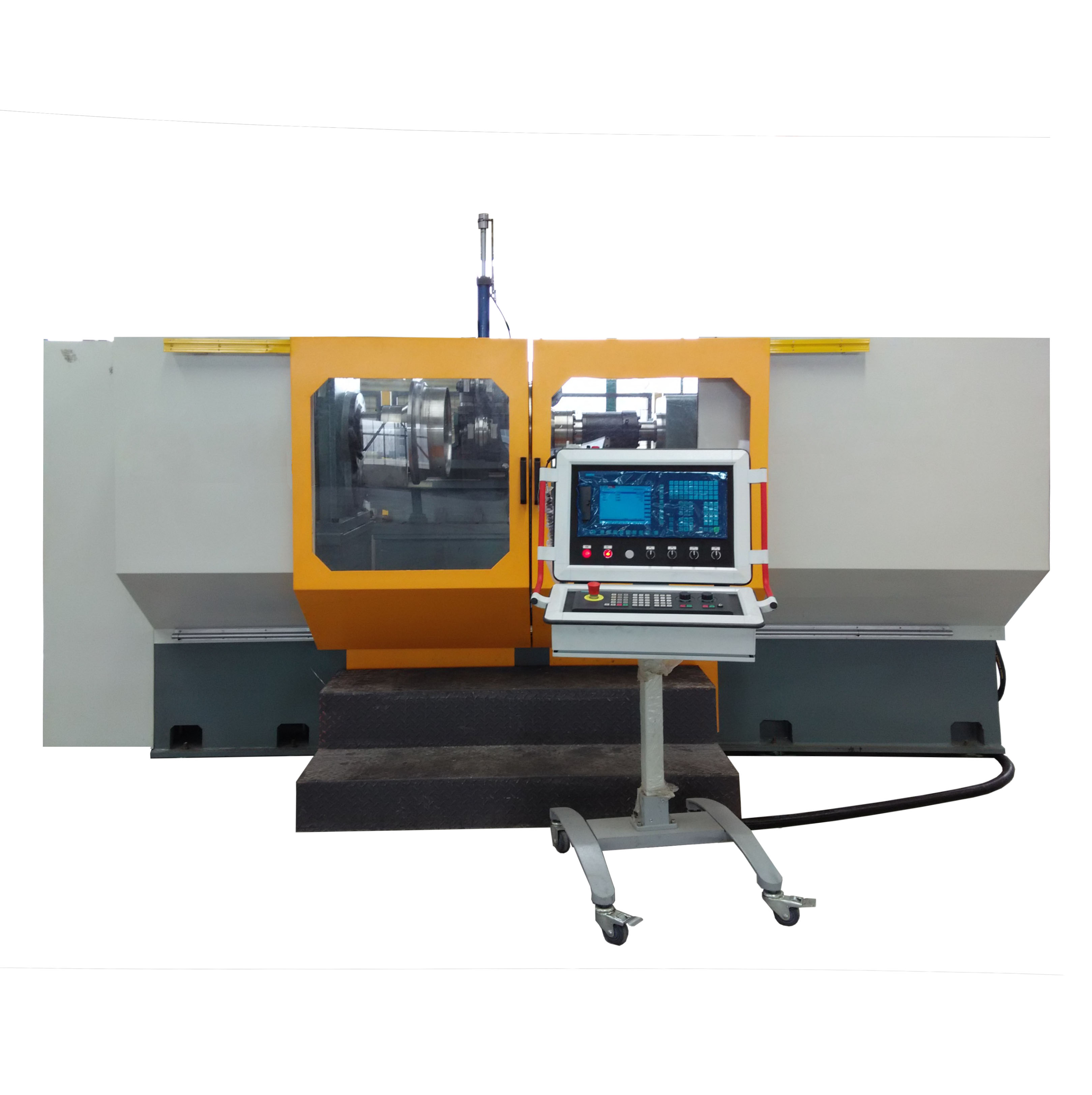

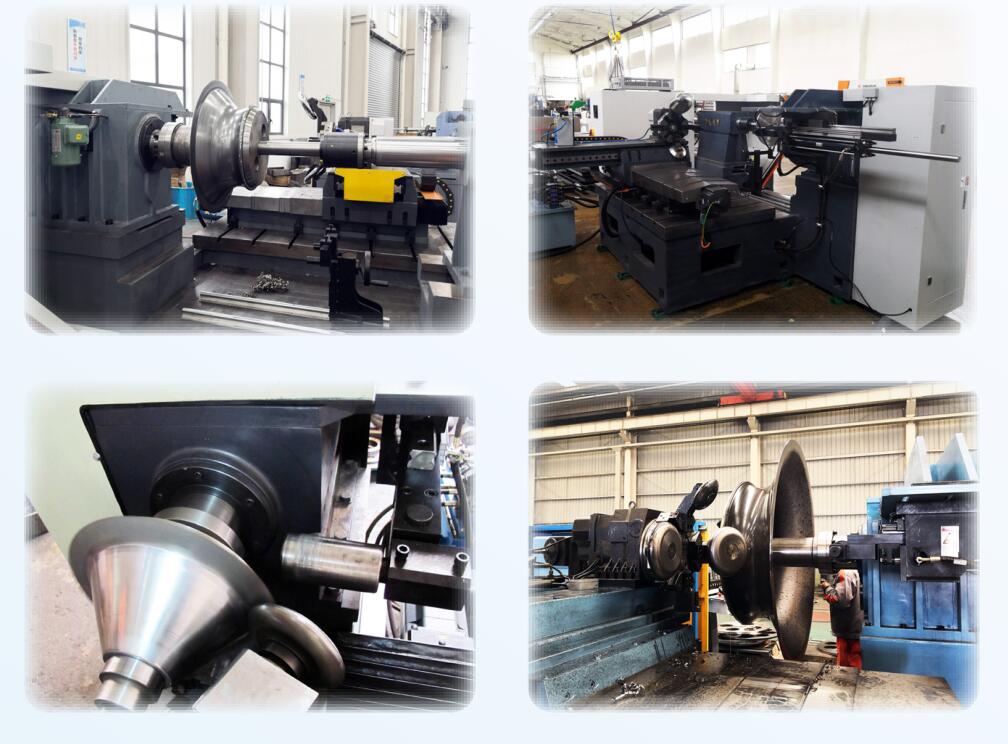

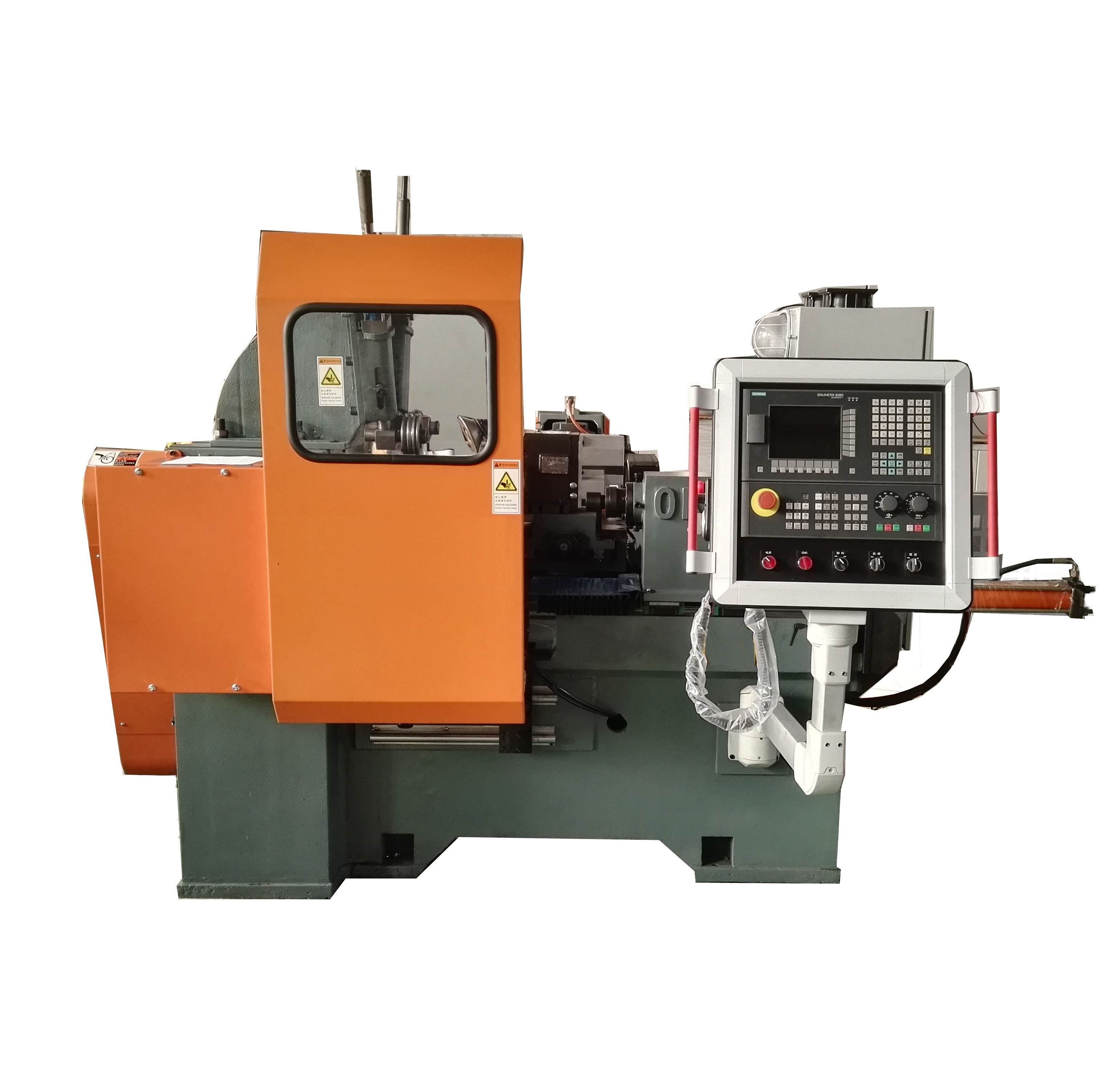

Single wheel spinning machine can process the blanks diameter up to 3500mm with high precision and good surface quality of spinning products. Designed with an ideal structure suitable for the spinning process, it is especially convenient for technicians to enter the operating space. It is the biggest characteristic of this series.

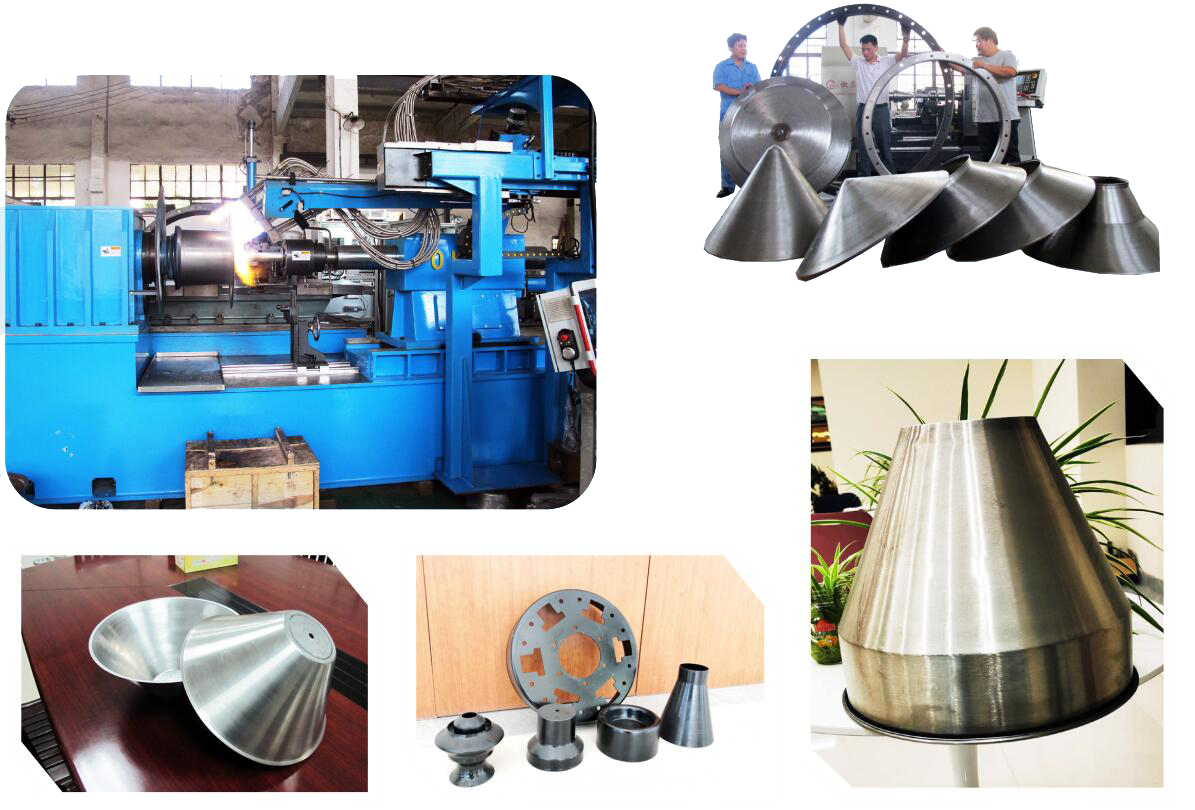

All series uses the high-end Siemens CNC control system, combined with advanced programming software or playback controller, can quickly complete the product programming.
| Type | Maximum diameter (mm) |
Radial Stroke (mm) |
Axial Stroke (mm) |
Roller Thrust (KN) |
Tailstock Force (KN) |
Spindle Power (KN) |
Spindle Speed (rpm) |
Material thickness (mm) Aluminum / Carbon Steel / Stainless Steel |
|---|---|---|---|---|---|---|---|---|
| THL800 | 800 | 400 | 600 | 40 | 20 | 18.5 | 50-1000 | 5/3/2 |
| THL1000 | 1050 | 450 | 650 | 40 | 20 | 22 | 50-1000 | 6/4/3 |
| THL1200 | 1250 | 480 | 800 | 60 | 50 | 30 | 50-800 | 8/5/4 |
| THL1400 | 1450 | 650 | 800 | 70 | 50 | 37 | 50-500 | 10/6/4.5 |
| THL1600 | 1650 | 680 | 800 | 80 | 50 | 37 | 50-500 | 10/6/4.5 |
| THL2000 | 2000 | 750 | 1250 | 140 | 100 | 55 | 20-400 | 14/10/7 |
| THL2500 | 2500 | 800 | 1750 | 200 | 140 | 90 | 20-300 | 14/10/7 |
| THL3000 | 2500 | 900 | 2000 | 200 | 160 | 115 | 10-250 | 14/10/7 |
