| Category | Specifications | VMC1160 |
|---|---|---|
| Working Table | Table size | 1200×600mm |
| T-slot | 5-18-100mm | |
| Max loading capacity of table | 600kg | |
| Spindle | Spindle taper | BT40 |
| Spindle speed | 8000rpm | |
| Spindle power | 11kw | |
| Travel | X, Y, Z axis travel | 1100×600×600mm |
| Distance from spindle nose to table | 120-720mm | |
| Distance from spindle center to vertical guide way surface | 600mm | |
| Feed | Rapid movement speed X, Y, Z | 24/24/24m/min |
| Feed rate of cutting X, Y, Z | 1~10000mm/min | |
| Three Axis | X, Y, Z axis motor torque | 23/23/23NM |
| X, Y, Z axis linear guide rail width | 45mm | |
| X, Y, Z lead screw size | 4012 | |
| X, Y, Z sliding block no | 2006/4/6 | |
| Tools Capacity | Tools capacity | 24T |
| Max tool weight | 8kg | |
| Max length | φ78/300mm | |
| Tool magazine type | Arm type | |
| Precision | Positioning accuracy X/Y/Z | 0.0075mm |
| Repeated positioning accuracy X/Y/Z | 0.005mm | |
| Machine Tool | Machine size | 2550*3200*2650m |
| Casting material model | HT300 | |
| Machine hardness | 45-50rkc | |
| Machine weight | 6000kg |
HT300 high-grade gray iron castings have been quenched twice and subjected to aging vibration treatment. The reinforced rib structure spindle box has strong rigidity and long service life.

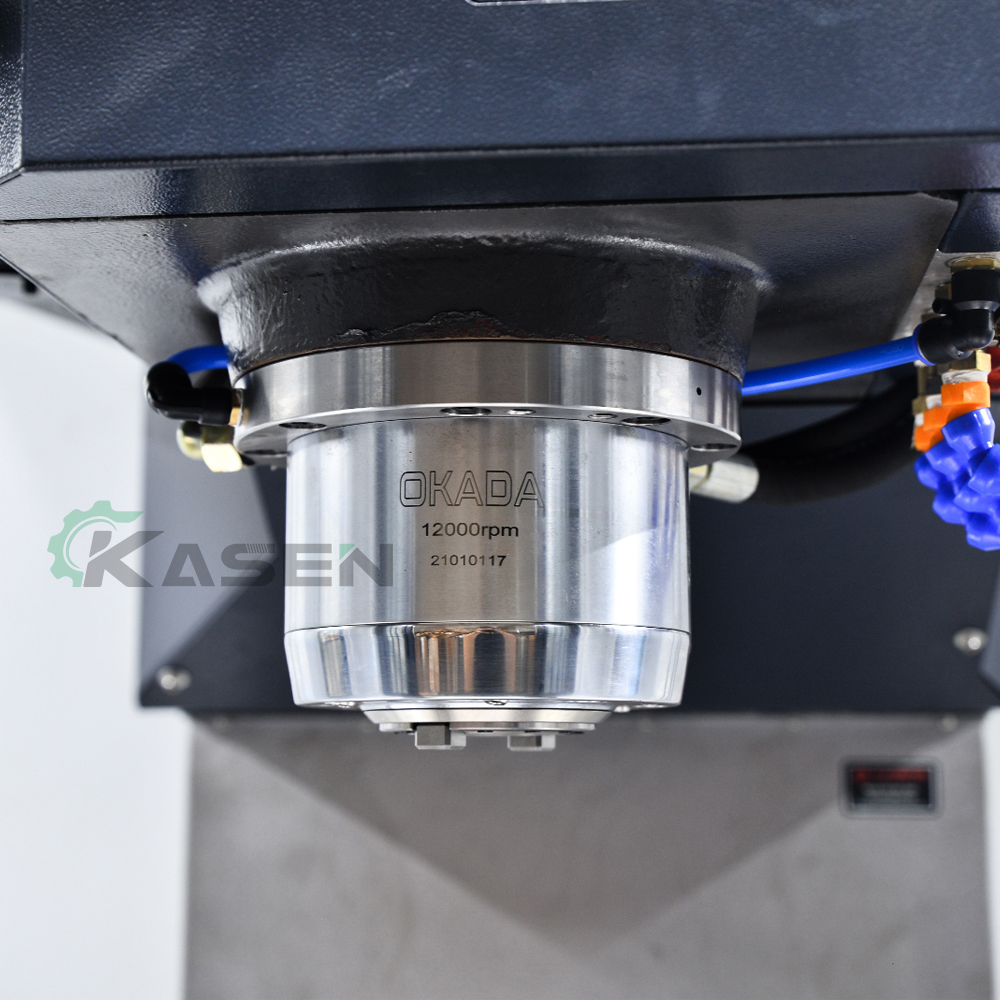

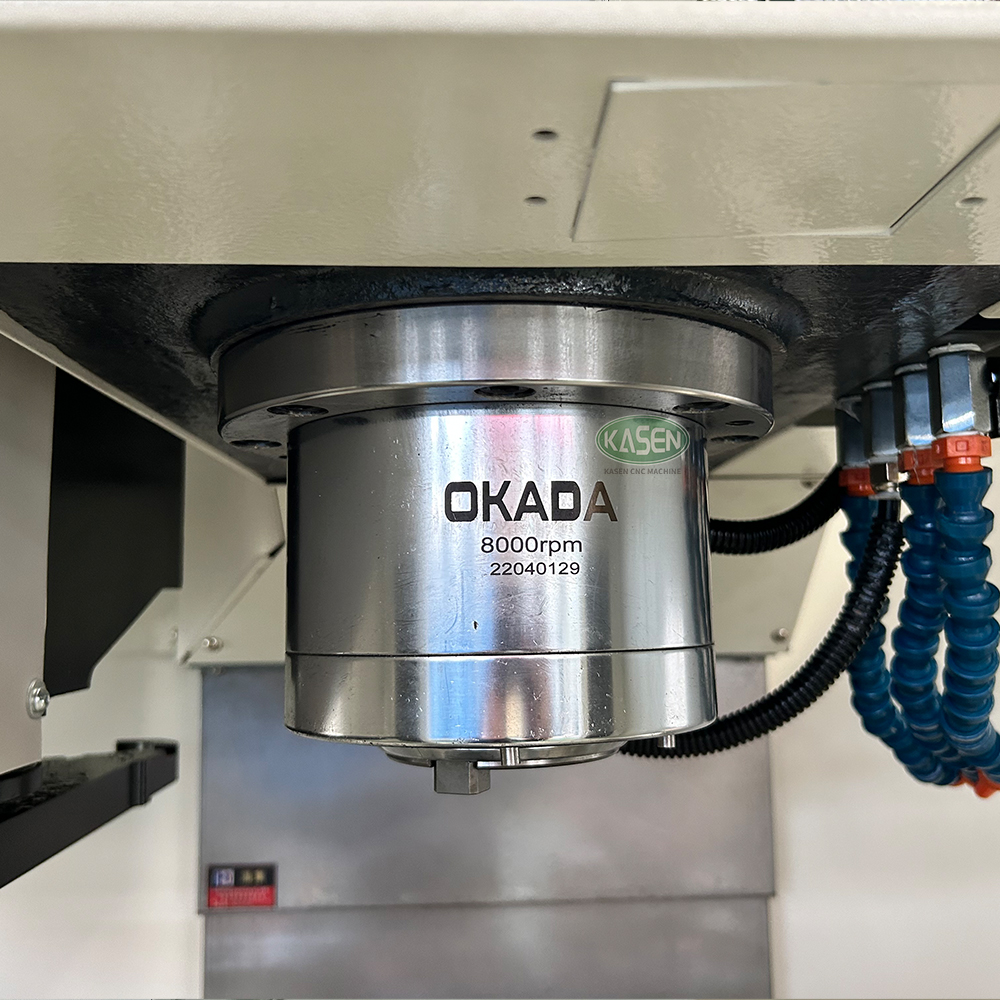

Famous Taiwan spindle. High speed, high precision. Good surface finishing. 10000rpm/12000rpm is optional.

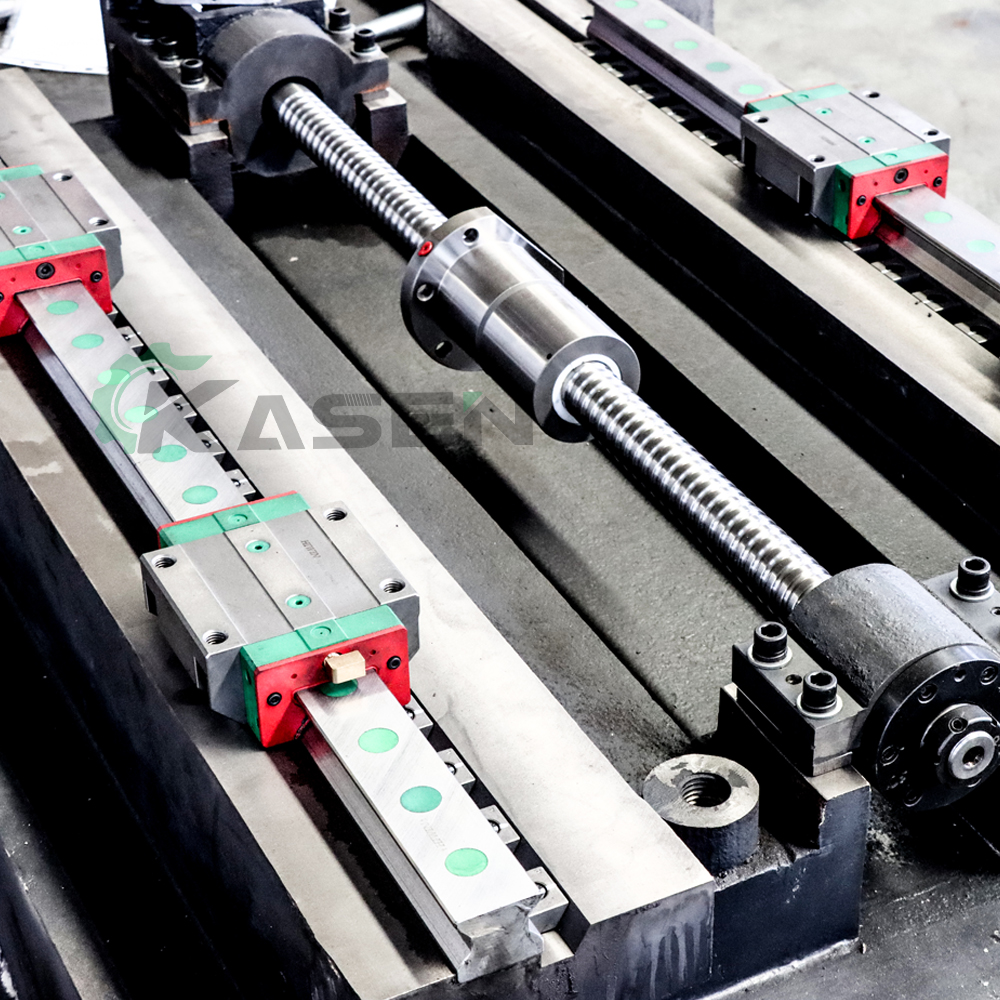

Taiwanese brand linear guides and screws provide higher precision and more accurate positioning.

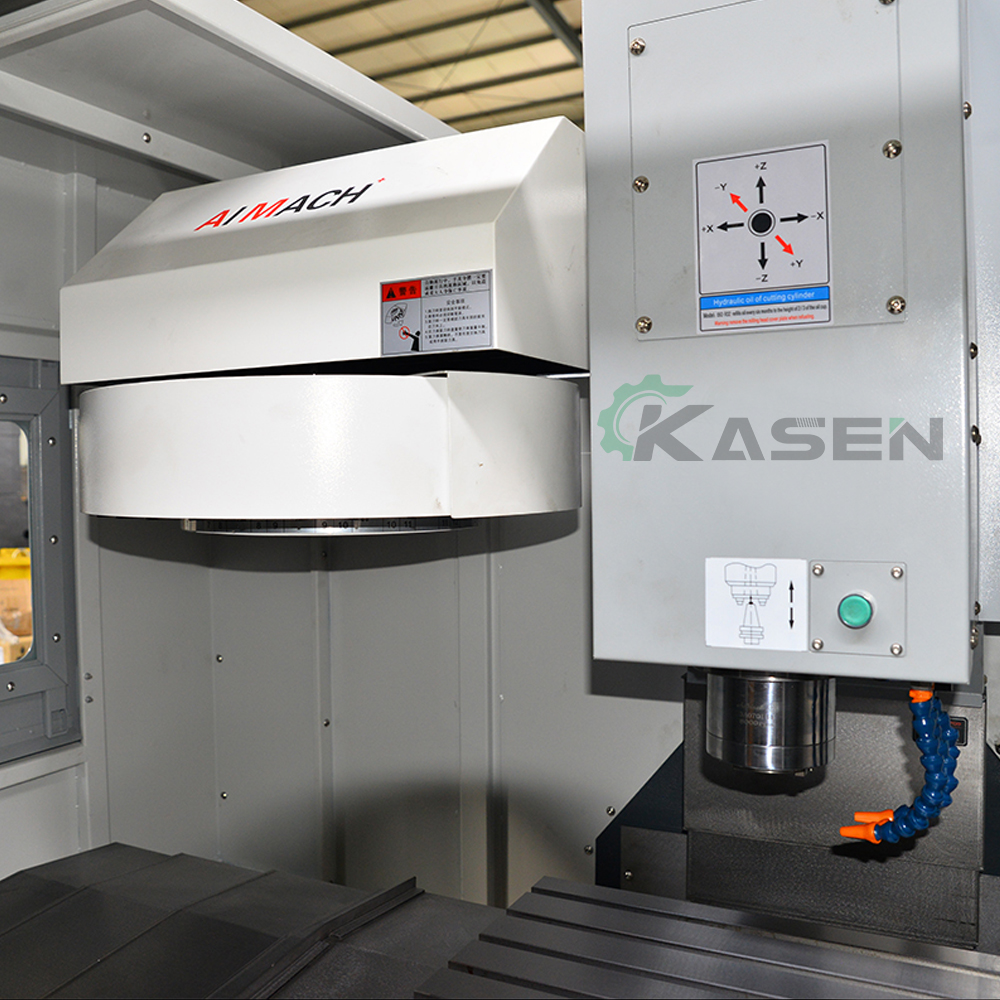

Optional 12/16/24 knives, tool changing speed 3s

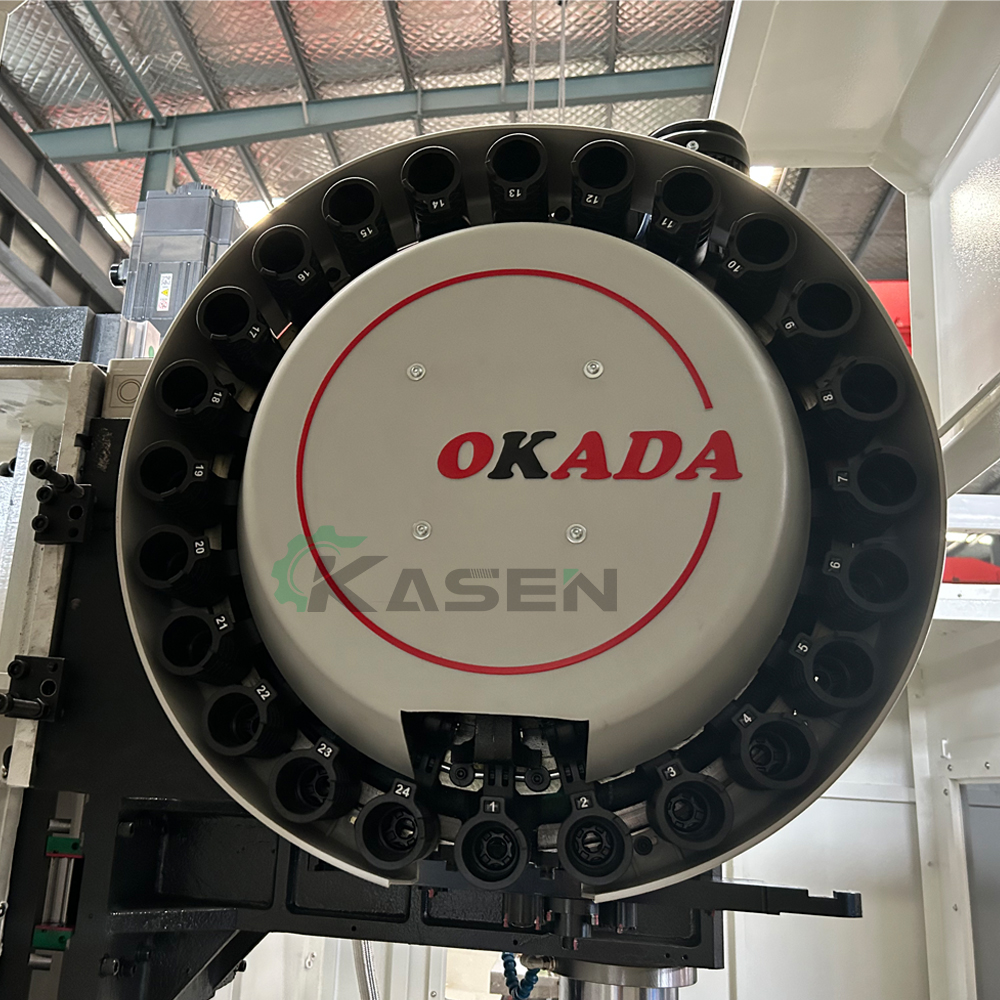

24 tools, tool changing speed 2s, automatic tool changing.

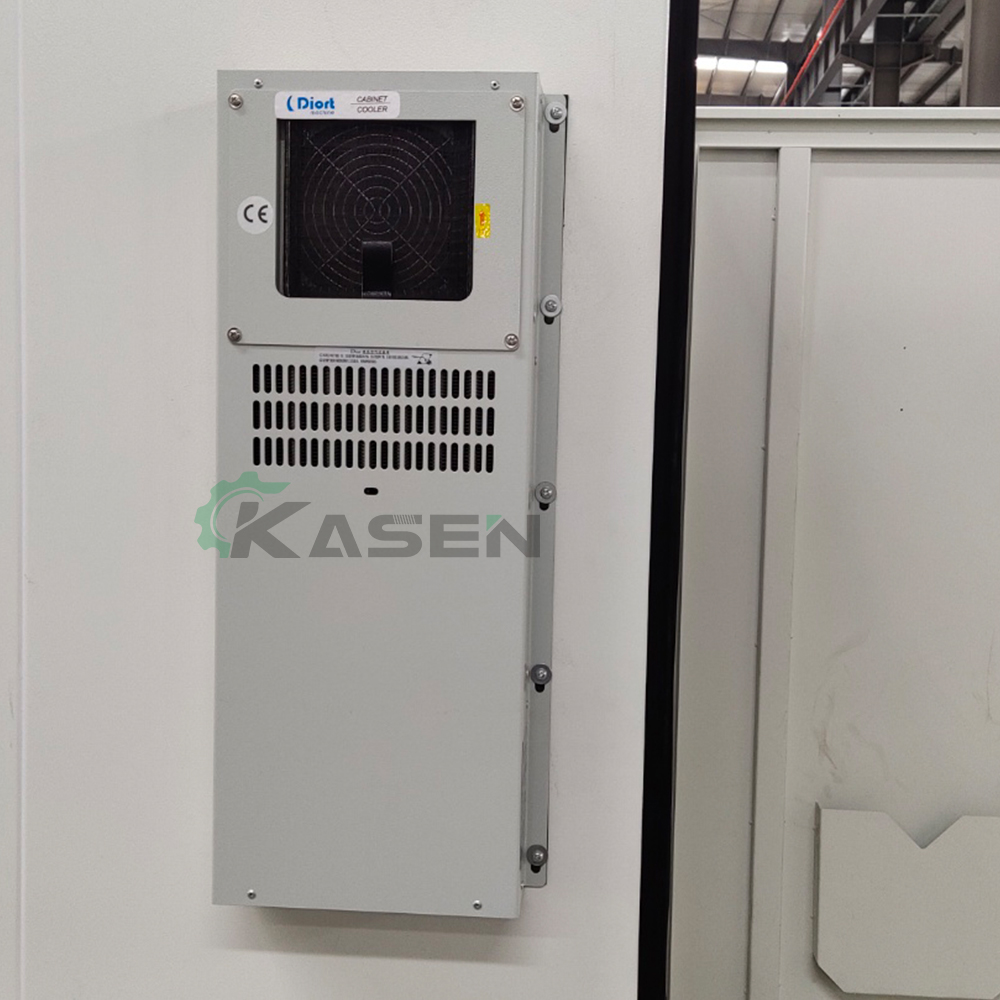

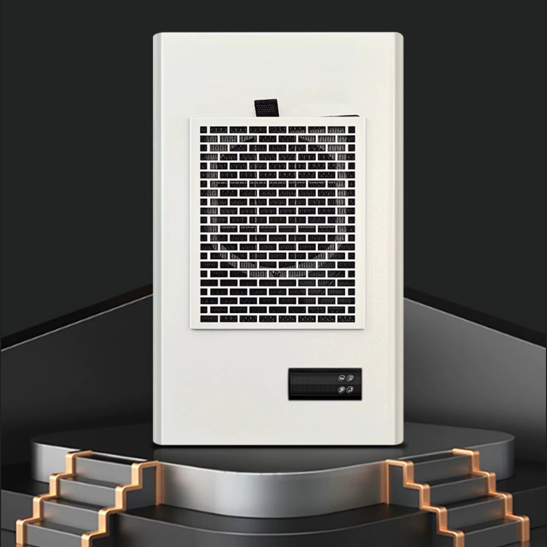

Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better.

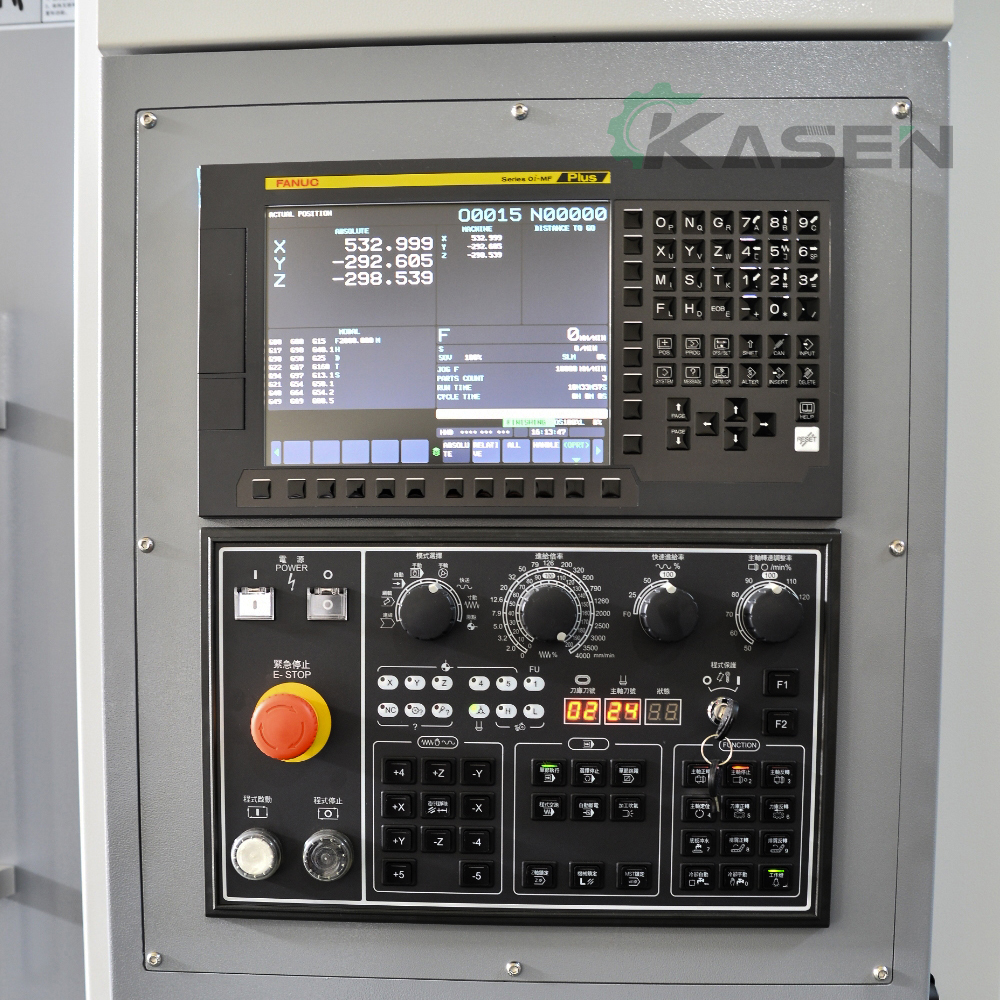

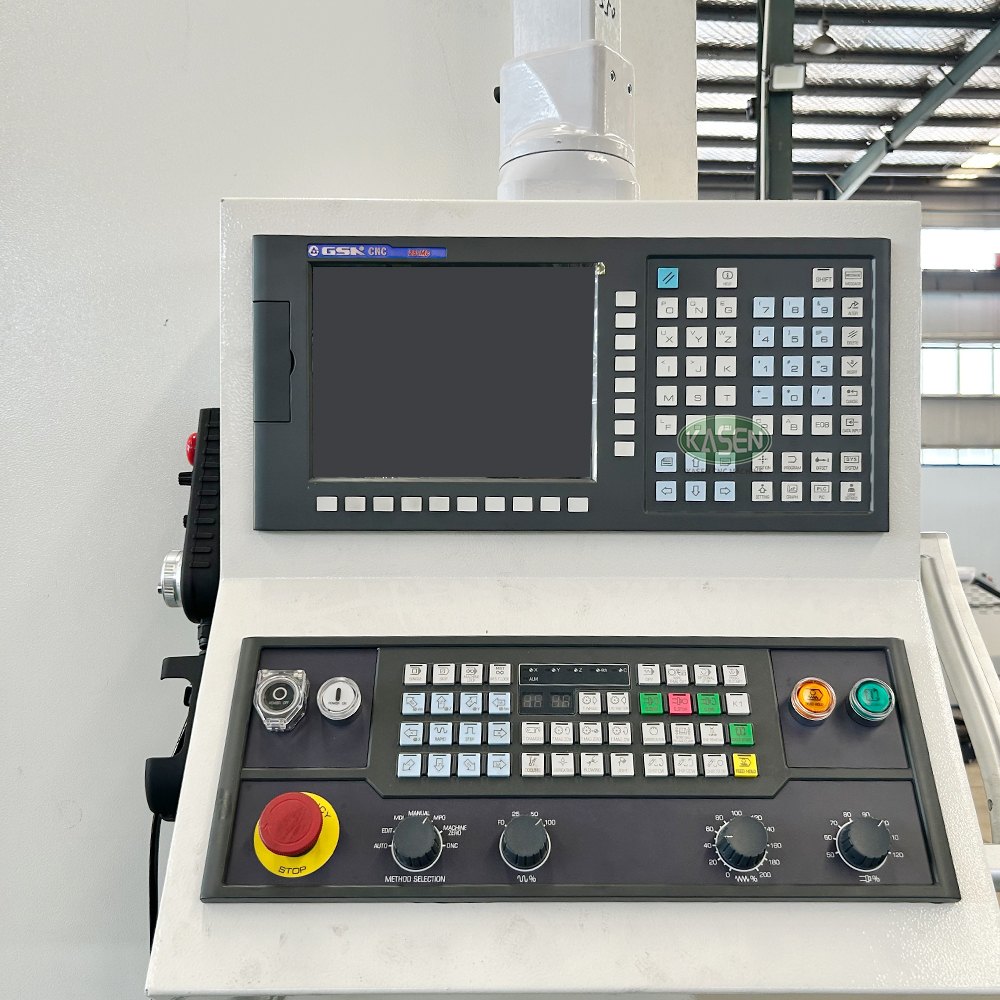

Optional-Fanuc/Siemens/GSK/Syntec/Mitsubishi brand

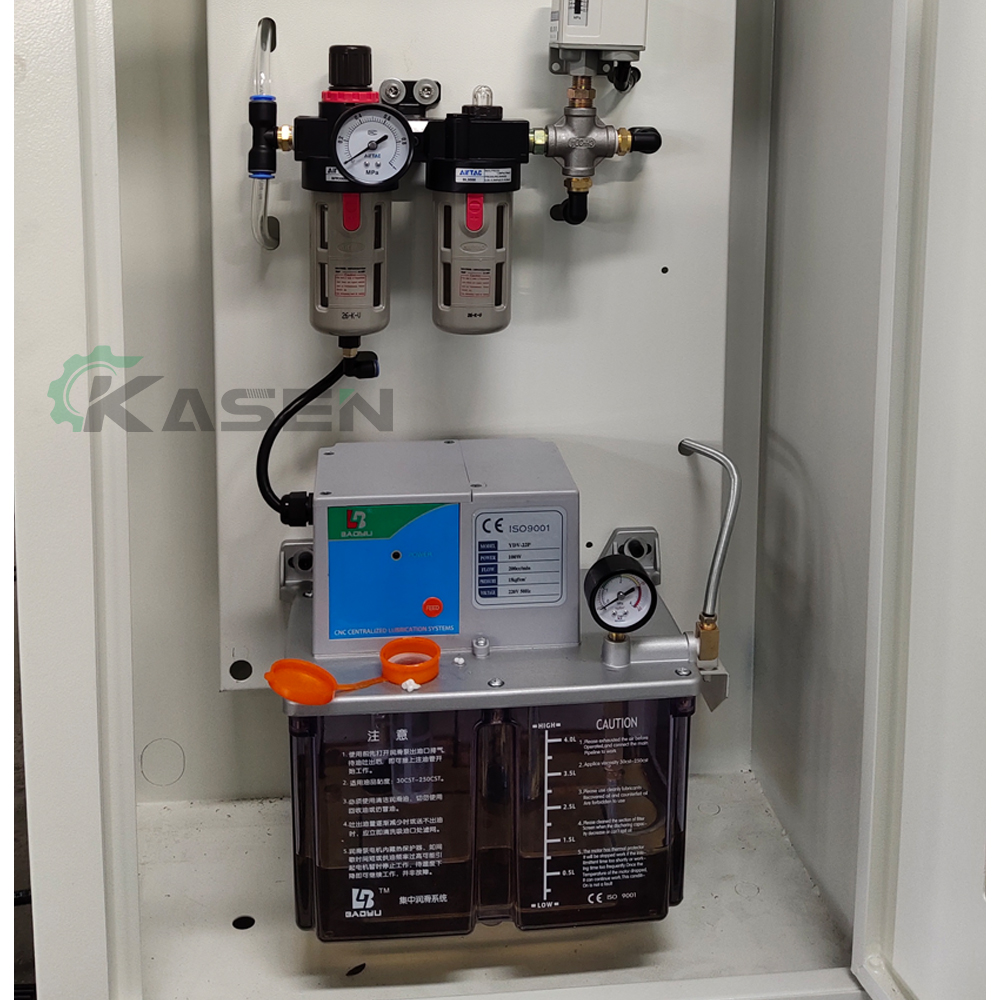

Automatic centralized lubrication device

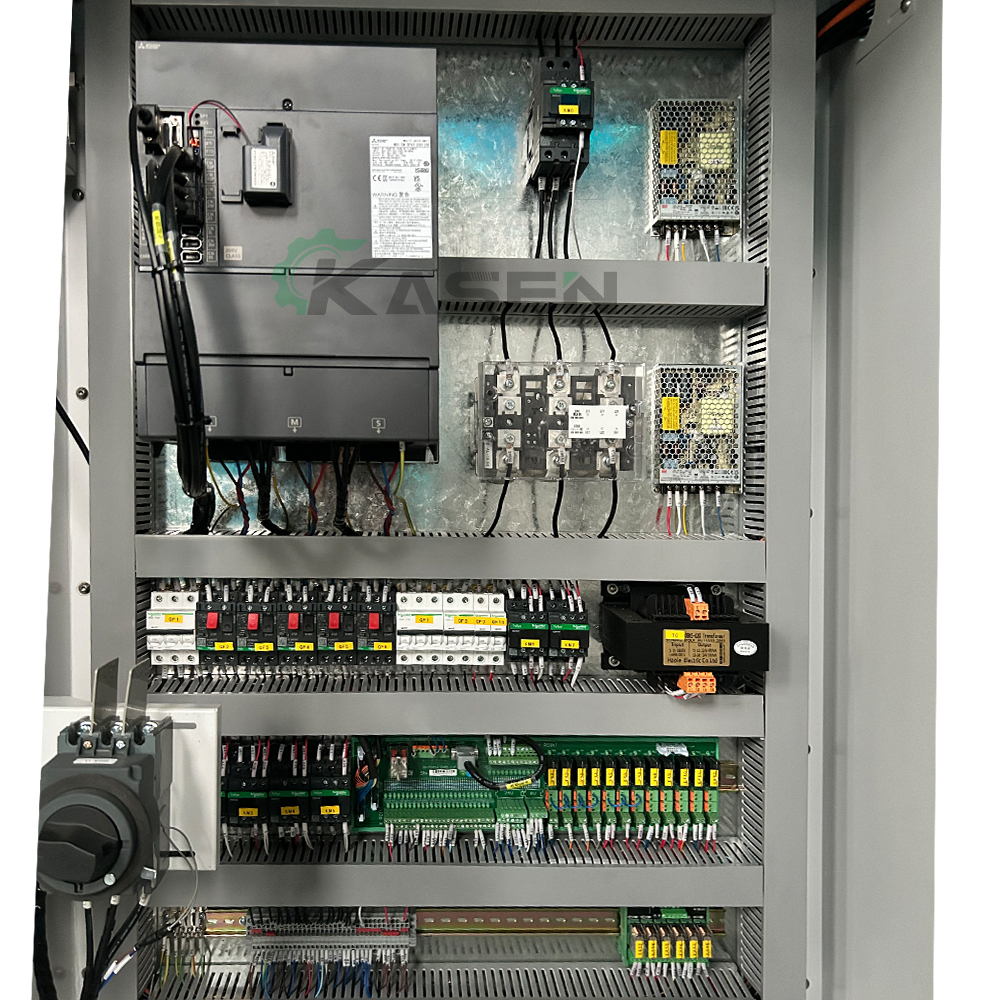

Standard Schneider safety electrical components
Transfer heat from hot fluid to cold fluid.

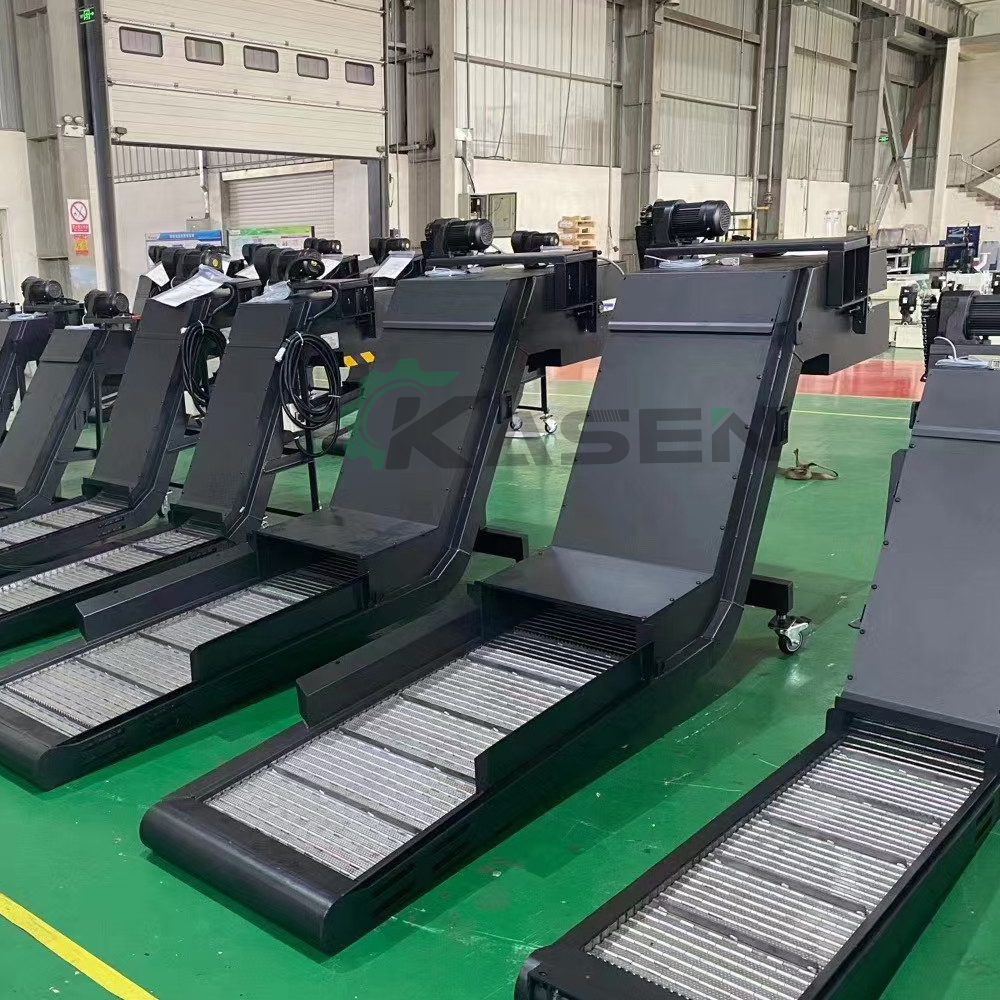

Optional chain type chip conveyor. It can filter most iron filings and has good chip removal performance.
Taiwan brand, with hydraulic chuck and top tailstock.

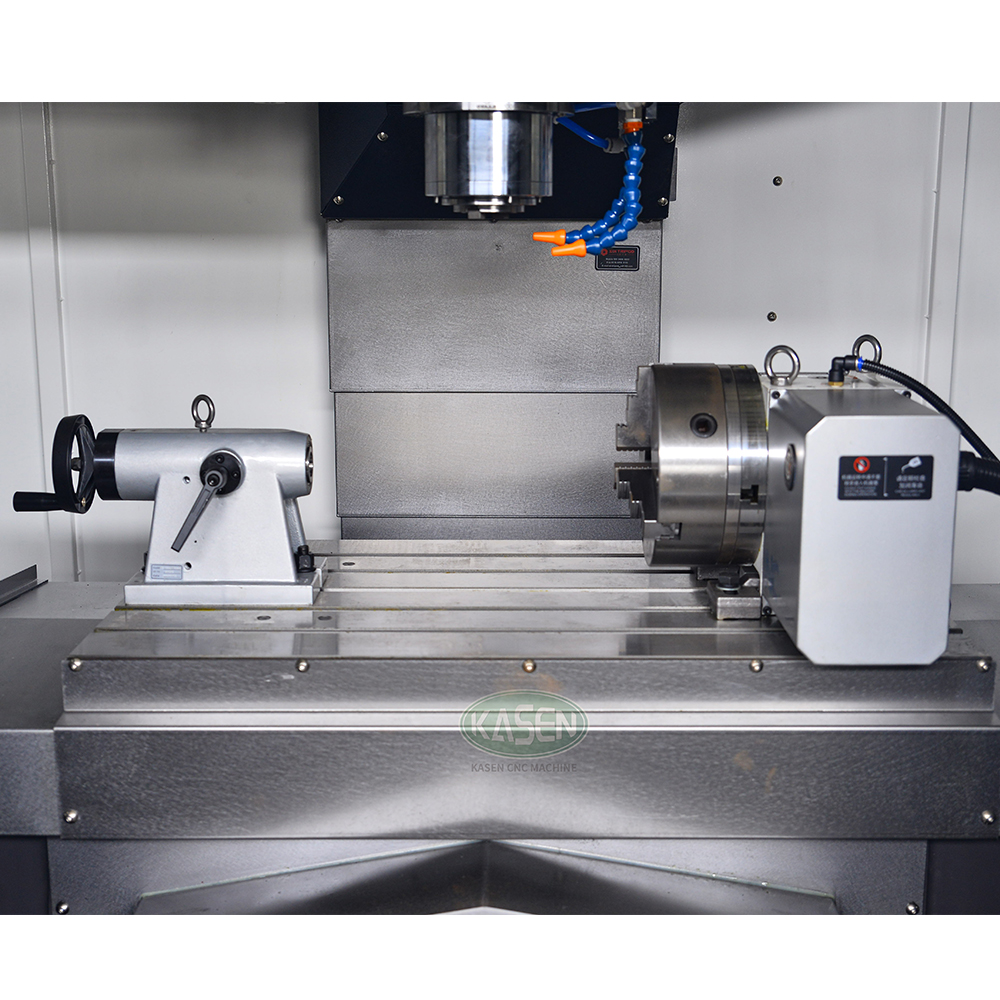

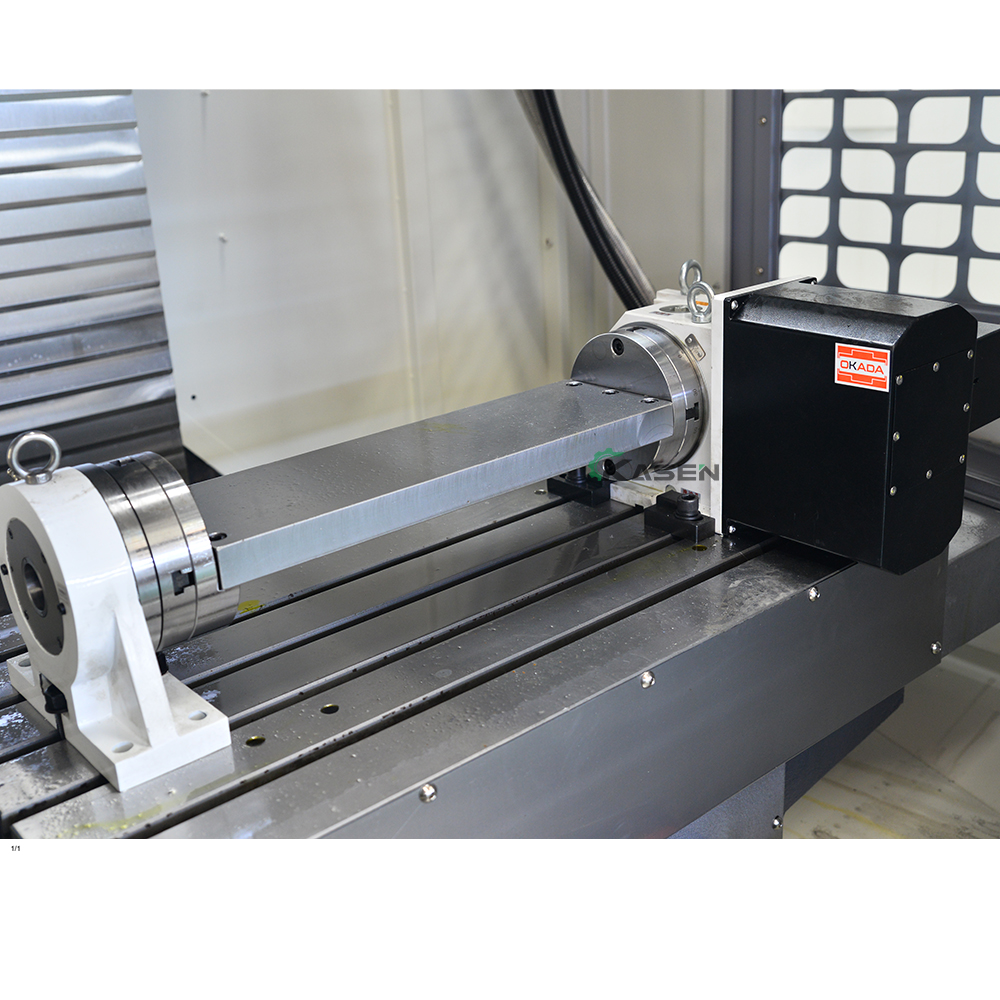

Taiwan brand, bridge type, it including Disc tailstock, Middle plate and L-block.

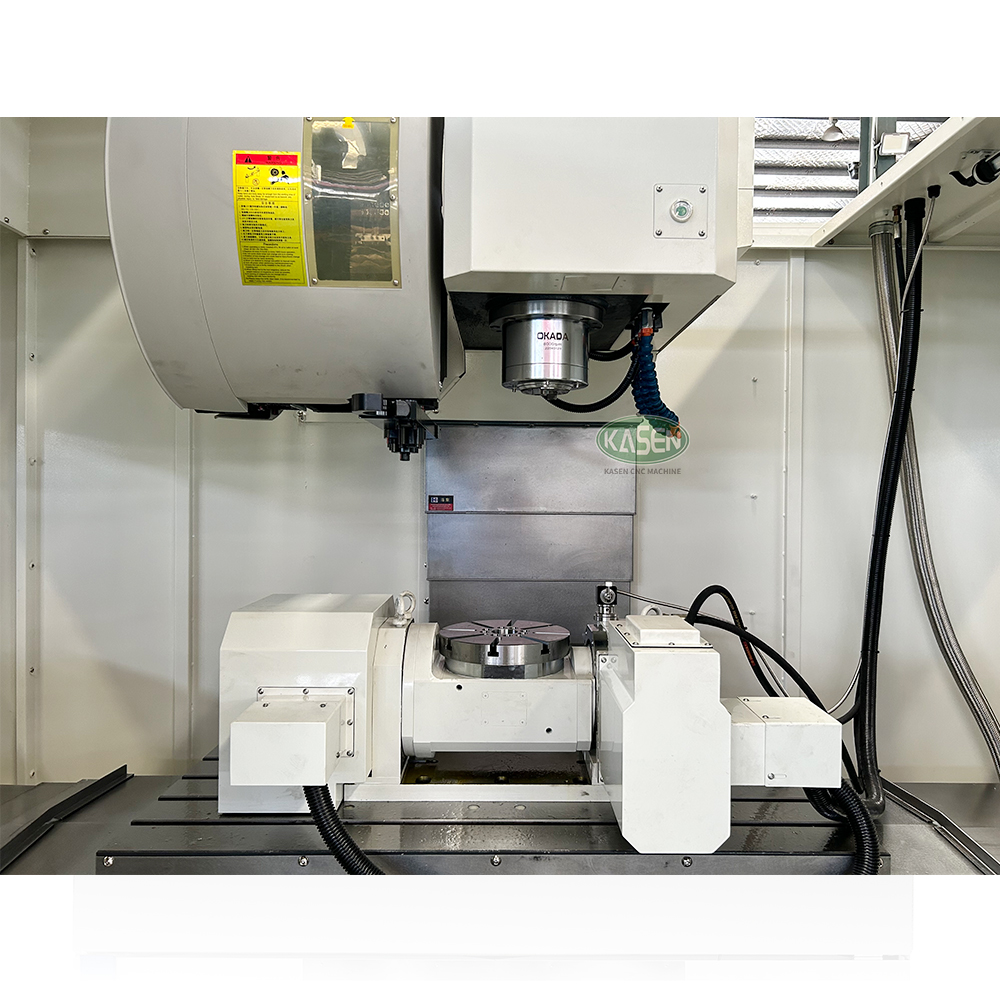

Taiwan brand, Five axis linkage, High accuracy, high performance and high efficiency Strong braking system.

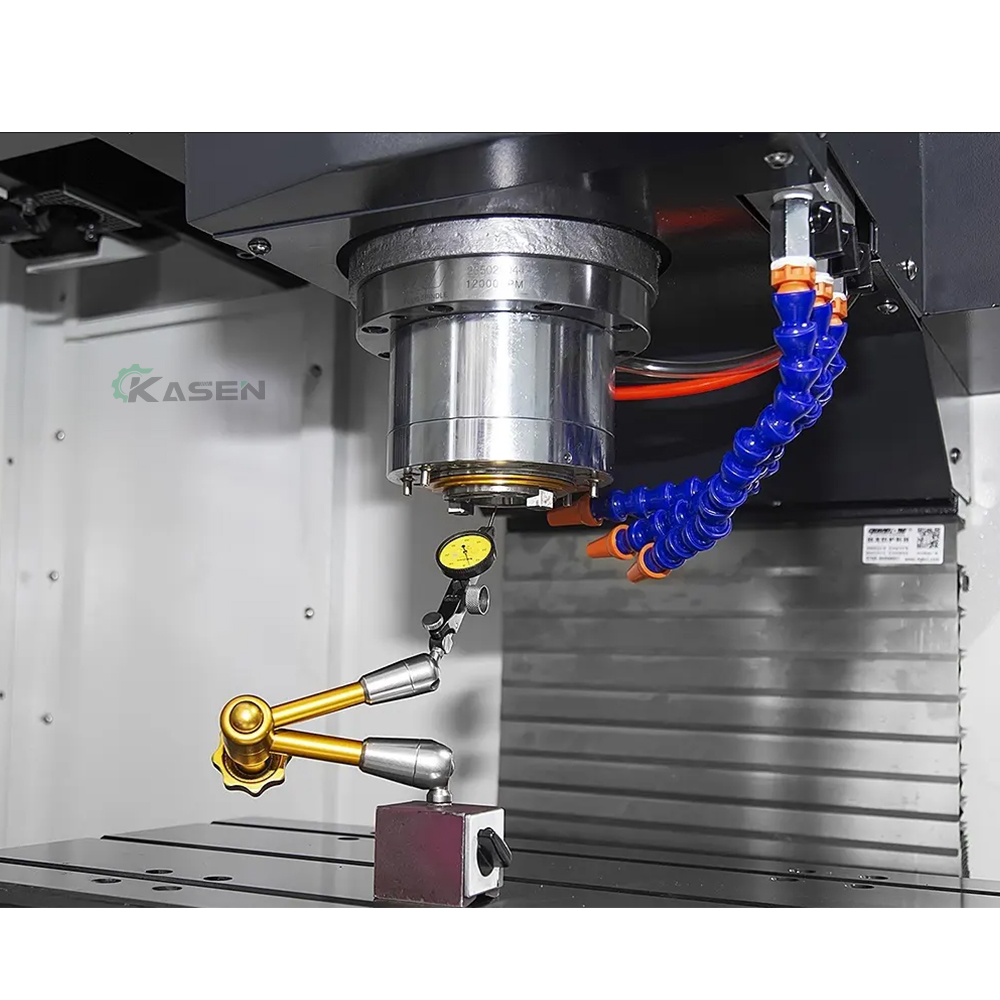

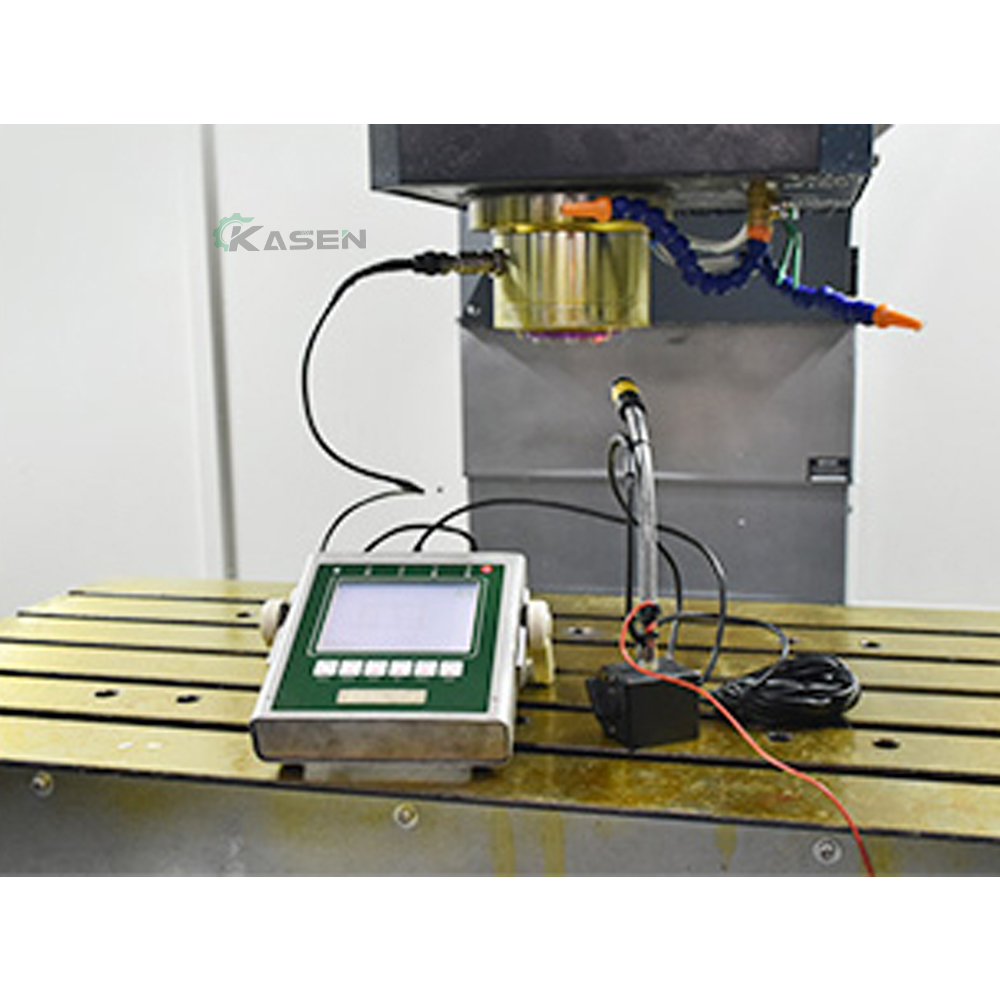

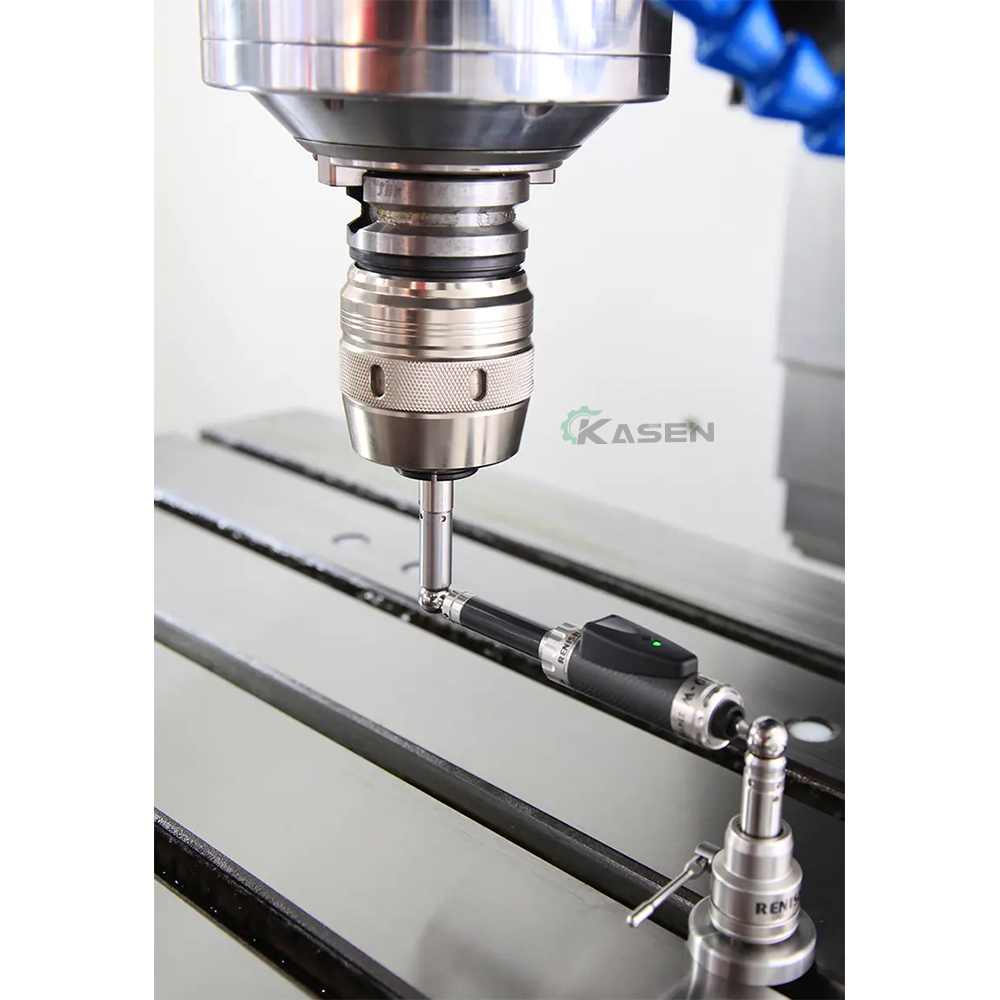

The machine is inspected by Cue meter, dial indicator, dynamic balance and Renishaw laser detector before leaving the factory.

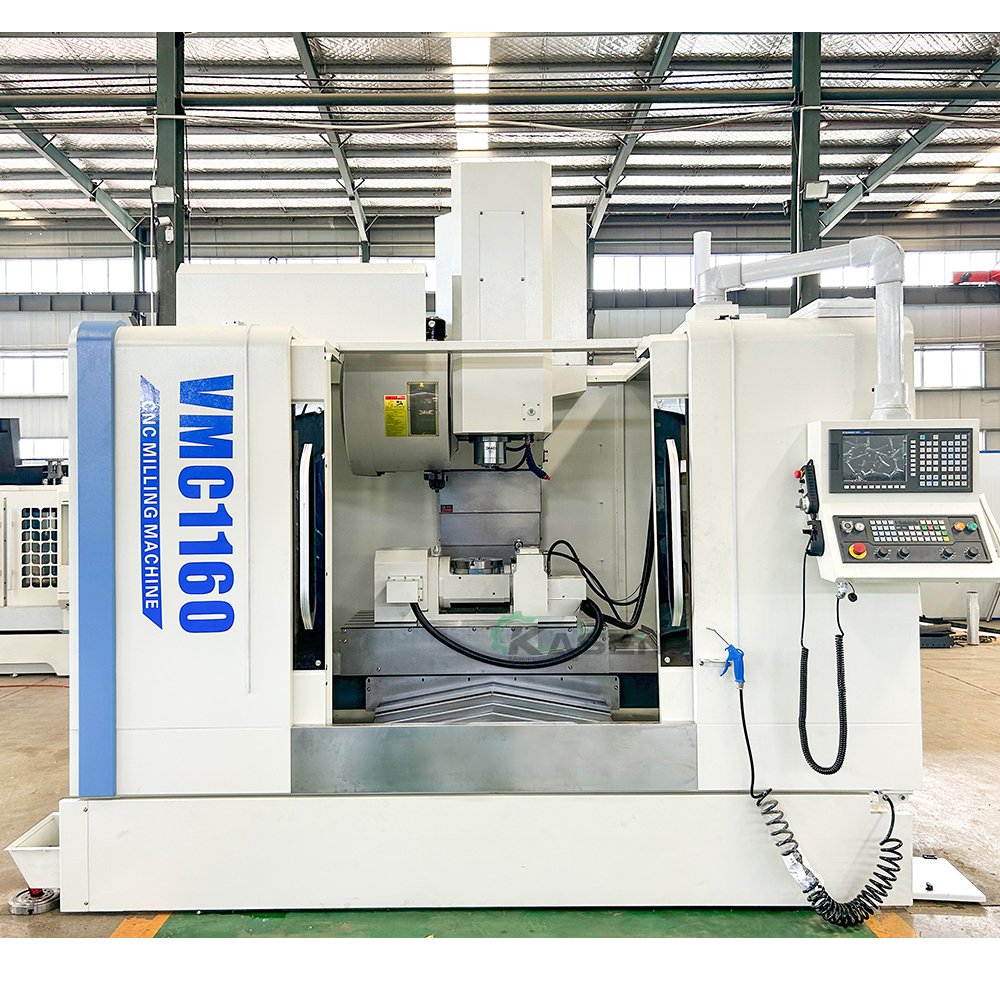

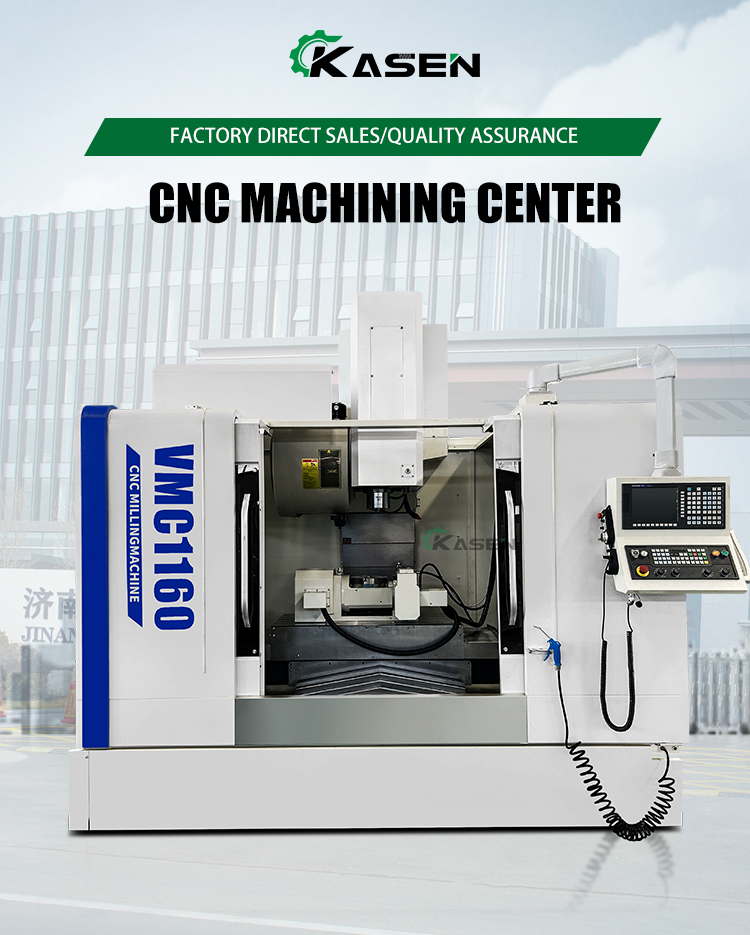

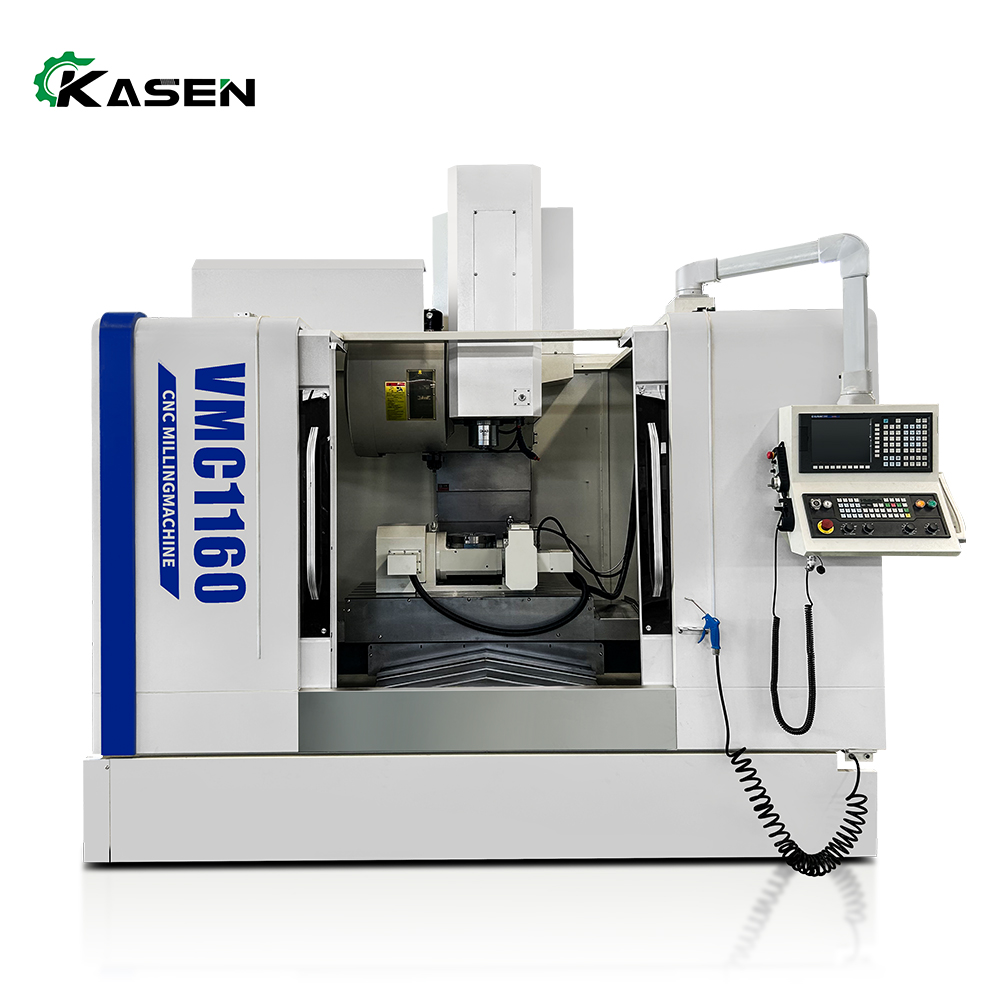

The VMC1160 features a spacious worktable sizing 1200×600mm, with 5-18-100mm T-slots, and can handle a maximum table loading capacity of 600kg.
The machine uses high-grade HT300 gray iron castings, which undergo a dual-quenching process and aging vibration treatment. This specific reinforced rib structure provides superior rigidity and extends the service life.
The machine is equipped with a high-precision BT40 spindle with a standard speed of 8000rpm and 11kw of power. Optional high-speed configurations of 10000rpm and 12000rpm are also available.
You can choose between a standard armless tool magazine (12/16/24 tool options, 3s tool change) and a disc tool magazine (24 tools, 2s automatic tool change). For CNC control, choices include Fanuc, Siemens, GSK, Syntec, and Mitsubishi systems.

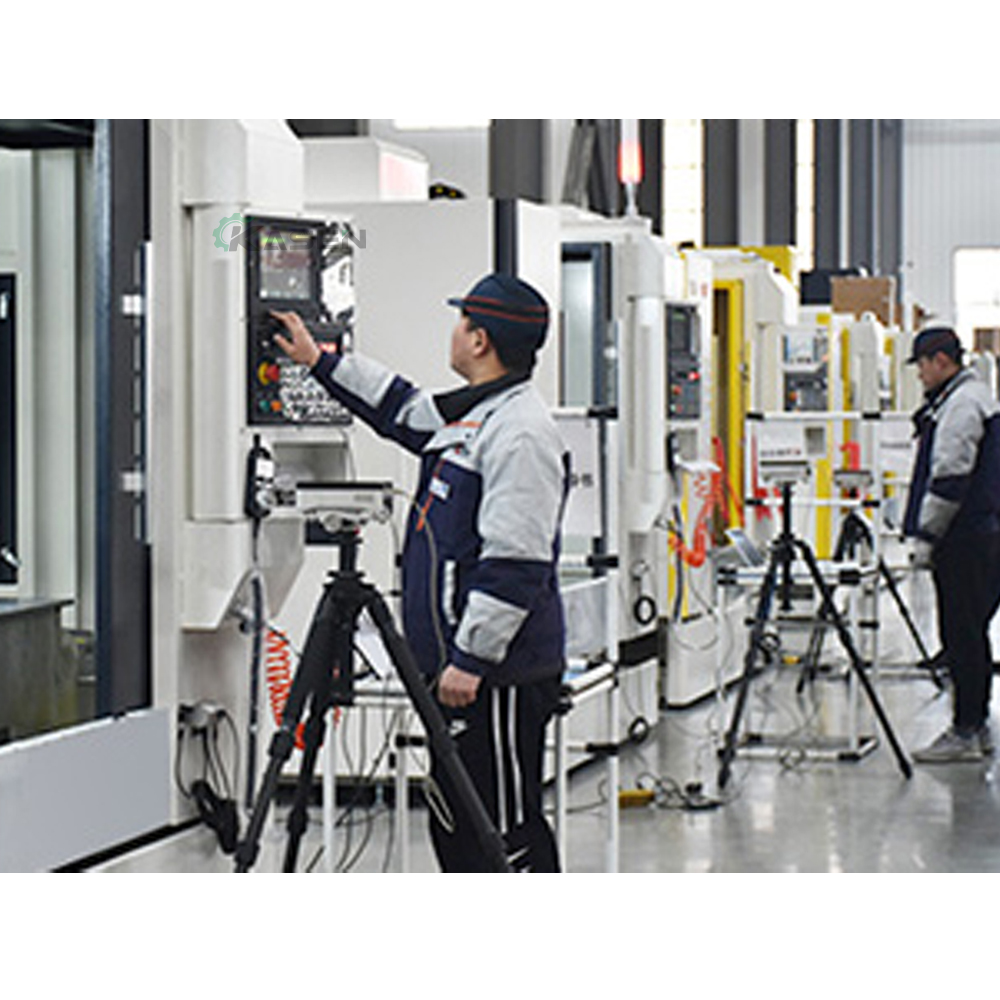

To guarantee accuracy and peak dynamic balance, every machine is thoroughly inspected using a Cue meter, dial indicators, dynamic balance equipment, and a Renishaw laser detector before leaving the factory.
