Product Description

MACHINE DESCRIPTION
This fan housing forming machine is special designed for producing industrial fan parts, such as flanging drum and wind collector of axial fans, one-time spinning air inlet and front disc of centrifugal blower, etc. It can also make beading of air ducts and expand duct mouth as well.
MAIN FEATURES
  • Simple operation, low noise, low energy consumption
  • Special spinning wheels as tooling. By different combination, different purpose can be achieved and so no need many tools.
  • Spinning from middle area of blank material good spinning surface finish, no deformation
  • Compact structure, easy to change spinning wheels

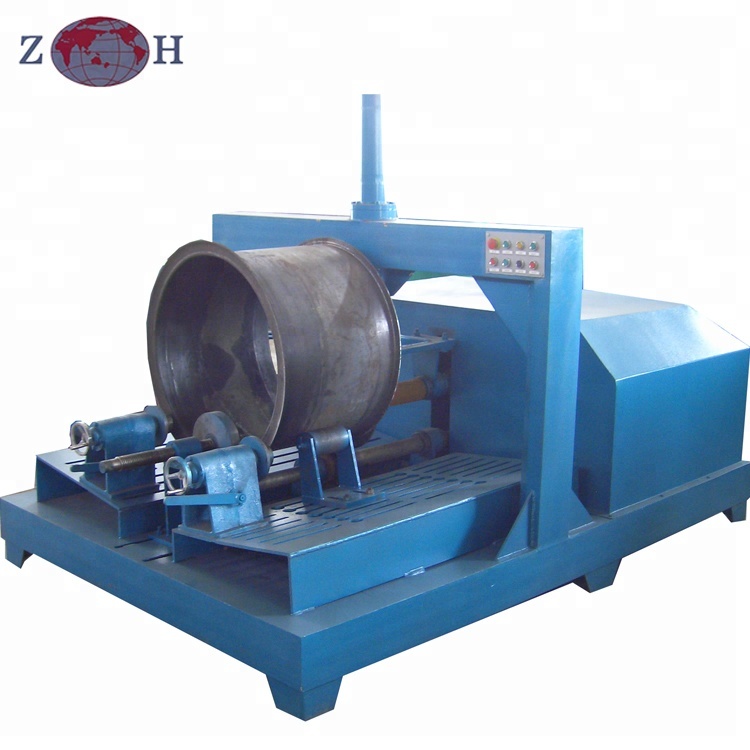

Fan housing forming machine main features
Fan housing processing detail

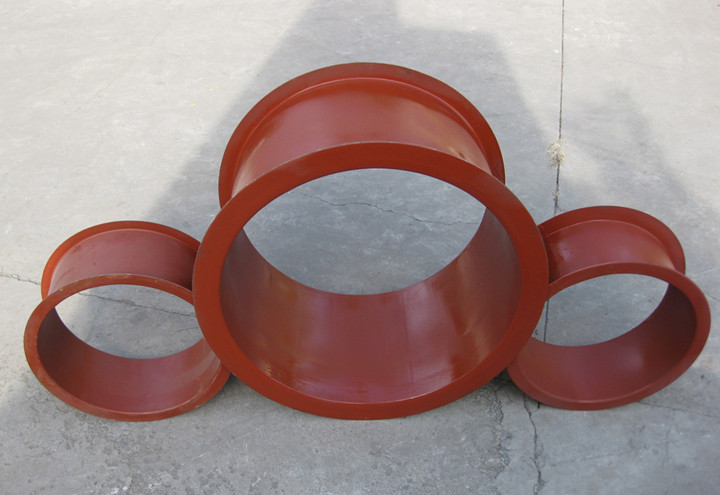

Fan housing production component

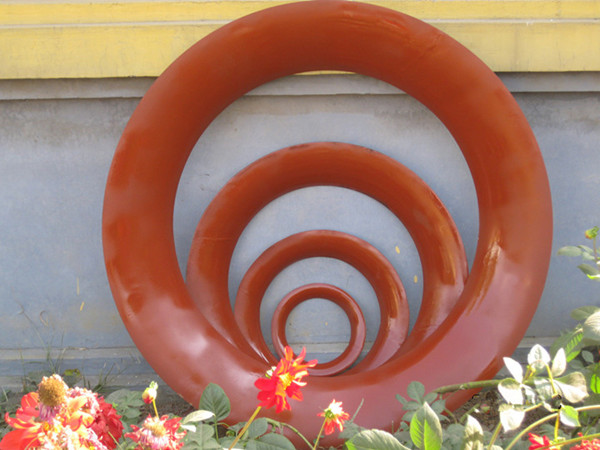

Finished fan components
MACHINE SPECIFICATION
No. Item Technical data
1 Max sheet thickness 4mm-10mm, according to fan codes
2 Drum flanging diameter more than 400mm
3 Flanging thickness less than 4mm
4 Drum length 600mm
5 Power 7.5kw/380V
6 Motor power 5.5kW
7 Weight About 3600kg
9 Dimension About 2950x2200x2250mm
WORKSHOP & EQUIPMENT SHOWCASE
Workshop overview 1
Workshop overview 2
Production machinery 1
Production machinery 2
Quality inspection area
FREQUENTLY ASKED QUESTIONS (FAQ)
Q: What specific industrial fan parts can this machine produce?
This forming machine is specially designed to produce flanging drums, wind collectors of axial fans, one-time spinning air inlets, and front discs of centrifugal blowers. It can also perform beading of air ducts and expand duct mouths.
Q: What is the maximum sheet metal thickness this machine can process?
It can handle a maximum sheet thickness of 4mm to 10mm, depending on the specific fan codes and production requirements.
Q: Do I need to purchase a large number of spinning tools for different components?
No, the machine uses special spinning wheels as tooling. By configuring different combinations of these wheels, multiple purposes can be achieved, eliminating the need to maintain an extensive tooling inventory.
Q: Does the spinning process cause deformation to the material?
No. The spinning starts from the middle area of the blank material, ensuring a good spinning surface finish without causing deformation.
Q: What are the general power and dimension specifications of this machine?
The machine operates on a power of 7.5kW/380V with a main motor power of 5.5kW. Its approximate dimensions are 2950 x 2200 x 2250 mm, and it weighs around 3600 kg.
