| Specification | Unit | YS32-315TK | YS32-315T-AK | YS32-315T-BK | YS32-315T-CK |
|---|---|---|---|---|---|
| Nominal force | KN | 3150 | 3150 | 3150 | 3150 |
| Max. pressure of liquid | MPa | 31.5 | 25 | 25 | 31.5 |
| Effective stroke | mm | 600 | 600 | 600 | 600 |
| Max. opening height | mm | 900 | 1000 | 1200 | 1200 |
| Return force | KN | 300 | 300 | 300 | 300 |
| Working table size | mm*mm | 800*800 | 1000*1000 | 1250*1160 | 1400*1400 |
| Speed of slide - Fast down | mm/s | 140 | 180 | 180 | 180 |
| Speed of slide - Work | mm/s | 5-15 | 5-15 | 5-15 | 5-15 |
| Speed of slide - Return | mm/s | 140 | 140 | 140 | 140 |
| Ejection force | KN | 600 | 600 | 600 | 600 |
| Ejecting stroke | mm | 300 | 300 | 300 | 300 |
| Motor power | KW | 15 | 18.5 | 18.5 | 18.5 |
We have a professional team that can produce high-quality products and design better solutions to meet your needs.
Our hydraulic machines are all produced in accordance with export standards and have obtained the corresponding export certificates and CE certifications.

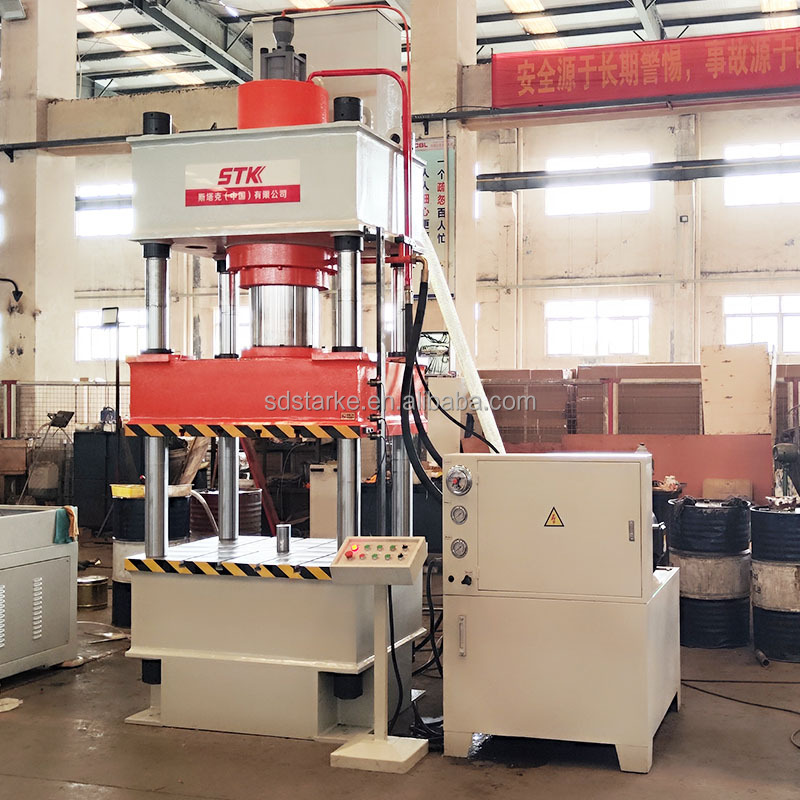

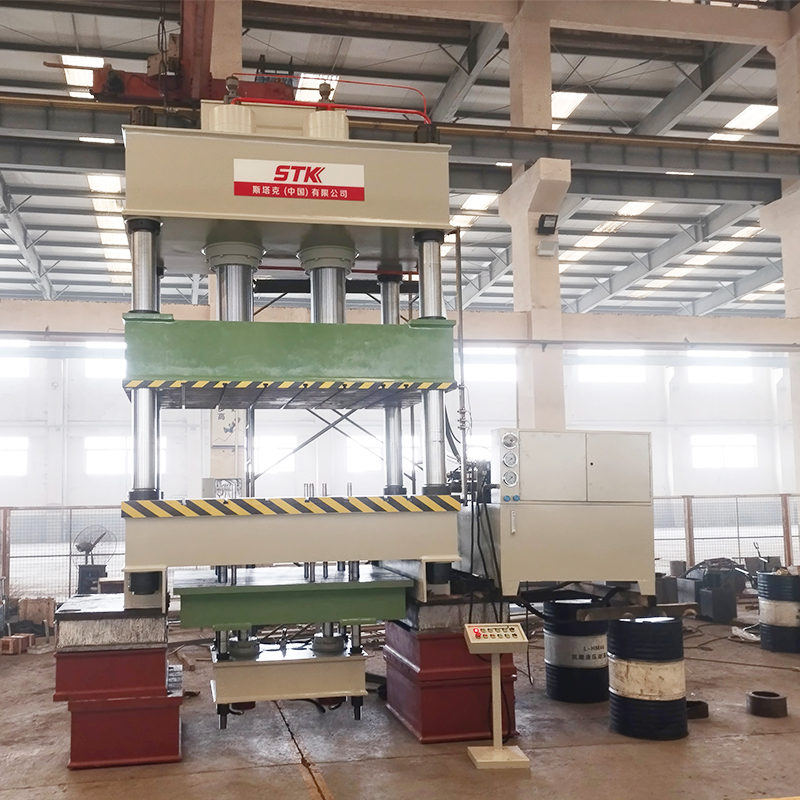

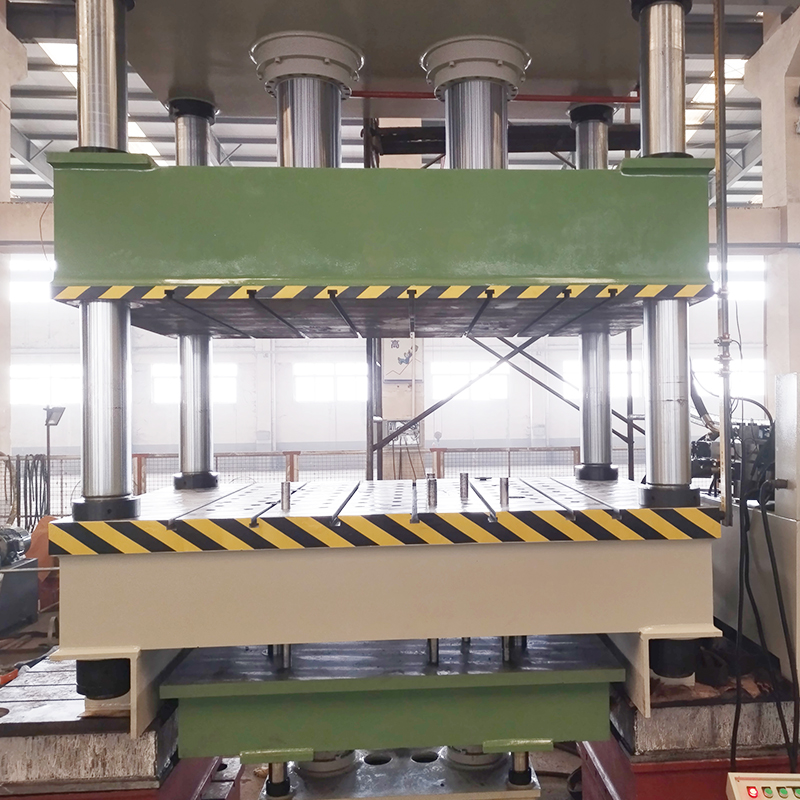

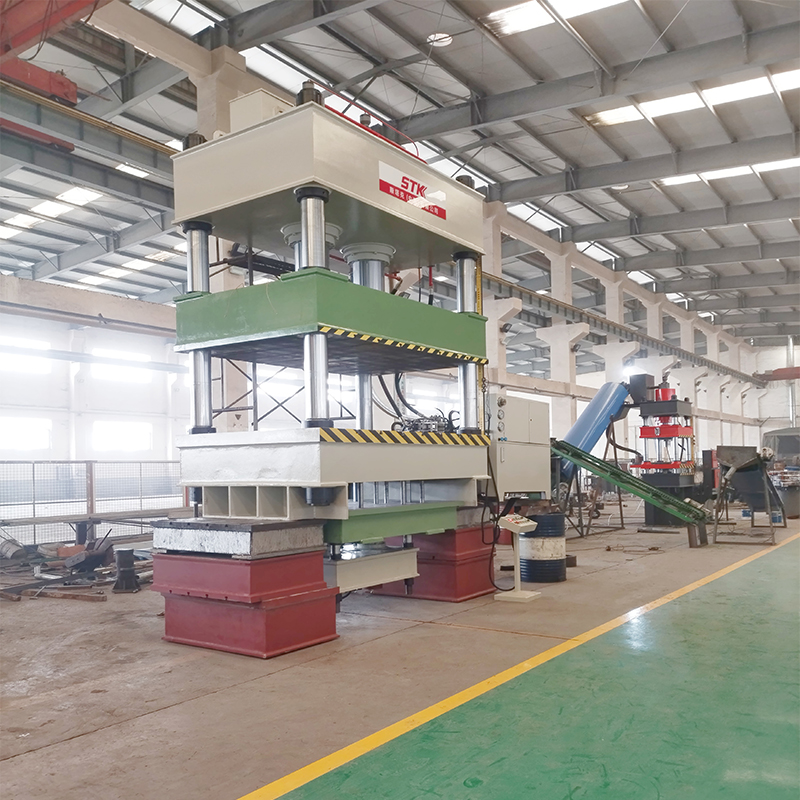

Hydraulic press is a versatile machine that is widely used in various fields such as forging, shaping, and pressing, and is capable of efficiently completing various processing tasks.

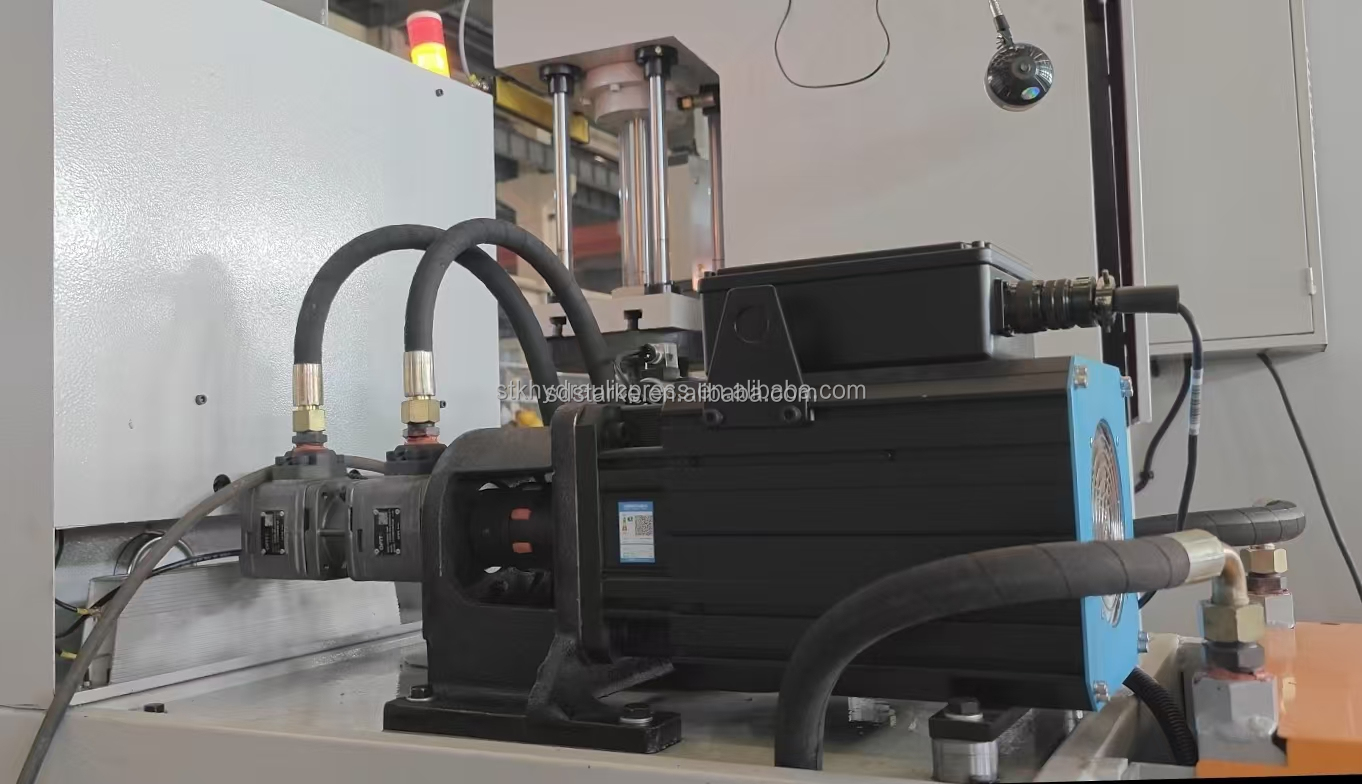

The hydraulic machine has higher operating accuracy, is highly efficient and energy-saving, consuming 30% to 50% less electricity than ordinary motors. The working position, speed and pressure can all be adjusted. It can work continuously for 12 hours without the need for cooling oil temperature.

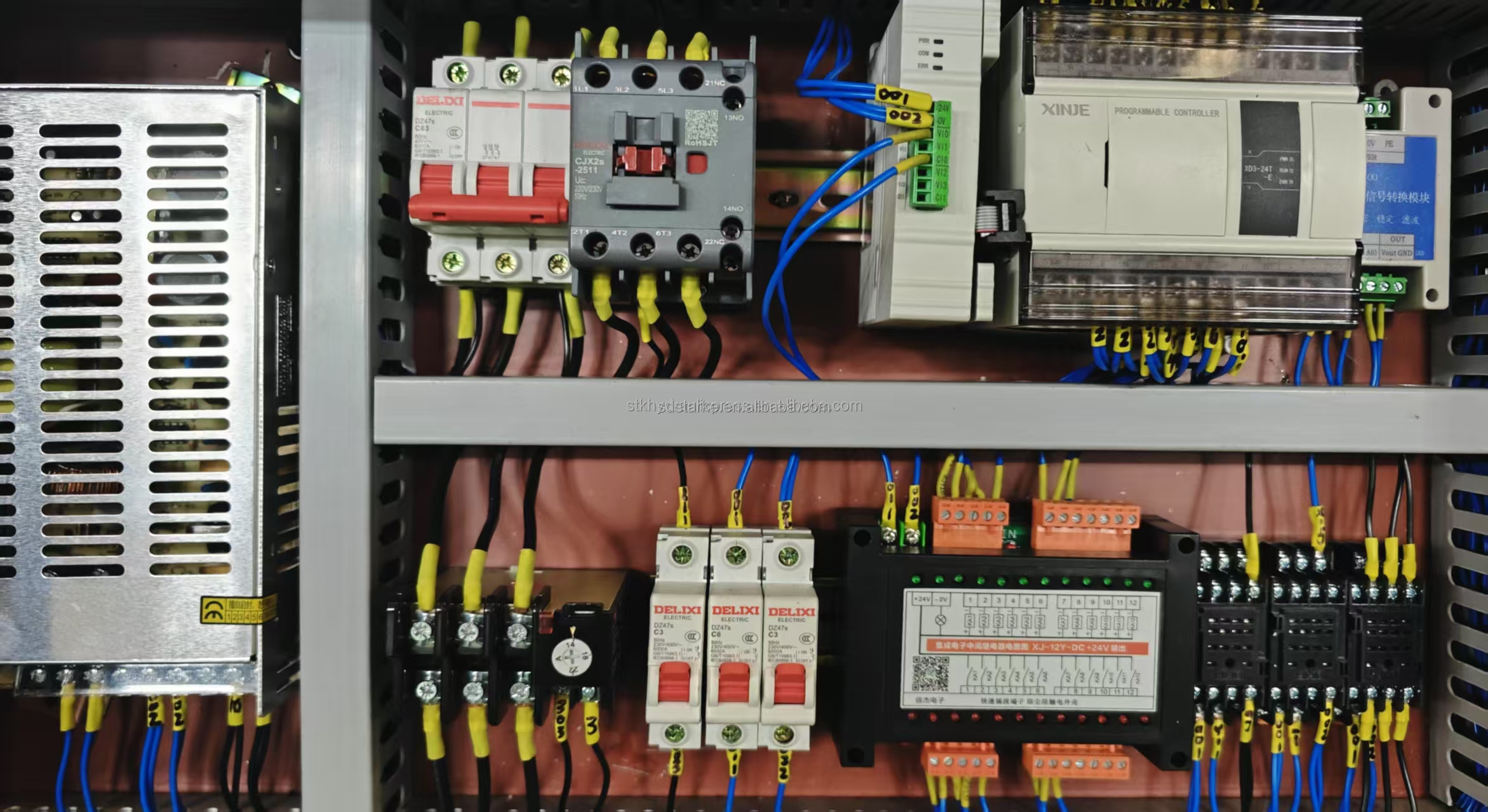

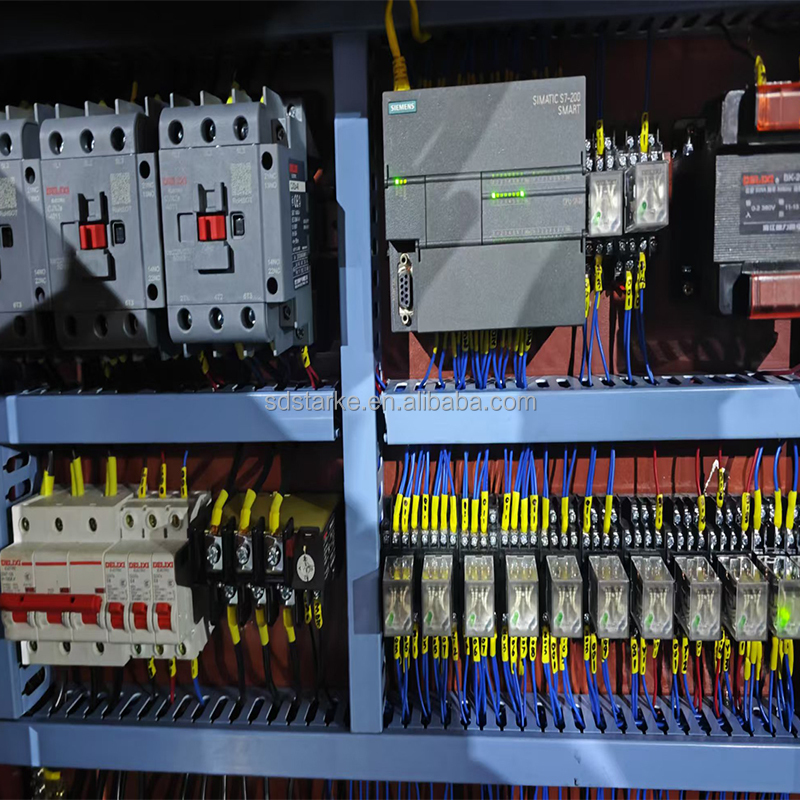

Using PLC to control the machine makes the operation of the machine simpler. All the electronic components are placed in one distribution box, which is convenient for use.

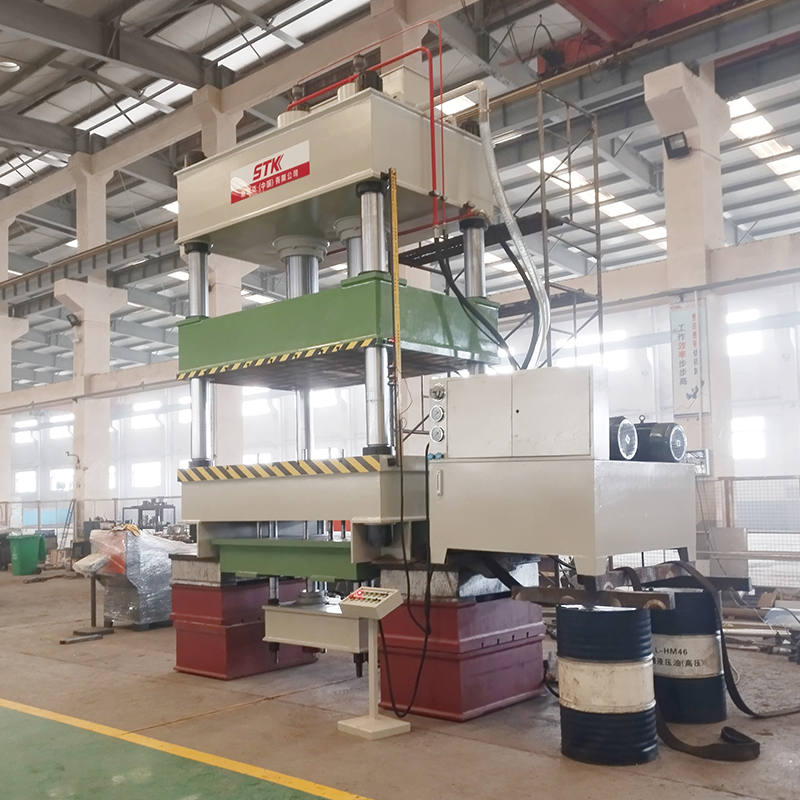

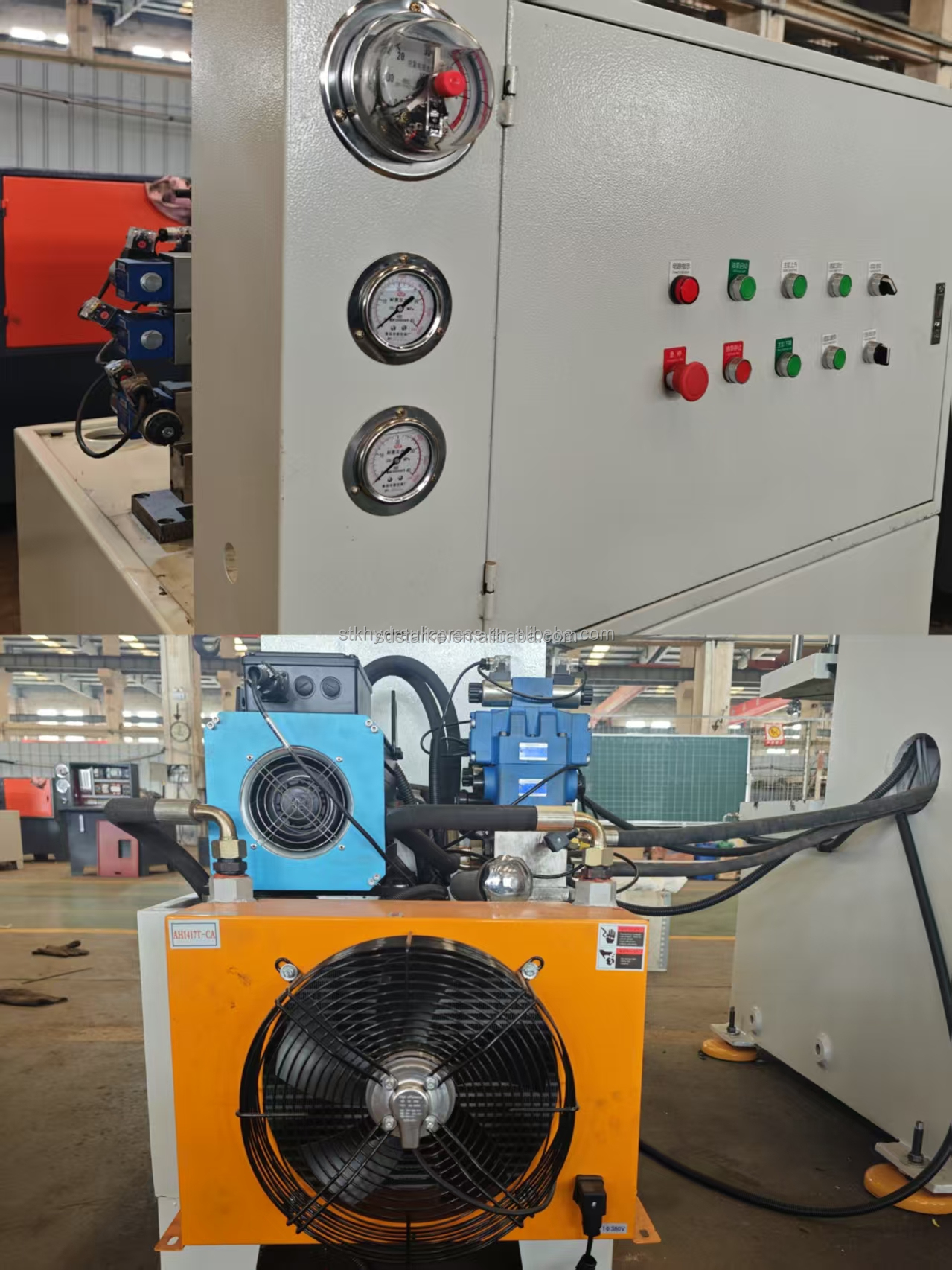

The hydraulic press system device is set on the right side of the press, with flexible action, reliable work and good sealing performance. The hydraulic station includes oil tank, high-pressure pump, motor, cartridge valve and other components.

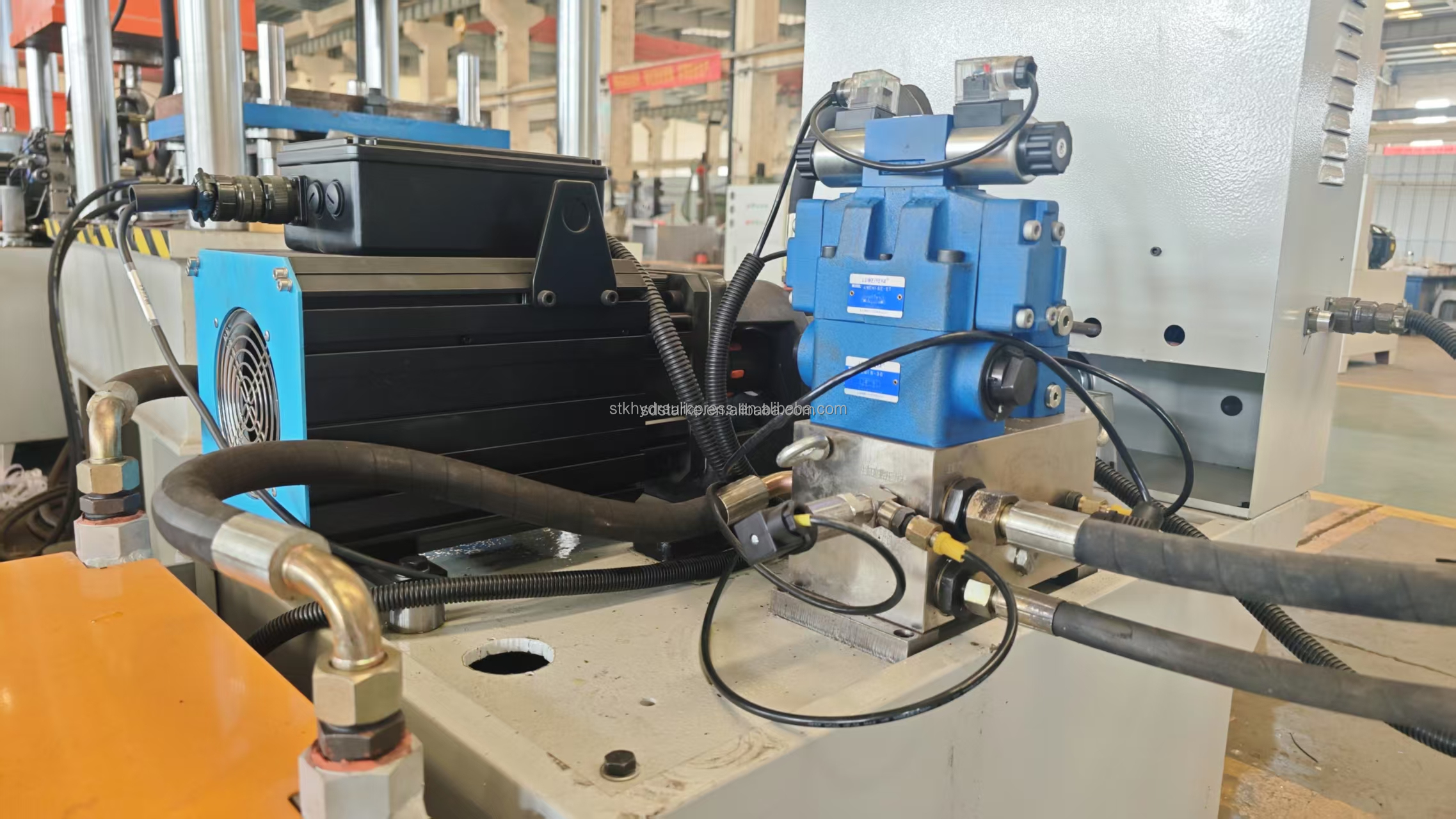

The cartridge valve is integrated into the system, reducing leakage points, ensuring reliable operation, and extending service life.

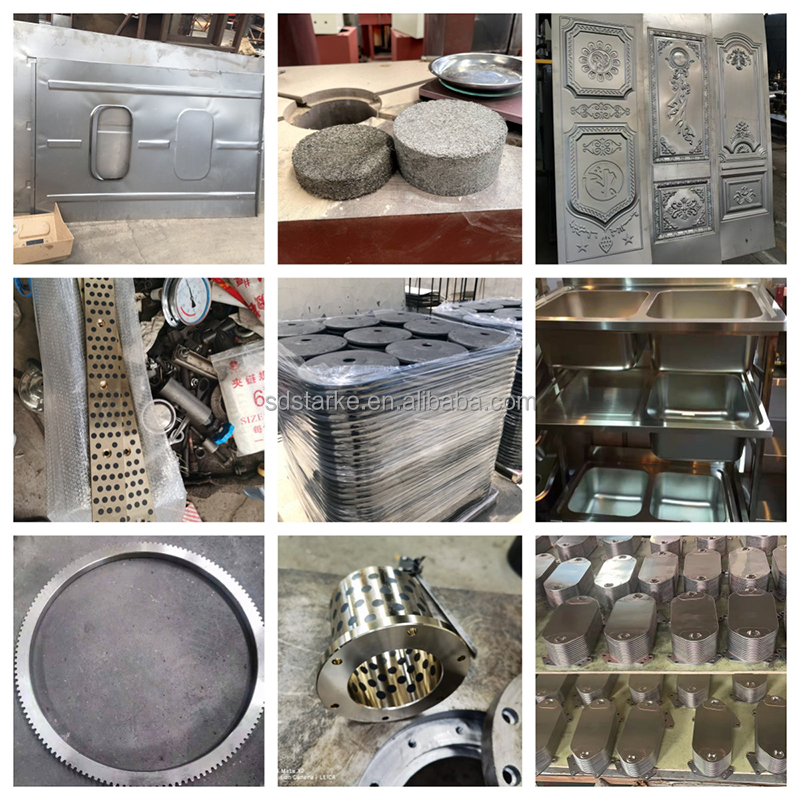

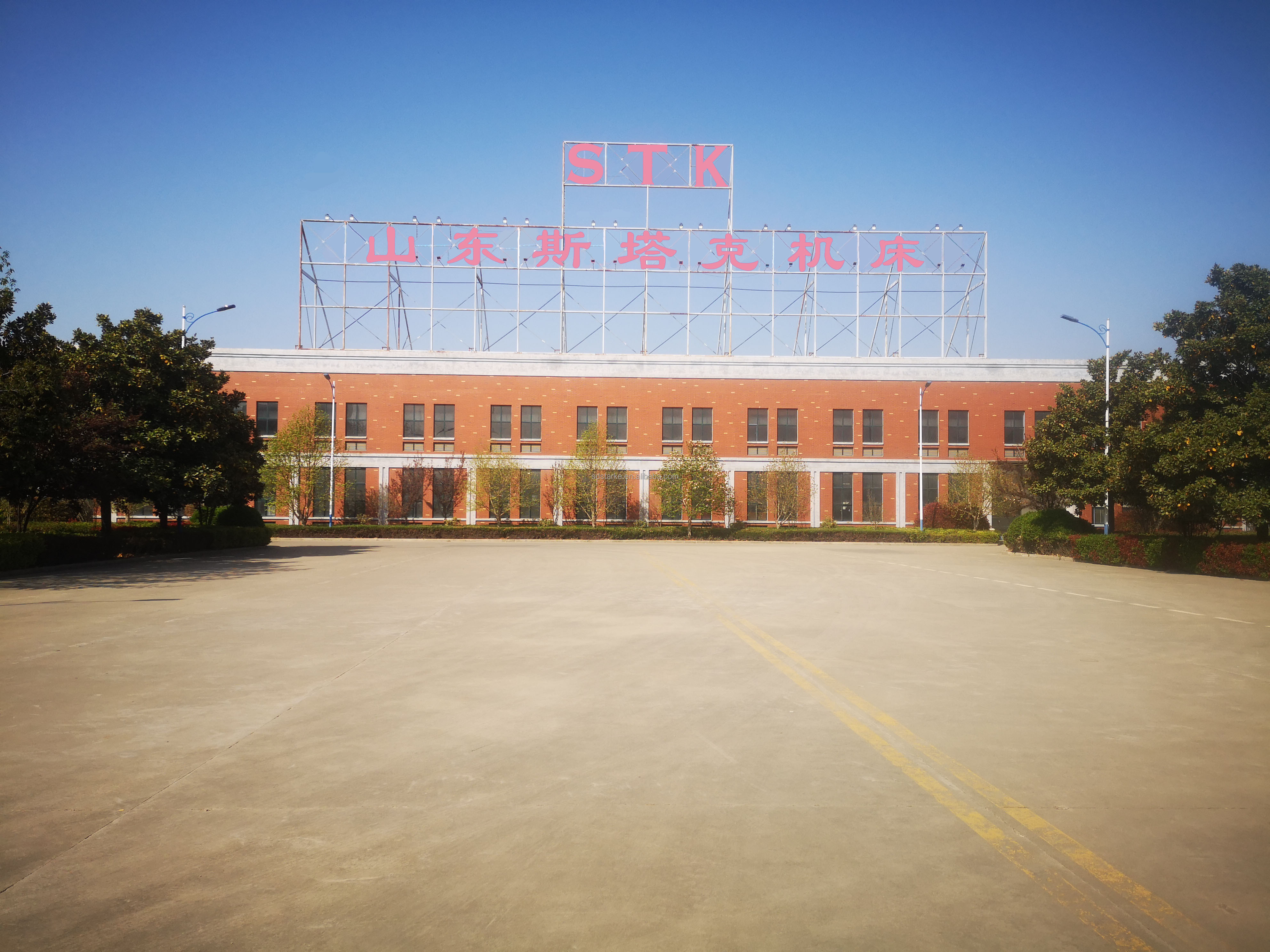

Specializing in the research and development, production, and sales of hydraulic mechanical rings, visual intelligence, and CNC equipment, providing customers with personalized, diversified, and systematic metal and non-metal forming solutions. The main line of products includes liquid jade punching machines, frame hydraulic presses, CNC servo hydraulic presses, four column hydraulic presses, single arm hydraulic presses, gantry hydraulic presses, etc. The products are suitable for molding and maintenance in multiple industries and fields such as automobiles, household appliances, metal rubber products, aerospace, mining, and shipbuilding. Our machinery is exported to countries and regions such as Europe, America, and Southeast Asia.

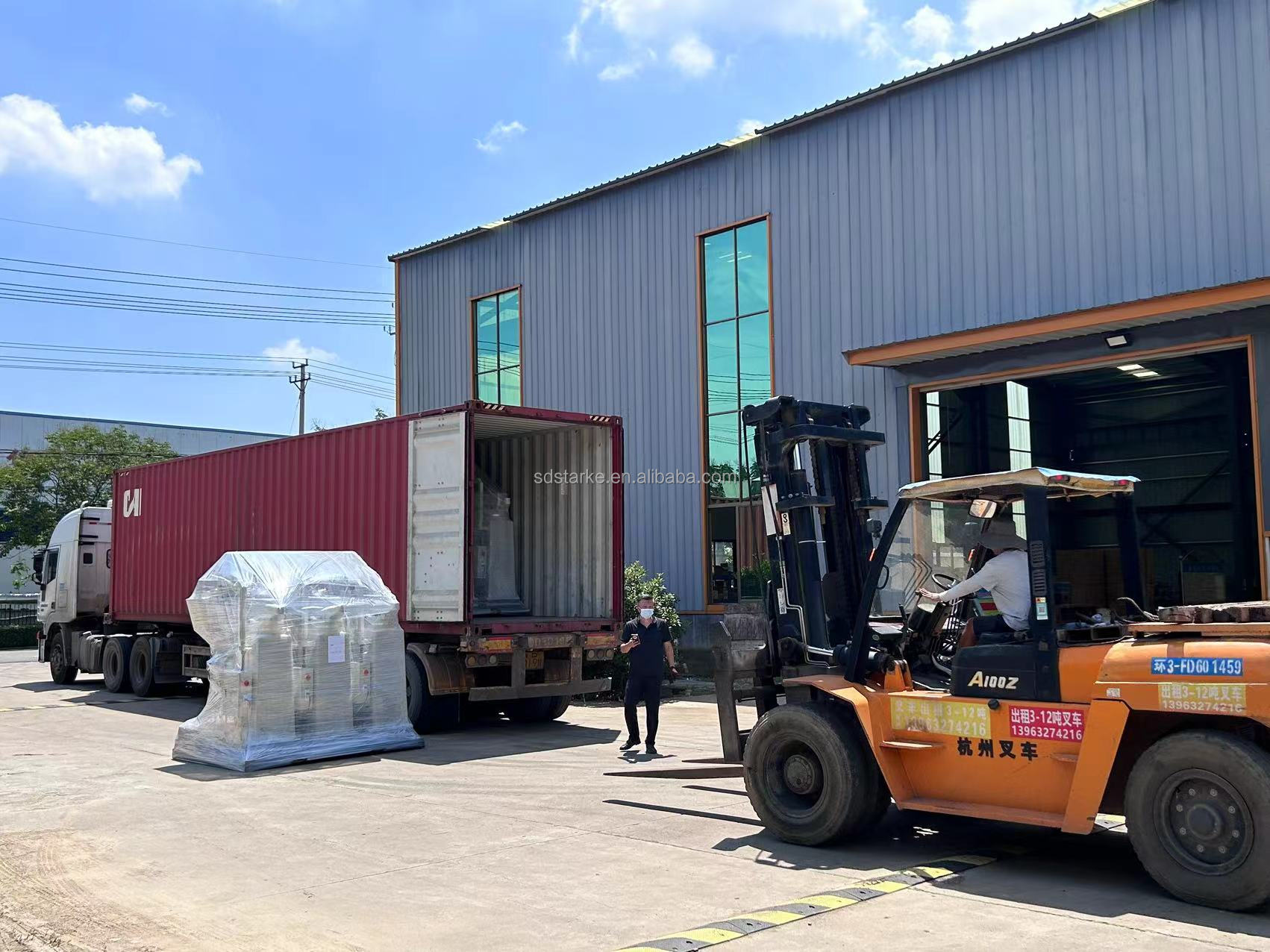

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
