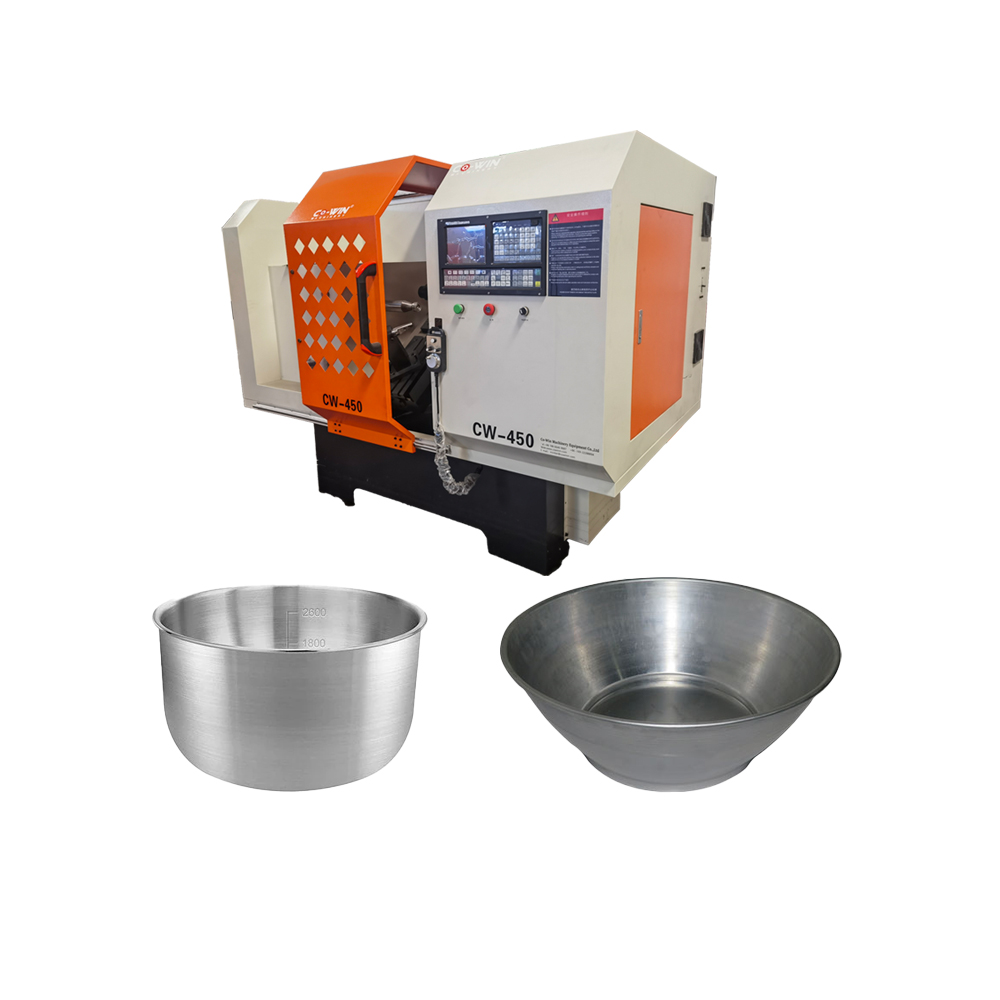

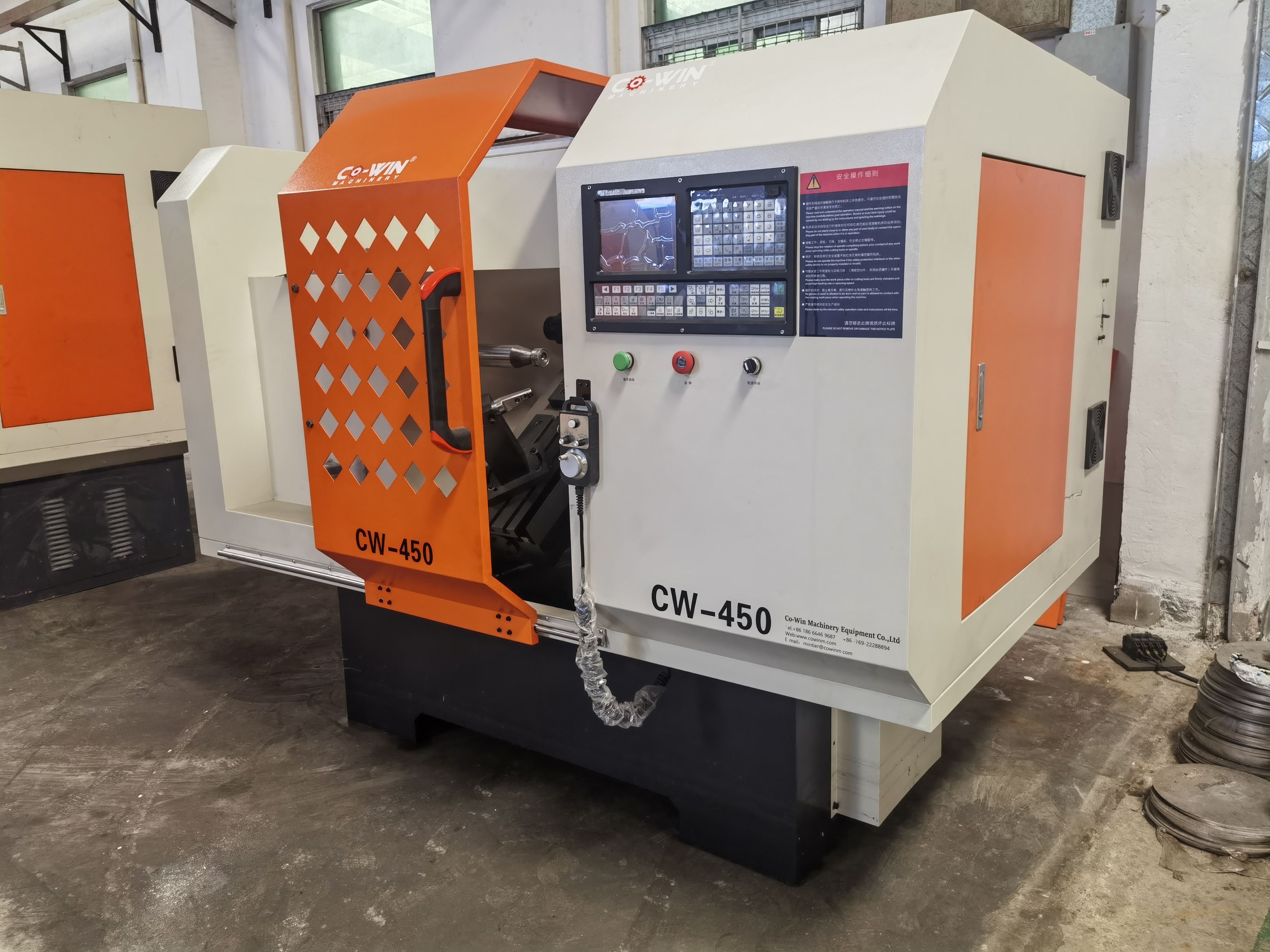

| CW-450 CNC Spinning Machine | |||
|---|---|---|---|
| Number of Spinning Roller | Main Roller + Spining Roller 2 | X/Z Axis Servo Motor Power | 1.5/1.5 KW |
| Thickness of Workpiece | 0.5 MM- 2.0 MM Aluminum/Copper 0.5 MM-1.2MM(Iron) 0.5-0.8 MM (Stainless Steel) |
X/Z Axis Pulse Equivalent | 0.001 MM |
| The Max Material Diameter | 600mm | Positioning Accuracy | 0.01 MM |
| The Max Rotary Diameter Over the Plate | 230 MM | Repositioning Accuracy | 0.005 MM |
| Max Length of Workpiece | 250 MM | Spindle Bore Thrust | Tooth Connection |
| X/Z Axis Travel | 500 MM/370 MM | Spindle Bore Diameter(Blowing) | 10 MM |
| Z Axis Thrust | 20 KN | Spindle Speed | 3000 RPM |
| The Tailstock Thrust | 20 KN | Diameter of Tailstock Sleeve | 40 MM |
| Guide Rail | Liner Guide Rail | Tailstock Stroke | 300 MM |
| Width of Lathe Bed | 800 MM | Tailstock Sleeve Movement | 200 MM |
| X/Z Axis Fast Feed Speed | 10/15 M/MIN | Weight | 1620 KG |
| Overall Dimensions | L 2230* W1400* H1700 MM | ||
Provide a complete production line solution, covering a series of production processes from hydraulic press die-casting, metal CNC spinning machine spinning, rotary cutting, trimming, deburring, curling, etc. We not only provide equipment, but also provide customers with customized production solutions to meet the needs of different customers.
We have introduced and owned the most advanced production equipment such as hydraulic presses and CNC spinning machines to ensure production efficiency and product quality while reducing production costs and improving customer satisfaction.
We have a highly skilled team with rich experience and expertise, unique insights and problem-solving abilities in the field of metal processing. No matter what needs and challenges our customers face, we can provide the best solutions.
We strictly control every aspect of the production process to ensure product quality reaches the highest standards. From raw material procurement to production and processing to final product delivery, we always put quality first.
We provide various types of mechanical equipment, including hydraulic presses, CNC spinning machines, rotary cutting machines, trimming equipment, deburring machines, crimping machines, etc. We can also provide customized mechanical equipment solutions according to customer needs.
Our mechanical equipment production process includes design, manufacturing, assembly, debugging and other links. During the manufacturing process, we strictly follow professional standards and quality control processes to ensure that each piece of equipment has stable performance and reliable quality.
Yes, we introduce and adopt the most advanced technology to ensure that our machinery and equipment have efficient, precise and stable performance. Whether it is in hydraulic control, CNC machining or automation control, we always maintain the leading level.
We strictly control every aspect of the production process of mechanical equipment, from material selection to production, processing, assembly and testing, and strictly follow the quality management system. Each piece of equipment undergoes strict inspection and testing before leaving the factory to ensure that its quality and performance meet customer requirements.
Yes, we can provide customized mechanical equipment solutions according to customer needs. Whether it is special specifications, specific functions or special requirements, we can tailor it to meet the individual needs of our customers.
We always adhere to the service concept of "quality first, customer first", and win the trust and support of customers with professional technology and high-quality services. We are willing to work together with our customers to develop together.
