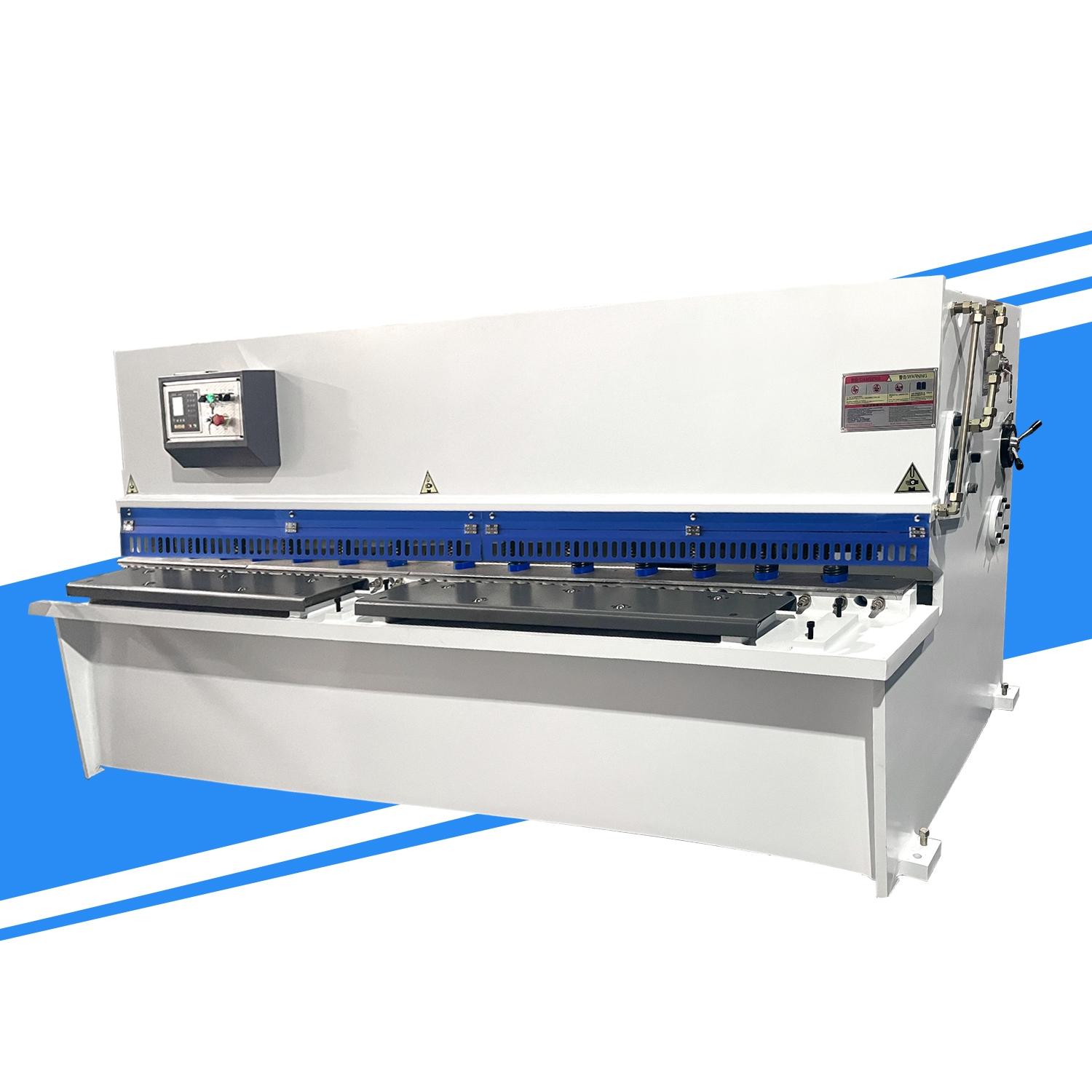

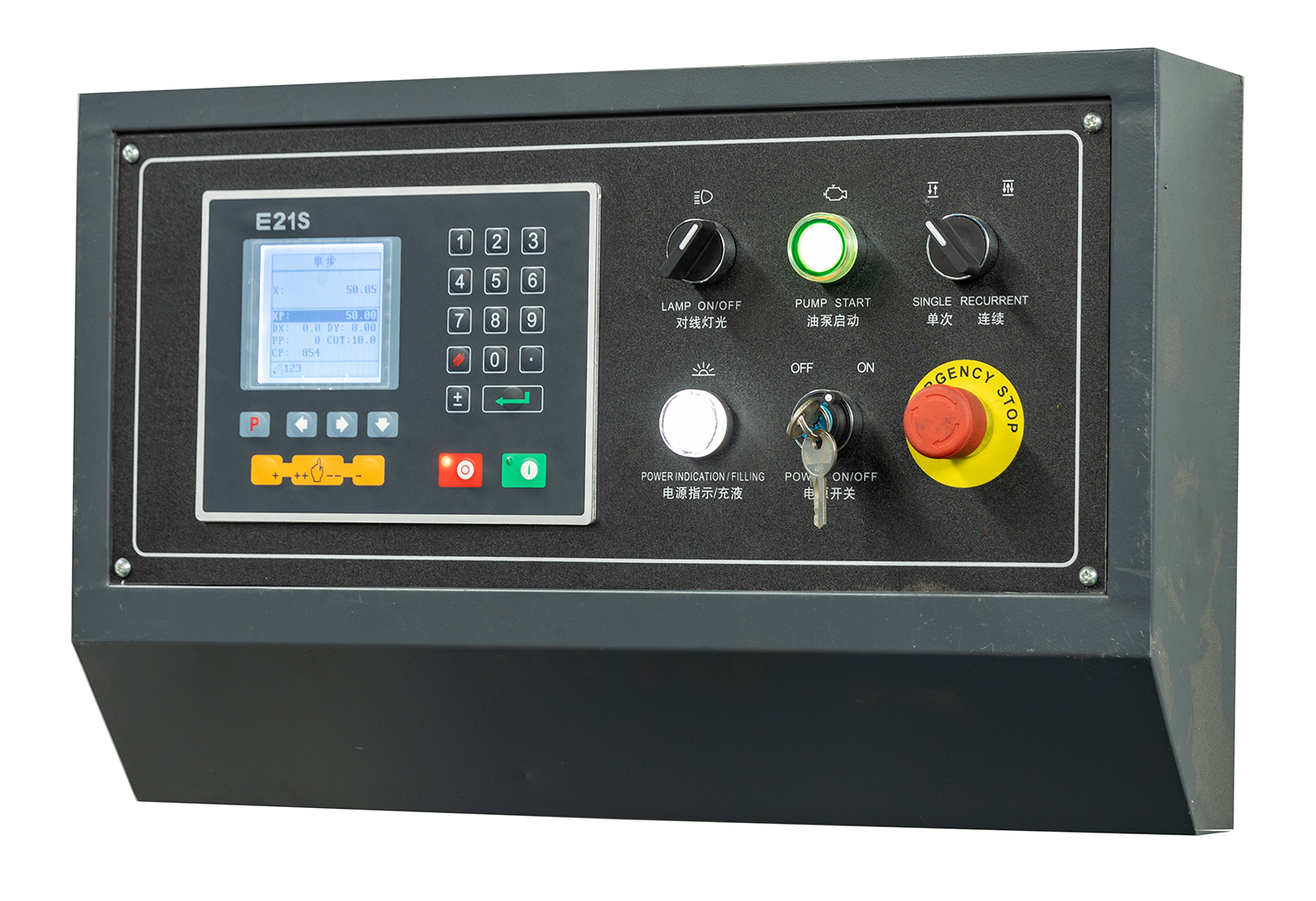

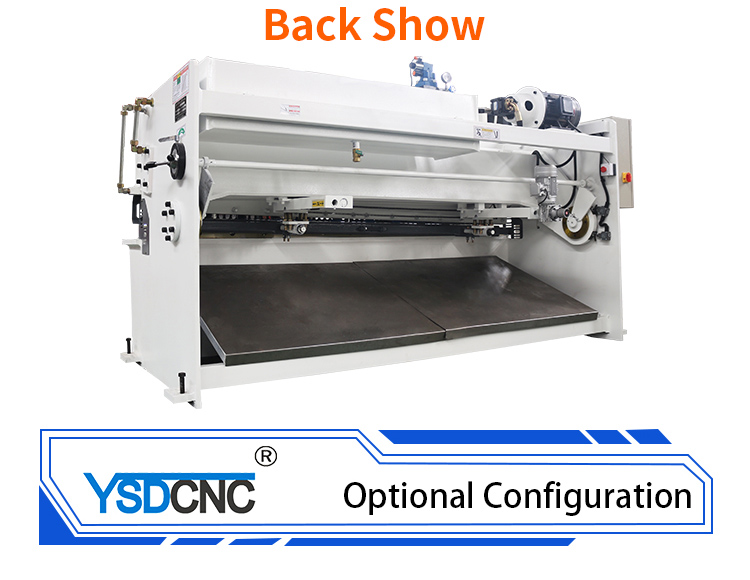

QC12K NC hydraulic swing beam shearing machine with E21S has an all-steel welded structure and comprehensive treatment (vibration ageing, heat treatment) to remove internal stresses, resulting in excellent rigidity and stability. Precision sliding guides are used to eliminate guide gaps, resulting in high shearing quality. The E21S system is easy to operate.

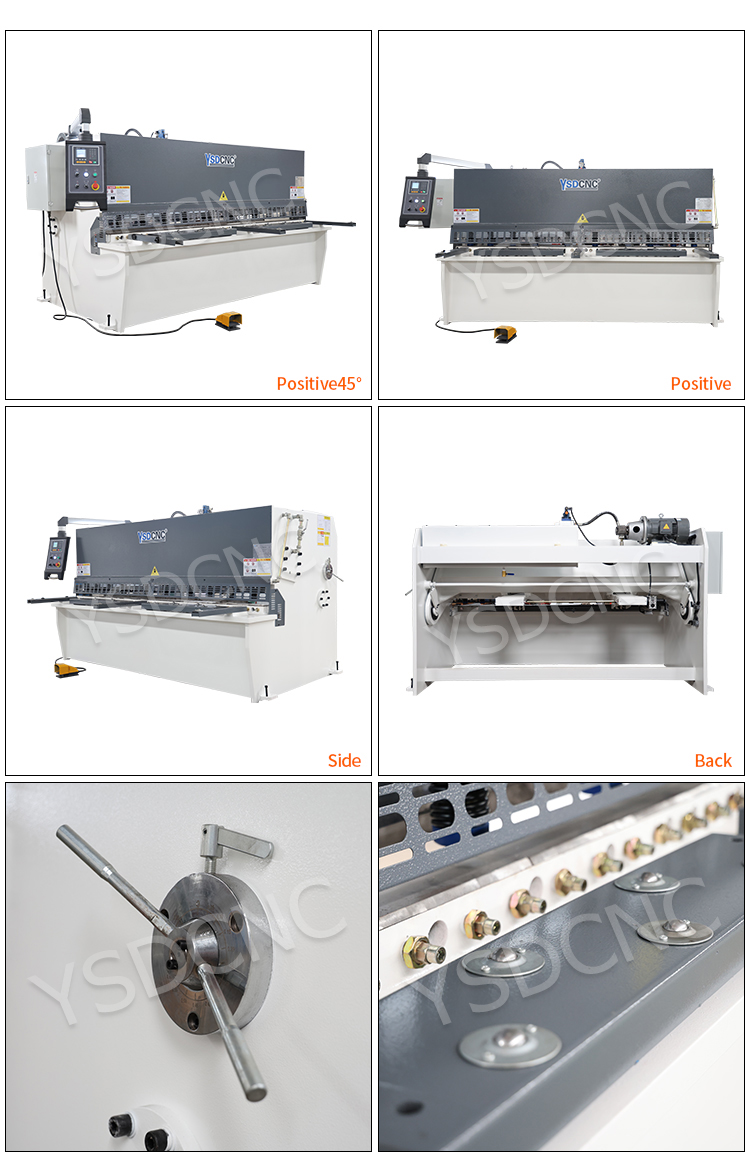

The streamlined welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the shearing machine.

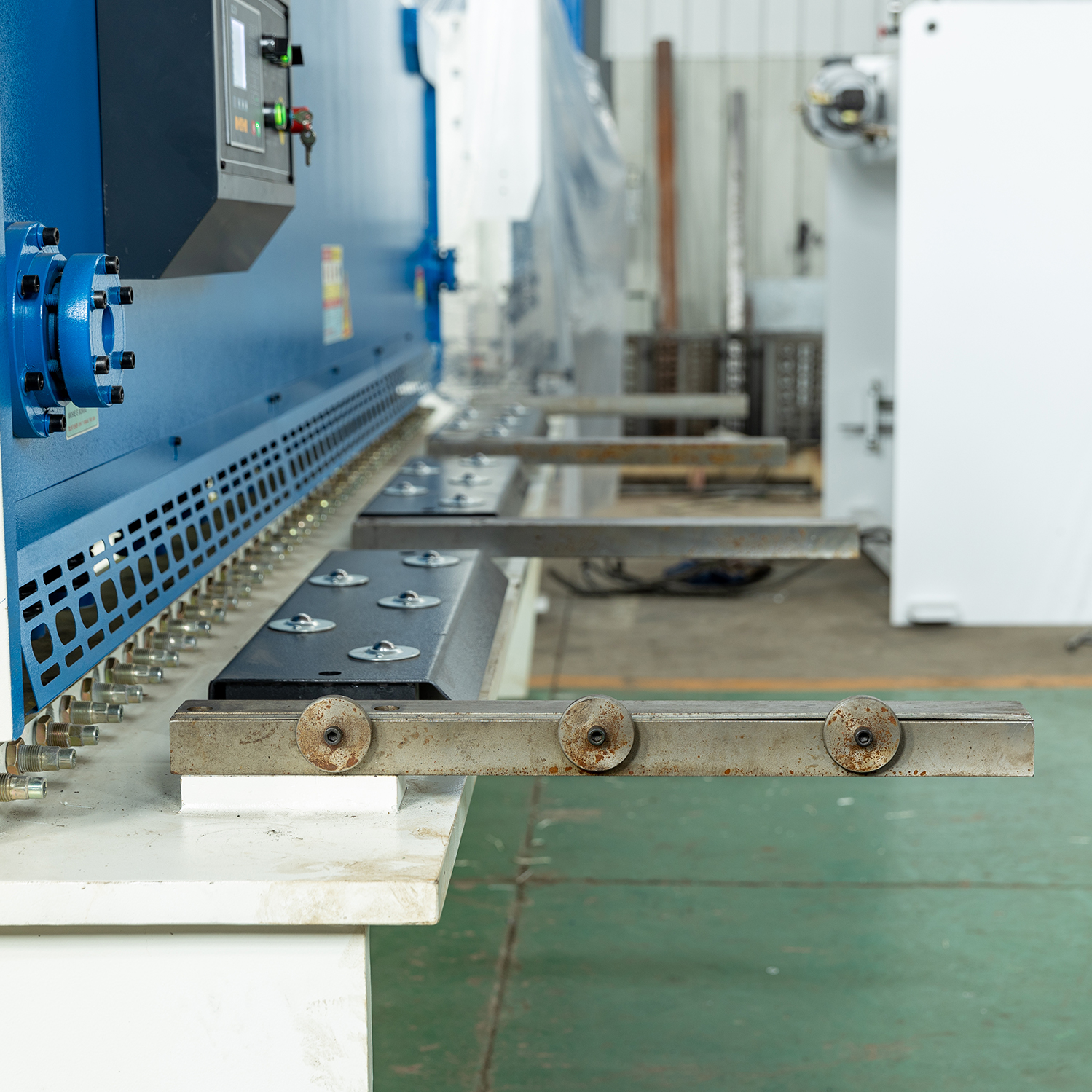

Roller ball is installed on the arm with ruler can reduce the abrasion and feeder the machine easily and accurately.

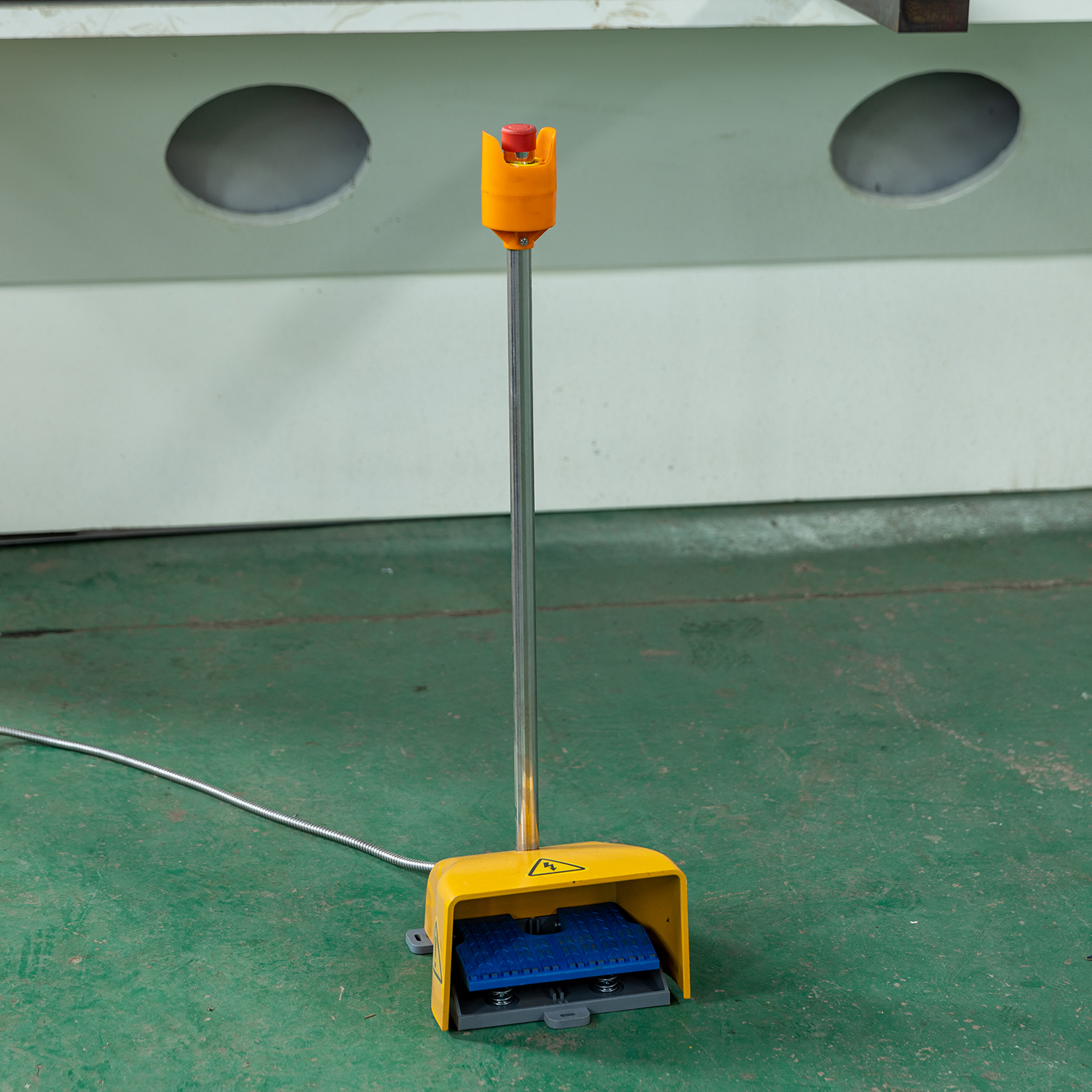

South Korea brand foot switch is movable and can stop the machine anytime by the emergency button

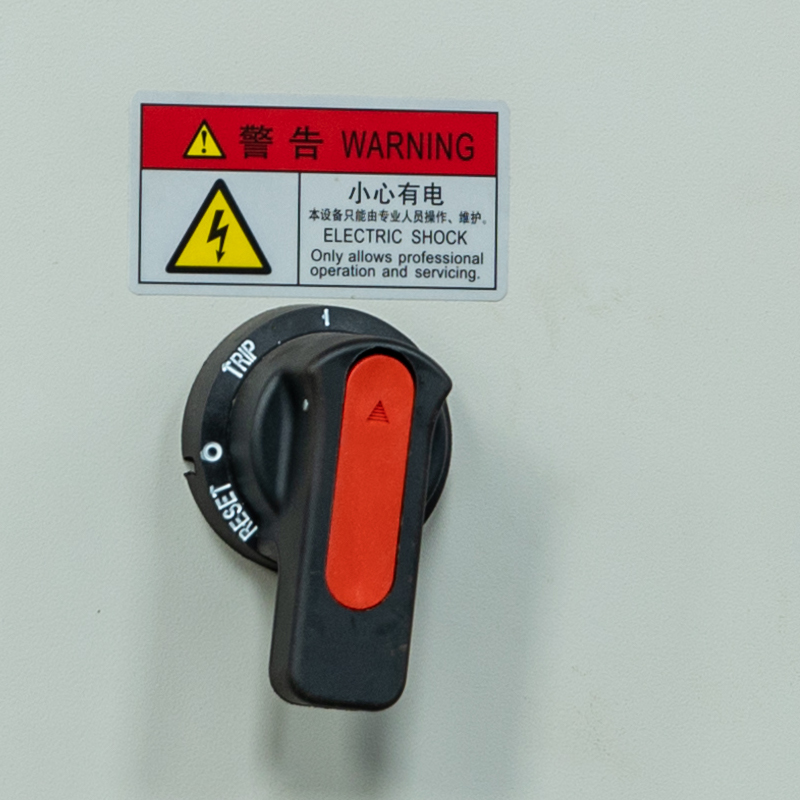

The machine will stop immediately once worker opens the door electric Cabinet.

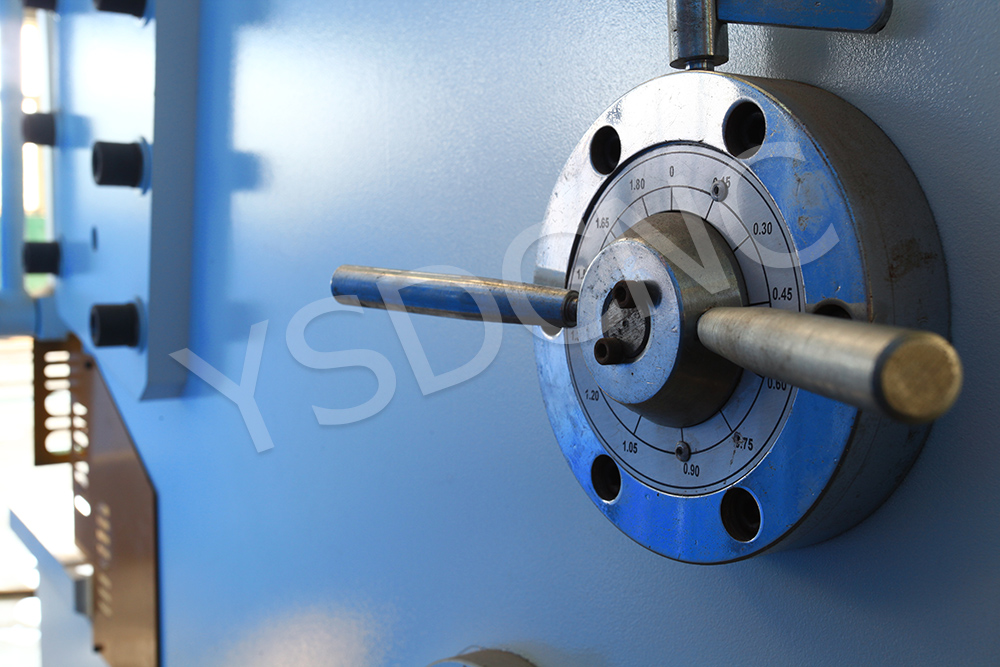

Adjust the cutting blades gap by manual adjustment according the cutting thickness of the metal sheet can get better cutting performance.

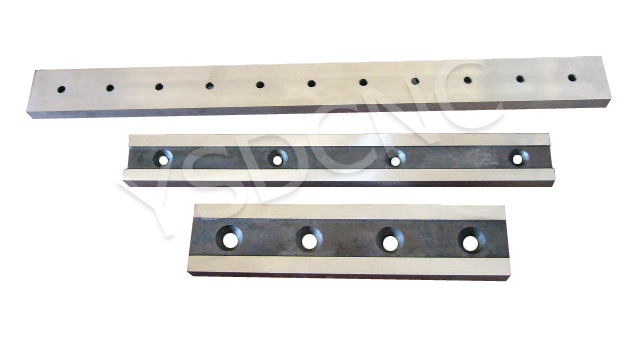

Upper blade with 4 cutting edges, bottom blade with 4 cutting edges.

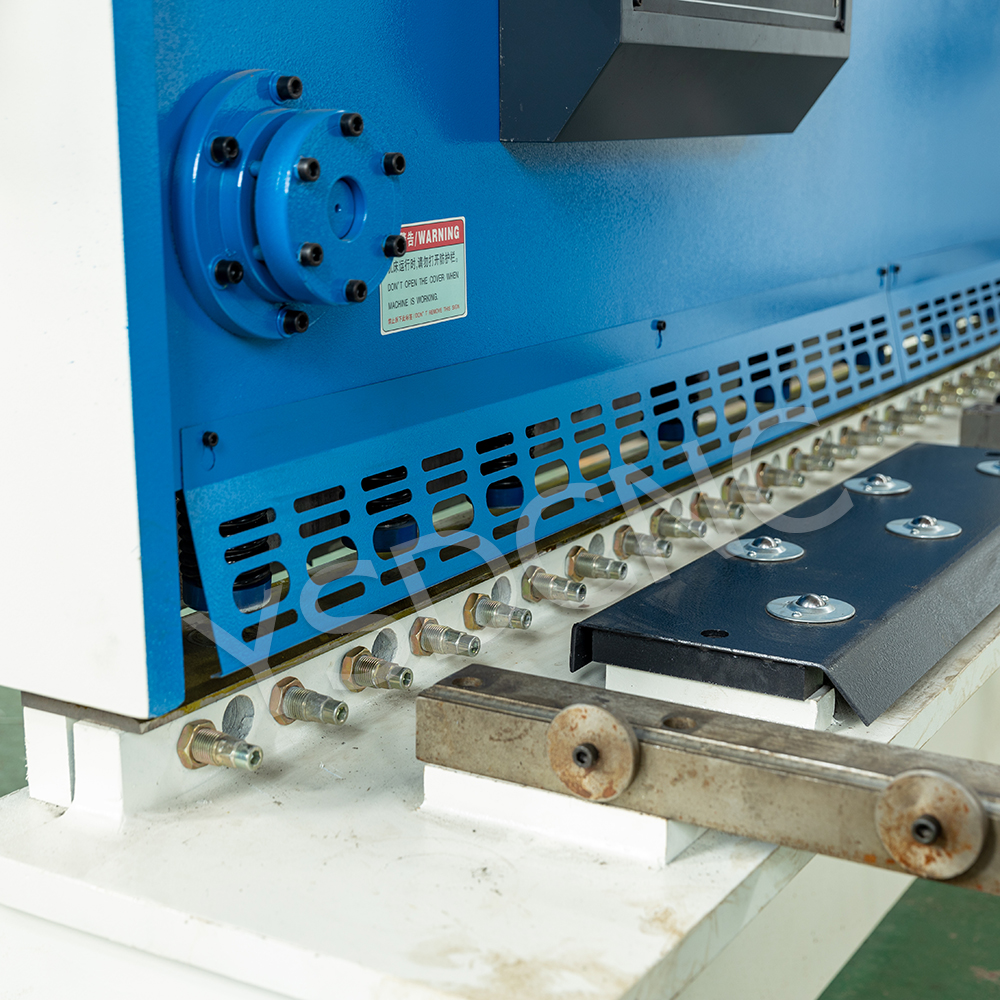

Protective guards on each side can protect the user during operation.
Adjust Backgauge up and down.

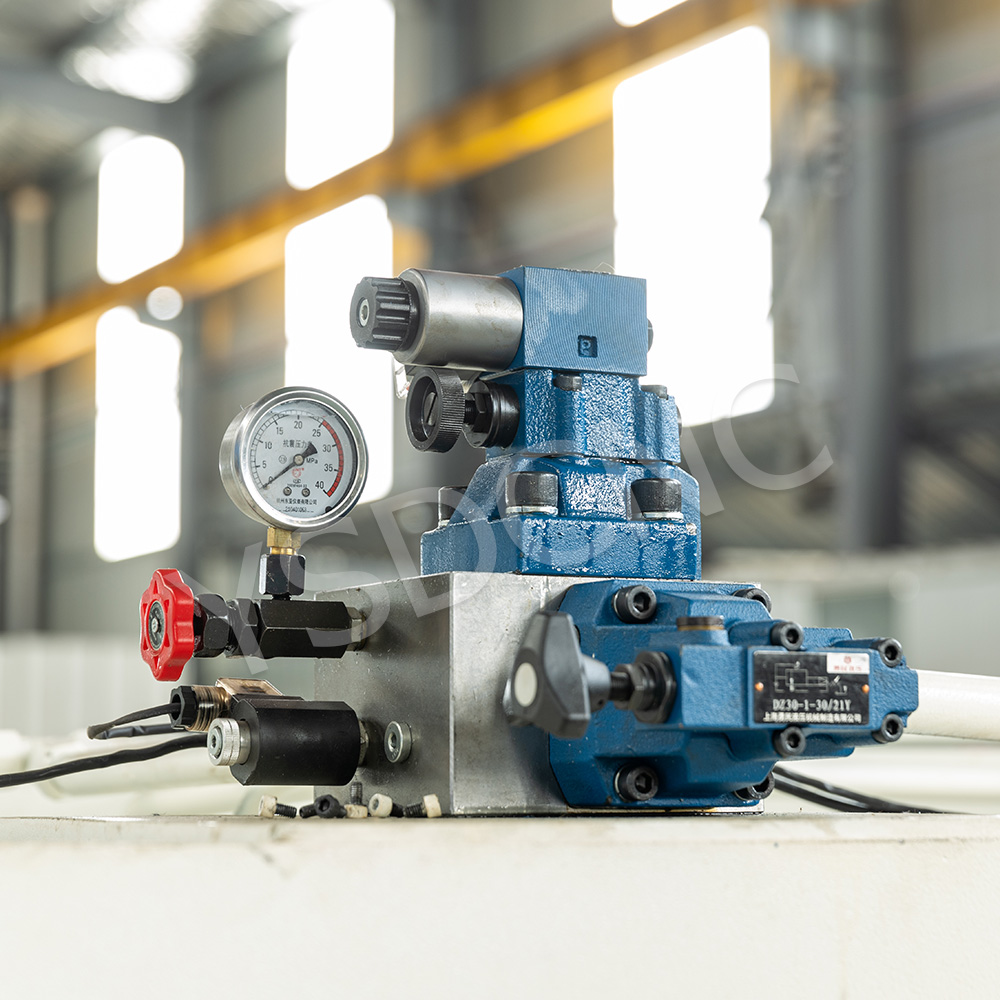

World famous brand REXROTH, Sub-brand of BOSCH, which is the professional hydraulic valve supplier.

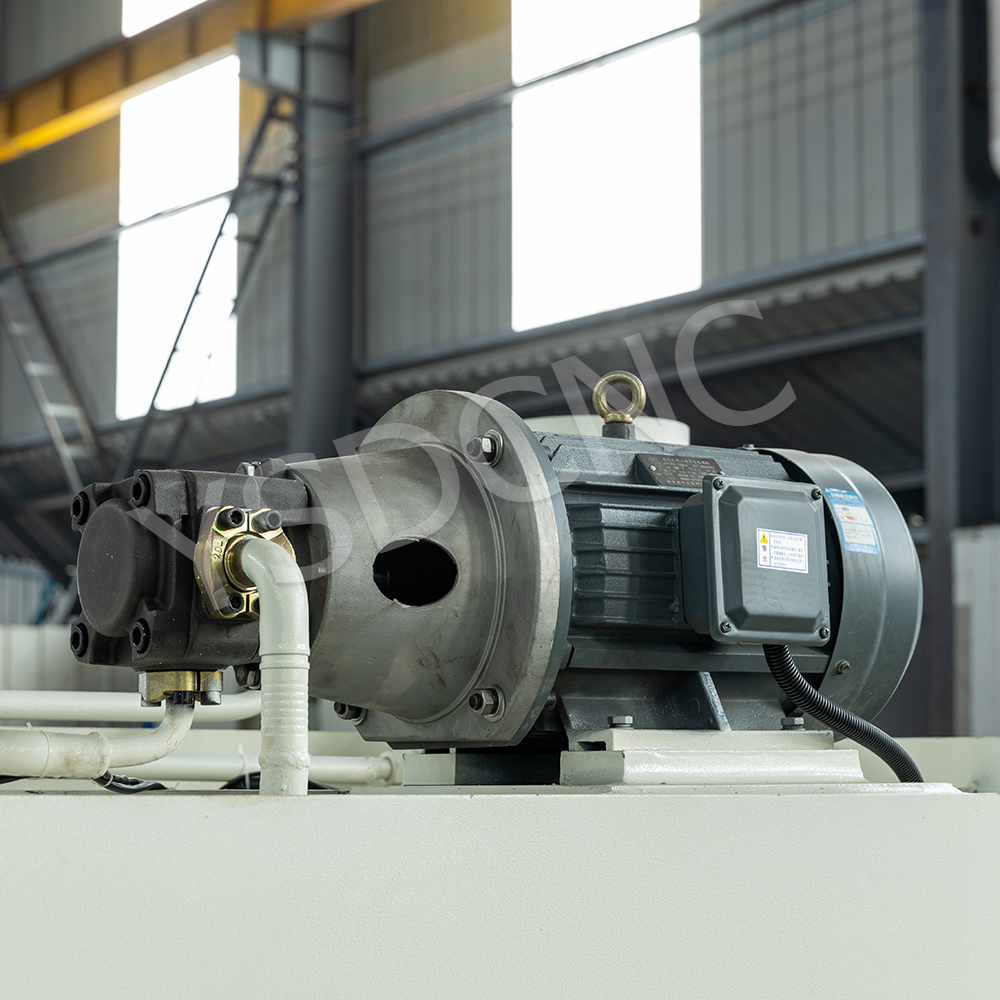

German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment.

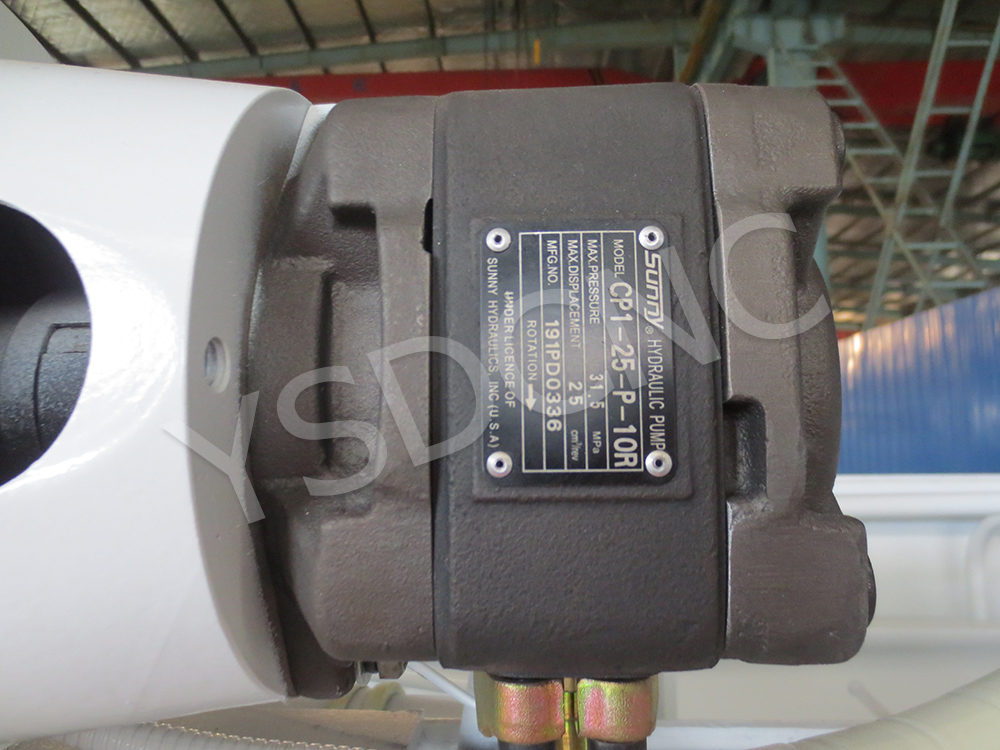

American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system

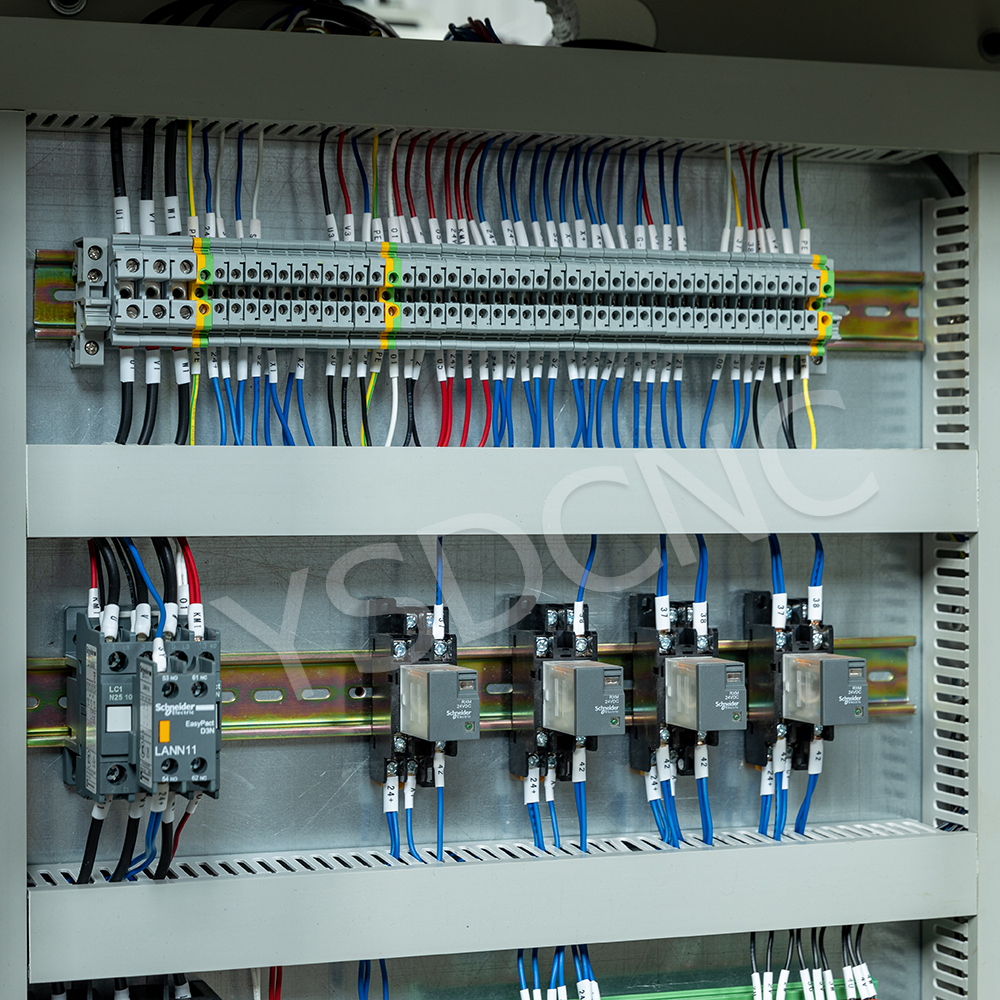

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the world.

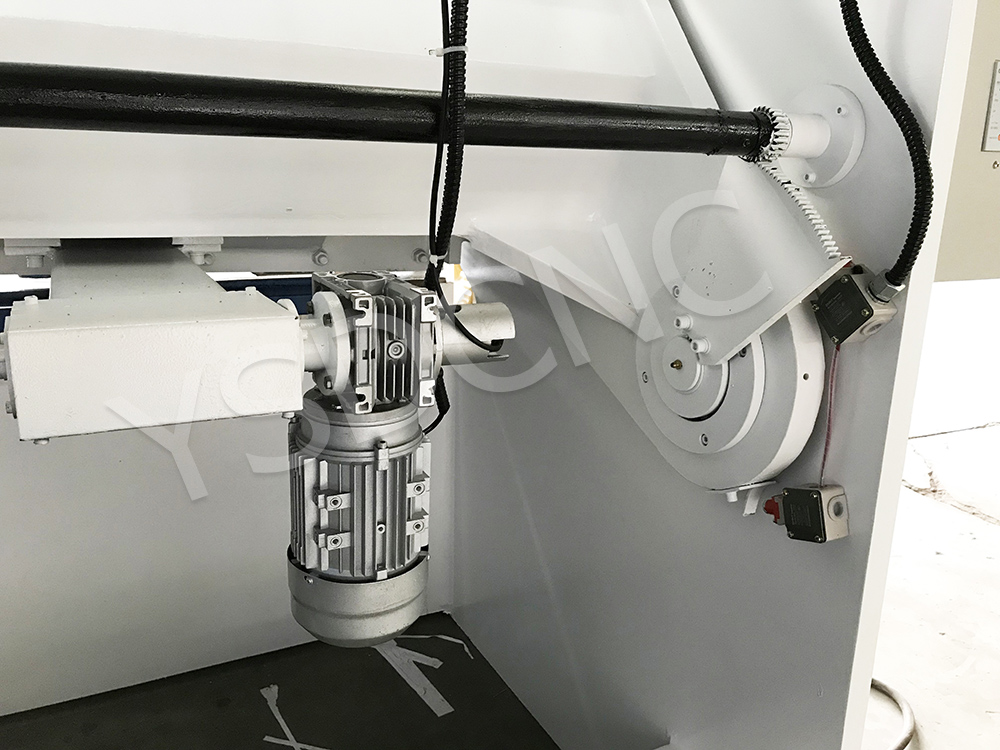

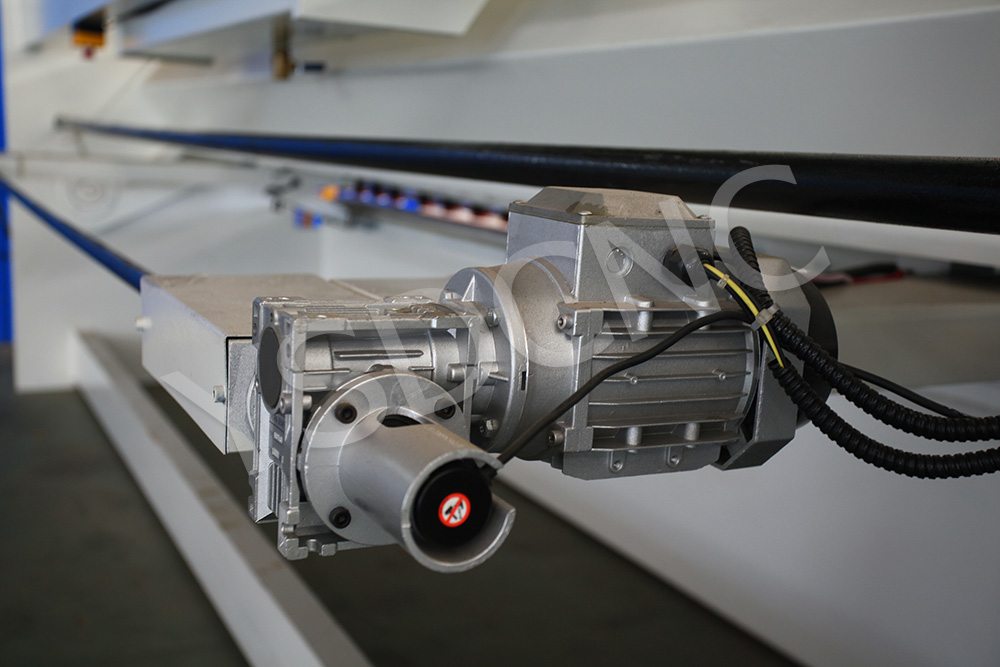

The backgauge motor is step motor.

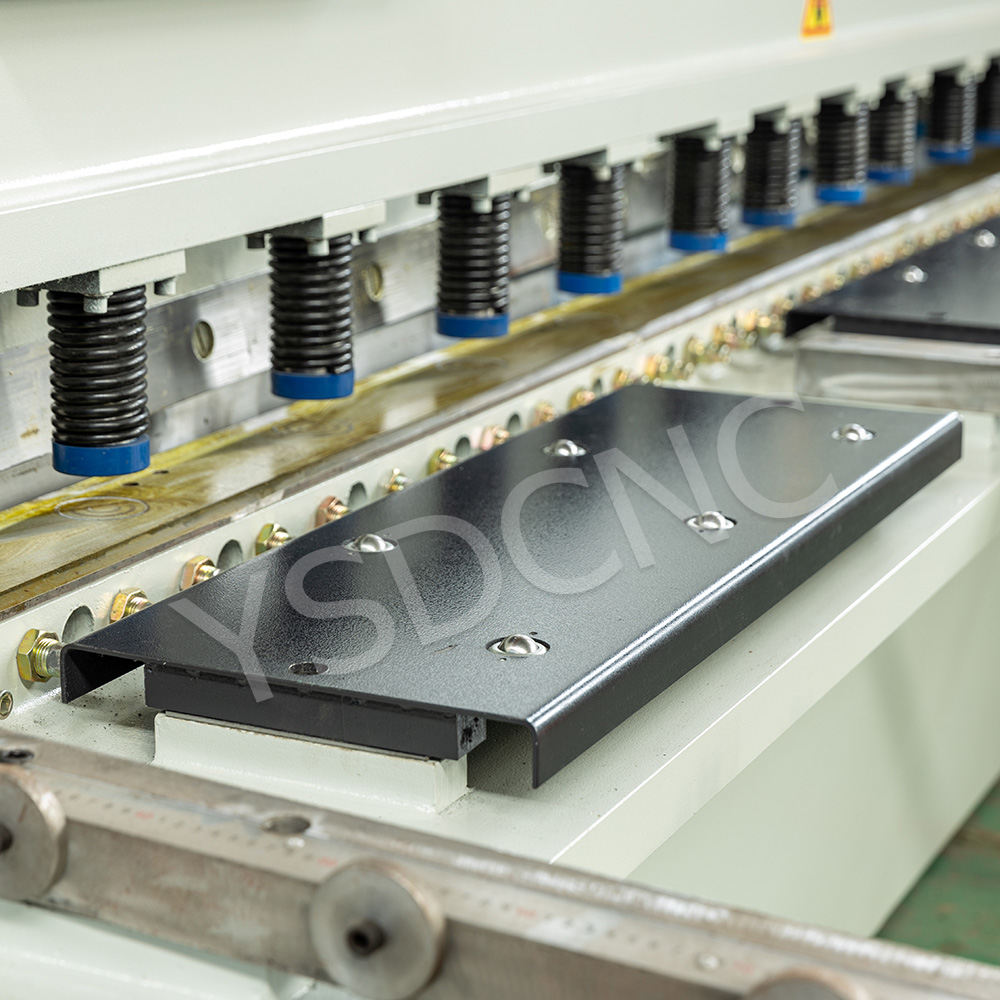

The lower end of the press cylinder is made of non-metal material, which has certain elasticity and large friction coefficient. When cutting the sheet, the press pad can be in close contact with the material plate to provide sufficient friction to effectively prevent the plate from being shaken during the shearing process.

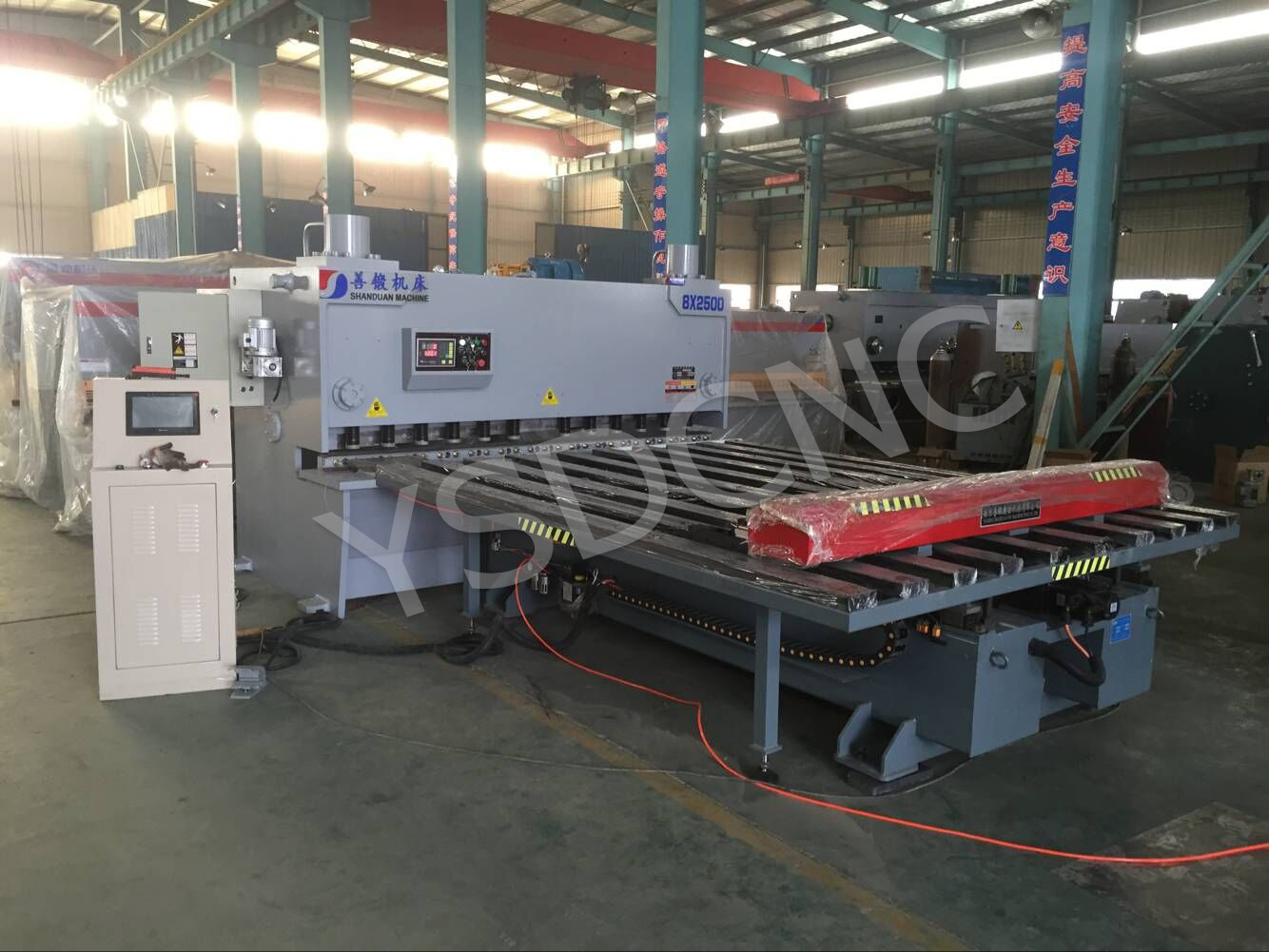

Feeding the metal sheet automatically controlled by CNC controller with high precision and efficiency.
| Type | Max Thickness (mm) | Cutting Length (mm) | Throat Depth (mm) | Shearing Angle | Blade Length (mm) | Shearing Speed (Cuts/min) | Back Gauge Specification | ||
|---|---|---|---|---|---|---|---|---|---|
| <450N/mm² | <700N/mm² | Travel (mm) | Speed (mm/sec) | ||||||
| 4×2500 | 4 | 2.5 | 2500 | 100 | 1°30’ | 2600 | 10~12 | 600 | 180 |
| 4×3200 | 4 | 2.5 | 3200 | 100 | 1°30’ | 3300 | 10~12 | 600 | 180 |
| 4×4000 | 4 | 2.5 | 4000 | 100 | 1°30’ | 4100 | 8~10 | 600 | 180 |
| 4×6000 | 4 | 2.5 | 6000 | 100 | 1°30’ | 6100 | 5~7 | 600 | 180 |
| 6×2500 | 6 | 4 | 2500 | 145 | 1°30’ | 2600 | 10~12 | 600 | 180 |
| 6×3200 | 6 | 4 | 3200 | 145 | 1°30’ | 3300 | 9~11 | 600 | 180 |
| 6×4000 | 6 | 4 | 4000 | 145 | 1°30’ | 4100 | 8~10 | 600 | 180 |
| 6×5000 | 6 | 4 | 5000 | 145 | 1°30’ | 5100 | 6~8 | 600 | 180 |
| 6×6000 | 6 | 4 | 6000 | 145 | 1°30’ | 6100 | 5~7 | 600 | 180 |
| 8×2500 | 8 | 5 | 2500 | 300 | 1°30’ | 2600 | 10~12 | 600 | 180 |
| 8×3200 | 8 | 5 | 3200 | 300 | 1°30’ | 3300 | 8~10 | 600 | 180 |
| 8×4000 | 8 | 5 | 4000 | 300 | 1°30’ | 4100 | 8~10 | 600 | 180 |
| 8×5000 | 8 | 5 | 5000 | 300 | 1°30’ | 5100 | 8~10 | 600 | 180 |
| 8×6000 | 8 | 5 | 6000 | 300 | 1°30’ | 6100 | 8~10 | 600 | 180 |
| 10×2500 | 10 | 6.5 | 2500 | 300 | 1°30’ | 2600 | 9~11 | 600 | 180 |
| 10×3200 | 10 | 6.5 | 3200 | 300 | 1°30’ | 3300 | 9~11 | 600 | 180 |
| 10×4000 | 10 | 6.5 | 4000 | 300 | 1°30’ | 4100 | 8~10 | 600 | 180 |
| 10×6000 | 10 | 6.5 | 6000 | 300 | 2° | 6100 | 5~7 | 600 | 180 |
| 12×2500 | 12 | 8 | 2500 | 300 | 2° | 2600 | 9~11 | 600 | 180 |
| 12×3200 | 12 | 8 | 3200 | 300 | 2° | 3300 | 9~11 | 600 | 180 |
| 12×4000 | 12 | 8 | 4000 | 300 | 2° | 4100 | 8~10 | 600 | 180 |
| 12×5000 | 12 | 8 | 5000 | 300 | 2° | 5100 | 6~8 | 600 | 180 |
| 12×6000 | 12 | 8 | 6000 | 300 | 2° | 6100 | 5~7 | 600 | 180 |
| 12×8000 | 12 | 8 | 8000 | 300 | 2° | 8100 | 5~7 | 600 | 180 |
| 16×2500 | 16 | 10.5 | 2500 | 320 | 3°30’ | 2600 | 9~11 | 600 | 180 |
| 16×3200 | 16 | 10.5 | 3200 | 320 | 3°30’ | 3300 | 8~10 | 600 | 180 |
| 16×4000 | 16 | 10.5 | 4000 | 320 | 3°30’ | 4100 | 8~10 | 600 | 180 |
| 16×5000 | 16 | 10.5 | 5000 | 320 | 3°30’ | 5100 | 6~8 | 800 | 180 |
| 16×6000 | 16 | 10.5 | 6000 | 320 | 3°30’ | 6100 | 5~7 | 800 | 180 |
| 20×2500 | 20 | 13 | 2500 | 320 | 3° | 2600 | 8~10 | 800 | 180 |
| 20×3200 | 20 | 13 | 3200 | 320 | 3° | 3300 | 8~10 | 800 | 180 |
| 20×4000 | 20 | 13 | 4000 | 320 | 3° | 4100 | 5~7 | 1000 | 180 |
| 25×2500 | 25 | 16.5 | 2500 | 320 | 3° | 2600 | 8~10 | 1000 | 180 |
| 25×3200 | 25 | 16.5 | 3200 | 320 | 3° | 3300 | 5~7 | 1000 | 180 |
| 25×4000 | 25 | 16.5 | 4000 | 320 | 3° | 4100 | 5~7 | 1000 | 180 |
| 30×2500 | 30 | 20 | 2500 | 320 | 3° | 2600 | 5~7 | 1000 | 180 |
| 30×3200 | 30 | 20 | 3200 | 320 | 3° | 3300 | 5~7 | 1000 | 180 |
| Type | Front Holder Quantity | Motor Power (kw) | Oil Tank Capacity (L) | Weight (kg) | L*w*h (mm) | |
|---|---|---|---|---|---|---|
| Number (Pcs) | Length (mm) | |||||
| 4×2500 | 3 | 800 | 5.5 | 220 | 3600 | 3040*1610*1620 |
| 4×3200 | 3 | 800 | 5.5 | 290 | 5000 | 3840*1610*1620 |
| 4×4000 | 4 | 800 | 5.5 | 290 | 6500 | 6460*2100*3200 |
| 4×6000 | 6 | 800 | 11 | 380 | 11000 | 6460*2100*3200 |
| 6×2500 | 3 | 800 | 7.5 | 220 | 5000 | 3040*1610*1620 |
| 6×3200 | 3 | 800 | 7.5 | 290 | 6000 | 3840*1610*1620 |
| 6×4000 | 4 | 800 | 7.5 | 290 | 8000 | 4620*1750*1700 |
| 6×5000 | 5 | 800 | 7.5 | 380 | 10500 | 5400*1750*1700 |
| 6×6000 | 6 | 800 | 11 | 380 | 16500 | 6480*2100*2300 |
| 8×2500 | 3 | 800 | 7.5 | 220 | 6000 | 3040*1700*1700 |
| 8×3200 | 3 | 800 | 7.5 | 290 | 7200 | 3860*1700*1700 |
| 8×4000 | 4 | 800 | 7.5 | 290 | 8800 | 4640*1700*1700 |
| 8×5000 | 5 | 800 | 7.5 | 380 | 11500 | 5400*2400*2000 |
| 8×6000 | 6 | 800 | 11 | 380 | 18000 | 6480*2100*2350 |
| 10×2500 | 3 | 800 | 11 | 320 | 7300 | 3040*1700*1700 |
| 10×3200 | 3 | 800 | 11 | 420 | 8000 | 3860*1700*1700 |
| 10×4000 | 4 | 800 | 11 | 420 | 12000 | 4650*2100*2000 |
| 10×6000 | 6 | 800 | 15 | 520 | 24000 | 6500*2100*2300 |
| 12×2500 | 3 | 800 | 18.5 | 360 | 9000 | 3140*2150*2000 |
| 12×3200 | 3 | 800 | 18.5 | 500 | 10800 | 3880*2150*2000 |
| 12×4000 | 4 | 800 | 18.5 | 500 | 13000 | 4680*2150*2000 |
| 12×5000 | 5 | 800 | 18.5 | 520 | 16000 | 5900*2150*2000 |
| 12×6000 | 6 | 800 | 18.5 | 600 | 29000 | 6900*2600*2700 |
| 12×8000 | 8 | 800 | 18.5 | 620 | 46500 | 9000*3500*3500 |
| 16×2500 | 3 | 800 | 18.5 | 360 | 11000 | 3140*2150*2000 |
| 16×3200 | 3 | 800 | 18.5 | 500 | 13000 | 3880*2150*2000 |
| 16×4000 | 4 | 800 | 18.5 | 500 | 16300 | 4650*2150*2200 |
| 16×5000 | 5 | 800 | 18.5 | 520 | 20000 | 5900*2600*2700 |
| 16×6000 | 6 | 800 | 22 | 550 | 36000 | 6900*2700*2700 |
| 20×2500 | 3 | 800 | 22 | 540 | 15500 | 3440*2300*2500 |
| 20×3200 | 3 | 800 | 22 | 800 | 18000 | 4150*2350*2700 |
| 20×4000 | 4 | 800 | 22 | 800 | 21000 | 4850*2350*2700 |
| 25×2500 | 3 | 800 | 37 | 800 | 19000 | 3200*2700*2900 |
| 25×3200 | 3 | 800 | 37 | 800 | 23000 | 4200*2700*2900 |
| 25×4000 | 4 | 800 | 37 | 800 | 27000 | 3850*2700*2900 |
| 30×2500 | 3 | 800 | 37 | 800 | 23500 | 3300*2900*2900 |
| 30×3200 | 3 | 800 | 37 | 800 | 27500 | 4200*2900*2900 |
We are a 7-year member of Alibaba, and we support third-party guarantee transactions of Alibaba credit insurance transactions, which can better protect your financial security.

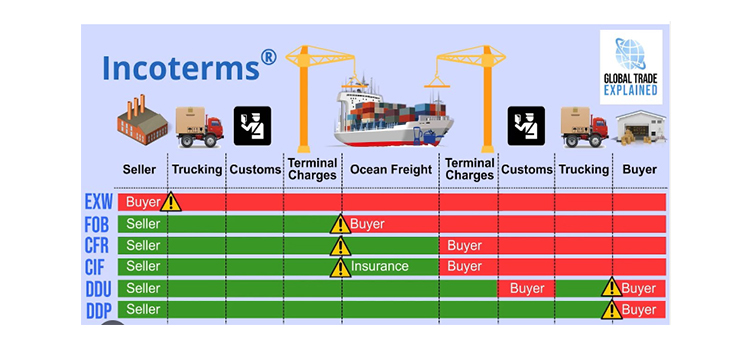

The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other transaction methods support customs declaration, export, transportation and delivery to the door and other one-stop services.
