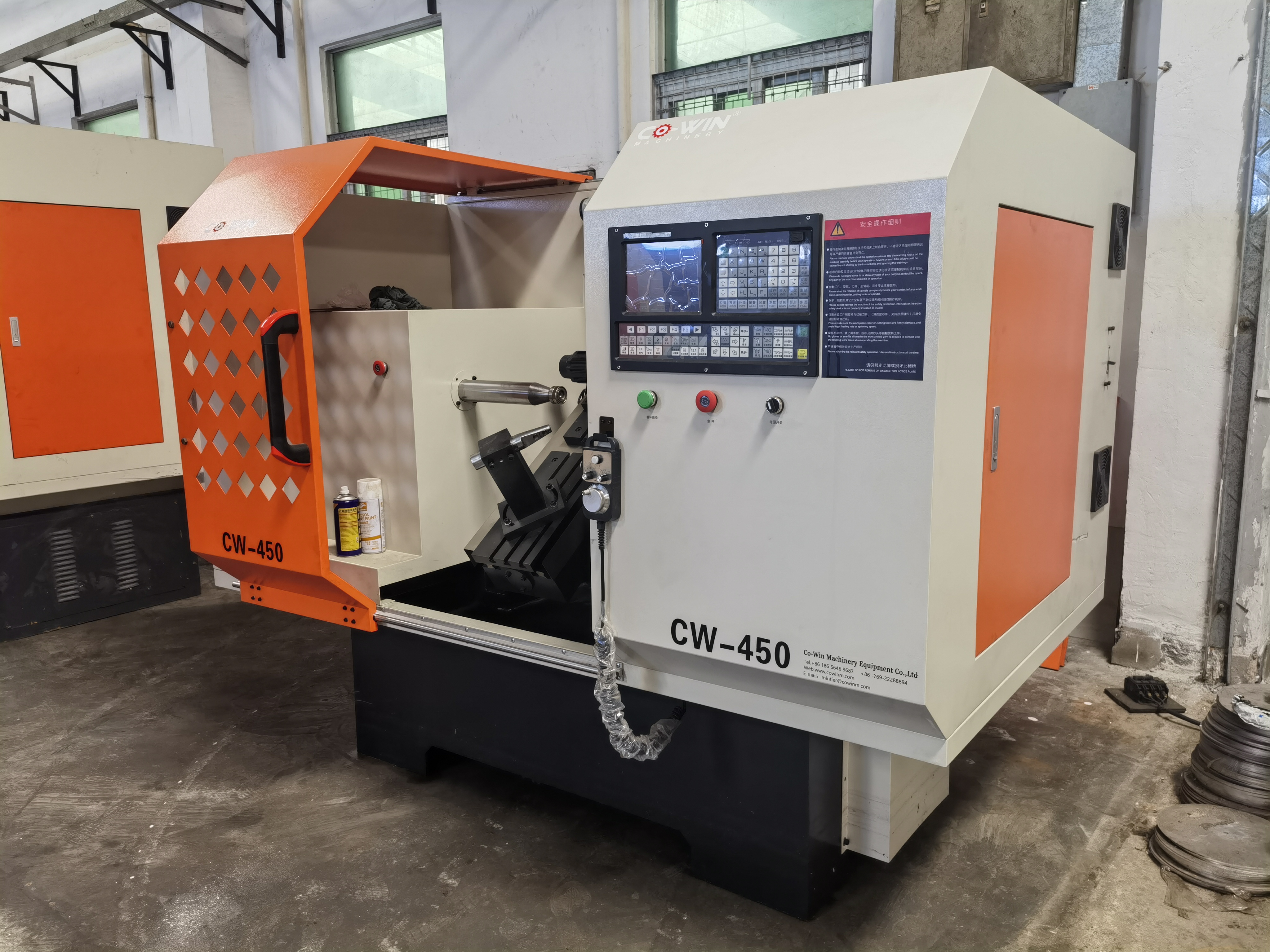

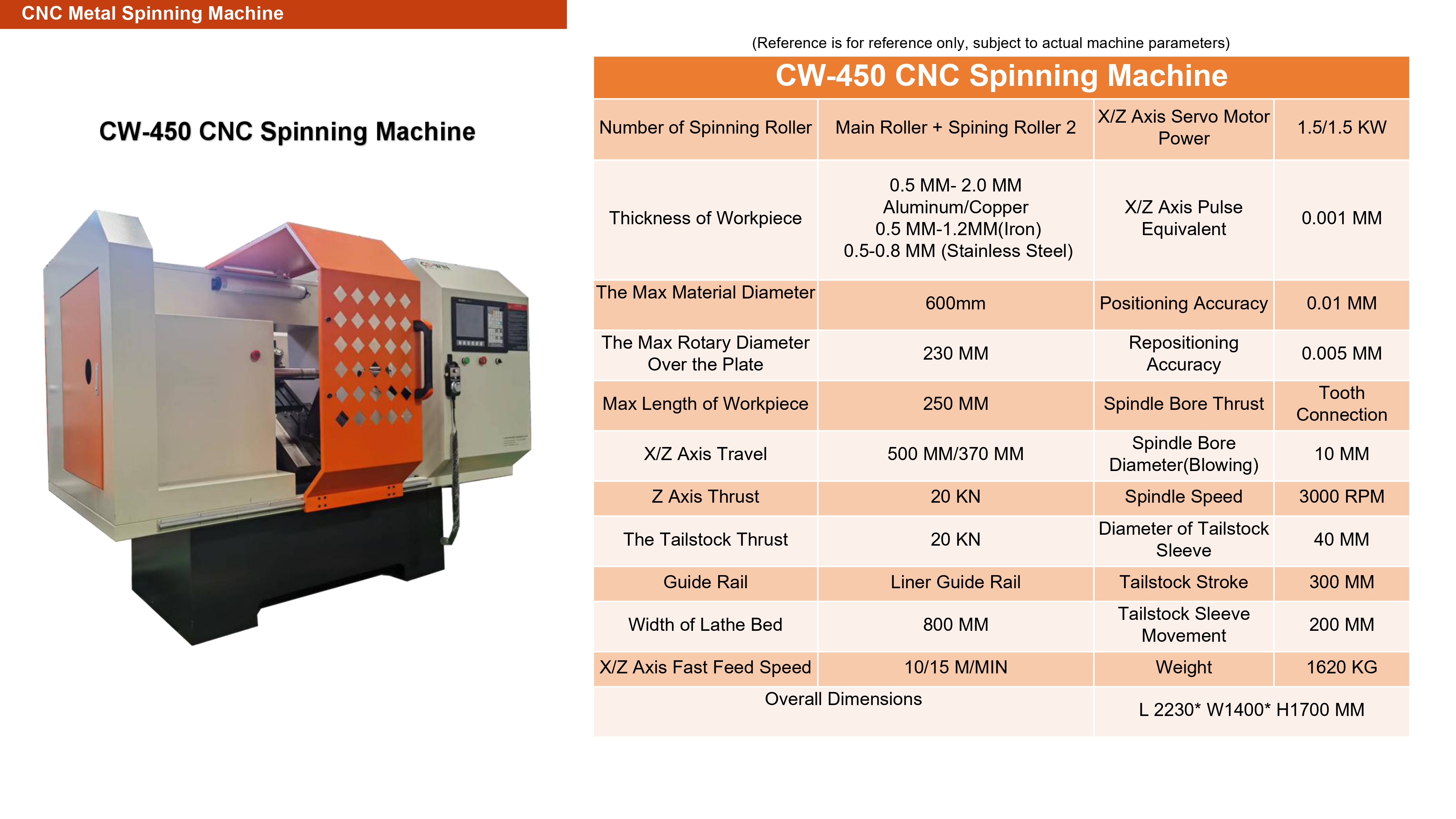

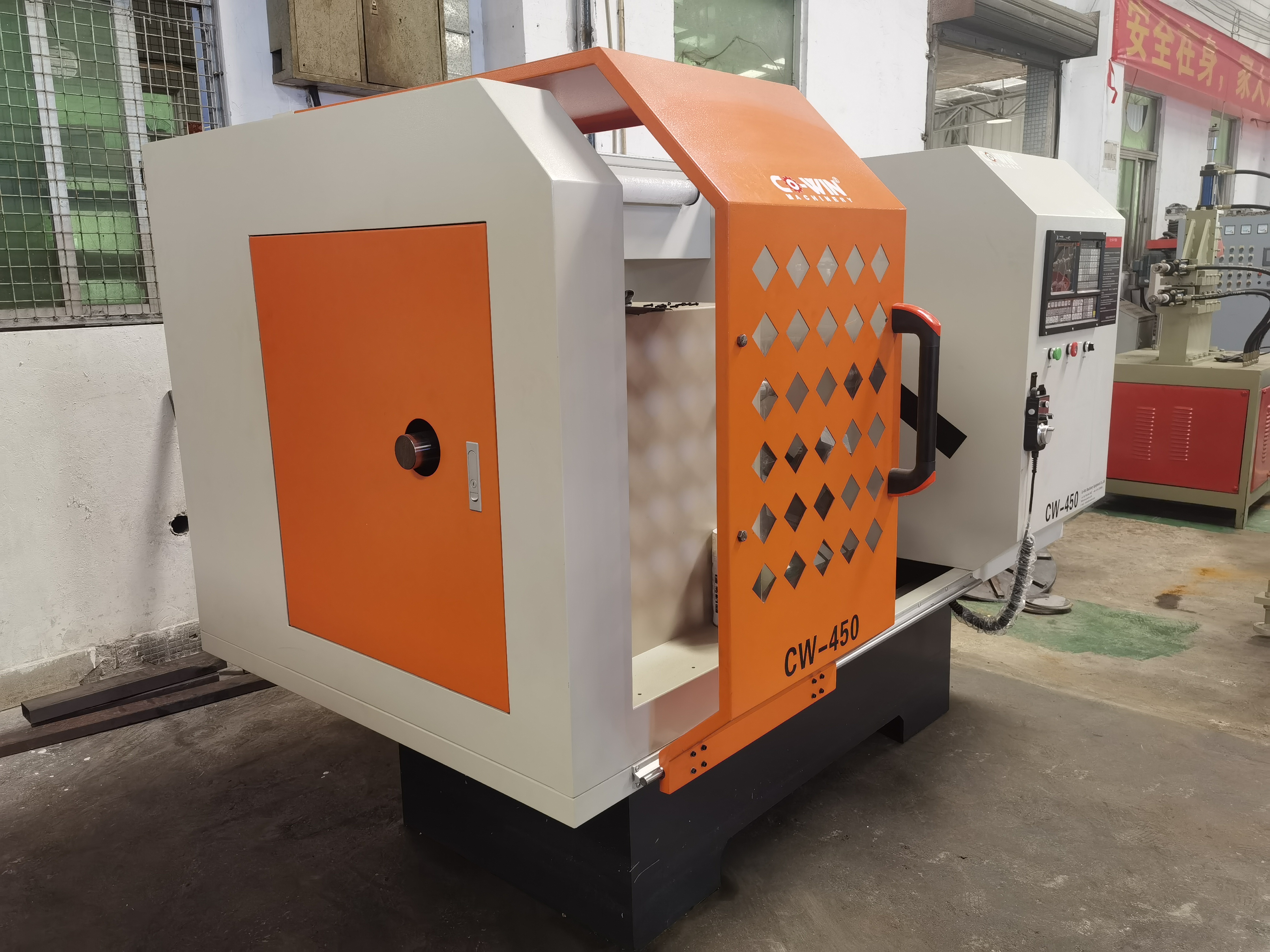

| CW-450 CNC Spinning Machine | |||
| Number of Spinning Roller | Main Roller + Spining Roller 2 | X/Z Axis Servo Motor Power | 1.5/1.5 KW |
| Thickness of Workpiece | 0.5 MM- 2.0 MM Aluminum/Copper 0.5 MM-1.2MM(Iron) 0.5-0.8 MM (Stainless Steel) |
X/Z Axis Pulse Equivalent | 0.001 MM |
| The Max Material Diameter | 600mm | Positioning Accuracy | 0.01 MM |
| Max Rotary Diameter Over Plate | 230 MM | Repositioning Accuracy | 0.005 MM |
| Max Length of Workpiece | 250 MM | Spindle Bore Thrust | Tooth Connection |
| X/Z Axis Travel | 500 MM/370 MM | Spindle Bore Diameter | 10 MM |
| Z Axis Thrust | 20 KN | Spindle Speed | 3000 RPM |
| The Tailstock Thrust | 20 KN | Diameter of Tailstock Sleeve | 40 MM |
| Guide Rail | Liner Guide Rail | Tailstock Stroke | 300 MM |
| Width of Lathe Bed | 800 MM | Tailstock Sleeve Movement | 200 MM |
| X/Z Axis Fast Feed Speed | 10/15 M/MIN | Weight | 1620 KG |
| Overall Dimensions | L 2230* W1400* H1700 MM | ||
Standard wooden case packing

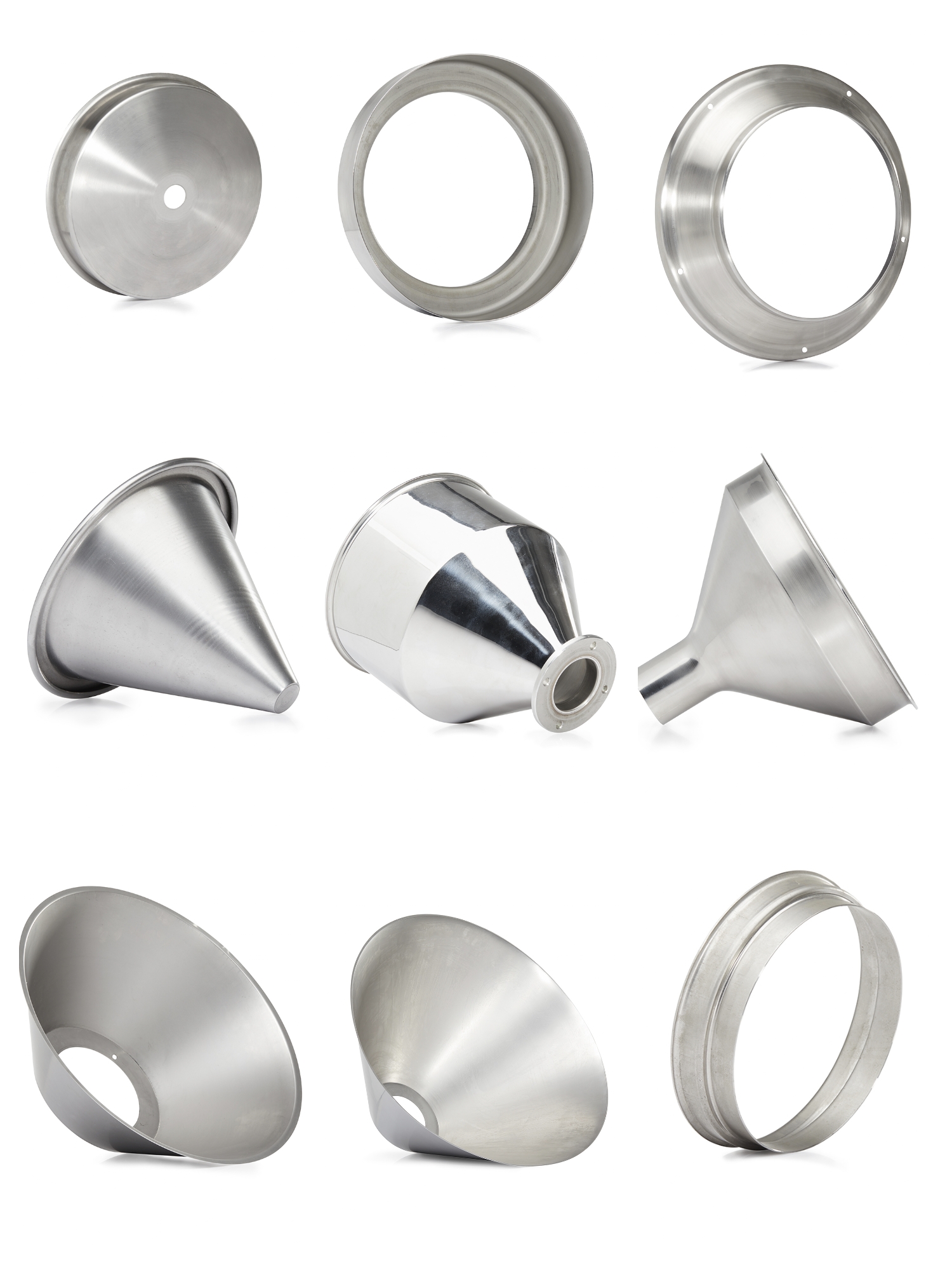

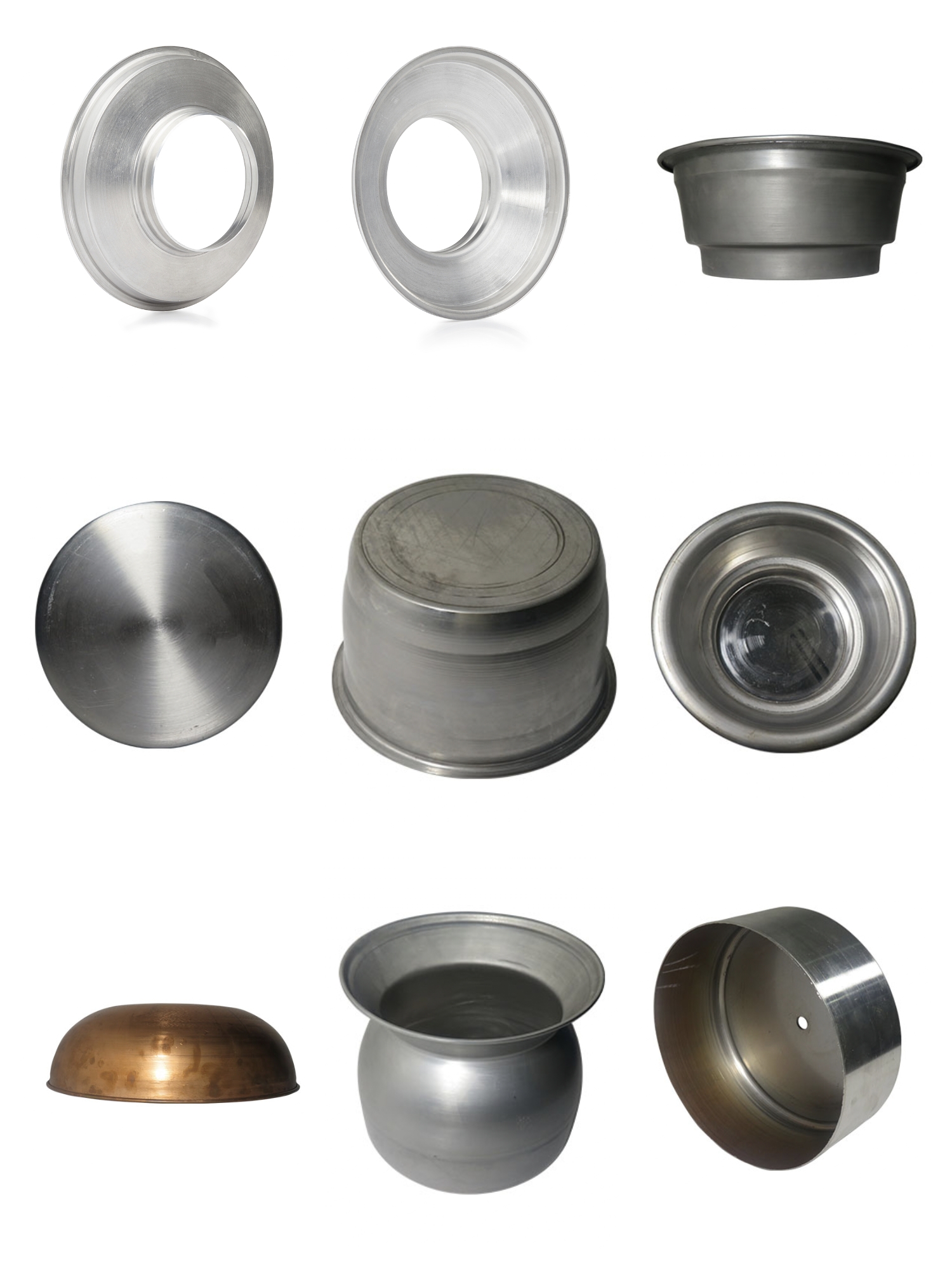

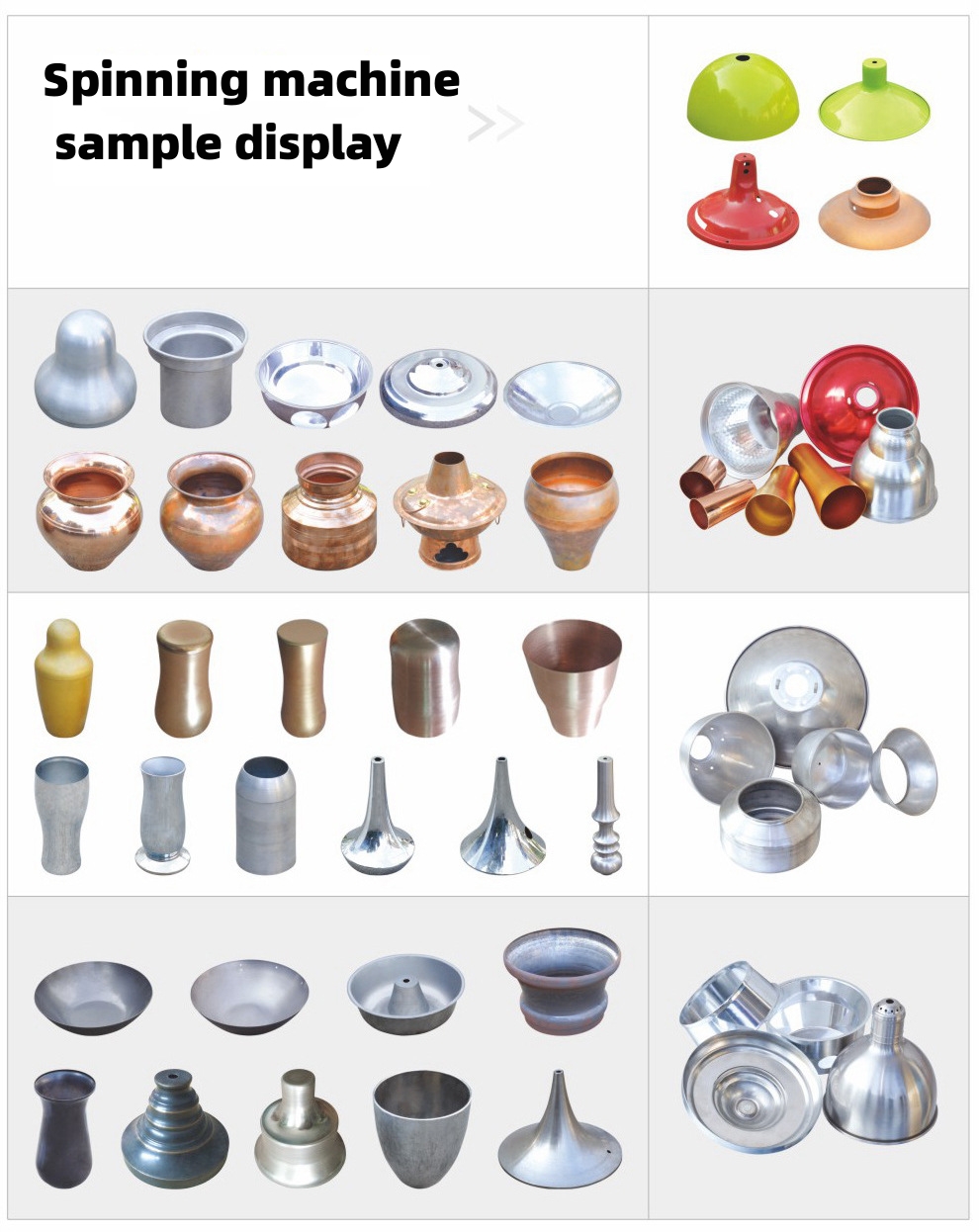

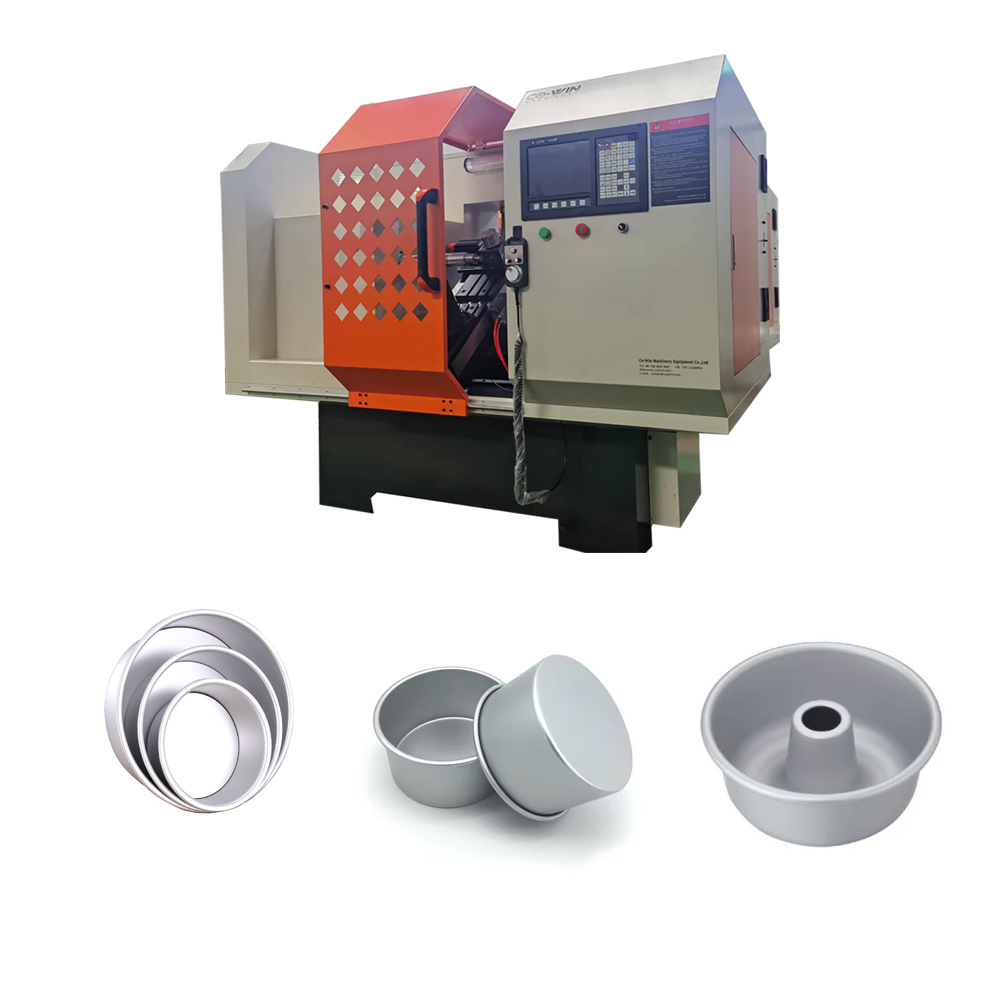

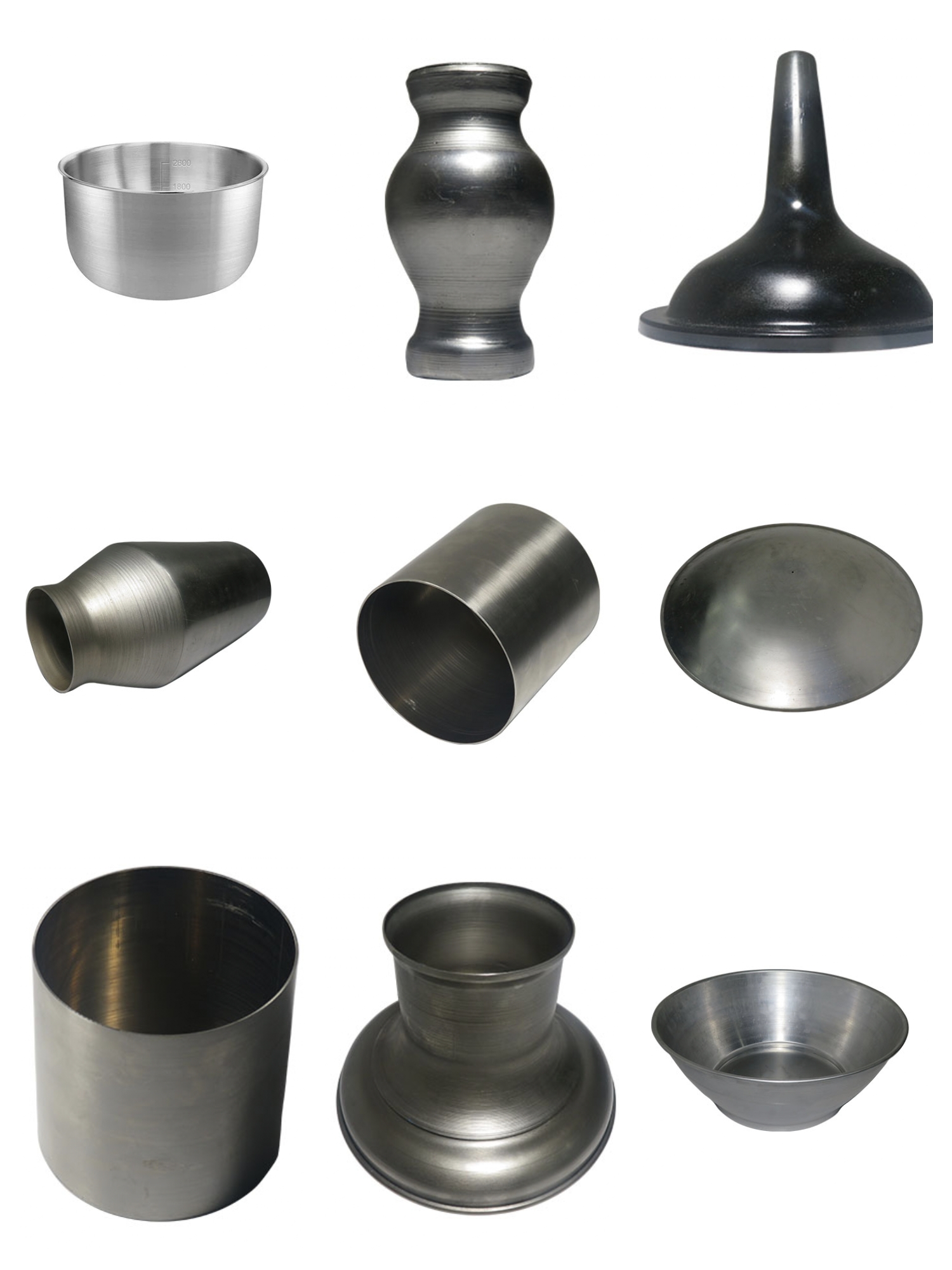

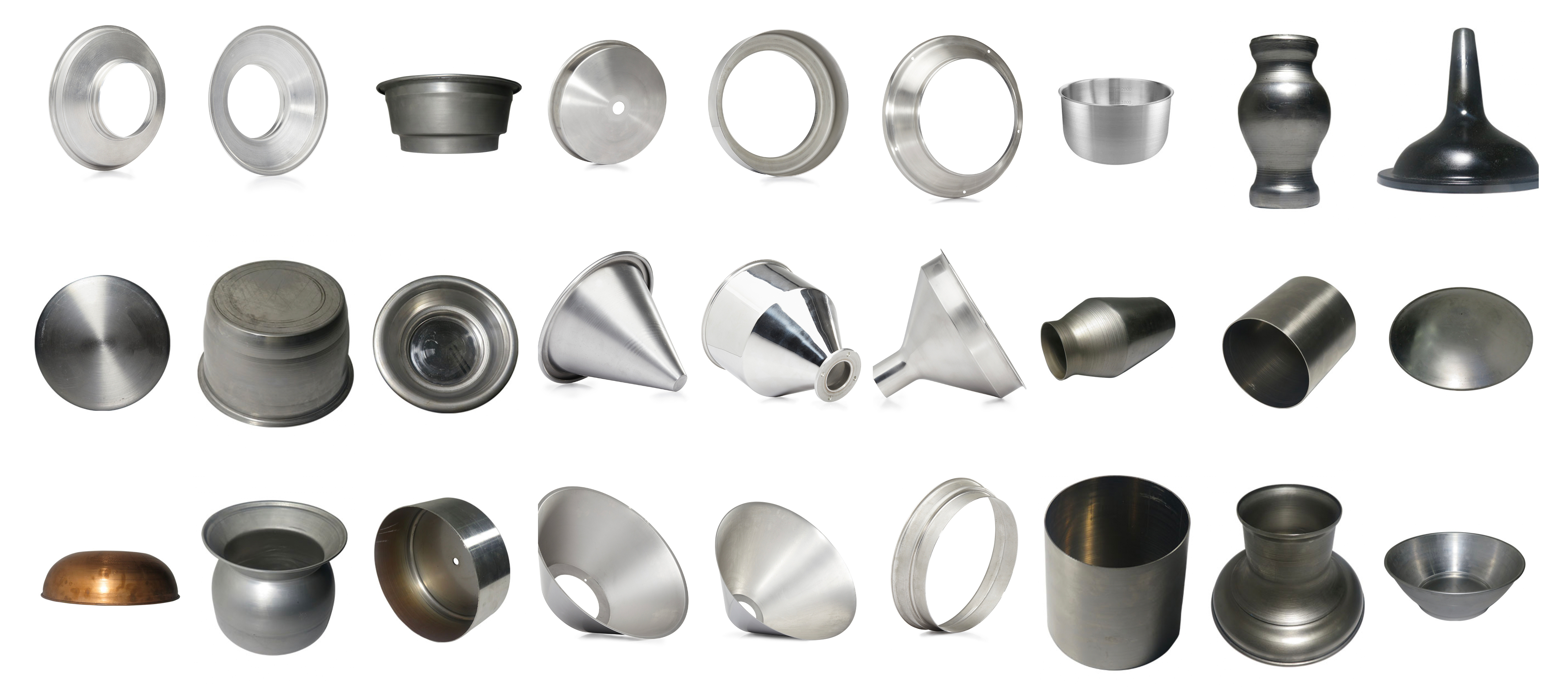

A professional company dedicated to the production and solutions of metal products. We have rich experience and advanced equipment to provide customers with customized production equipment for various metal products, such as metal pots, bowls, pans, frying pans, baking sheets, dinner plates, auto parts, air ducts and a series of metal products.
Our advantage:
Comprehensive solution: Provide a complete production line solution, covering a series of production processes from hydraulic press die-casting, metal CNC spinning machine spinning, rotary cutting, trimming, deburring, curling, etc.

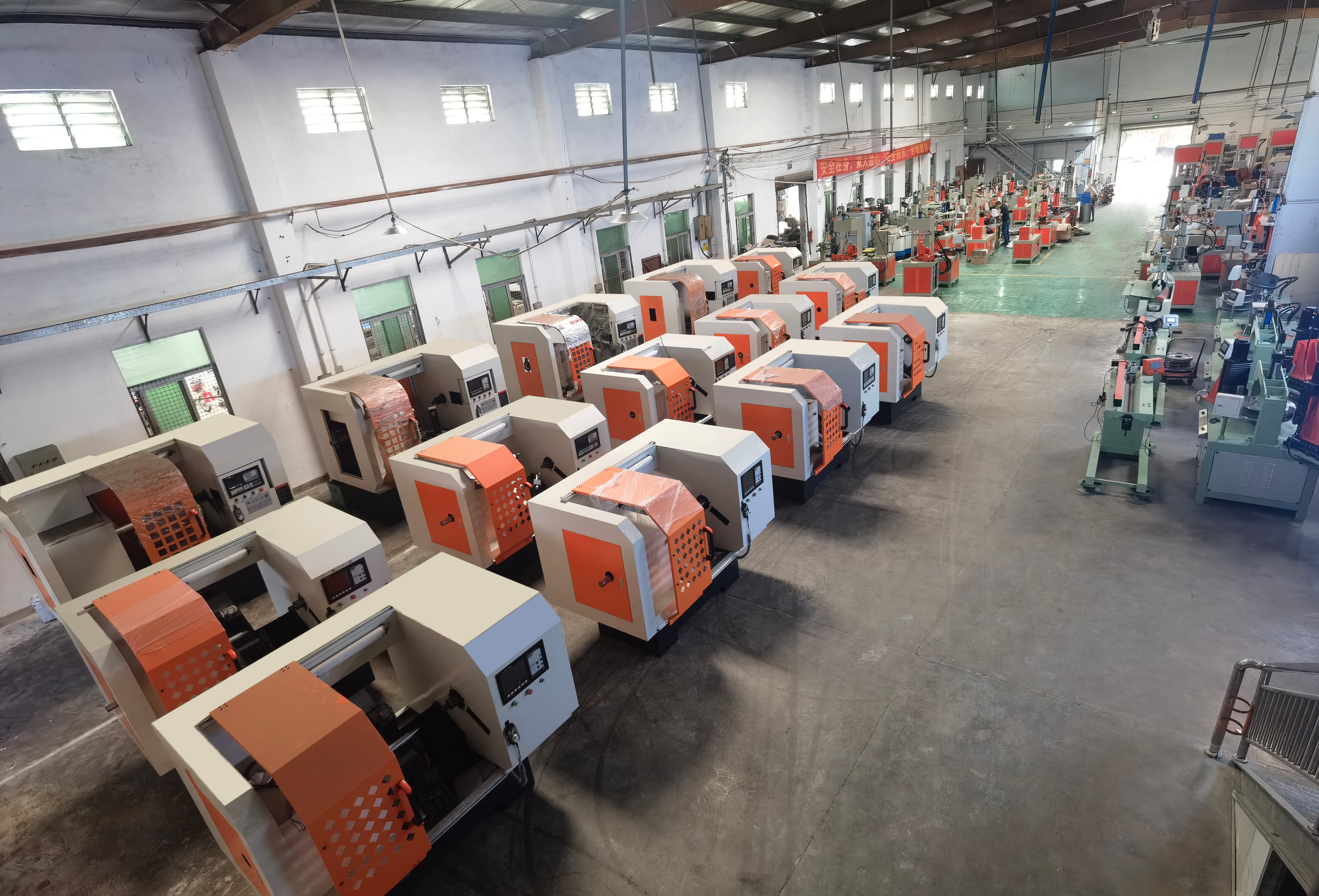

Advanced equipment: We have introduced the most advanced production equipment such as hydraulic presses and CNC spinning machines to ensure production efficiency and product quality while reducing costs.
Technical Team: Highly skilled team with rich experience and expertise, providing unique insights and problem-solving abilities in the field of metal processing.
Quality Assurance: Strict control over every aspect of the production process to ensure products reach the highest standards.
