Axial Fan Automated Assembly Line High-Speed Robotic Production System for Industrial & HVAC Cooling Fans

Send Inquiry

Product Description

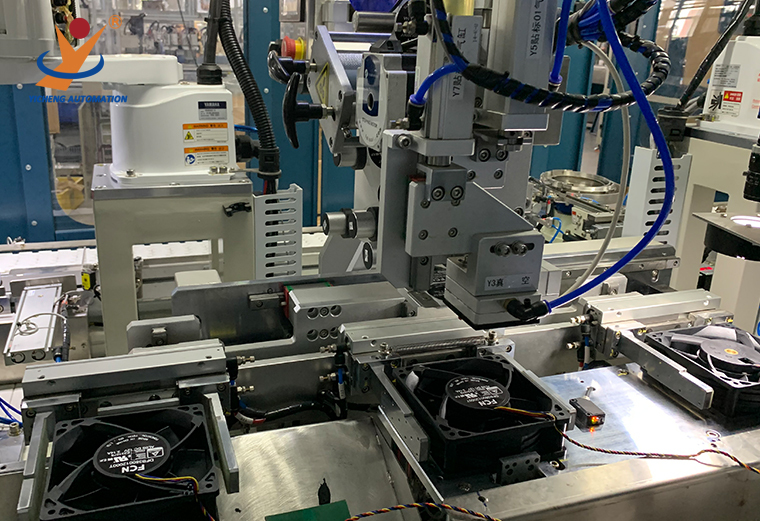

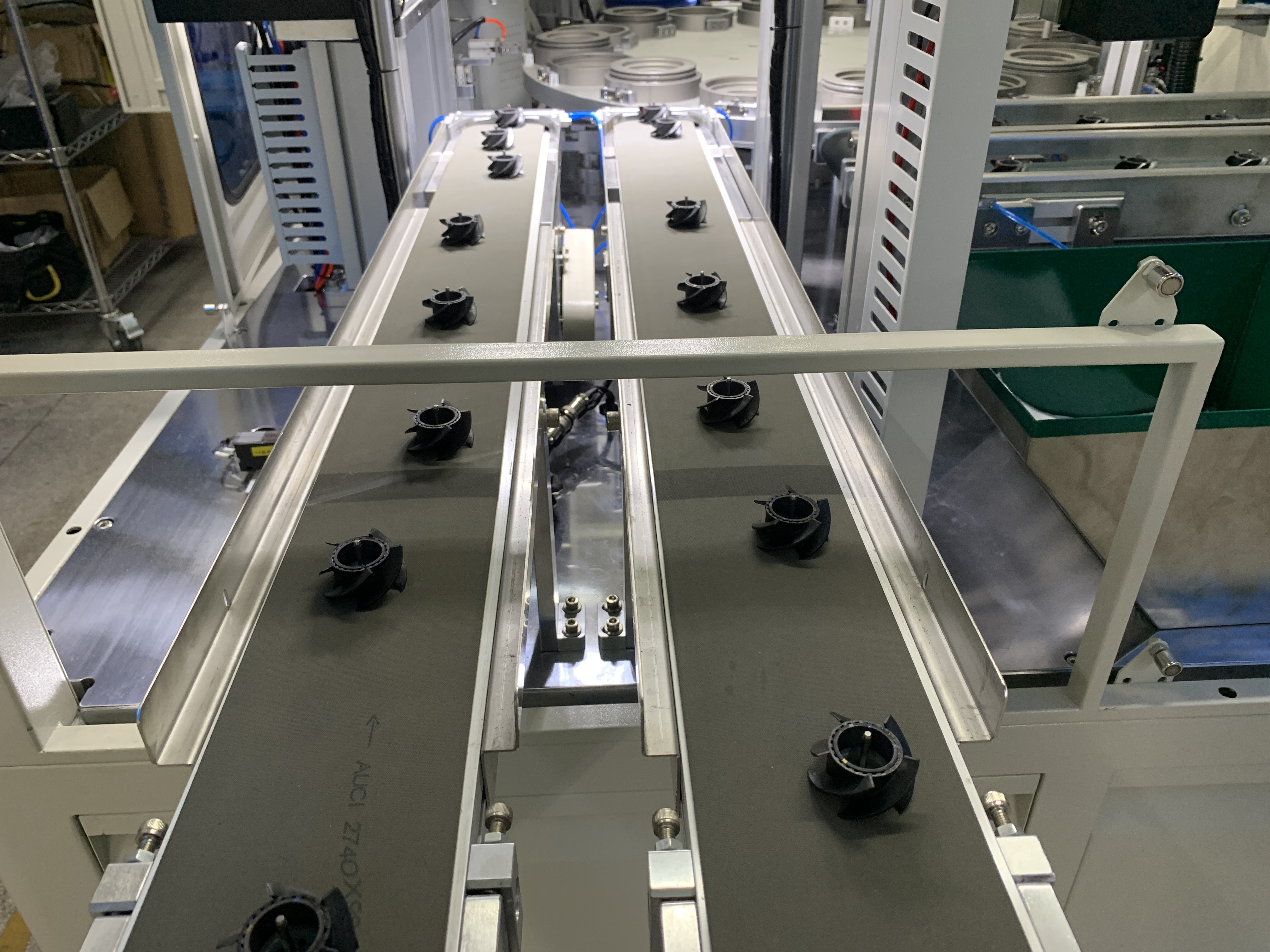

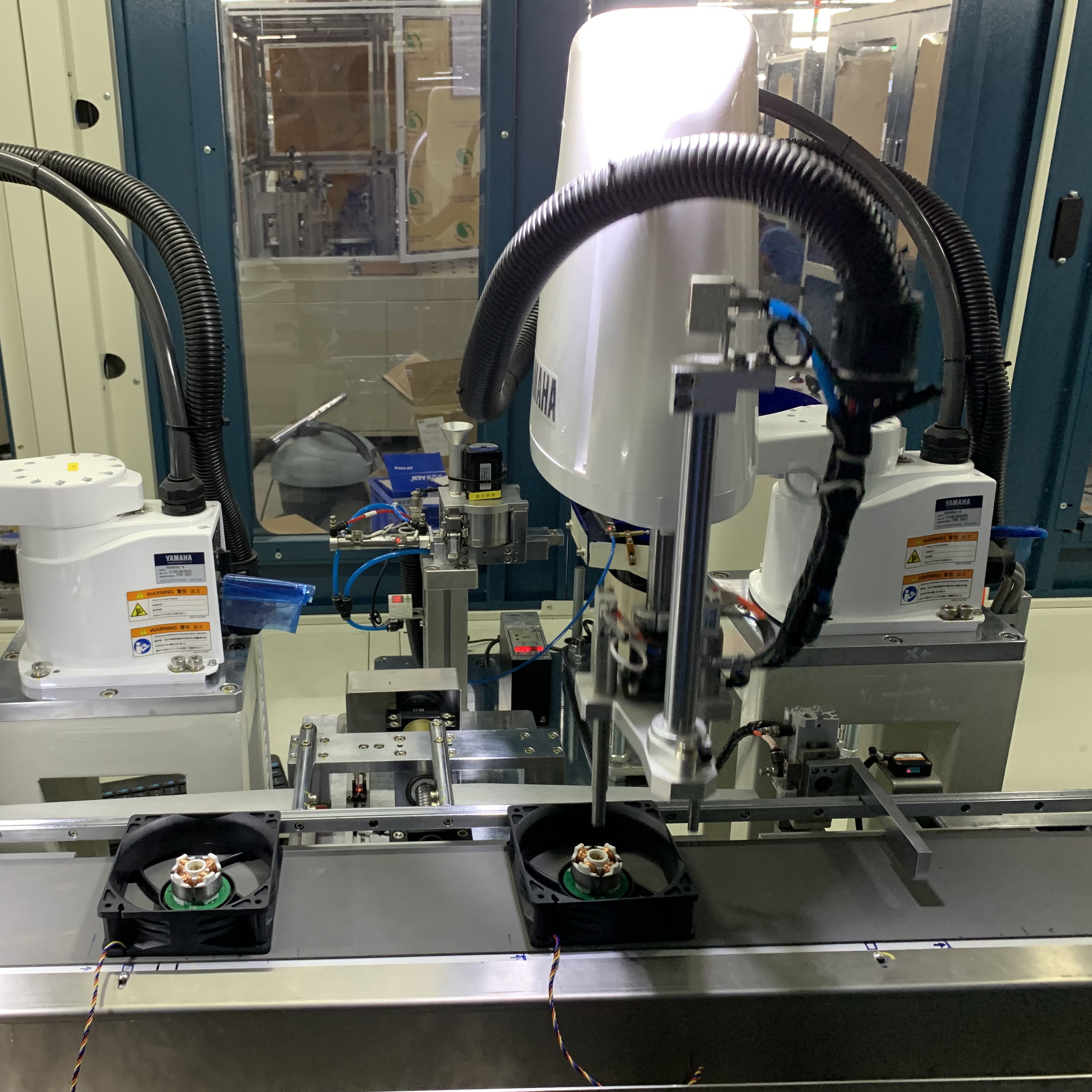

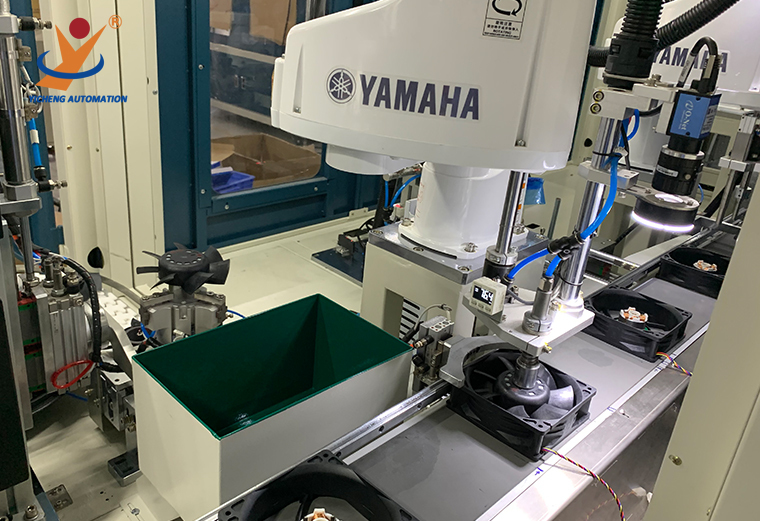

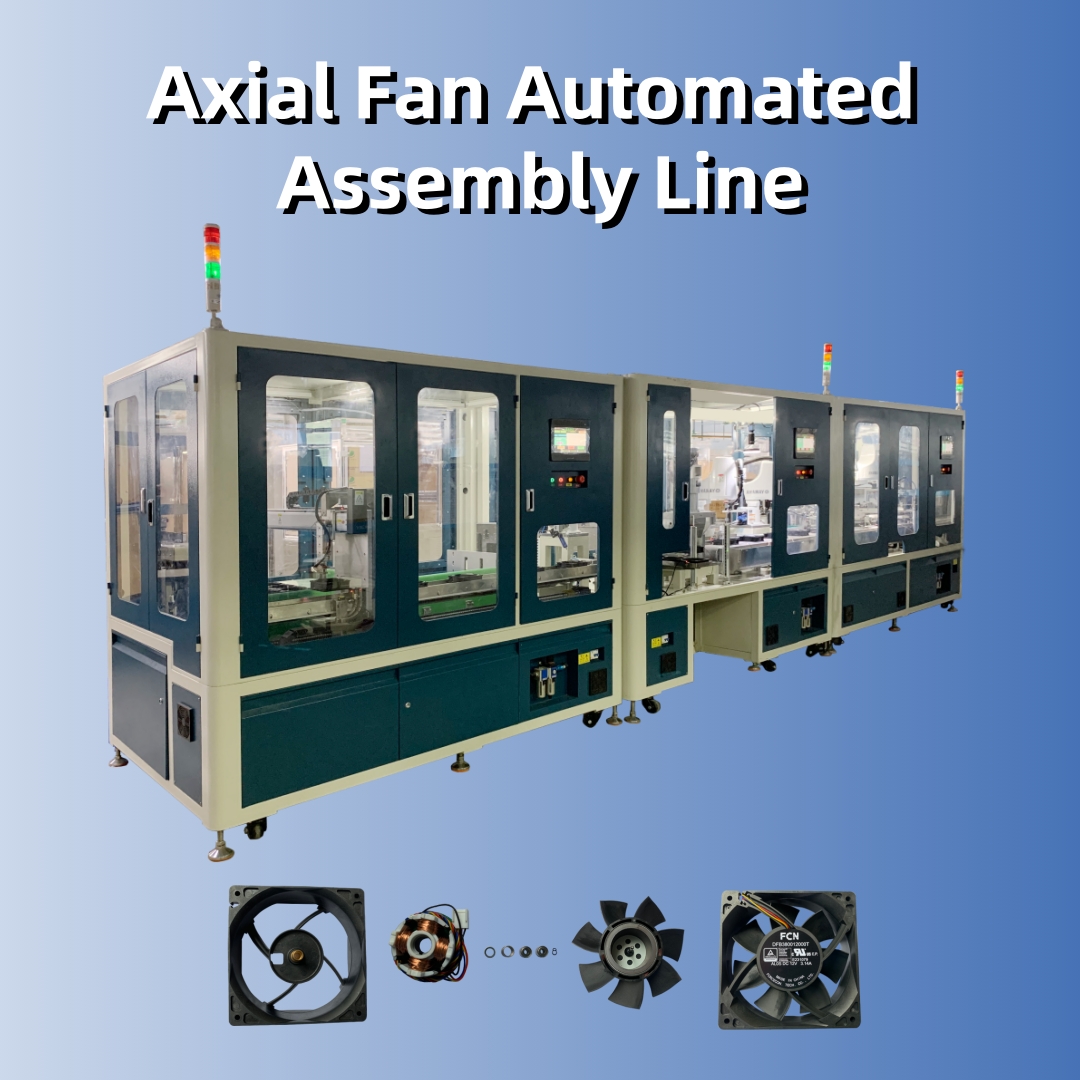

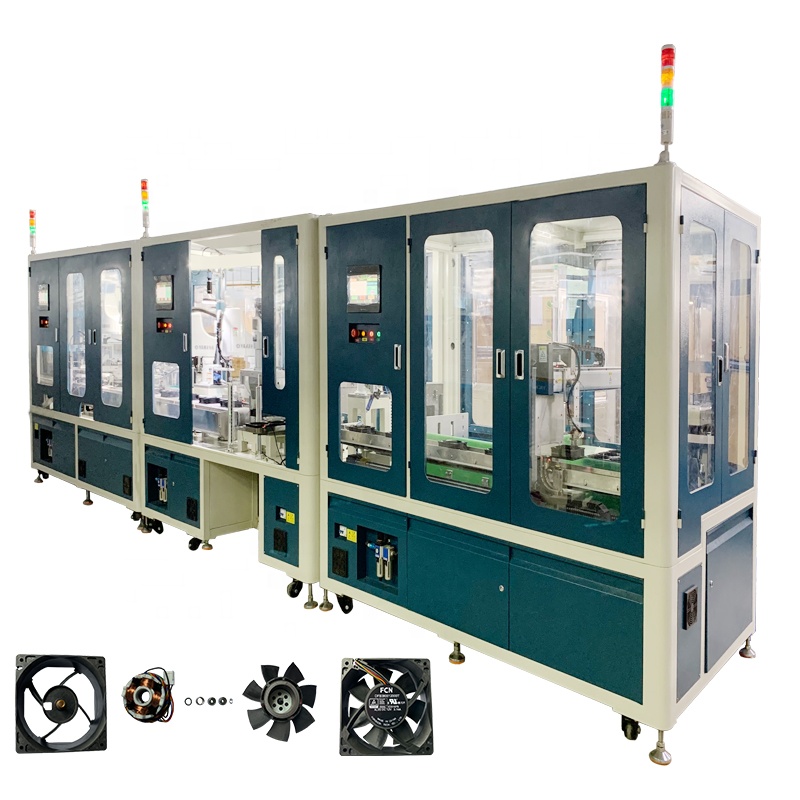

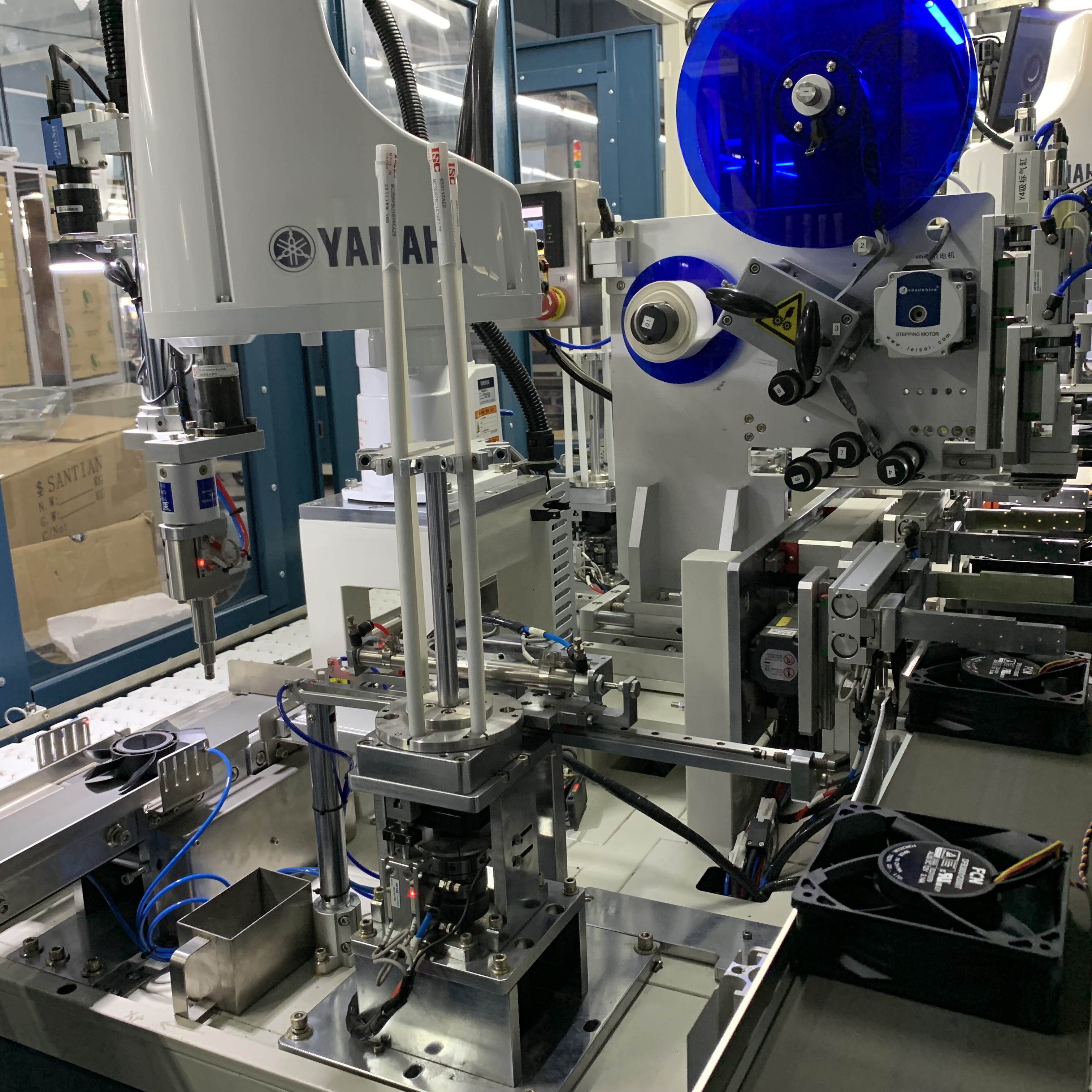

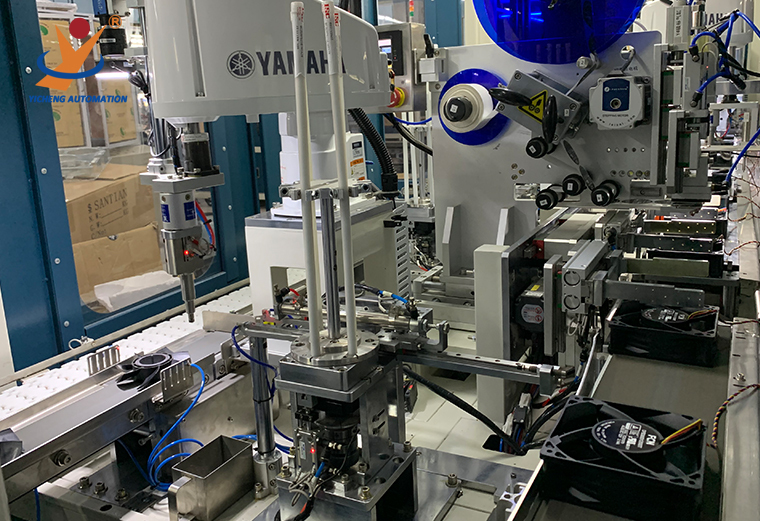

⚙️ Axial Fan Automated Assembly Line

This high-speed robotic production system is specifically designed for the assembly process of industrial and HVAC cooling fans. Integrating advanced PLC control systems, the machine ensures high precision, consistency, and maximum efficiency in large-scale manufacturing environments.

Components Qty 8 parts

Cycle Time 10-15 pcs/min

Dimensions 4800(L) * 1300(W) * 1900(H) mm

Input Voltage 200-240VAC, 50-60HZ

Air Pressure 4.5-8.0kgf/cm2

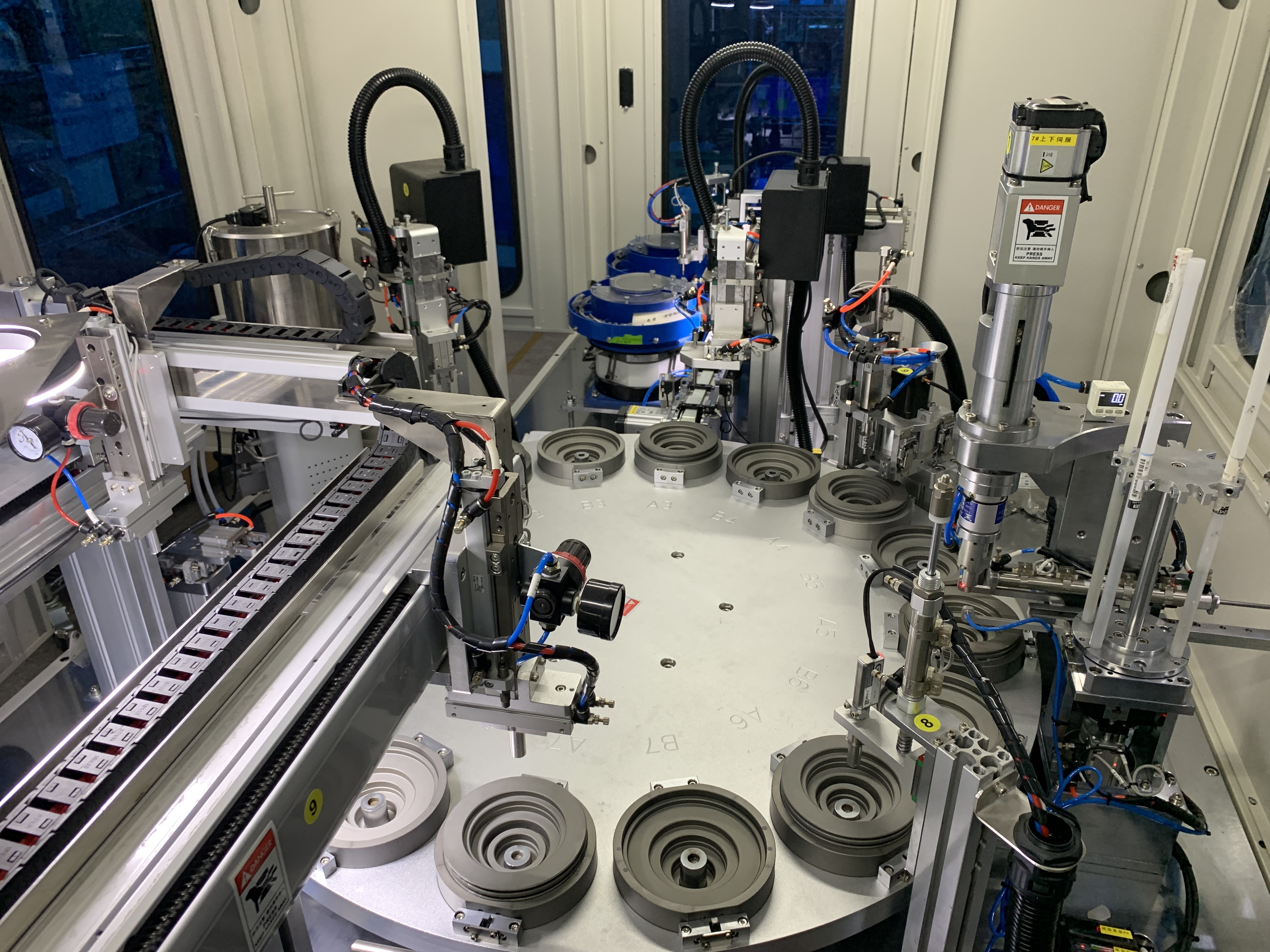

Feeding Mode Automatic Bowl Feeder

💎 Standard Component Brands

Category	Preferred Brands
PLC	Mitsubishi / Panasonic / Keyence / Omron
HMI	WEINVIEW
Cylinder	SMC / Festo
Guide Rail	HIWIN / TBI / SHAC
Stepping Motor	Samsr / YAKO / Leadshine
Servo Motor	Panasonic / SANKYO
Adjust Motor	STS
Fiber Sensor	Keyence / Panasonic
Electrical Components	Omron (Japan), Chint (China) or equivalent famous brands

🚀 Machine Features

Exclusively designed and manufactured for the radiator and cooling industry.
Fully automatic feeding system ensuring continuous high-speed production.
Smart detection: Auto-start when material is detected and auto-stop upon material shortage.
Safety Alarming: Immediate reporting of abnormal shutdowns with detailed status info.
User-friendly touch screen interface for intuitive and safe operation.

🏆 Our Advantages

Professional solution provider offering competitive pricing with high-quality equipment.
Expert engineering team with over 50 specialists and an overseas after-sales service group.
One-stop integrated service: R&D, bowl feeder production, programming, and on-site debugging.
Extensive expertise in switches, sockets, motors, cooling fans, and robotic arms.
Strong track record cooperating with world-famous industrial brands.

📦 Logistics & Support

Packaging & Shipping: After assembly and debugging, equipment is wrapped in protective shrink film and secured in standard wooden cases to prevent shock, moisture, and damage during transit.

After-Sale Services:

On-site installation, training, and mass production follow-up support.
1-year warranty and lifetime maintenance service.
Fast response times: Within 12 hours for overseas customers via mail or phone.
Advanced remote support using smart glasses, TeamViewer, and Teams.

📜 Certifications

❓ Frequently Asked Questions

1. Are you a factory or a trading company? We are a CE and ISO-certified manufacturer specializing in automation equipment R&D and manufacturing for switches, motors, and cooling fans since 2007.

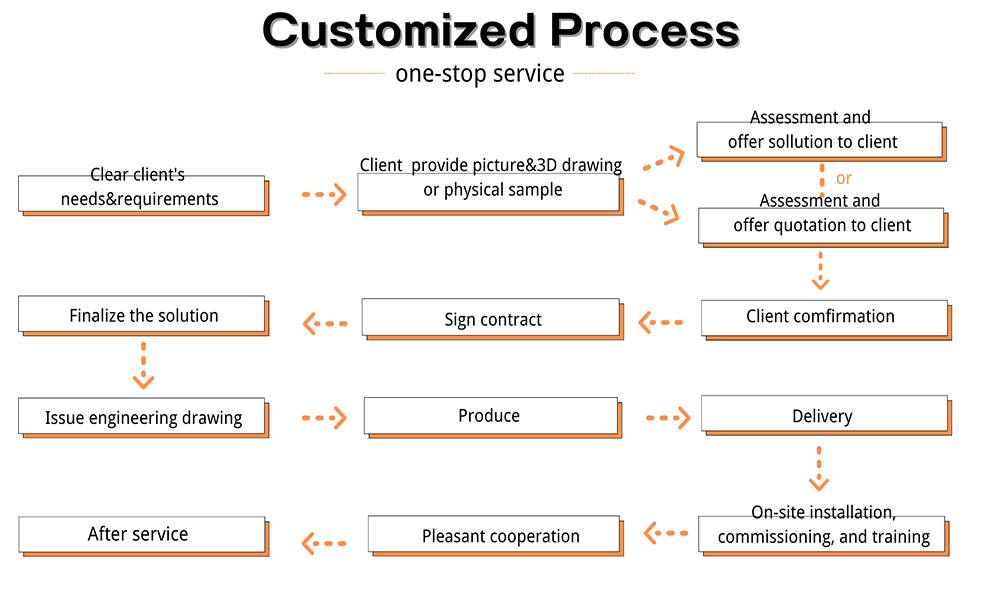

2. How can we get a proposal and quotation? Please provide 2D/3D drawings, capacity requests, and surface treatment requirements. Sending samples for engineer evaluation helps us provide a formal proposal within one week.

3. How long is the equipment warranty? We provide a one-year warranty after delivery. Our engineers are also available for overseas services to ensure the machine maintains optimal performance.

4. What kind of packaging do you use for shipment? Machines are wrapped with shrink film and packed in standard wooden cases, making them suitable for long-distance international shipment.

5. What are the payment terms and lead times? Standard terms are a 50% deposit upon contract and the balance before shipping. Lead time is typically around 10-20 days after the deposit is received.

6. Do you provide technical support after the warranty? Yes, we provide life-long maintenance services and remote technical support via smart glass and digital conferencing tools.
