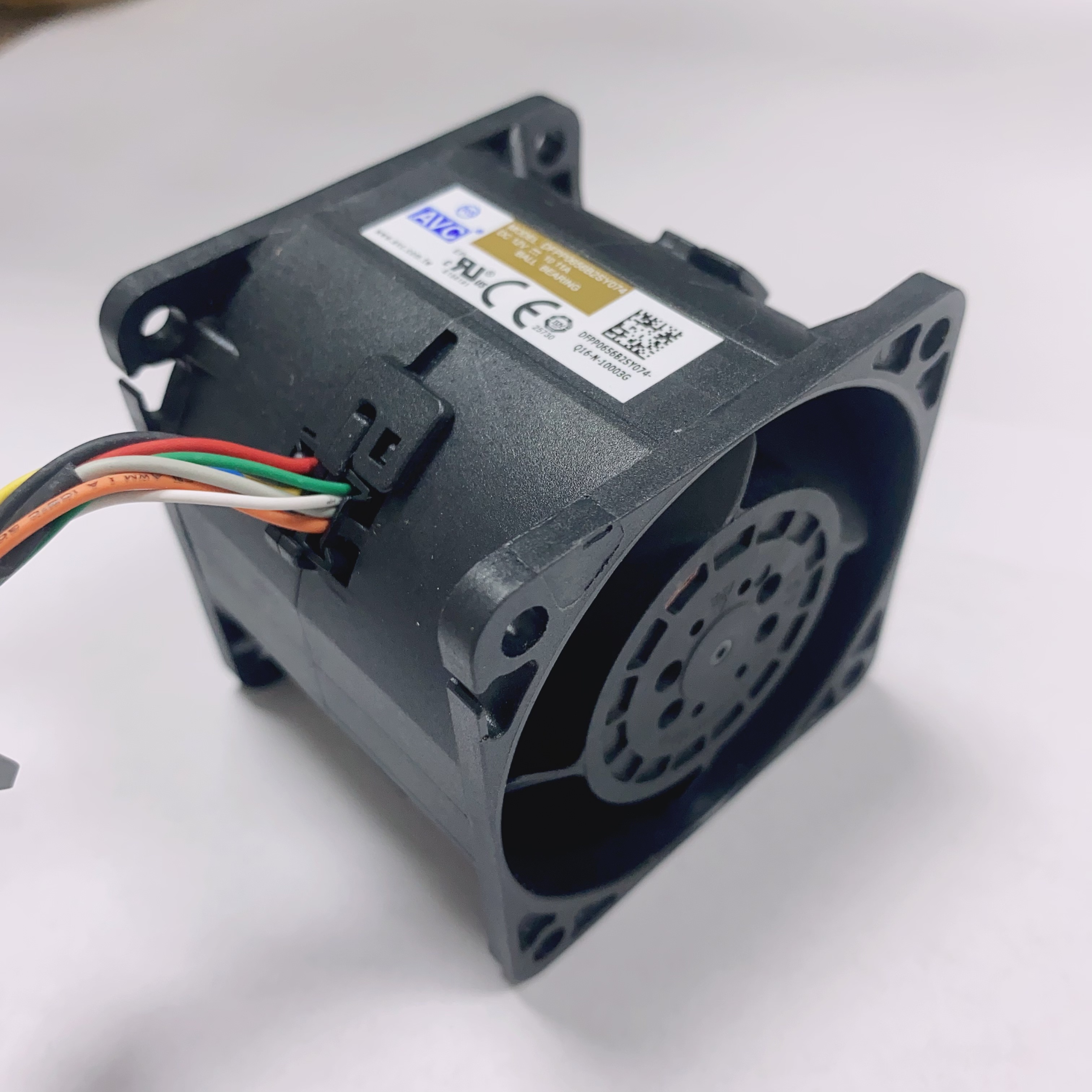

AVC 60x60x56mm DFPP0656B2SY 12V 4.92A Dual Ball Extreme High Speed Plastic Frame Dc Axial Cooling Fan for Rack/Cases/Chassis

Product Description

Product Specification
Note on Item Price & Specifications
AVC axial fan DFPP0656B2SY074. Rated voltage: 12V according to customer's requirement. Air flow, air pressure, speed, and rated voltage can be customized based on customer's requirement. Product prices shown are only for reference. Please confirm the details of the product before placing an order.
Product Parameters:
Voltage Type: DC
Rated Voltage: 12 V
Rated Current: 4.92A
Rated Power: 59.04 W (70.80W max)
Fan Speed: 22500 ± 10% & -200 R.P.M (Inlet); 19700 ± 10% & -200 R.P.M (Outlet)
Speed Control Type: PMW controller
Signal Output: FG speed feedback
Maximum Airflow: 2.47m³/Min (86.89CFM)
Maximum Air Pressure: 290.17mm-H2O (11.42inch-H2O)
Acoustic Noise Level: 81.0 (85.0 Max) dB(A)
Material: Impeller & Frame: Plastic (UL 94V-0) Lead Wires: UL 10368 AWG #22#26 or Equivalent Impeller: 5 Blades Rotational Direction: CCW view from front face Weight: 179g
💡 Cable length and terminals can be customized according to customer's requirement.
Parameter Value
Model No. DFPP0656B2SY074
Brand AVC
Type Air Cooling Fan 12VDC Axial Fan
Speed 22500 ± 10% & -200 R.P.M (Inlet) ; 19700RPM (Outlet)
Product Description

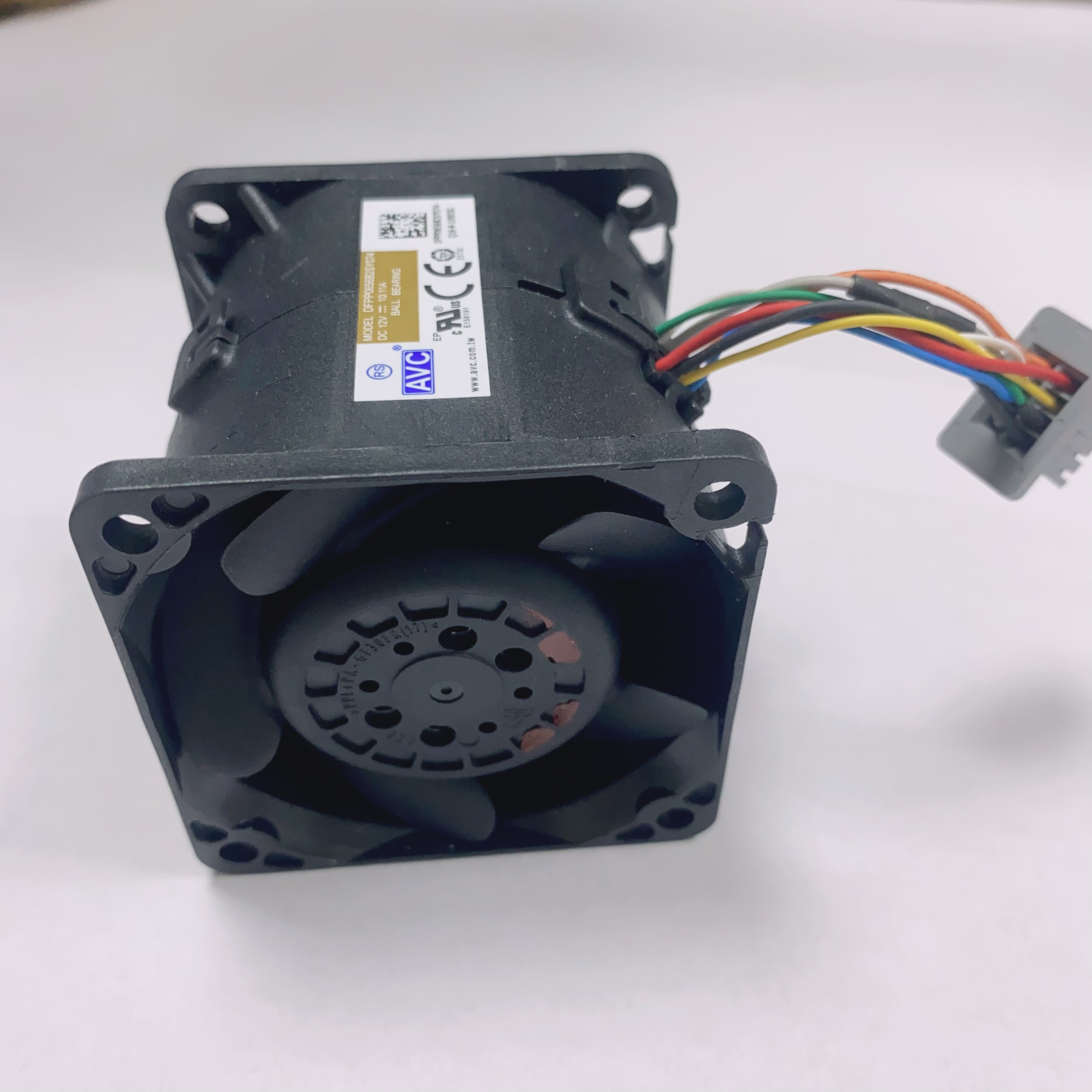

AVC Cooling Fan Details

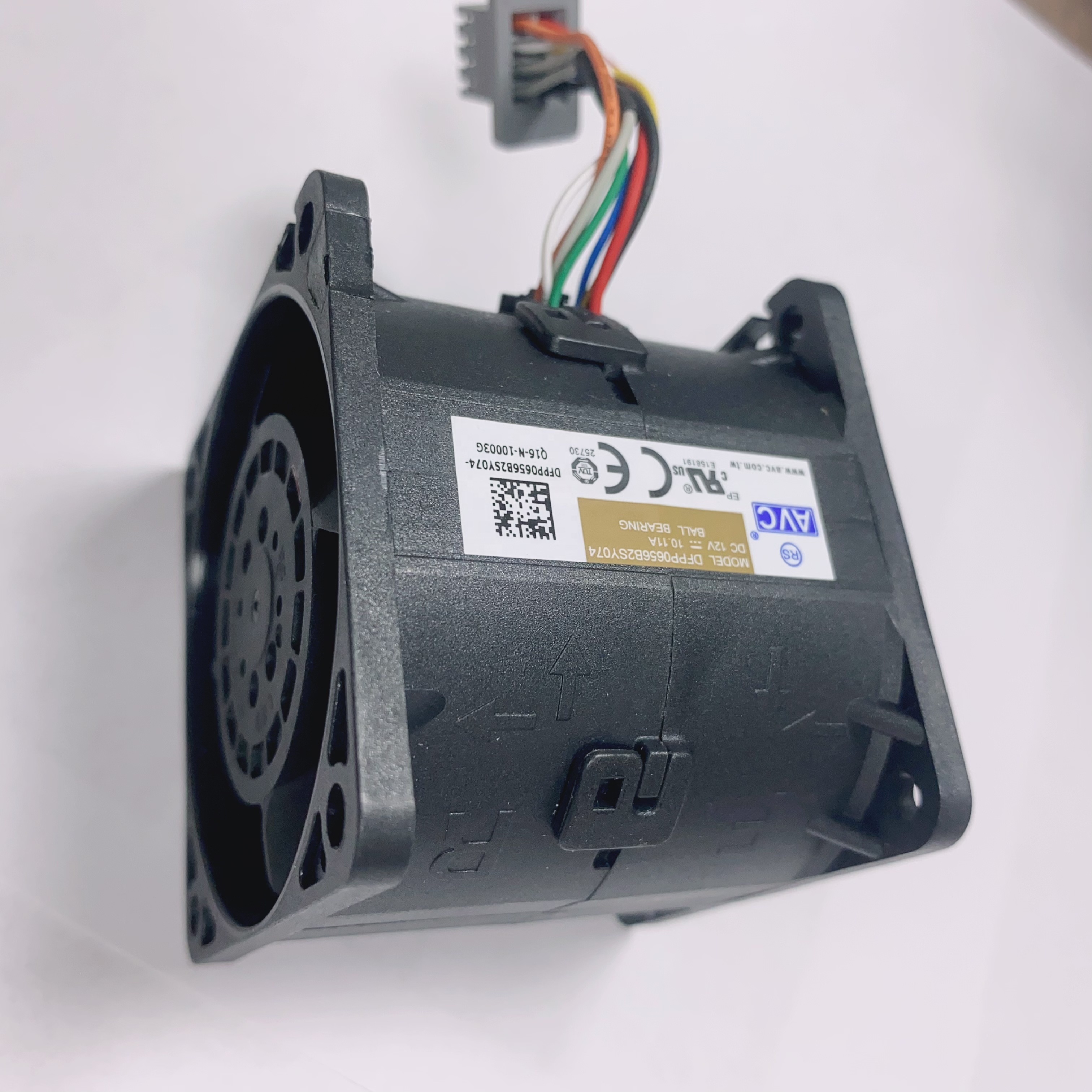

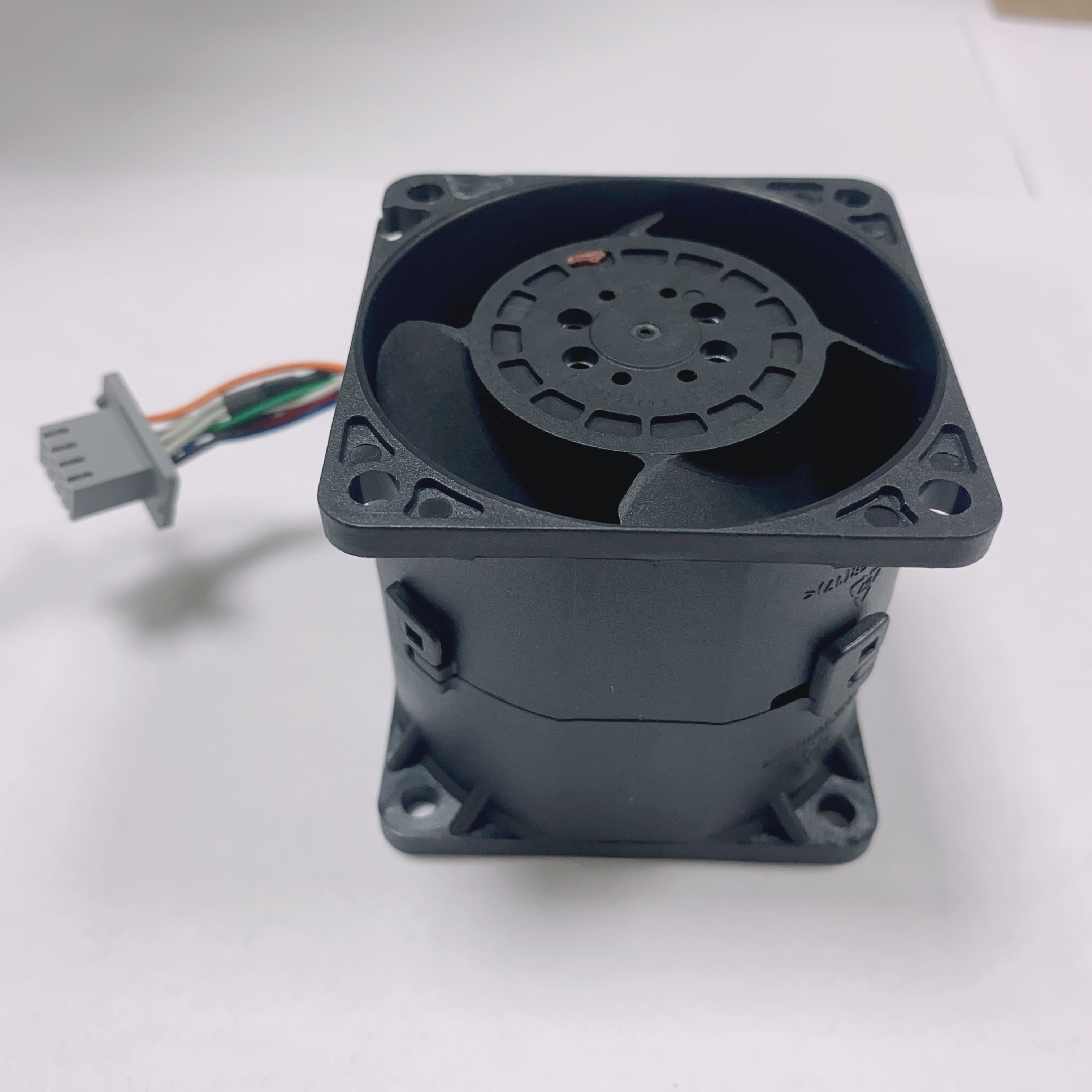

AVC Cooling Fan View 1

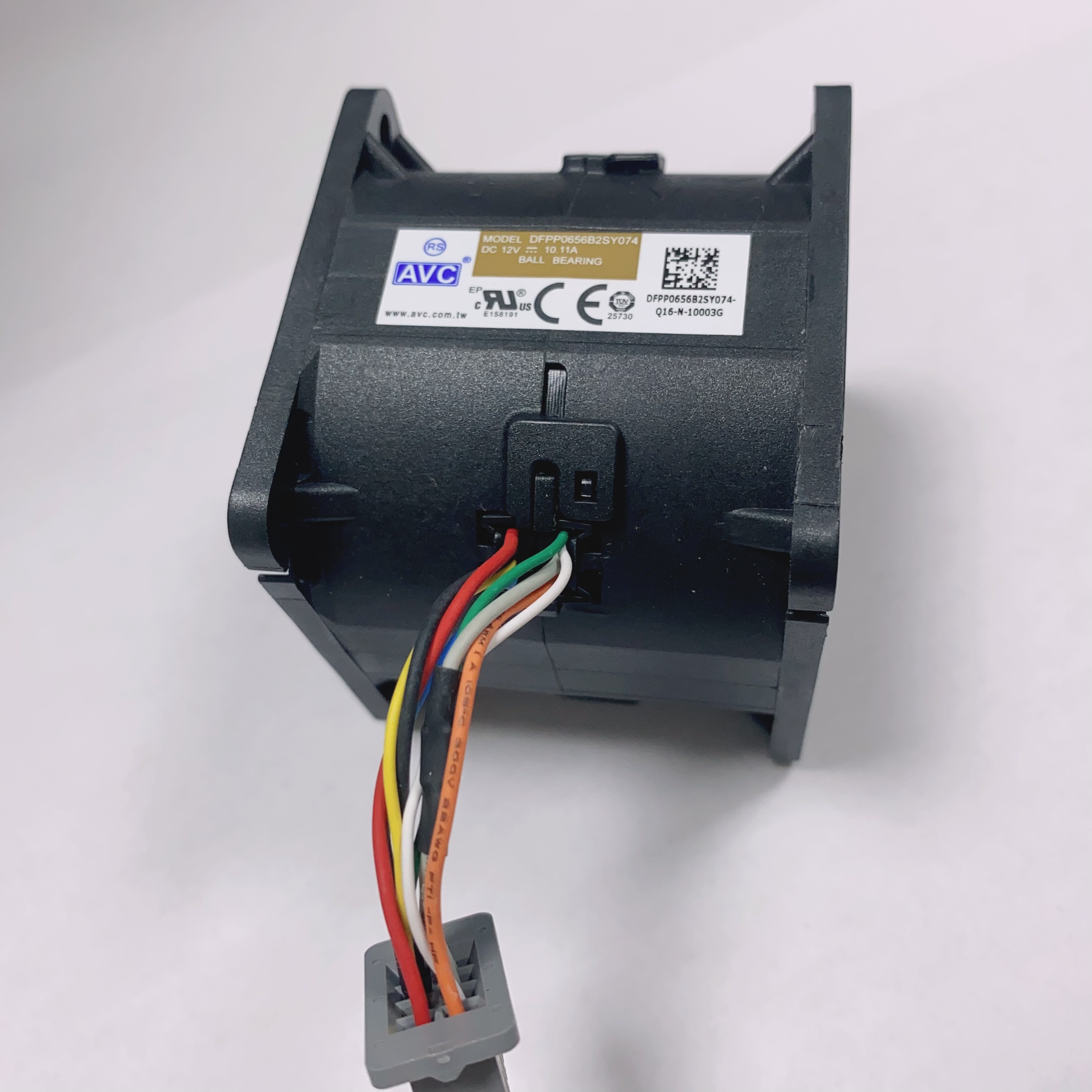

AVC Cooling Fan View 2

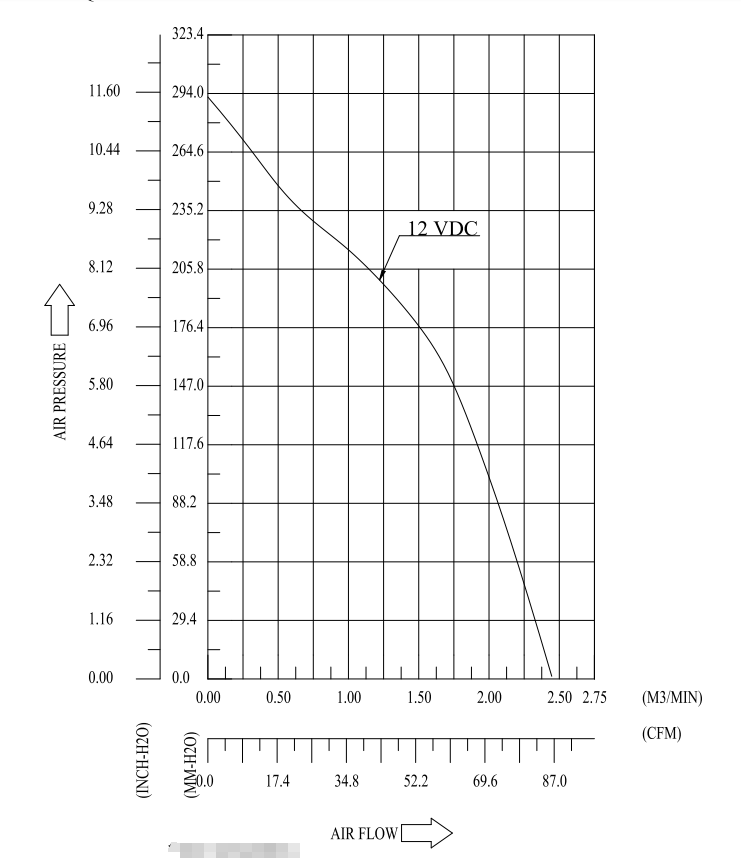

Product PD Curve
Product PD Curve

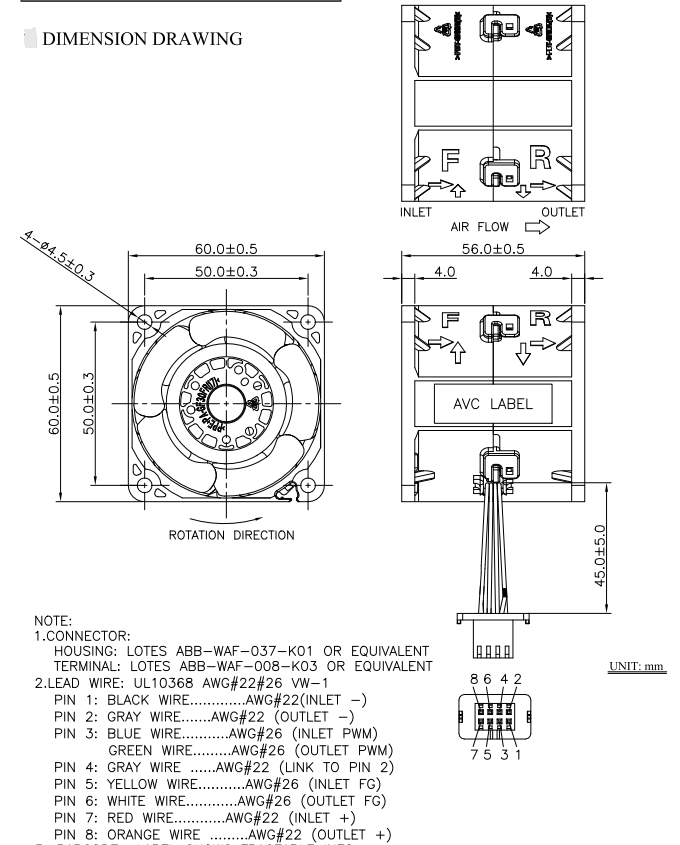

Dimension Drawing
Dimension Drawing
Packing & Delivery
Packing Process 1
Packing Process 2
📦 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. AVC brand specialized Cartons packaging.
Company Profile

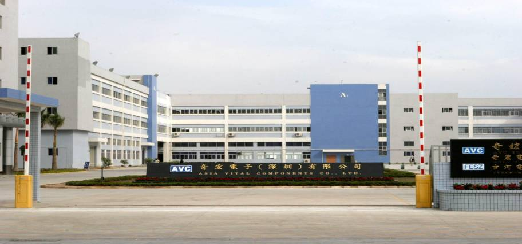

About Us
About Us
We specialize in the agency / sales of AVC cooling fans (AVC official authorized agent), and are a professional provider of total thermal solutions. AVC brand cooling products hold the first global sales share. AVC has a professional R&D team, innovative patented technologies, national laboratories, complete heat dissipation and mechanism simulation software, and fast tooling and layout centers, allowing collaboration with customers in designing optimal solutions.

AVC has 20 years of experience in fan design and manufacturing, with a strong R&D team and independent patents. Through the application of these products, cooling technologies, and thermal simulation analysis capabilities, we provide customers with total cooling solutions for computers, communication equipment, energy, automotive, transportation and other industrial cooling applications, and constantly invest in research and development of new technologies to meet future thermal needs.

AVC FAN products include DC axial fans, DC blower fans, EC fans, thin centrifugal fans, and fan arrays, active heat sinks, heat pipes/heat plates, remote heat radiators (heat pipe and water cooled), heat radiators (air-to-air/air-to-water/water-to-water), and compressor heat radiators.

We have built a complete end-to-end operation information management system, from product design and development, manufacturing, procurement and delivery, supplier management, to timely monitoring and feedback of market changes, ensuring on-time delivery of quality and quantity.

AVC main production bases are all in China, which are located in Shenzhen, Wuhan, Shanghai, Dongguan and Chengdu.
AVC Quality Standard
AVC has set up a total quality management system in different processes to ensure proper quality management and provide the best service and product to our customers. Through the establishment of a quality cost monitoring system and Six Sigma management process, we are constantly improving our quality management system.

To continuously improve our quality system and processes, AVC has acquired several international standard certificates such as ISO9001, ISO14001, OHSAS18001, ANSI/ESD20.20, QC0800000, etc.
Certificates

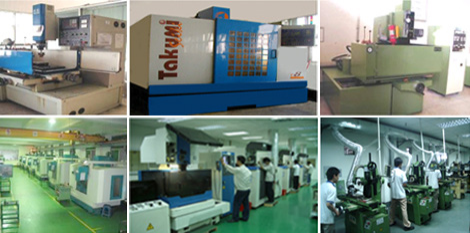

Tooling and Fixture Center
Tooling and Fixture Center
AVC has Sheet Metal and Plastics tooling capabilities as well. With over 200 tooling engineers and simulation software experience, AVC can design and make the tools in a shorter period of time to meet mass production schedules. In addition, the AVC Fixture Center can design and work out the fixture to increase productivity and yield rate.
Thermal Design Simulation Capability
Thermal Design Simulation Capability
Thermal Design: AVC uses STAR-LT, CFD-RC, ANSOFT (Motor Design Package), Axial Flow Fan Design (Developed by AVC), and Axial and Centrifugal fan design programs to conduct fan design and simulation. AVC uses CFDESIGN, ICEPak, Flotherm, EFD, PRO/E, Solid Works, AutoCAD, and Heat Exchanger Design programs to conduct thermal design and simulation.

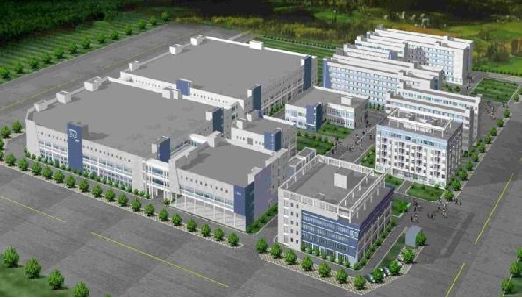

Production Base
Frequently Asked Questions
1. Who are we?
We are an officially authorised AVC distributor/agent.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always a final Inspection before shipment.
3. What can you buy from us?
AVC cooling fan, ADDA fan, and other products related to heat sink solutions.
4. Why should you buy from us and not from other suppliers?
We provide deep customization with support from source manufacturers, superb technical expertise, and a highly efficient support team.
5. What delivery and payment services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP.
Accepted Payment Currency: USD, EUR, GBP, CNY.
Accepted Payment Type: T/T, MoneyGram, Credit Card, PayPal, Western Union, Cash.
6. What languages are spoken by your support team?
We can communicate in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, and Italian.
