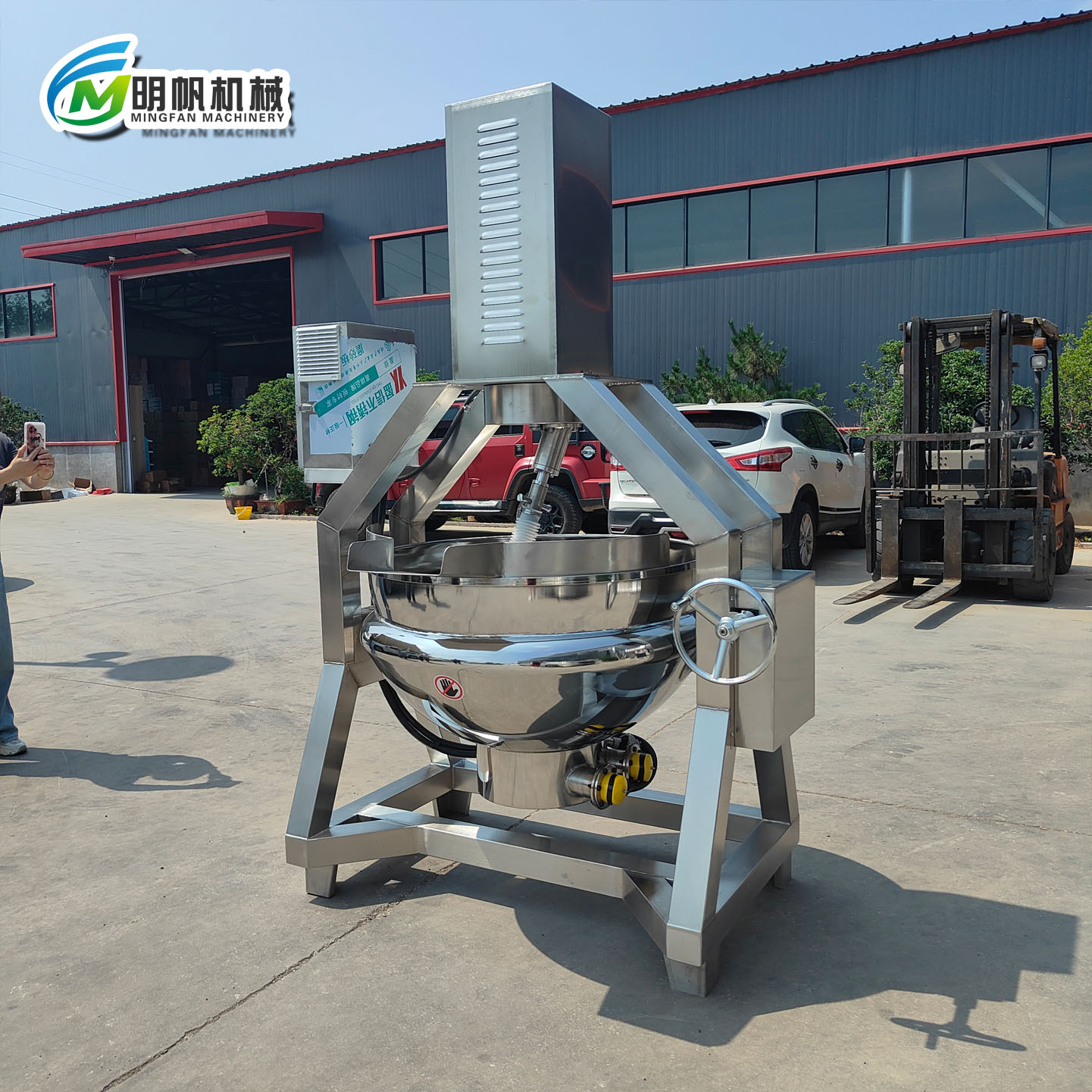

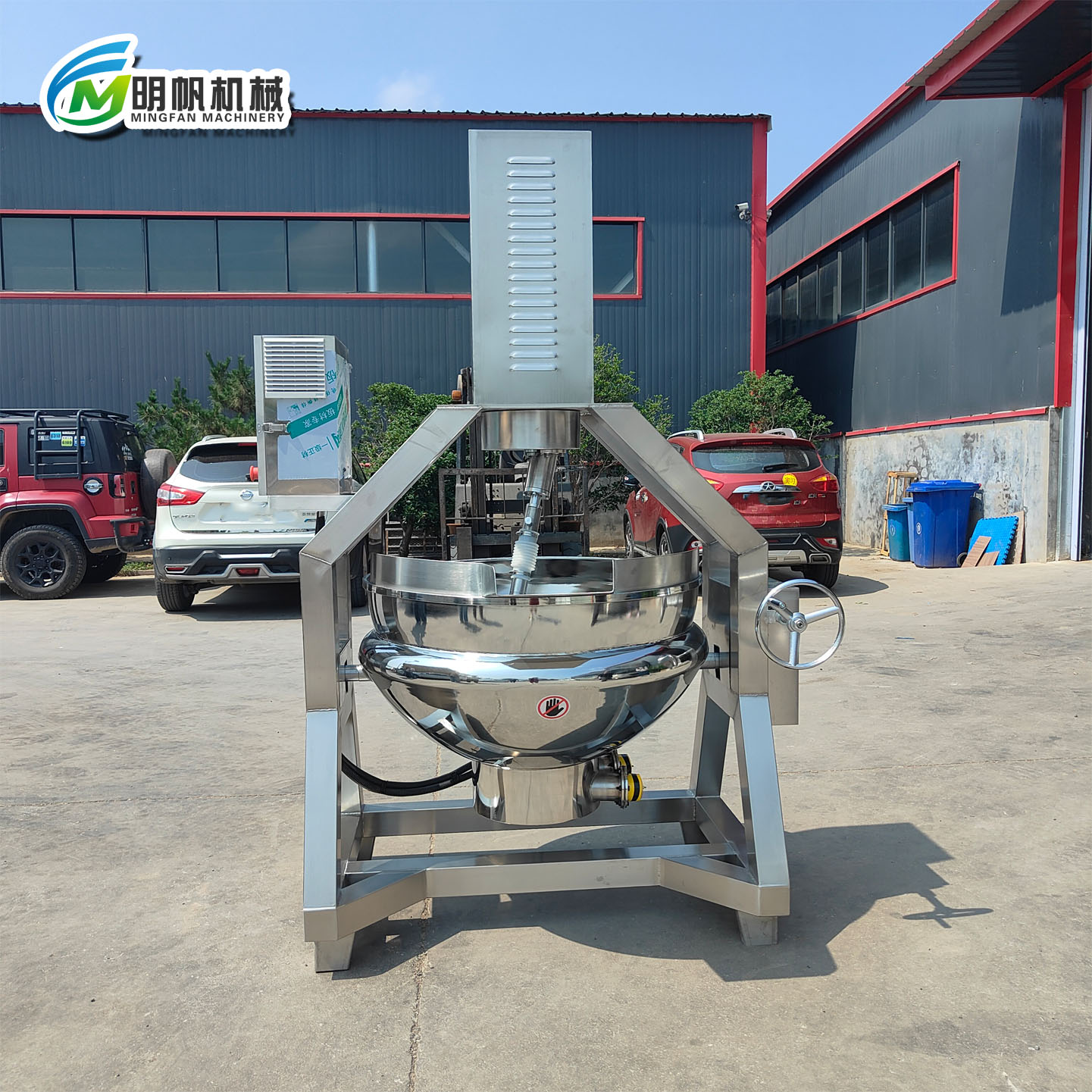

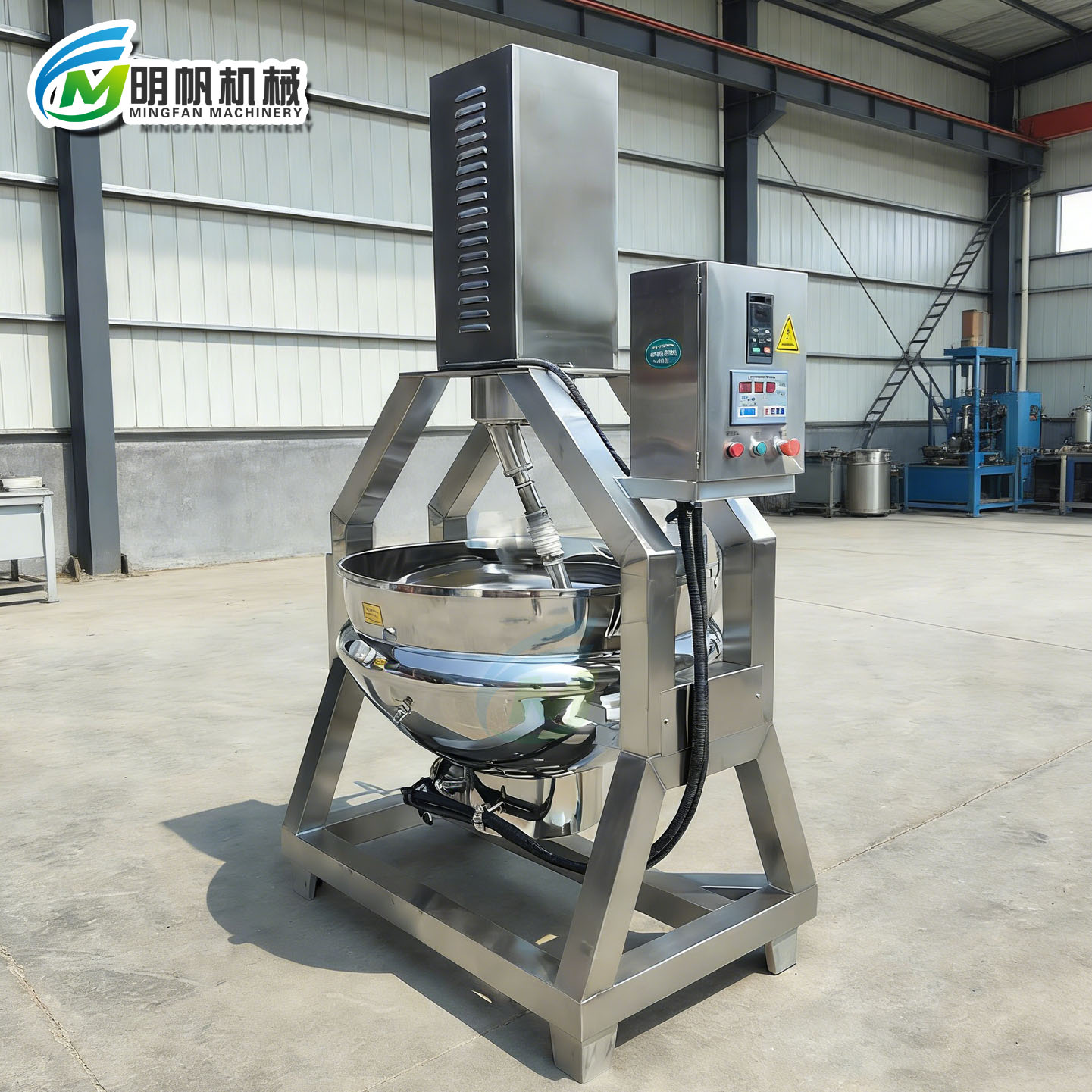

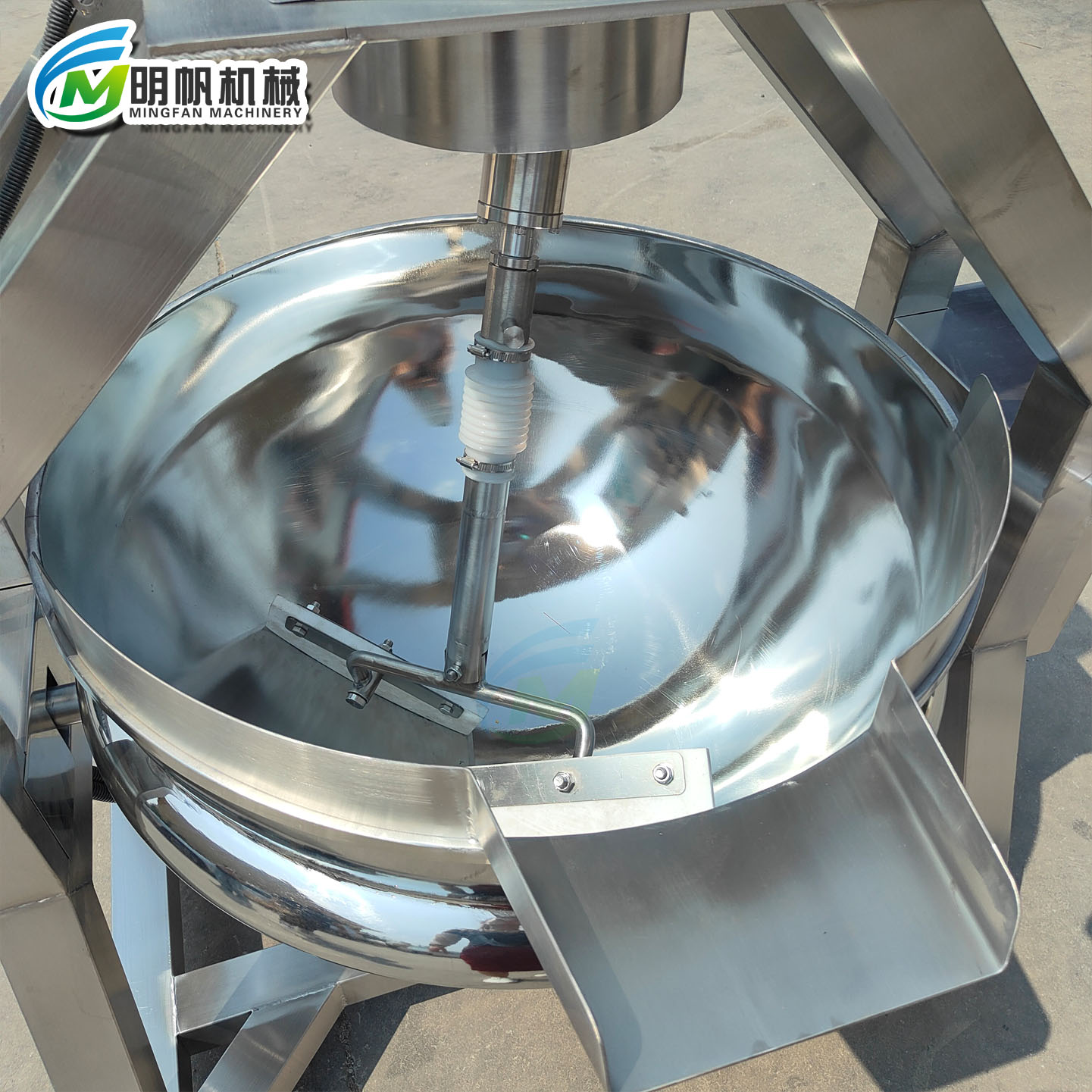

Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
1 / 5
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components
Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components

Industrial Automatic Planetary Jacketed Cooking Pot Machine Kettle Design with Core Motor Bearing Gearbox Components

Send Inquiry

Product Description

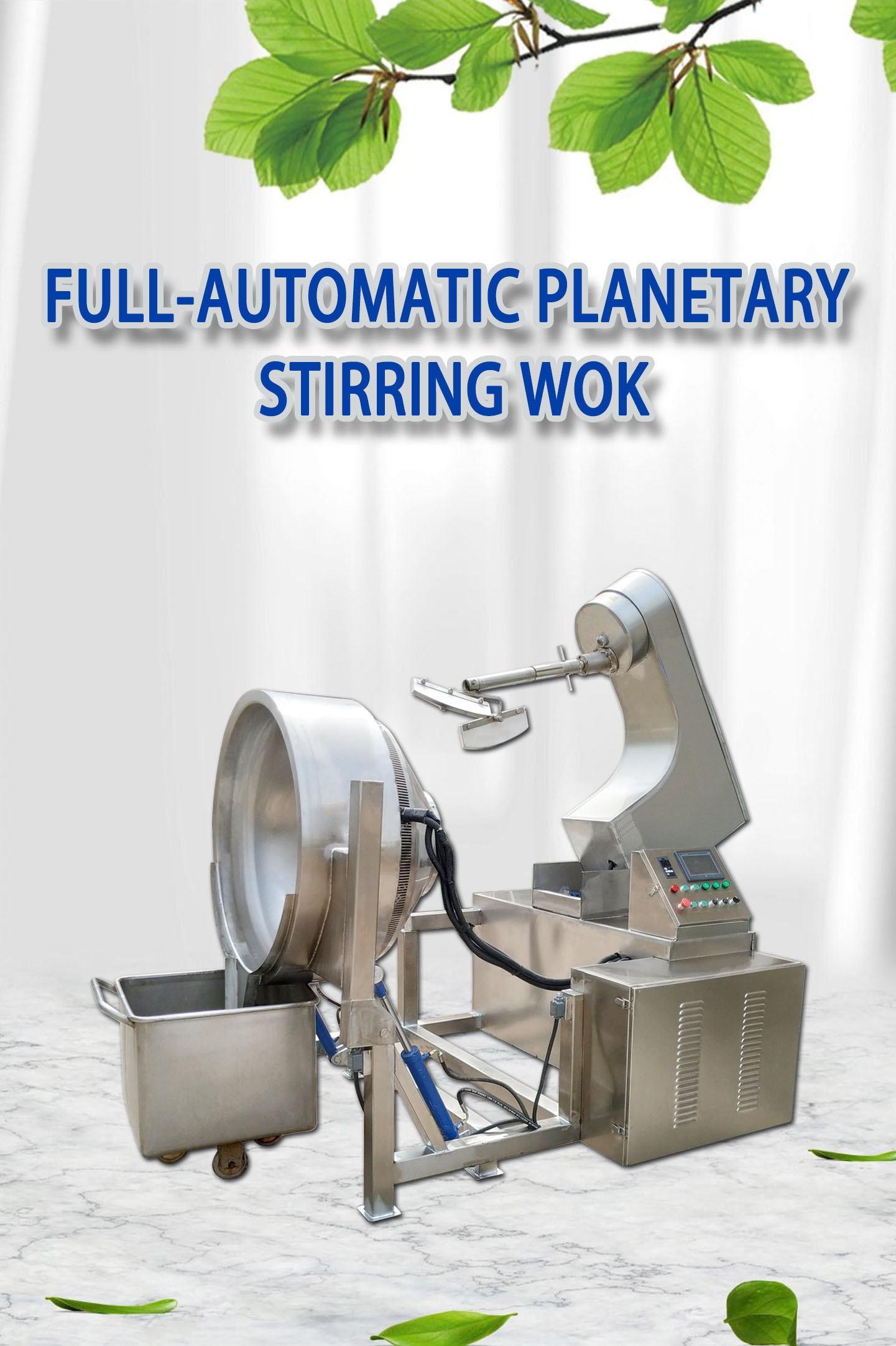

Planetary Cooking Mixer
Product Introduction

Mainly comprises a pot body, a frame body, a stirring system, a heating system, a speed regulating transmission device, a stirring shaft pot body overturning system and the like.

  • 1 Pot body The pot body of this product is a semi-spherical stainless steel pot body formed by one-time stamping, with small overall roundness error and high adhesion between the agitator and the pot body, so as to avoid pot burning.
  • 2 Heating system Steam (jacket heating (steam)), gas, electric heating oil, electromagnetic heating and other heating forms are available for customers to choose from.
  • 3 Stirring system The stirring mode adopts special inclined rotation, which makes the planetary stirrer fully contact with the pot body, and realizes the non-integer rotation ratio of rotation and rotation, so that there is no stirring dead angle in the pot, and the materials are stirred and mixed more evenly. The scraper made of PTFE is highly attached to the pot body, scraping the bottom more thoroughly, and it is not easy to cause pot paste.
  • 4 Speed regulating transmission device The mixing shaft uses advanced rotating and sealing structure to make the pot clean and hygienic; Speed regulation adopts variable frequency speed regulation power, which runs smoothly.
  • 5 Pot overturning system Hydraulic lifting mode, which can realize hydraulic tilting and dumping after mixing and separating the pot, and can tilt 90 degrees, with no dead angle, easy cleaning and reduced labor intensity.
A variety of heating methods are available

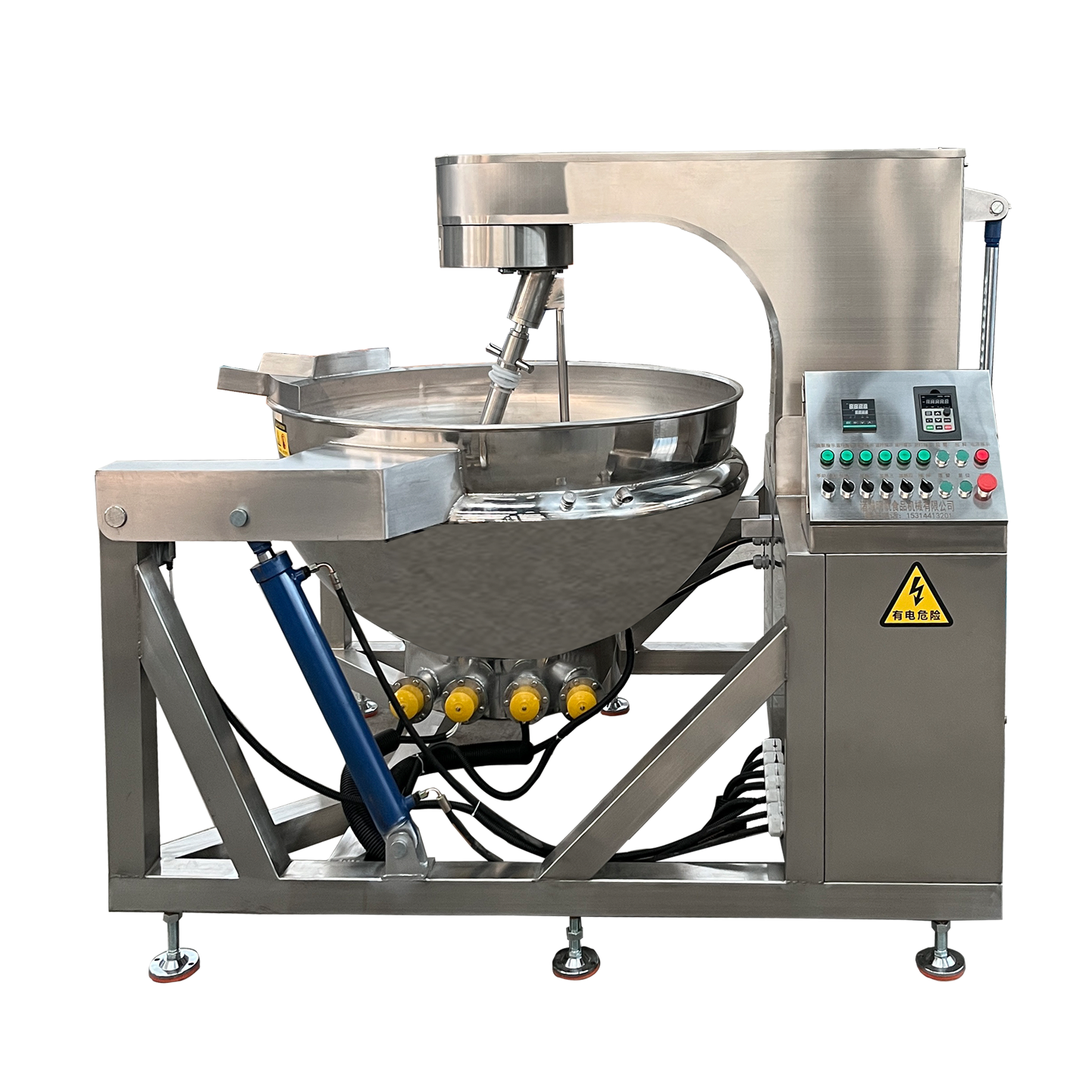

Electric heating
Electric heating
It can automatically control the temperature and maintain a constant temperature, and is suitable for products with strict temperature requirements.

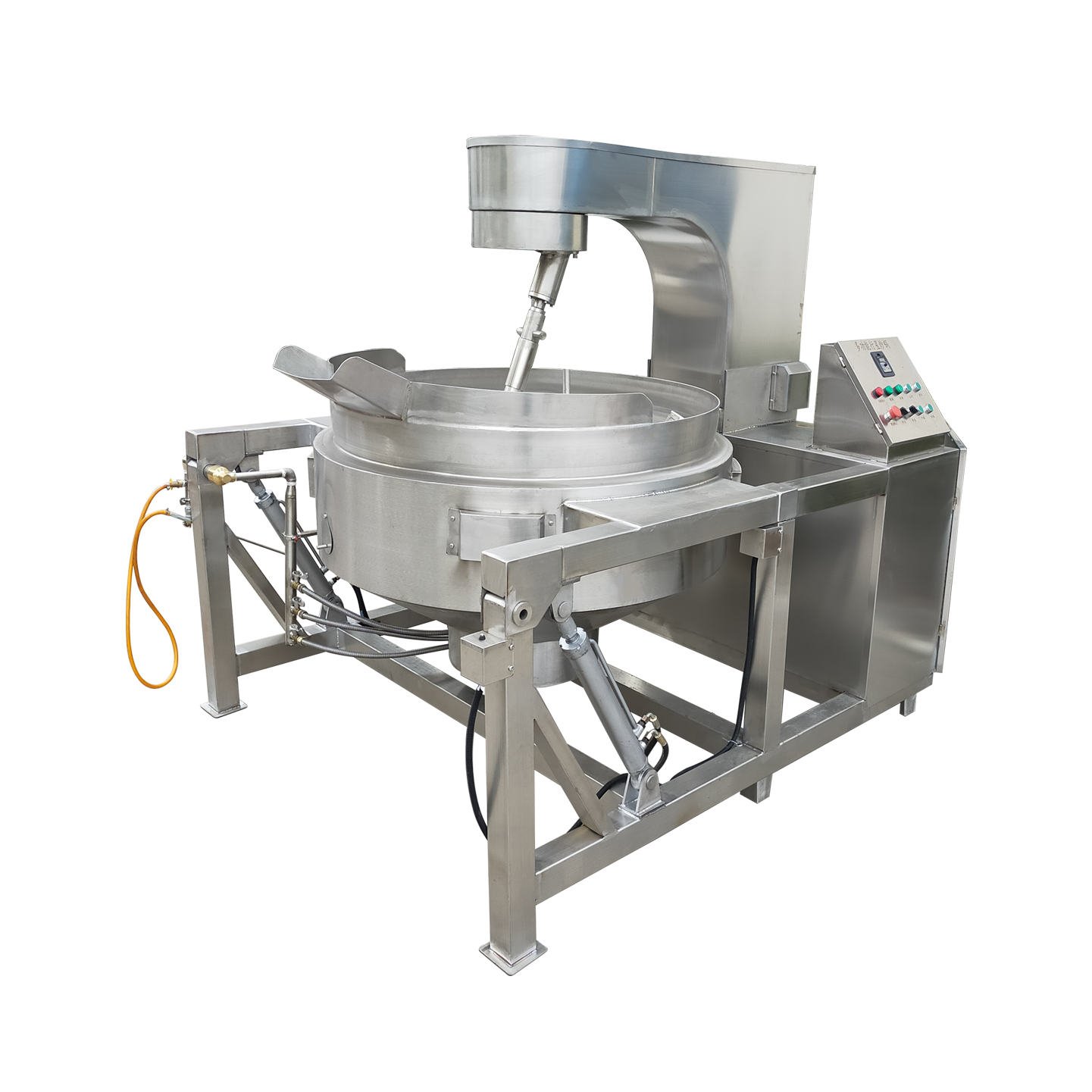

Gas heating
Gas heating
Natural gas and liquefied gas can be selected, without being controlled by electricity, heated by naked flame and with high temperature.

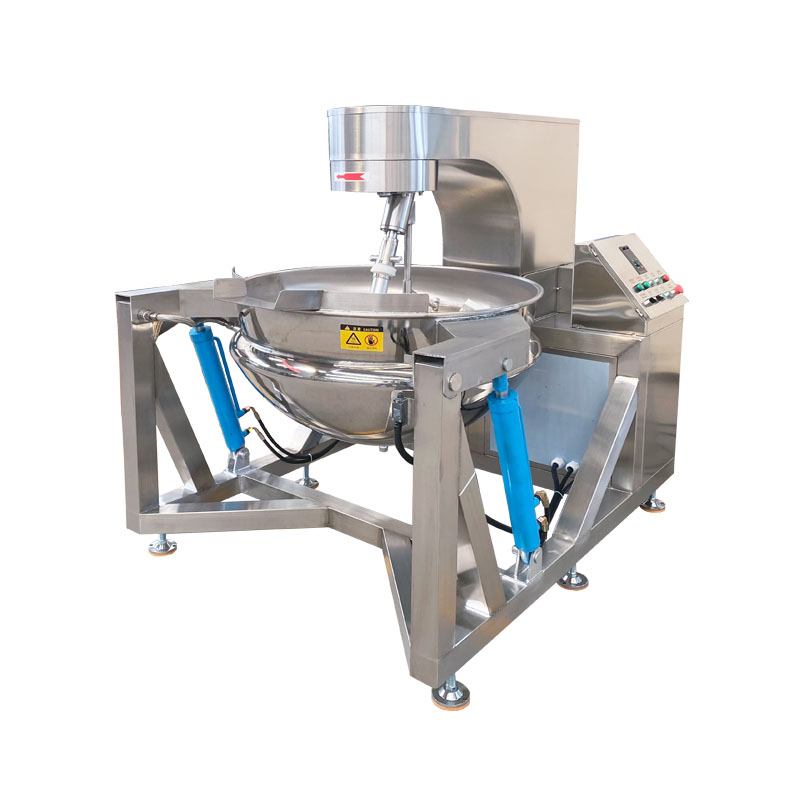

Steam heater
Steam heater
Fast heat conduction, rapid heating and low heating temperature, to avoid high temperature sticking to the pot, a high-pressure steam boiler is required.

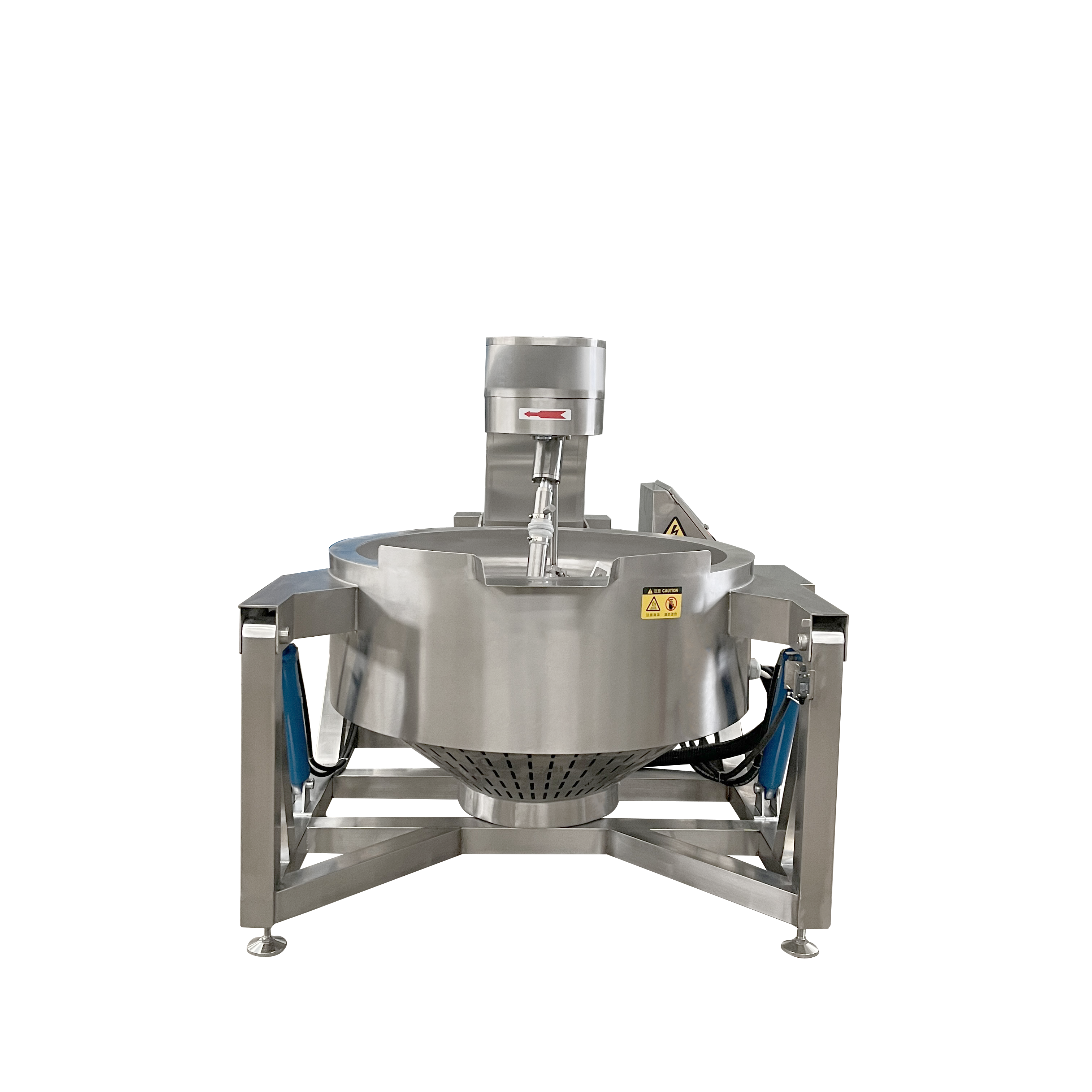

Electromagnetic heating
Electromagnetic heating
The temperature rises quickly, which can take into account the color, fragrance and taste of the product, and is divided into five levels of control, with low energy consumption.
Product detail display

Made of excellent 304 stainless steel, it can be used in contact with food.

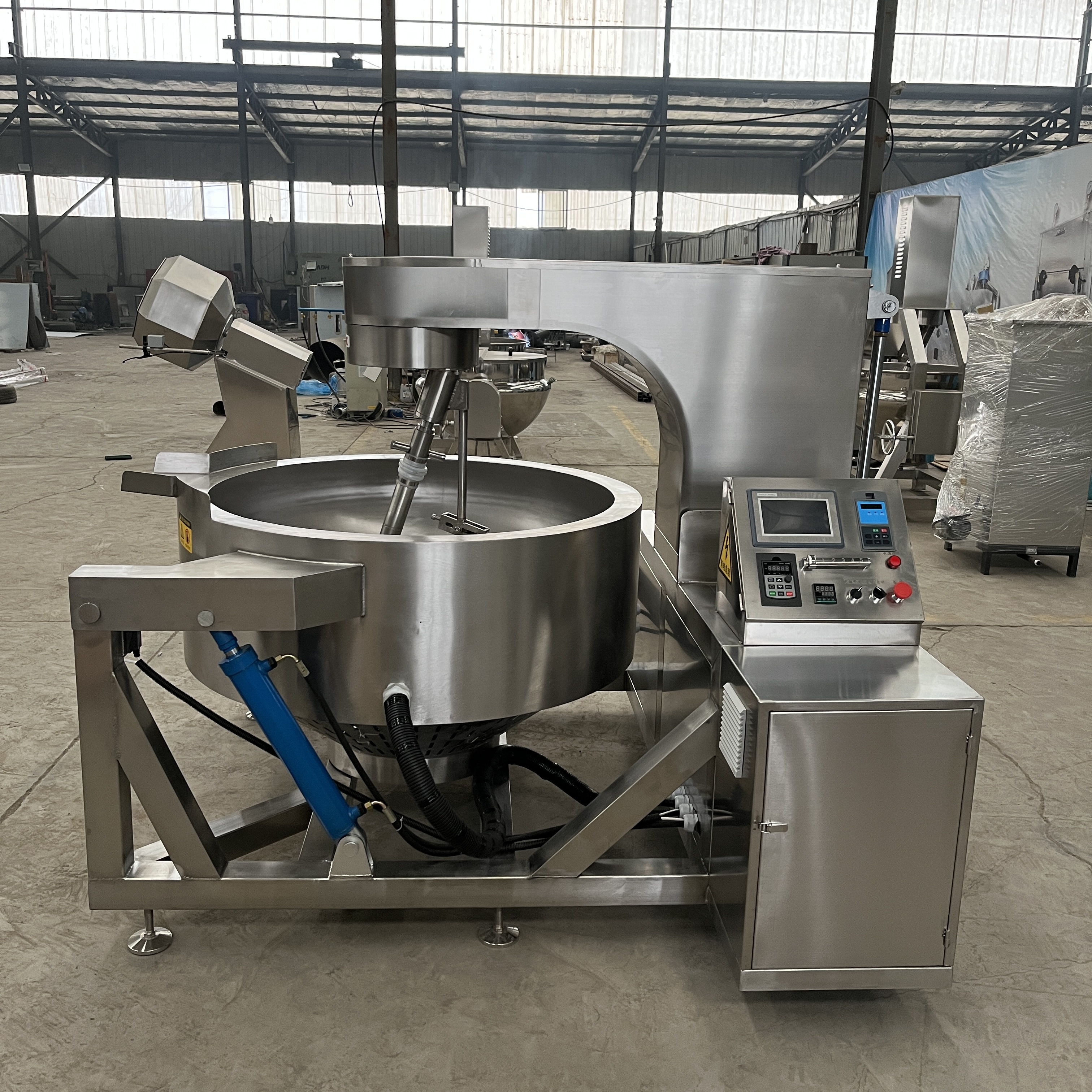

Planetary stirring
Planetary stirring, close fitting and even stirring.

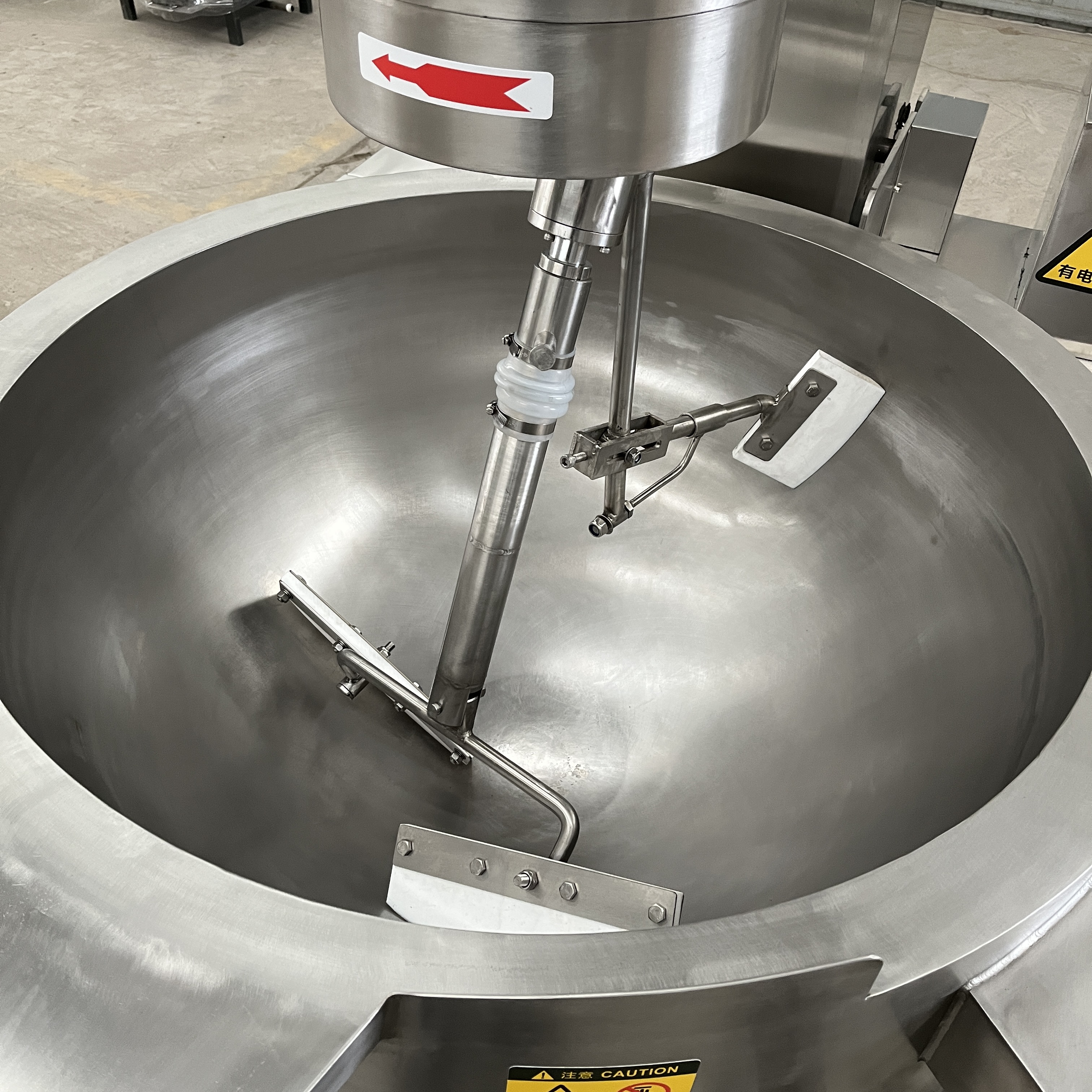

Automatic pan turning
Automatic pan turning and discharging, strong controllability.

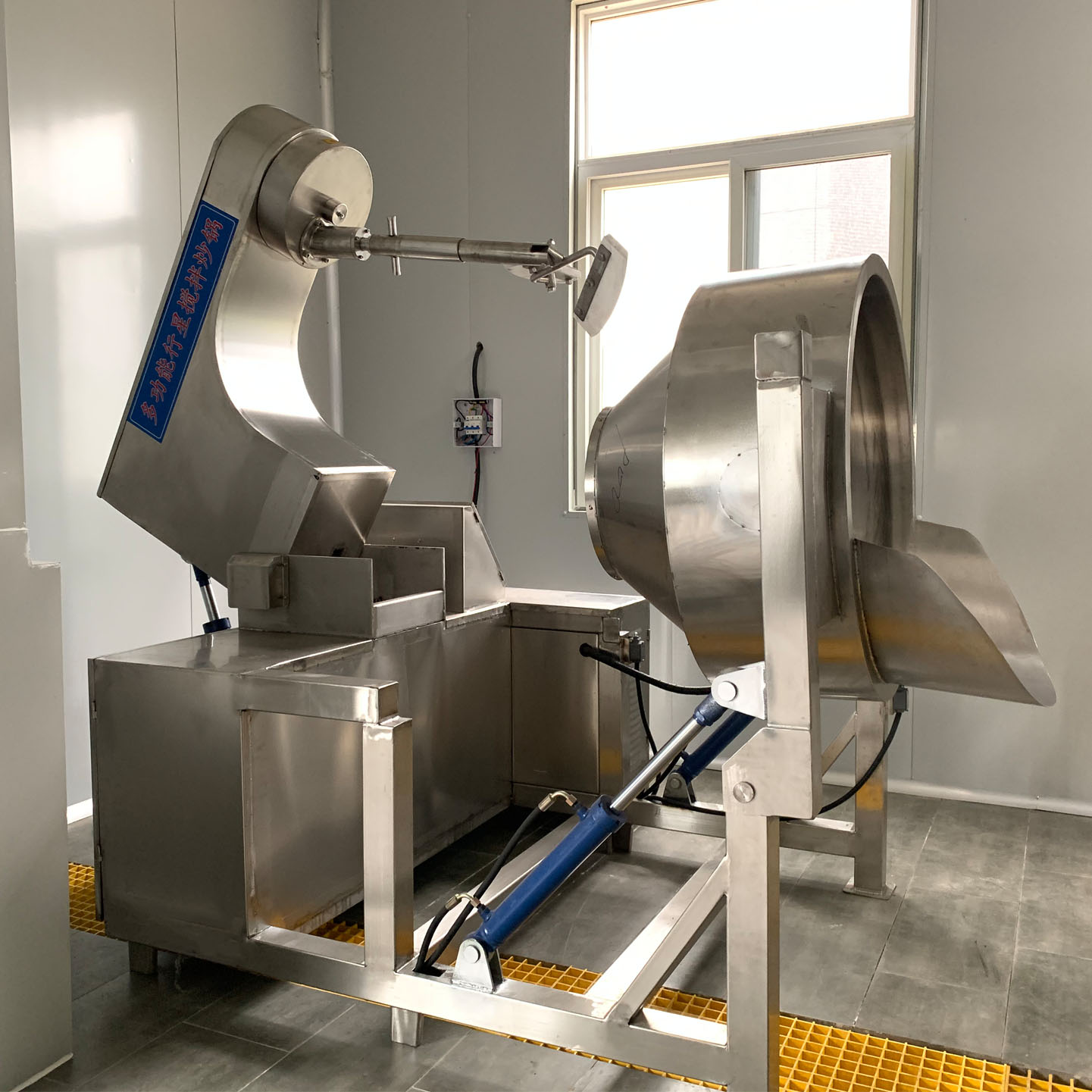

Simple to use
Simple to use, convenient and quick, and more sanitary to turn up and turn out the materials.

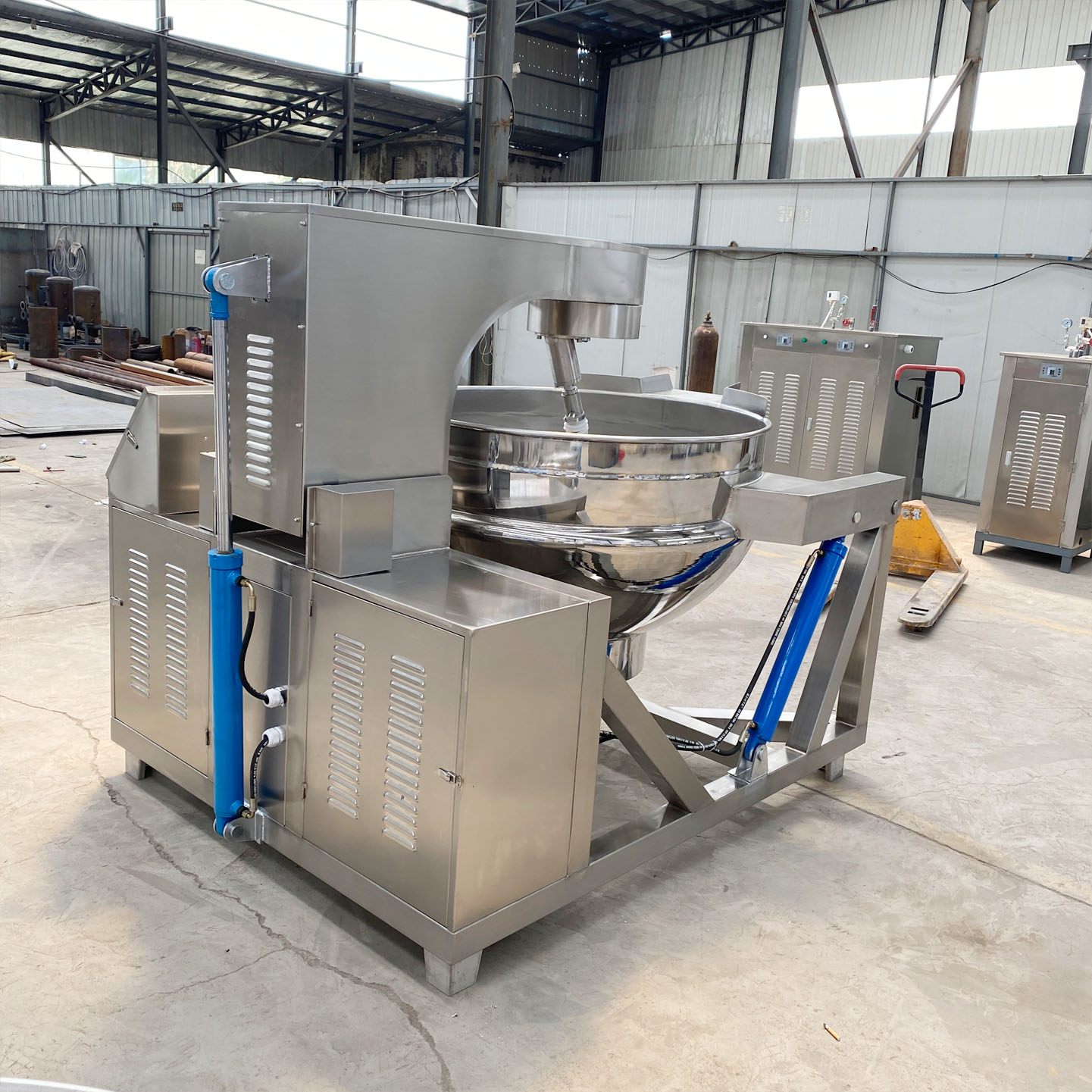

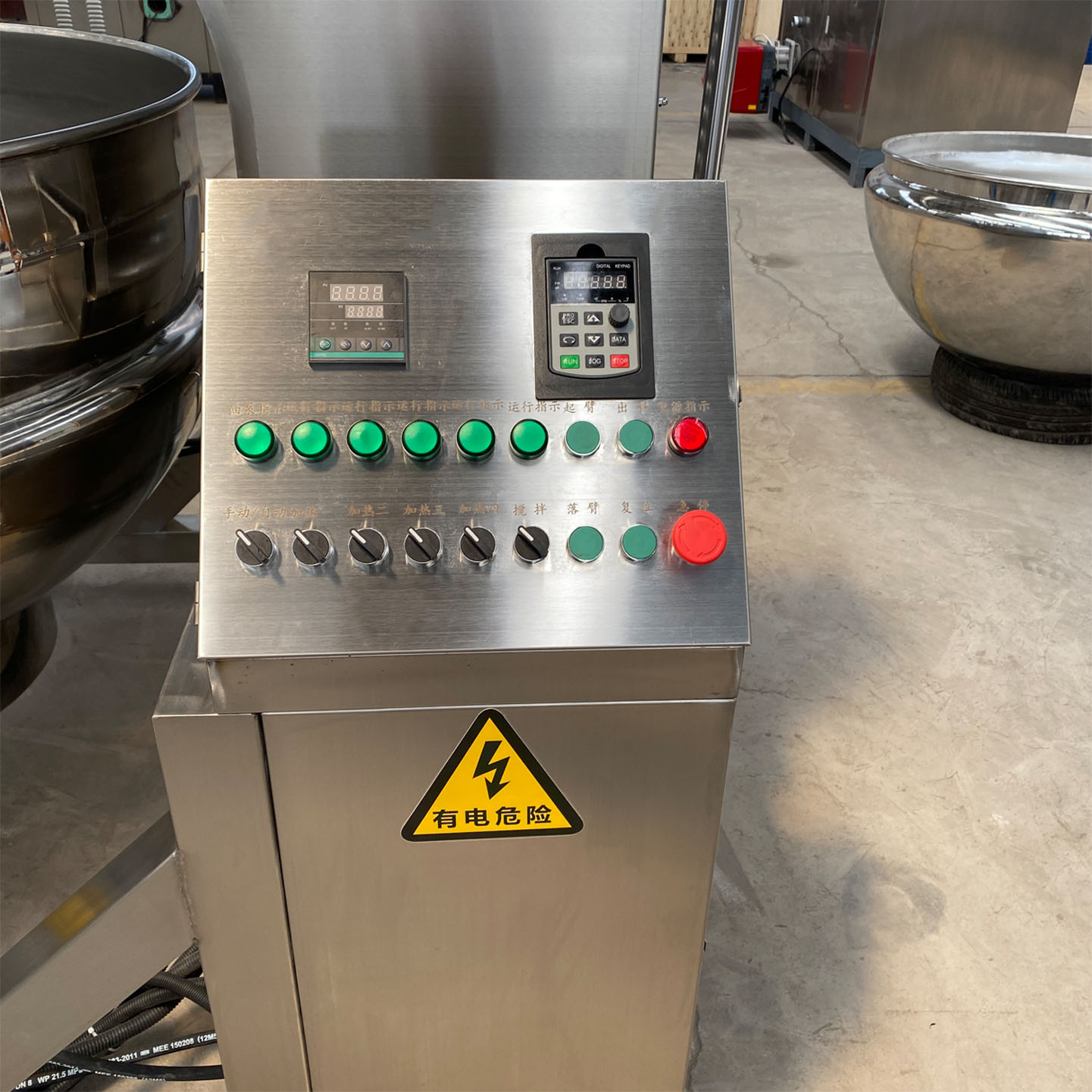

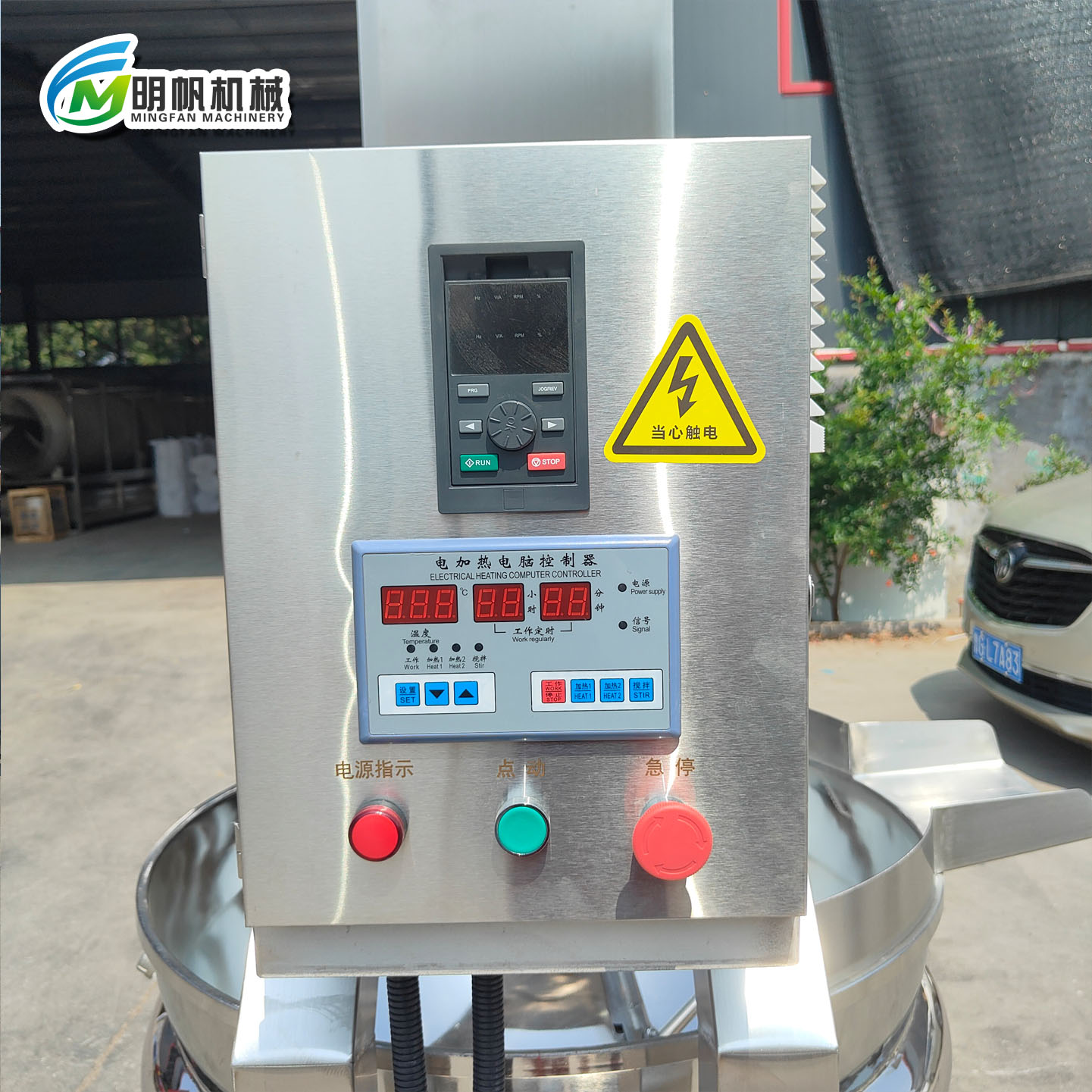

Intelligent control
Intelligent control, convenient operation and strong practicability.
Customer production case
Customer cases

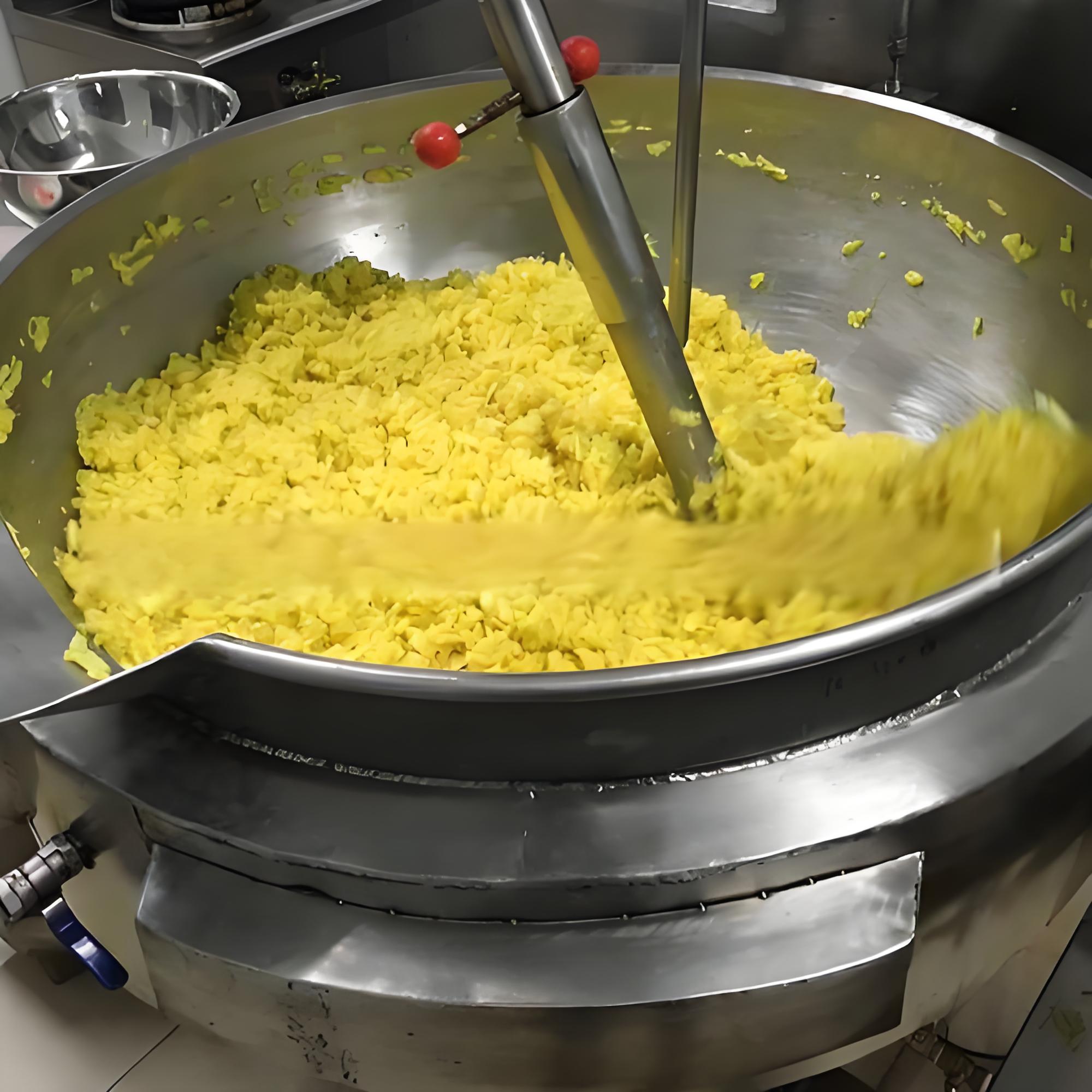

Golden fried rice
Golden fried rice

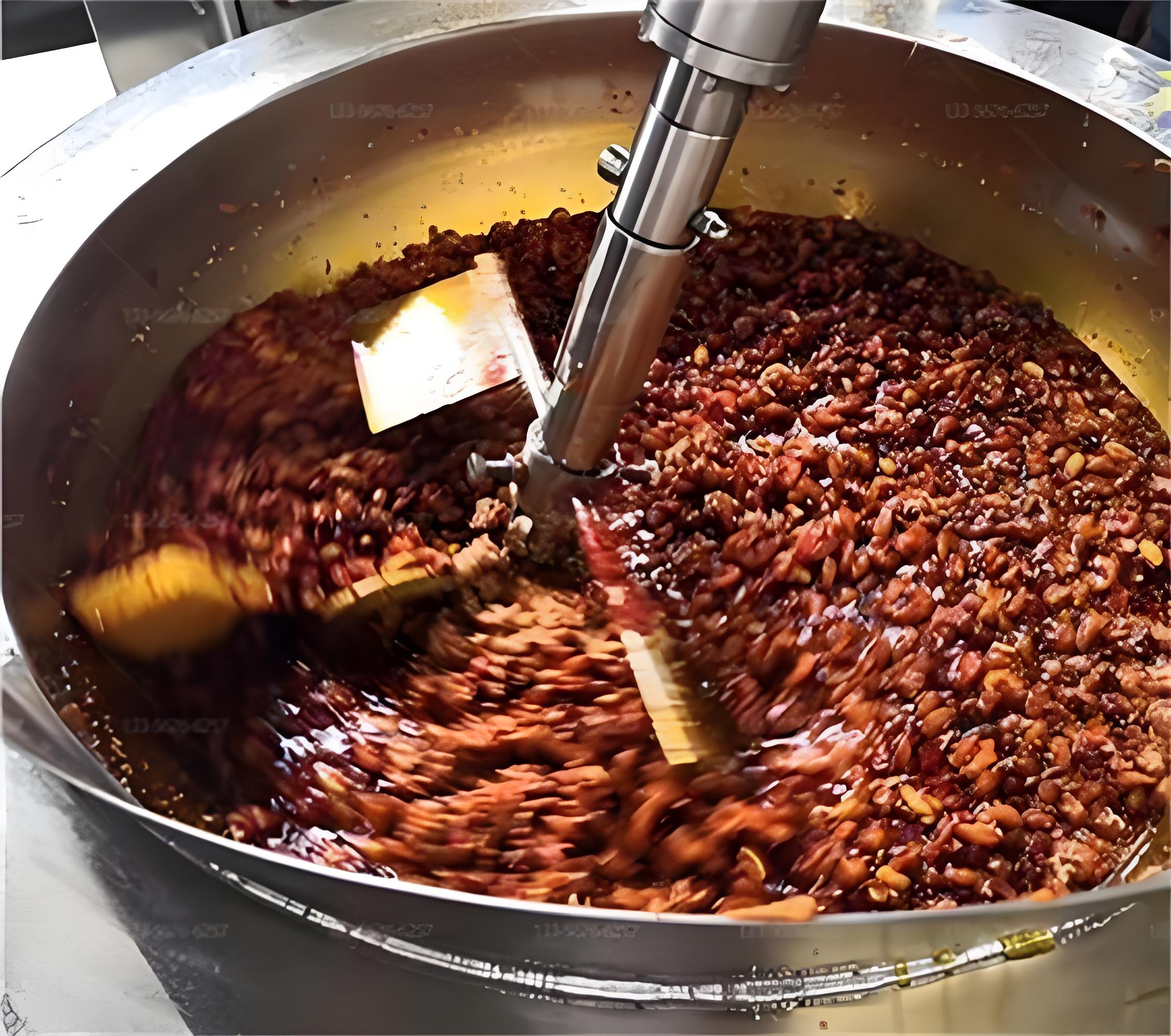

Boil sauce
Boil sauce

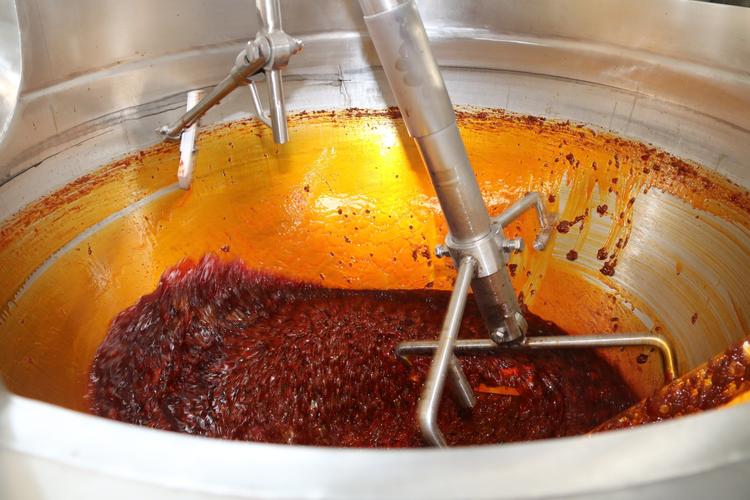

Stir-fried hotpot bottom material
Stir-fried hotpot bottom material

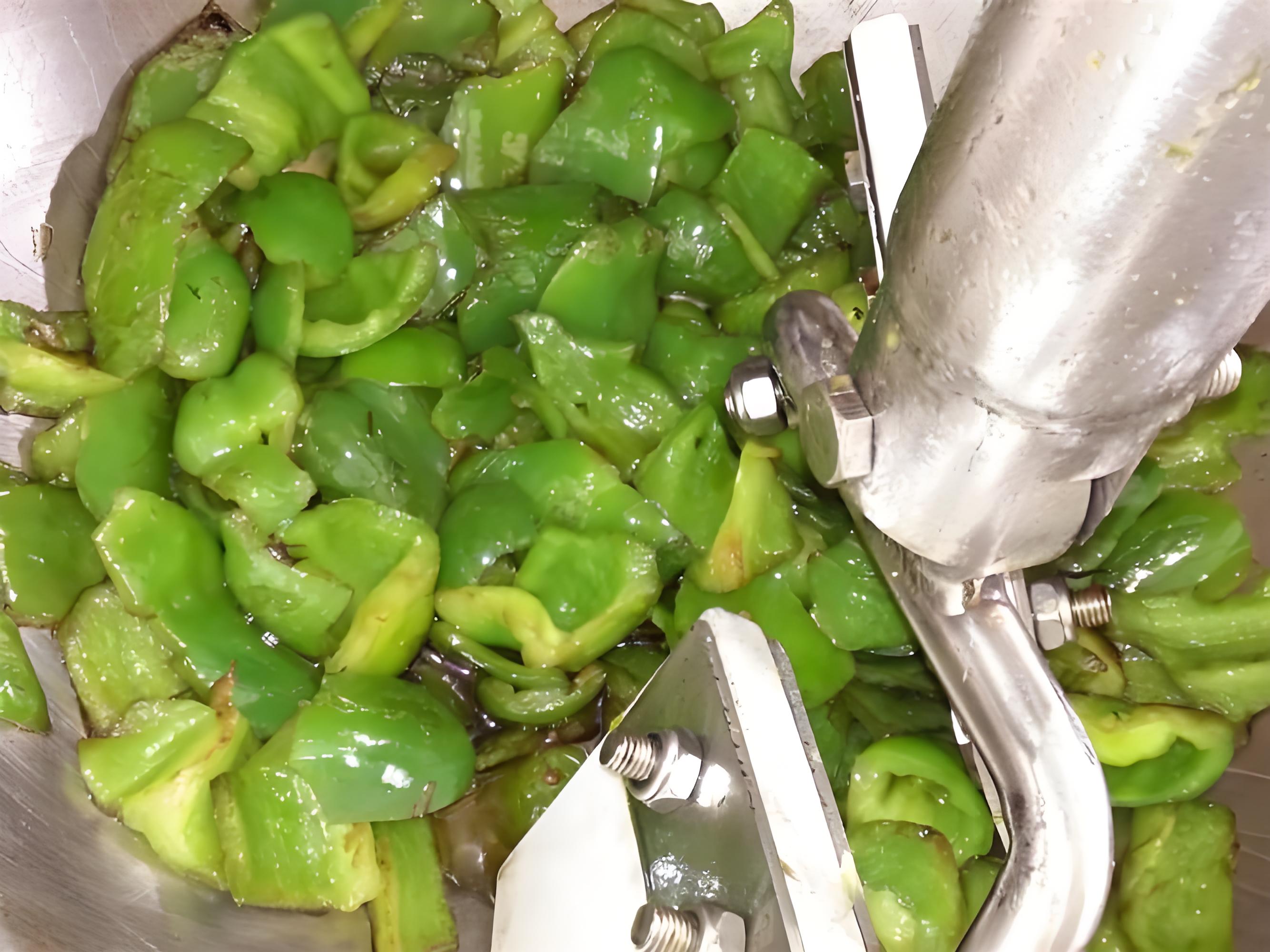

Stir-fried vegetables
Stir-fried vegetables

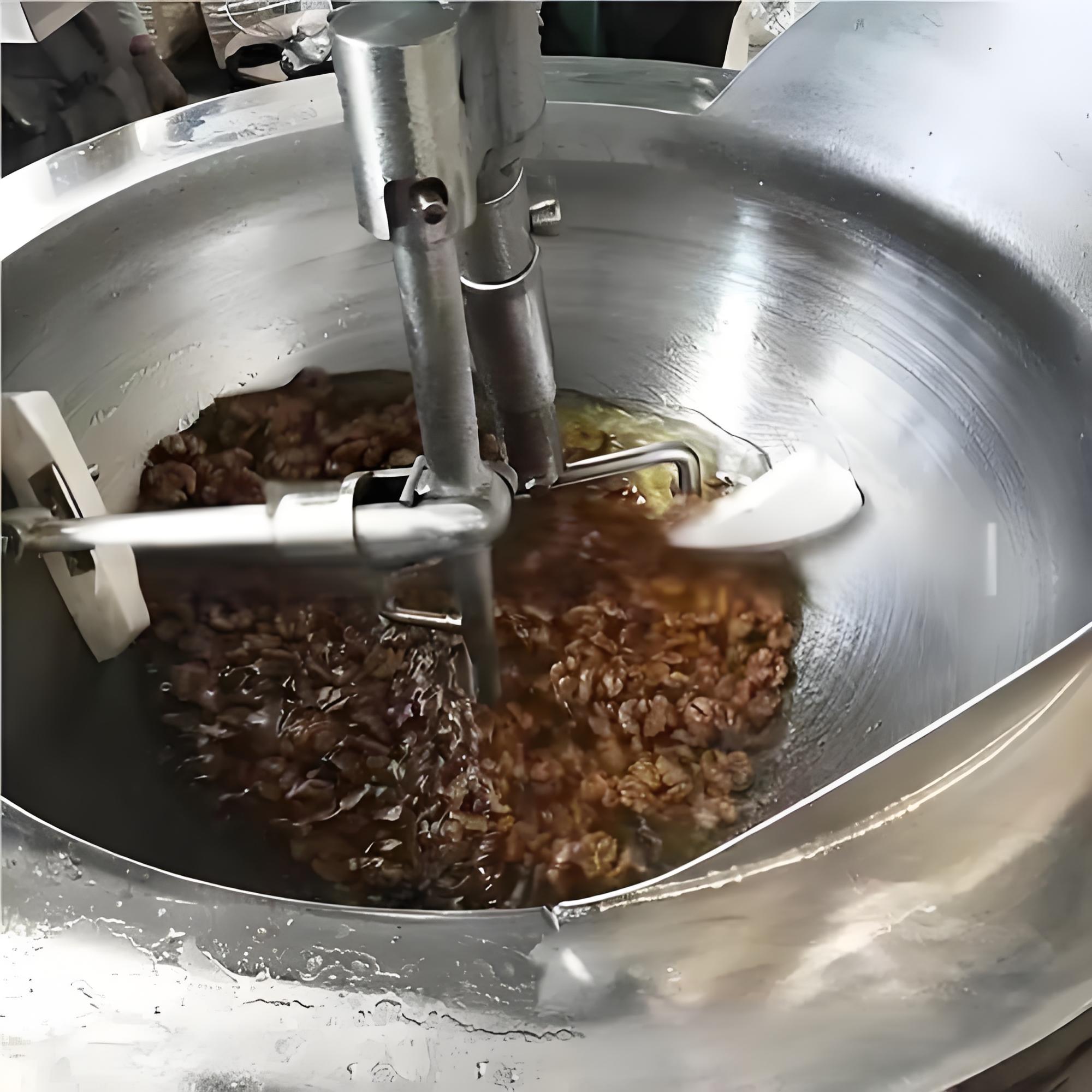

Fried nuts with sugar
Fried nuts with sugar

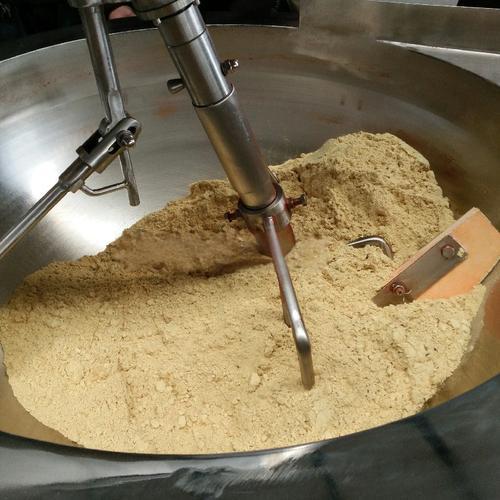

Stir-fried dry powder
Stir-fried dry powder
Product Specifications
Project MF-CG100L MF-CG200L MF-CG300L MF-CG400L MF-CG500L
Work pattern Semi-automatic / Fully automatic
Heating methods Electric heating, Gas heating, Steam heating and Electromagnetic heating
Heating power 18KW 18KW 24KW 27KW 36KW
Stirring power 1.5KW 1.5KW 2.2KW 2.2KW 3KW
Pot diameter 800mm 900mm 1000mm 1100mm 1200mm
Outline dimension 1570*1100*1580mm 1580*1680*1610mm 1660*1760*1640mm 1780*1890*1720mm 1830*2000*1780mm
Product Key Advantages
High performance
High Price-Performance Ratio
Tilting down-stirring wok solves the problems of difficult discharging and cleaning when stirring up.

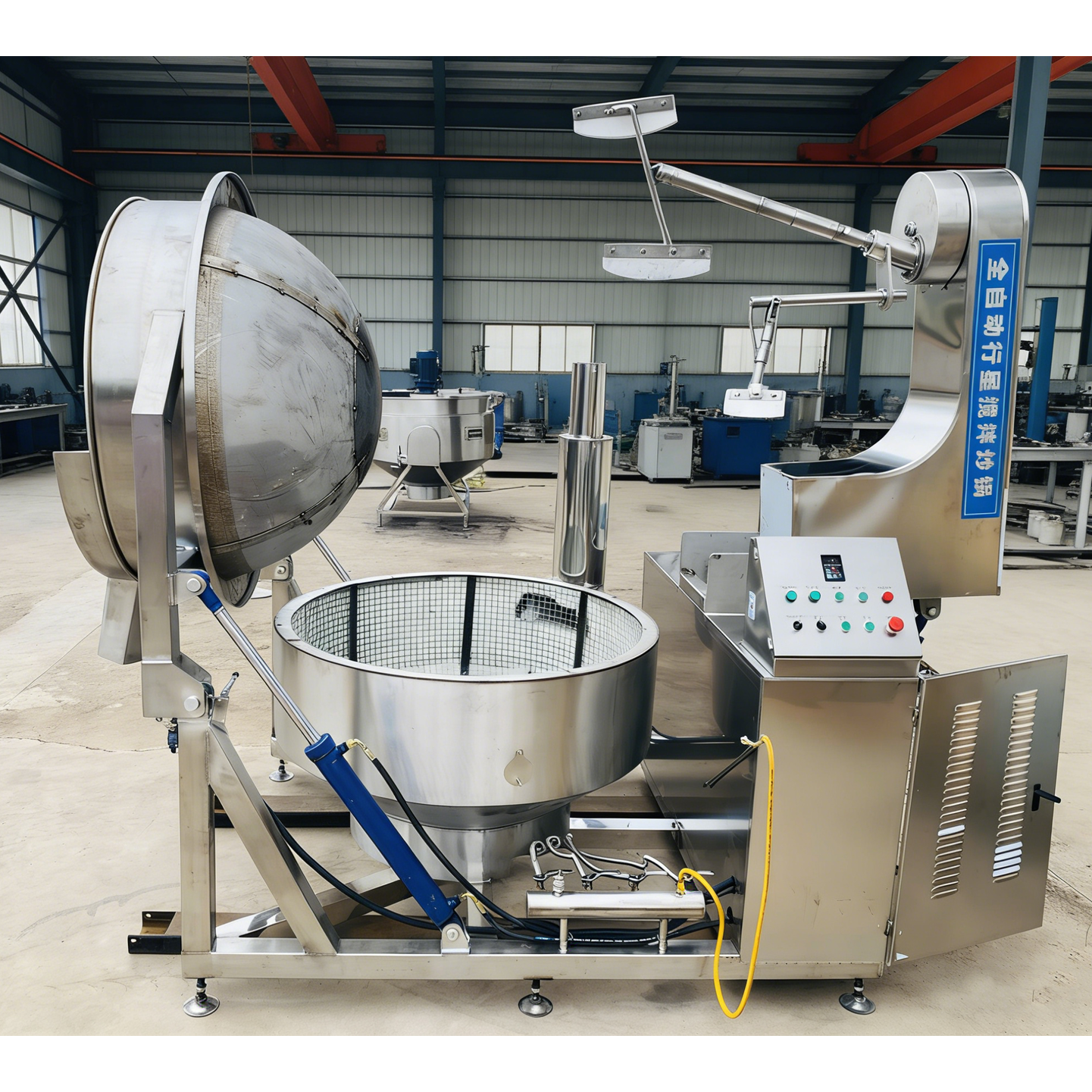

Well designed
Well-Designed Structure
The bottom and sides of the equipment are divided into three layers, with heat preservation and circulating oil circuit, which can increase the temperature quickly and save energy, thus improving the output.
Scraping system
Bottom Scraping Mixing System
It is an ideal choice for food stuffing enterprises to solve the problem that the nutritional components of high viscosity materials are not destroyed.
Discharging system
Automatic Discharging System
Using circuit control, it is more convenient to use. The pot body can be tilted at any angle, reducing labor force and improving production efficiency.

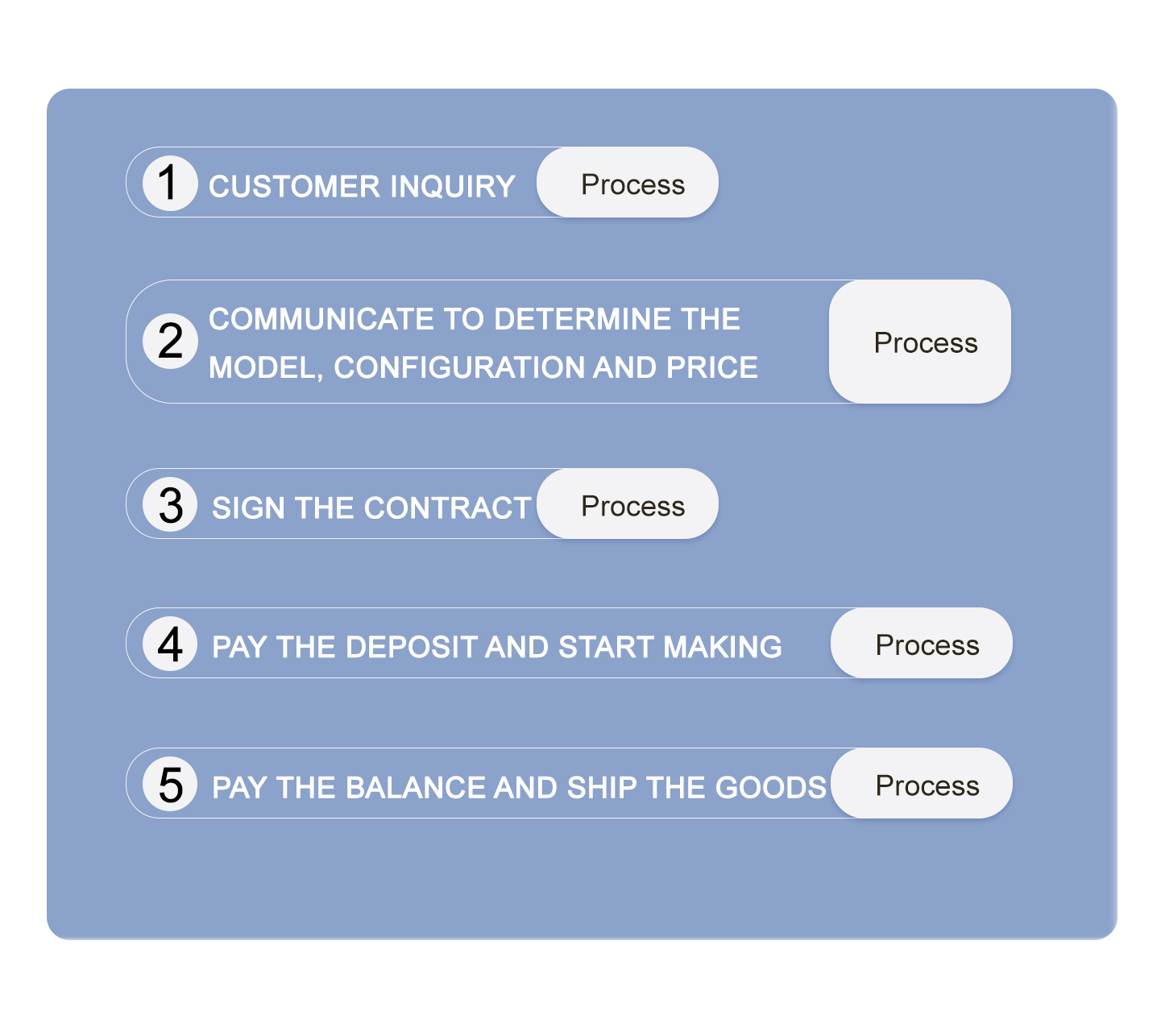

Production Process
Production Process

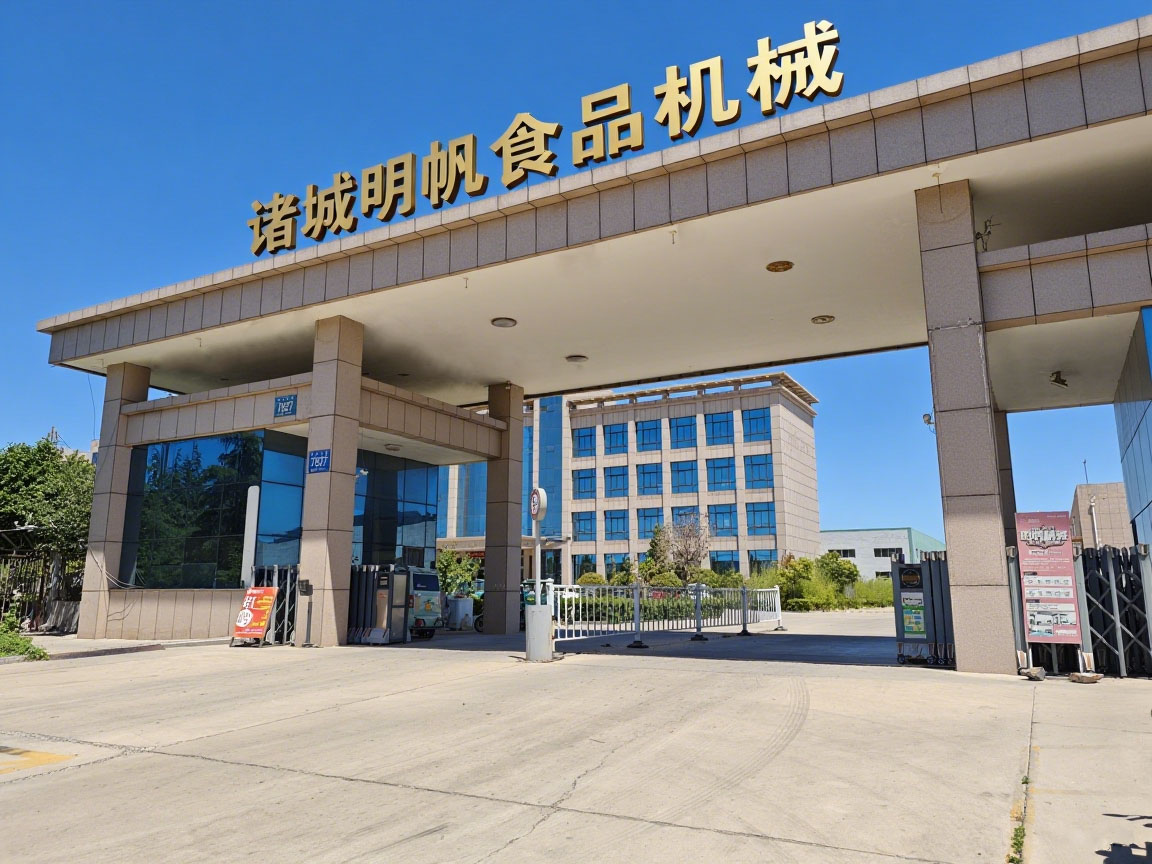

About Us
About Us
We are a comprehensive enterprise specializing in the research and development, production and sales of food machinery products. Our main products include: double-layer pots, planetary woks, smoking ovens, tumbling machines, vacuum packaging machines, sterilization pots and other meat processing equipment, bristle roller cleaning machines, air bath cleaning machines and other fruit and vegetable cleaning equipment. We can also customize food processing equipment according to customer needs. The company's equipment is complete in models, cost-effective, easy to operate and stable in quality. Provide customers with high-quality products and professional services, meeting their needs in all aspects from consultation, design to installation, commissioning and training.
Why Choose Us
Office environment
Office environment

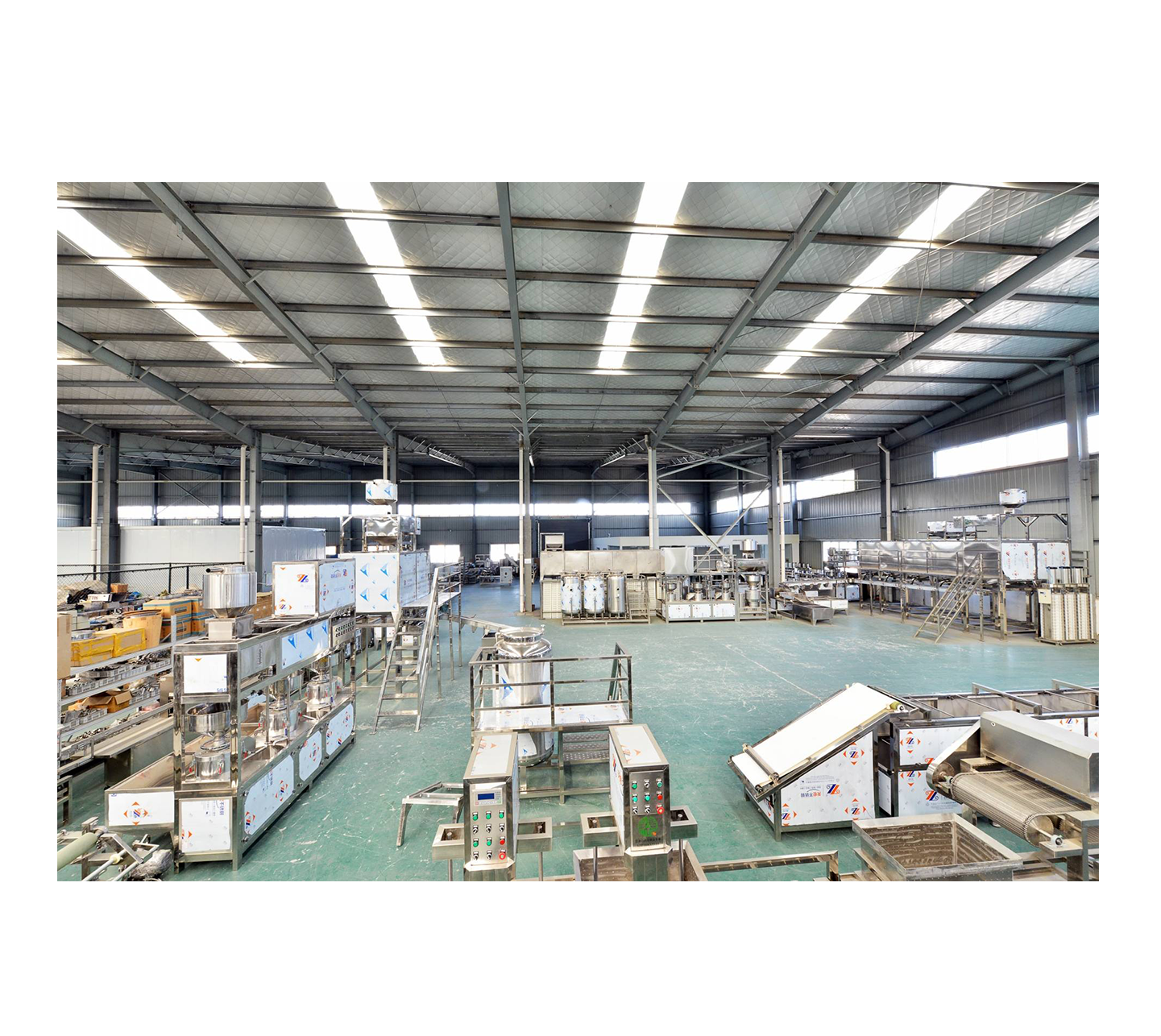

Production workshop
Production workshop

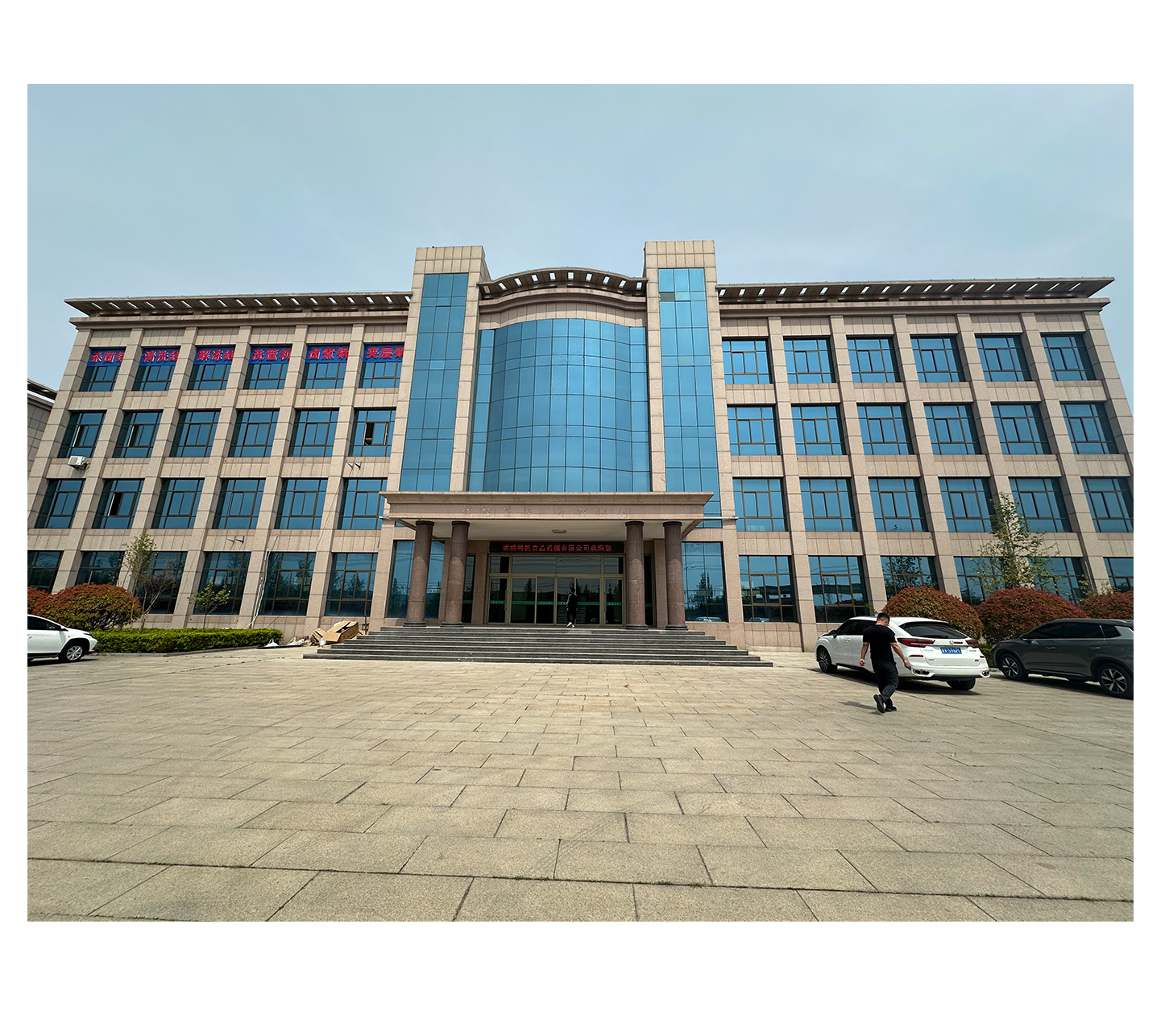

Office building
Office building
  • ✓ ISO9001 certification
  • ✓ Complies with food safety
  • ✓ Is of reliable quality, allowing customers to have no worries
Our Exhibitions
Exhibition 1
Exhibition 2
Exhibition 3
Our Advantages, Packing & Shipping
Packing 1
Packing 2
Packing 3
Shipping 1
Shipping 2
Shipping 3
Warehouse logistics banner

Big warehouse  |  Careful transportation  |  Fast delivery

FAQ banner
Frequently Asked Questions
Q1: Who are we?
We are based in Shandong Province, China, starting from 2014. Our sales market comprises Domestic Market (60.00%), Africa (15.00%), Southeast Asia (13.00%), and Mid East (12.00%). There are a total of about 11-50 people in our office.
Q2: How can we guarantee quality?
Before mass production, a pre-production sample is always tested, followed by a final inspection before shipment to ensure maximum reliability and quality.
Q3: What can you buy from us?
You can buy smoke stoves, potato chips production lines, basket washers, bubble cleaners, meat grinders, high-temperature sterilizers, double-layer pots, planetary woks, smoking ovens, tumbling machines, and vacuum packaging machines.
Q4: Why should you buy from us not from other suppliers?
We provide factory direct sales, backed by 20 years of market experience, high-quality after-sales service, and a strong price advantage.
Q5: What services can we provide?
Accepted Delivery Terms: FOB, EXW, CIF, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, M/T, L/C.
Languages Spoken: Chinese, English.
Q6: Do you support customized equipment?
Yes, we can customize food processing equipment according to customers' specific needs and production requirements.
