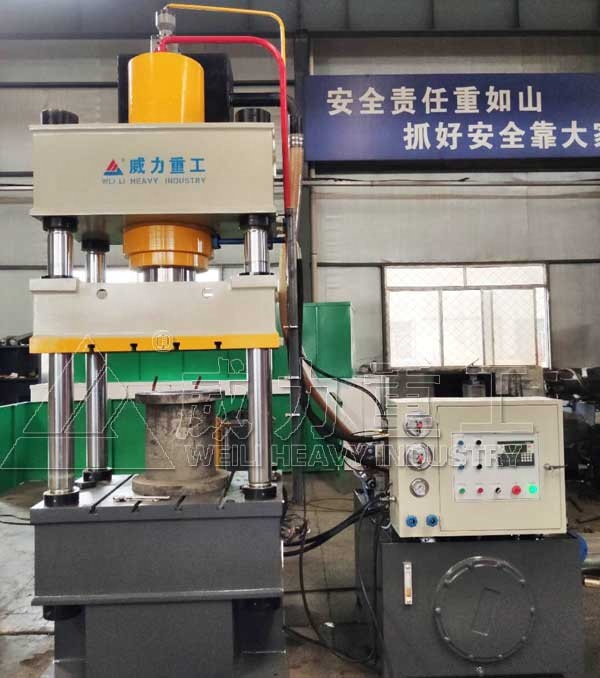

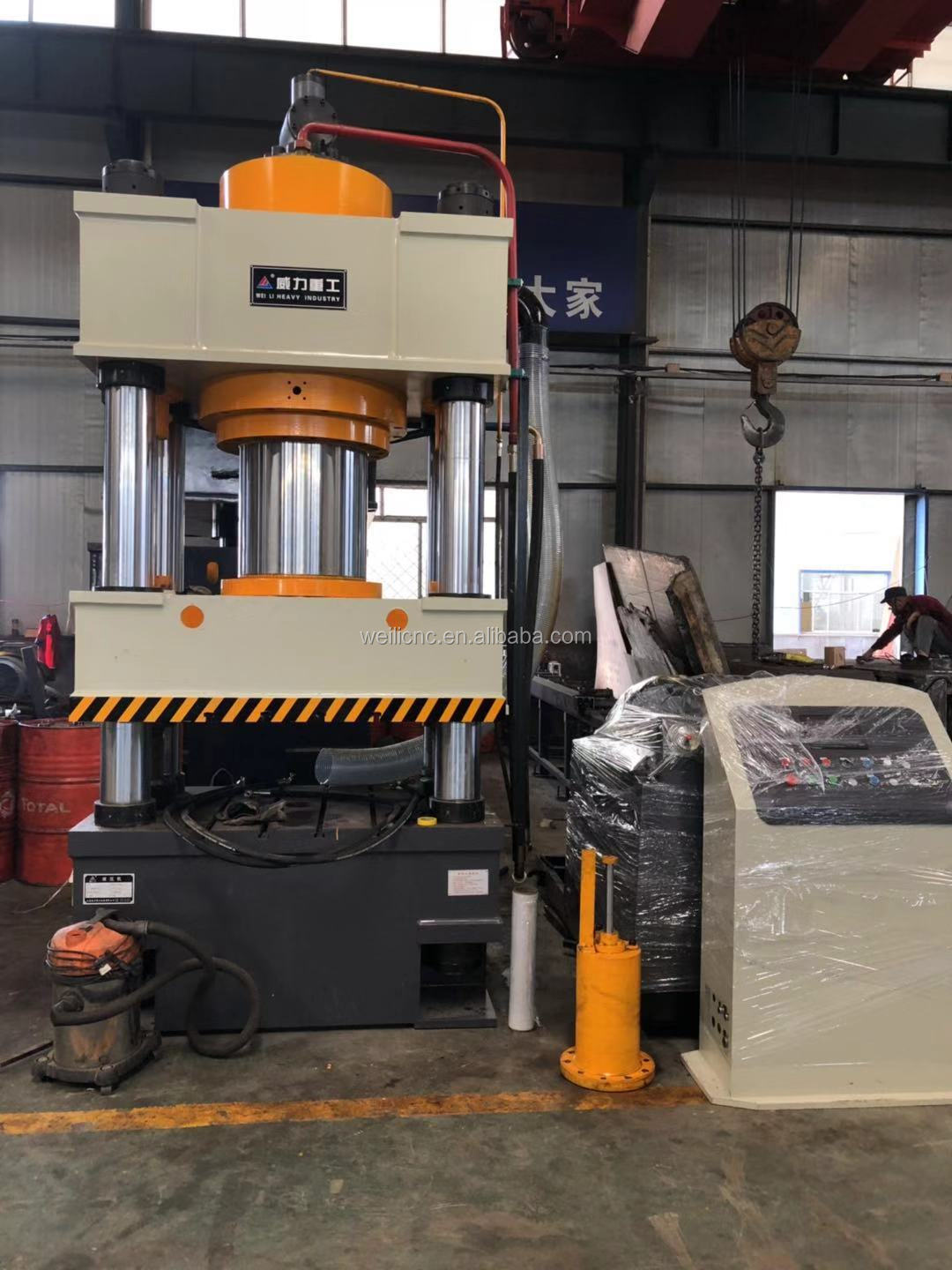

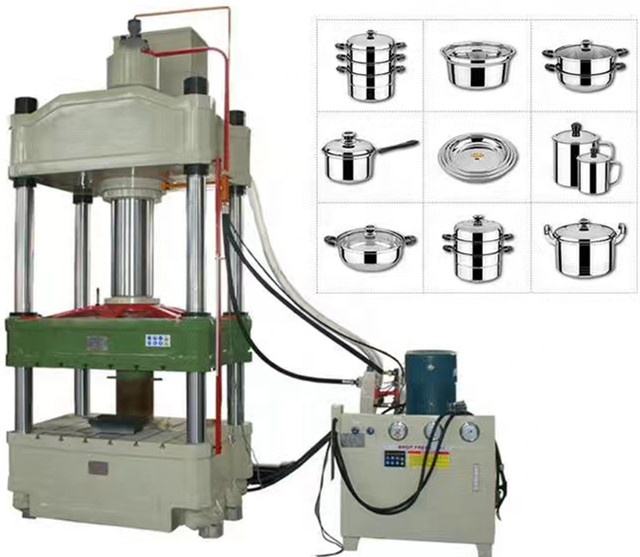

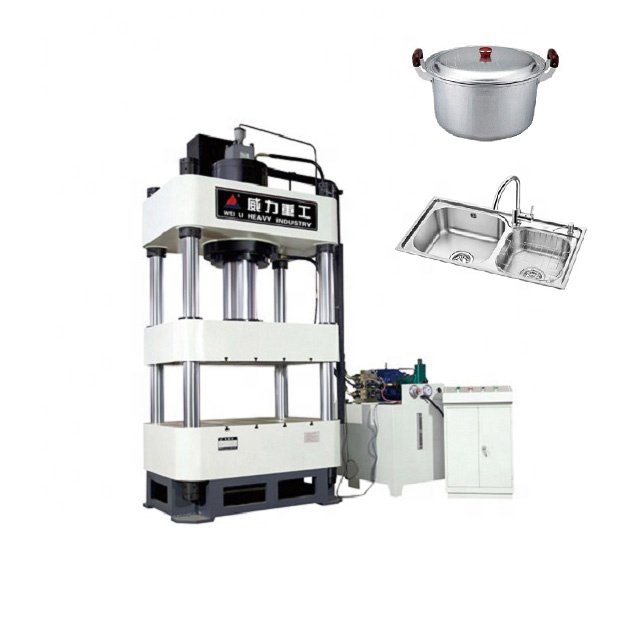

| Specification | Unit | YW27-200T Value |
|---|---|---|
| Nominal pressure | kN | 2000 |
| Liquid maximum working pressure | Mpa | 25 |
| The maximum travel oil cylinder | mm | 600 |
| The largest open | mm | 1000 |
| Effective area of the workbench (L·R) | mm | 1000 |
| Effective area of the workbench (F·B) | mm | 900 |
| Bench height | mm | 750 |
| Covers area | mm | 1600x1100 |
| The height of the machine | mm | 3800 |
| Fast forward speed | mm/s | 150-200 |
| Work into the speed | mm/s | 150-200 |
| The motor | kw | 18.5 |
| Eject force | kN | 630 |
| Ejecting stroke | mm | 250 |

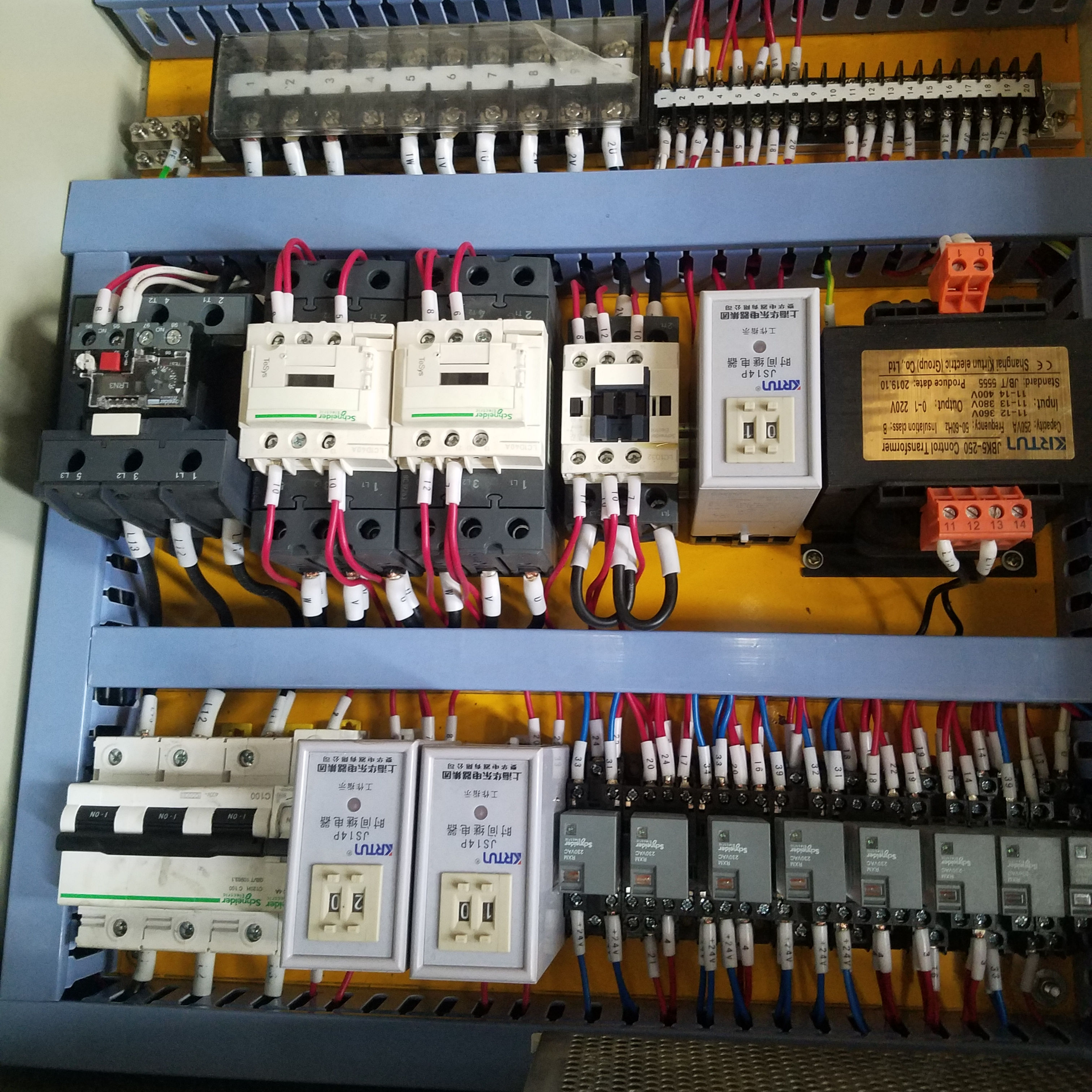

It adopts relay control (PLC optional), and it realizes electro-hydraulic control, jog, manual and semi-automatic operation modes together with hydraulic valve.

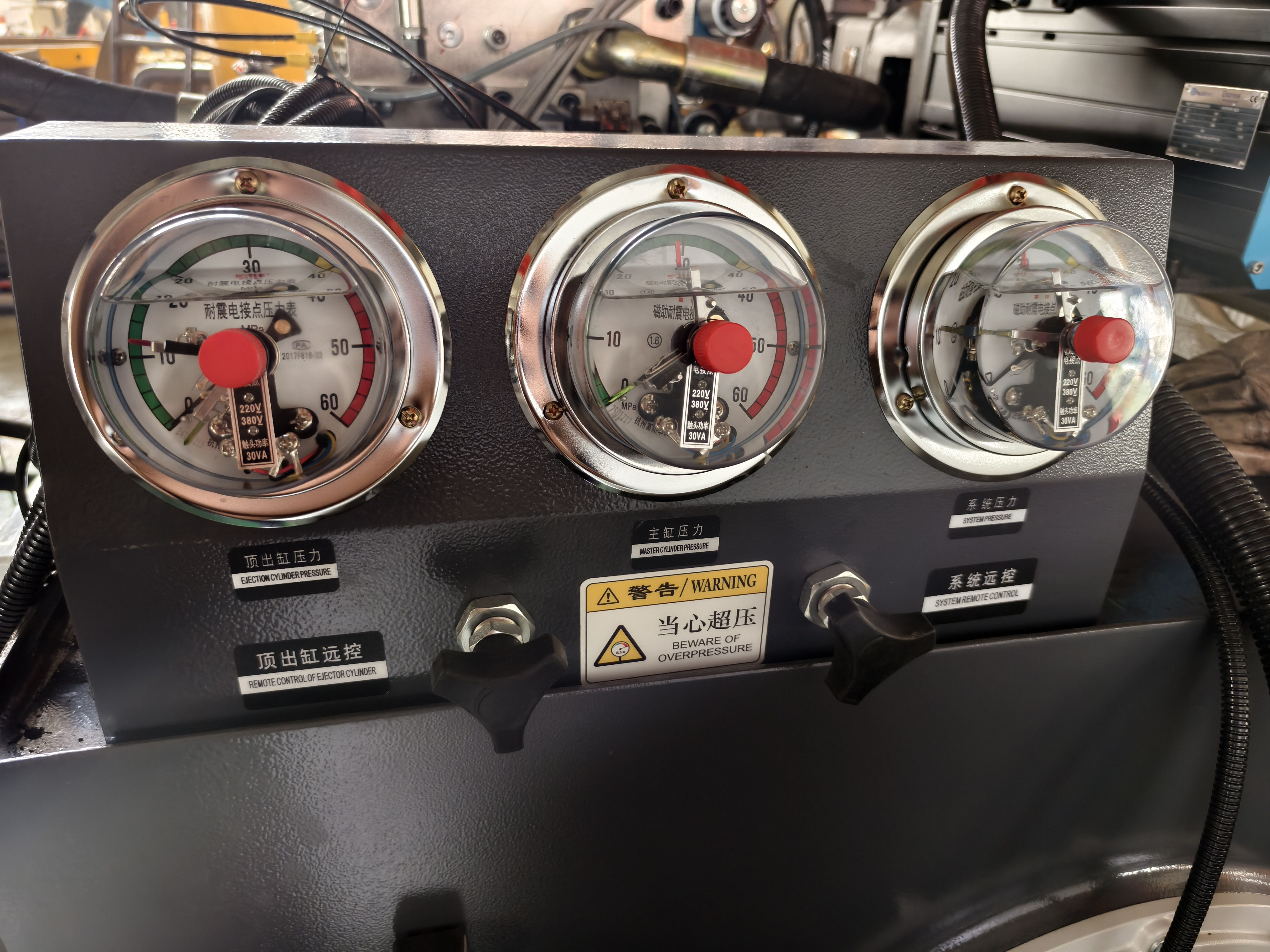

Guaranteeing the safe and efficient operation by overseeing and regulating pressure levels. It delivers precision, uniformity, and real-time pressure readings, simplifying the identification and resolution of any issues.

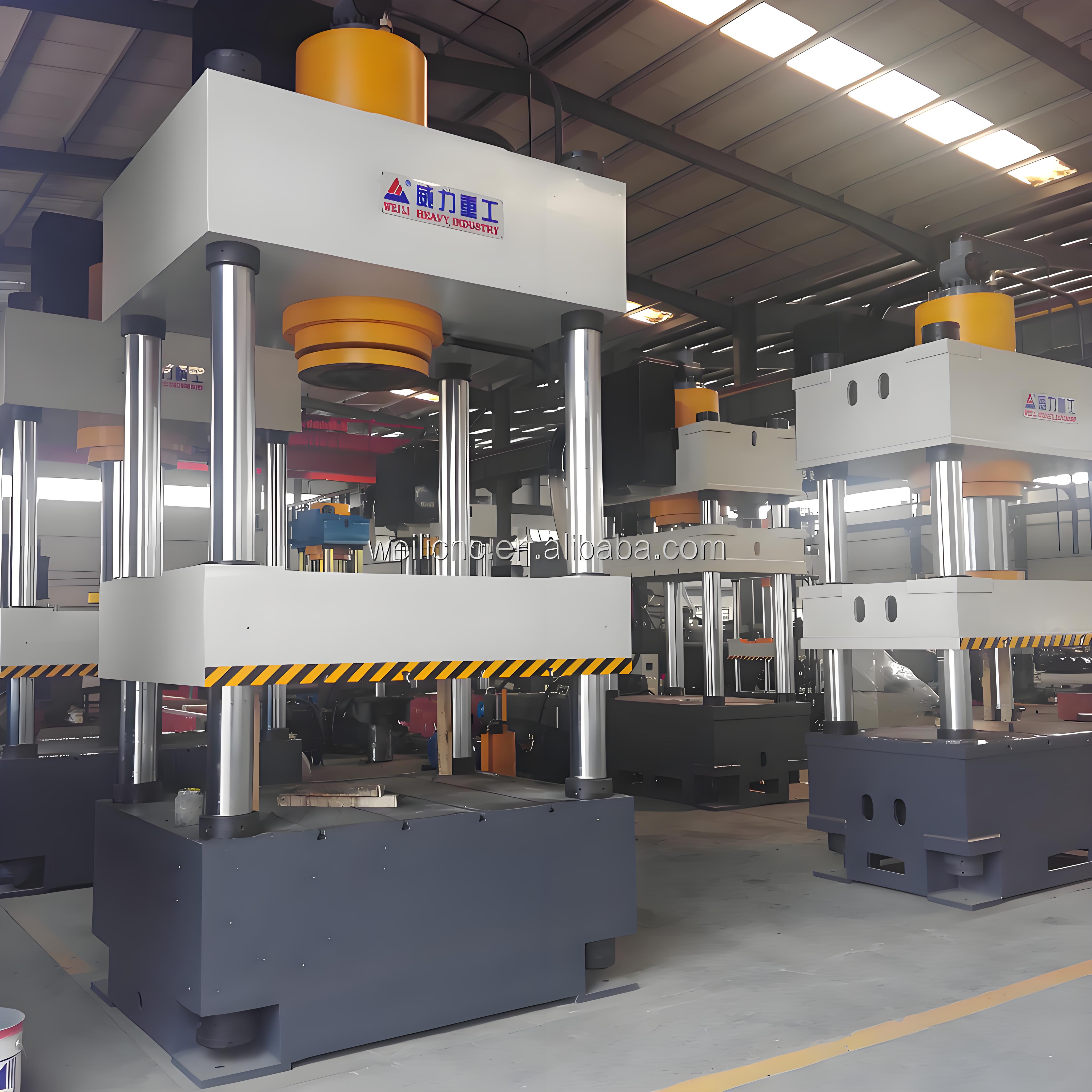

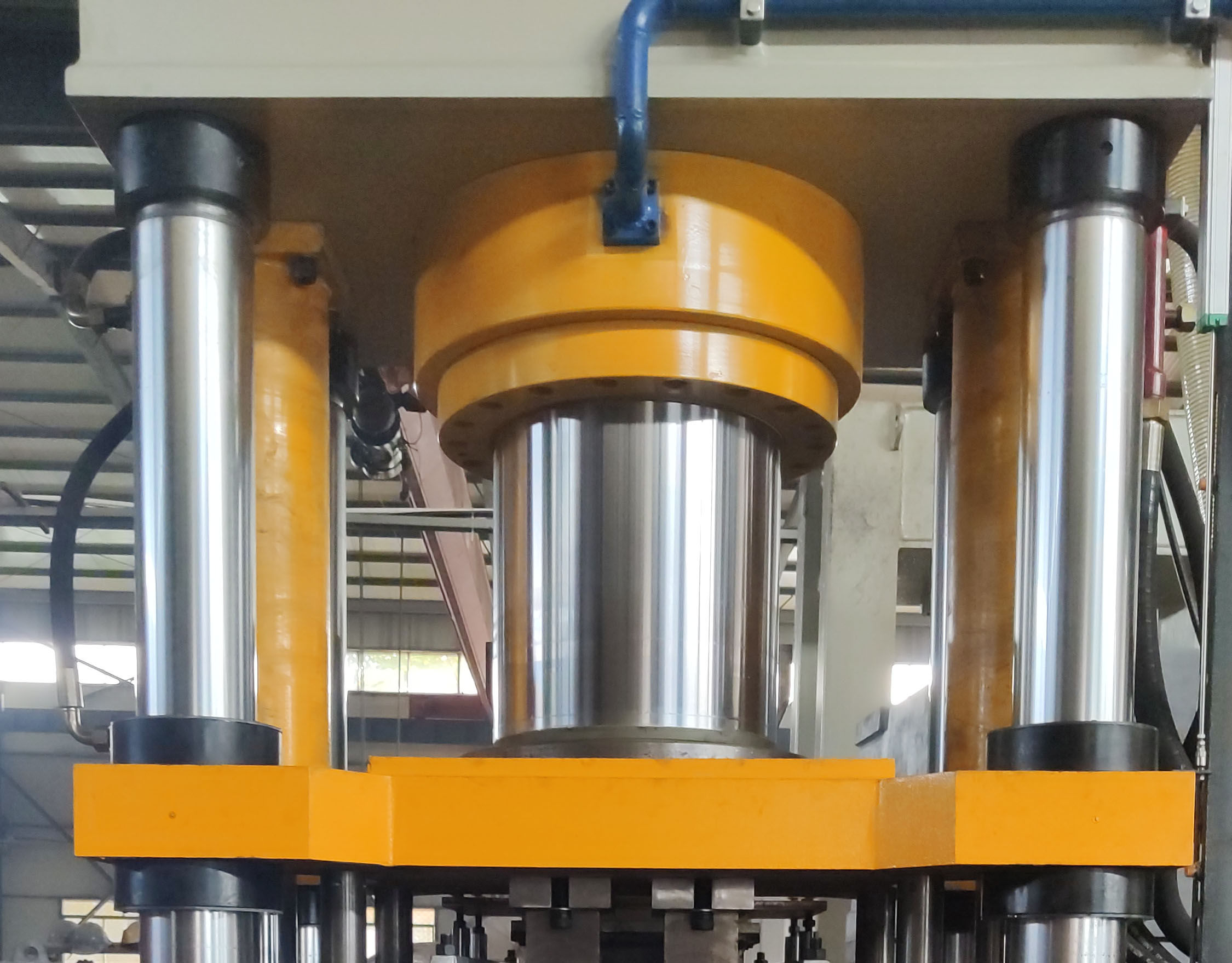

The Oil cylinder & column is made of 45 # round steel and treated with chrome plating, which has high hardness and is not easy to rust.

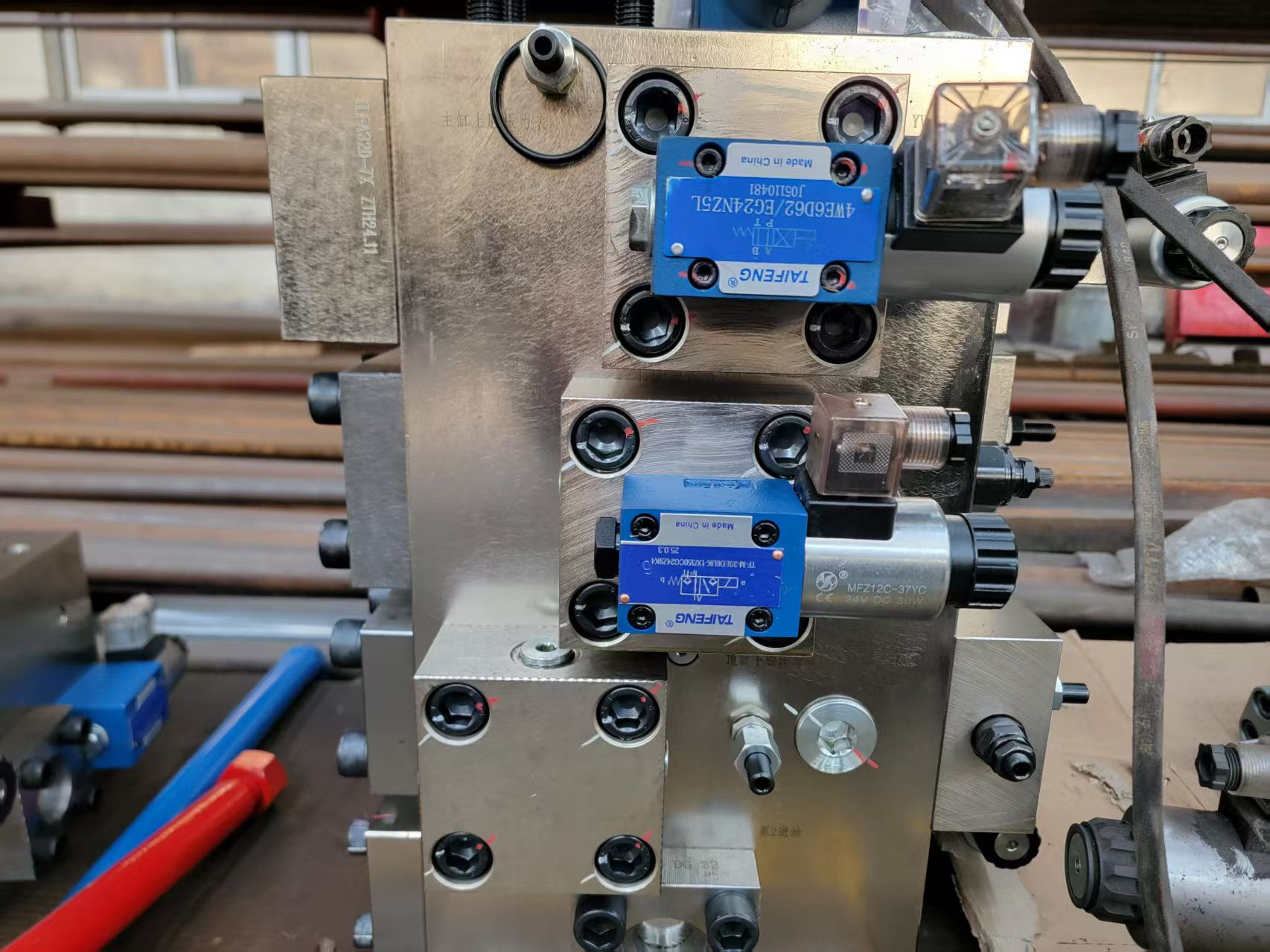

The cartridge valve is integrated into the system to reduce leakage points, reliable operation and long service life.

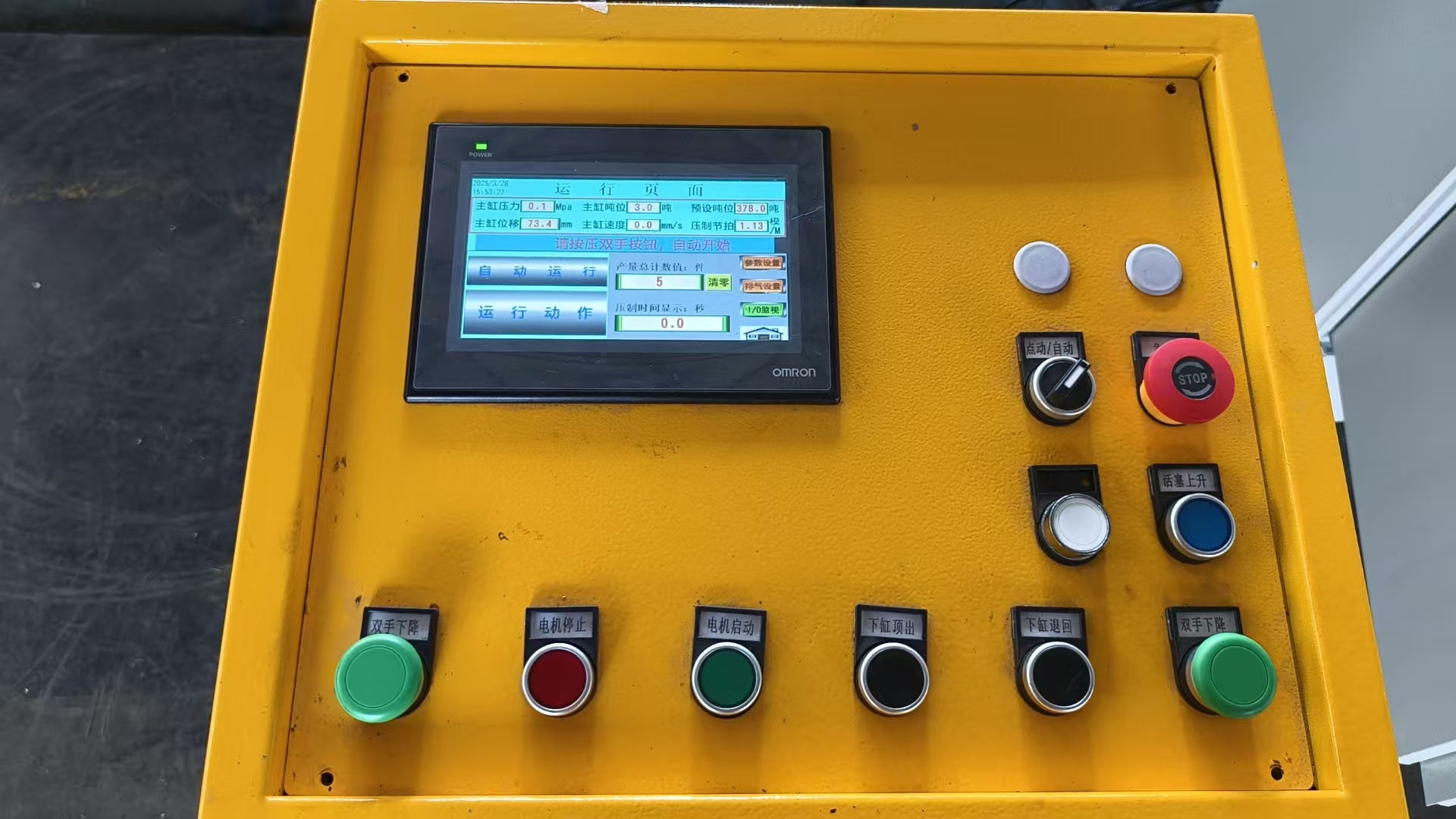

Separate hydraulic and electrical control system. Centralized control with buttons.

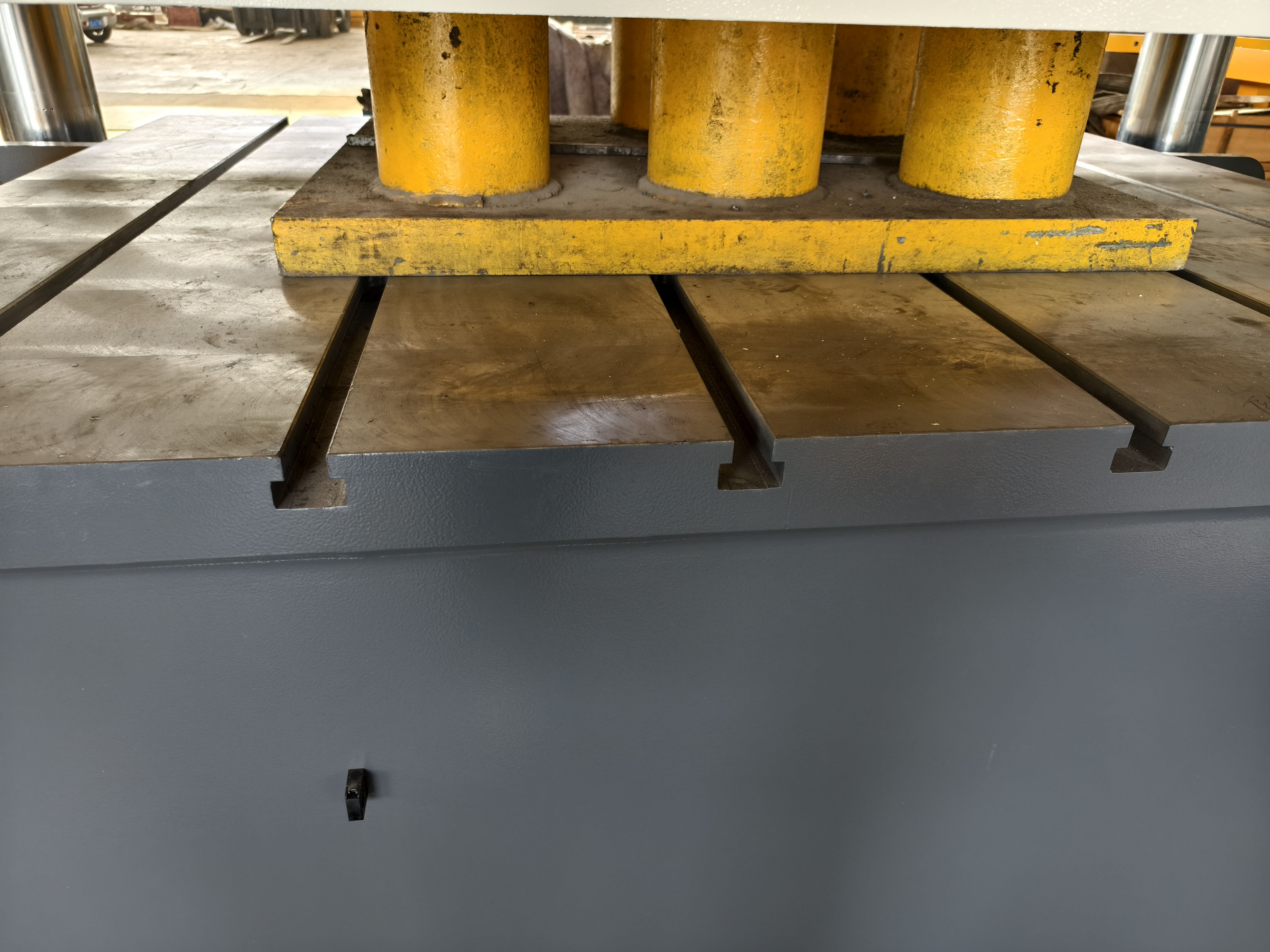

Quenching workbench, with good rigidity and T-shaped grooves on the surface, convenient for work support.
